Heat & Glo RED40-N-AU User manual

Heat & Glo • RED40-N-AU, RED40ST-N-AU • 2294-900 Rev. G • 7/14 1
Models:
RED40-N-AU
RED40ST-N-AU
Owner’s Manual
Installation and Operation
DO NOT DISCARD THIS MANUAL
NOTICE
• Leave this manual with
party responsible for use
and operation.
DO NOT
DISCARD
• Important operating
and maintenance
instructions included.
• Read,understandandfollow
these instructions for safe
installation and operation.
Ref No: GMK10107
AS4553:2008
WARNING: If the information in these
instructions is not followed exactly, a fire
or explosion may result causing property
damage, personal injury, or death.
WARNING
This appliance has been supplied with an integral barrier
to prevent direct contact with the fixed glass panel. DO
NOT operate the appliance with the barrier removed.
Contact your dealer or Hearth & Home Technologies if the
barrier is not present or help is needed to properly install one.
HOT SURFACES!
Glassand other surfacesare hot during
operation AND cool down.
Hot glass will cause burns.
• DO NOT touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
fireplace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other flammable
materials.
• DO NOT place articles on or against this appliance.
• Keep clothing, furniture, draperies and other flammable
materials away.
This is a room sealed appliance and no other ventilation is
required than what is provided.
• DO NOT USE OR STORE FLAMMABLE
MATERIALS NEAR THIS APPLIANCE.
• DO NOT SPRAYAEROSOLSINTHE VICIN-
ITY OF THIS APPLIANCE WHILE IT IS IN
OPERATION.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Immediately call your gas supplier from a
neighbor’sphone. Followthegassupplier’s
instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
by a qualified installer, service agency, or the
gas supplier. WARNING! DO NOT modify this appliance.

Heat & Glo • RED40-N-AU, RED40ST-N-AU • 2294-900 Rev. G • 7/142
Listing Label Information/Location
Model Name:___________________________________________ Date purchased/installed:__________________
Serial Number:__________________________________________ Location on fireplace:_____________________
Dealership purchased from: _______________________________ Dealer Phone: __________________________
Notes: _______________________________________________________________________________________
_____________________________________________________________________________________________
A. Congratulations
Congratulationson selecting aHeat& Glo gas fireplace,an
elegant and clean alternative to wood burning fireplaces.
TheHeat &Glogas fireplaceyouhaveselected isdesigned
to provide the utmost in safety, reliability, and efficiency.
As the owner of a new fireplace, you’ll want to read and
carefully follow all of the instructions contained in this
owner’s manual. Pay special attention to all cautions and
warnings.
This owner’s manual should be retained for future
reference. We suggest that you keep it with your other
important documents and product manuals.
The information contained in this owner’s manual, unless
noted otherwise, applies to all models and gas control
systems.
Your new Heat & Glo gas fireplace will give you years of
durable use and trouble-free enjoyment. Welcome to the
Heat & Glo family of fireplace products!
We recommend that you record the following pertinent
information about your fireplace.
Gas and Electric
Information
Serial Number
Type of Gas
The model information regarding your specific fireplace can be found on
the rating plate usually located in the control area of the fireplace.
Homeowner Reference Information
Model Number
Model:
Serial:
RED40ST-N-AU
Heat & Glo, a brand of Hearth & Home Technologies
7571 215th Street West, Lakeville, MN 55044
Certification N°: GMK10107
Injector Size:....................................................................................#34 DMS (2.8 mm)
Inlet Gas Pressure:..........................................................................................1.13 kPa
Outlet (Manifold) Gas Pressure:......................................................................0.76 kPa
Maximum Nominal Gas Consumption............................................................36.0 MJ/h
Electrical Rating......................................................................................240V 50hz 1A
This unit is designed to be recessed into framed construction.
TO BE INSTALLED ON WOOD FLOORING OR NON-COMBUSTIBLE FLOORING.
See installation manual for details.
Gas Type:
NATURAL GAS
MADEINUSA
2294-990C
RED40-N-AU
Read this manual before installing or operating this appliance.
Please retain this owner’s manual for future reference.

Heat & Glo • RED40-N-AU, RED40ST-N-AU • 2294-900 Rev. G • 7/14 3
Safety Alert Key:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided could result death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
• NOTICE: Used to address practices not related to personal injury.
Table of Contents
A. Congratulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
B. Limited Lifetime Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . 5
1 Listing and Code Approvals
A. Appliance Certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
B. Gas Pressure Requirements . . . . . . . . . . . . . . . . . . . . . . . 8
C. High Altitude Installations. . . . . . . . . . . . . . . . . . . . . . . . . . 8
D. Non-Combustible Materials Specification. . . . . . . . . . . . . . 8
E. Combustible Materials Specification . . . . . . . . . . . . . . . . . 8
F. Electrical Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
User Guide
2 Operating Instructions
A. Gas Fireplace Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
B. Your Fireplace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
C. Clear Space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
D. Decorative Doors and Fronts . . . . . . . . . . . . . . . . . . . . . . 10
E. Fixed Glass Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
F. Decorative Media Options . . . . . . . . . . . . . . . . . . . . . . . . 10
G. Remote Controls, Wall Controls and Wall Switches. . . . . 10
H. Before Lighting Fireplace . . . . . . . . . . . . . . . . . . . . . . . . . 10
I. IPI Battery Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

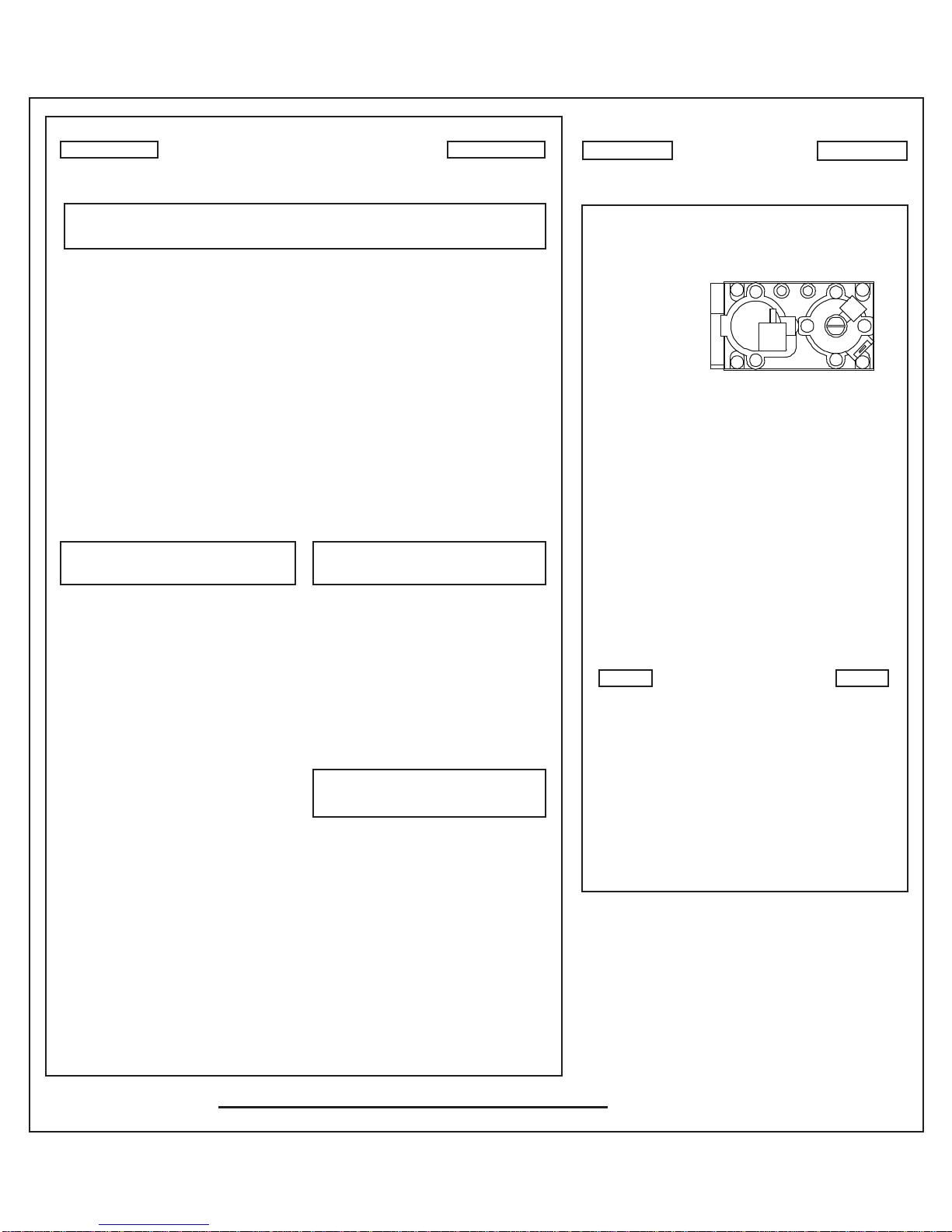

J. Lighting Instructions (IPI) . . . . . . . . . . . . . . . . . . . . . . . . . 11
K. Control Module Operation . . . . . . . . . . . . . . . . . . . . . . . . 12
L. After Fireplace is Lit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
M. FrequentlyAsked Questions . . . . . . . . . . . . . . . . . . . . . . 13
3 Maintenance and Service
A. Maintenance Tasks-Homeowner . . . . . . . . . . . . . . . . . . . 14
B. Maintenance Tasks-Qualified Service Technician . . . . . . 15
4 Getting Started
Installer Guide

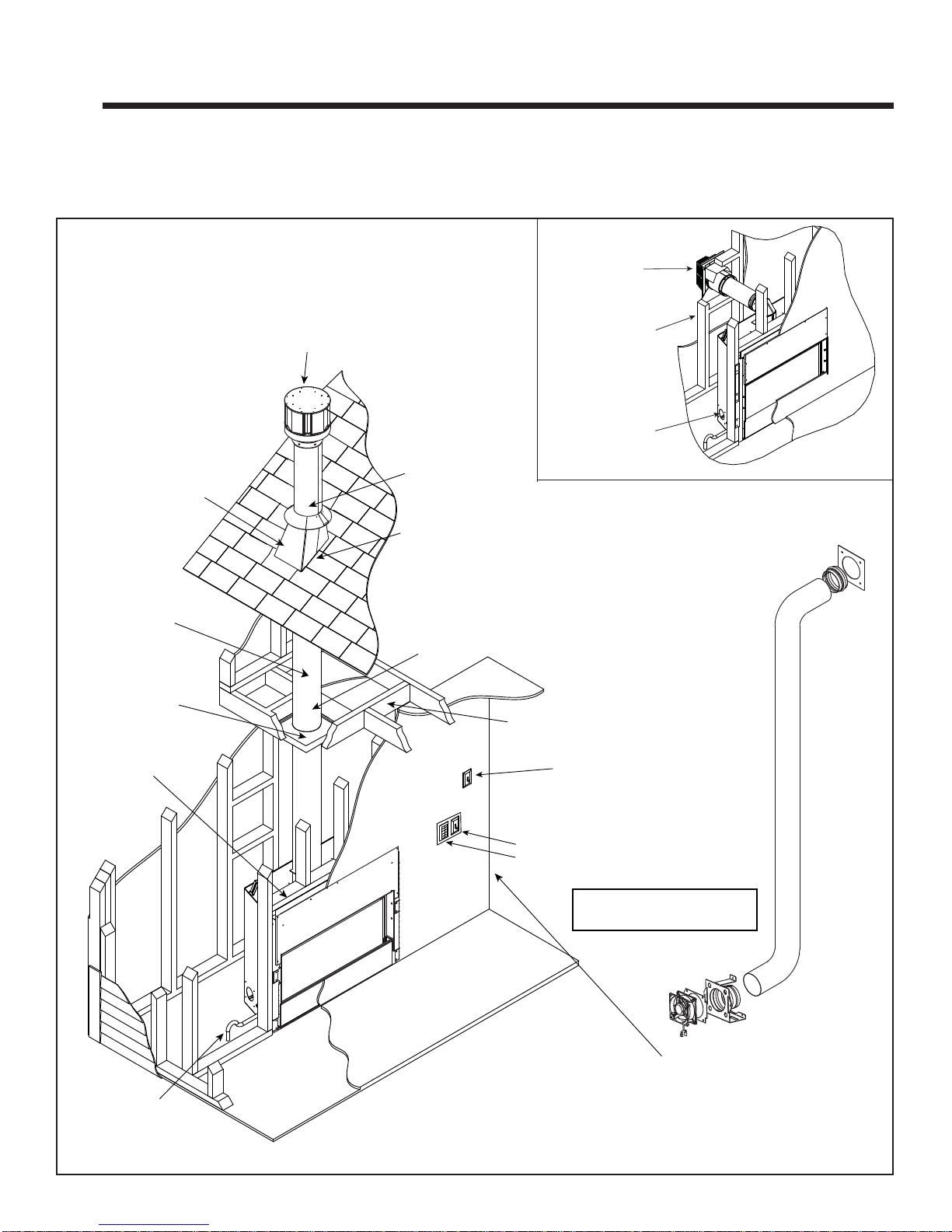

A. Typical Appliance System. . . . . . . . . . . . . . . . . . . . . . . . . 16
B. Design and Installation Considerations . . . . . . . . . . . . . . 17
C. Tools and Supplies Needed . . . . . . . . . . . . . . . . . . . . . . . 17
D. Inspect Appliance and Components. . . . . . . . . . . . . . . . . 17
5 Framing and Clearances
A. Selecting Appliance Location . . . . . . . . . . . . . . . . . . . . . . 18

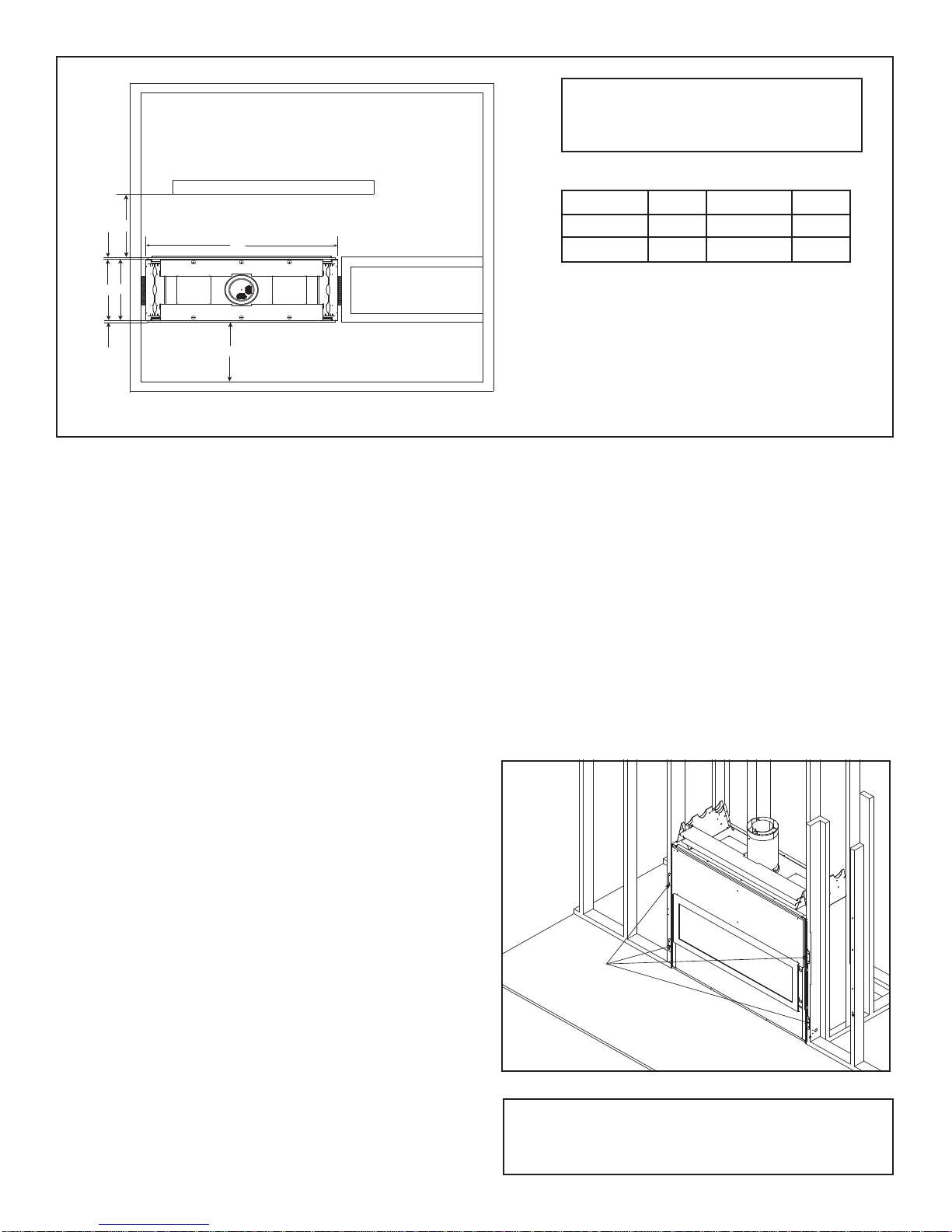

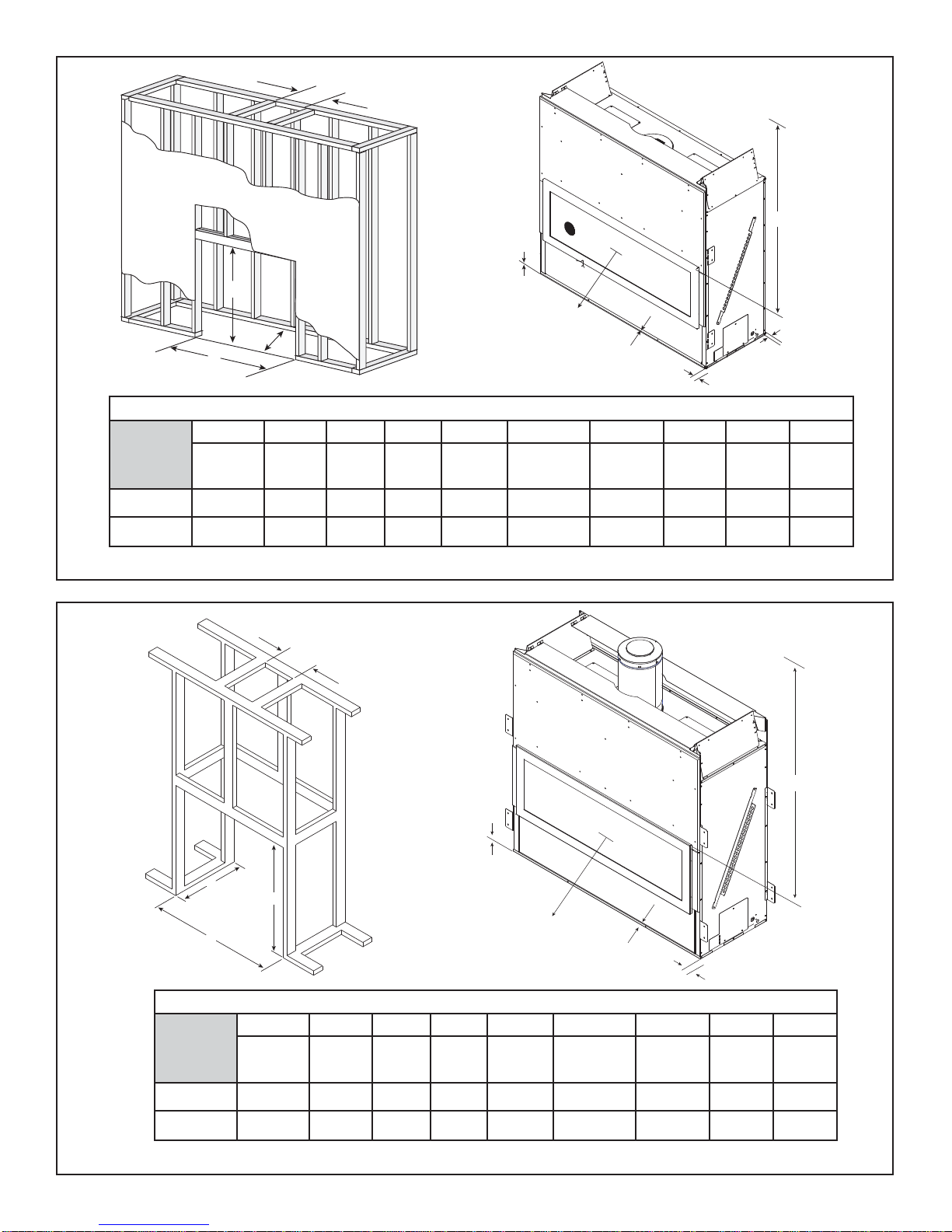

B. Constructing the Appliance Chase. . . . . . . . . . . . . . . . . . 19
C. Clearances. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
D. Mantel and Wall Projections. . . . . . . . . . . . . . . . . . . . . . . 21
6 Termination Locations
A. Vent Termination Minimum Clearances . . . . . . . . . . . . . . 22
7 Vent Information and Diagrams
A. Approved Pipe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
B. Vent Table Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
C. Use of Elbows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
D. Measuring Standards. . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
E. Vent Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
8 Vent Clearances and Framing
A. Pipe Clearances to Combustibles . . . . . . . . . . . . . . . . . . 31
B. Wall Penetration Framing. . . . . . . . . . . . . . . . . . . . . . . . . 31
C. Install the Ceiling Firestop . . . . . . . . . . . . . . . . . . . . . . . . 32
D. Install Attic Insulation Shield. . . . . . . . . . . . . . . . . . . . . . . 33
9 Appliance Preparation
A. Appliance Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
B. Securing and Leveling the Appliance. . . . . . . . . . . . . . . . 35
C. Active Convection Technology . . . . . . . . . . . . . . . . . . . . . 36
10 Installing Vent Pipe (DVP Pipe)
A. Assemble Vent Sections. . . . . . . . . . . . . . . . . . . . . . . . . . 37
B. Assemble Slip Sections . . . . . . . . . . . . . . . . . . . . . . . . . . 38
C. Secure The Vent Sections . . . . . . . . . . . . . . . . . . . . . . . . 38
D. Disassemble Vent Sections . . . . . . . . . . . . . . . . . . . . . . . 39
E. Install Decorative Ceiling Components . . . . . . . . . . . . . . 39
F. Install Metal Roof Flashing. . . . . . . . . . . . . . . . . . . . . . . . 40
G. Assemble and Install Storm Collar. . . . . . . . . . . . . . . . . . 40
H. Install Vertical Termination Cap . . . . . . . . . . . . . . . . . . . . 41
I. Heat Shield Requirements for Horizontal Termination . . . 41
J. Install Horizontal Termination Cap . . . . . . . . . . . . . . . . . . 41
11 Gas Information
A. Gas Pressure Requirements . . . . . . . . . . . . . . . . . . . . . . 42
B. Gas Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
12 Electrical Information
A. Wiring Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
B. Junction Cord Information . . . . . . . . . . . . . . . . . . . . . . . . 45
C. IntelliFire Plus™ Ignition System Wiring . . . . . . . . . . . . . 45
D. Electrical Service and Repair. . . . . . . . . . . . . . . . . . . . . . 46
E. IPI Plus Wiring Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . 47
F. Active Convection Blower Replacement . . . . . . . . . . . . . 48
G. Control Module Operation . . . . . . . . . . . . . . . . . . . . . . . . 51


Heat & Glo • RED40-N-AU, RED40ST-N-AU • 2294-900 Rev. G • 7/144
= Contains updated information.
13 Finishing
A. Splatter Guard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
B. Framing and Finishing Instructions . . . . . . . . . . . . . . . . . 57
C. Mantel and Wall Projections. . . . . . . . . . . . . . . . . . . . . . . 60
D. Facing Material. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
E. Mesh Fronts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
14 Appliance Setup
A. Remove the Shipping Materials . . . . . . . . . . . . . . . . . . . . 65
B. Clean the Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
C. Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
D. Glass or Stone Media. . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
E. Porcelain Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
F. Rock Media Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 69
G. Fixed Glass Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
H. Install the Mesh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
I. Air Shutter Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
15 Troubleshooting
A. IntelliFire Plus™ Ignition System . . . . . . . . . . . . . . . . . . . 73
B. Frequently Asked Questions/Troubleshooting . . . . . . . . . 75
16 Reference Materials
A. Appliance Dimension Diagram. . . . . . . . . . . . . . . . . . . . . 76
B. Vent Components Diagrams . . . . . . . . . . . . . . . . . . . . . . 78
C. Service Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
D. Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88


Heat & Glo • RED40-N-AU, RED40ST-N-AU • 2294-900 Rev. G • 7/14 5
AUSTRALIAN WARRANTY INFORMATION
Warranty information in the attached manual is for international markets,
not Australia. For Australian warranty information, please see below.
Hearth & Home Technologies (HHT)
7571 215th Street West, Lakeville, MN 55044
0011-1-651-345-1777
www.heatnglo.com
HHT extends the following manufacturer’s warranty for HHT gas, wood, pellet, coal and electric hearth appliances that are
purchased from an HHT authorized dealer.
HHT warrants to the original owner of the HHT appliance at the site of installation, and to any transferee taking ownership
of the appliance at the site of installation within two years following the date of original purchase, that the HHT appliance will
be free from defects in materials and workmanship at the time of manufacture.
After installation, if covered components manufactured by HHT are found to be defective in materials or workmanship during
the applicable warranty period, HHT will, at its option, repair or replace the covered components. HHT, at its own discretion,
may fully discharge all of its obligations under this manufacturer’s warranty by replacing the product itself or refunding the
YHUL¿HGSXUFKDVHSULFHRIWKHSURGXFWLWVHOI7KHPD[LPXPDPRXQWUHFRYHUDEOHXQGHUWKLVZDUUDQW\LVOLPLWHGWRWKHSXUFKDVH
price of the product. This warranty is subject to conditions, exclusions and limitations as described below.
Warranty coverage begins on the date of original purchase. In the case of new home construction, coverage under this
PDQXIDFWXUHU¶VZDUUDQW\EHJLQVRQWKHGDWHRI¿UVWRFFXSDQF\RIWKHGZHOOLQJRUVL[PRQWKVDIWHUWKHVDOHRIWKHSURGXFWE\
an independent, authorized HHT dealer/ distributor, whichever occurs earlier. The warranty period for this manufacturer’s
warranty shall commence no later than 24 months following the date of product shipment from HHT, regardless of the instal-
lation or occupancy date. The manufacturer’s warranty period for parts and labour for covered components is produced in
the following table.
7KHWHUP³/LPLWHG/LIHWLPH´LQWKHWDEOHEHORZLVGH¿QHGDV\HDUVIURPWKHEHJLQQLQJGDWHRIZDUUDQW\FRYHUDJHIRUJDV
DSSOLDQFHVDQG\HDUVIURPWKHEHJLQQLQJGDWHRIZDUUDQW\FRYHUDJHIRUZRRGSHOOHWDQGFRDODSSOLDQFHV7KHVHWLPH
SHULRGVUHÀHFWWKHPLQLPXPH[SHFWHGXVHIXOOLYHVRIWKHGHVLJQDWHGFRPSRQHQWVXQGHUQRUPDORSHUDWLQJFRQGLWLRQV
Warranty Period Heat & Glo Manufactured Appliances and Venting Components Covered
Parts Labor Gas Wood Pellet EPA
Wood Coal Electric Venting
1 Year X X X X X X X All Parts and Material Except
as covered by Conditions,
Exclusion, and Limitations listed
2 years XXX Igniters, Electronic
Components, and Glass
X X X X X Factory-installed blowers
X Molded refractory panels
3 years X Firepots and burnpots
% 3DJHRI
B. Limited Lifetime Warranty

Heat & Glo • RED40-N-AU, RED40ST-N-AU • 2294-900 Rev. G • 7/146
Warranty Period Heat & Glo Manufactured Appliances and Venting Components Covered
Parts Labor Gas Wood Pellet EPA
Wood Coal Electric Venting
\HDUV 1 years X X &DVWLQJVEDIÀHV
7 years 3 years X X X Manifold tubs HEAT & GLO
chimney and termination
\HDUV 1 year X %XUQHUVORJVDQGUHIUDFWRU\
Limited
Lifetime 3yearXXXXX Fireboxand heat exchanger
'D\V XXXXXXX
All Replacement Parts
beyond warranty period
OTHER RIGHTS
The HHT manufacturer’s warranty is in addition to other rights and remedies that you may have under Australian
law.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled
to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality
and the failure does not amount to a major failure.
WARRANTY CONDITIONS AND EXCLUSIONS:
 The HHT manufacturer’s warranty only covers HHT appliances that are purchased through an HHT authorized dealer
or distributor. A list of HHT authorized dealers is available on the HHT branded websites.
 This warranty is only valid while the HHT appliance remains at the site of original installation.
WARRANTY EXCLUSIONS:
7KLV++7PDQXIDFWXUHU¶VZDUUDQW\GRHVQRWFRYHUWKHIROORZLQJ
 &KDQJHVLQVXUIDFH¿QLVKHVDVDUHVXOWRIQRUPDOXVH$VDKHDWLQJDSSOLDQFHVRPHFKDQJHVLQFRORURILQWHULRUDQG
H[WHULRUVXUIDFH¿QLVKHVPD\RFFXU7KLVLVQRWDÀDZDQGLVQRWFRYHUHGXQGHUZDUUDQW\
 'DPDJHWRSULQWHGSODWHGRUHQDPHOOHGVXUIDFHVFDXVHGE\¿QJHUSULQWVDFFLGHQWVPLVXVHVFUDWFKHVPHOWHGLWHPV
or other external sources and residues left on the plated surfaces from the use of abrasive cleaners or polishes.
 Repair or replacement of parts that are subject to normal wear and tear during the warranty period. These parts in-
FOXGHSDLQWZRRGSHOOHWDQGFRDOJDVNHWV¿UHEULFNVJUDWHVÀDPHJXLGHVOLJKWEXOEVEDWWHULHVDQGWKHGLVFRORUDWLRQ
of glass.
 Minor expansion, contraction, or movement of certain parts causing noise. These conditions are normal and com-
plaints related to this noise are not covered by this warranty.
 'DPDJHVUHVXOWLQJIURPIDLOXUHWRLQVWDOORSHUDWHRUPDLQWDLQWKHDSSOLDQFHLQDFFRUGDQFHZLWKWKHLQVWDOODWLRQ
LQVWUXFWLRQVRSHUDWLQJLQVWUXFWLRQVDQGOLVWLQJDJHQWLGHQWL¿FDWLRQODEHOIXUQLVKHGZLWKWKHDSSOLDQFHIDLOXUHWRLQ-
VWDOOWKHDSSOLDQFHLQDFFRUGDQFHZLWKORFDOEXLOGLQJFRGHVVKLSSLQJRULPSURSHUKDQGOLQJLPSURSHURSHUDWLRQ
abuse, misuse, continued operation with damaged, corroded or failed components, accident, or improperly/incorrectly
SHUIRUPHGUHSDLUVHQYLURQPHQWDOFRQGLWLRQVLQDGHTXDWHYHQWLODWLRQQHJDWLYHSUHVVXUHRUGUDIWLQJFDXVHGE\
WLJKWO\VHDOHGFRQVWUXFWLRQVLQVXI¿FLHQWPDNHXSDLUVXSSO\RUKDQGOLQJGHYLFHVVXFKDVH[KDXVWIDQVRUIRUFHGDLUIXU-
QDFHVRURWKHUVXFKFDXVHVXVHRIIXHOVRWKHUWKDQWKRVHVSHFL¿HGLQWKHRSHUDWLQJLQVWUXFWLRQVLQVWDOODWLRQRU
use of components not supplied with the appliance or any other components not expressly authorized and approved
E\++7PRGL¿FDWLRQRIWKHDSSOLDQFHQRWH[SUHVVO\DXWKRUL]HGDQGDSSURYHGE\++7LQZULWLQJDQGRULQWHUUXS-
WLRQVRUÀXFWXDWLRQVRIHOHFWULFDOSRZHUVXSSO\WRWKHDSSOLDQFH
% 3DJHRI

Heat & Glo • RED40-N-AU, RED40ST-N-AU • 2294-900 Rev. G • 7/14 7
 Non Heat & Glo venting components, hearth components or other accessories used in conjunction with the appliance.
 $Q\SDUWRIDSUHH[LVWLQJ¿UHSODFHV\VWHPLQZKLFKDQLQVHUWRUDGHFRUDWLYHJDVDSSOLDQFHLVLQVWDOOHG
 Removal, installation, reinstallation, set up or any other costs associated with a claim including travel and shipping
charges for parts
 HHT’s obligation under this warranty does not extend to the appliance’s capability to heat the desired space. Informa-
tion is provided to assist the consumer and the dealer in selecting the proper appliance for the application. Consider-
DWLRQPXVWEHJLYHQWRDSSOLDQFHORFDWLRQDQGFRQ¿JXUDWLRQHQYLURQPHQWDOFRQGLWLRQVLQVXODWLRQDQGDLUWLJKWQHVVRI
the structure.
This warranty is void if:
 7KHDSSOLDQFHKDVEHHQRYHU¿UHGRURSHUDWHGLQDWPRVSKHUHVFRQWDPLQDWHGE\FKORULQHÀXRULQHRURWKHUGDPDJLQJ
FKHPLFDOV2YHU¿ULQJFDQEHLGHQWL¿HGE\EXWQRWOLPLWHGWRZDUSHGSODWHVRUWXEHVUXVWFRORUHGFDVWLURQEXEEOLQJ
FUDFNLQJDQGGLVFRORUDWLRQRIVWHHORUHQDPHO¿QLVKHV
 The appliance is subjected to prolonged periods of dampness or condensation.
There is any damage to the appliance or other components due to water or weather damage which is the result of, but not
limited to, improper chimney or venting installation.
HOW TO CLAIM
 To make a claim against this warranty, contact your local distributor during regular business hours. See addresses
EHORZIRUDGHDOHUQHDUHVW\RX9LF3W\/WG$&1-HWPDVWHU
 Additional service fees may apply if you are seeking warranty service from a dealer other than the dealer from whom
you originally purchased the product.
 &KHFNZLWK-HWPDVWHULQDGYDQFHIRUDQ\FRVWVWR\RXZKHQDUUDQJLQJDZDUUDQW\FDOO7UDYHODQGVKLSSLQJFKDUJHVIRU
parts are not covered by this manufacturers’ warranty.
 ++7DQG-HWPDVWHUZLOODVVHVV\RXUFODLP++7RU-HWPDVWHUPD\QHHGWRLQVSHFWWKHSURGXFWDVSDUWRIWKHDVVHVV-
PHQWRI\RXUFODLP,IWKHSURGXFWUHTXLUHVLQVSHFWLRQ++7RU-HWPDVWHUZLOOGLVFXVVZLWK\RXWKHEHVWZD\IRUWKLVWR
occur.
 To make a claim under this manufacturer’s warranty, you must be able to prove when you purchased the product. The
easiest way to do this is through your original proof of purchase, for example your invoice or receipt. However, if you
GRQRWKDYH\RXURULJLQDOSURRIRISXUFKDVH++7RU-HWPDVWHUPD\DFFHSWRWKHUHYLGHQFHRIWKHGDWHRISXUFKDVH
Melbourne
-HWPDVWHU
444 Swan Street
Richmond 3121

Perth
Fireplace Corner
277 Lord Street
(DVW3HUWK

Sydney
-HWPDVWHU
0DUWLQ$YHQXH
$UQFOLII

% 3DJHRI

Heat & Glo • RED40-N-AU, RED40ST-N-AU • 2294-900 Rev. G • 7/148
1
1 Listing and Code Approvals
Primary Aeration Setting - Natural Gas Primary Aeration Setting - Propane
Media 9.5 mm Full Open
Stones/Pebbles 9.5 mm Full Open
A. Appliance Certification C. High Altitude Installations
NOTICE: Iftheheating value of the gas has been reduced,
these rules do not apply. Check with your local gas utility
or authorities having jurisdiction.
When installing above 2000 ft. (610 m) elevation:
Reduce input rate 4% for each 1000 ft. (305 m) above
2000 ft. (610 m).
D. Non-Combustible Materials Specification
Material which will not ignite and burn. Such materials are
those consisting entirely of steel, iron, brick, tile, concrete,
slate, glass or plasters, or any combination thereof.
Materials that are reported as passing ASTM E 136,
Standard Test Method for Behavior of Materials in a
Vertical Tube Furnace at 750 ºC (1382 °F) and UL763
shall be considered non-combustible materials.
E. Combustible Materials Specification
Materials made of or surfaced with wood, compressed pa-
per, plant fibers, plastics, or other material that can ignite
and burn, whether flame proofed or not, or plastered or
unplastered shall be considered combustible materials.
F. Electrical Codes
All electrical safety testing has been done following the EN
60335-2-102 standard. Local codes apply.
MODELS: RED40-N-AU, RED40ST-N-AU
CERTIFIED BY: IAPMO
TYPE: Gas Fireplace
STANDARD: AS4553:2008
The Heat & Glo gas appliances discussed in this Installer’s
Guide have been tested to certification standards and listed
by the applicable laboratories.
This appliance must be installed in accordance with the
rules in force.
NOX Class 5 for G20, NOX Class 5 for G31
B. Gas Pressure Requirements
Pressure requirements for RED40 fireplaces are shown
in table below.
Two taps are provided on the right hand side of the gas
control for a test gauge connection to measure the inlet
and outlet pressures.
The fireplace and its individual shut-off valve must be dis-
connected from the gas supply piping system during any
pressure testing of the system at test pressures in excess
of 3.40 kPa.
If the fireplace must be isolated from the gas supply pip-
ing system by closing an individual shut-off valve, it must
be of the handle-less type.
Natural Gas Propane
Inlet Gas Pressure 1.13 kPa 2.75 kPa
Outlet (Manifold) Gas Pressure .76 kPa 2.36 kPa
Maximum Gas Consumption 36 mJ 36 mJ
Burner Injector DMS 34 (Ø2.82 mm) DMS 50 (Ø1.78 mm)
Pilot Injector .023 .014
Columnshighlightedingray=The gas control valve supplied with this product is approved for a maximum
inlet pressure of 3.40 kPa. For pressures over 3.40 kPa, an in line pressure regulator must be installed
upstream from the gas control valve.

Heat & Glo • RED40-N-AU, RED40ST-N-AU • 2294-900 Rev. G • 7/14 9
Figure 2.1 General Operating Parts/Clear Space.
B. Your Fireplace
WARNING! DO NOT operate fireplace before read-
ing and understanding operating instructions. Failure
to operate fireplace according to operating instructions
could cause fire or injury.
If you expect that small children or vulnerable adults may
come into contact with this fireplace, the following precau-
tions are recommended:
• Install a physical barrier such as:
- A decorative firescreen.
- Adjustable safety gate.
A. Gas Fireplace Safety
WARNING
This appliance has been supplied with an integral barrier
to prevent direct contact with the fixed glass panel. DO
NOT operate the appliance with the barrier removed.
Contact your dealer or Hearth & Home Technologies if the
barrier is not present or help is needed to properly install one.
HOT SURFACES!
Glassandothersurfacesarehotduring
operation AND cool down.
Hot glass will cause burns.
• DO NOT touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
fireplace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other
flammable materials.
• Keep clothing, furniture, draperies and other flammable
materials away.
• Install a switch lock or a wall/remote control with child
protection lockout feature.
• Keep remote controls out of reach of children.
• Neverleave children alone near a hot fireplace,whether
operating or cooling down.
• Teach children to NEVER touch the fireplace.
• Consider not using the fireplace when children will be
present.
Contact your dealer for more information, or visit: www.
hpba.org/safety-information.
To prevent unintended operation when not using your fire-
place for an extended period of time (summer months,
vacations, trips, etc):
• Remove batteries from remote controls.
• Turn off wall controls.
• Unplug 6 volt adapter plug.
2
2 Operating Instructions
User Guide
CLEAR SPACE
SECTION 2.C.
DECORATIVE DOORS
SECTION 2.D.
GLASS ASSEMBLY
SECTION 14.G.
ON/OFF
SWITCH
SECTION 12.E
LED
LIGHTING
SECTION 12.E
C. Clear Space
WARNING! DO NOT place combustible objects in front
of the fireplace. High temperatures may start a fire. See
Figure 2.1.
Avoid placing candles and other heat-sensitive objects on
mantel or hearth. Heat may damage these objects.
WARNING! Choking Hazard! Keep rock media out of
reach of children.

Heat & Glo • RED40-N-AU, RED40ST-N-AU • 2294-900 Rev. G • 7/1410
E. Fixed Glass Assembly
See Section 14.G.
D. Decorative Doors and Fronts
WARNING! Risk of Fire! Install ONLY doors or fronts
approved by Hearth & Home Technologies. Unapproved
doors or fronts may cause fireplace to overheat.
This appliance has been supplied with an integral
barrier to prevent direct contact with the fixed glass
panel. DO NOT operate the fireplace with the barrier
removed.
Contact your dealer or Hearth & Home Technologies if
the barrier is not present or help is needed to properly
install one.
Formoreinformationrefertotheinstructionssuppliedwith
your decorative door or front.
G. Remote Controls, Wall Controls and Wall
Switches
Follow the instructions supplied with the control installed
to operate your fireplace:
For safety:
• Install a switch lock or a wall/remote control with child
protection lockout feature.
• Keep remote controls out of reach of children.
See your dealer if you have questions.
H. Before Lighting Fireplace
Before operating this fireplace for the first time, have a
qualified service technician:
• Verify all shipping materials have been removed from
inside and/or underneath the firebox.
• Reviewproper placement of media,refractorykitsand/or
other decorative materials.
• Check the wiring.
• Check the air shutter adjustment.
• Ensure that there are no gas leaks.
• Ensurethatthe glass is sealed and in the properposition
and that the integral barrier is in place.
WARNING! Risk of Fire or Asphyxiation! DO NOT op-
erate fireplace with fixed glass assembly removed.
F. Decorative Media Options
Thisappliance shipsstandard withaclear decorativemedia
option. For installation and removal of these decorative
media options, refer to installation instructions which ship
with the media options.
I. IPI Battery Installation
Battery back-up is not an option with this model series.

Heat & Glo • RED40-N-AU, RED40ST-N-AU • 2294-900 Rev. G • 7/14 11
J. Lighting Instructions (IPI)
1. This appliance is equipped with an ignition
device which automatically lights the burner.
DO NOT try to light the burner by hand.
2. Wait five (5) minutes to clear out any gas.
Then smell for gas, including near the floor. If
you smell gas, STOP! Follow “B” in the Safety
Information located on the left side of this la-
bel. If you do not smell gas, go to next step.
3. To light the burner:
Equipped with wall switch: Turn ON/OFF switch
to ON.
Equipped with remote or wall control: Press
ON or FLAME button.
Equipped with thermostat: Set temperature to
desired setting.
4. If the appliance does not light after three tries,
call your service technician or gas supplier.
LIGHTING
INSTRUCTIONS (IPI)
TO TURN OFF
GAS TO APPLIANCE
1. Equipped with wall switch: Turn ON/OFF switch
to OFF.
Equipped with remote or wall control: Press
OFF button.
Equipped with thermostat: Set temperature to
lowest setting.
2. Service technician should turn off electric
power to the control when performing service.
FOR YOUR SAFETY
READ BEFORE LIGHTING
WARNING:Ifyoudonot followtheseinstructionsexactly,afireorexplosion
may result causing property damage, personal injury or loss of life.
CAUTION:
NOT FOR USE
WITH SOLID FUEL
WARNING:
593-913G
GAS
VALVE
For additional information on operating your
Hearth & Home Technologies fireplace, please refer to www.fireplaces.com.
A. This appliance is equipped with an
intermittent pilot ignition (IPI) device
which automatically lights the burn-
er. DO NOT try to light the burner by
hand.
B. BEFORELIGHTING,smellallaround
the appliance area for gas. Be sure to
smell next to the floor because some
gas is heavier than air and will settle
on the floor.
WHAT TO DO IF YOU SMELL GAS
• DO NOT try to light any appliance.
• DO NOT touch any electric switch; do
not use any phone in your building.
DO NOT CONNECT LINE VOLT-
AGE (110/120 VAC OR 220/240
VAC) TO THE CONTROL VALVE.
Improper installation, adjustment, al-
teration, service or maintenance can
cause injury or property damage. Re-
fer to the owner’s information manual
provided with this appliance.
This appliance needs fresh air for
safe operation and must be installed
so there are provisions for adequate
combustion and ventilation air.
If not installed, operated, and main-
tained in accordance with the manufac-
turer’s instructions, this product could
expose you to substances in fuel or
fuel combustion which are known to
the State of California to cause can-
cer, birth defects, or other reproductive
harm.
Keep burner and control compartment
clean. See installation and operating
instructions accompanying appliance.
Hot while in operation. DO NOT touch.
Keepchildren,clothing,furniture,gaso-
lineandother liquids having flammable
vapors away.
DO NOT operate the appliance with
fixedglass assembly removed, cracked
or broken. Replacement of the fixed
glass assembly should be done by a
licensed or qualified service person.
• Immediately call your gas supplier
from a neighbor’s phone. Follow the
gas supplier’s instructions.
• If you cannot reach your gas sup-
plier, call the fire department.
C. DO NOT use this appliance if any
part has been under water. Imme-
diately call a qualified service tech-
nician to inspect the appliance and
to replace any part of the control
system and any gas control which
has been under water.
For use with natural gas and propane.
A conversion kit, as supplied by the
manufacturer, shall be used to convert
this appliance to the alternate fuel.
Also Certified for Installation in a
Bedroom or a Bedsitting Room.
For assistance or additional informa-
tion, consult a qualified installer, ser-
vice agency or the gas supplier.
Final inspection by

Heat & Glo • RED40-N-AU, RED40ST-N-AU • 2294-900 Rev. G • 7/1412
K. Control Module Operation
1. The control module has an ON/OFF/REMOTE selector
switch that must be set.
OFF Position: Appliance will ignore all power inputs and
will not respond to any commands from a wall switch or
remote. The unit should be in the OFF position during
installation, service, fuel conversion, and in the event that
the control goes into LOCK-OUT mode as a result of an
error code.
ON Position: Appliance will ignite and run continuously
in the HI flame setting, with no adjustment in flame
output. This mode of operation is primarily used for initial
installation and inspection.
REMOTE Position: Appliance will initiate commands
froma wired wall switchand/or one of thewireless remote
options.
2. A wall switch can be wired into the control module brown
and red wires. See Figure 12.2.
3. The control module has safety feature that automatically
shuts down the fireplace after nine hours of continuous
operation without receiving a command from the wall
switch or optional remote.
4. Ifyou intendto usebotha wiredwall switchand anoptional
remote control to operate your fireplace, the wall switch
will override any commands given by the remote.
Figure 2.3 Control Module
LP/NG GAS-TYPE
SELECTOR SWITCH
WIRE LEAD FROM
REGULATOR CONNECTS HERE
MODULE
SELECTOR
SWITCH
Nine Hour Safety Shutdown Feature
This appliance has a safety feature that automatically
shuts down the fireplace after nine hours of continuous
operation without receiving a command from the wall
switch or optional remote.

Heat & Glo • RED40-N-AU, RED40ST-N-AU • 2294-900 Rev. G • 7/14 13
Initial Break-in Procedure
• The fireplace should be run three to four hours
continuously on high.
• Turn the fireplace off and allow it to completely cool.
• Remove fixed glass assembly. See Section 14.G.
• Clean fixed glass assembly. See Section 3.
• Replace the fixed glass assembly and run continuously
on high an additional 12 hours.
This cures the materials used to manufacture the fire-
place.
NOTICE! Open windows for air circulation during fire-
place break-in.
• Some people may be sensitive to smoke and odors.
• Smoke detectors may activate.
L. After Fireplace is Lit
M. Frequently Asked Questions
ISSUE SOLUTIONS
Condensation on the glass This is a result of gas combustion and temperature variations. As the fireplace warms, this conden-
sation will disappear.

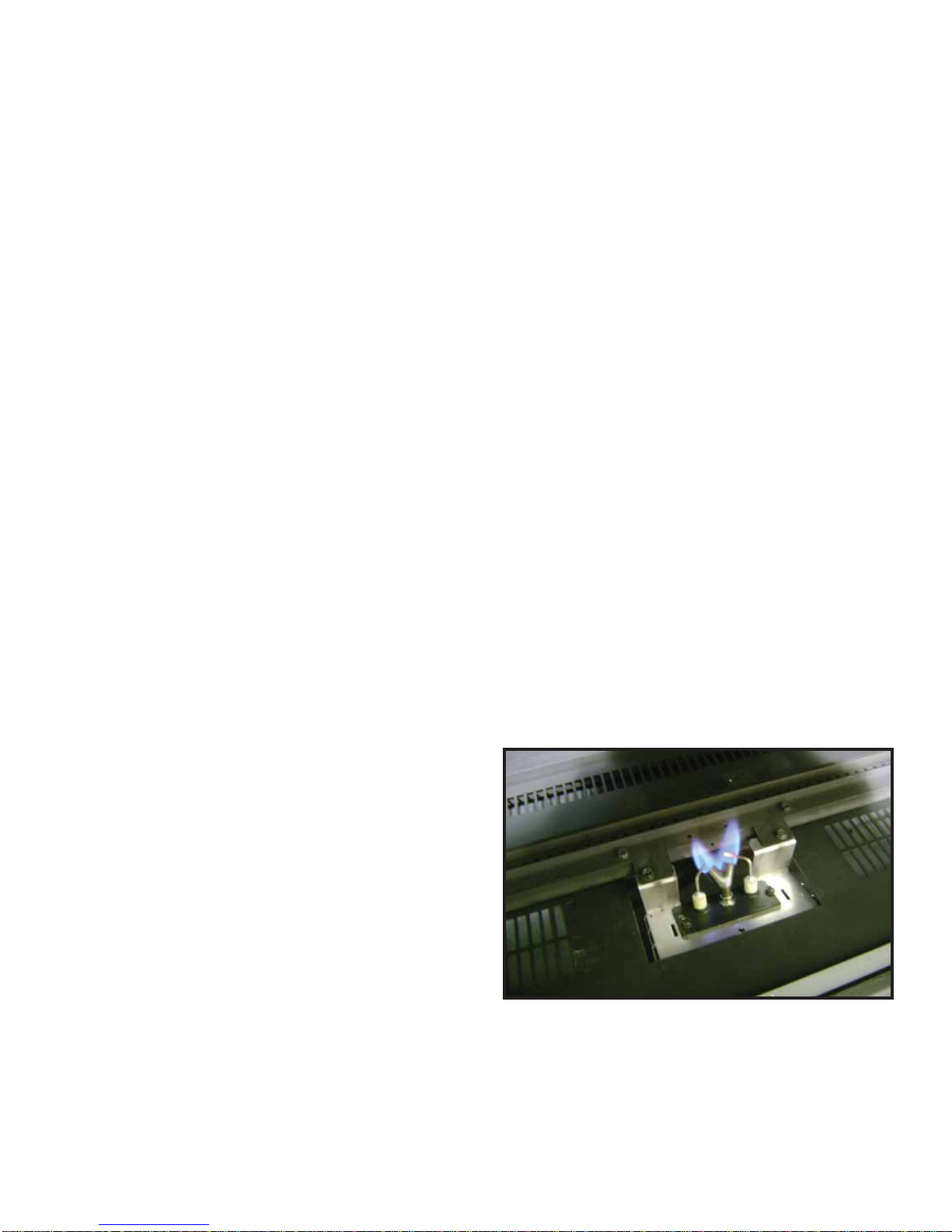

Blue flames This is a result of normal operation and the flames will begin to yellow as the fireplace is allowed to
burn for 20 to 40 minutes.
Odor from fireplace
When first operated, this fireplace may release an odor for the first several hours. This is caused
by the curing of materials from manufacturing. Odor may also be released from finishing materials
and adhesives used near the fireplace. These circumstances may require additional curing related
to the installation environment.
Film on the glass This is a normal result of the curing process of the paint. Glass should be cleaned within 3 to 4
hours of initial burning. A non-abrasive cleaner such as gas appliance glass cleaner may be nec-
essary. See your dealer.
Metallic noise Noise is caused by metal expanding and contracting as it heats up and cools down, similar to the sound produced by a furnace or heating duct. This noise does not affect the operation or longevity
of the fireplace.
Rock noise
There may be some “cracking” noise coming from the fireplace during the first few heating and
cooling cycles. This noise is associated with settling rock and some minor cracking of larger
pieces of rock. This will lessen over time as the glass rock is conditioned to the heating and cool-
ing temperature changes.
Rocks falling through basepan It is expected that a few small pieces of rock may fall through the basepan and come to rest on the
fireplace bottom. This has no affect on fireplace performance.
Wall above appliance feels hot to
the touch. No action necessary. This appliance ships with a non-combustible material attached. Specifica- tions of the attached non-combustible material are listed in Section 1.E.

Heat & Glo • RED40-N-AU, RED40ST-N-AU • 2294-900 Rev. G • 7/1414
3
3 Maintenance and Service
Glass Cleaning
Frequency: Seasonally
By: Homeowner
Tools Needed: Protective gloves, glass cleaner, drop
cloth and a stable work surface.
CAUTION! Handle fixed glass assembly with care.
Glass is breakable.
• Avoid striking, scratching or slamming glass
• Avoid abrasive cleaners
• DO NOT clean glass while it is hot
•Preparea work arealargeenough to accommodate fixed
glass assembly and door frame by placing a drop cloth
on a flat, stable surface.
Note: Fixed glass assembly and gasketing may have res-
idue that can stain carpeting or floor surfaces.
•Remove door or decorative front from fireplace and set
aside on work surface.
• See Section 14.G for instructions to remove fixed glass
assembly.
• Clean glass with a non-abrasive commercially available
cleaner.
- Light deposits: Use a soft cloth with soap and water
- Heavy deposits: Use commercial fireplace glass
cleaner (consult with your dealer)
• Reinstall door or decorative front.
A. Maintenance Tasks-Homeowner
The following tasks may be performed annually by the
homeowner. If you are uncomfortable performing any of
the listed tasks, please call your dealer for a service ap-
pointment.
CAUTION! Risk of Burns! The fireplace should be
turned off and cooled before servicing.
When properly maintained, your fireplace will give you
many years of trouble-free service. We recommend an-
nual service by a qualified service technician.
Decorative Doors
Frequency: Annually
By: Homeowner
Tools needed: Protective gloves, stable work surface
• Refer to the installation instructions which ship with the
decorative door.
• Assess condition of screen and replace as necessary.
• Inspect for scratches, dents or other damage and repair as
necessary.
•Check that louvers are not blocked.
•Vacuum and dust surfaces.
Venting
Frequency: Seasonally
By: Homeowner
Tools needed: Protective gloves and safety glasses.
• Inspectventing andterminationcap forblockage orobstruc-
tion such plants, bird nests, leaves, snow, debris, etc.
• Verify terminationcap clearanceto subsequentconstruction
(building additions, decks, fences, or sheds). See Section
6.
• Inspect for corrosion or separation.
• Verify weatherstripping, sealingand flashingremainsintact.
• Inspect draft shield to verify it is not damaged or missing.
Remote Control
Frequency: Seasonally
By: Homeowner
Tools needed: Replacement batteries and remote control
instructions.
• Locate remote control transmitter and receiver.
• Verify operationof remote.Referto remotecontrol operation
instructions for proper calibration and setup procedure.
• Place batteries as needed in remote transmitters and
battery-powered receivers.
• Place remote control out of reach of children.
If not using your fireplace for an extended period of time
(summer months, vacations/trips, etc), to prevent unintend-
ed operation:
• Remove batteries from remote controls.
• Unplug 6 volt adapter plug on IPI models.
Decorative Media Options
Frequency: Maintenance is not required
By: Homeowner
Tools needed: Protective gloves and safety glasses.
• The decorative media options DO NOT require routine
maintenance if they are properly installed. Refer to the
installation instructions which ship the decorative media to
verify correct installation.
Any safety screen or guard removed for servicing must be
replaced prior to operating the fireplace.
Installation and repair should be done by a qualified service
technician only. The fireplace should be inspected before
use and at least annually by a professional service person.
All parts listed in this manual may be ordered from an au-
thorized dealer. A list of available service parts is located in
Section 16.C of this manual and in the installation instruc-
tions included in decorative media.

Heat & Glo • RED40-N-AU, RED40ST-N-AU • 2294-900 Rev. G • 7/14 15
B. Maintenance Tasks-Qualified Service
Technician
The following tasks must be performed by a qualified ser-
vice technician.
Gasket Seal and Glass Assembly Inspection
Frequency: Annually
By: Qualified Service Technician
Tools needed: Protective gloves, drop cloth and a stable
work surface.
• Inspect gasket seal and its condition.
• Inspectfixed glass assemblyforscratchesand nicks that
can lead to breakage when exposed to heat.
• Confirm there is no damage to glass or glass frame.
Replace as necessary.
• Verify that fixed glass assembly is properly retained and
attachment components are intact and not damaged.
Replace as necessary.
Firebox
Frequency: Annually
By: Qualified Service Technician
Tools needed: Protective gloves, sandpaper, steel wool,
cloths, mineral spirits, primer and touch-up paint.
• Inspect for paint condition, warped surfaces, corrosion
or perforation. Sand and repaint as necessary.
• Replace fireplace if firebox has been perforated.
Control Compartment and Firebox Top
Frequency: Annually
By: Qualified Service Technician
Tools needed: Protective gloves, vacuum cleaner, dust
cloths
• Vacuum and wipe out dust, cobwebs, debris or pet hair.
Usecaution when cleaning these areas. Screw tipsthat
have penetrated the sheet metal are sharp and should
be avoided.
• Remove all foreign objects.
• Verify unobstructed air circulation.
Gas Pressure Information
Frequency: Upon initial installation and gas valve re-
placement or service.
By: Qualified Service Technician
Tools needed: Protective gloves, manometer, flashlight,
screw driver set.
• Gaspressuretaps are accessible by removing the deco-
rative front and fixed glass assembly. Refer to Section
11.A for information related to the gas valve and gas
pressure settings.
Burner Ignition and Operation
Frequency: Annually
By: Qualified Service Technician
Tools needed: Protective gloves, vacuum cleaner, whisk
broom, flashlight, voltmeter, indexed drill bit set, and a
manometer.
• Verify burner is properly secured and aligned with pilot
or igniter.
• Cleanoffburner top,inspectforpluggedports,corrosion
or deterioration. Replace burner if necessary.
• Check for smooth lighting and ignition carryover to all
ports. Verify that there is no ignition delay.
• Inspect for lifting or other flame problems.
• Verify air shutter setting is correct. See Section 14.I for
required air shutter setting. Verify air shutter is clear of
dust and debris.
• Inspect orifice for soot, dirt and corrosion. Verify orifice
size is correct. See Service Parts List Section 16.C for
proper orifice sizing.
• Verify manifold and inlet pressures. Adjust regulator as
required.
• Inspect pilot flame pattern and strength. See Figure 3.1
for proper pilot flame pattern. Clean or replace orifice
spud as necessary.
• Inspect IPI flame sensing rod for soot, corrosion and
deterioration. Polish with fine steel wool or replace as
required.
• Verify that there is not a short in flame sense circuit
by checking continuity between pilot hood and flame
sensing rod. Replace pilot as necessary.
Figure 3.1 IPI Pilot Flame Pattern

Heat & Glo • RED40-N-AU, RED40ST-N-AU • 2294-900 Rev. G • 7/1416
A. Typical Appliance System
NOTICE: Illustrations and photos reflect typical installations and are for design purposes only. Illustrations/diagrams are not
drawn to scale. Actual product may vary from pictures in manual
Figure 4.1 st
4
4 Getting Started
Installer Guide
HORIZONTAL
TERMINATION CAP
(SECTION 7)
WALL PENETRATION
FRAMING
(SECTION 8.B)
CONVECTION
DUCTING
(SECTION 9.C)
VERTICAL TERMINATION CAP
(SECTION 10.H)
NON-COMBUSTIBLE ROOF
FLASHING MAINTAINS MINIMUM
CLEARANCE AROUND PIPE
(SECTION 10.F)
STORM COLLAR
(SECTION 10.G)
VENT PIPE
(SECTIONS 7 and 8)
CEILING FIRESTOP
ON FLOOR OF ATTIC
(SECTION 8.C)
FRAMING/HEADER
(SECTION 5)
GAS LINE
(SECTION 11)
WALL ON/ OFF SWITCH
FRAMING HEADED
OFF IN CEILING
JOISTS (SECTION 8.C)
ATTIC INSULATION
SHIELD (NOT SHOWN)
MUST BE USED HERE
TO KEEP INSULATION
AWAY FROM VENT PIPE
IF ATTIC IS INSULATED.
(SECTION 8.D)
VENT PIPE PENETRATES
ROOF PREFERABLY
WITHOUT AFFECTING
ROOF RAFTERS
(SECTION 8.C)
REQUIRED ISOLATION SWITCH: AS5601
LOCATION WITHIN 1 METER OF
FIREPLACE, SUBJECT TO MANTEL
PIECE, ETC. CHECK TO ENSURE IT
REMAINS CLEAR ON ANY MANTEL PIECE
INSTALLATION
HEATER MUST BE INSTALLED AND
FLUE PENETRATION COMPLETE
PRIOR TO FINISH SHEETING
REQUIRED ACTIVE
CONVECTION AND
CONVECTION
DUCTING
(SECTION 9.C)
LED COLOR CONTROL SWTICH

Heat & Glo • RED40-N-AU, RED40ST-N-AU • 2294-900 Rev. G • 7/14 17
B. Design and Installation Considerations
Heat & Glo direct vent gas appliances are designed to
operate with all combustion air siphoned from outside of
the building and all exhaust gases expelled to the outside.
No additional outside air source is required.
Before installing, determine the following:
• Where the appliance is to be installed.
• The vent system configuration to be used.
• Gas supply piping.
• Electrical wiring requirements.
• Framing and finishing details.
• Whether optional accessories—devices such as a wall
switch or remote control—are desired.
D. Inspect Appliance and Components
• Carefully remove the appliance and components from
the packaging.
• The vent system components and decorative doors and
fronts may be shipped in separate packages.
• If packaged separately, the media and/or refractory kits
must be installed.
• Report to your dealer any parts damaged in shipment,
particularly the condition of the glass.
•Read all of the instructions before starting the instal-
lation. Follow these instructions carefully during the
installation to ensure maximum safety and benefit.
WARNING! Risk of Fire or Explosion! Damaged parts
could impair safe operation. DO NOT install damaged, in-
complete or substitute components. Keep appliance dry.
Hearth&HomeTechnologiesdisclaimsanyresponsibilityfor,
and the warranty will be voided by, the following actions:
• Installation and use of any damaged appliance or vent
system component.
• Modification of the appliance or vent system.
• Installation other than as instructed by Hearth & Home
Technologies.
• Improper positioning of the gas logs or the glass door.
• Installationand/oruseofanycomponentpartnotapproved
by Hearth & Home Technologies.
Any such action may cause a fire hazard.
WARNING! Risk of Fire, Explosion or Electric Shock!
DO NOT use this appliance if any part has been under
water. Call a qualified service technician to inspect the
appliance and to replace any part of the control system
and/or gas control which has been under water.
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. For
assistance or additional information, consult a qualified
service technician, service agency or your dealer.
C. Tools and Supplies Needed
Before beginning the installation be sure that the following
tools and building supplies are available.
Tape measure Framing material
Pliers Non-corrosive leak check solution
Hammer Phillips screwdriver (magnetic)
Gloves Framing square
Voltmeter Electric drill and bits (1/4 in. magnetic)
Plumb line Safety glasses
Level Reciprocating saw
Manometer Flat blade screwdriver
13 - 19 mm (1/2 - 3/4 in.) length, #6 or #8 Self-drilling
screws
Caulking material (149 ºC (safety ºF) minimum continu-
ous exposure rating)
NOTICE: The blower motor present in this appliance
willgeneratesoundduringoperation. The effects of the
increased sound level can be minimized with careful
planning during installation of the system. Locating the
convection intake grill in an area remote of immediate
living space will reduce the effects of the added sound
generated during operation.
Installation MUST comply with local, regional, state
and national codes and regulations. Consult insur-
ance carrier, local building inspector, fire officials or
authorities having jurisdiction over restrictions, instal-
lation inspection and permits

Heat & Glo • RED40-N-AU, RED40ST-N-AU • 2294-900 Rev. G • 7/1418
5
5 Framing and Clearances
A. Selecting Appliance Location
When selecting alocation for the applianceit is importantto
consider the required clearances to walls (see Figure 5.1).
WARNING! Risk of Fire or Burns! Provide adequate
clearance around air openings and for service access.
Due to high temperatures, the appliance should be locat-
ed out of traffic and away from furniture and draperies.
NOTICE: Illustrations reflect typical installations and are
FOR DESIGN PURPOSES ONLY. Illustrations/diagrams
are not drawn to scale.Actual installation may vary due to
individual design preference.
1 IN.
45°
1 IN.
A
E
ABCTOP VENT
ONE 90° ELBOW
ALCOVE
INSTALLATION
B
TOP VENT
ONE 90° ELBOW
B
F
D
Figure 5.1 Appliance Locations RED40
ABC D E F
Inches 60-3/8 50 85-3/8 See Section D. Figures
5.6, 5.7 & 5.8 24-1/8 18-3/4
Millimeters 1533 1270 2168 613 476
It is important to follow the framing and finishing instruc-
tions step by step to ensure proper placement of fireplace
in the surrounding framing/finishing materials. For addi-
tional information and considerations for the active con-
vection technology in regards to appliance location and
framing, see Section 9.
Note: Consider installation of the active con-
vection blower when determining appliance
location. See Section 9.C for more detailed
information.

Heat & Glo • RED40-N-AU, RED40ST-N-AU • 2294-900 Rev. G • 7/14 19
ABC
Inches 48 17-1/4 36
Millimeters 1218 438 914
C
C
B
A
1/2 IN.
1/2 IN.
Figure 5.2 Appliance Locations RED40ST
B. Constructing the Appliance Chase
Achase is a vertical box-like structure built to enclose the
gas appliance and/or its vent system. In cooler climates
the vent should be enclosed inside the chase.
NOTICE: Treatment of ceiling firestops and wall shield
firestops and construction of the chase may vary with the
type of building. These instructions are not substitutes
for the requirements of local building codes. Therefore,
you MUST check local building codes to determine the
requirements to these steps.
Chases should be constructed in the manner of all out-
side walls of the home to prevent cold air drafting prob-
lems. The chase should not break the outside building
envelope in any manner.
Walls, ceiling, base plate and cantilever floor of the chase
should be insulated. Vapor and air infiltration barriers
should be installed in the chase as per regional codes for
the rest of the home. Additionally, in regions where cold
air infiltration may be an issue, the inside surfaces may be
sheetrocked and taped for maximum air tightness.
To further prevent drafts, the wall shield and ceiling fire-
stops should be caulked with caulk with a minimum of
300 ºF (149 ºC) continuous exposure rating to seal gaps.
Gas line holes and other openings should be caulked
with caulk with a minimum of 300 ºF (149 ºC) continu-
ous exposure rating or stuffed with unfaced insulation. If
the appliance is being installed on a cement surface, a
layer of plywood may be placed underneath to prevent
conducting cold up into the room.
C. Clearances
NOTICE: Installapplianceonhardmetal or wood surfaces
extending full width and depth. DO NOT install directly
on carpeting, vinyl, tile or any combustible material other
than wood.
WARNING! Risk of Fire! Maintain specified air space
clearances to appliance and vent pipe:
• Insulationand othermaterialsmustbesecured toprevent
accidental contact.
• The chase must be properly blocked to prevent blown
insulation or other combustibles from entering and
making contact with fireplace or chimney.
• Failuretomaintainairspacemaycauseoverheatingand
fire.
Note: Figure5.3, Figure 5.4, and Figure5.5 show the fireplace
installed on the floor. However, this fireplace can be elevated
offthefloor provided that the fireplace is properly supported by
framing materials and the ceiling clearances are maintained.
NAILING TABS
BOTH SIDES
Figure 5.3 Nailing Tab Locations
Note: Consider installation of the active con-
vection blower when determining appliance
location. See Section 9.C for more detailed
information.

Heat & Glo • RED40-N-AU, RED40ST-N-AU • 2294-900 Rev. G • 7/1420
Figure 5.5. Clearances to Combustibles-RED40ST
MINIMUM FRAMING DIMENSIONS*
ABCDE F GHI
Rough
Opening
(Vent Pipe)
Rough
Opening
(Height)
Rough
Opening
(Depth)
Rough
Opening
(Width)
Clearance
to Ceiling Combustible Floor Combustible Flooring Sides of Appliance
Front or
Rear of
Appliance
Inches 10 46-3/4 17-1/4 50-1/4 31 0 0 1 36
Millimeters 254 1187 438 1276 787 0 0 25 914
F
I
GH
E
MEASURE FROM TOP OF
FIREPLACE OPENING
C
A
B
D
C
B
D
A
Figure 5.4. Clearances to Combustibles-RED40
MINIMUM FRAMING DIMENSIONS*
ABCDE F GHIJ
Rough
Opening
(Vent Pipe)
Rough
Opening
(Height)
Rough
Opening
(Depth)
Rough
Opening
(Width)
Clearance
to Ceiling Combustible Floor Combustible Flooring Behind Appliance Sides of Appliance Front of Appliance
Inches 10 46-3/4 18-1/4 50-1/4 31 0 0 1 1 36
Millimeters 254 1187 464 1276 787 0 0 25 25 914
F
J
G
I
H
E
MEASURE FROM TOP OF
FIREPLACE OPENING
