Heat & Glo Soho-N-AU Assembly instructions

Heat & Glo • SOHO-N-AU • 2197-900 Rev. C • 9/09 1
Model:
Soho-N-AU
Installer’s Guide
Installation and Operation
0063-06
This is a decorative room sealed appliance and no other ventila-
tion is required than what is provided.
This appliance may exhibit slight carbon deposition.
Theseinstructionsareonlyvalidifthefollowingcountrysymbolis
on the appliance. If this symbol is not present on the appliance,
it is necessary to refer to the technical instructions which will
provide the necessary information concerning the modification
of the appliance to the conditions of use for the country.
These instructions are valid forAustralia.
WARNING
This appliance has been supplied with an integral barrier
to prevent direct contact with the fixed glass panel. DO
NOT operate the appliance with the barrier removed.
Contactyourdealerifthebarrierisnotpresentorhelp isneeded
to properly install one.
HOT SURFACES!
Glassandothersurfacesarehotduring
operation AND cool down.
Hot glass will cause burns.
• DO NOT touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
fireplace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other flammable
materials.
• Keep clothing, furniture, draperies and other flammable
materials away.
• Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
• What to do if you smell gas
- Do not try to light any appliance
- Do not touch any electrical switch. Do not
use any phone in your building.
- Immediately call your gas supplier from a
neighbor’s phone. Follow the gas suppli-
er’s instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
byaqualifiedinstaller,serviceagency,orthe
gas supplier.
WARNING: If the information in these
instructions is not followed exactly, a fire
or explosion may result causing property
damage, personal injury, or death.
AGA
C ERT IFIED
7509

Heat & Glo • SOHO-N-AU • 2197-900 Rev. C • 9/09
2
Congratulations
Model Name:___________________________________________ Date purchased/installed:__________________
Serial Number:__________________________________________ Location on appliance: ____________________
Dealership purchased from: _______________________________ Dealer Phone: __________________________
Notes: _______________________________________________________________________________________
_____________________________________________________________________________________________
Congratulations on selecting a Heat & Glo gas appliance
The Heat & Glo gas appliance you have selected is
designed to provide the utmost in safety, reliability, and
efficiency.
As the owner of a new appliance, you’ll want to read and
carefully follow all of the instructions contained in this
Installer’s Guide. Pay special attention to all Cautions and
Warnings.
This Installer’s Guide should be retained for future
reference. We suggest that you keep it with your other
important documents and product manuals.
The information contained in this Installer’s Guide, unless
noted otherwise, applies to all models and gas control
systems.
Your new Heat & Glo gas appliance will give you years of
durable use and trouble-free enjoyment. Welcome to the
Heat & Glo family of appliance products!
Read this manual before installing or operating this appliance.
Please retain this owner’s manual for future reference.
We recommend that you record the following
pertinent information about your appliance.
Homeowner Reference Information

Heat & Glo • SOHO-N-AU • 2197-900 Rev. C • 9/09 3
Î= Contains updated information.
Table of Contents
1 Listing and Code Approvals
A. Appliance Certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
B. Non-Combustible Materials Specification. . . . . . . . . . . . . . 4
C. Combustible Materials Specification . . . . . . . . . . . . . . . . . 4
2 Getting Started
A. Design and Installation Considerations . . . . . . . . . . . . . . . 5
B. Tools and Supplies Needed . . . . . . . . . . . . . . . . . . . . . . . . 5
C. Inspect Appliance and Components. . . . . . . . . . . . . . . . . . 5
3 Framing and Clearances
A. Selecting Appliance Location. . . . . . . . . . . . . . . . . . . . . . . 6
B. Constructing the Appliance Chase. . . . . . . . . . . . . . . . . . . 7
C. Clearances. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4 Termination Locations

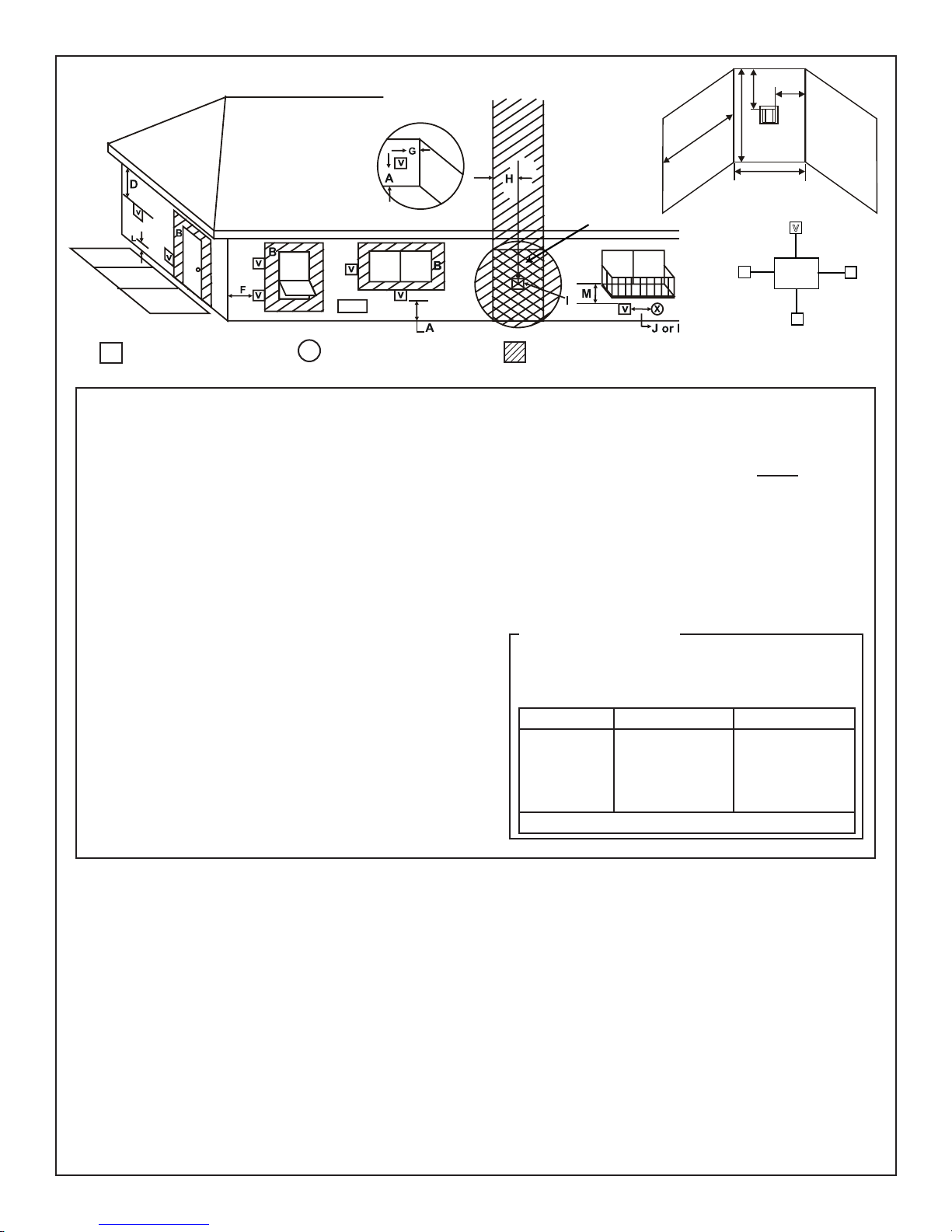

A. Flue Termination Minimum Clearances . . . . . . . . . . . . . . . 8
5 Flue Information and Diagrams
A. Flue Table Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

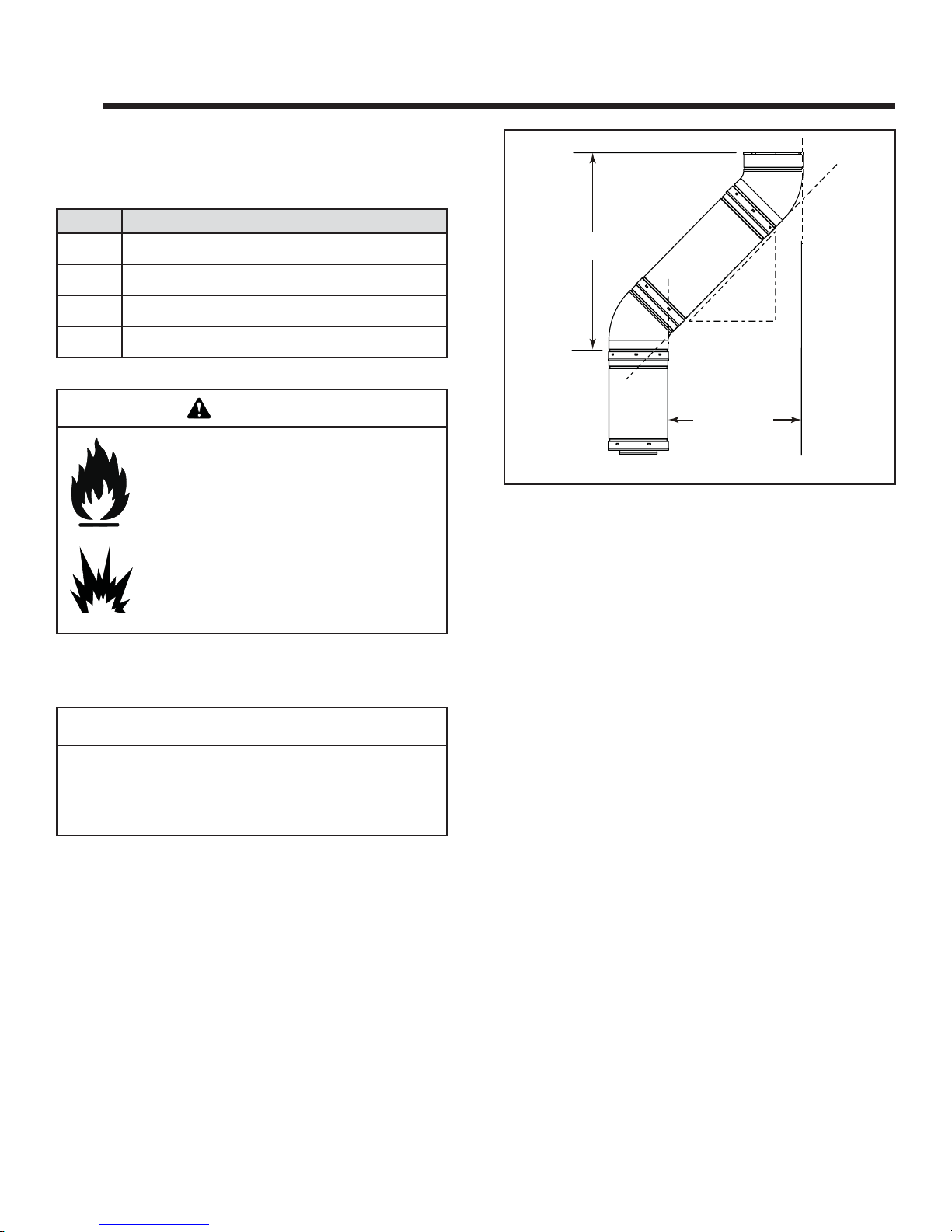

B. Use of Elbows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
C. Measuring Standards. . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

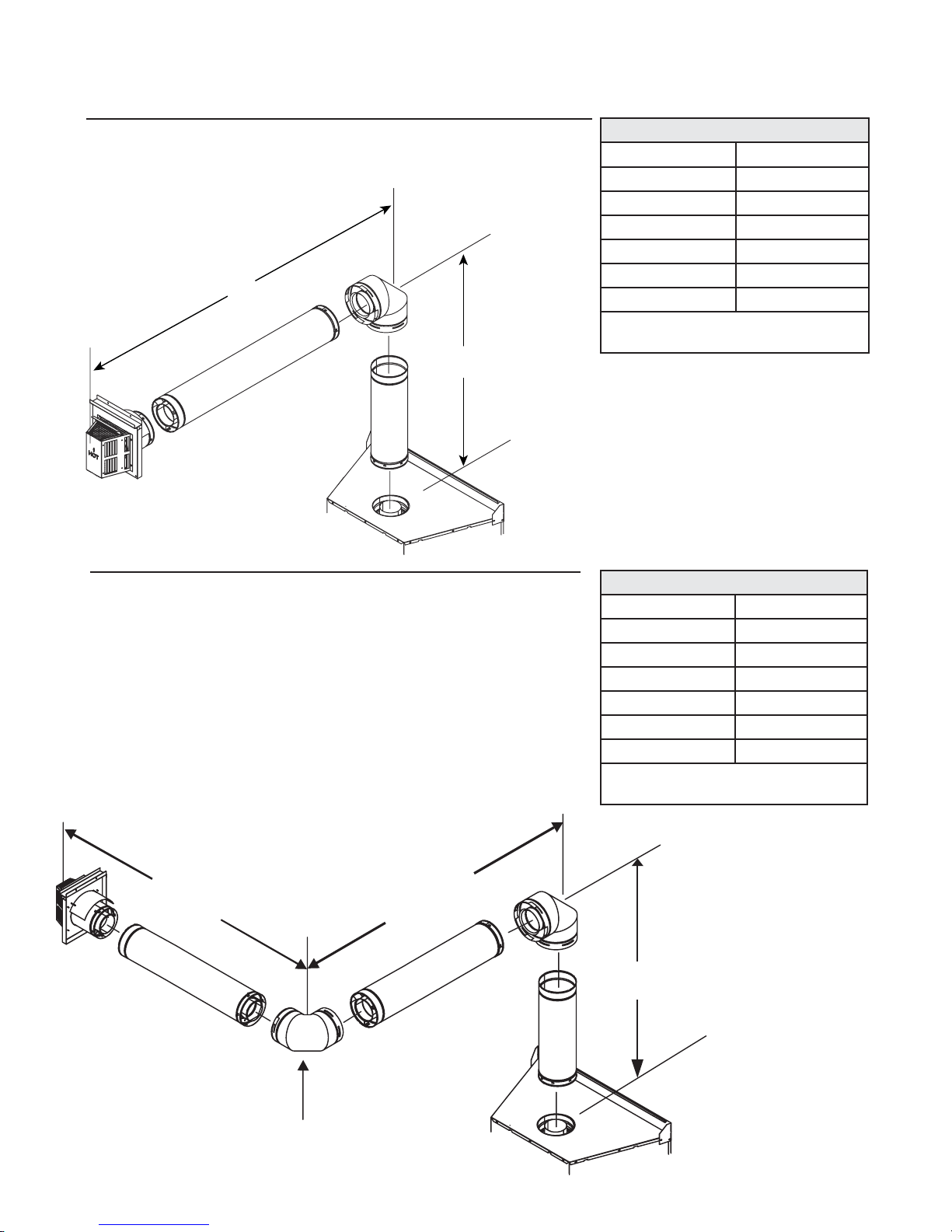

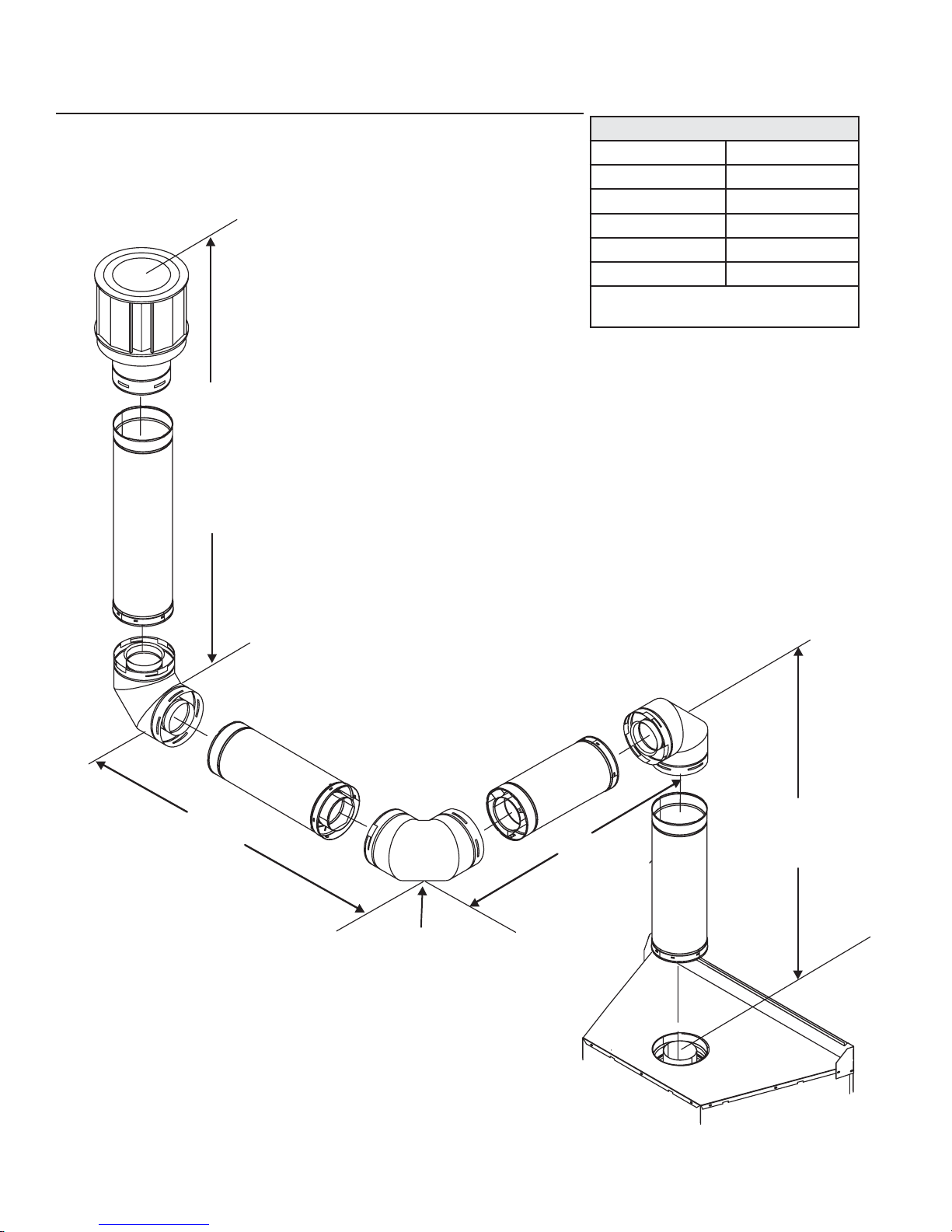

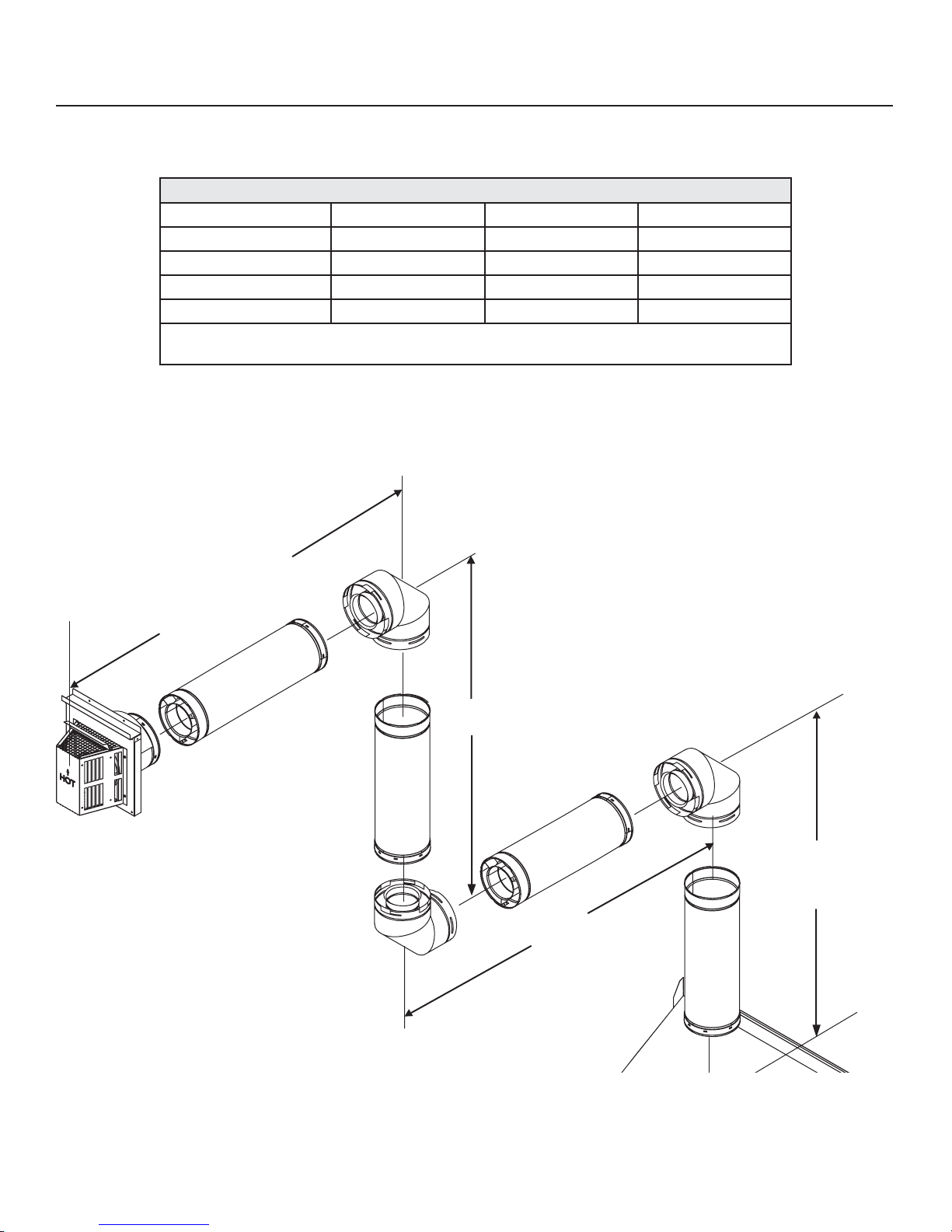

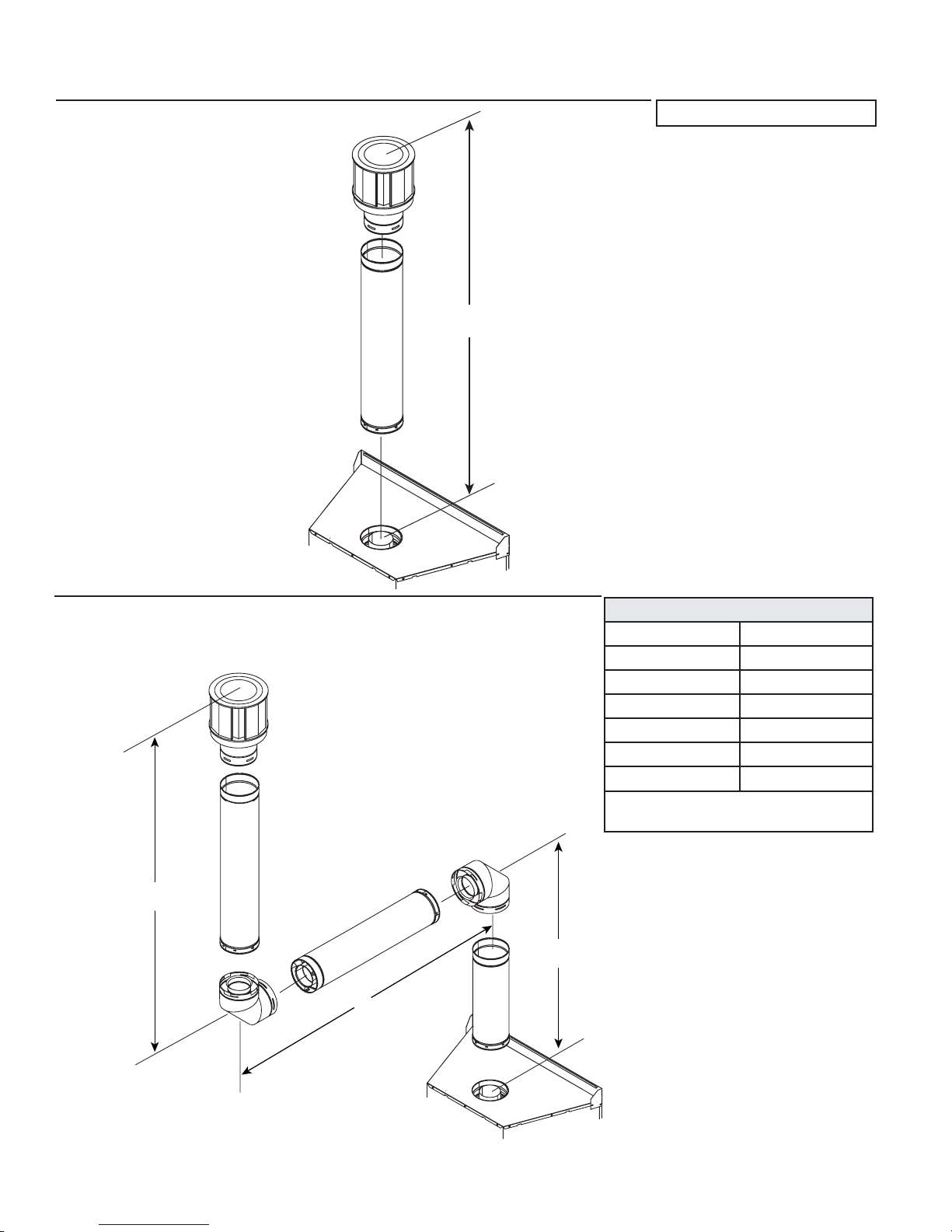

D. Flue Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
6 Flue Clearances and Framing
A. Pipe Clearances to Combustibles . . . . . . . . . . . . . . . . . . 15
B. Wall Penetration Framing. . . . . . . . . . . . . . . . . . . . . . . . . 15

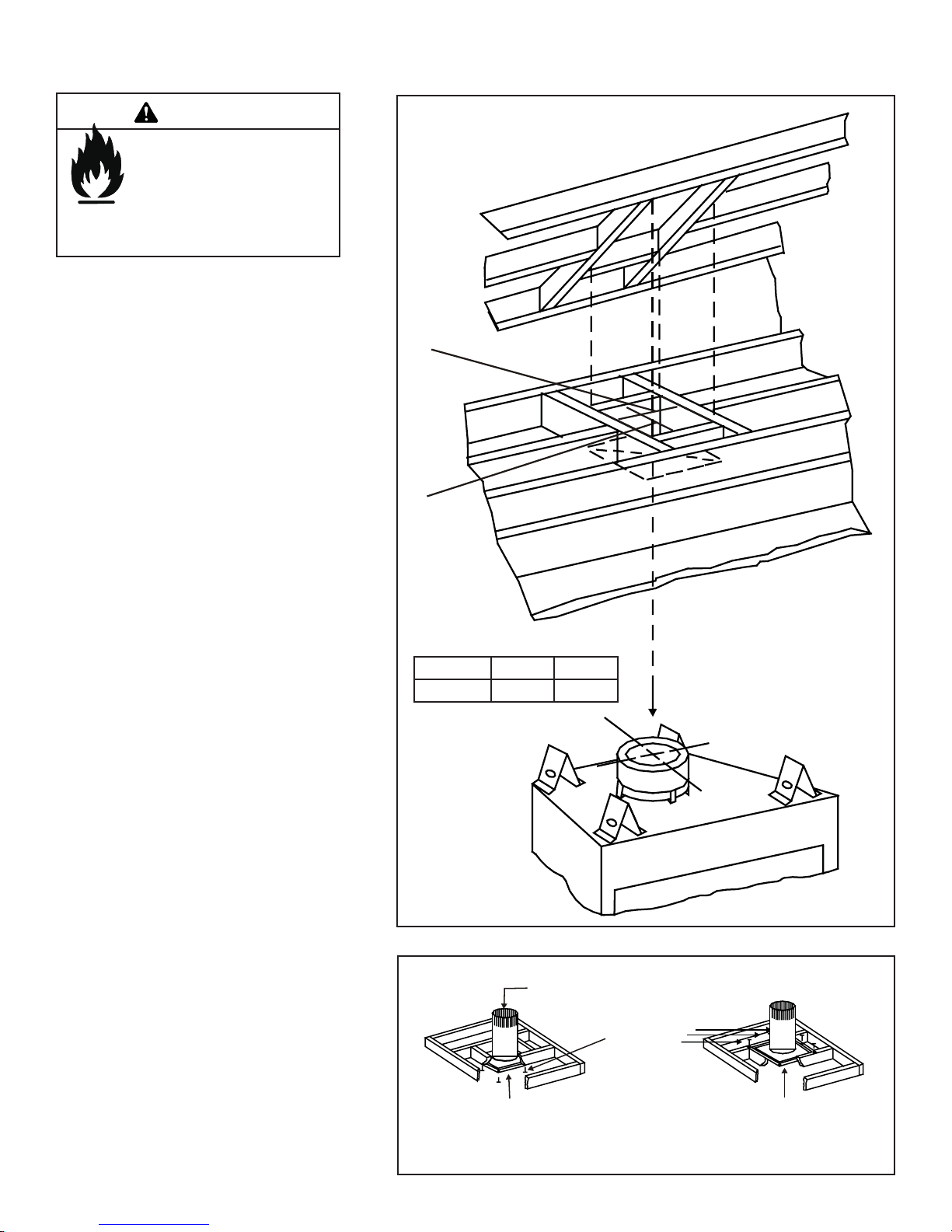

C. Vertical Penetration Framing . . . . . . . . . . . . . . . . . . . . . . 16
7 Appliance Preparation
A. Securing and Leveling the Appliance. . . . . . . . . . . . . . . . 17
8 Installing Flue Pipe
A. Assembly of Flue Sections. . . . . . . . . . . . . . . . . . . . . . . . 18
B. Installing Firestops and Horizontal Termination Cap . . . . 19
C. Install Roof Flashing and Vertical Termination Cap . . . . . 20
9 Gas Information
A. Gas Pressure Requirements . . . . . . . . . . . . . . . . . . . . . . 22
B. Gas Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
10 Electrical Information
A. Electronic Ignition System Wiring. . . . . . . . . . . . . . . . . . . 23
11 Finishing
A. Facing Material. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
B. Mantel Projections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
12 Appliance Setup
A. Remove Shipping Materials . . . . . . . . . . . . . . . . . . . . . . . 25
B. Clean the Appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
C. Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
D. Ember Placement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
E. Positioning the Logs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
F. Install Media Rock Kit. . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
G. Glass Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
13 Operating Instructions
A. Before Lighting Appliance. . . . . . . . . . . . . . . . . . . . . . . . . 29
B. Lighting the Fireplace. . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
C. After Appliance is Lit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
D. Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . 31
14 Troubleshooting
A. Electronic Ignition System . . . . . . . . . . . . . . . . . . . . . . . . 32
15 Maintaining and Servicing Appliance
A. Maintenance Tasks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
16 Reference Materials
A. Appliance Dimension Diagram. . . . . . . . . . . . . . . . . . . . . 35
B. Service Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
C. Limited Lifetime Warranty. . . . . . . . . . . . . . . . . . . . . . . . . 39
D. Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Î

Heat & Glo • SOHO-N-AU • 2197-900 Rev. C • 9/09
4
MODELS: SOHO-N-AU
TYPE: Gas Fireplace
STANDARD: AS4558-2000
1
1 Listing and Code Approvals
B. Non-Combustible Materials Specification
Material which will not ignite and burn. Such materials are
those consisting entirely of steel, iron, brick, tile, concrete,
slate, glass or plasters, or any combination thereof.
Materials that are reported as passingASTM E 136, Stan-
dard Test Method for Behavior of Materials in a Vertical
Tube Furnace at 750º C, shall be considered non-com-
bustible materials.
C. Combustible Materials Specification
Materials made of or surfaced with wood, compressed
paper, plant fibers, plastics, or other material that can ig-
nite and burn, whether flame proofed or not, or whether
plastered or unplastered shall be considered combustible
materials.
A. Appliance Certification
The Heat & Glo gas appliances discussed in this Installer’s
Guide have been tested to certification standards and listed
by the applicable laboratories.
This appliance must be installed in accordance with the
rules in force.
NOX Class 5 for G20, NOX Class 5 for G31

Heat & Glo • SOHO-N-AU • 2197-900 Rev. C • 9/09 5
A. Design and Installation Considerations
Heat & Glo balanced flue gas appliances are designed
to operate with all combustion air siphoned from outside
of the building and all exhaust gases expelled to the out-
side. No additional outside air source is required.
2
2 Getting Started
C. Inspect Appliance and Components
When planning an appliance installation, it’s necessary to
determine the following information before installing:
• Where the appliance is to be installed.
• The flue system configuration to be used.
• Gas supply piping.
• Framing and finishing details.
B. Tools and Supplies Needed
Before beginning the installation be sure that the following
tools and building supplies are available.
Reciprocating saw Framing material
Pliers Hi temp caulking material
Hammer Gloves
Phillips screwdriver Framing square
Flat blade screwdriver Electric drill and bits (1/4 in.)
Plumb line Safety glasses
Level Manometer
Tape measure Voltmeter
Noncorrosive leak check solution
One 1/4 inch female connection (for optional fan).
1/2 - 3/4 inch length, #6 or #8 Self-drilling screws
• Carefully remove the appliance and components from
the packaging.
• Thefluesystem components andtrimdoors are shipped
in separate packages.
• The logs are packaged separately inside the fireplace
and must be field installed.
• Report to your dealer any parts damaged in shipment,
particularly the condition of the glass.
• Read all of the instructions before starting the insta-
llation. Follow these instructions carefully during the
installation to ensure maximum safety and benefit.
Check building codes prior to installation.
• Installation MUST comply with local, regional, state and
national codes and regulations.
• Consultlocalbuilding,fireofficialsorauthoritieshavingjurisdic-
tion about restrictions, installation inspection, and permits.
CAUTION
Inspectapplianceandcomponents for damage.
Damaged parts may impair safe operation.
• Do NOT install damaged components.
• Do NOT install incomplete components.
• Do NOT install substitute components.
Report damaged parts to dealer.
Hearth & Home Technologies disclaims any
responsibilityfor, and thewarrantywillbevoided
by, the following actions:
• Installation and use of any damaged appliance or flue
system component.
• Modification of the appliance or flue system.
• Installation other than as instructed by Hearth & Home
Technologies.
• Improper positioning of the gas logs or the glass door.
• Installationand/oruseofanycomponentpartnotapproved
by Hearth & Home Technologies.
Any such action may cause a fire hazard.
WARNING
WARNING

Heat & Glo • SOHO-N-AU • 2197-900 Rev. C • 9/09
6

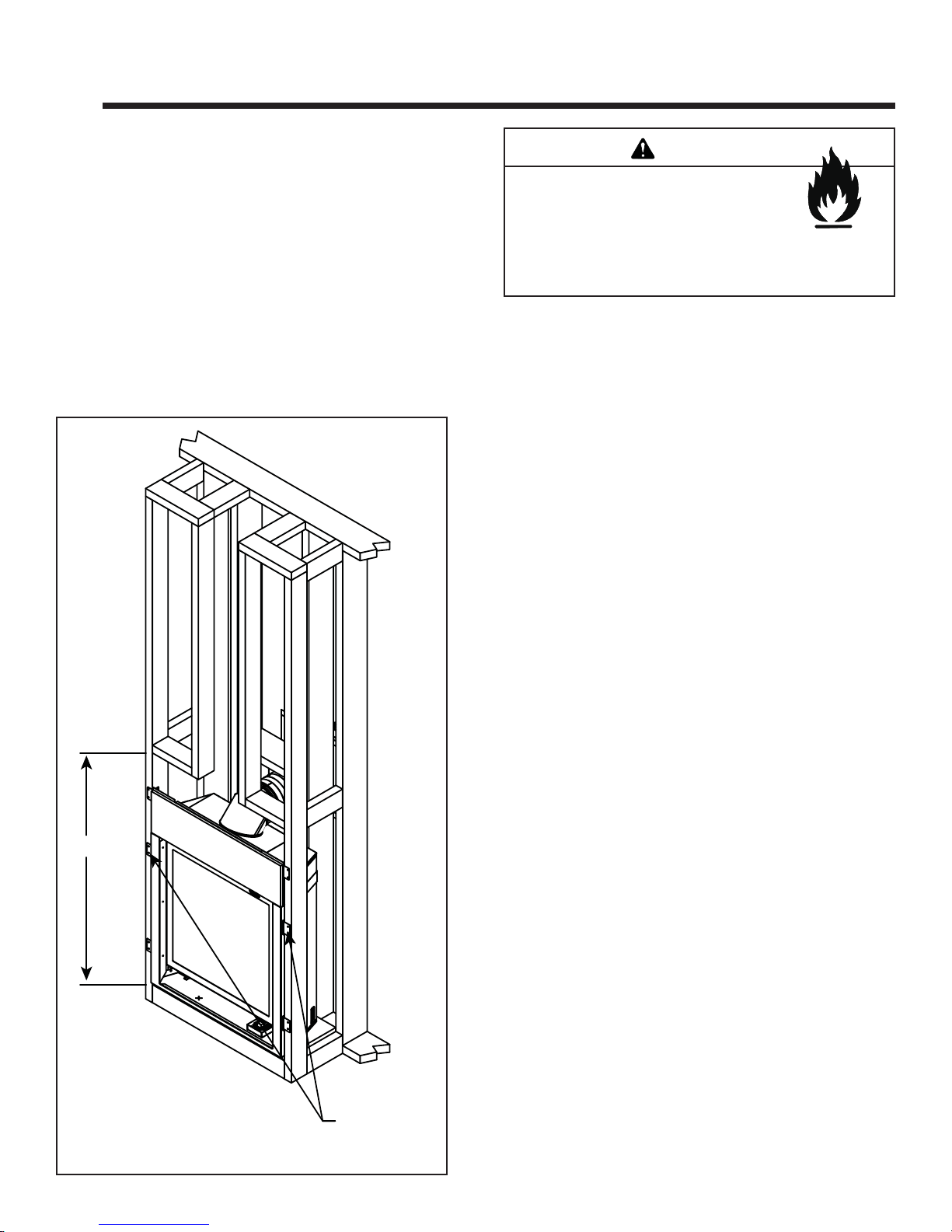

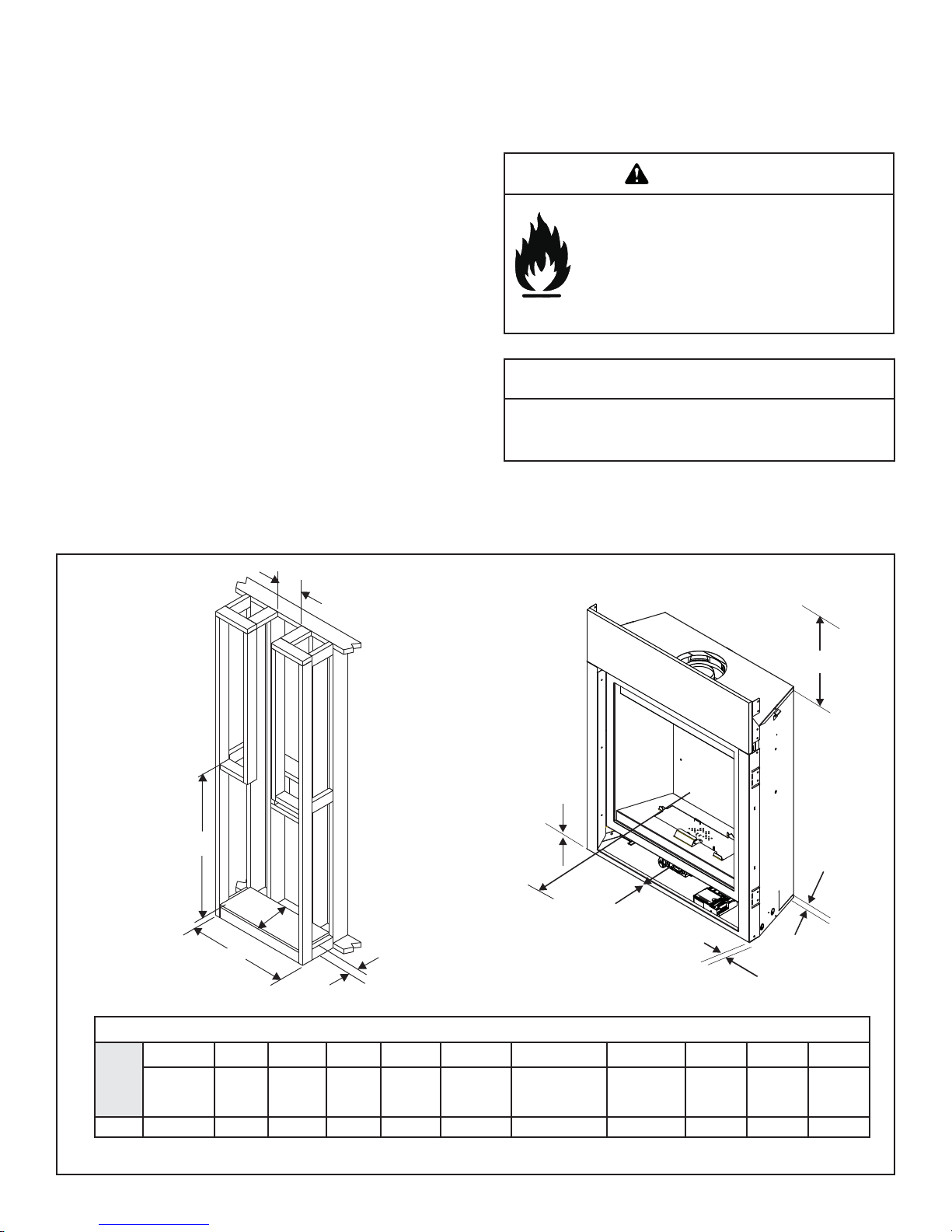

Figure 3.1 Appliance Locations
ABCD
Millimeters 841 740 1187 892
In addition to these framing dimensions, also reference the following sections:
• Clearances and Mantel Projections (Sections 3.C and 11.B).
• Flue Clearances and Framing (Section 6).
3
3 Framing and Clearances
Note:
•Illustrations reflect typical installations and are FOR
DESIGN PURPOSES ONLY.
•Illustrations/diagrams are not drawn to scale.
•Actual installation may vary due to individual design
preference.
Fire Risk
Provide adequate clearance:
• Around air openings
• To combustibles
• For service access
Locate appliance away from traffic areas.
A. Selecting Appliance Location
Whenselectinga location for yourapplianceitis important
to consider the required clearances to walls (see Figure
3.1). NOTE: For actual appliance dimensions refer to Sec-
tion 16.
WARNING
B
C
A
A
13 mm
ALCOVE
INSTALLATION
TOP FLUE,
ONE 90º ELBOW
B
D

Heat & Glo • SOHO-N-AU • 2197-900 Rev. C • 9/09 7
Figure 3.2 Clearances to Combustibles
CLEARANCES TO COMBUSTIBLES:
ABCDE F G H I JK
Rough
Opening
(Flue Pipe)
Rough
Opening
(Height)
Rough
Opening
(Depth)
Rough
Opening
(Width)
Minimum
Platform
Height
Clearance
to Ceiling Non-Combustible Floor Combustible Flooring Behind Appliance Sides of Appliance Front of Appliance
mm 219 1118 292 752 76 711 0 0 13 1330 914
B
C
D
A
E
CAUTION
TheSOHO-N-AUrequires an elevated platformconstruction
to accommodate the Studio CE Front which is larger than
the appliance.
H
J
I
F
G
K
B. Constructing the Appliance Chase
A chase is a vertical boxlike structure built to enclose the
gas appliance and/or its flue system. Vertical flues that
run on the outside of a building may be, but are not re-
quired to be, installed inside a chase.
Construction of the chase may vary with the type of build-
ing. These instructions are not substitutes for the require-
ments of local building codes. Local building codes MUST
be checked.
Chases should be constructed in the manner of all out-
side walls of the home to prevent cold air drafting prob-
lems. The chase should not break the outside building
envelope in any manner.
Walls, ceiling, base plate and cantilever floor of the chase
should be insulated. Vapor and air infiltration barriers
should be installed in the chase as per regional codes for
the rest of the home. Additionally, in regions where cold
air infiltration may be an issue, the inside surfaces may be
sheetrocked and taped for maximum air tightness.
To further prevent drafts, the wall shield and ceiling fire-
stops should be caulked with high temperature caulk to
seal gaps. Gas line holes and other openings should be
caulked with high temp caulk or stuffed with unfaced in-
C. Clearances
Fire Risk.
Odor Risk.
•Installapplianceonhard metal or wood surfaces
extending full width and depth of appliance.
•Do NOT install appliance directly on carpeting,
vinyl,tileor any combustible material otherthan
wood.
sulation. If the appliance is being installed on a cement
slab, a layer of plywood may be placed underneath to pre-
vent conducting cold up into the room.
WARNING

Heat & Glo • SOHO-N-AU • 2197-900 Rev. C • 9/09
8
A. Flue Termination Minimum Clearances
Fire Risk.
Explosion Risk.
Maintain flue clearance to combustibles as
specified.
• Donot pack airspacewith insulation or other
materials.
Failure to keep insulation or other materials
away from flue pipe may cause fire.
Figure 4.2
Figure 4.1 Minimum height from roof to lowest discharge
opening
4
4 Termination Locations
Measure horizontal clearances from this surface.
Measure vertical clearances from this surface.
Figure 4.1 specifies minimum flue heights for various
pitched roofs.
(See Figure 4.4 for specific clearances)
HORIZONTAL
OVERHANG
VERTICAL
WALL
TERMINATION
CAP
300 mm
X
ROOF PITCH
IS X/ 300 mm
LOWEST
DISCHARGE
OPENING
610 mm
MIN.
610 mm
H (MIN.) - MINIMUM HEIGHT FROM ROOF
TO LOWEST DISCHARGE OPENING
WARNING
Angle H (Min.) M
0°-26.6° ........................................................0.30*
26.6°-30.3° ........................................................0.38*
30.3°-33.7° ........................................................0.46*
33.7°-36.9° ........................................................0.61*
36.9°-39.8° ........................................................0.76
39.8°-42.5° ........................................................0.99
42.5°-45.0° ........................................................1.22
45.0°-49.4° ........................................................1.52
49.4°-53.1° ........................................................1.83
53.1°-56.3° ........................................................2.13
56.3°-59.0° ........................................................2.29
59.0°-60.3° ........................................................2.44
*.91 M minimum in snow regions
Figure 4.3 Staggered Termination Caps
Gas, Wood or Fuel Oil
Termination Cap
B
Gas
Termination
Cap **
A*
*If using decorative cap cover(s), this distance may need to be
increased. Refer to the installation instructions supplied with the
decorative cap cover.
** In a staggered installation with both gas and wood terminations, the
wood termination cap must be higher than the gas termination cap.
AB
152 mm (minimum) up to 508 mm 457 mm minimum
508 mm and over 0 mm minimum

Heat & Glo • SOHO-N-AU • 2197-900 Rev. C • 9/09 9
Electrical
Service
V
S
VS
V
T
D*
V
MN
P
R
Q
V= VENT TERMINAL X= AIR SUPPLY INLET = AREA WHERE TERMINAL IS NOT PERMITTED
Figure 4.4 Minimum Clearances for Termination
A = 310 mm.................clearances abovegrade,veranda,
porch, deck or balcony
B = 500 mm.................clearances to window or door
thatmay be opened,orto perma-
nently closed window. (Glass)
D* = 310 mm.................vertical clearance to unventilated
soffitorto ventilated soffitlocated
above the terminal
760 mm..................for vinyl clad soffits and below
electrical service
F = 500 mm................clearance to outside corner
G = 500 mm.................clearance to inside corner
H = 910 mm.................not to be installed above a gas
meter/regulator assembly within
900 mm horizontally from the cen-
ter-line of the regulator
I = 1.8 m.....................clearancetogasserviceregulator
flue outlet
J = 310 mm...................clearance to non-mechanical
air supply inlet to building or the
combustion air inlet to any other
appliance
K = 1.8 m.......................clearance to a mechanical
(powered) air supply inlet
L** = 2.1 m.......................clearance above paved
sidewalk or a paved driveway
located on public property
m*** = 460 mm...................clearance under veranda, porch,
deck, balcony or overhang
1.1 m ......................vinyl
** aflue shallnot terminatedirectly abovea sidewalkor paveddriveway
whichis locatedbetween two single family dwellingsand servesboth
dwellings.
*** only permitted if veranda, porch, deck or balcony is fully open on a
minimum of 2 sides beneath the floor, or meets Note 2.
NOTE 1: On private property where termination is less than 7 feet above
a sidewalk, driveway, deck, porch, veranda or balcony, use of a listed cap
shield is suggested. (See flue components page)
NOTE 2: Termination in an alcove space (spaces open only on one side
andwith anoverhang) arepermitted withthe dimensionsspecified for vinyl
or non-vinyl siding and soffits. 1. There must be 2.7 m minimum between
termination caps. 2. All mechanical air intakes within 3 m of a termination
cap must be a minimum of 2.7 m below the termination cap. 3. All gravity
air intakes within 2.7 m of a termination cap must be a minimum of .31M
foot below the termination cap.
(See Note 1)
(See Note 1)
(See Note 2)
NOTE 3: Local codes or regulations may require different
clearances.
NOTE 4: Termination caps may be hot. Consider their proximity to
doors or other traffic areas.
NOTE 5: Location of the flue termination must not interfere with
access to the electrical service.
Heat& Gloassumes noresponsibility forthe improper performance
of the appliance when the flueing system does not meet these
requirements.
QMIN = # termination caps x 3 RMAX = (2 / # termination caps) x QACTUAL
Alcove Applications
S = 500 mm....................clearancefromsidesofelec-
trical service
T = 50 mm.......................clearance above electrical
service
(See Note 5)
(See Note 5)
See Notes 3 & 4
QMIN RMAX
1 cap .91 m 2 x Q ACTUAL
2 caps 1.8 m 1 x Q ACTUAL
3 caps 2.7 m 2/3 x Q ACTUAL
4 caps 3.7 m 1/2 x Q ACTUAL
N = 150 mm ..................non-vinyl sidewalls
310 mm ..................vinyl sidewalls
P = 2.4 m

Heat & Glo • SOHO-N-AU • 2197-900 Rev. C • 9/09
10
5
5 Flue Information and Diagrams
Fire Hazard.
Explosion Risk.
Asphyxiation Risk.
DoNOTconnect this gas appliance to achimney
flue serving a separate solid-fuel or gas burning
appliance.
• Vent this appliance directly outside.
• Use separate flue system for this appliance.
May impair safe operation of this appliance or
other appliances connected to the flue.
CAUTION
ALL flue configuration specifications MUST be followed.
• This product is tested and listed to these specifications.
• Applianceperformance will sufferif specifications arenot
followed.
B. Use of Elbows
Diagonal runs have both vertical and horizontal flue as-
pects when calculating the effects. Use the rise for the
vertical aspect and the run for the horizontal aspect (see
Figure 5.1).
Two45ºelbows may beusedin placeofone 90º elbow.On
45º runs, 305 mm of diagonal is equal to 216 millimeters
horizontal run and 216 millimeters vertical run. A length
of straight pipe is allowed between two 45º elbows (see
Flue diagrams).
Figure 5.1
A. Flue Table Key
The abbreviations listed in this flue table key are used in
the flue diagrams.
C. Measuring Standards
Vertical and horizontal measurements listed in the flue
diagrams were made using the following standards.
1. Pipe measurements are from center line to center line.
2. Measurementsaremadefromthe applianceouter wrap,
not from the standoffs.
3. Horizontal terminations are measured to the end of
termination cap.
4. Vertical terminations are measured to bottom of termi-
nation cap.
5. Horizontal pipe installed level with no slope up or
down.
Symbol Description
V1First section (closest to appliance) of vertical length
V2Second section of vertical length
H1First section (closest to appliance) of horizontal length
H2Second section of horizontal length
Horizontal
Vertical
216 mm
216 mm
305 mm
WARNING

Heat & Glo • SOHO-N-AU • 2197-900 Rev. C • 9/09 11
Figure 5.3
H
2
H
1
V
1
INSTALLED
HORIZONTALLY
Figure 5.4
1. Horizontal Termination
One Elbow
Two Elbows
V
1
H
1
Two Elbows
V Minimum H1+ H2Maximum
Elbow only Not Allowed
300 mm 910 mm
610 mm 1.8 m
910 mm 2.7 m
1.2 m 3.7 m
1.5 m 4.6 m
V + H1+ H2Maximum = 11.9 m
H1 + H2Maximum = 4.6 m
D. Flue Diagrams
One Elbow
V Minimum H Maximum
Elbow only 76 mm
300 mm 910 mm
610 mm 1.8 m
910 mm 2.7 m
1.2 m 3.7 m
1.5 m 4.6 m
V + H Maximum = 11.9 m
H Maximum = 4.6 m

Heat & Glo • SOHO-N-AU • 2197-900 Rev. C • 9/09
12
Figure 5.5
1. Horizontal Termination - (continued)
Three Elbows
Three Elbows
V1Minimum H1Maximum V2Minimum H2Maximum
300 mm 610 mm 300 mm 610 mm
610 mm 1.2 m 610 mm 1.2 m
910 mm 1.8 m 910 mm 1.8 m
1.2 m 2.4 m 1.2 m 2.2 m
V1+ V2+ H1+ H2= Maximum = 11.9 m
H1+ H2Maximum = 4.6 m
H
1
V
2
H
2
V
1

Heat & Glo • SOHO-N-AU • 2197-900 Rev. C • 9/09 13
2. Vertical Termination
No Elbow
Figure 5.6
Figure 5.7
Two Elbows
V1= 11.8 m Maximum
V
1
V
1
V
2
H
1
Two Elbows
V1Minimum H Maximum
Elbow only 46 mm
300 mm 910 mm
610 mm 1.2 m
910 mm 1.8 m
1.2 m 2.4 m
1.8 m 4.6 m
V1+ V2+ H Maximum = 11.9 m
H1+ H2Maximum = 4.6 m

Heat & Glo • SOHO-N-AU • 2197-900 Rev. C • 9/09
14
Figure 5.8
2. Vertical Termination - (continued)
Three Elbows
V2
H2V1
INSTALLED
HORIZONTALLY
H1
Three Elbows
V1Minimum H1+ H2Maximum
300 mm 610 mm
610 mm 910 mm
910 mm 1.5 m
1.2 m 2.1 m
1.5 m 4.3 m
V1+ V2+ H1+ H2Maximum = 11.9 m
H1+ H2Maximum = 4.3 m

Heat & Glo • SOHO-N-AU • 2197-900 Rev. C • 9/09 15
Combustible Wall Penetration
Frame a hole in a combustible wall for an interior wall
shield firestop, (Figure 6.2) whenever a wall is penetrated.
Use same size framing materials as those used in the wall
construction. The wall shield firestop maintains minimum
clearances and prevents cold air infiltration.
Non-Combustible Wall Penetration
Iftheholebeingpenetratedissurroundedbynoncombustible
materials such as concrete, a hole with diameter 254 mm
greater than the pipe is acceptable.
B. Wall Penetration Framing
Figure 6.2 Exterior Wall Hole
A
B
254 mm
* Shows center of flue framing hole. The center of the hole is one 254 mm
above the center of the horizontal flue pipe.
Fire Risk.
Explosion Risk.
Maintain flue clearance to combustibles as
specified.
• Donotpackair space with insulation or other
materials.
Failure to keep insulation or other materials
away from flue pipe may cause fire.
Figure 6.1 Pipe Clearances
762 mm TOP
CLEARANCE
254 mm CLEARANCE
AROUND VERTICAL
SECTIONS
254 mm SIDE AND
BOTTOM CLEARANCE
WARNING
A* B
965 mm 934 mm
A. Pipe Clearances to Combustibles
6
6 Flue Clearances and Framing

Heat & Glo • SOHO-N-AU • 2197-900 Rev. C • 9/09
16
Installing the Ceiling Firestop
• Frame an opening 254 mm by 254 mm
wheneverthesystempenetratesaceiling/
floor (see Figure 6.3). A steeply slanted
roof may require an enlarged opening
size in order to maintain proper flue pipe
clearances.
• Frame the area with the same sized
lumber as used in ceiling/floor joist.
• When installing a top flue vertical ter-
mination appliance the hole should be
directly above the appliance, unless the
flue is offset.
• Do not pack insulation around the flue.
Insulation must be kept away from the
pipe.
Installing Attic Shield
Note: An additional ceiling firestop is not
required if attic shield is used.
• Frame opening for attic shield.
• Attic shield may be installed above or
below ceiling (see Figure 6.4).
• Secure with three fasteners on each
side.
• Fold tabs at top of attic shield in toward
flue pipe. Tabs must keep flue pipe cen-
tered within shield.
• Field construct additional shield height if
insulation is deeper than height of attic
shield.
C. Vertical Penetration Framing
Figure 6.3
ATTIC
ABOVE
A
B
Figure 6.4 Installing the Attic Shield
A B
SL PIPE 254 mm 254 mm
3 FASTENERS
PER SIDE
BEND TABS IN
AROUND PIPE
ATTIC SHIELD INSTALLED
ABOVE CEILING
ATTIC SHIELD INSTALLED
BELOW CEILING
Fire Hazard
Keep loose materials or blown
insulation from touching the
flue pipe.
• Hearth & Home Technologies requires
the use of an attic shield.
WARNING

Heat & Glo • SOHO-N-AU • 2197-900 Rev. C • 9/09 17
7
7 Appliance Preparation
NAILING TABS
1118 mm
A. Securing and Leveling the Appliance
The diagram shows how to properly position, level, and se-
cure the appliance (see Figure 7.7). Nailing tabs are pro-
vided to secure the appliance to the framing members.
• Place the appliance into position.
• Level the appliance from side to side and front to back.
• Shimtheappliance, as necessary.It isacceptableto use
wood shims.
• Bend out nailing tabs on each side.
• Keep nailing tabs flush with the framing.
• Secure the appliance to the framing by using nails or
screws through the nailing tabs.
Figure 7.1 Proper Positioning, Leveling and
Securing of a Appliance
Fire Risk.
• ALWAYS maintain specified
clearances around the appliance.
• Do NOT notch into the framing around the appliance spacers.
Failuretokeep insulation, framing or othermaterialawayfrom
the appliance may cause fire.
WARNING

Heat & Glo • SOHO-N-AU • 2197-900 Rev. C • 9/09
18
8
8 Installing Flue Pipe
Figure 8.1 Adding Flue Components
Install Support Brackets
ForHorizontal Runs - The fluesystemmust be supported
every 1.5 meters of horizontal run by a horizontal pipe
support.
To install support brackets for horizontal runs:
• Place the pipe supports around the flue pipe.
• Nail the pipe supports to the framing members.
For Vertical Runs - The flue system must be supported
every 2.4 meters above the appliance flue outlet by wall
brackets. To install support brackets for vertical runs:
• Attach wall brackets to the flue pipe and secure the wall
bracket to the framing members with nails or screws.
Attach the First Flue Component to Starting Collars
To attach the first flue component to the starting collars
of the appliance:
• Lock the flue components into place by sliding the
concentric pipe sections with four (4) equally spaced
interior beads into the appliance collar or previously
installed component end with four (4) equally spaced
indented sections.
• Whenthe internalbeadsof eachouter pipelineup, rotate
the pipe section clockwise about one-quarter (1/4) turn
(see Figure 8.1). The flue pipe is now locked together.
• Slide the ceramic rope ring over the firstflue section and
place it flush to the appliance. This will prevent cold air
infiltration. High temp caulk may be used to hold the part
in place. Continue to add flue components.
Continue Adding Flue Components
• Continue adding flue components, locking each
succeeding component into place.
• Ensurethateach succeedingfluecomponent issecurely
fitted and locked into the preceding component.
• 90° elbows may be installed and rotated to any point
around the preceding component’s vertical axis. If an
elbow does not end up in a locked position with the
preceding component, attach with a minimum of two (2)
sheet metal screws.
Fire Risk
Exhaust Fumes Risk
Impaired Performance of Appliance
• Ensure flue components are locked together correctly.
• Pipe may separate if not properly joined.
Fire Risk.
Explosion Risk.
Combustion Fume Risk.
Use flue run supports per installation instructions.
Connect flue sections per installation instructions.
• Maintain all clearances to combustibles.
• DoNOTallow fluetosagbelowconnectionpoint
to appliance.
Improper support may allow flue to sag or separate.
A. Assembly of Flue Sections
WARNING
WARNING

Heat & Glo • SOHO-N-AU • 2197-900 Rev. C • 9/09 19
B. Installing Firestops and Horizontal Termination Cap
DoNOTconnectapipesectiontoaterminationcapwithoutusing
the telescoping flue section found on the termination cap.
Note: Where required, an exterior wall flashing is available.
When penetrating a brick wall, a brick extension kit is avail-
able for framing the brick.
Installing the Horizontal Termination Cap
Flue termination must not be recessed in the wall. Siding
may be brought to the edge of the cap base.
Flashandseal as appropriateforsiding material atoutside
edges of cap.
For Horizontal Runs - Wall shield firestops are RE-
QUIRED on both sides of a combustible wall through which
the flue passes.
NOTE: Model SLK-01TRD does not need an exterior
wall shield firestop on an exterior combustible wall
as the shield is built into this termination cap assem-
bly.
To install wall shield firestops for horizontal runs that pass
through either interior or exterior walls:
Cut a 254 mm x 254 mm hole for SL-D-series pipe. The
center of the framing hole is 254 mm above the center of
the horizontal flue pipe.
• Position the wall shield firestops on both sides of the
hole previously cut and secure the wall shield firestops
with nails or screws.
• The heat shields of the wall shield firestops MUST BE
placed towards the top of the hole.
• Continue the flue run through the wall shield firestops.
Figure 8.2 Hole and Flue Pipe
Figure 8.3 Heat Shield, Interior & Exterior Wall Shield Firestops
TRIM HEAT
SHIELD IFTOO
LONG, ADD TO
SHIELD IFTOO
SHORT
WALL SHIELD
FIRESTOP
(INTERIOR)
HEAT SHIELD
WALL SHIELD
FIRESTOP
(EXTERIOR)
Fire Risk.
Explosion Risk.
Do NOT pack insulation or other
combustibles between firestops.
• ALWAYS maintain specified clearances around venting
and firestop systems.
• Install firestops as specified.
Failure to keep insulation or other material away from flue
pipe may cause fire.
254 mm
254 mm
254 mm
FLUE PIPE
PIPE CENTER LINE
FRAMED HOLE
CENTER LINE
WARNING
Fire Risk
Exhaust Fumes Risk
Impaired Performance of Appliance
• Ensure flue components are locked together correctly.
• Pipe may separate if not properly joined.
WARNING
WARNING

Heat & Glo • SOHO-N-AU • 2197-900 Rev. C • 9/09
20
To install roof flashing see Figure 8.4.
Forinstallation ofverticalterminationcapsee minimumflue
heights for various pitched roofs (see Figure 8.4).
To attach the vertical termination cap, slide the inner col-
lar of the cap into the inner flue of the pipe section and
place the outer collar of the cap over the outer flue of the
pipe section.
Secure the cap by driving the three self-tapping screws
(supplied) through the pilot holes in the outer collar of the
cap into the outer flue of the pipe (see Figure 8.5).
Figure 8.5
SCREWS
CAULK
STORM COLLAR
(1 of 3)
TERMINATION CAP
Fire Risk.
Explosion Risk.
Inspect external flue cap regularly.
• Ensure no debris blocks cap.
• Combustible materials blocking cap may
ignite.
• Restricted air flow affects burner operation.
WARNING
Figure 8.4 Minimum height from roof to lowest discharge
opening
C. Install Roof Flashing and Vertical
Termination Cap
HORIZONTAL
OVERHANG
VERTICAL
WALL
TERMINATION
CAP
300 mm
X
ROOF PITCH
IS X/ 300 mm
LOWEST
DISCHARGE
OPENING
610 mm
MIN.
610 mm
H (MIN.) - MINIMUM HEIGHT FROM ROOF
TO LOWEST DISCHARGE OPENING
Angle H (Min.) M
0°-26.6° ........................................................0.30*
26.6°-30.3° ........................................................0.38*
30.3°-33.7° ........................................................0.46*
33.7°-36.9° ........................................................0.61*
36.9°-39.8° ........................................................0.76
39.8°-42.5° ........................................................0.99
42.5°-45.0° ........................................................1.22
45.0°-49.4° ........................................................1.52
49.4°-53.1° ........................................................1.83
53.1°-56.3° ........................................................2.13
56.3°-59.0° ........................................................2.29
59.0°-60.3° ........................................................2.44
*.91 M minimum in snow regions
