Heat-N-Glo Pier-38HV Assembly instructions

1
- Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
-What to do if you smell gas
 Do not try to light any appliance.
 Do not touch any electrical switch.
 Do not use any phone in your building.
 Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
 If you cannot reach your gas supplier, call
the fire department.
- Installation and service must be performed by a
qualified installer, service agency, or the gas
supplier.
Models:
Pier-38HV
ST-38HV
Installers Guide
WARNING: IMPROPER INSTALLA-
TION, ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE CAN
CAUSE INJURY OR PROPERTY DAM-
AGE. REFER TO THIS MANUAL. FOR
ASSISTANCE OR ADDITIONAL INFOR-
MATION CONSULT A QUALIFIED IN-
STALLER, SERVICE AGENCY, OR THE
GAS SUPPLIER.
Underwriters
Laboratories Listed
285-900D 5/01
READ THIS MANUAL BEFORE INSTALLING OR
OPERATING THIS APPLIANCE. THIS INSTALLERS
GUIDE MUST BE LEFT WITH APPLIANCE FOR
FUTURE REFERENCE.
1. This appliance may be installed in an af-
termarket, permanently located, manu-
factured (mobile) home, where not pro-
hibited by local codes.
2. This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases, unless a certified kit is used.
Please contact your Heat-N-Glo dealer for any
questions or concerns. For the number of your
nearest Heat-N-Glo dealer, please call 952-985-6000.
Printed in U.S.A. Copyright 2001,
Heat-N-Glo, a division of Hearth Technologies Inc.
20802 Kensington Boulevard, Lakeville, MN 55044
WARNING: IF THE INFORMATION
IN THESE INSTRUCTIONS IS NOT
FOLLOWED EXACTLY, A FIRE OR
EXPLOSION MAY RESULT CAUS-
ING PROPERTY DAMAGE, PER-
SONAL INJURY, OR DEATH.
This product is covered by one or more of the following patents: (United States) 4,112,913; 4,408,594; 4,422,426; 4,424,792; 4,520,791; 4,793,322;
4,852,548; 4,875,464; 5,000,162; 5,016,609; 5,076,254 5,191,877; 5,218,953; 5,328,356; 5,429,495; 5,452,708; 5,542,407; 5,613,487; (Australia)
543790; 586383; (Canada) 1,123,296; 1,297,746; 2,195,264; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. and foreign patents pending.

2
These units MUST use one of the vent systems
described in the Installing the Fireplace section of
the Installers Guide. NO OTHER vent systems or
components MAY BE USED.
This gas fireplace and vent assembly MUST be
vented directly to the outside and MUST NEVER be
attached to a chimney serving a separate solid fuel
burning appliance. Each gas appliance MUST USE
a separate vent system. Common vent systems are
PROHIBITED.
INSPECT the external vent cap on a regular basis to
make sure that no debris is interfering with the air
flow.
The glass door assembly MUST be in place and
sealed, and the trim door assembly MUST be in
place on the fireplace before the unit can be placed
into safe operation.
DO NOT OPERATE this appliance with the glass
door removed, cracked, or broken. Replacement of
the glass door should be performed by a licensed
or qualified service person. DO NOT strike or slam
the glass door.
The glass door assembly SHALL ONLY be
replaced as a complete unit, as supplied by the gas
fireplace manufacturer. NO SUBSTITUTE material
may be used.
DO NOT USE abrasive cleaners on the glass door
assembly. DO NOT ATTEMPT to clean the glass
door when it is hot.
Turn off the gas before servicing this appliance. It is
recommended that a qualified service technician
perform an appliance check-up at the beginning of
each heating season.
Any safety screen or guard removed for servicing
must be replaced before operating this appliance.
DO NOT place furniture or any other combustible
household objects within 36 inches of the fireplace
front.
READ and UNDERSTAND all instructions carefully
before starting the installation. FAILURE TO
FOLLOW these installation instructions may result
in a possible fire hazard and will void the warranty.
Prior to the first firing of the fireplace, READ the
Using Your Fireplace section of the Owners Guide.
DO NOT USE this appliance if any part has been
under water. Immediately CALL a qualified service
technician to inspect the unit and to replace any part
of the control system and any gas control which has
been under water.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should be PERFORMED by a
qualified service person. The appliance and venting
system should be INSPECTED before initial use
and at least annually by a professional service
person. More frequent cleaning may be required
due to excessive lint from carpeting, bedding
material, etc. It is IMPERATIVE that the units
control compartment, burners, and circulating air
passageways BE KEPT CLEAN to provide for
adequate combustion and ventilation air.
Always KEEP the appliance clear and free from
combustible materials, gasoline, and other
flammable vapors and liquids.
NEVER OBSTRUCT the flow of combustion and
ventilation air. Keep the front of the appliance
CLEAR of all obstacles and materials for servicing
and proper operations.
Due to the high temperature, the appliance should
be LOCATED out of traffic areas and away from
furniture and draperies. Clothing or flammable
material SHOULD NOT BE PLACED on or near the
appliance.
Children and adults should be ALERTED to the
hazards of high surface temperature and should
STAY AWAY to avoid burns or clothing ignition.
Young children should be CAREFULLY SUPERVISED
when they are in the same room as the appliance.
!
!
!
!
!
!
!
!!
!
!
!
!
!
!
!
!
SAFETY AND WARNING INFORMATION
!
!

3
Table of Contents
Safety and Warning Information ..................................... 2
Service Parts Lists .......................................................... 4
Section 1: Approvals and Codes .................................... 8
Appliance Certification........................................................ 8
Installation Codes ............................................................... 8
High Altitude Installations .................................................... 8
Section 2: Getting Started .............................................. 9
Introducing the Heat-N-Glo Gas Fireplaces ....................... 9
Pre-installation Preparation ................................................ 9
Section 3: Installing the Fireplace ............................... 12

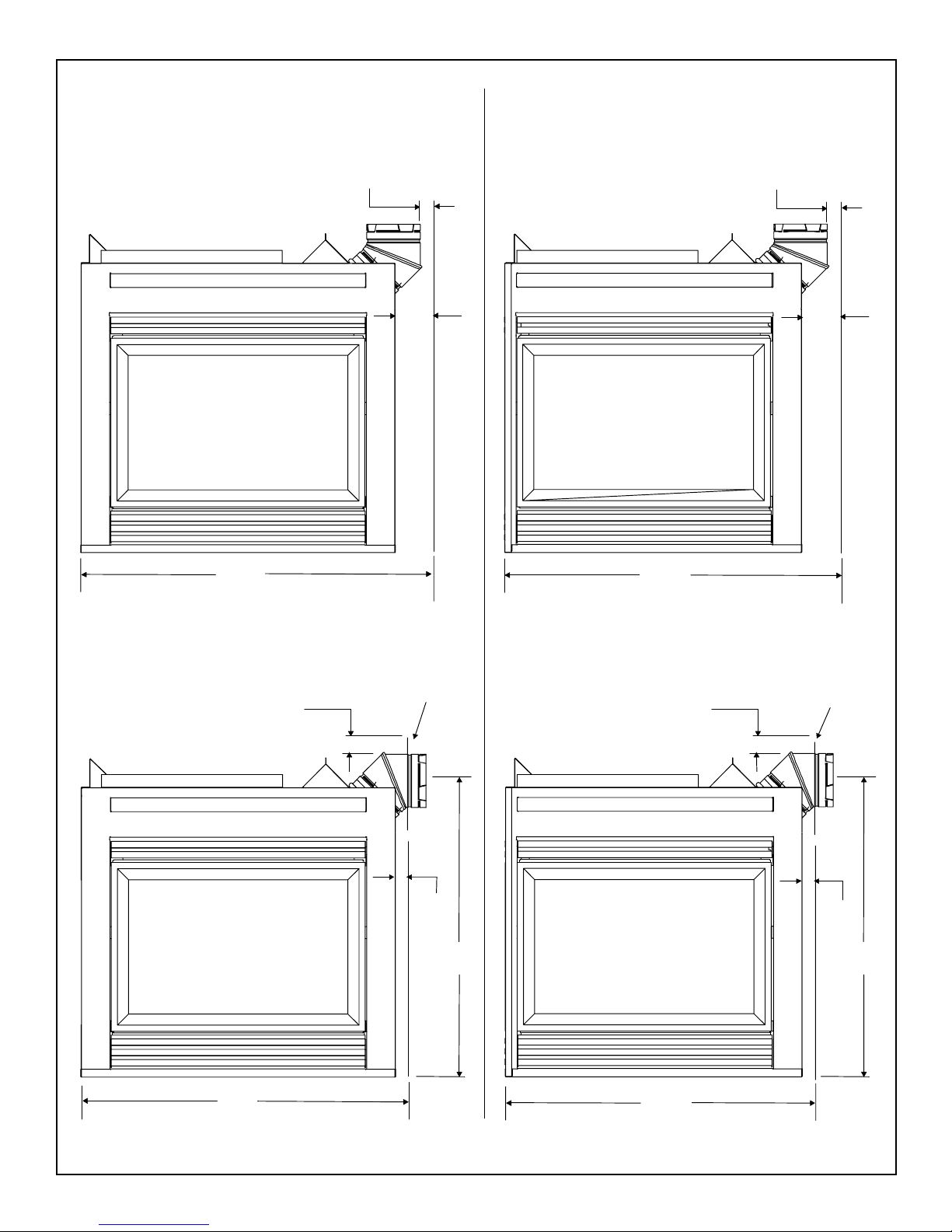

Constructing the Fireplace Chase ................................... 12
Step 1 Locating the Fireplace ....................................... 12
Step 2 Framing the Fireplace ....................................... 13

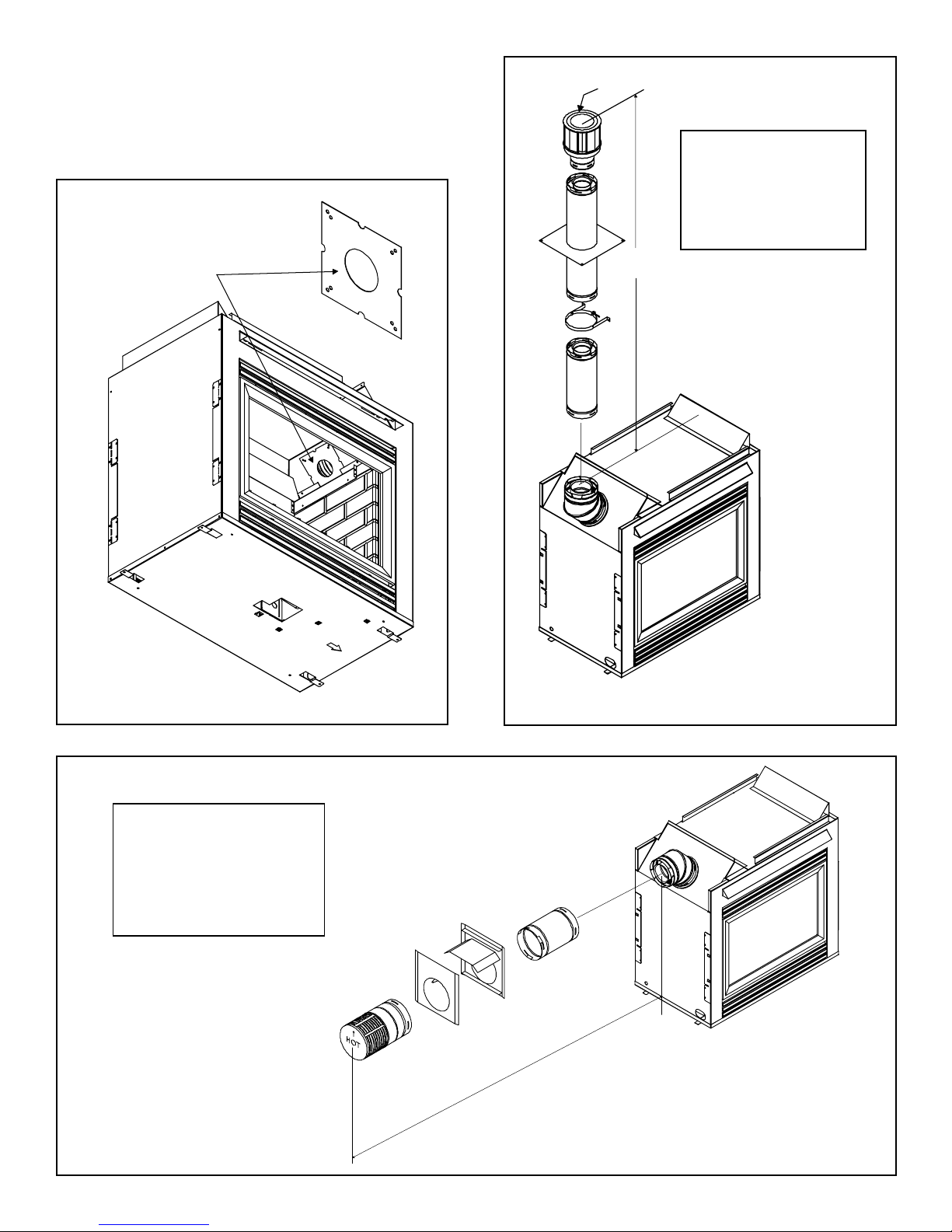

Step 3 Installing the Vent System ................................. 15
A. Vent System Approvals ................................ 15

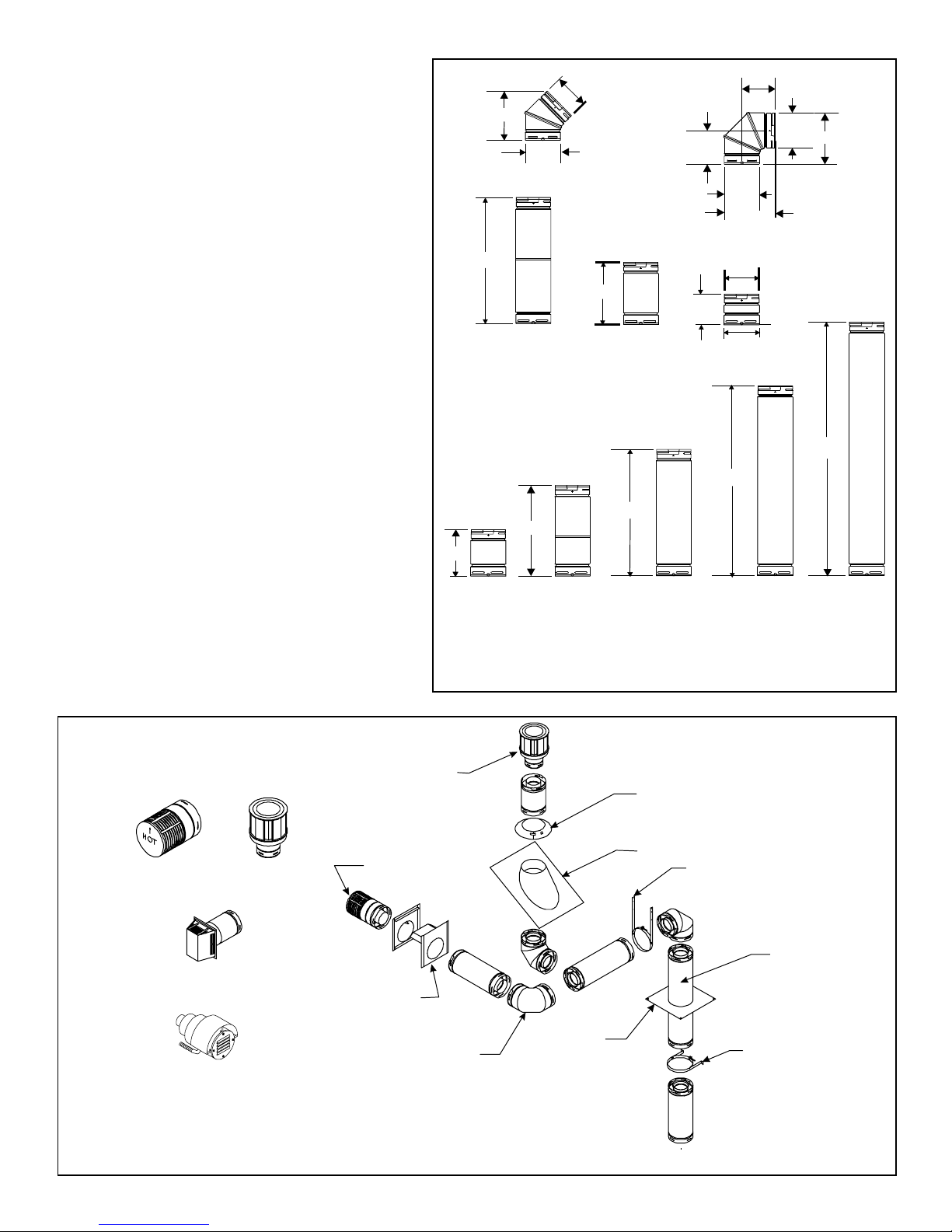

B. Installing Vent Components ......................... 22
C. Vent Termination .......................................... 25
Step 4 Positioning, Leveling, and
Securing the Fireplace ...................................... 28
Step 5 The Gas Control Systems ................................. 28
Step 6 The Gas Supply Line ......................................... 29
Step 7 Gas Pressure Requirements ............................ 29
Step 8 Wiring the Fireplace .......................................... 30
Step 9 Finishing ............................................................ 31
Step 10 Installing Trim, Logs, and Ember Material ......... 32
Installing the Trim .............................................. 32
Positioning the Logs .......................................... 32
Placing the Ember Material ............................... 32
Glass Specifications .......................................... 33
Step 11 Before Lighting the Fireplace ............................. 33
Step 12 Lighting the Fireplace ........................................ 33
After the Installation .......................................................... 33
Section 4: Maintaining and Servicing
Your Fireplace ............................................. 34
u= Contains updated information.
u
u
u

8
Appliance Certification
The Heat-N-Glo fireplace models discussed in this Installers
Guide have been tested to certification standards and listed
by the applicable laboratories.
Certification
MODEL: PIER-38HV, ST-38HV
LABORATORY: Underwriters Laboratories
TYPE: Direct Vent Gas Fireplace
STANDARD: ANSI Z21.50CGA2.22UL307B
Installation Codes
The fireplace installation must conform to local codes. Before
installing the fireplace, consult the local building code
agency to ensure that you are in compliance with all
applicable codes, including permits and inspections.
In the absence of local codes, the fireplace installation must
conform to the National Fuel Gas Code ANSI Z223.1 (in
the United States) or the CAN/CGA-B149 Installation Codes
(in Canada). The appliance must be electrically grounded
in accordance with local codes or, in the absence of local
codes with the National Electric Code ANSI/NFPA No. 70
(in the United States), or to the CSAC22.1 Canadian Electric
Code (in Canada).
These models may be installed in a bedroom or bed-sitting
room in the U.S.A. and Canada.
1Approvals and Codes
High Altitude Installations
U.L. Listed gas fireplaces are tested and approved for
elevations from 0 to 2,000 feet in the U.S.A. and from 0 to
4,500 feet in Canada.
When installing this fireplace at an elevation above 2,000
feet (in the United States), it may be necessary to decrease
the input rating by changing the existing burner orifice to a
smaller size. Input should be reduced four percent (4%) for
each 1,000 feet above sea level, unless the heating value of
the gas has been reduced, in which case this general rule
will not apply.
When installing this fireplace at an elevation between 2,000
and 4,500 feet (in Canada), the input rating must be reduced
by ten percent (10%).
When installing this fireplace at an elevation above 4,500
feet (in Canada), check with local authorities.
Consult your local gas utility for assistance in determining
the proper orifice for your location.
Heat-N-Glo Quality
Systems registered
by SGS ICS

9
2Getting Started
Introducing the Heat-N-Glo Gas Fireplaces
Heat-N-Glo direct vent gas fireplaces are designed to oper-
ate with all combustion air siphoned from outside of the
building and all exhaust gases expelled to the outside.
The information contained in this Installers Guide, unless
noted otherwise, applies to all models and gas control

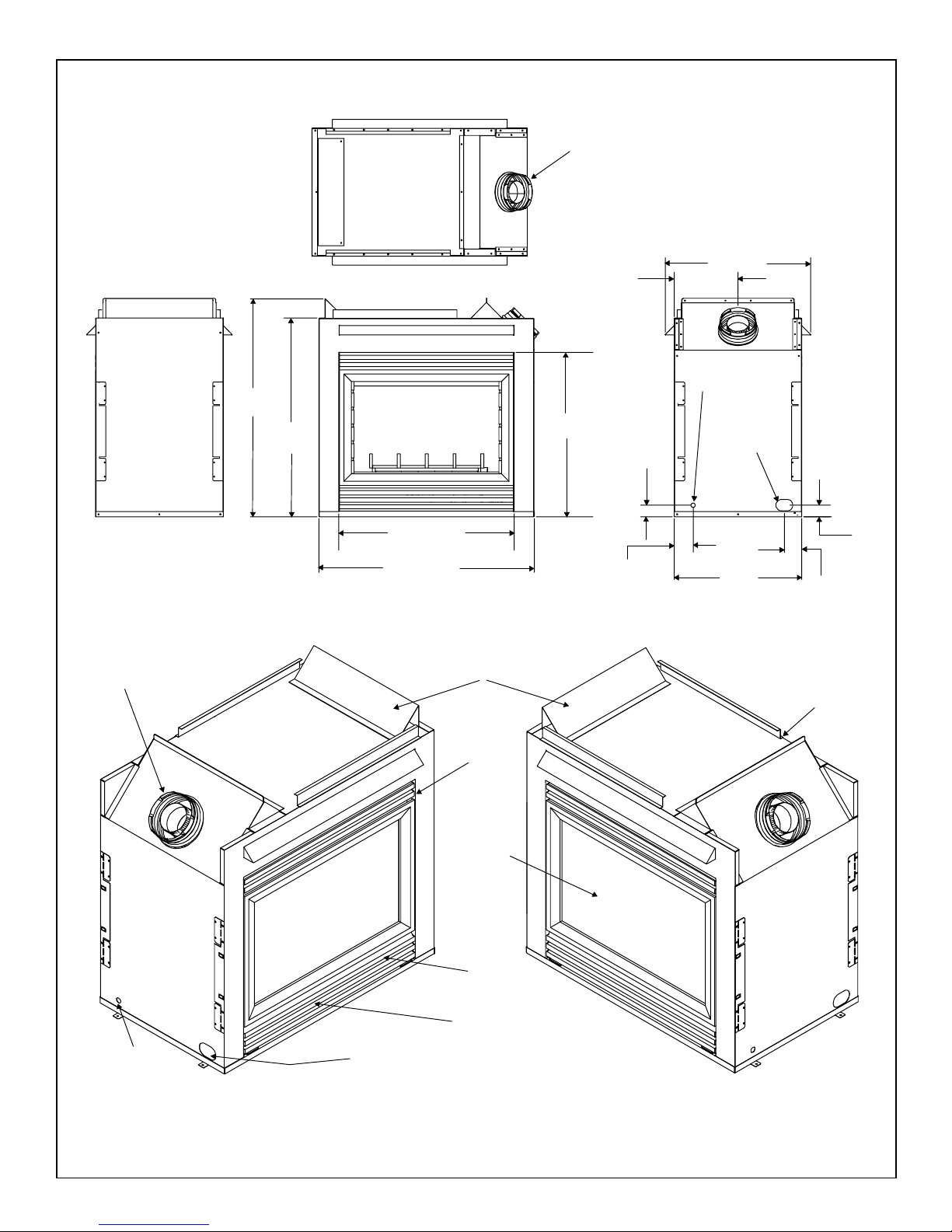

systems. Gas fireplace diagrams, including the dimensions,
are shown in this section.
Pre-install Preparation
This gas fireplace and its components are tested and safe
when installed in accordance with this Installers Guide.
Report to your dealer any parts damaged in shipment,
particularly the condition of the glass. Do not install any
unit with damaged, incomplete, or substitute parts.
The vent system components are shipped in separate
packages. The gas logs are packaged separately and must
be field installed.
Read all of the instructions before starting the
installation. Follow these instructions carefully during
the installation to ensure maximum safety and benefit.
Failure to follow these instructions will void the
owners warranty and may present a fire hazard.
When planning a fireplace installation, its necessary to
determine:
Where the unit is to be installed.
The vent system configuration to be used.
Gas supply piping.
Electrical wiring.
Framing and finishing details.
Whether optional accessories  devices such as a fan,
wall switch, or remote control  are desired.
If the fireplace is to be installed on carpeting or tile, or on
any combustible material other than wood flooring, the
fireplace must be installed on a metal or wood panel that
extends the full width and depth of the fireplace.
Warranty
The Heat-N-Glo Warranty will be voided by, and Heat-N-Glo
disclaims any responsibility for, the following actions:
 Installation of any damaged fireplace or vent system com-
ponent.
 Modification of the fireplace or direct vent system.
 Installation other than as instructed by Heat-N-Glo.
 Improper positioning of the gas logs or the glass door.
 Installation and/or use of any component part not manu-
factured and approved by Heat-N-Glo, not withstanding
any independent testing laboratory or other party approval
of such component part or accessory.
ANY SUCH ACTION MAY POSSIBLY CAUSE A FIRE
HAZARD.

10
VENT COLLAR TOP STANDOFFS VENT COLLAR
END GLASS
DOOR
TOP
GRILL
SIDE
GLASS
DOOR
BOTTOM
GRILL
GAS CONTROLS
& LABELS
GAS LINE
ACCESS
ELECTRICAL
ACCESS
28 3/16
(716mm)
36 1/16
(915mm)
38 5/8
(981mm)
31 3/16
(792mm)
11 5/16
(287mm)
22 11/16
(576mm)
35 3/16
(894mm)
3 3/8
(85mm)
2
(52mm)
2
(52mm)
3 1/16
(79mm)
Ø 6 5/8
(168mm)
GAS LINE
ACCESS
ELECTRICAL
ACCESS
25 7/8
(657mm)
Figure 1. Diagram of the PIER-38HV

11
Figure 2. Diagram of the ST-38HV
Ø6 5/8
(168mm)
25 7/8
(657mm)
11 5/16
(287mm)
GAS LINE
ACCESS
2
(52MM)
3 1/16
(79mm)
22 11/16
(576mm)
3 3/8
(85mm)
ELECTRICAL
ACCESS
2
(52mm)
29 1/8
(739mm)
31 3/16 (792mm)
38 1/4 (972mm)
35 3/16
(894mm)
38 5/8
(981mm)
VENT COLLAR TOP STANDOFFS
VENT COLLAR
TOP
GRILL
GLASS
DOOR
BOTTOM
GRILL
GAS CONTROLS
& LABELS
GAS LINE
ACCESS
ELECTRICAL
ACCESS

12
3Installing the Fireplace
Step 1. Locating the Fireplace
Space and clearance requirements for locating a fireplace
within a room (see Figure 3).
Minimum Clearances from the Fireplace to
Combustible Materials
Inches mm
Glass Sides or Ends.......... 3 6 ................. 91 4
Floor....................................... 0 .................... 0
Rear Vent ............................... 0 .................... 0
Metal Sides or Ends ............ 0 .................... 0
Top ....................................... 3 1/2 ............... 8 9
Ceiling*................................. 3 6 ................. 91 4
Figure 3. Fireplace Dimensions, Locations,
and Space Requirements
Minimum Clearances from the Vent Pipe to
Combustible Materials
Inches mm
Vertical Sections. ............. 1 ................... 2 5
Horizontal Sections
Top ......................................... 3 ................... 7 5
Bottom .................................. 1 ................... 2 5
Sides..................................... 1 ................... 2 5
At Wall Firestops
Top ...................................... 2 1/2 ............... 6 4
Bottom ................................. 1/2 ................. 1 3
Sides..................................... 1 ................... 2 5
36”
36”
36”
36”
ST-38HV
PIER-38HV
*The clearance to the ceiling is measured from the top
of the unit, excluding the stand-offs (see Figure 34).
For minimum clearances of direct vent termination (see Fig-
ures 25 and 26).
Constructing the Fireplace Chase
A chase is a vertical box-like structure built to enclose the
gas fireplace and/or its vent system. Vertical vents that run
on the outside of a building may be, but are not required to
be, installed inside a chase.
CAUTION: TREATMENT OF FIRESTOP SPACERS AND
CONSTRUCTION OF THE CHASE MAY VARY WITH THE
TYPE OF BUILDING. THESE INSTRUCTIONS ARE NOT
SUBSTITUTES FOR THE REQUIREMENTS OF LOCAL
BUILDING CODES. THEREFORE, YOUR LOCAL BUILD-
ING CODES MUST BE CHECKED TO DETERMINE THE
REQUIREMENTS FOR THESE STEPS.
Factory-built fireplace chases should be constructed in the
manner of all outside walls of the home to prevent cold air
drafting problems. The chase should not break the outside
building envelope in any manner.
This means that the walls, ceiling, base plate and cantilever
floor of the chase should be insulated. Vapor and air infiltra-
tion barriers should be installed in the chase as per regional
codes for the rest of the home. Additionally, Heat-N-Glo rec-
ommends that the inside surfaces be sheetrocked and taped
for maximum air tightness.
To further prevent drafts, the firestops should be caulked to
seal gaps. Gas line holes and other openings should be
caulked or stuffed with insulation. If the unit is being in-
stalled on a cement slab, we recommend that a layer of
plywood be placed underneath to prevent conducting cold
up into the room. Be sure to include spark arrestors for
woodburning units if they are required.
THE CHASE SHOULD BE CONSTRUCTED SO THAT ALL
CLEARANCES TO THE FIREPLACE ARE MAINTAINED
AS SPECIFIED WITHIN THIS INSTALLERS GUIDE.
Clearance Requirements
The top, back, and sides of the fireplace are defined by
stand-offs. The minimum clearance to a perpendicular wall
extending past the face of the fireplace is one inch (25mm).
The metal ends of the fireplace may NOT be recessed into
combustible construction.

13
Figure 4. Framing Dimensions*
Step 2. Framing the Fireplace
Fireplace framing can be built before or after the fireplace is
set in place. Framing should be positioned to accommo-
date wall coverings and fireplace facing material. The dia-
gram below shows framing reference dimensions.
CAUTION: MEASURE FIREPLACE DIMENSIONS AND
VERIFY FRAMING METHODS AND WALL COVERING
DETAILS BEFORE FRAMING.
Shows center of 10 x 10 vent framing holes.
The center of the hole is 1 inch (25.4mm)
above the center of the horizontal vent pipe.
37 1/8
(943mm)
Framing should be constructed
of 2 X 4 lumber or heavier.
WARNING: FRAMING DIMENSIONS ASSUME
USE OF 1/2 INCH THICK WALL COVERING
MATERIALS ON EXTERIOR OF FRAMING ONLY
AND NO SHEET ROCK ON INTERIOR OF FRAMING.
!
*NOTE:
Review details of Figure 5 BEFORE
constructing framing. The dimen-
sions in Figure 4 do not include po-
sitions of venting and firestops.
38 1/2
(978mm)
38 3/4
(984mm)
21 11/16
(551mm)
1/2 SHEET ROCK
21 7/16
(545mm)
5/8 SHEET ROCK
38 3/4
(984mm)
*35 7/8 (911mm)
1/2 SHEET ROCK
35 3/4
(908mm)
5/8 SHEETROCK
21 11/16
(551mm)
1/2 SHEET ROCK
21 7/16
(545mm)
5/8 SHEET ROCK

14
Figure 5. Vertical and Horizontal Vent Runs for ST-38HV and PIER-38HV.
ST-38HV PIER-38HV
41 1/2”
(1054mm) 40 3/8”
(1026mm)
1” (25mm)
PIPE CLEARANCE
4”
(102mm)
1” (25mm)
PIPE CLEARANCE
4”
(102mm)
Vertical Vent Runs Vertical Vent Runs
40”
(1016mm) 37 7/8”
(962mm)
1 1/2”
(38mm)
Horizontal Vent Runs
FIRESTOP
1 1/2”
(38mm)
FIRESTOP
3” (75mm)
PIPE CLEARANCE 3” (75mm) PIPE CLEARANCE
36 1/8”
(918mm) 36 1/8” (918mm)
Horizontal Vent Runs

15
Vent system
termination kits
Vent system components
Figure 7. Vent Components and Terminations
Step 3. Installing the Vent System
A. Vent System Approvals
These models are approved to use SL-series direct
vent pipe components and terminations. Approved
vent system components are labeled for identifica-
tion. This pipe is tested and listed as an approved
component of the fireplace. The pipe is tested to be
run inside an enclosed wall. There is no requirement
for inspection openings at each joint within the wall.
There is no required pitch for horizontal vent runs.
NO OTHER VENTING SYSTEMS OR COMPO-
NENTS MAY BE USED.
Detailed installation instructions are included with each
vent termination kit and should be used in conjunction
with this Installers Guide. The drawing below shows
vent system components and terminations.
The flame and ember appearance may vary based
on the type of fuel burned and the venting configura-
tion used.
Identifying Vent Components
The vent systems installed on this gas fireplace may
include one, two, or three 90°elbow assemblies. The
relationships of vertical rise to horizontal run in vent
configurations using 90° elbows MUST BE strictly
adhered to. The rise to run relationships are shown
in the venting drawings and tables. Refer to the dia-
grams on the next several pages.
NOTE: Two 45° elbows may be used in place of
one 90° elbow. Rise to run ratios in the vent
system must be followed if 45° elbows are used.
NOTE: PIPES OVERLAP 1-3/8 INCHES (34.93mm) AT EACH JOINT.
Figure 6. SL-Series Direct Vent Component Specifications
(4-inch inner pipe / 6 5/8-inch outer pipe)
To Unit
9 1/4
6 5/8
6 1/2 6 3/8
6 1/2 9 5/8
9 5/8
6 5/8
6 3/8
8 3/4
SL-09D
12-17
SL-12/17D (SL12-17D) SL-24D SL-36D SL-48D
47 3/4
35 3/4
23 3/4
SL-45D
SL-90D
SL-17/24D
(SL17-24D)
17-24
SL-06DSL-12D
5 3/4
6 5/8
6 1/2
11 3/4
PVK-80
HORIZONTAL
TERMINATION
WALL FIRESTOP
90 DEGREE
ELBOW
VERTICAL
TERMINATION STORM COLLAR
ROOF FLASHING
HORIZONTAL PIPE
SUPPORT
PIPE LENGTH
WALL BRACKET
CEILING
FIRESTOP
SLK-01D
SLK-01TRD
SLK-TVCD

16
Figure 9. Straight Up Vertical Venting
STRAIGHT UP
VERTICAL VENTING
V (FT.)
40' MAX. (12.4 M)
V
CAP
Figure 8.
Vertical Baffle Kit
STRAIGHT OUT
HORIZONTAL VENTING
H
Max. Run
24" (610 mm)
Figure 10.
Straight Out Horizontal Venting
H
NOTE: For vertical vent runs
of 10 feet or greater the ver-
tical baffle kit (BAF-VERT)
may be required to improve
flame appearance.
NOTE: If the vertical vent component is 10 feet or more,
you may want to install the vertical baffle to improve flame
appearance. Vertical baffle kit (BAF-VERT) is located in
the manual bag.Center the vertical baffle on the four inch
flue and with self tapping screws secure the baffle to the
inside of the firebox (see Figure 8).
VERTICAL BAFFLE
KIT (BAF-VERT)

17
Figure 11. Venting with One 90° Elbow
VENTING WITH ONE (1) 90° ELBOW
V (FT.) H (FT.)
4.5' MIN. (1.37m) 3' MAX. (.914m)
6' MIN. (1.86m) 4' MAX. (1.22m)
8' MIN. (2.4m) 5' MAX. (1.5m)
5' MAX. (1.5m)
V + H = 37 MAX. (11.3m)
VENTING WITH ONE (1) 90° ELBOW
V (FT.) H (FT.)
1' MIN. (305mm) 2' MAX. (610mm)
2' MIN. (610mm) 4' MAX. (1.22m)
3' MIN. (914mm) 6' MAX. (1.86m)
4' MIN. (1.22m) 8' MAX. (2.44m)
5 MIN. (1.5m) 10 MAX. (3.05m)
6 MIN. (1.86m) 12 MAX. (3.6m)
7 MIN. (2.13m) 14' MAX. (4.27m)
14' MAX. (4.27m)
V + H = 37 MAX. (11.3m)
V
H
H
V
NOTE: For vertical vent runs of 10 feet or greater the vertical baffle
kit (BAF-VERT) may be required to improve flame appearance.

18
Figure 12. Venting with Two 90° Elbows
VENTING WITH TWO (2) 90° ELBOWS
V (FT.) H + H1 (FT.)
1' MIN. (305mm) 2' MAX. (610mm)
2' MIN. (610mm) 4' MAX. (1.22m)
3' MIN. (914mm) 6' MAX. (1.86m)
4' MIN. (1.22m) 8' MAX. (2.44m)
5 MIN. (1.5m) 10 MAX. (3.04m)
6 MIN. (1.86m) 12 MAX. (3.6m)
7 MIN. (2.13m) 14' MAX. (4.27m)
14' MAX. (4.27m)
V + H = 37 MAX. (11.3m)
V
H
H
11
H
V
V
11
NOTE: For vertical vent runs of 10 feet or greater the vertical baffle kit
(BAF-VERT) may be required to improve flame appearance.

19
Figure 13. Venting with Two (2) 90° Elbows
VENTING WITH TWO (2) 90° ELBOWS
V H H + H1
1´ MIN. (305 mm) 2´ MAX. (610 mm) 2´ MAX. (610 mm)
2´ MIN. (610 mm) 2´ MAX. (610 mm) 4´ MAX. (1.22 m)
3´ MIN. (914 mm) 2´ MAX. (610 mm) 6´ MAX. (1.86 m)
4´ MIN. (1.22 m) 2´ MAX. (610 mm) 8´ MAX. (2.4 m)
5´ MIN. (1.52 m) 2´ MAX. (610 mm) 10´ MAX. (3.04 m)
6´ MIN. (1.86 m) 2´ MAX. (610 mm) 12´ MAX. (3.65 m)
7´ MIN. (2.13 m) 2´ MAX. (610 mm) 14´ MAX. (4.26 m)
14´ MAX. (4.26 m)
V + H + H1 = 37 MAX. (11.3 m)
V
H
11
H
NOTE: For vertical vent runs of 10 feet or greater the vertical baffle
kit (BAF-VERT) may be required to improve flame appearance.

20
Figure 14. Venting with Three 90° Elbows
V
11
V
H
11
H
H
V
H
11
H
22
VENTING WITH THREE (3) 90° ELBOWS
V H H + H1
1´ MIN. (305 mm) 2´ MAX. (610 mm) 2´ MAX. (610 mm)
2´ MIN. (610 mm) 2´ MAX. (610 mm) 4´ MAX. (1.22 m)
3´ MIN. (914 mm) 2´ MAX. (610 mm) 6´ MAX. (1.86 m)
4´ MIN. (1.22 m) 2´ MAX. (610 mm) 8´ MAX. (2.4 m)
5´ MIN. (1.52 m) 2´ MAX. (610 mm) 10´ MAX. (3.04 m)
6´ MIN. (1.86 m) 2´ MAX. (610 mm) 12´ MAX. (3.65 m)
7´ MIN. (2.13 m) 2´ MAX. (610 mm) 14´ MAX. (4.26 m)
14´ MAX. (4.26 m)
V + H + H1 = 37 MAX. (11.3 m)
NOTE: For vertical vent runs of 10 feet or
greater the vertical baffle kit (BAF-VERT) may
be required to improve flame appearance.

21
Figure 15. Venting with Three 90° Elbows
H
11
H
V
11
V
V
11
H
11
HV
VENTING WITH THREE (3) 90° ELBOWS
V (FT.) H + H1 (FT.)
1' MIN. (305mm) 2' MAX. (610mm)
2' MIN. (610mm) 4' MAX. (1.22m)
3' MIN. (914mm) 6' MAX. (1.86m)
4' MIN. (1.22m) 8' MAX. (2.44m)
5 MIN. (1.5m) 10 MAX. (3.04m)
6 MIN. (1.86m) 12 MAX. (3.6m)
7 MIN. (2.13m) 14' MAX. (4.27m)
14' MAX. (4.27m)
V + H = 37 MAX. (11.3m)
NOTE: For vertical vent runs of 10 feet or
greater the vertical baffle kit (BAF-VERT) may
be required to improve flame appearance.

22
B. Installing Vent Components
1. Attach the First Vent Component to the
Starting Collars
To attach the first vent component to the starting collars
of the fireplace:
 Apply a 3/8 inch (9.5mm) bead of stove cement around
the 5 inch (127mm) fireplace starting collar.
 Make sure that the fireplace rope gasket supplied with
the fireplace seals between the first 8-5/8 inch (219mm)
vent component and the outer fireplace wrap.
 Lock the vent components into place by sliding the con-
centric pipe sections with four (4) equally spaced interi-
or beads into the fireplace collar or previously installed com-
ponent end with four (4) equally spaced indented sections.
 When the internal beads of each 6-5/8 inch (168mm)
outer pipe line up, rotate the pipe section clockwise about
one-quarter (1/4) turn. The vent pipe is now locked together.
!
WARNING: A 3/8 INCH (9.5 MM) BEAD OF
STOVE CEMENT MUST BE PLACED AROUND
THE 4 INCH (102MM) FIREPLACE STARTING COL-
LAR BEFORE ATTACHING THE FIRST VENT COM-
PONENT. FAILURE TO SEAL THIS JOINT MAY
CAUSE THE FIREPLACE TO OPERATE IMPROPER-
LY. SEE FIGURE 16.
Figure 16. Attaching the First Vent Component
to the Starting Collars
STARTING
COLLAR
STOVE
SEALANT
BEAD
1 INCH
(25.4mm)
FIRST VENT
COMPONENT
WARNING: ENSURE THAT THE FIBERGLASS
ROPE GASKET SUPPLIED WITH THE
FIREPLACE SEALS BETWEEN THE FIRST VENT
COMPONENT AND THE OUTER FIREPLACE WRAP.
If the installation is for a termination cap attached directly
to the fireplace, skip to the sections, Install Firestops and
Vent Termination.
2. Continue Adding Vent Components
To continue adding vent components in accordance with
the pre-planned vent system configuration:
 Ensure that each succeeding vent component is securely
fitted and locked into the preceding component in the
vent system.
 90° elbows may be installed and rotated to any point
around the preceding components vertical axis. If an
elbow does not end up in a locked position with the pre-
ceding component, attach with a minimum of two (2) sheet
metal screws. Continue adding vent components, locking
each succeeding component into place (see Figure 17).
!
Figure 17. Adding Venting Components

23
Figure 19. 10" x 10" Hole and Vent Pipe
Figure 20. Heat Shield, Interior & Exterior Firestops
VENT PIPE
1" (25.4 mm)
10"
(254mm)
10"
(254mm)
TRIM HEAT
SHIELD IF TOO
LONG, ADD TO
SHIELD IF TOO
SHORT
EXTERIOR
FIRESTOP
INTERIOR
FIRESTOP
HEAT SHIELD
3. Install Support Brackets
For Horizontal Runs -The vent system must be sup-
ported every five (5) feet of horizontal run by a horizontal pipe
support.
To install support brackets for horizontal runs:
 Place the pipe supports around the vent pipe.
 Nail the pipe supports to the framing members.
To install firestops for horizontal runs that pass through
either interior or exterior walls:
 Cut a 10-inch by 10-inch (254mm X 254mm) hole through
the wall. The center of the hole is one (1) inch (25.4mm)
above the center of the horizontal vent pipe.
 Position the firestops on both sides of the hole previ-
ously cut and secure the firestops with nails or screws.
 The heat shields of the firestops MUST BE placed to-
wards the top of the hole.
 Continue the vent run through the firestops.
Figure 18. Installing Support Brackets
4. Install Firestops
For Horizontal Runs - Firestops are REQUIRED on both
sides of a combustible wall through which the vent passes.
NOTE: Model SLK-01TRD does not need an exterior
firestop on an exterior combustible wall. The firestop is
built into the cap.
1 INCH MIN.
(25.4mm)
FLUE
OUTLET
WALL BRACKET
WALL STUD
8 FT.
(2.4mm)
For Vertical Runs - The vent system must be supported
every eight (8) feet (2.4m) above the fireplace flue outlet by
wall brackets.
To install support brackets for vertical runs:
 Attach wall brackets to the vent pipe and secure the wall
bracket to the framing members with nails or screws.
NOTE: There must be NO INSULATION or other
combustibles inside the framed firestop opening.

24
For Vertical Runs - One ceiling firestop is REQUIRED
at the hole in each ceiling through which the vent passes.
To install firestops for vertical runs that pass through ceilings:
 Position a plumb bob directly over the center of the verti-
cal vent component.
 Mark the ceiling to establish the centerpoint of the vent.
 Drill a hole or drive a nail through this centerpoint.
 Check the floor above for any obstructions, such as wir-
ing or plumbing runs.
 Reposition the fireplace and vent system, if necessary,
to accommodate the ceiling joists and/or obstructions.
 Cut an 10-inch x 10-inch (254mm x 254mm) hole through
the ceiling, using the centerpoint previously marked.
 Frame the hole with framing lumber the same size as the
ceiling joists.
Figure 22. Ceiling Firestop (Ceiling Side)
If the area above the ceiling is NOT an attic, position and
secure the ceiling firestop on the ceiling side of the previously
cut and framed hole.
Figure 21. 10" x 10" Hole & New Framing Members
If the area above the ceiling IS an attic, position and secure
the firestop on top of the previously framed hole.
Figure 23 shows an attic installation. Keep insulation away
from the vent pipe at least 1 inch (25mm).
While it is not mandatory, it is strongly recommended that
an attic insulation shield be used whenever insulation can
come in contact with the vent pipe. Follow your local building
codes.
Figure 23. Attic Firestop
JOIST
CEILING FIRESTOP
CEILING
NAILS (4 REQUIRED)
CEILING
CEILING FIRESTOP
RAFTER
NAILS (4 REQUIRED)
CEILING
NEW
FRAMING
MEMBERS
EXISTING CEILING
JOISTS
CHIMNEY
HOLE
10" (254mm)
10" (254mm)
NOTE: There must be NO INSULATION or other
combustibles inside the framed firestop opening.
