Heat-N-Glo SL-350DVT Assembly instructions

1
- Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
-What to do if you smell gas
 Do not try to light any appliance.
 Do not touch any electrical switch.
 Do not use any phone in your building.
 Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
 If you cannot reach your gas supplier call
the fire department.
- Installation and service must be performed by a
qualified installer service agency or the gas
supplier.
Models:
SL-350DVT
SL-350TRS
Installers Guide
WARNING: IMPROPER INSTALLA-
TION, ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE CAN
CAUSE INJURY OR PROPERTY DAM-
AGE. REFER TO THIS MANUAL. FOR
ASSISTANCE OR ADDITIONAL INFOR-
MATION CONSULT A QUALIFIED IN-
STALLER, SERVICE AGENCY, OR THE
GAS SUPPLIER.
Underwriters
Laboratories Listed
539-985C 8/00
READ THIS MANUAL BEF RE INSTALLING R
PERATING THIS APPLIANCE. THIS INSTALLERS
GUIDE MUST BE LEFT WITH APPLIANCE F R
FUTURE REFERENCE.
1. This appliance may be installed in an af-
termarket, permanently located, manufac-
tured (mobile) home, where not prohibited
by local codes.
2. This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not con ertible for use with
other gases, unless a certified kit is used.
Please contact your Heat-N-Glo dealer for any
questions or concerns. For the number of your
nearest Heat-N-Glo dealer, please call 95 -985-6000.
Printed in U.S.A. Copyright 000,
Heat-N-Glo, a division of Hearth Technologies Inc.
080 Kensington Boulevard, Lakeville, MN 55044
WARNING: IF THE INFORMATION
IN THESE INSTRUCTIONS IS NOT
FOLLOWED EXACTLY, A FIRE OR
EXPLOSION MAY RESULT CAUS-
ING PROPERTY DAMAGE, PER-
SONAL INJURY, OR DEATH.
This product is covered by one or more of the following patents: (United States) 4, 2,9 3; 4,408,594; 4,422,426; 4,424,792; 4,520,79 ; 4,793,322;
4,852,548; 4,875,464; 5,000, 62; 5,0 6,609; 5,076,254 5, 9 ,877; 5,2 8,953; 5,328,356; 5,429,495; 5,452,708; 5,542,407; 5,6 3,487; (Australia)
543790; 586383; (Canada) , 23,296; ,297,746; 2, 95,264; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. and foreign patents pending.

2
These units MUST use one of the vent systems
described in the Installing the Fireplace section of
the Installers Guide. NO OTHER vent systems or
components MAY BE USED.
This gas fireplace and vent assembly MUST be
vented directly to the outside and MUST NEVER be
attached to a chimney serving a separate solid fuel
burning appliance. Each gas appliance MUST USE
a separate vent system. Common vent systems are
PROHIBITED.
INSPECT the external vent cap on a regular basis to
ma e sure that no debris is interfering with the air
flow.
The glass door assembly MUST be in place and
sealed, and the trim door assembly MUST be in
place on the fireplace before the unit can be placed
into safe operation.
DO NOT OPERATE this appliance with the glass
door removed, crac ed, or bro en. Replacement of
the glass door should be performed by a licensed
or qualified service person. DO NOT stri e or slam
the glass door.
The glass door assembly SHALL ONLY be
replaced as a complete unit, as supplied by the gas
fireplace manufacturer. NO SUBSTITUTE material
may be used.
DO NOT USE abrasive cleaners on the glass door
assembly. DO NOT ATTEMPT to clean the glass
door when it is hot.
Turn off the gas before servicing this appliance. It is
recommended that a qualified service technician
perform an appliance chec -up at the beginning of
each heating season.
Any safety screen or guard removed for servicing
must be replaced before operating this appliance.
READ and UNDERSTAND all instructions carefully
before starting the installation. FAILURE TO
FOLLOW these installation instructions may result
in a possible fire hazard and will void the warranty.
Prior to the first firing of the fireplace, READ the
Using Your Fireplace section of the Owners Guide.
DO NOT USE this appliance if any part has been
under water. Immediately CALL a qualified service
technician to inspect the unit and to replace any part
of the control system and any gas control which has
been under water.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should be PERFORMED by a
qualified service person. The appliance and venting
system should be INSPECTED before initial use
and at least annually by a professional service
person. More frequent cleaning may be required
due to excessive lint from carpeting, bedding
material, etc. It is IMPERATIVE that the units
control compartment, burners, and circulating air
passageways BE KEPT CLEAN to provide for
adequate combustion and ventilation air.
Always KEEP the appliance clear and free from
combustible materials, gasoline, and other
flammable vapors and liquids.
NEVER OBSTRUCT the flow of combustion and
ventilation air. Keep the front of the appliance
CLEAR of all obstacles and materials for servicing
and proper operations.
Due to the high temperature, the appliance should
be LOCATED out of traffic areas and away from
furniture and draperies. Clothing or flammable
material SHOULD NOT BE PLACED on or near the
appliance.
Children and adults should be ALERTED to the
hazards of high surface temperature and should
STAY AWAY to avoid burns or clothing ignition.
Young children should be CAREFULLY SUPERVISED
when they are in the same room as the appliance.
!
!
!
!
!
!
!
!!
!
!
!
!
!
!
!
!
SAFETY AND WARNING INFORMATION
!

3
TABLE OF CONTENTS
Safety and Warning Information ................................................
Service Parts Lists ..................................................................... 4
Section 1: Approvals and Codes ............................................... 8
Approval Listings and Codes ........................................................ 8
Appliance Certification ................................................................... 8
Installation Codes .......................................................................... 8
High Altitude Installations ............................................................... 8
Section 2: Getting Started .........................................................
Introducing the Heat-N-Glo Gas Fireplaces .................................. 9
Pre-installation Preparation ........................................................... 9
Section 3: Installing the Fireplace .......................................... 1
Step 1 Locating the Fireplace ................................................. 1
Step Framing the Fireplace.................................................. 1
Step 3 Installing the Vent System ............................................ 15
A. Vent System Approvals ........................................... 15
B. Installing Vent Components ....................................
C. Vent Termination .................................................... 5
Step 4 Positioning, Leveling, and
Securing the Fireplace ................................................. 8
Step 5 The Gas Control Systems ........................................... 8
Step 6 The Gas Supply Line ................................................... 9
Step 7 Gas Pressure Requirements ...................................... 9
Step 8 Wiring the Fireplace .................................................... 30
Step 9 Finishing ...................................................................... 3
Step 10 Installing Trim, Logs, and Ember Material ..................... 33
Installing the Trim ......................................................... 33
Removing Grate Shipping Support................................ 33
Positioning the Logs .................................................... 33
Placing the Ember Material .......................................... 33
Step 11 Before Lighting the Fireplace ....................................... 34
Step 1 Lighting the Fireplace .................................................. 34
After the Installation ..................................................................... 34
Section 4: Maintaining and Servicing Your Fireplace ......... 35
u = Contains updated information.
u
u

8
App iance Certification
The Heat-N-Glo fireplace models discussed in this Installers
Guide have been tested to certification standards and listed
by the applicable laboratories.
Certification
M DEL: SL-350TRS SL-350DVT
LAB RAT RY: Underwriters Laboratories
TYPE: Direct Vent Gas Fireplace Heater
STANDARD: ANSI Z21.88CSA2.33
N TE: THESE M DELS ARE UL LISTED T UL307B,
THE STANDARD F R GAS-BURNING HEATING APPLI-
ANCES F R MANUFACTURED H MES AND RECRE-
ATI NAL VEHICLES.
Insta ation Codes
The fireplace installation must conform to local codes. Before
installing the fireplace consult the local building code
agency to ensure that you are in compliance with all
applicable codes including permits and inspections.
In the absence of local codes the fireplace installation must
conform to the National Fuel Gas Code ANSI Z223.1 (in
the United States) or the CAN/CGA-B149 Installation Codes
(in Canada). The appliance must be electrically grounded
in accordance with local codes or in the absence of local
codes with the National Electric Code ANSI/NFPA No. 70
(in the United States) or to the CSA C22.1 Canadian Electric
Code (in Canada).
These models may be installed in a bedroom or bed-sitting
room in the U.S.A. and Canada.
1Approvals and
Codes
High A titude Insta ations
U.L. Listed gas fireplaces are tested and approved for
elevations from 0 to 2 000 feet in the U.S.A. and from 0 to
4 500 feet in Canada.
When installing this fireplace at an elevation above 2 000
feet (in the United States) it may be necessary to decrease
the input rating by changing the existing burner orifice to a
smaller size. Input should be reduced four percent (4%) for
each 1 000 feet above sea level unless the heating value of
the gas has been reduced in which case this general rule
will not apply. To identify the proper orifice size check with
the local gas utility.
When installing this fireplace at an elevation between 2 000
and 4 500 feet (in Canada) the input rating must be reduced
by ten percent (10%).
When installing this fireplace at an elevation above 4 500
feet (in Canada) check with local authorities.
Consult your local gas utility for assistance in determining
the proper orifice for your location.
Heat-N-Glo Quality
Systems registered
by SGS ICS

9
2Getting Started
Introducing the Heat-N-G o Gas Firep aces
Heat-N-Glo direct vent gas fireplaces are designed to oper-
ate with all combustion air siphoned from outside of the
building and all exhaust gases expelled to the outside.
The information contained in this Installers Guide unless
noted otherwise applies to all models and gas control
systems. Gas fireplace diagrams including the dimensions
are shown in this section.
Pre-insta Preparation
This gas fireplace and its components are tested and safe
when installed in accordance with this Installers Guide.
Report to your dealer any parts damaged in shipment
particularly the condition of the glass. Do not install any
unit with damaged, incomplete, or substitute parts.
The vent system components and optional trim doors are
shipped in separate packages. The gas logs are packaged
separately and must be field installed.
Read all of the instructions before starting the
installation. Follow these instructions carefully during
the installation to ensure maximum safety and benefit.
Failure to follow these instructions will void the
owners warranty and may present a fire hazard.
The Heat-N-Glo Warranty will be voided by and Heat-N-Glo
disclaims any responsibility for the following actions:
 Installation of any damaged fireplace or vent system
component.
 Modification of the fireplace or direct vent system.
 Installation other than as instructed by Heat-N-Glo.
 Improper positioning of the gas logs or the glass door.
 Installation and/or use of any component part not manu-
factured and approved by Heat-N-Glo not withstanding
any independent testing laboratory or other party approval
of such component part or accessory.
ANY SUCH ACTI N MAY P SSIBLY CAUSE A FIRE
HAZARD.
N TE: For optimum flame appearance refer to page
22 for Air Shutter Settings per vent configuration.
When planning a fireplace installation its necessary to
determine:
Where the unit is to be installed.
The vent system configuration to be used.
Gas supply piping.
Electrical wiring.
Framing and finishing details.
Whether optional accessoriesdevices such as a fan
wall switch or remote controlare desired.
If the fireplace is to be installed on carpeting or tile or on
any combustible material other than wood flooring the
fireplace should be installed on a metal or wood panel that
extends the full width and depth of the fireplace.

10
Figure 1. Diagram of the SL-350DVT
22 5/8 (576mm) 1/2 (13mm)
16 1/4 (413mm)
8 3/4 (222mm)
6 5/8 (168mm)
15 3/4 (400mm)
11 3/8 (288mm)
GAS
LINE
ACCESS
5 3/8 (138mm)
2 1/4 (57mm)
30 1/2 (775mm)
28 (711mm)
33 (837mm)
17 (432mm)
29 (737mm)
8
(203mm)
ELECTRICAL
ACCESS
3 1/2 (89mm)
(VENT COLLARS)

11
Figure 2. Diagram of the SL-350TRS

12
3Installing the Fireplace
Step 1. Locating the Firep ace
The diagram below shows space and clearance require-
ments for locating a fireplace within a room.
Minimum Clearances
from the Fireplace to Combustible Materials
Inches mm
Glass Front ........................ 36 .................... 914
Floor ................................... 0 ....................... 0
Rear ................................... 1/2 ..................... 13
Sides .................................1/2 ..................... 13
Top ................................... 1 1/2 ................... 38
Ceiling* .............................. 31 .................... 787
Figure 3. Fireplace Dimensions, Locations,
and Space Requirements
Clearance Requirements
The top and back of the fireplace are defined by stand-offs.
The minimum clearance to a perpendicular wall extending
past the face of the fireplace is 3 inches (76mm). The back
of the fireplace may be recessed 16 1/4 inches (413mm)
into combustible construction.
Figure 4. Framing Dimensions
For minimum clearances see the direct vent termination
clearance diagrams on pages 26 and 27 in this manual.
Step 2. Framing the Firep ace
Fireplace framing can be built before or after the fireplace is
set in place. Framing should be positioned to accommo-
date wall coverings and fireplace facing material. The dia-
gram below shows framing reference dimensions.
CAUTION: MEASURE FIREPLACE DIMENSIONS AND
VERIFY FRAMING METHODS AND ALL COVERING
DETAILS BEFORE FRAMING.
Minimum Clearances
from the Vent Pipe to Combustible Materials
Inches mm
Vertical Sections. ............. 1 ................ 25
Horizontal Sections
Top ..................................... 3 ................ 75
Bottom ............................... 1 ................ 25
Sides ................................. 1 ................ 25
At Wall Firesto s
Top .................................. 2 1/2 ............ 63.7
Bottom .............................. 1/2 ............... 13
Sides ................................. 1 ................ 25
* The clearance to the ceiling is measured from the top
of the unit excluding the standoffs (see Figure 36).
AB C D E
SL-350DVT 34 16 1/4 27 7/8 39 3/8 55 5/8
SL-350TRS 34 16 1/4 27 7/8 39 3/8 55 5/8
Framing should be
constructed of 2 X 4
lumber or heavier.
WARNING:
To ensure proper clearances
the front framing header must
be installed on its narrow edge
and to the front of the frame.
The framing headers
may rest on the
fireplace stand-offs.
Models A B C D* E*
SL-350DVT 34 31 16 1/4 35 1/2
SL-350TRS 34 31 16 1/4 35 1/2 20
* Dimensions to the center of the framing hole.
The distance from the unit to combustible construction is to
be measured from the unit outer wrap surface to the com-
bustible construction N T from the screw heads that se-
cure the unit together.
VENT
FRAMING
HOLE
ED

13
NOTE: PIPES OVERLAP 1-3/8 INCHES (34.93 ) AT EACH JOINT.

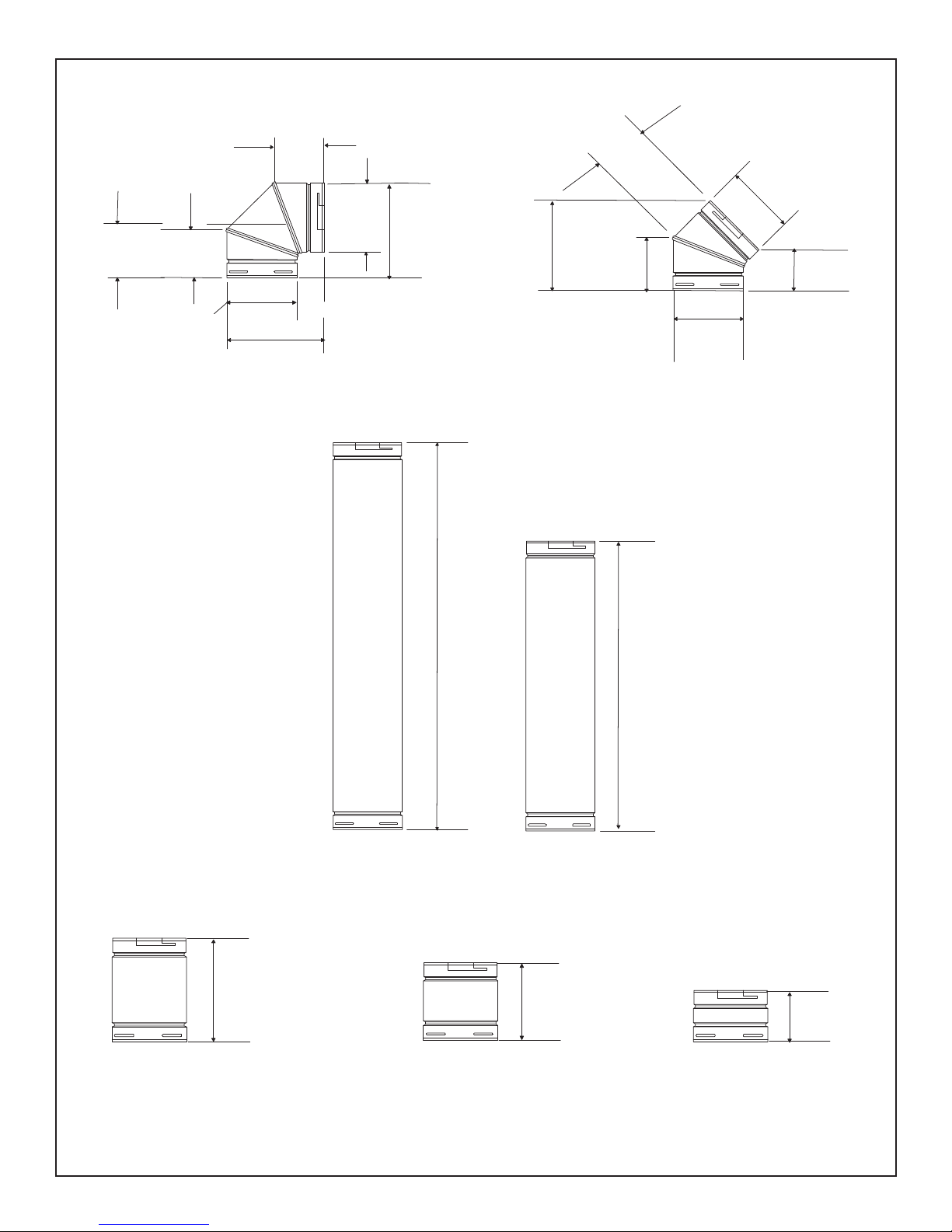

Figure 5. D-Series Direct Vent Component Specifications (5-inch inner pipe / 8 5/8-inch outer pipe)
DV-36D
5 3/4”
(146mm)
8 3/4”
(222mm)
11 3/4”
(298mm)
DV-12D DV-09D DV-06D
DV-48D
DV-90D
73/8”
(187mm)
65/32”
(156mm)
115/8”
(295mm)
1115/16”
(303mm)
57/8”
(149mm)
8 5/8”
(220mm)
81/2”
(216mm)
67/16”
(164mm)
DV-45D
111/16”
(281mm)61/2”
(165mm)
81/2”
(216mm)
51/16”
(129mm)
85/8”
(220mm)
35 3/4”
(908mm)
47 3/4”
(1.2m)

14
NOTE: PIPES OVERLAP 1-3/8 INCHES (34.93 ) AT EACH JOINT.
Figure 6. SL-Series Direct Vent and SL-Flex Component Specifications (4-inch inner pipe 6 5 8-inch outer pipe)
120”
(3048mm)
24”
(610mm)
36”
(914mm)
60”
(1524mm)
9 1/4
6 5/8
6 1/2 6 3/8
6 1/2 9 5/8
9 5/8
6 5/8
6 3/8
8 3/4
SL-09D
12-17
SL-12/17D (SL12-17D) SL-24D SL-36D SL-48D
47 3/4
35 3/4
23 3/4
SL-45D
SL-90D
SL-17/24D
(SL17-24D)
17-24
SL-06D
SL-12D
5 3/4
6 5/8
6 1/2
11 3/4
SL-FLEX-2
SL-FLEX-10
SL-FLEX-5
SL-FLEX-3

15
!

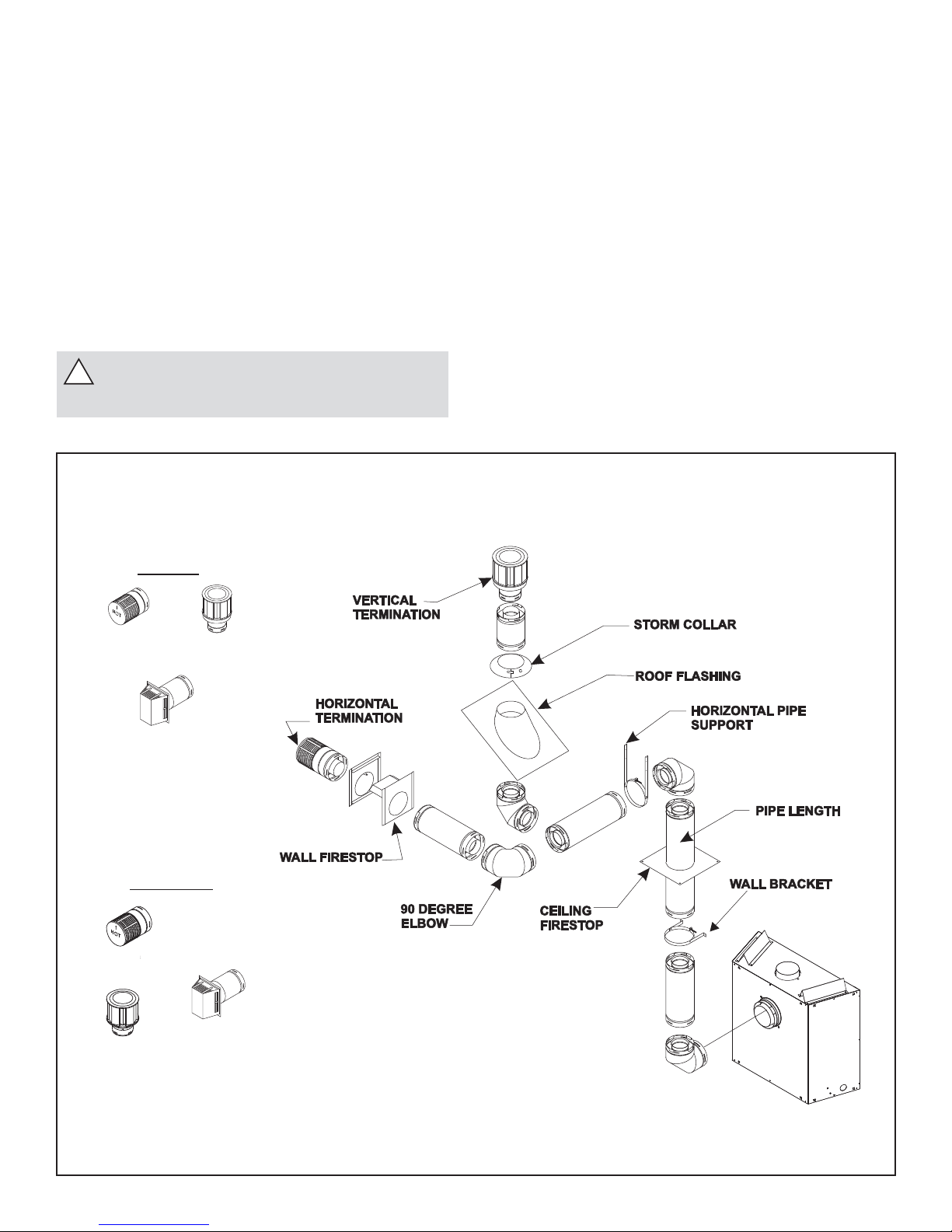

Figure 7. Vent System Components and Termination Kits
Step 3. Insta ing the Vent System
A. Vent System Approvals
These models have vent starting collars on both the top
and the back of the unit. Depending upon the installation
decide which ONE set of starting collars will be used to
attach the vent system. The starting collar sealing cap must
remain on the starting collar NOT used.
These models use SL-D-series direct vent components
when using the T P vent collars and D-series direct vent
components when using the REAR vent collars.
The flame and ember appearance may vary based on the
type of fuel burned and the venting configuration used.
WARNING: Y U MUST N T MIX D-SERIES
AND SL D-SERIES C MP NENTS IN ANY VENT
SYSTEM C NFIGURATI N.
Vent Syste
Ter ination Kits Vent System Components
SL D-SERIES
D-SERIES
DVK-01D DVK-TVCD
DVK-01TRD
SLK-01D
SLK-TVCD
SLK-01TRD
Identifying Vent Components
Approved vent system components are labeled for identifi-
cation. N THER VENTING SYSTEMS R C MP -
NENTS MAY BE USED. Detailed installation instructions
are included with each vent termination kit and should be
used in conjunction with this Installers Guide. Figure 7
shows vent system components and terminations.
The vent systems installed on this gas fireplace may in-
clude one two or three 90° elbow assemblies. The rela-
tionships of vertical rise to horizontal run in vent configura-
tions using 90° elbows MUST BE strictly adhered to. The
rise to run relationships are shown in the venting drawings
and tables. Refer to the diagrams on the next several pages.
N TE: Two 45° elbows may be used in place of one
90° elbow. Maximum and minimum rise to run ratios
must always be maintained in the vent system when
using 45° elbows.

16
STRAIGHT UP VERTICAL VENTING
V (FT.)
40' MAX.

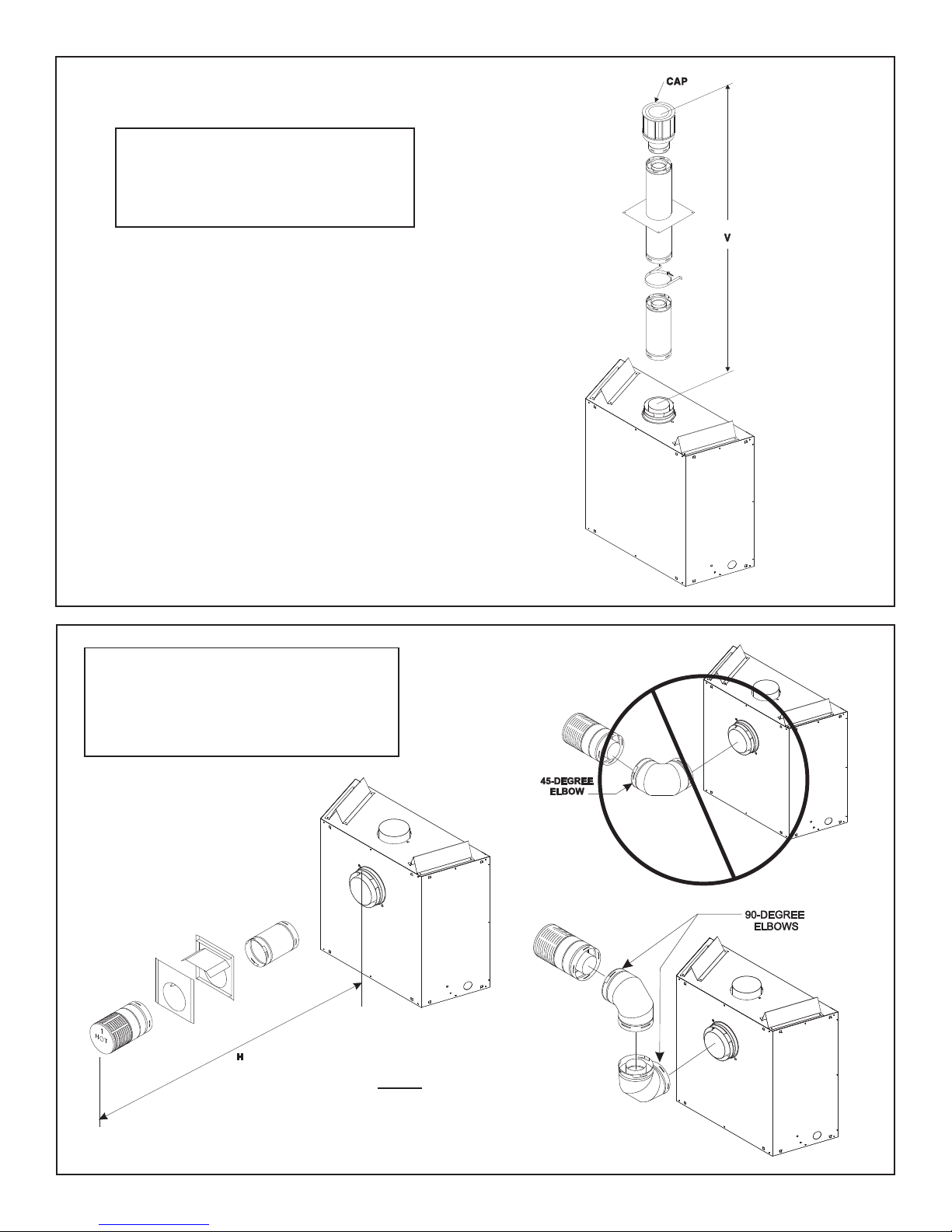

Figure 8. Straight up Vertical Venting
Use SL D-Series
components only.
N TE: For vertical venting over 20 feet an
Extended Vertical Baffle Kit is recommended
for improved flame appearance.
STRAIGHT OUT HORIZONTAL VENTING
H
Max. Run
24" (610 mm)
Use D-Series
components only.
Figure 9. Straight ut Horizontal Venting
Note: Use two 90o elbows for corner
installations on SL-350TRS.
Note: There MUST be a 25% reduction
in total H when using flex vent.

17
V H
1' MIN. (305mm) 2' MAX. (610mm)
2' MIN. (610mm) 4' MAX. (1.22m)
3' MIN. (914mm) 6' MAX. (1.86m)
4' MIN. (1.22m) 8' MAX. (2.4m)
V+H=40' MAX. (12.4m)
H = 8' MAX. (2.4m)

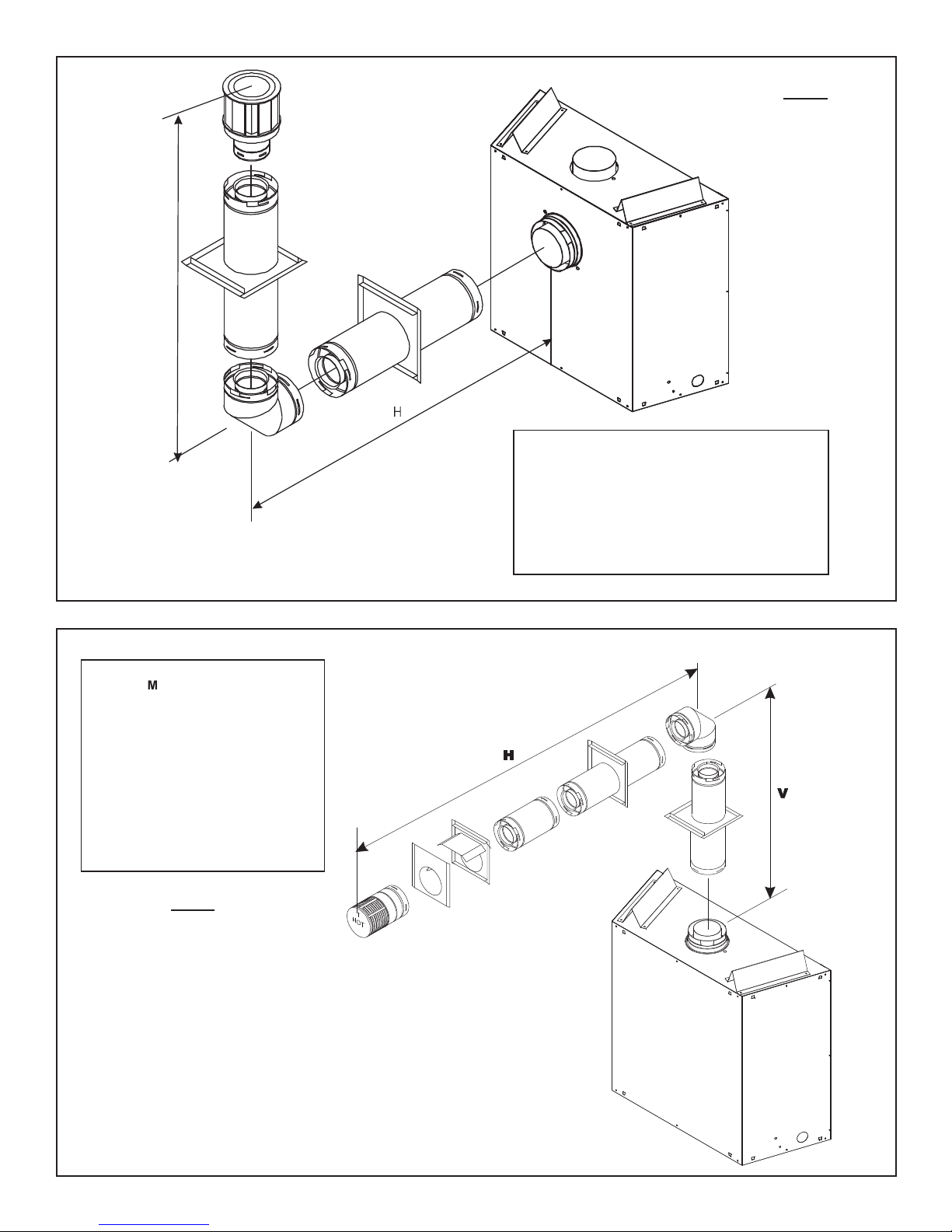

Figure 10. Venting with One 0° Elbow
Figure 11. Venting with ne 90° Elbow
V
+
MODEL SL-350TRS
V (MIN.) H (MAX.)
90o Elbow on Top 2.5' 863mm)
1' 305mm) 3' 914mm)
2' 610mm) 4' 1.22m)
3' 914mm) 6' 1.86m)
4' 1.22m) 8' 2.48m)
5' 1.52m) 16' 4.8m)
H MAX. = 16' (4.8m)
V + H MAX. = 40' (12.2m)
Use SL D-Series
components only.
Note: There MUST be a 25%
reduction in total H when using
flex vent.
Note: There MUST be a
25% reduction in total H
when using flex vent.
Use D-Series
components only.

18
V H H + H1
1' MIN. (305 mm) 2' MAX. (610 mm) 4' MAX. (1.22m)
2' MIN. (610 mm) 4' MAX. (1.22 m) 8' MAX. (2.4m)
3' MIN. (914 mm) 6' MAX. (1.86 m) 12' MAX. (3.6m)
4' MIN. (1.22 m) 8' MAX. (2.48 m) 16' MAX. (4.8m)
V+H+H 1 = 40' MAX. (12.4 m) H = 8' MAX. (2.48 m) H+H
1
= 16' MAX. (4.8m)
Figure 12. Venting with Two 90° Elbows
V (FT) H + H1 (FT)
1' MIN. (305 mm) 2' MAX. (610 mm)
2' MIN. (610 mm) 4' MAX. (1.22 m)
3' MIN. (914 mm) 6' MAX. (1.86 m)
4' MIN. (1.22 m) 8' MAX. (2.48 m)
H + H1= 8' MAX. (2.48 m)
V + H + H1= 40' (12.2m) MAX.
Use D-Series
components only.
Note: There MUST be a 25% reduction
in total H when using flex vent.
V
H
1
H
V
H
H 1

19
Figure 13.
Venting with Two 90° Elbows
MODEL SL-350TRS
V (MIN.) H + H1 (MAX.)
90o Elbow on Top 2.5' 863mm)
1' 305mm) 3' 914mm)
2' 610mm) 4' 1.22m)
3' 914mm) 6' 1.86m)
4' 1.22m) 8' 2.48m)
5' 1.52m) 16' 4.8m)
H + H1 MAX. = 16' (4.8m)
V + H + H1 MAX. = 40' (12.2m)
MODEL SL-350TRS
V (MIN.) H (MAX.)
90o Elbow on Top 2.5' 863mm)
1' 305mm) 3' 914mm)
2' 610mm) 4' 1.22m)
3' 914mm) 6' 1.86m)
4' 1.22m) 8' 2.48m)
5' 1.52m) 16' 4.8m)
H MAX. = 16' (4.8m)
V + V1 + H MAX. = 40' (12.2m)
Use SL D-Series
components only.
Note: There MUST
be a 25% reduction
in total H when
using flex vent.

20
Figure 14. Venting with Three 90° elbows
1' MIN. 305 mm) 2' MAX. 610mm) 4' MAX. 1.22m)
2' MIN. 610 mm) 4' MAX. 1.22m) 8' MAX. 2.48m)
3' MIN. 914 mm) 6' MAX. 1.86m) 12' MAX. 3.72m)
4' MIN. 1.22 m) 8' MAX. 2.48m) 16' MAX. 4.8m)
V1+V+H+H1 = 40' MAX. 12.4m)
H = 8' MAX. 2.48m) H+H1 =16' MAX. 4.8m)
V H H + H1
1' MIN. 305 mm) 2' MAX. 610 mm) 4' MAX. 1.22m)
2' MIN. 610 mm) 4' MAX. 1.22 m) 8' MAX. 2.48m)
3' MIN. 914 mm) 6' MAX. 1.86 m) 12' MAX. 3.72m)
4' MIN. 1.22 m) 8' MAX. 2.48 m) 16' MAX. 4.8m)
V+H+H1+H2 = 40' MAX. 12.4 m)
H = 8' MAX. 2.48m) H + H1 + H2 = 16' MAX. 4.8m)
V H H + H1 + H2
Use D-Series
components only.
Note: There MUST be a 25% reduction
in total H when using flex vent.
H
V
H
1
H 2
V 1
V
H
1
H

21
Figure 16. Venting with Four 90° elbows
Use SL D-Series
components only.
M DEL SL-350TRS
V (MIN.) H (MAX.) H + H1 (MAX.)
90o Elbow on Top 2.5' (863mm) 4' (1.22m)
1' (305mm) 3' (914mm) 6' (1.86m)
2' (610mm) 4' (1.22m) 8' (2.48m)
3' (914mm) 6' (1.86m) 12' (3.72m)
4' (1.22m) 8' (2.48m) 16' (4.8m)
5' (1.52m) 16' (4.8m) 16' (4.8m)
VENTING WITH FOUR (4) 90° ELBOWS
NATURAL AND PROPANE GAS
SL-350TRS
V (MIN.) H (MAX.)
2' 609mm) 5' 1.52m)
V1 (MIN.) H1 (MAX.) V2 (MIN.)
5' 1.52m) 5' 1.52m) 4.5' 1.37m)
V + V1 + V2 + H + H1 MAX. = 40' (12.2m)
Figure 15. Venting with Three 90° elbows
H + H1 MAX. = 16' (4.8m)
V + H + V1 + H1 MAX. = 40' (12.2m)
H 1
H
V
1
V
Note: There MUST be a 25% reduction
in total H when using flex vent.
Note: There MUST be a 25% reduction
in total H when using flex vent.
V
H
V 2
V 1
H 1

22
!
STARTING
COLLAR
STOVE
SEALANT
BEAD
1 INCH
(25.4mm)
FIRST VENT
COMPONENT
!
WARNING: ENSURE THAT THE FIBER
GASKET SUPPLIED WITH THE FIREPLACE
SEALS BETWEEN THE FIRST VENT C MP NENT
AND THE UTER FIREPLACE WRAP.
If the installation is for a termination cap attached directly
to the fireplace skip to the sections Install Firestops and
Vent Termination.
3/8
(9.5mm)
B. Installing Vent Components
After determining which set of starting collars will be used
(top or rear) follow venting instructions accordingly.
N TE: The SL-350TRS and SL-350TRS LP are built with the
air shutter set for top vented configurations. If venting out the
rear of the unit adjust the air shutter per the following table.
Venting ut the Rear Vent (SL-350TRS) (See Figure 17)
Remove the installed rear seal cap from the rear starting collars
by cutting the strap at each end. Remove the insulation inside
the 5 collar. Follow the vent configuration tables accordingly.
Remove the 5 diameter heat shield from the 5 diameter collar
by sliding it out.
WARNING: THE T P HEAT SHIELD (INSIDE
THE FIREB X) MUST REMAIN ATTACHED IF
THE VENT SYSTEM IS ATTACHED T THE
REAR STARTING C LLARS. SEE FIGURE 17.
Venting ut the Top Vent (SL-350TRS)
Remove the top vent collar seal cap by cutting the strap at
each end. Remove the insulation inside B TH the 4
diameter and 6 5/8 diameter collars. (See Figure 17).
Remove the 4 diameter heat shield from the 4 diameter
collar by sliding it out.
You have to take the glass off for positioning the logs when
the unit is finally installed in place and finished around it. Attach
vent system to the top starting collars.
T P VENTED REAR VENTED
SL-350TRS 1/4 open 3/16 open
SL-350TRSLP 1/2 open 3/8 open
!

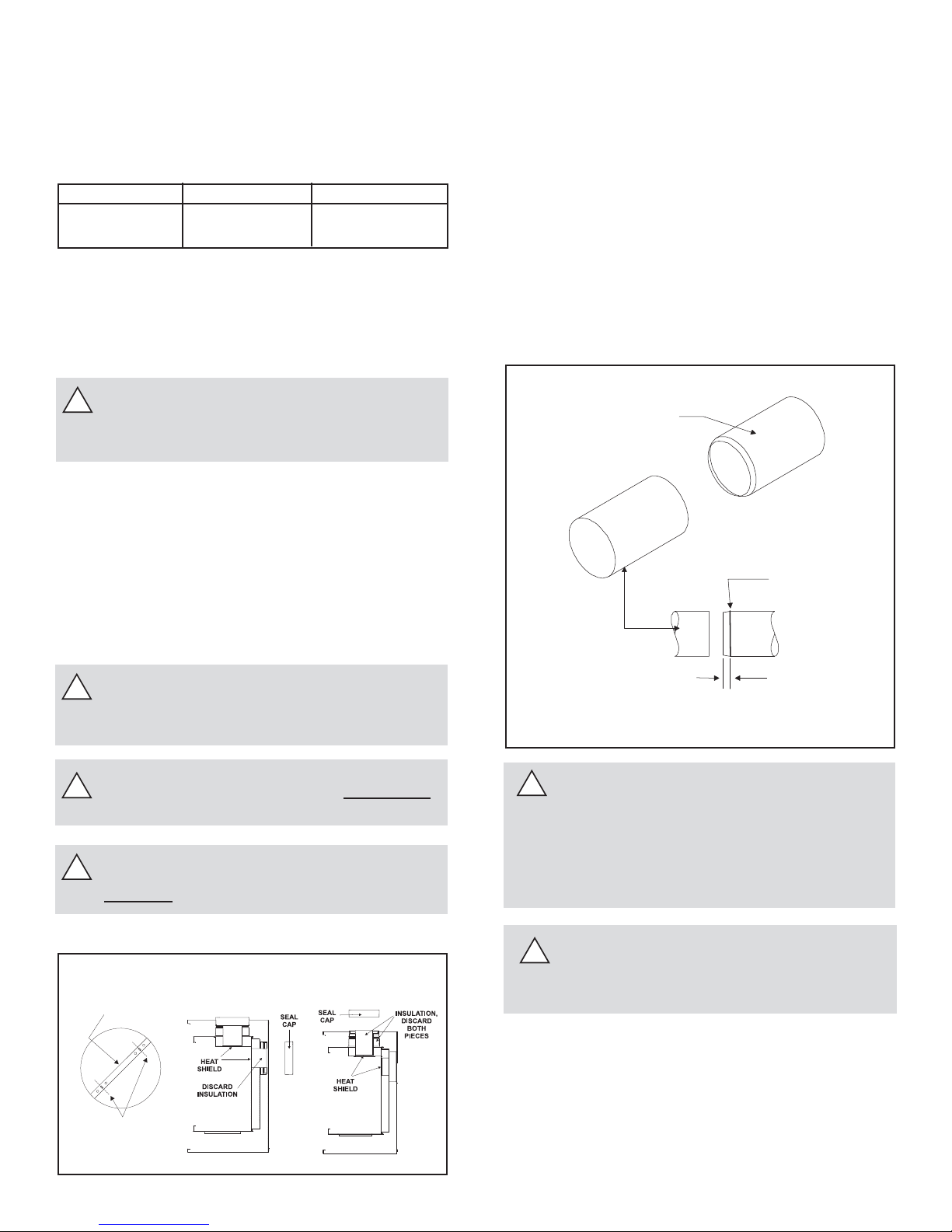

Figure 17
Insert screwdriver
or simi ar object
here to remove cap.
CUT HERE
Venting
ut Rear
Venting
ut Top
!
WARNING: THE REAR VENT C LLAR SEAL
CAP MUST REMAIN ATTACHED T THE REAR
VENT C LLARS IF THE VENT SYSTEM IS ATTACHED
T THE T P STARTING C LLARS. SEE FIGURE 17.
!
WARNING: FAILURE T REM VE INSULATI N
IN THE SET F C LLARS Y U ARE USING
C ULD CAUSE A FIRE.
!
WARNING: Y U MUST LEAVE THE INSULA-
TI N IN PLACE IN THE SET F C LLARS Y U
ARE N T USING.
1. Attach the First Vent Component to the
Starting Collars
To attach the first vent component to the starting collars
of the fireplace:
 Apply a 3/8 inch (9.5mm) bead of stove cement around
the fireplace inner vent starting collar.
 Lock the vent components into place by sliding the con-
centric pipe sections with four (4) equally spaced interior
beads into the fireplace collar or previously installed com-
ponent end with four (4) equally spaced indented sections.
 When the internal beads of each outer pipe line up ro-
tate the pipe section clockwise about one-quarter (1/4)
turn. The vent pipe is now locked together.
WARNING: A 3/8 INCH (9.5 MM) BEAD F
ST VE CEMENT MUST BE PLACED AR UND
THE FIREPLACE INNER VENT STARTING C LLAR
BEF RE ATTACHING THE FIRST VENT C MP -
NENT. FAILURE T SEAL THIS J INT MAY CAUSE
THE FIREPLACE T PERATE IMPR PERLY. SEE
THE DIAGRAM .
Figure 18. Attaching the First Vent Component
to the Starting Collars

23
For Vertical Runs - The vent system must be supported
every eight (8) feet (2.4m) above the fireplace flue outlet by
wall brackets. To install support brackets for vertical runs:
 Attach wall brackets to the vent pipe and secure the wall
bracket to the framing members with nails or screws.
 Position the firestops on both sides of the hole previ-
ously cut and secure the firestops with nails or screws.
 The heat shields of the firestops MUST BE placed to-
wards the top of the hole.
 Continue the vent run through the firestops.
Figure 21. Hole and Vent Pipe
Figure 22. Heat Shield, Interior & Exterior Firestops
TRIM HEAT
SHIELD IF TOO
LONG, ADD TO
SHIELD IF TOO
SHORT
EXTERIOR
FIRESTOP
INTERIOR
FIRESTOP
HEAT SHIELD
Figure 20. Installing Support Brackets
4. Install Firestops
For Horizontal Runs - Firestops are REQUIRED on both
sides of a combustible wall through which the vent passes.
N TE: Model DVK-01TRD or SLK-01TRD does not need
an exterior firestop on an exterior combustible wall.
To install firestops for horizontal runs that pass through
either interior or exterior walls:
Cut a 12-inch by 12-inch (305 mm X 305 mm) hole through
the wall for D-series or a 10-inch by 10-inch (254 mm X 254
mm) hole for SL-D-series pipe.
The distance from the floor to the center of the framing hole
should match dimensions D or E in Figure 4 (page 12). The
center of the framing hole is one (1) inch (25.4mm) above
the center of the horizontal vent pipe.

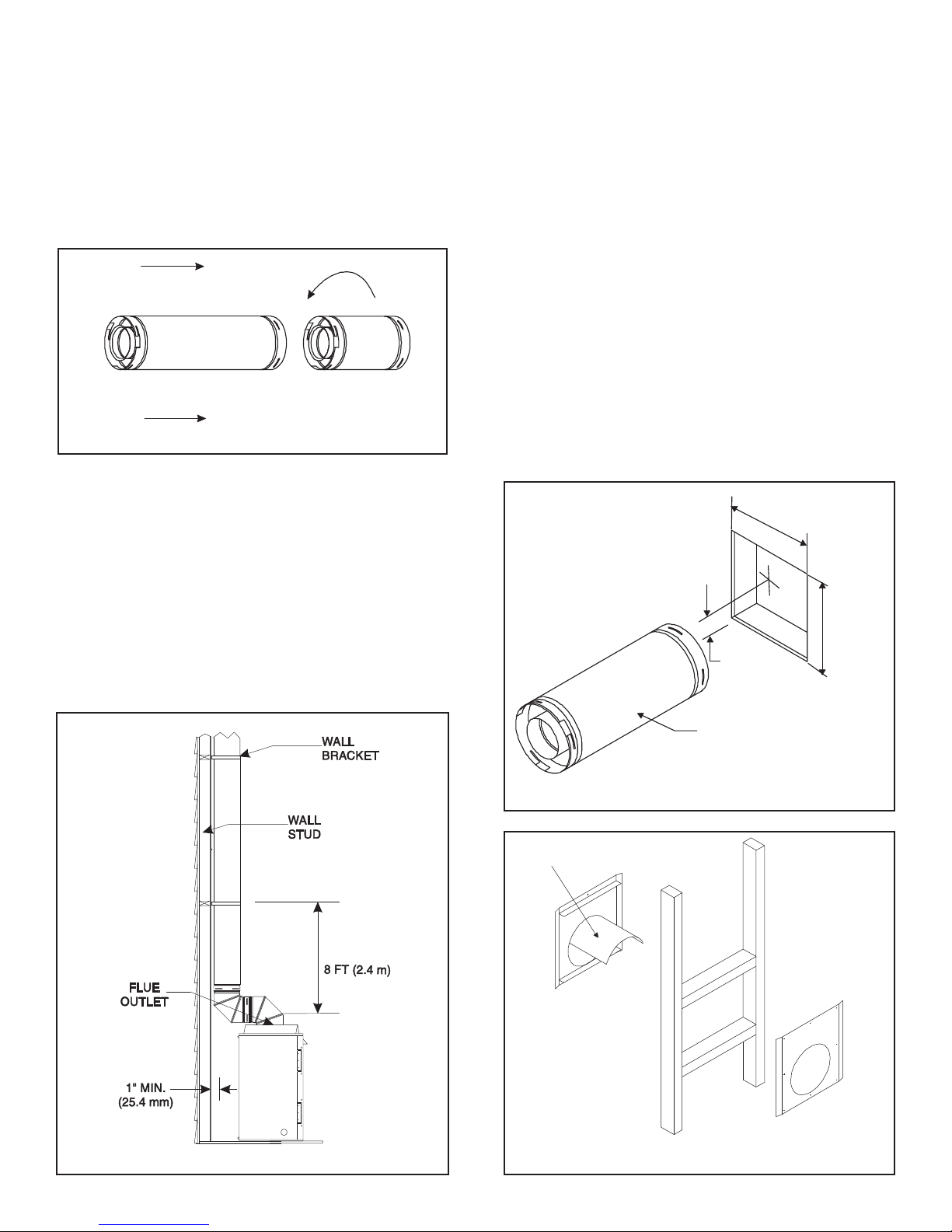

2. Continue Adding Vent Components
 Continue adding vent components locking each succeed-
ing component into place.
 Ensure that each succeeding vent component is secure-
ly fitted and locked into the preceding component.
 90° elbows may be installed and rotated to any point
around the preceding components vertical axis. If an el-
bow does not end up in a locked position with the pre-
ceding component attach with a minimum of two (2)
sheet metal screws.
Figure 19. Adding Venting Components
3. Install Support Brackets
For Horizontal Runs - The vent system must be supported
every five (5) feet of horizontal run by a horizontal pipe support.
To install support brackets for horizontal runs:
 Place the pipe supports around the vent pipe.
 Nail the pipe supports to the framing members.
VENT PIPE
1" (25.4 mm)
12" or 10"
(305mm or
254mm)
12" or 10"
(305mm or 254mm)

24
For Vertical Runs - One ceiling firestop is REQUIRED at
the hole in each ceiling through which the vent passes.
To install firestops for vertical runs that pass through ceilings:
 Position a plumb bob directly over the center of the verti-
cal vent component.
 Mark the ceiling to establish the centerpoint of the vent.
 Drill a hole or drive a nail through this centerpoint.
 Check the floor above for any obstructions such as wir-
ing or plumbing runs.
 Reposition the fireplace and vent system if necessary
to accommodate the ceiling joists and/or obstructions.
 Cut a 10-inch X 10-inch (254mm X 254mm) hole through
the ceiling using the centerpoint previously marked.
 Frame the hole with framing lumber the same size as the
ceiling joists.

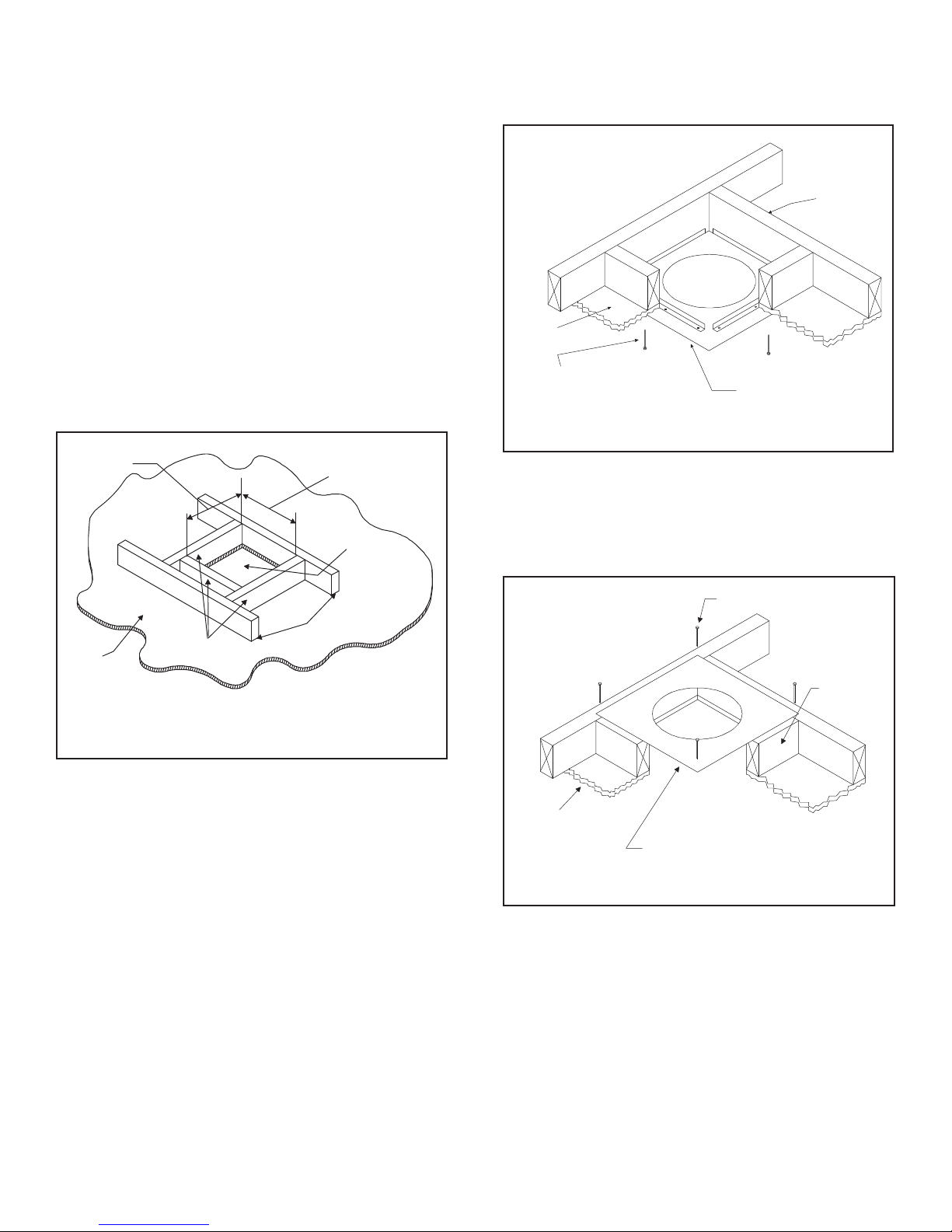

Figure 24. Ceiling Firestop (Ceiling Side)
If the area above the ceiling is N T an attic position and
secure the ceiling firestop on the ceiling side of the previously
cut and framed hole.
Figure 23. 10" x 10" Hole & New Framing Members
If the area above the ceiling IS an attic position and secure
the firestop on top of the previously framed hole.
NOTE: Kee insulation away from the vent i e at least
1 inch (25mm).
Figure 25. Attic Firestop
JOIST
CEILING FIRESTOP
CEILING
NAILS (4 REQUIRED)
CEILING
CEILING FIRESTOP
RAFTER
NAILS (4 REQUIRED)
CEILING
NEW
FRAMING
MEMBERS
EXISTING CEILING
JOISTS
CHIMNEY
HOLE
10" (254mm)
10" (254mm)
