Heat-N-Glo GRAND-50 Assembly instructions

Heat-N-Glo Fireplace
Model:
GRAND-50
Installers Guide
570-900-C 10/98
- Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
-What to do if you smell gas
 Do not try to light any appliance.
 Do not touch any electrical switch.
 Do not use any phone in your building.
 Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
 If you cannot reach your gas supplier call
the fire department.
- Installation and service must be performed by a
qualified installer service agency or the gas
supplier.
WARNING: IMPROPER INSTALLATION,
ADJUSTMENT, ALTERATION, SERVICE
OR MAINTENANCE CAN CAUSE IN-
JURY OR PROPERTY DAMAGE. RE-
FER TO THIS MANUAL. FOR ASSIS-
TANCE OR ADDITIONAL INFORMA-
TION CONSULT A QUALIFIED IN-
STALLER, SERVICE AGENCY, OR THE
GAS SUPPLIER.
Underwriters
LaboratoriesListed
READ THIS MANUAL BEF RE INSTALLING R
PERATING THIS APPLIANCE. THIS
INSTALLERS GUIDE MUST BE LEFT WITH
APPLIANCE F R FUTURE REFERENCE.
1. This appliance may be installed in an
aftermarket, permanently located,
manufactured (mobile) home, where
not prohibited by local codes.
2. This appliance is only for use with the
type of gas indicated on the rating
plate. This appliance is not convertible
for use with other gases, unless a
certified kit is used.
Please contact your Heat-N-Glo dealer for any
questions or concerns. For the number of your
nearest Heat-N-Glo dealer, please call 61 -890-8367.
Printed in U.S.A. Copyright 1998,
Heat-N-Glo, a division of Hearth Technologies Inc.
6665 West Highway 13, Savage, MN 55378
WARNING: IF THE INFORMATION
IN THESE INSTRUCTIONS IS NOT
FOLLOWED EXACTLY, A FIRE OR
EXPLOSION MAY RESULT
CAUSING PROPERTY DAMAGE,
PERSONAL INJURY, OR DEATH.
This product is covered by one or more of the following patents: (United States) 4,112,913; 4,408,594; 4,422,426; 4,424,792; 4,520,791; 4,793,322;
4,852,548; 4,875,464; 5,000,162; 5,016,609; 5,076,254 5,191,877; 5,218,953; 5,328,356; 5,429,495; 5,452,708; 5,542,407; 5,613,487; (Australia)
543790; 586383; (Canada) 1,123,296; 1,297,746; 2,195,264; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. and foreign patents pending.

SAFETY AND WARNING INFORMATION
READ and UNDERSTAND all instructions carefully before starting the installation.
FAILURE TO FOLLOW these installation instructions may result in a possible fire
hazard and will void the warranty.
Prior to the first firing of the fireplace, READ the Using Your Fireplace section of the
Owners Guide.
DO NOT USE this appliance if any part has been under water. Immediately CALL a
ualified service technician to inspect the unit and to replace any part of the control
system and any gas control which has been underwater.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should be PERFORMED by a ualified service person. The
appliance and venting system should be INSPECTED before initial use and at least
annually by a professional service person. More fre uent cleaning may be re uired due
to excessive lint from carpeting, bedding material, etc. It is IMPERATIVE that the units
control compartment, burners, and circulating air passageways BE KEPT CLEAN to
provide for ade uate combustion and ventilation air.
Always KEEP the appliance clear and free from combustible materials, gasoline, and
other flammable vapors and li uids.
NEVER OBSTRUCT the flow of combustion and ventilation air. Keep the front of the
appliance CLEAR of all obstacles and materials for sevicing and proper operations.
Due to the high temperature, the appliance should be LOCATED out of traffic areas and
away from furniture and draperies. Clothing or flammable material SHOULD NOT BE
PLACED on or near the appliance.
Children and adults should be ALERTED to the hazards of high surface temperature and
should STAY AWAY to avoid burns or clothing ignition. Young children should be
CAREFULLY SUPERVISED when they are in the same room as the appliance.
These units MUST use one of the vent systems described in the Installing the Fireplace
section of the Installers Guide. NO OTHER vent systems or components MAY BE USED.
This gas fireplace and vent assembly MUST be vented directly to the outside and MUST
NEVER be attached to a chimney serving a separate solid fuel burning appliance. Each
gas appliance MUST USE a separate vent system. Common vent systems are
PROHIBITED.
INSPECT the external vent cap on a regular basis to make sure that no debris is
interfering with the air flow.
The glass door assembly MUST be in place and sealed, and the trim door assembly
MUST be in place on the fireplace before the unit can be placed into safe operation.
DO NOT OPERATE this appliance with the glass door removed, cracked, or broken.
Replacement of the glass door should be performed by a licensed or ualified service
person. DO NOT strike or slam the glass door.
The glass door assembly SHALL ONLY be replaced as a complete unit, as supplied by
the gas fireplace manufacturer. NO SUBSTITUTE material may be used.
DO NOT USE abrasive cleaners on the glass door assembly. DO NOT ATTEMPT to
clean the glass door when it is hot.
Turn off the gas before servicing this appliance. It is recommended that a ualified
service technician perform an appliance check-up at the beginning of each heating
season.
Any safety screen or guard removed for servicing must be replaced before operating
this appliance.
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
i

Saf ty and Warning Information ....................i
S ction 1: Approvals and Cod s ................ 1
Approval Listings and Codes .................................. 1
Appliance Certification ............................................ 1
Installation Codes ................................................... 1
High Altitude Installations ........................................ 1
S ction 2: G tting Start d............................ 2
Introducing the Heat-N-Glo Gas Fireplaces ............
Pre-installation Preparation ....................................
S ction 3: Installing th Fir plac ............... 4
Step 1 Locating the Fireplace ................................ 4
Step Framing the Fireplace ................................ 5
Step 3 Installing the Vent System .......................... 6
A. Vent System Approvals .......................... 6
B. Installing Vent Components ................. 1
C.Vent Termination ................................... 17
Step 4 Positioning, Leveling, and
Securing the Fireplace .............................
Step 5 The Gas Control Systems .......................
Step 6 The Gas Supply Line ................................ 3
Step 7 Gas Pressure Requirements ................... 4
Step 8 Wiring the Fireplace ................................. 5
Step 9 Finishing ................................................... 7
Step 10 Installing Trim, Logs
and Ember Material ................................. 8
Installing the Trim .................................... 8
Positioning the Logs ................................ 9
Placing the Ember Material ..................... 9
Step 11 Before Lighting the Fireplace ................... 31
Step1 Lighting the Fireplace ............................... 31
After the Installation .............................................. 31
S ction 4: Maint nanc and S rvicing ..... 32
S ction 5: R plac m nt Parts
and Acc ssori s ......................................... 34
Replacement Parts .............................................. 35
Accessories ......................................................... 37
Table of
Contents
i i

1
1
Approvals
and Codes
Approval Listings
and Codes
Appliance Certification
The Heat-N-Glo fireplace models discussed in this
Installers Guide have been tested to certification
standards and listed by the applicable laboratories.
CERTIFICATION
MODEL LABORATORY TYPE STANDARD
Grand 50 Under riters Direct Vent ANSI Z21.50  CGA2.22
Laboratories Decorative
Installation Codes
The fireplace installation must conform to local codes. Before installing the
fireplace, consult the local building code agency to ensure that you are in
compliance ith all applicable codes, including permits and inspections.
In the absence of local codes, the fireplace installation must conform to the
National Fuel Gas Code ANSI Z223.1 (in the United States) or the CAN/CGA-
B149 Installation Codes (in Canada). The appliance must be electrically
grounded in accordance ith local codes or, in the absence of local codes ith
the National Electric Code ANSI/NFPA No. 70 (in the United States), or to the
CSA C22.1Canadian Electric Code (in Canada).
These models may be installed in a bedroom or bed-sitting room in the U.S.A.
and Canada.
High Altitude Installations
UL Listed gas fireplaces are tested and approved for elevations from 0 to 2,000
feet in the U.S.A., and from 0 to 4,500 feet in Canada.
When installing this fireplace at an elevation above 2,000 feet (in the United
States), it may be necessary to decrease the input rating by changing the existing
burner orifice to a smaller size. Input should be reduced four percent (4%) for
each 1,000 feet above sea level, unless the heating value of the gas has been
reduced, in hich case this general rule ill not apply. To identify the proper
orifice size, check ith the local gas utility.
When installing this fireplace at an elevation bet een 2,000 and 4,500 feet (in
Canada), the input rating must be reduced by ten percent (10%).
When installing this fireplace at an elevation above 4,500 feet (in Canada), check
ith local authorities.
Consult your local gas utility for assistance in determining the proper orifice for
your location.

2
2
Getting
Started
Introducing the
Heat-N-Glo
Fireplaces
Heat-N-Glo direct vent gas fireplaces are designed to
operate ith all combustion air siphoned from outside of the
building and all exhaust gases expelled to the outside.
The information contained in this Installers Guide, unless
noted other ise, applies to all models and gas control
systems.

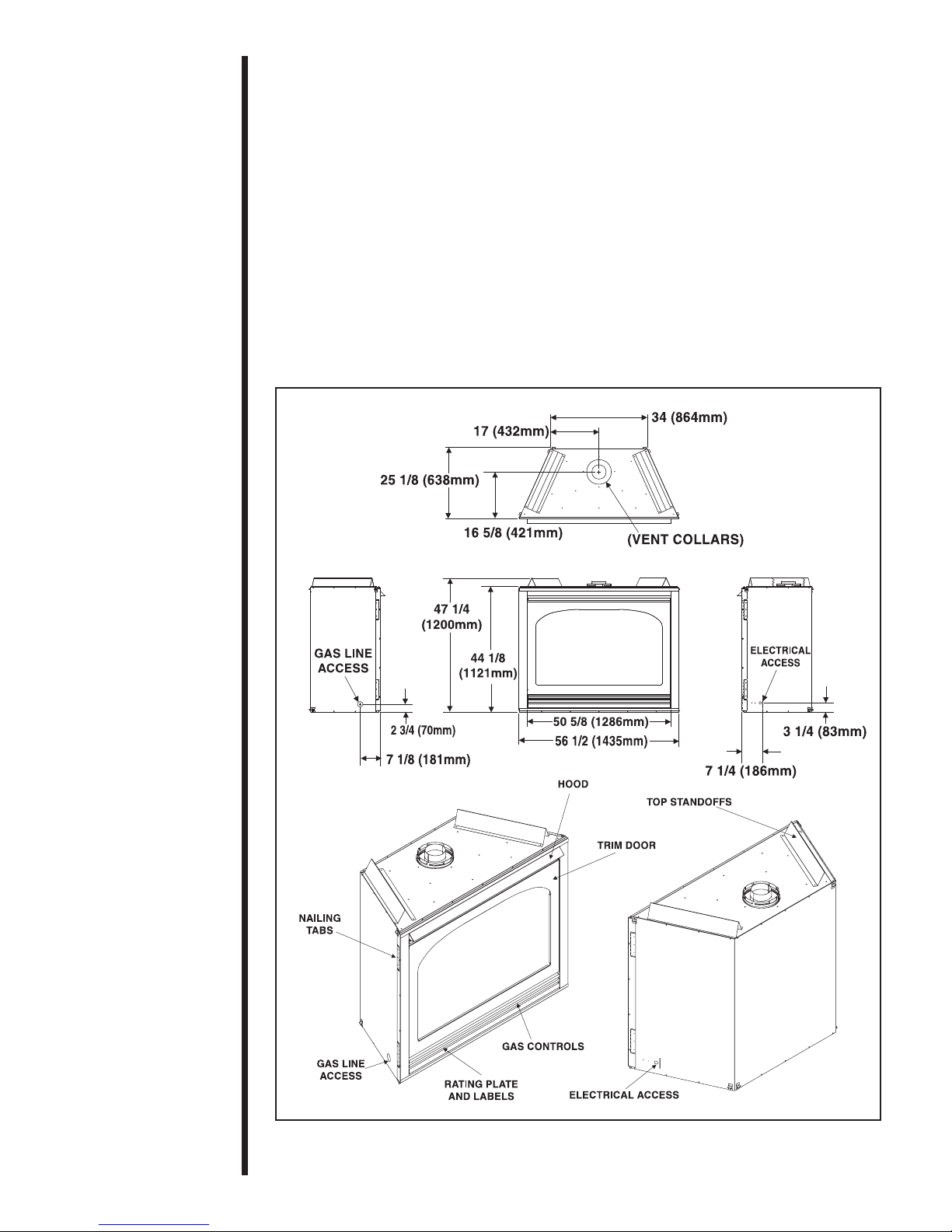

Gas fireplace diagrams, including the dimensions, are sho n
in this section.
Pre-installation
Preparation
This gas fireplace and its components are tested and
safe hen installed in accordance ith this Installers
Guide. Report to your dealer any parts damaged in
shipment, particularly the condition of the glass. Do
not install any unit with dama ed, incomplete, or
substitute parts.
The vent system components are shipped in separate
packages. The gas logs are packaged separately and
must be field installed. Read all of the instructions
before startin the installation. Follow these
instructions carefully durin the installation to
ensure maximum safety and benefit. Failure to
follow these instructions will void the owners
warranty and may present a fire hazard.
The Heat-N-Glo Warranty ill be voided by, and Heat-N-
Glo disclaims any responsibility for, the follo ing actions:
 Installation of any damaged fireplace or vent system
component.
 Modification of the fireplace or direct vent system.
 Installation other than as instructed by Heat-N-Glo.
 Improper positioning of the gas logs or the glass door.
 Installation and/or use of any component part not manu-
factured and approved by Heat-N-Glo, not ithstanding
any independent testing laboratory or other party ap-
proval of such component part or accessory.
ANY SUCH ACTION MAY POSSIBLY CAUSE A
FIRE HAZARD.

3
When planning a fireplace installation, its necessary to determine:
Where the unit is to be installed.
The vent system configuration to be used.
Gas supply piping.
Electrical iring.
Framing and finishing details.
Whether optional accessoriesdevices such as a fan, all s itch, or remote
controlare desired.
If the fireplace is to be installed on carpeting or tile, or on any combustible
material other than ood flooring, the fireplace should be installed on a metal or
ood panel that extends the full idth and depth of the fireplace.
Fi ure 1. Dia ram of the Grand-50

4
3
Installing the
Fireplace
Step 1
Locating the
Fireplace

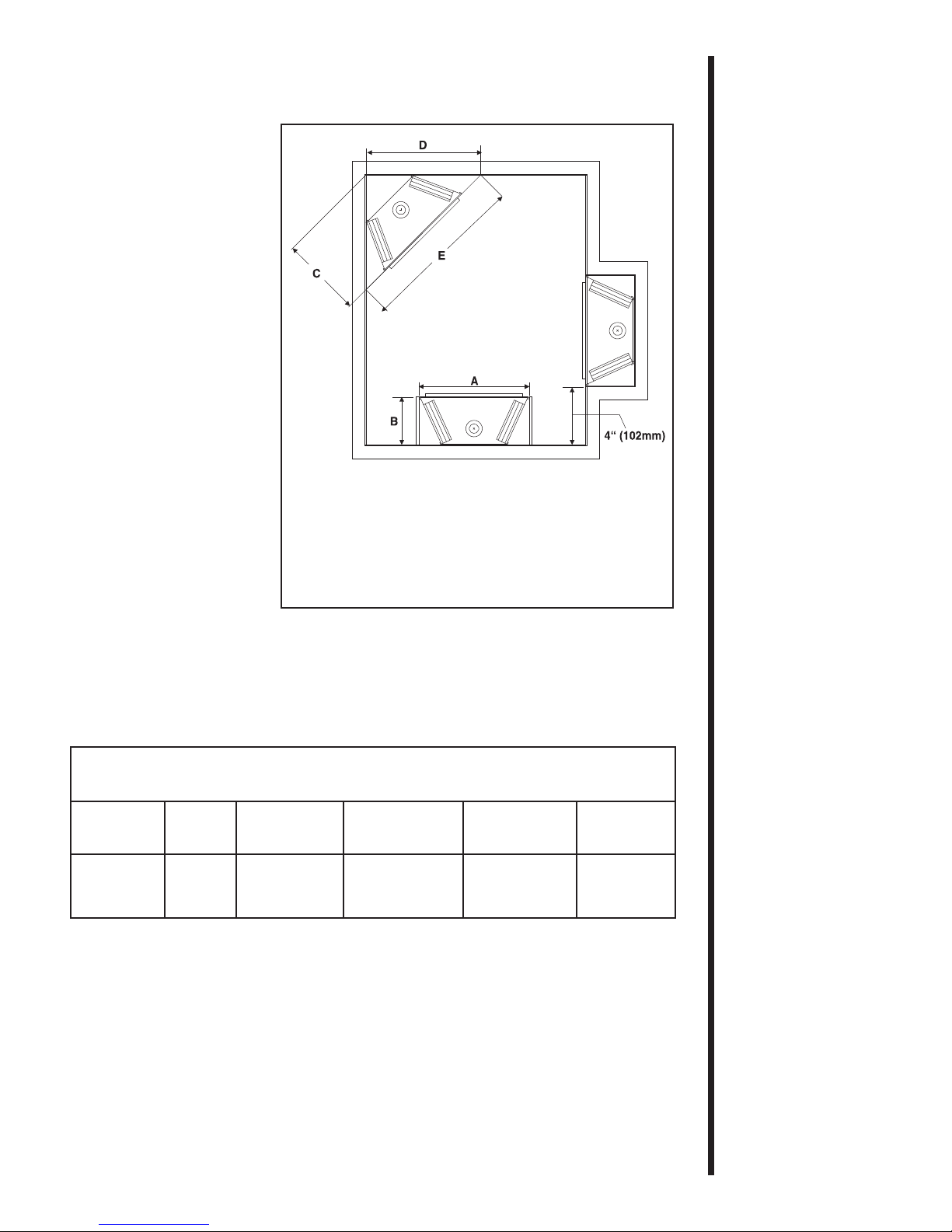

The diagram belo sho s space and clearance
requirements for locating a fireplace ithin a room.
Fi ure 2. Fireplace Dimensions, Locations, and
Space Requirements
Clearance Requirements
The top, back, and sides of the fireplace are defined
by stand-offs.
Minimum Clearances from the Fireplace to
Combustible Materials
Glass Rear of Sides of Top of
Front Floor Fireplace Fireplace Fireplace Ceilin
36 inches 0 1/2 inch 1/2 inch 3-1/2 inches 31 inches
(914 mm) (13 mm) (13 mm) (89 mm) (787 mm)
The minimum clearance to a perpendicular all extending
past the face of the fireplace is 4-inches (102 mm).
The back of the fireplace may be recessed 25 1/8 inches
(638mm) into combustible construction.
MODEL A B C D E
GRAND-50 57 1/2 25 5/8 42 1/4 59 3/4 84 1/2
(1460mm) (651mm) (1073mm) (1518mm) (2147mm)

5
FRAMING SHOULD BE
CONSTRUCTED OF 2 X 4
LUMBER OR HEAVIER.
Model A B C D
Grand-50 57 1/2 47 3/4 25 5/8 86 5/8
NOTE: DIMENSIONS SHOWN IN INCHES
Fi ure 3. Framin Dimensions
THE FRAMING HEADERS MAY REST ON
THE FIREPLACE STAND-OFFS.
12”X12” VENT
FRAMING HOLE.
*
Minimum Clearances from the Vent Pipe to
Combustible Materials
For Vertical
For Horizontal Sections Sections At Wall Firestops
Top Bottom Sides Top Bottom Sides
3 inches* 1 inch 1 inch 1 inch 2-1/2 inches 1/2 inch 1 inch
(75 mm) (25 mm) (25 mm) (25 mm) (63.7 mm) (13 mm) (25 mm)
For minimum clearances, see the direct vent
termination clearance diagrams on pages 19 and 21 in
this section.
Additional clearance and/or installation of a heat
shield is required above the first 90° elbo . See page
13 of the Installers Guide.
Step 2
Fra ing the
Fireplace
Fireplace framing can be built before or after the
fireplace is set in place. Framing should be positioned
to accommodate all coverings and fireplace facing
material. The diagram belo sho s framing reference
dimensions.
MEASURE FIREPLACE DIMENSIONS, AND
VERIFY FRAMING METHODS AND WALL
COVERING DETAILS, BEFORE FRAMING
CONSTRUCTION BEGINS.
CAUTION

6
Vent system components
Vent system
termination kits

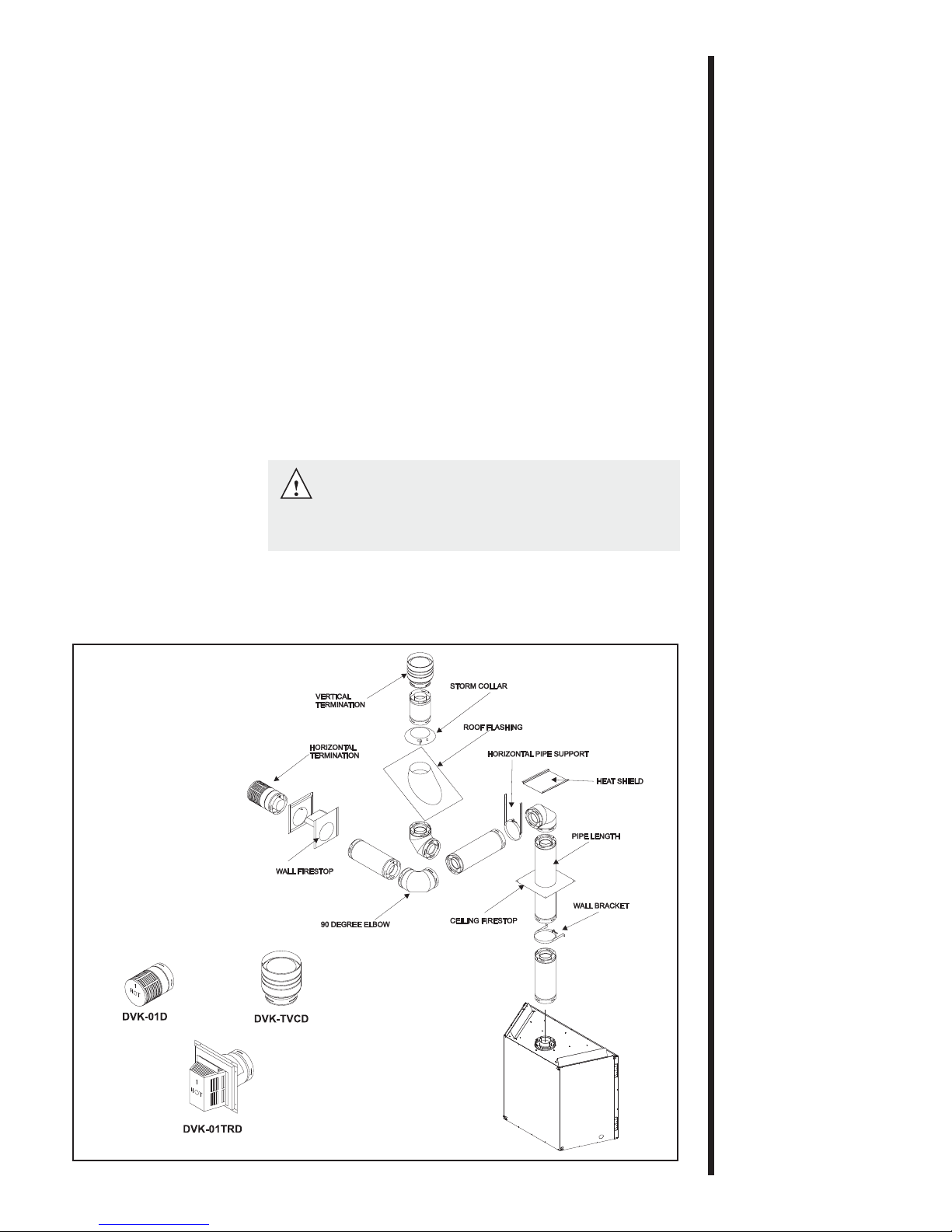

Fi ure 4. Vent Components and Terminations
Step 3
Installing the
Vent System
A. Vent System Approvals
This model is approved to use D-Series components
and terminations. Approved vent system components are
labeled for identification. NO OTHER VENTING
SYSTEM OR COMPONENTS MAY BE USED.
Detailed installation instructions are included ith each
vent termination kit and should be used in conjunction
ith this Installers Guide. The dra ing belo sho s
vent system components and terminations.
The flame and ember appearance may vary based on the
type of fuel burned and the venting configuration used.
Identifying Vent Components
The vent systems installed on this gas fireplace may
include one, t o, or three 90o elbo assemblies. The
relationships of vertical rise to horizontal run in vent
configurations using 90o elbo s MUST BE strictly
adhered to. The rise to run relationship are sho n in
the venting dra ings and tables. Refer to the
diagrams on the next several pages.
WAR I G: A 3-FOOT LE GTH OF
STRAIGHT PIPE (MI IMUM) MUST
BE THE FIRST VE T COMPO E T
ATTACHED TO THE U IT.
NOTE: TWO 45O ELBOWS MAY BE USED IN
PLACE OF ONE 90O ELBOW. RISE TO RUN
RATIOS IN THE VENT SYSTEM MUST BE
FOLLOWED IF 45O ELBOWS ARE USED.

7

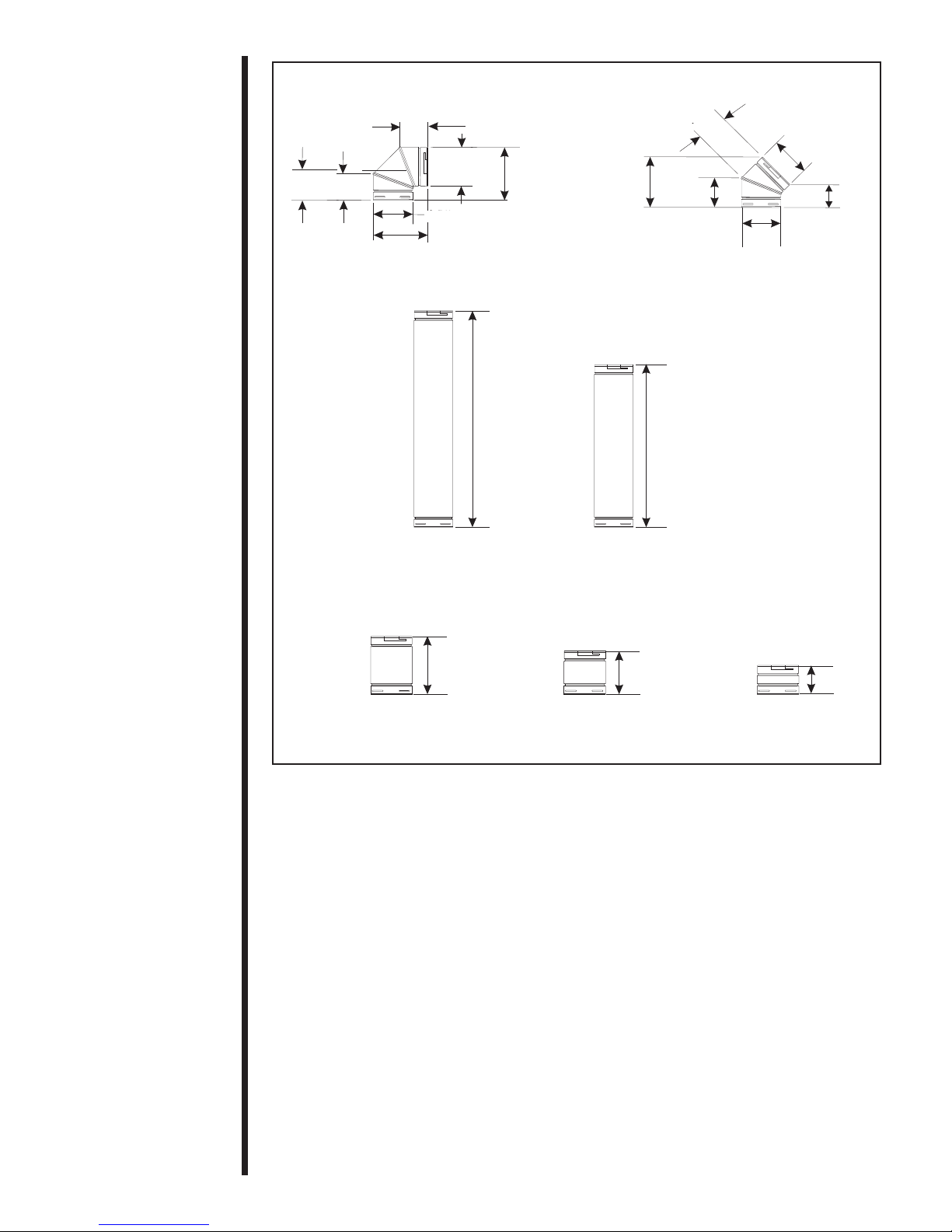

Fi ure 5. D-Series Direct Vent Component Specifications
(5-inch inner pipe/8 5/8-inch outer pipe)
NOTE: PIPES OVERLAP 1 3/8 INCHES (34.93 mm) AT EACH JOINT.
DV-90D
6 5/32
5 7/87 3/8
DV-45D
6 7/16
11 1/16 61/2
8 5/8
8 1/2
5 1/16
8 /12 11 5/8
8 5/8
11 15/16
DV-36D
35 3/4
47 3/4
DV-48D
5 3/4
8 3/4
11 3/4
DV-12D DV-09D DV-06D
6-5/32"
(156 mm)
7-3/8" 5-7/8"
(187 mm) (149 mm)
8-1/2"
(216 mm)
8-5/8"
(220 mm)
11-15/16"
(303 mm)
11-5/8"
(295 mm) 11-1/16"
(281 mm) 6-1/2"
(165 mm)
8-5/8"
(220 mm)
5-1/16"
(129 mm)
8-1/2"
(216 mm)
6-7/16"
(164 mm)
35-3/4"
(908 mm)
47-3/4"
(1.2 m)
11-3/4"
(298 mm) 8-3/4"
(222 mm) 5-3/4"
(146 mm)
NOTE: PIPES OVERLAP 1-3/8 INCHES (34.93 mm) AT EACH JOINT.

8
VERTICALVENTING
V (FT.)
30' MAX. (9.3 M)
Fi ure 6. Vertical Ventin

9
VENTING WITH ONE (1) 90° ELBOWS
V (FT.) H (FT.)
3' MIN. (914 mm) 6' MAX. (1.9m)
4' MIN. (1.2m) 8' MAX. (2.4m)
5' MIN. (1.6m) 10' MAX. (3.1m)
6' MIN. (1.9m) 12' MAX. (3.6m)
V + H = 30’ MAX. (9.3 m)
Ratio V to H = 1:2

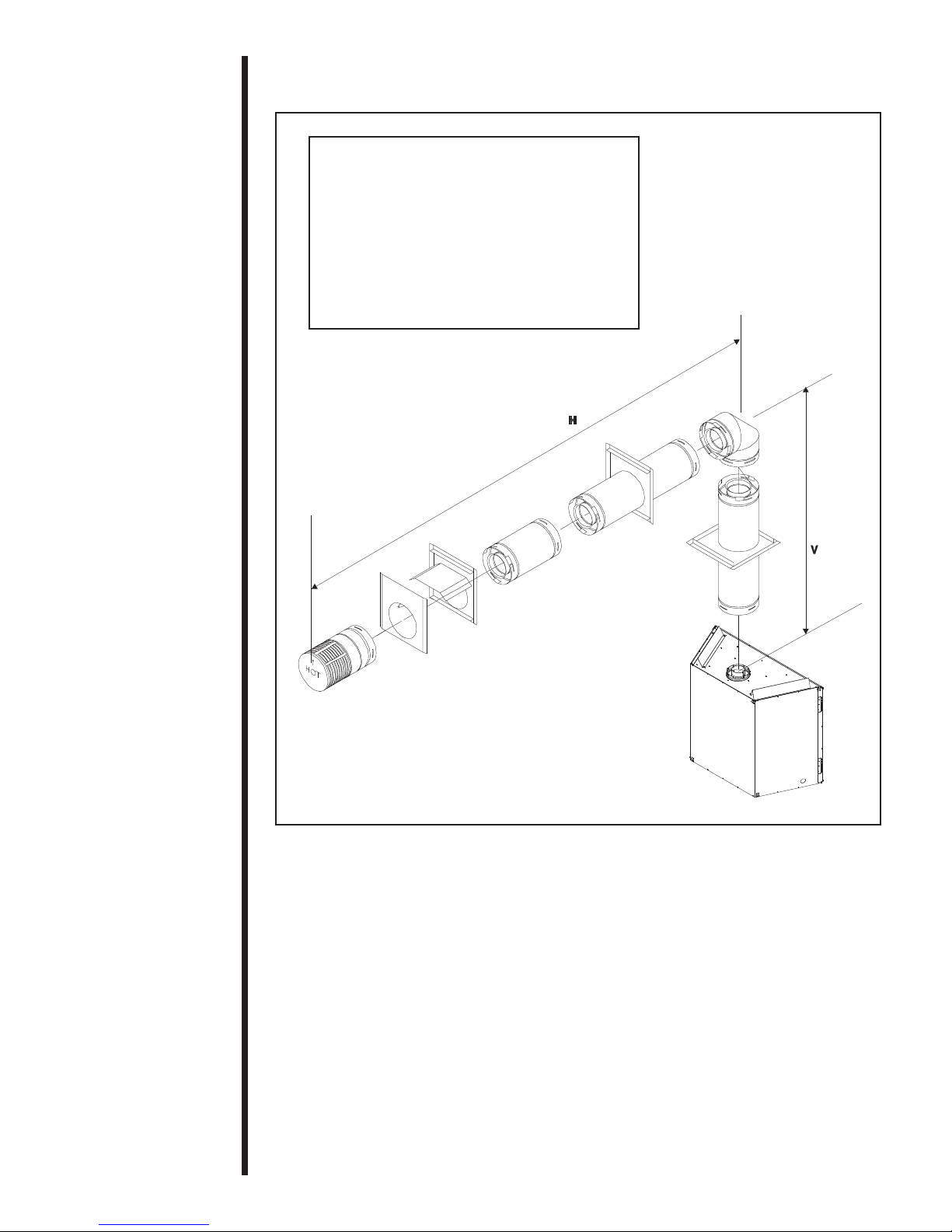

Fi ure 7. Ventin with One 90° Elbow
H = 20' MAX. (6.2m)
NOTE: SRV570-290 Heat Shield is required above
elbo if clearance is less than 4 inches (102mm).

10
VENTING WITH TWO (2) 90° ELBOWS
V (FT.) H (FT.)
3' MIN. (914mm) 6' MAX. (1.9m)
4' MIN. (1.2m) 8' MAX. (2.4m)
5' MIN. (1.6m) 10' MAX. (3.1m)
6' MIN. (1.9m) 12' MAX. (3.6m)
V + H + H1= 30’ MAX. (9.3 m)
Ratio V to H + H1= 1:2
Fi ure 8. Ventin with two 90° elbows
VENTING WITH TWO (2) 90° ELBOWS
V (FT.) H (FT.)
3' MIN. (914 mm) 6' MAX. (1.9m)
4' MIN. (1.2m) 8' MAX. (2.4m)
5' MIN. (1.6m) 10' MAX. (3.1m)
6' MIN. (1.9m) 12' MAX. (3.6m)
V + V1+ H1= 30’ MAX. (9.3 m)
Ratio V to H = 1:2
H = 20' MAX. (6.2m)
H = 20' MAX. (6.2m)
NOTE: SRV570-290 Heat
Shield is required above
elbo if clearance is less
than 4 inches (102mm).

11 Fi ure 9. Ventin with three 90° elbows
VENTING WITH THREE (3) 90° ELBOWS
V (FT.) H (FT.)
3' MINIMUM (914 mm) 6' MAXIMUM (1.9 m)
4' MINIMUM (1.2 m) 8' MAXIMUM (2.4 m)
5' MINIMUM (1.6 m) 10' MAXIMUM (3.1 m)
RATIO V TO H = 1:2
V + V1+ H + H1= 30’ MAXIMUM (9.3m)
H + H1= 20’ MAXIMUM (6.2m)
H= 10’ MAXIMUM (3.1m)
VENTING WITH THREE (3) 90° ELBOWS
V (FT.) H + H1(FT.)
3' MINIMUM (914 mm) 6' MAXIMUM (1.9 m)
4' MINIMUM (1.2 m) 8' MAXIMUM (2.4 m)
5' MINIMUM (1.6 m) 10' MAXIMUM (3.1 m)
6' MINIMUM (1.9 m) 12' MAXIMUM (3.6 m)
V + V1+ H + H1= 30’ MAXIMUM (9.3 m)
H + H1= 20’ MAXIMUM (6.2 m)
RATIO V TO H + H1= 1:2
NOTE: SRV570-290 Heat
Shield is required above
elbo if clearance is less
than 4 inches (102mm).

12
B. Installing Vent Components
1. Attach the First Vent Component to the Startin Collars
To attach the first vent component (3 foot straight pipe
minimum) to the starting collars of the fireplace:
 Apply a 3/8 inch (9.5 mm) bead of stove cement
around the inner pipe fireplace starting collar.
 Make sure that the fireplace rope gasket supplied
ith the fireplace seals bet een the first 8-5/8 inch
(219mm) vent component and the fireplace top.
 Lock the vent components into place by sliding the
concentric pipe sections ith four (4) equally
spaced interior beads into the fireplace collar or
previously installed component end ith four (4)
equally spaced indented sections.

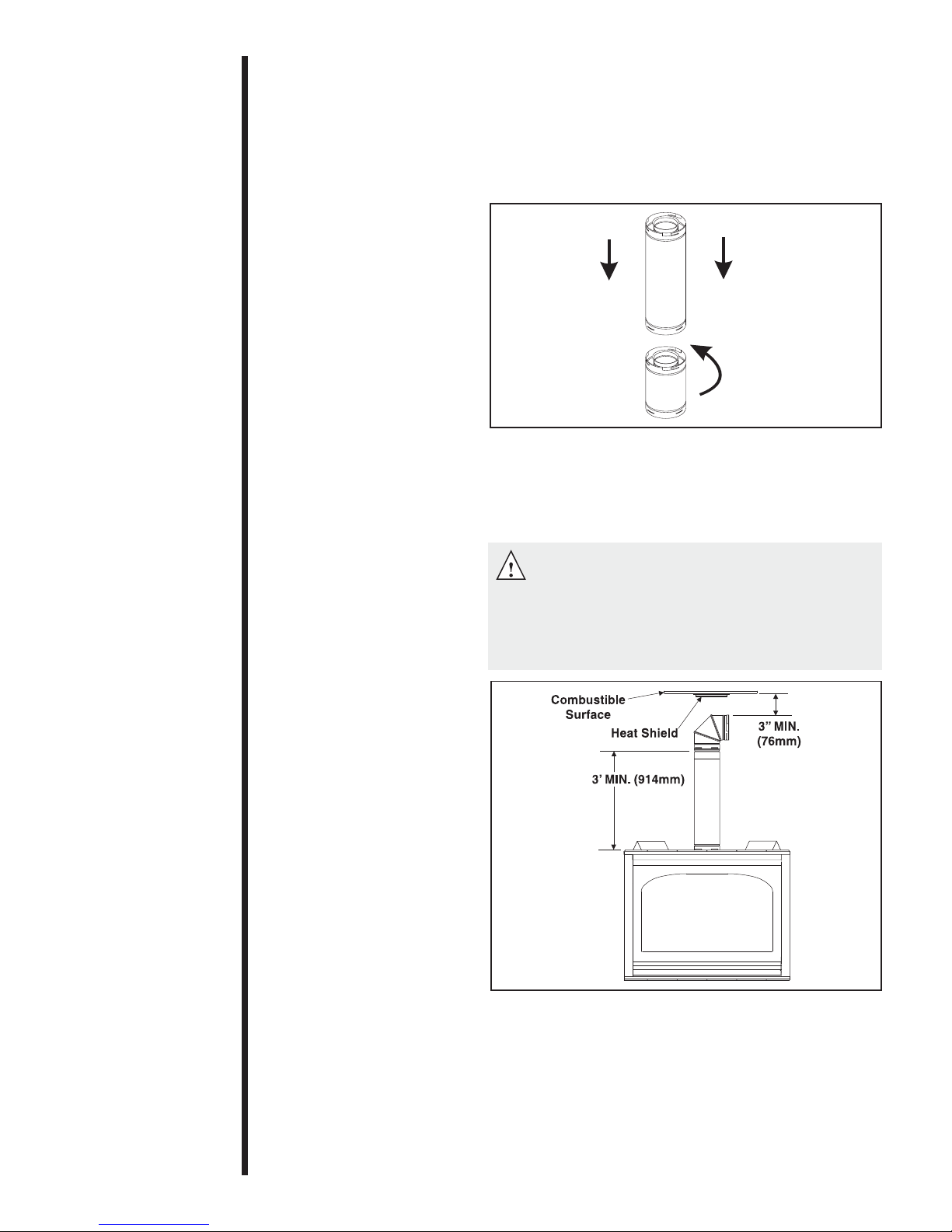

 When the internal beads of each outer pipe line up,
rotate the pipe section clock ise about one-quarter
(1/4) turn. The vent pipe is no locked together.
1. Apply the stove
cement.
2. Line up the internal
beads and rotate the
pipe sections clock-
ise until locked.
3. Lock the vent compo-
nents into place.
4. Check the seal on the
rope gasket.
Fi ure 10. Attachin the First Vent Component to
the Startin Collars
WARNING: A 3/8 INCH (9.5 MM) BEAD
OF STOVE CEMENT MUST BE PLACED
AROUND THE INNER PIPE FIREPLACE
STARTING COLLAR BEFORE ATTACHING
THE FIRST VENT COMPONENT.
FAILURE TO SEAL THIS JOINT MAY
CAUSE THE FIREPLACE TO OPERATE
IMPROPERLY. SEE THE DIAGRAM .
WARNING: ENSURE THAT THE
FIBERGLASS ROPE GASKET SUPPLIED
WITH THE FIREPLACE SEALS BETWEEN
THE FIRST VENT COMPONENT AND
THE FIREPLACE TOP.
STARTING
COLLAR
STARTING
COLLAR
FIRST
VENT
COMPONENT
FIRST
VENT
COMPONENT
STOVE
SEALANT
BEAD
3/8" (9.5 mm)
STOVE
SEALANT
BEAD
3/8" (9.5 mm)
1 INCH (25.4 mm)
3/8 INCH (9.5 mm)

13
2. Continue Addin Vent Components
To continue adding vent components in accordance
ith the pre-planned vent system configuration:
 Ensure that each succeeding vent component is
securely fitted and locked into the preceding
component in the vent system.
Continue adding vent components, locking each
succeeding component into place.
Fi ure 11. Addin Ventin Components
90° elbo s may be installed and rotated to any point around
the preceding components vertical axis. If an elbo does not
end up in a locked position ith the preceding component,
attach ith a minimum of t o (2) sheet metal scre s.
WARNING: MODEL GRAND-50 REQUIRES
SHIELD SRV570-290 ABOVE THE FIRST 90°
ELBOW IN THE SYSTEM IF CLEARANCE
IS LESS THAN 4 INCHES (102MM). SEE
INSTALLATION SHEET AND HEAT
SHIELD SUPPLIED WITH FIREPLACE.
Fi ure 12. Placement of SRV570-290 Heat Shield
First 90 elbow in system.
3. Install Support Brackets
For Horizontal Runs - The vent system must be
supported every five (5) feet of horizontal run by a
horizontal pipe support.
To install support brackets for horizontal runs:
 Place the pipe supports around the vent pipe.
 Nail the pipe supports to the framing members.

14

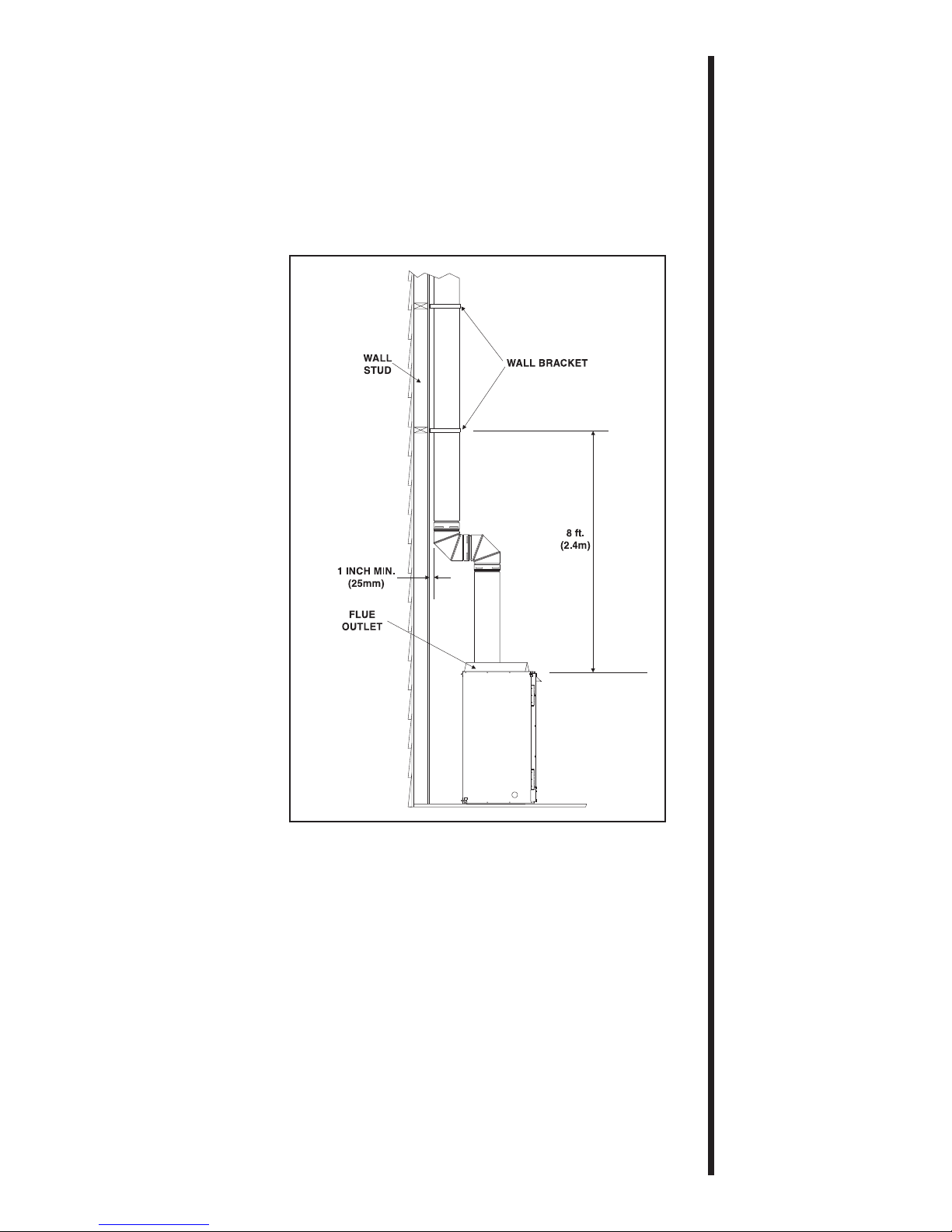

For Vertical Runs - The vent system must be
supported every eight (8) feet (2.4 m) above the
fireplace flue outlet by all brackets.
To install support brackets for vertical runs:
 Attach all brackets to the vent pipe and secure
the all bracket to the framing members ith nails
or scre s.
Use all brackets to
support vertical runs
every 8 feet (2.4 m)
above the fireplace flue
outlet.
Fi ure 13. Installin Support Brackets
4. Install Firestops
For Horizontal Runs - Firestops are REQUIRED on
both sides of a combustible all through hich the
vent passes.
NOTE Model DVK-01TRD does not need an exterior firestop
on an exterior combustible all.
To install firestops for horizontal runs that pass
through either interior or exterior alls:
 Cut a 12-inch by 12-inch (305mm X 305mm) hole
through the all. The center of the hole is one (1)
inch (25.4 mm) above the center of the horizontal
vent pipe.

15
 Position the firestops on both sides of the hole
previously cut and secure the firestops ith nails or
scre s.
 The heat shields of the firestops MUST BE placed
to ards the top of the hole.
 Continue the vent run through the firestops.

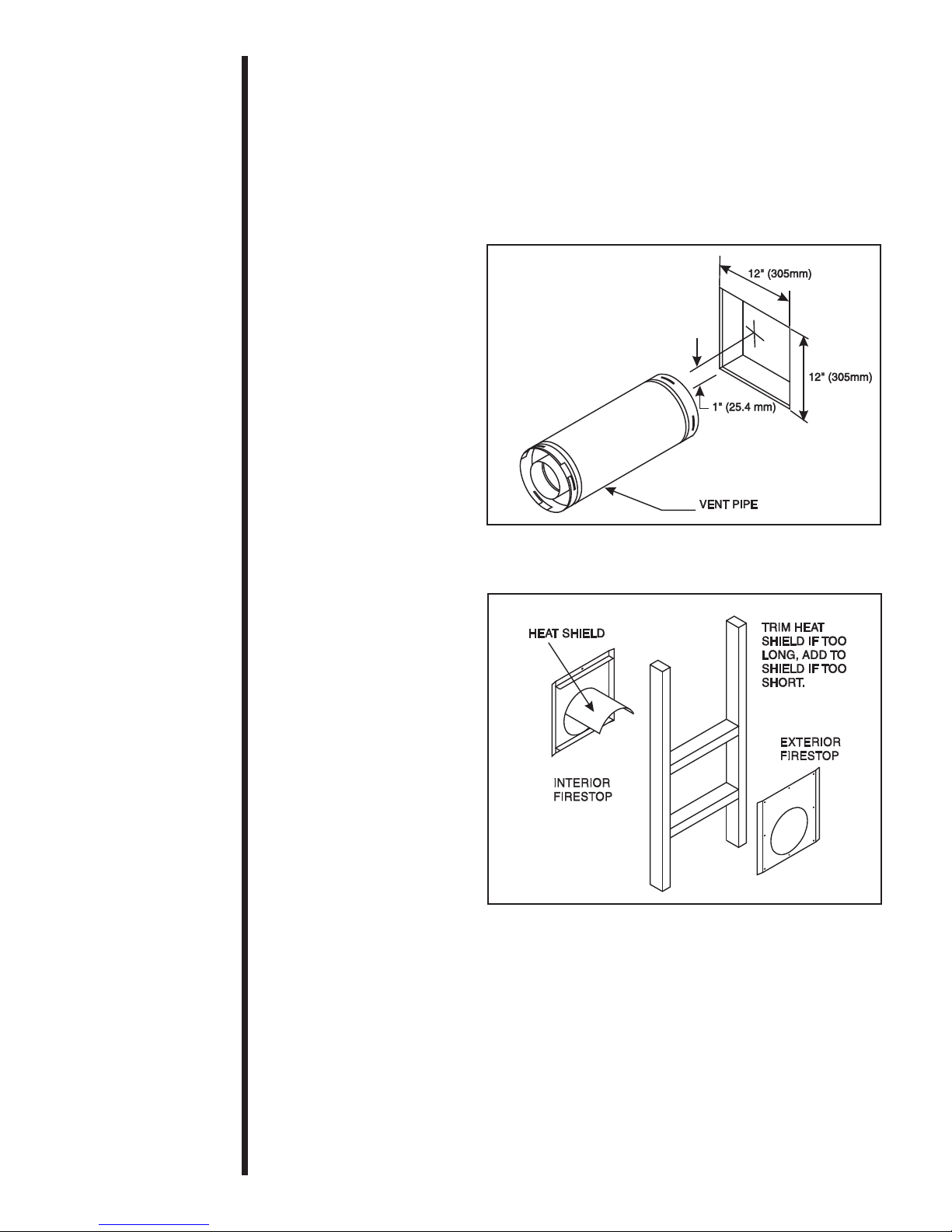

1. Cut the hole through
the all.
Fi ure 14. Hole and Vent Pipe
2. Position the firestops.
3. Place the heat shield
to the top.
4. Continue the vent run.
Fi ure 15. Heat Shield, Interior and Exterior Firestops

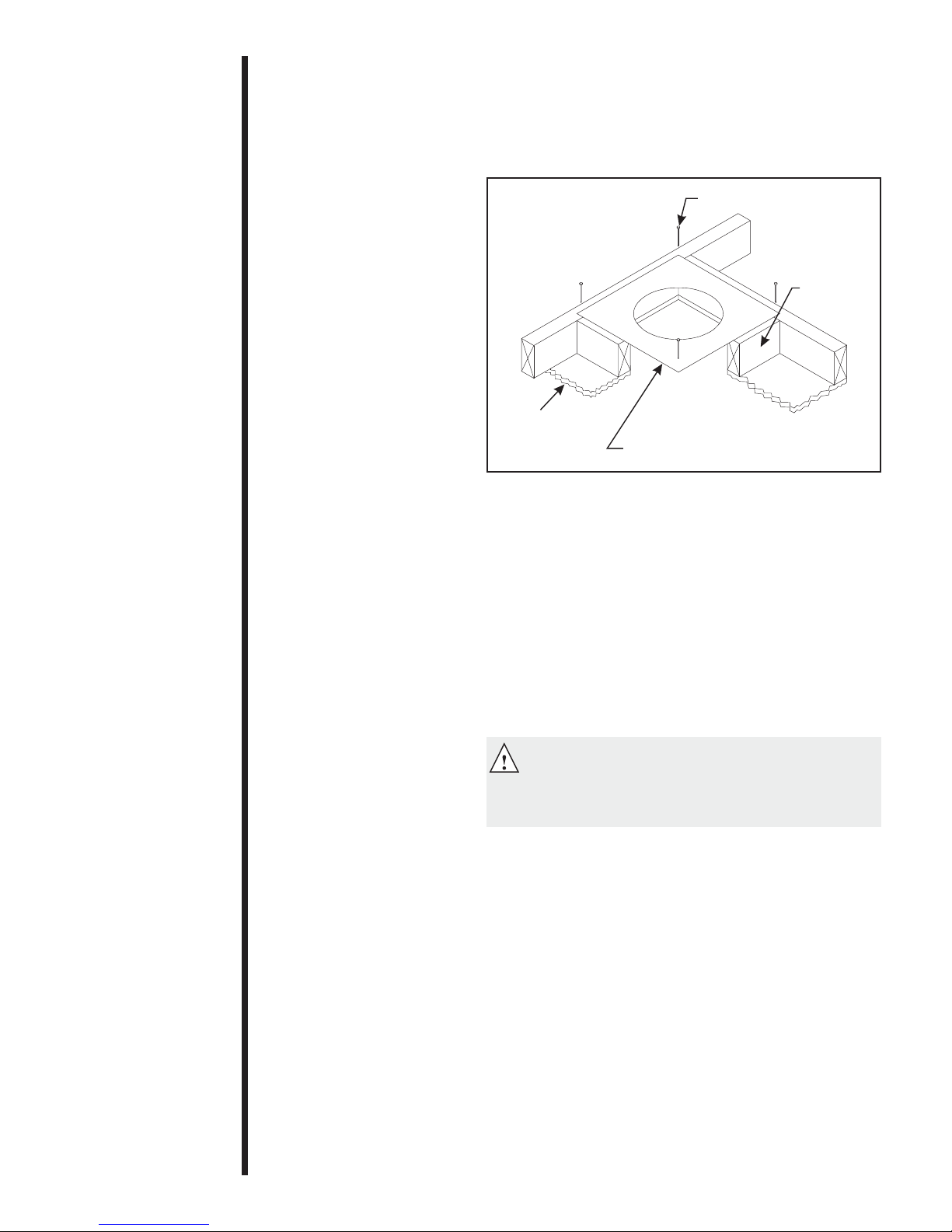

For Vertical Runs - One ceiling firestop is
REQUIRED at the hole in each ceiling through hich
the vent passes.

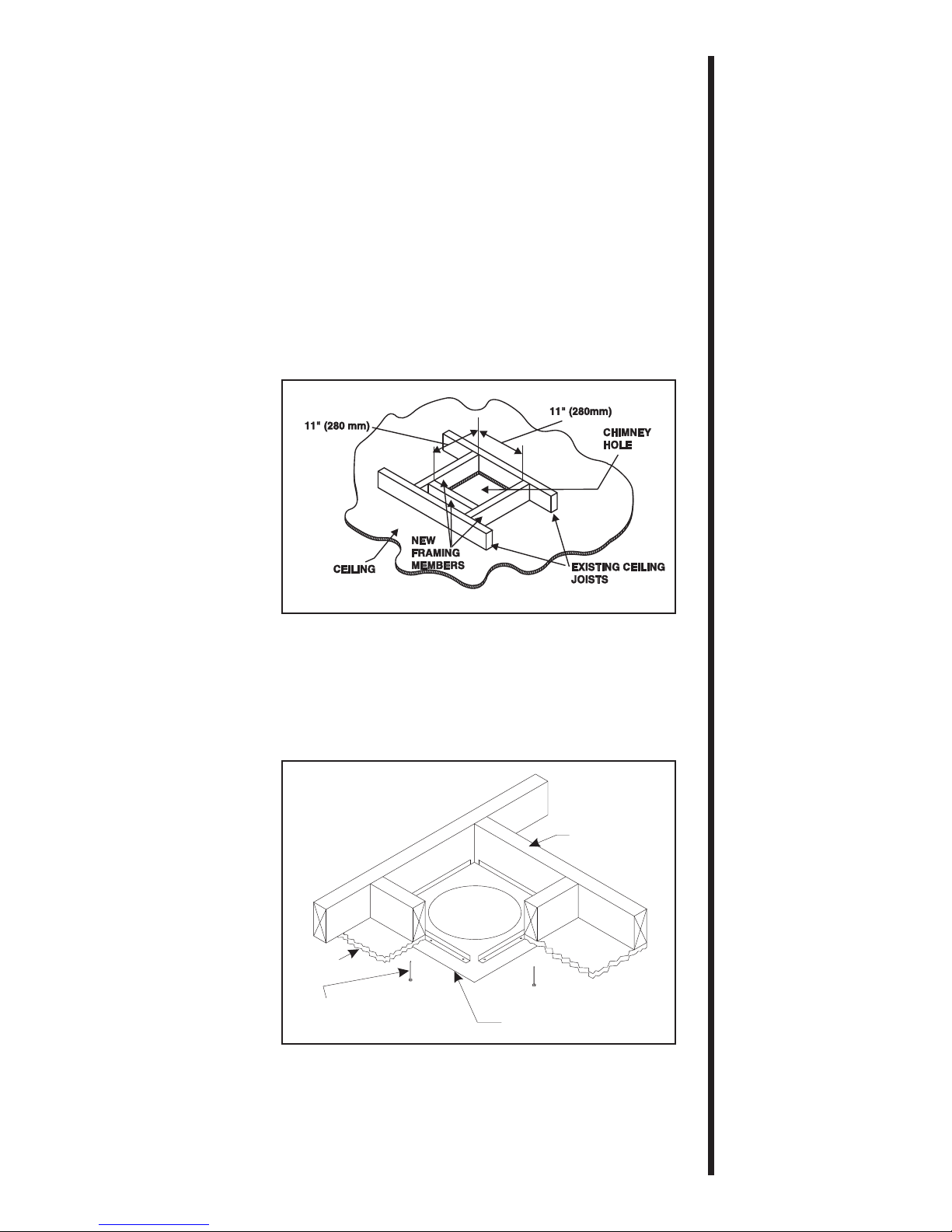

To install firestops for vertical runs that pass through
ceilings:
 Position a plumb bob directly over the center of the
vertical vent component.
 Mark the ceiling to establish the centerpoint of the
vent.

16
 Drill a hole or drive a nail through this centerpoint.
 Check the floor above for any obstructions, such as
iring or plumbing runs.
 Reposition the fireplace and vent system, if neces-
sary, to accommodate the ceiling joists and/or
obstructions.
 Cut a 11-inch X 11-inch (280 mm X 280 mm) hole
through the ceiling, using the centerpoint previously
marked.
 Frame the hole ith framing lumber the same size
as the ceiling joists.
1. Cut the ceiling hole.
2. Add the ne framing
members.
Fi ure 16. Hole and New Framin Members
If the area above the ceiling is NOT an attic,
position and secure the ceiling firestop on the
ceiling side of the previously cut and framed hole.
This sho s a ceiling
installation.
Fi ure 17. Ceilin Firestop (Ceilin Side)
JOIST
CEILING FIRESTOP
NAILS (4 REQUIRED)
CEILING

17
If the area above the ceiling IS an attic, position and
secure the firestop on top of the previously framed
hole.
This sho s an attic
installation.
1. Keep insulation a ay
from the vent pipe at
least 1 inch (25 mm).
NAILS (4 REQUIRED)
CEILING FIRESTOP
RAFTER
CEILING
Fi ure 18. Attic Firestop
C. Vent Termination
For Horizontal Terminations - To attach and secure
the termination to the last section of horizontal vent:
 Rotate and interlock the ends as described at the
beginning of the Installing Vent Components sec-
tion.
 The termination kit should pass through the all
firestops from the exterior of the building.
 Adjust the termination cap to its final exterior posi-
tion on the building.
WARNING
THE TERMINATION CAP MUST BE
POSITIONED SO THAT THE ARROW IS
POINTING UP.
For roundcap termination kits:
 Use the exterior pipelock hole provided on the round
flange of the all firestop to secure the vent pipe in
place.
For trapezoidal cap termination kits:
 Using scre s, secure the cap to the exterior all
through the flanges built into the cap.
 Use a high-temperature sealant or fiberglass rope
gasket to seal bet een the pipe and exterior
firestop.
