Motion SenSing Security Light
Models
SH-9250-BZ
SH-9250-WH

-2- 598-1341-00
Contents
Introduction................................................................................................... 3
Package Contents...................................................................................... 4
Installation ..................................................................................................... 5
Wall Mount................................................................................................ 5
Eave Mount ............................................................................................... 5
Crossbar Mounting Bracket..................................................................... 6
Standard Wiring ....................................................................................... 6
Controlling Non-Motion Sensing Fixtures.............................................. 7
Finish Mounting ....................................................................................... 8
Specications ............................................................................................ 8
Test and Adjustment..................................................................................... 9
Expected Coverage .................................................................................10
Operation .....................................................................................................12
Troubleshooting Guide...............................................................................13
Lifetime Warranty .......................................................................................14

-3-
598-1341-00
Introduction
Enhanced Performance Features
☞Rugged gripping teeth and thumbscrews provide full three-dimension adjustment of sensor head.
☞Five silicon rubber gaskets seal internal components and controls from severe environmental
conditions.
☞Stainless steel screws to prevent rust and corrosion.
☞Built in 1.25 Mega Watt surge protection.
☞A.S.I.C. (Application Specific Integrated Circuit) design allows more reliable performance.
☞Range Boost option to extend range for those hard to cover areas.
☞Extremely wide angle coverage (up to 270°). Adjustable with built-in lens shields.
☞Easy to control other lights with your fixture (up to 1000 Watts total load).
☞Expanded lens area receives more infrared light improving detection sensitivity.
☞Pulse count technology reduces false sensing from wind and rain for professional reliability.
☞Automatic photocell deactivates unit in daylight to save energy.
☞Power outage reset. Turns light off automatically if turned on by power interruption or electrical
storm.
☞Selectable light timer to set the time lights stay on after motion has been detected.
☞Range control allows adjustment of coverage range.
☞Manual override to turn lights on/off at your convenience with existing indoor wall switch.
Dear Consumer:
We would like to thank you for purchasing this product. You have purchased the most durable
motion sensing security light available today. This product will give you many years of reliable service.
We are so confident with the durability of this product that it is backed with a lifetime warranty.

-4- 598-1341-00

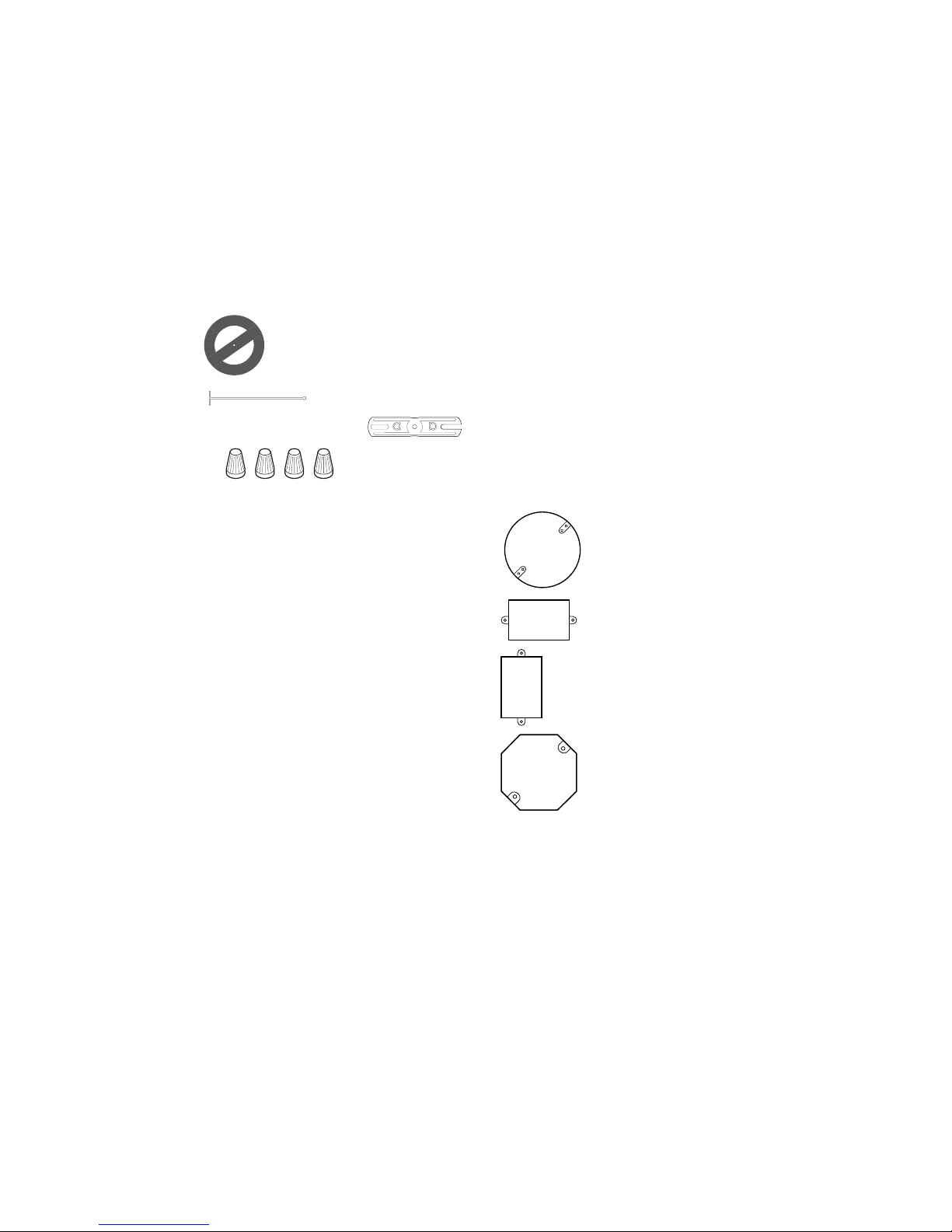

Package Contents
• Motion Sensor Light Fixture
• Manual
• Hardware Pack
1 Gasket
1 Hanger
1 Crossbar Mounting Bracket
4 Wire nuts
2 #6-32 X 3/4" Screws
(for small rectangular boxes)
2 #8-32 X 3/8" Screws
(for circular or octagon boxes)
2 #10-24 X 1/2" Screws
(for water tight boxes)
1 M5 X 0.8 X 40 mm Screw
(fixture to mounting bracket)
1 Rubber Plug
Estimated Installation Time: 30 minutes
Items needed for installation (not included):
• Phillips and flathead screwdrivers
• Pliers
• Wire strippers/cutters
• Ladder
• 2 Flood lamps, 150 Watts Maximum per lamp
• Safety glasses
• Silicone caulk
Fits All Junction Box Configurations
Circular
Horizontal rectangular
Vertical rectangular
Octagon

-5-
598-1341-00
Installation
If you want to use the Manual Override feature you will need to install the fixture on a circuit controlled
by a switch.
❒Loosen the thumbscrews holding the sensor
head and lampheads.
❒Adjust the various parts so that the fixture
looks similar to this illustration.
❒Finger tighten the thumbscrews at this time.

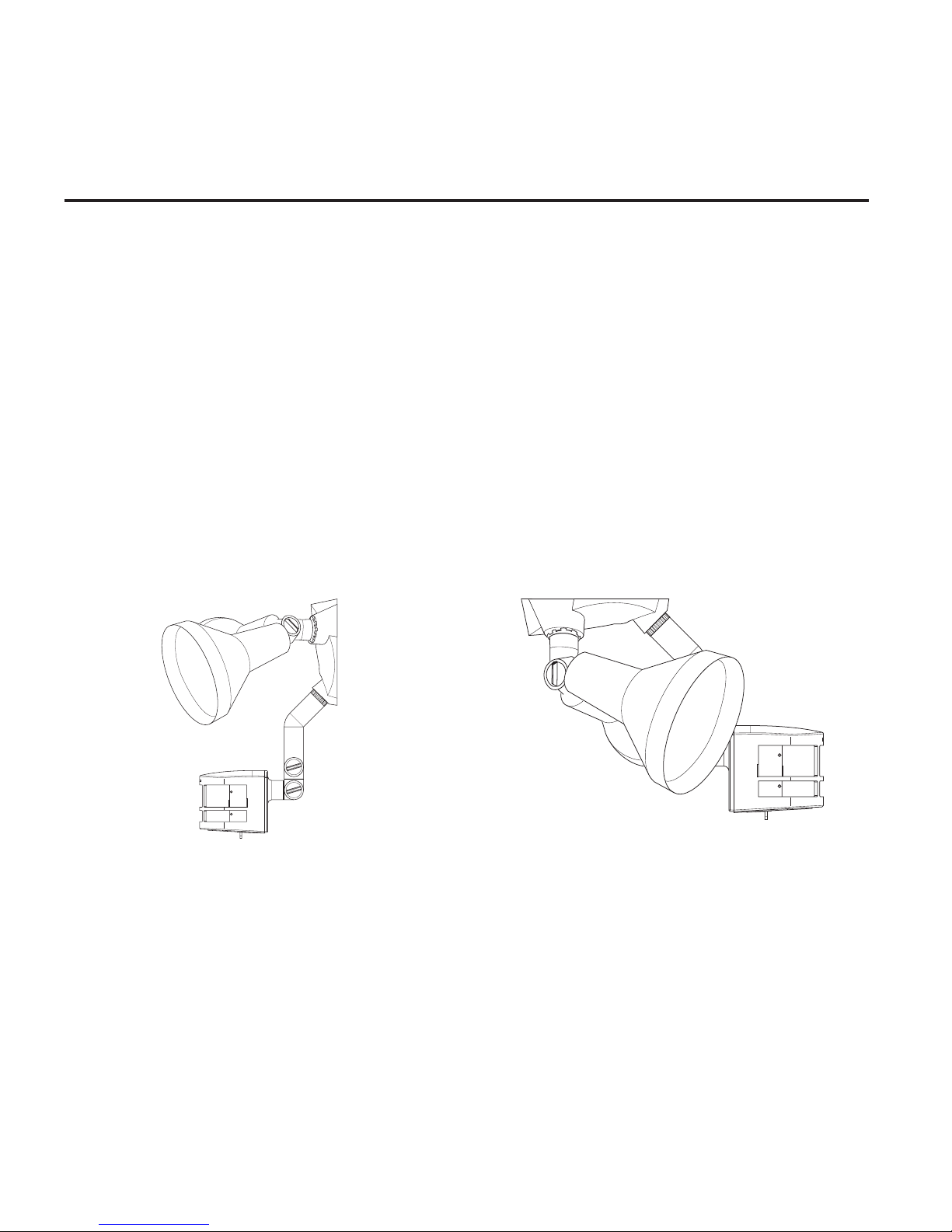

Wall Mount Eave Mount
❒Loosen the thumbscrews holding the sensor
head and lampheads.
❒ Adjust the various parts so that the fixture
looks similar to this illustration.
❒Finger tighten the thumbscrews at this time.
Caution: before starting the installation, turn the power off at the
CirCuit breaker.

-6- 598-1341-00
CAUTION: If you have not already turned the
power off at the breaker or fuse, do so now.
Connect the junction box wires to the fixture wires.
Twist together and secure with wire connectors.
CAUTION: If you are not controlling additional
fixtures from your security light fixture, DO NOT
connect the RED wire or remove wire connector.

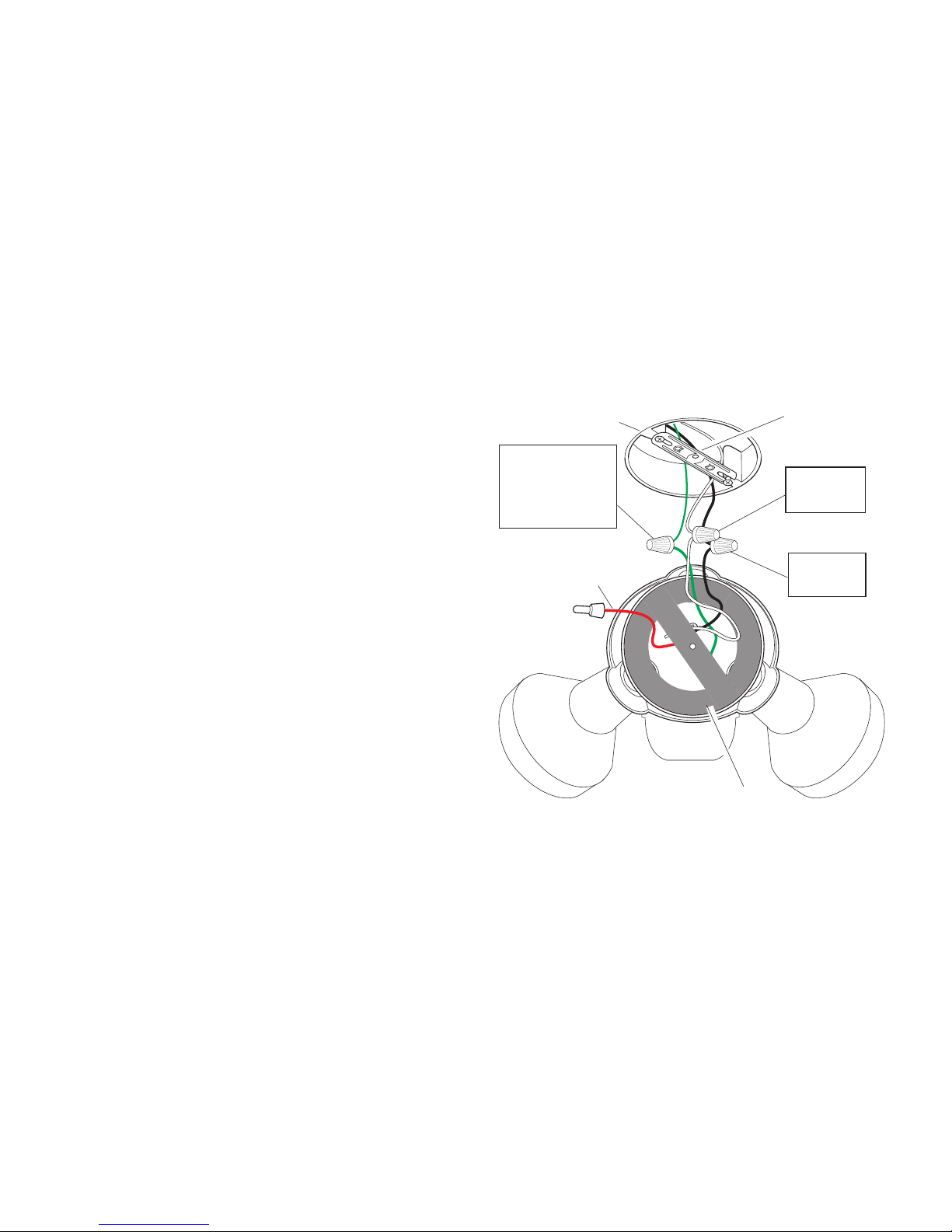

Standard Wiring
Black to
Black
White to
White
Mounting
Bracket
Green ground
wire to junc-
tion box
ground wire
RED, not
used in most
applications
Gasket
Mount Fixture with Crossbar
Mounting Bracket
❒ Turn power off at the fuse or circuit breaker.
❒Remove the existing light fixture (if appli-
cable).
❒Install the mounting bracket as shown using
two screws supplied in hardware pack that fit
your junction box:
Rectangular Junction Box - Use two #6-32
x 3/4" screws.
Circular or Octagonal Junction Box - Use
two #8-32 x 3/8" screws.
Watertight Junction Box - Use two #10-24
x 1/2" screws.
❒The plastic hanger can be used to hold the fix-
ture while wiring. The small end of the plastic
hanger can be threaded through the hole in the
center of the cover plate. The small end then
goes into one of the slots on the mounting
bracket.
❒Route the Light Control’s wires through the
large gasket holes.
Junction Box

-7-
598-1341-00
Controlling Non-Motion Sensing
Fixtures
❒When wiring to additional standard fixture
only: Strip the motion sensor's red wire and
connect to the standard light's black wire.
Connect all white wires together. Total fixture
ratings must not exceed 1000 Watts (8.3 A).
NOTE: All wiring between fixtures should be run
in accordance with the National Electrical
Code (Canadian Electrical Code in Canada)
through conduit or another acceptable means.
Contact a qualified electrician if there is any
question as to the suitability of the system.
❒This fixture is provided with a sensor rated
for 1000 Watts. Since the fixture is only rated
300 Watts, 700 Watts of additional load may
be controlled by this sensor.
❒When determining what a fixture is rated for,
do not simply look at the rating on the lamp in
the fixture. Look at the marking which speci-
fies the maximum lamp wattage for which the
fixture is suitable.
❒Once you have selected the fixtures to be con-
nected and determined their maximum ratings,
add these ratings up. For instance, if you have
3 fixtures rated 100 Watts, 150 Watts, and 75
Watts respectively, you have a total load of 325
Watts.
(Standard)
RED from
Security Light
to BLACK from
Fixture
BLACK from
Switch to
BLACK from
Security Light
Wiring to a Motion Light & Standard Fixture
WHITE from Line
to WHITE from
Security Light
WHITE from Line
to WHITE from
Fixture

-8- 598-1341-00

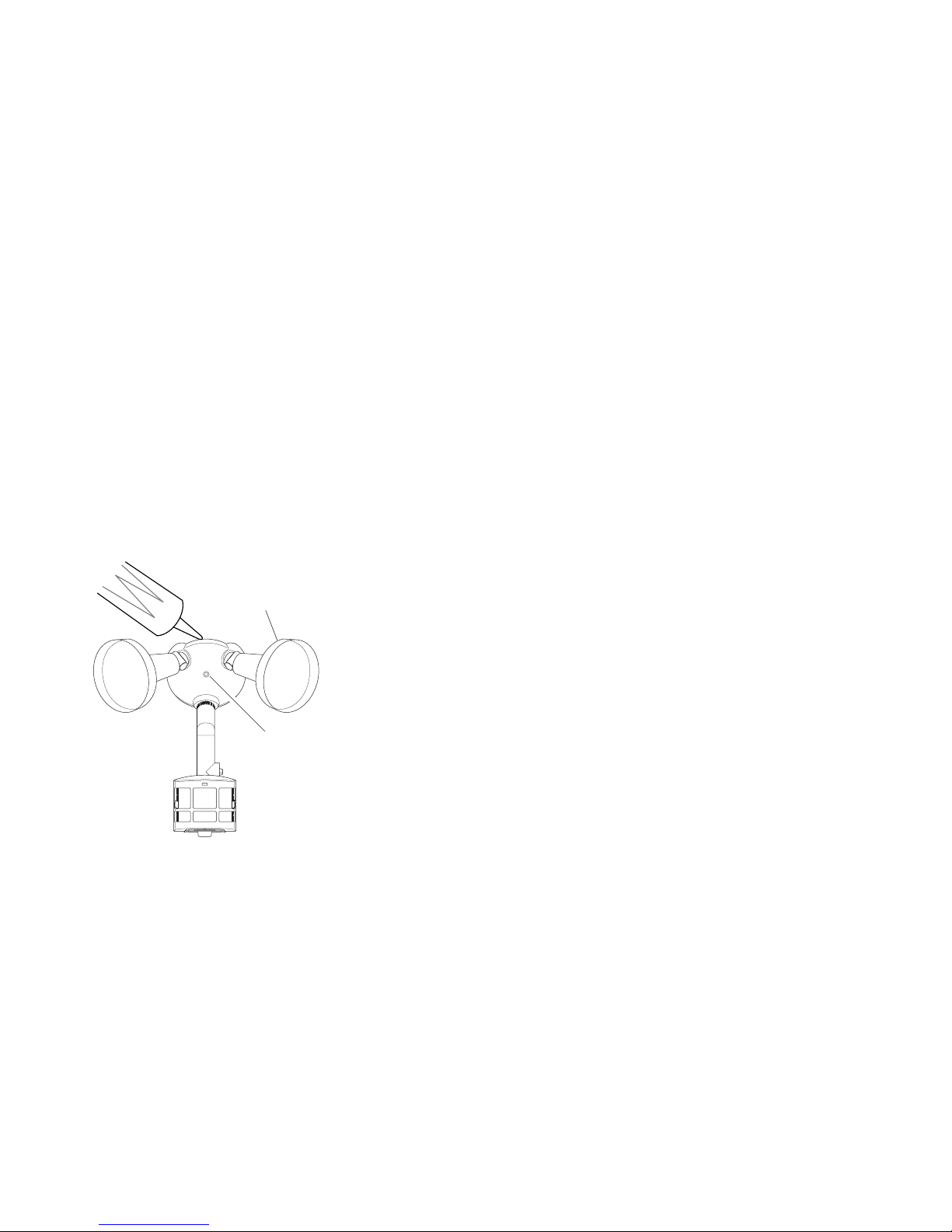

Finish Mounting
❒Align the cover plate, gasket, and the mounting
bracket hole. Secure with M5 x 0.8 x 40 mm
mounting screw supplied.
❒Push the rubber plug firmly into place.
❒If not installed on a weatherproof box, caulk
between the cover plate and mounting sur-
face with silicone weather sealant.
❒Adjust the lamp holders by loosening the
thumb screws but do not rotate the lamp hold-
ers more than 180° from the factory setting.
When screwing in the floodlamps, do not
overtighten.
To avoid water damage and
electrical shock, keep lamp
holders aimed below horizontal.
Specifications
Range . . . . . . . . . . . . . . . 70 feet (21.0 m); 100 feet
(30.5 m) with Range Boost.
Varies with surrounding
temperature.
Sensing Angle . . . . . . . . . Up to 270° (Adjustable)
Fixture Load . . . . . . . . . . Up to 300 Watts Maximum
Tungsten Incandescent [Up
to 150 Watts maximum each
lamp holder.]
Sensor Load Capacity . . . Up to 1000 Watts (8.3 amps)
Maximum Tungsten Incan-
descent
Power Requirements . . . . 120 VAC, 60 Hz
Operating Modes . . . . . . . TEST,AUTO,andMANUAL
OVERRIDE
Time Delay . . . . . . . . . . . 1, 5, 20 minutes
HeathCo LLC reserves the right to discontinue
products and to change specifications at any time
without incurring any obligation to incorporate new
features in products previously sold.
Rubber Plug

-9-
598-1341-00
Test and Adjustment
NOTES: When first turned on wait about 1 1/2
minutes for the circuitry to calibrate.
Testing with Range Boost on during day-
light may result in abnormal operation.
Sensor Bottom
Do not aim the sensor at:
• Objects that change temperature rapidly, such
as heating vents and air conditioners, to help
avoid false triggering.
• Where pets or traffic may trigger the con-
trol.
• Nearby large, light-colored objects reflecting
light may trigger the shut-off feature. Do not
point other lights at the sensor.
❒Turn on the circuit breaker and light
switch.
❒Open the controlaccesscover(onbottomofunit)
by pulling down on the tab of the metal door.
❒Turn the Range control to the center of its
adjustment and the ON-TIME to TEST posi-
tion.
B
O
O
S
T
MIN
TEST 1 5 20
RANGE
MAX
ON-TIME

-10- 598-1341-00
Adjustments Continued . . .
❒Loosen the two thumb screws. Estimate the direction to aim the sensor and
tighten the thumbscrews just enough to hold the sensor in place.
NOTE: The top screw allows the sensor to rotate side to side. The bottom
screw allows the sensor to rotate up and down.
❒Walk through the coverage area noting where you are when the lights
turn on (also, the LED will flash several times when motion is detected).
Loosen the thumbscrews and readjust the sensor as necessary. Tighten the
thumbscrews (finger tight) when you are satisfied with the coverage direc-
tion. Keep the sensor at least 1 inch (25 mm) from lamps and keep the
controls facing downward.
❒Adjust RANGE as needed to increase or decrease the range. Too much
sensitivity may cause false triggering in some environments.
❒For maximum range, the sensor must be aiming straight out.
❒Set the amount of TIME (1, 5, or 20 minutes) you want the lights to stay
on after motion is detected at night.
❒Release the tab on metal door to allow door to close.
Expected Coverage
The sensor is less sensitive to motion directly to-
wards it, most sensitive to motion across its field
of view.
When mounted 8 feet (2.4 m) from the ground, you
may expect the range shown below. If mounted
much higher the sensor may miss objects near the
ground. If mounted much lower the sensor range
may be reduced.
Sensor
Least Sensitive Most Sensitive
Motion Motion
Aim Sensor Down
for Short Coverage
Aim Sensor Out for
Long Coverage
Maximum Range
(Sensor aiming straight out)
8 ft.
(2.4 m)
70 ft. (21.0 m) 100 ft. (30.5 m)
With RANGE With RANGE
Set to MAX Boosted

-11-
598-1341-00
If the wide angle (270°) coverage is too wide for
your application, you may need to use one or both
shields to reduce the coverage angle.
❒Decide which side of the lens you want to
cover.
❒Pull the lens shield out to block a portion of
the lens. Each lens shield will reduce the cov-
erage area by approximately 35° when fully
extended.
Maximum Coverage Angle
(Without Lens Shield)
If the sensor is not kept level you may experience
an apparent decrease in range because objects
may pass under the detection zone without be-
ing detected.
270°
Approximate Area
Blocked with Lens Shield
Fully Extended
Lens
Shield Fully
Extended
Lens Shield
Fully Recessed
35° 35°

-12- 598-1341-00
Operation
* resets to Auto Mode at dawn.
Mode: On-Time: Works: Day Night
Test 5 Sec x x
Auto 1, 5, or 20 min. x
Manual Until Dawn* x
MANUAL MODE
... back on.
1 Second OFF
then...
Move ON-TIME Switch
to 1, 5, or 20 minutes
Flip light switch
off for one second
then back on*
* If you get confused while switching modes,
turn the power off for one minute, then back
on. After the calibration time, the control will
be in the AUTO mode.
MANUAL MODE
AUTO
TEST
Manual Mode only works at
night because daylight returns
the sensor to AUTO.
Flip the light switch off for one
second then back on to toggle
betweenAUTO and MANUAL
MODE.
Manual Mode only works with
the ON-TIME switch in the 1,
5, or 20 minute position.
RANGE
Turn Range control to the desired
setting.
TEST MODE
AUTO MODE
ON TIME
TEST 1 5 20
B
O
O
S
T
MIN
TEST 1 5 20
RANGE
MAX
ON-TIME
B
O
O
S
T
MIN
TEST 1 5 20
RANGE
MAX
ON-TIME
Put the ON-TIME switch in the 1,
5, or 20 minute position.
Slide the ON-TIME switch to
TEST and turn the Range control
to the center of its adjustment.

-13-
598-1341-00
SYMPTOM
Lights will
not come on.
Lights come
on in day-
light.
Lights come
on for no
apparent
reason.
SYMPTOM
Lights stay
on continu-
ously.
Lights flash
on and off.
POSSIBLE CAUSE
1. A lamp is positioned too close to
thesensororpointedat objectsthat
causes the sensor to trigger. (Aim
the lamp away from the sensor or
objects).
2. Control is pointed at a heat source
likeanairvent,dryervent,orbrightly-
paintedheat-reflectivesurface.(Re-
aim sensor or use lens shield).
1. Heat or light from the lamps may be
turning the Light Control on and off.
(Aim lamps away from the sensor.
Turn Boost off).
2. Reflected heat from other objects
are triggering the sensor. (Re-aim
sensor. Turn Boost off).
3. Control is warming up. (Flashing is
normal under these conditions.Wait
1 minute for sensor to warm up).
4. ControlisinTest.(Set control switch
to an ON-TIME position).
POSSIBLE CAUSE
1. Light switch is turned off.
2. Flood light is loose or burned out.
3. Fuse is blown or circuit breaker is
turned off.
4. Daylight turnoff is in effect. (Re-
check after dark).
5. Incorrect circuit wiring, if this is a
new installation.
6. Re-aim the sensor to cover de-
sired area.
1. Control may be installed in a
relatively dark location.
2. Control is in Test. (Set control
switch to an ON-TIME position).
1. Control may be sensing small
animalsorautomobiletraffic.(Re-
aim sensor or use lens shield).
2. Range is set too high. (Reduce
Range setting).
Troubleshooting Guide
Technical Service
Please call 1-800-858-8501 (English speaking only) for assistance
before returning product to store.
If you experience a problem, follow this guide. You may also want to visit our Web site at: www.hzsupport.com.
If the problem persists, call* for assistance at 1-800-858-8501 (English speaking only),7:30 AM to 4:30 PM CST
(M-F).You may also write* to:
HeathCo LLC
P.O. Box 90045, Bowling Green, KY 42102-9045
ATTN: Technical Service
* If contacting Technical Service, please have the following information available: Model Number, Date of Purchase,
and Place of Purchase.
No Service Parts Available for this Product

-14- 598-1341-00
Lifetime Warranty
This is a “Limited Warranty” which gives you specific legal rights. You may also have other rights
which vary from state to state or province to province.
For as long as you (the original purchaser) own this product, any malfunction caused by factory
defective parts or workmanship will be corrected at no charge to you.
Not Covered - Repair service, adjustment and calibration due to misuse, abuse or negligence, light
bulbs, batteries, and other expendable items are not covered by this warranty. Unauthorized service
or modification of the product or of any furnished component will void this warranty in its entirety.
This warranty does not include reimbursement for inconvenience, installation, setup time, loss of
use, unauthorized service, or return shipping charges.
This warranty covers only this product and is not extended to other equipment and components that
a customer uses in conjunction with our products.
THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING ANY WARRANTY, REPRESENTATION OR CONDITION OF MERCHANT ABILITY OR
THAT THE PRODUCTS ARE FIT FOR ANY PARTICULAR PURPOSE OR USE, AND SPECIFICALLY
IN LIEU OF ALL SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES.
REPAIR OR REPLACEMENT SHALL BE THE SOLE REMEDY OF THE CUSTOMER AND THERE
SHALL BE NO LIABILITY ON THE PART OF HEATHCO LLC FOR ANY SPECIAL, INDIRECT, IN-
CIDENTAL, OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO ANY LOSS
OF BUSINESS OR PROFITS, WHETHER OR NOT FORESEEABLE. Some states or provinces do
not allow the exclusion or limitation of incidental or consequential damages, so the above limitation
or exclusion may not apply to you. Please keep your dated sales receipt, it is required for all war-
ranty requests.

-15-
598-1341-00
© 2008 HeathCo LLC 598-1341-00 S
Modelos
SH-9250-BZ
SH-9250-WH
LáMpara DeSeguriDaD con
Detección DeMoviMiento

-16- 598-1341-00
Indice
Introducción ................................................................................................17
Contenidos del Paquete .........................................................................18
Instalación....................................................................................................19
Montaje en pared ...................................................................................19
Montaje en alero.....................................................................................19
Soporte de montaje de la barra de cruce ............................................20
Cableado Estándar..................................................................................20
Control de los aparatos que no detectan movimiento .......................21
Fin del Montaje.......................................................................................22
Especicaciones .....................................................................................22
Prueba y Ajuste............................................................................................23
Cobertura Esperada................................................................................24
Funcionamiento...........................................................................................26
Guia de Investigacion de Averias ..............................................................27
Garantía ilimitada ......................................................................................28

-17-
598-1341-00
Introducción
Querido consumidor:
Nos gustaría agradecerle por su compra de este producto. Ha comprado la lámpara de seguri-
dad con detección de movimiento más durable hoy en día. Este producto le brindará muchos años de
servicio confiable. Tenemos tanta confianza en la durabilidad de este producto que está respaldado con
una garantía ilimitada.
Características Mejoradas de Rendimiento
☞Los dientes fuertes de sujeción y el tornillos de mano ofrecen un ajuste completo de las tres
dimensiones de la cabeza del detector.
☞Los cinco empaques de caucho de silicona sellan los componentes y controles internos protegiéndolos
contra las condiciones ambientales severas.
☞Tornillos de acero inoxidable para evitar el enmohecimiento y la corrosión.
☞Protección incorporada de 1,25 mega vatios contra sobrecargas momentáneas.
☞El diseño A.S.I.C. (Circuito Integrado de Aplicación Específica) permite un rendimiento más confiable.
☞Opción de aumento de alcance para ampliar el alcance a aquellas áreas que son difíciles de cubrir.
☞Cobertura de ángulo extremadamente grande (hasta 270˚).Ajustable con protectores de placa trans-
lúcida incorporados.
☞Fácil de controlar otras lámparas con su artefacto de luz (hasta 1000 vatios de carga total).
☞El área ampliada de la placa translúcida recibe más luz infrarroja mejorando así su sensibilidad
de detección.
☞La tecnología de cómputo de impulsos reduce una falsa detección, causada por el viento y la lluvia,
para obtener una confiabilidad profesional.
☞La fotecélula automática desactiva la unidad durante el día para ahorrar energía.
☞Restauración después de que se cortó la corriente. Apaga automáticamente las luces si se prenden
por interrupción de corriente o por una tormenta eléctrica.
☞Temporizador de luz seleccionable para fijar el tiempo que la luz se quede prendida después de
detectar movimiento.
☞El control de alcance permite hacer un ajuste del alcance de la cobertura.
☞Sobrecontrol manual para prender/apagar las luces, a su conveniencia, con el interruptor de pared

-18- 598-1341-00
Contenidos del Paquete
• Aparato de luz y detector de movimiento
• Manual
• Paquete de ferretería
1 empaquetadura
1 gancho
1 Soporte de montaje de la barra de cruce
4 conectores de cable
2 tornillos #6-32 x 3/4 pulgada.
(para cajas pequeñas rectangulares)
2 tornillos #8-32 x 3/8 pulgada.
(para cajas circulares u octagonales)
2 tornillos #10-24 x 1/2 pulgada.
(para cajas impermeables al agua)
1 tornillos M5 x 0.8 x 40 mm.
(desde el aparato al soporte de montaje)
1 Enchufe de caucho
Tiempo estimado de instalación: 30 minutos
Artículos que se necesitan para la instalación (no
incluidos):
• Tornillos Phillips y de cabeza plana
• Alicates
• Desforrador/cortador de alambre
• Escalera
• 2 reflectores, 150 vatios máximo por lámpara
• Lentes de seguridad
• Calafateo de silicona
Queda bien con todas las
configuraciones de cajas de empalmes
Circular
Rectangular horizontal
Rectangular vertical
Octagonal

-19-
598-1341-00
Instalación
Si usted desea usar el sobrecontrol manual usted deberá instalar el aparato en un circuito controlado
por un interruptor.
❒ Afloje los tornillos de mano que sostienen el ca-
bezal del detector y los cabezales de lámpara.
❒Ajuste las diferentes partes para que el
aparato se vea similar a esta ilustración.
❒Ahora ajuste los tornillos de mano sólo con
los dedos.

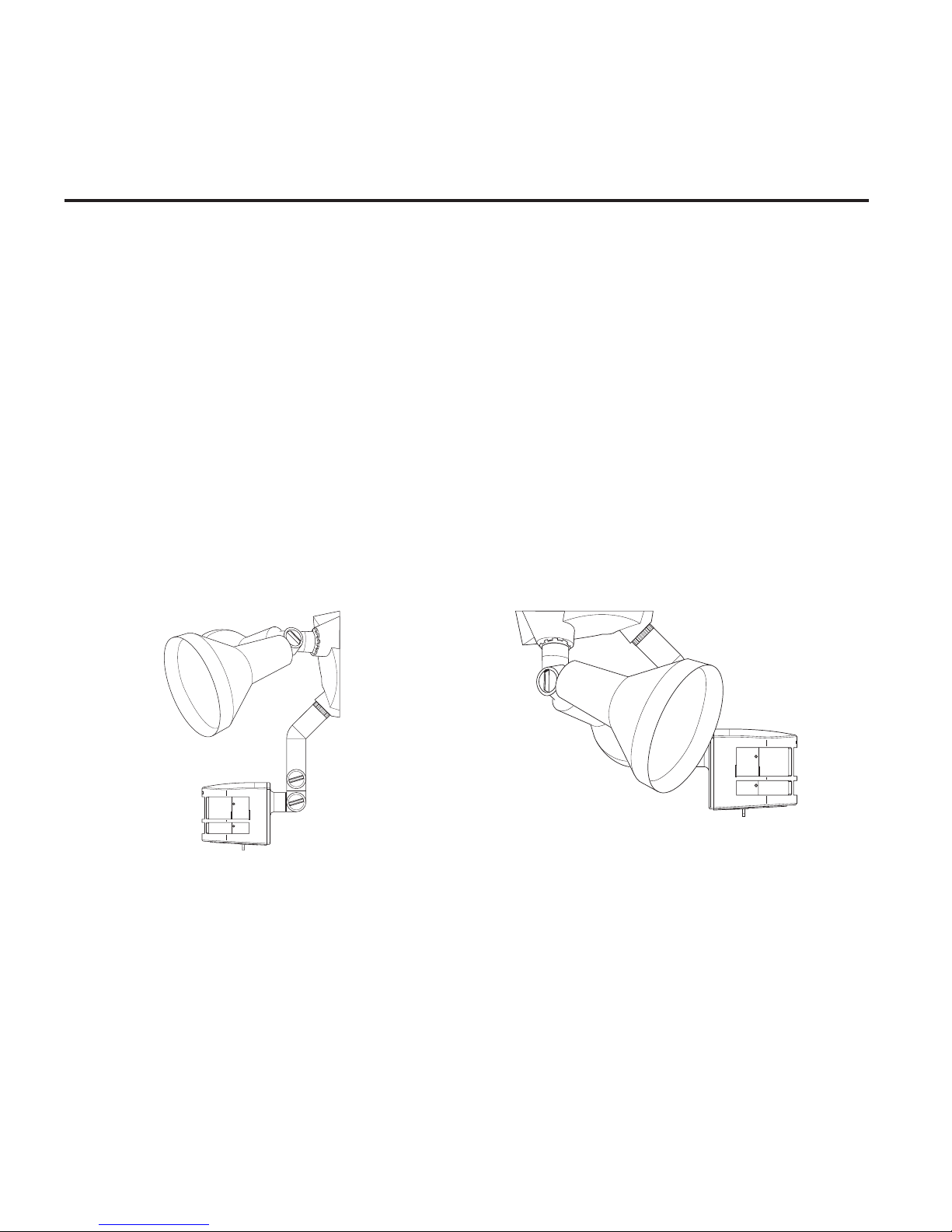

Montaje en pared Montaje en alero
❒ Afloje los tornillos de mano que sostienen el ca-
bezal del detector y los cabezales de lámpara.
❒Ajuste las diferentes partes para que el aparato
se vea similar a esta ilustración.
❒Ahora ajuste los tornillos de mano sólo con
los dedos.
CuiDaDo: antes De CoMenZar la instalaCion , apague la Corriente en el
CortaCirCuitos.

-20- 598-1341-00
CUIDADO: Si todavía no ha desconectado la
alimentación en el cortacircuito o fusible, hágalo
ahora.
Conecte los cables de la caja de empalmes a los
cables del aparato. Tuérzalos juntos y asegúrelos
con conectores de cable.
CUIDADO: Si no va a controlar lámparas adicio-
nales desde su lámpara de seguridad, NO conecte el
conductor ROJO ni retire el conector de cables.
Cableado Estándar
Negro a
negro
Blanco a
blanco
Caja de
empalmes
ROJO, no usado en la mayoría
de las aplicaciones
Cable verde de a
tierra al cable de
a tierra de la caja
de empalme.
Empaquetadura
Instale el aparato con el soporte de
montaje de la barra de cruce
❒Apague la energía en el fusible o cortacir-
cuitos.
❒Quite el aparato de luz existente. (si es aplica-
ble).
❒Instale el soporte de montaje como se demues-
tra usando los dos tornillos provistos en su
paquete de ferreterÌa y que es apropiado para
su caja de empalme:
Caja de Empalme Rectangular - Use dos
tornillos #6-32 x 3/4 pulgada.
Caja de Empalme Circular o Rectangular
-Use dos tornillos #8-32 x 3/8 pulgada.
Caja de Empalme impermeable - Use dos
tornillos #10-24 x 1/2 pulgada.
❒Se puede usar el colgador plástico para soste-
ner el aparato mientras se instala el cableado.
El extremo pequeño del colgador se puede
pasar por el agujero en el centro de la placa
cubertora. El extremo pequeño va luego dentro
de las ranuras de la lámina de montaje.
❒Pase todos los cables del aparato por los aguje-
ros grandes del empaque, como se muestra.
