Heatilator CONSTITUTION C-40 User manual

Installation and service of this fireplace should be
performed by qualified personnel. Hearth & Home
Technologies recommends NFI certified profes-
sionals, or technicians supervised by an
NFI certified professional.
EPA CERTIFIED WOODBURNING
FIREPLACE
Fire Risk.
WARNING
For use with solid wood fuel only.
Other fuels may overfire and generate poisonous
gases (i.e. carbon monoxide).
O-T L
Tested and
Listed by Portland
Oregon USA
OMNI
-
Test Laboratories, Inc.
CUS
Model(s):
Installation Manual
Installation and Fireplace Setup
WARNING
HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down.
Hot glass will cause burns.
•DO NOT touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
fireplace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other flammable
materials.
• Keep clothing, furniture, draperies and other flammable
materials away.
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
C40
NOTICE: DO NOT discard this manual!
•DO NOT store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
•DO NOT overfire. Overfiring will void your
warranty.
• Comply with all minimum clearances to com-
bustibles as specified. Failure to comply may
cause house fire.
WARNING: If the information in these
instructions is not followed exactly, a fire
or explosion may result causing property
damage, personal injury, or death.
1
Heatilator • C40 Constitution • 480-2340 Installation Manual • Rev B 01-29-13

Safety Alert Key:
•DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
•WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.
•CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
•NOTICE: Indicates practices which may cause damage to the fireplace or to property.
Table of Contents
1 Product Specific & Important Safety Information
A. Fireplace Certifi cation 4
B. Glass Specifi cations 4
C. Non-Combustible Materials 4
D. Combustible Materials 4
E. Electrical Codes 5
2 Getting Started
A. Typical Fireplace System 6
B. Design and Installation Considerations 7
1. Selecting Fireplace Locations 7
2. Locating Fireplace & Chimney 8
C. Tools and Supplies Needed 9
D. Inspect Fireplace and Components 9
E. Fireplace System Requirements 9
3 Framing and Clearances

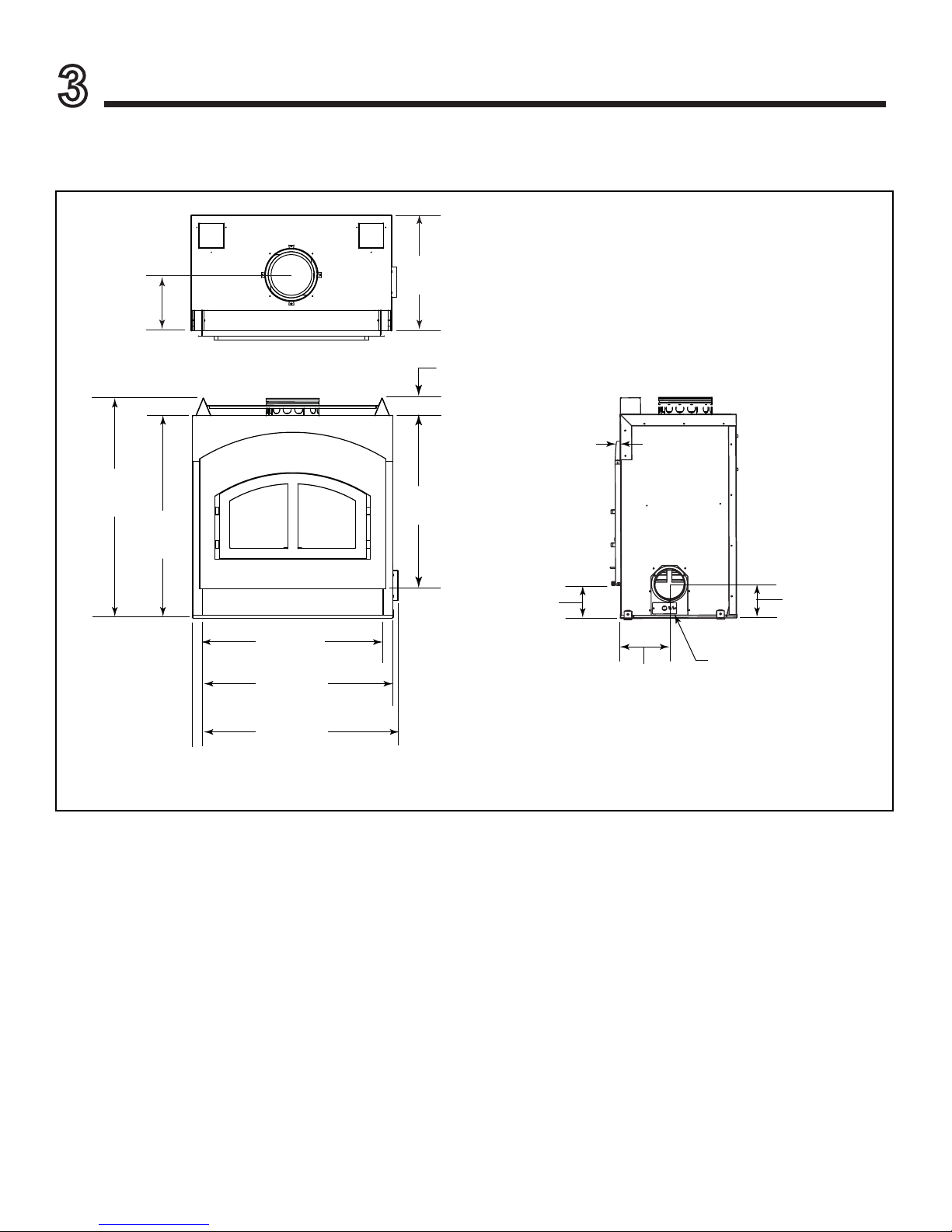

A. Fireplace Dimensions 10

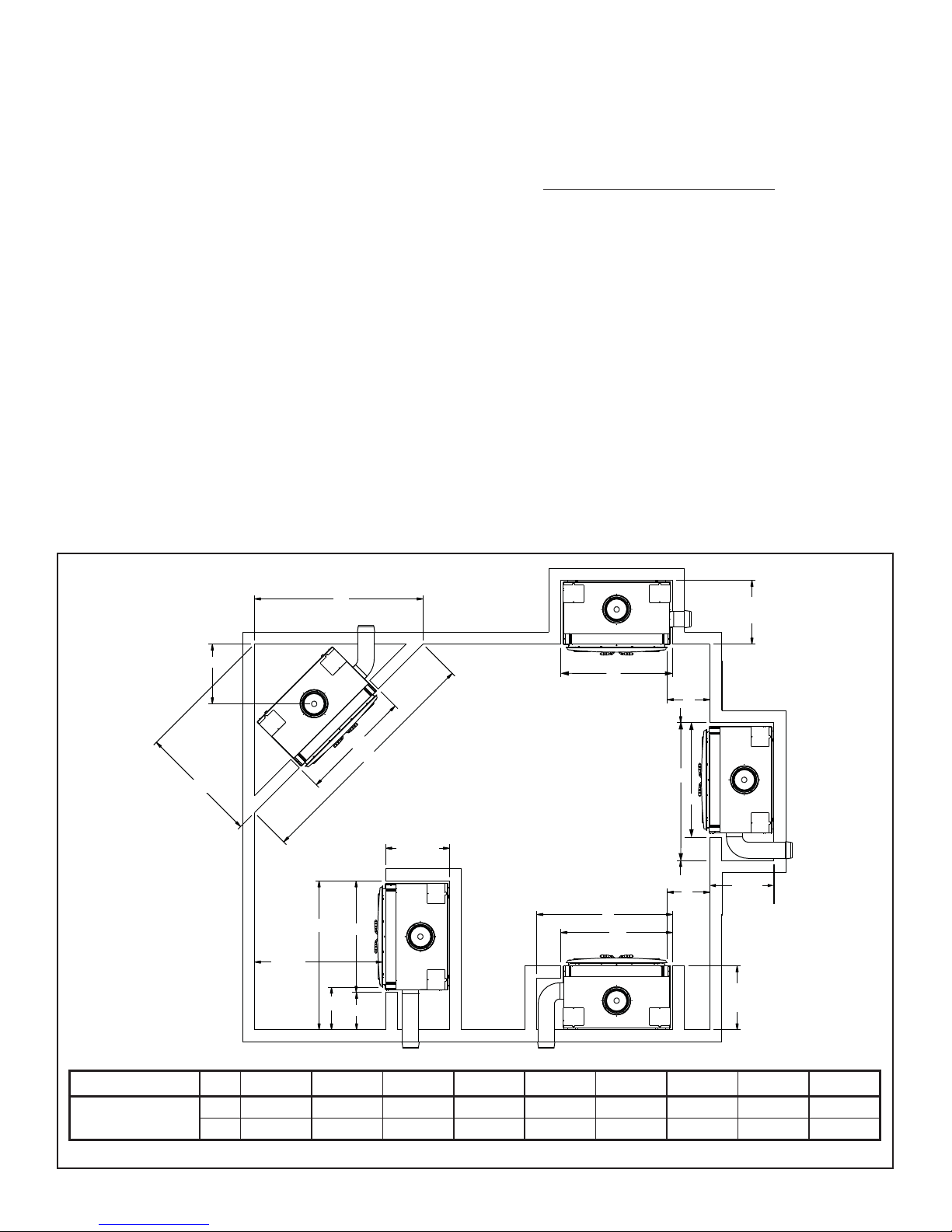

B. Clearances 11
1. Minimum Clearances to Combustibles 12
2. Reduced Mantel Height / Optional Framing
Construction Required 12
C. Construct the Chase 13
D. Frame the Fireplace 14
E. Secure and Level the Fireplace 14
F. Protective Metal Hearth Strips 15
G. Facing Material 15
H. Outside Air Kit 16
I. Heat Zone Kit (Optional) 18
4 Electrical Wiring
5 Chimney and Termination Requirements
A. Chimney Requirements 22
B. Offsets/Returns 23
C. Termination Requirements 24
6 Chimney Installation
A. Typical Chimney System 25
B. Assemble Chimney Sections 26
C. Install Chimney Air kit (CAK4A) 26
D. Secure Offset/Return 28
E. Install Ceiling Firestops 28
F. Install Attic Insulation Shield 29
G. Roof Penetration 30
H. Manufactured Home Installation 30
I. Install Chase/Chase Top 31
J. Termination Cap Requirements 32
K. Install Termination Cap 32
7 Finishing
A. Template 34
B Finish the Wall 34
1. Stone, Brick Finish 34
2. Tile, Granite, Marble Finish 34
C. Mantel and Wall Projections 35
D. Finishing the Hearth Extension 35
E. Non-Combustible Sealant Material 37
8 Fireplace Setup
A. Firebrick Placement 38
B. Baffl e and Blanket Placement 39
C. Install Fascia (Fronts) 39
9 Reference Materials
A. Chimney Components 40
2Heatilator • C40 Constitution • 480-2340 Installation Manual • Rev B 01-29-13

Customer:
Lot/Address
Model (circle one): C40
Fireplace Install YES IF NO, WHY?
Verified that the chase is insulated and sealed. (Pg. 13)
Required non-combustible board is installed. (Pg. 15)
Verified clearances to combustibles. (Pg. 11)
Fireplace is leveled and secured. (Pg. 14)
Hearth extension size/height decided. (Pg. 14 & 37)
Outside air kit installed. (Pg. 16)
Optional Heat Zone has been installed by a qualified service technician. (Pg. 18)
Chimne
y
Section 5 (Pg. 22)
Chimney configuration complies with diagrams.
Chimney installed, locked and secured in place with proper clearance.
Roof flashing installed and sealed.
Terminations installed and sealed.
Electrical Section 4 (Pg. 21)
Switch wires properly installed.
Finishing Section 7 (Pg. 34)
Combustible materials not installed in non-combustible areas
Dealer/Distributor Phone #
Serial #:
WARNING! Risk of Fire or Explosion! Failure to install fireplace acording to these instructions can lead to a fire or
explosion.
Firestops installed.
Chimney air kit installed.
Attic insulation shields installed.
ATTENTION INSTALLER:
Follow this Standard Work Checklist
This standard work checklist is to be used by the installer in conjuction with, not instead of, the instructions contained in this installation
manual.
Date Installed:
Location of Fireplace:
Installer:
Combustible materials not installed in non
-
combustible areas
.
Verified all clearances meet installation manual requirements.
Mantels and wall projections comply with installation manual requirements.
Protective hearth strips and hearth extension installed per manual requirements.
Fireplace Setup Section 8 (Pg. 38)
All packaging and protective materials removed.
Firebrick, baffle and ceramic blanket installed correctly.
Facia and doors properly installed.
All packaging materials are removed from inside/under the fireplace.
Hearth & Home Technologies recommends the following:
• Photographing the installation and copying this checklist for your file.
• That this checklist remain visible at all times on the fireplace until the installation is complete.
Comments communicated to party responsible
Part # 4017-255 • Rev B • 01/29/13
__________________________ by ______________________on _________
(Builder/Gen. Contractor) (Installer) (Date)
Comments: Further description of the issues, who is responsible (Installer/Builder/Other Trades, etc.) and corrective action needed:
_________________________________________________________________________________________________
Manual bag and all of its contents are removed from inside/under the fireplace and
given to the party responsible for use and operation.
________________________________________________________________________________________________________
________________________________________________________________________________________________________
3
Heatilator • C40 Constitution • 480-2340 Installation Manual • Rev B 01-29-13

1Product Specific & Important Safety Information
A. Fireplace Certification
This fireplace system has been tested and listed in ac-
cordance with UL127 and ULC-S610-M87 and (UM)84-
HUD standards for installation and operation in the United
States and Canada as described in this manual.
Check with your local building code agency before you
begin your installation to ensure compliance with local
codes, including the need for permits and follow-up in-
spections. Be sure local building codes do not supersede
UL specifications and always obtain a building permit so
that insurance protection benefi ts cannot be unexpectedly
cancelled.
Heatilator is a registered trademark of Hearth & Home
Technologies.
C. Non-Combustible Materials
• Materials which will not ignite and burn, composed of
any combination of the following:
- Steel - Iron
- Brick - Tile
- Concrete - Slate
- Glass - Plasters
• Materials reported as passing ASTM E 136, Standard
Test Method for Behavior of Metals, in a Vertical Tube
Furnace at 750° C
D. Combustible Materials
• Materials made of or surfaced with any of the following
materials:
- Wood - Compressed paper
- Plant fi bers - Plastic
- Plywood/OSB - Sheet rock (drywall)
• Any material that can ignite and burn; flame proofed or
not, plastered or un-plastered
B. Glass Specifications
This fi replace is equipped with 5 mm ceramic glass. Re-
place glass only with 5 mm ceramic glass. Please contact
your dealer for replacement glass.
NOTICE: This installation must conform with local codes. In the
absence of local codes you must comply with the UL127, (UM)
84-HUD and NFPA211 in the U.S.A. and the ULC 610-M87
and CAN/CSA-B365 Installation Codes in Canada.
WARNING! Risk of Fire! Hearth & Home Technologies
disclaims any responsibility for, and the warranty and agen-
cy listing will be voided by the following actions.
DO NOT:
• install or operate damaged fireplace
• modify fireplace
• install other than as instructed by Hearth & Home
Technologies
• operate the fireplace without fully assembling all
components
• overfire
• install any gas log set
• install any component not approved by Hearth & Home
Technologies
• install parts or components not Listed or approved
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. For
assistance or additional information, consult a qualified
installer, service agency or your dealer.
Model: Constitution EPA Certified
Woodburning Fireplace
Laboratory: OMNI Test Laboratories, Inc.
Report No: 061-S-50-2
Type: Wood Fireplace
Standard: UL127 and ULC-S610-M87 and
(UM) 84-HUD, Manufactured
Home Approved.
EPA# and Original Date: #571 4-1-03
EPA Certified: 3.25 grams per hour
Efficiency: up to 77%
BTU Output
with EPA test fuel: 51,400 / hr.
with Cord Wood: 70,000 / hr.
Heating Capacity: up to 3,500 sq ft
Chimney Size: 8 inches
HHT SL300 Series
DuraVent DuraPlus
Max Wood Length: 24 inches
Fuel: Cord Wood
Shipping Weight: 650 lbs
Firebox Size 3.4 cubic feet
4Heatilator • C40 Constitution • 480-2340 Installation Manual • Rev B 01-29-13

E. Electrical Codes
NOTICE: This fireplace must be electrically wired and
grounded in accordance with local codes or, in the
absence of local codes, with National Electric CodeANSI/
NFPA 70-latest edition or the Canadian Electric Code
CSA C22.1.
• A 110-120 VAC circuit for this product must be protected
with ground-fault circuit-interrupter protection, in
compliance with the applicable electrical codes, when
it is installed in damp locations.
WARNING! Improper installation, adjustment, alteration,
service or maintenance can cause injury or property dam-
age.
5
Heatilator • C40 Constitution • 480-2340 Installation Manual • Rev B 01-29-13

2Getting Started

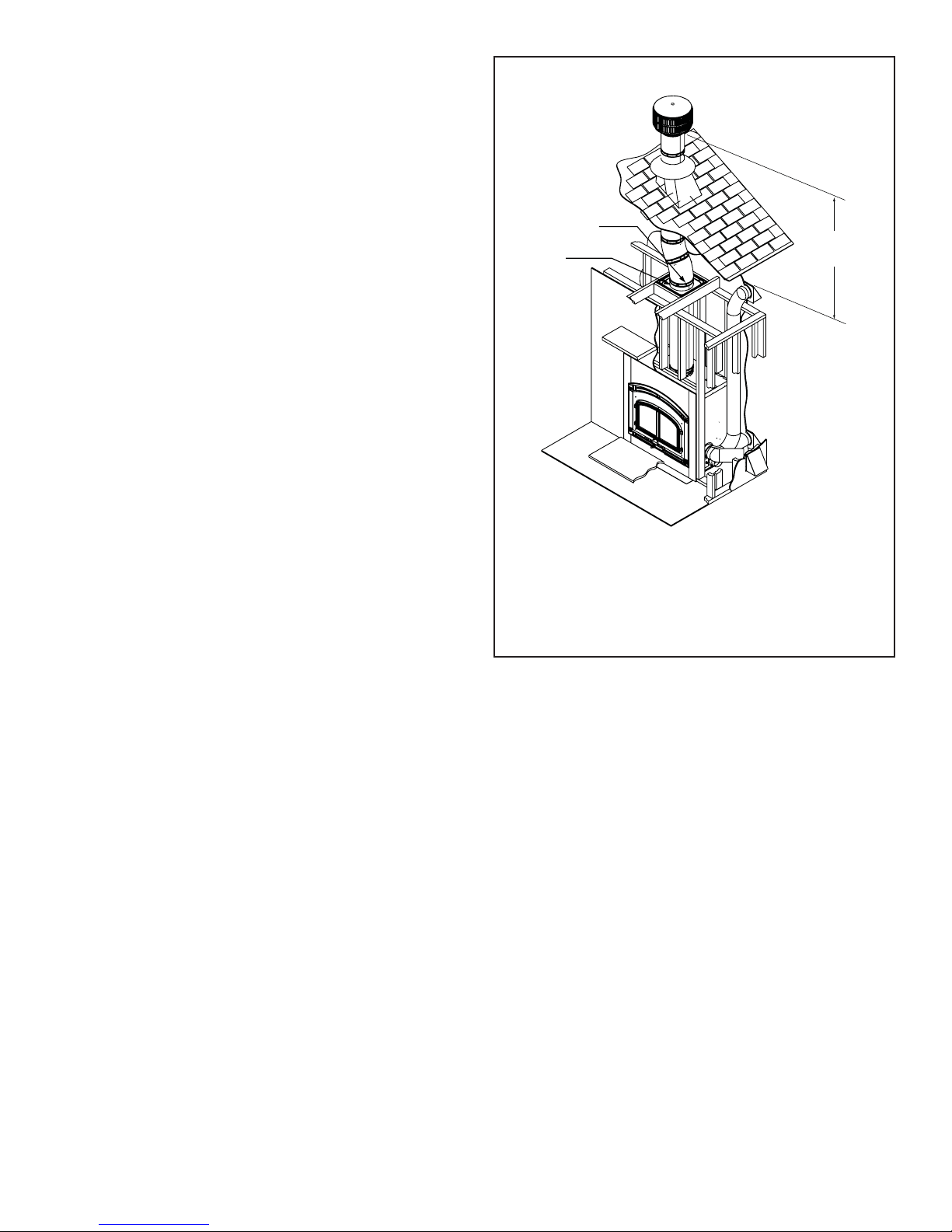

Termination Cap
Chimney penetrates roof
preferably without affecting
roof rafters
Offset/Return
(with hanger straps)
Attic insulation shield
(not shown) must be
used here to keep
insulation away
from chimney if
attic is insulated
Storm Collar
Framing headed
off in ceiling joists
Mantel
Decorative facing
and trim
Protective metal
hearth strip(s)
Hearth extension
Factory-built fireplace
Non-combustible
roof flashing maintains
minimum clearance
around chimney
Additional lateral
support for chimney
above roof (or enclosed
in chase) if needed
Chimney system
Combustible
framing/header
on top of V-shaped
standoffs (spacers)
Enclosed space above
and around fireplace
Support straps
on rafter supports
chimney (not shown)
Outside
combustion air
Outside
combustion air
A. Typical Fireplace System
Figure 2.1 Typical Fireplace System
6Heatilator • C40 Constitution • 480-2340 Installation Manual • Rev B 01-29-13

D
C
A
E
F
A
H
G
B
A
B
B
A
I
In an exterior chase
or projecting into a
garage
Across a corner
Along a wall
As a
room
divider
24 in.
(610mm)
24 in.
(610mm)
24 in.
(610mm)
48 in.
(1219mm)
24 in.
(610mm)
I
A
Figure 2.2 Fireplace Locations
NOTICE:
• Illustrations and photos reflect typical installations and
are FOR DESIGN PURPOSES ONLY.
• Illustrations/diagrams are not drawn to scale.
• Actual installation/appearance may vary due to individual
design preference.
• Hearth & Home Technologies reserves the right to alter
its products.
NOTICE: In addition to these framing dimensions, also
reference the following section:
• Clearances (Section 3).
NOTICE:
A minimum 1 in. air clearance at the back and a
minimum 1 in. air clearance to the sides of the
fireplace assembly must be maintained.
Chimney sections at any level require a 2 in. mini-
mum air space clearance between the framing
and chimney sections.
B. Design and Installation Considerations
NOTICE: Check building codes prior to installation.
• Installation MUST comply with local, regional, state and
national codes and regulations.
• Consult insurance carrier, local building inspector, fire
offi cials or authorities having jurisdiction over restrictions,
installation inspection and permits.
1. Selecting Fireplace Locations
This fireplace may be used as a room divider, installed
along a wall, across a corner or used in an exterior chase.
See Figure 2.2.
Locating the fireplace in a basement, near frequently
opened doors, central heat outlets or returns, or other
locations of considerable air movement can affect the
performance.
Outside air must be used for combustion. The C40 comes
equipped with an outside air inlet to feed combustion air
from outside the home, along with an outside air termina-
tion cap; the rigid metal duct is required but not supplied.
Consideration should be given to these factors before
deciding on a location.
Model # A B C D E F G H I
C40 (dimensions for
fi nished walls)
in. 41-7/8 16 89-1/2 63-5/16 22-7/16 44-3/4 14-1/16 55-15/16 50-7/8
mm 1063 406 2273 1608 570 1137 357 1421 1292
7
Heatilator • C40 Constitution • 480-2340 Installation Manual • Rev B 01-29-13

2. Locating Fireplace & Chimney
Location of the fireplace and chimney will affect perfor-
mance.
• Install within the warm airspace enclosed by the building
envelope. This helps to produce more draft, especially
during lighting and die-down of the fire.
• Penetrate the highest part of the roof. This minimizes
the effects of wind loading.
• Locate termination cap away from trees, adjacent
structures, uneven roof lines and other obstructions.
• Minimize the use of chimney offsets.
• Consider the fireplace location relative to floor and ceiling
and attic joists.
• Take into consideration the termination requirements in
Sections 5 and 6.
Recommended
Location
Marginal
Location
Location
Not
Recommended
Recommended
Location
Location NOT
Recommended
Multi-level Roofs
Windward
Leeward

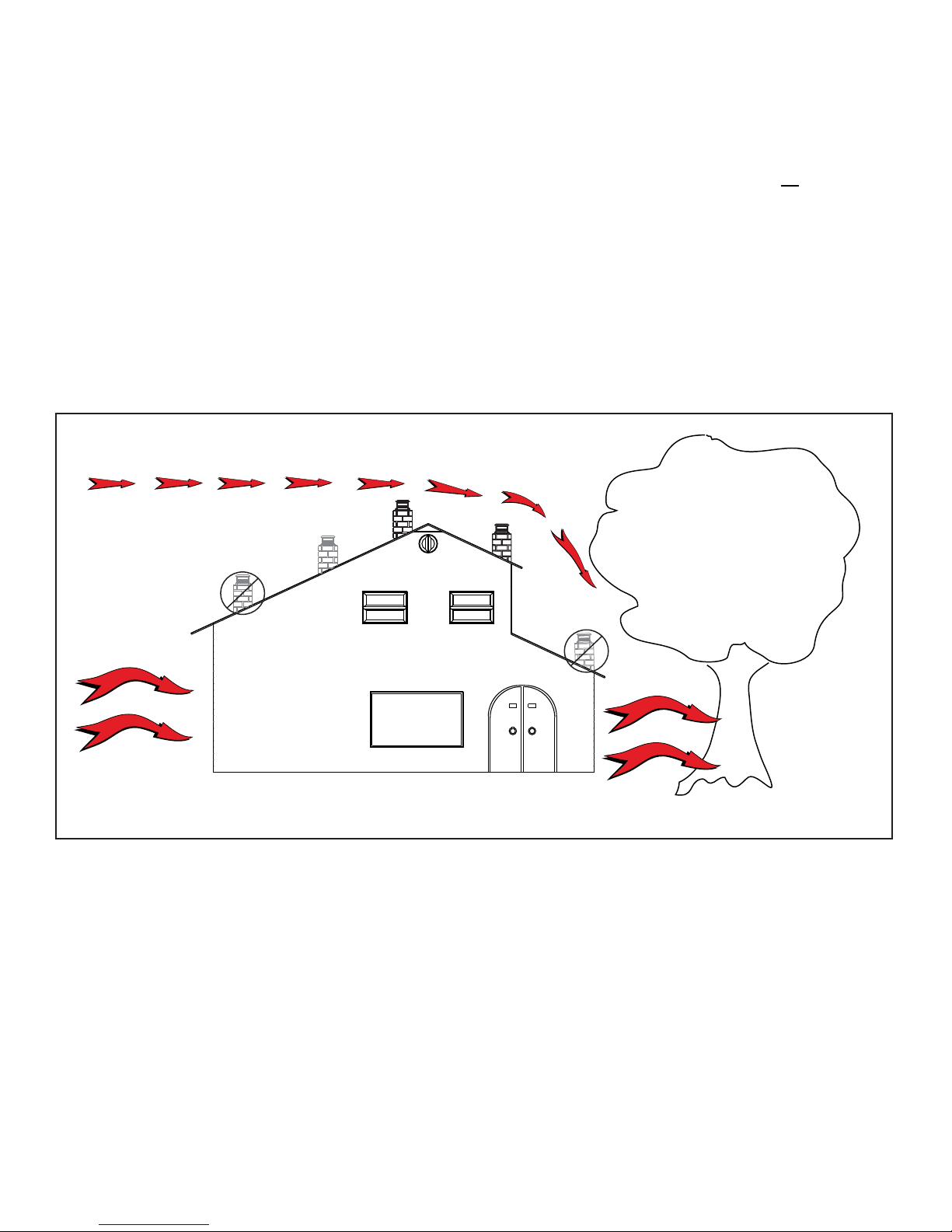

Figure 2.3 Recommended Chimney Locations
• Install the outside air kit with the intake facing prevailing
winds during the heating season.
• Ensure adequate outdoor air for all combustion
appliances and exhaust equipment.
• Ensure furnace and air conditioning return vents are not
located in the immediate vicinity of the fireplace.
• Avoid installing the fi replace near doors, walkways or
small isolated spaces.
• Recessed lighting should be a “sealed can” design.
• Attic hatches weather stripped or sealed.
• Attic mounted duct work and air handler joints and seams
taped or sealed.
8Heatilator • C40 Constitution • 480-2340 Installation Manual • Rev B 01-29-13

C. Tools and Supplies Needed
Before beginning the installation be sure the following
tools and building supplies are available:
Reciprocating saw Framing material
Pliers Non-combustible sealant
Hammer Gloves
Phillips screwdriver Framing square
Flat blade screwdriver Electric drill and bits
Plumb line Safety glasses
Level Tape measure
1/2-3/4 in. length, #6 or #8 self-drilling screws
Misc. screws and nails
D. Inspect Fireplace and Components
WARNING! Risk of Fire and/or Explosion! Damaged
parts could impair safe operation. DO NOT install dam-
aged, incomplete or substitute components. Keep fire-
place dry.
• Remove fi replace and components from packaging and
inspect for damage.
• Vent system components and doors are shipped in
separate packages.
• Report to your dealer any parts damaged in shipment.
• Read all the instructions before starting the
installation. Follow these instructions carefully
during the installation to ensure maximum safety
and benefit.
E. Fireplace System Requirements
The Heatilator fireplace system requirements consist of
the following:
• Fireplace
- Firebrick (included with fi replace)
- Door (included with fi replace)
- Non-combustible facing material (included with
fi replace)
- Hearth Extension
• Outside Air System (hood and collars included with
fi replace)
• Fascia
• Chimney System
- Chimney air kit (included with fireplace, required with
SL300 series chimney)
- Attic Insulation Shield (included with fi replace)
- Chimney termination cap
• Non-combustible finish material
Optional components include:
• Firescreen
• Lintel Bar
• Heat Zone Kit
9
Heatilator • C40 Constitution • 480-2340 Installation Manual • Rev B 01-29-13

3Framing and Clearances
A. Fireplace Dimensions
11-1/8 in.
(283 mm)
23-1/8 in.
(587 mm)
31-1/8 in.
(791 mm)
3-1/2 in.
(89 mm)
40-5/16 in.
(1024 mm)
43-13/16 in.
(1100 mm)
37 in.
(940 mm)
40 in.
(1016 mm)
43 in.
(1016 mm)
1 in.
(25 mm)
5-7/8 in.
(149 mm)
6-1/2 in.
(165 mm)
9-11/16 in.
(246 mm)
Fan Electrical Access
(right side of fireplace)
Figure 3.1 Fireplace Dimensions
10 Heatilator • C40 Constitution • 480-2340 Installation Manual • Rev B 01-29-13

B. Clearances
WARNING! Risk of Fire!
You must comply with all minimum air space clearances to combustibles as specified in Figure 3.2. DO NOT pack required
air spaces with insulation or other materials. Framing or finishing material used on the front of, or in front of, the fireplace
closer than the minimums listed must be constucted entirely of non-combustible materials (i.e., steel studs, concrete board,
etc.). Failure to comply may cause fire.
Figure 3.2 Clearances to Combustible Materials
2 in. (51 mm) min.
Attic
Insulation
Shield
Ceiling Firestop
(ceiling)
(roof)
(attic)
(ceiling)
Ceiling Firestop Offset/Return with
hanger straps
Storm Collar
Roof Flashing
2 in. (51 mm) min.
2 in. min.
(51 mm)
Must have 2 in. (51 mm)
minimum clearance
to header
2 in. (51 mm) min.
2 in. (51 mm) min. 2 in. (51 mm) min.
2 in. (51 mm) min.
1 in. (25mm) to side of appliance
(except at nailing flanges where it is 1/2 in. [13 mm])
1 in. (25 mm) to back
of appliance
0 in.
to floor
0 in. to level
of standoffs
11
Heatilator • C40 Constitution • 480-2340 Installation Manual • Rev B 01-29-13

2. Reduced Mantel Height / Optional Framing
Construction Required
Non-combustible mantel material minimum height
from base of fi replace to underside of mantel 46 in.
(1168 mm) when the following enclosure construction
materials are used:
Non-combustible framing materials must be used above
fi replace to height of 84 in. (2134 mm) or to the ceil-
ing from base of fireplace for all construction materials,
framing members, sheeting, and all finish materials.
1. Minimum Clearances to Combustibles
WITHIN ENCLOSURE AREA
Fireplace to backwall 1/2 in. (13 mm)
Fireplace to sidewall 1 in. (25 mm)
Duct boots to framing 0 in. (0 mm)
Top standoffs to header 0 in. (0 mm)
Door opening to sidewall 22-7/8 in. (581 mm)
EXPOSED SURFACES
Faceplate to sidewall 16 in. (406 mm)
Heat zone air grills to ceiling 12 in. (305 mm)
MANTEL
Mantel minimum height 60 in. (1524 mm)
Maximum mantel depth 12 in. (305 mm)
Position combustible/
non-combustible mantel
60 in. (1524 mm) from
base of fireplace
12 in.
(305 mm)
46-1/4 in.
(1175 mm)
24 in.
(610 mm)
2 in.
(51 mm)
48-1/4 in.
(1226 mm)
42-1/4 in.
(1073 mm)
The finished cavity depth must
be no less than 24 in. (610 mm)
from the finished backwall to
the outside of front wall framing.
Figure 3.3 Framing the Fireplace
12 Heatilator • C40 Constitution • 480-2340 Installation Manual • Rev B 01-29-13

C. Construct the Chase
A chase is a vertical boxlike structure built to enclose the
fi replace and/or its vent system. Vertical chimneys that
run on the outside of a building must be installed inside a
chase.
In cold climates, Hearth & Home Technologies recom-
mends that the chase be well insulated using batt type
insulation between the joists.
Construction of the chase may vary with the type of build-
ing. These instructions are not substitutes for the require-
ments of local building codes. Local building codes MUST
be checked.
Chases should be constructed in the manner of all outside
walls of the home to prevent cold air drafting problems.
The chase should not break the outside building envelope
in any manner. All outer walls need to be insulated.
Building codes require false ceiling and ceiling fi restops/
attic shields at each fl oor of the chase or every 10 ft (3048
mm) of clear space to control spread of fire.
Walls, ceiling, base plate and cantilever floor at the first
level of the chase should be insulated (see Figure 3.4.)
Vapor and air infiltration barriers should be installed in the
chase as per regional codes for the rest of the home. Ad-
ditionally, Hearth & Home Technologies recommends that
the inside surfaces be drywalled and taped (or the use of
an equivalent method) for maximum air tightness.
Holes and other openings should be caulked with high
temperature caulk or stuffed with unfaced fiber glass
insulation.
Ceiling
Firestop
Metal Chase Top
Round Termination Cap
False Ceiling
Insulation in the
outside walls
of the chase
Attic
Insulation
Shield
Chimney
Ceiling
Firestop
Tabs
False Ceiling
False Ceiling Insulation
Insulation
Storm Collar

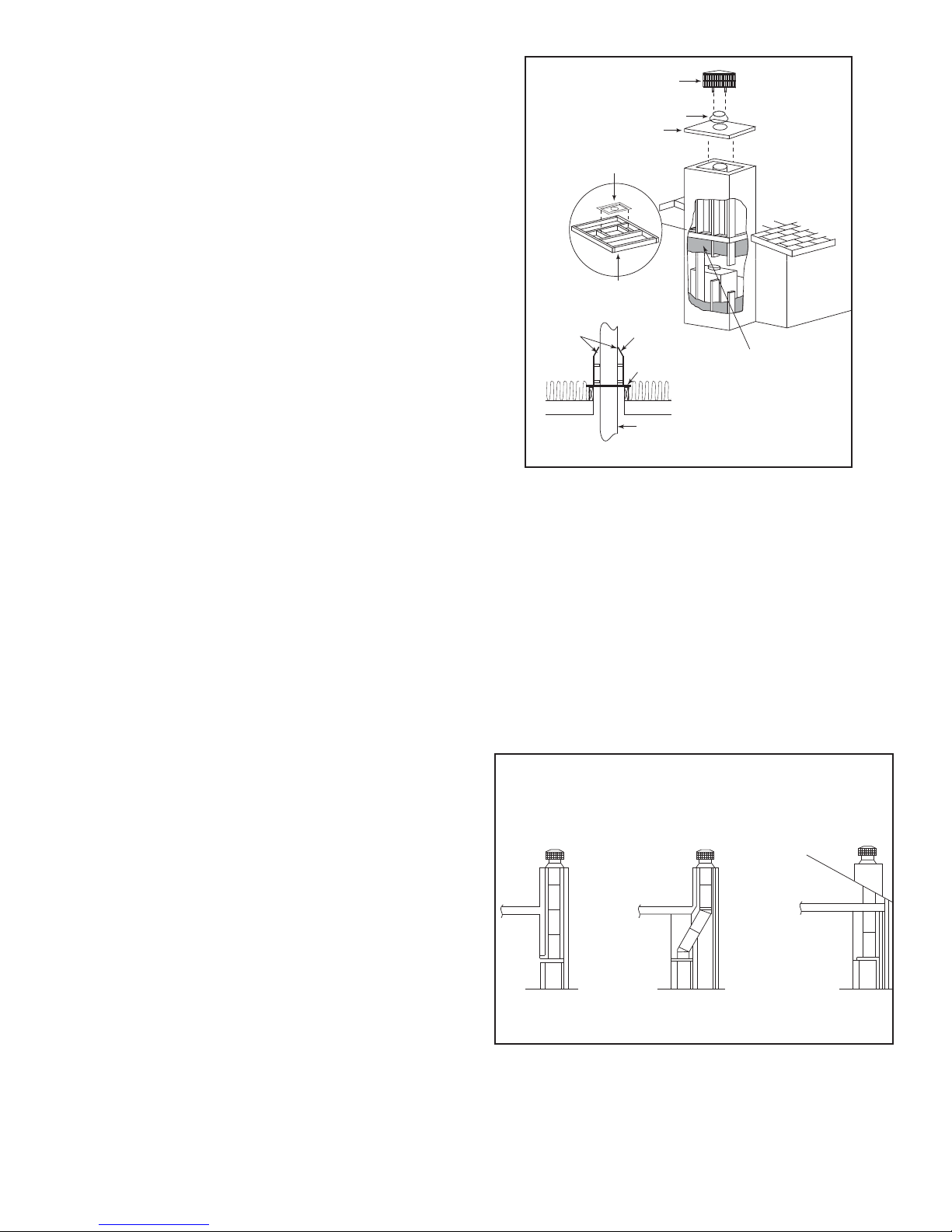

Figure 3.4 Chase Assembly
1 2 3
All outside walls should be insulated.
Figure 3.5 Chase Constructions
1. Fireplace and chimney enclosed in an exterior chase.
2. Chimney offset through exterior wall and enclosed in chase.
3. Chase constructed on roof.
• The chase is constructed using framing materials much
the same as the walls in your home. A variety of siding
materials may be used including brick, stone, veneer
brick, or standard siding materials.
• In constructing the chase, several factors must be
considered:
- Maintain a 2 in. (51 mm) air space around the
chimney.
- The chase top must be constructed of non-
combustible material.
- In cold climates, a firestop spacer and attic insulation
shield should be installed in an insulated false ceiling
at the 8 ft. (2438 mm) level above the fireplace
assembly. This reduces heat loss through the chase.
- In cold climates, the walls of the chase should be
insulated to the level of the false ceiling as shown in
Figure 3.4. This will help reduce heat loss from the
home around the fireplace.
Three examples of chase applications are shown in Fig-
ure 3.5.
WARNING! You must install false ceilings and ceil-
ing firestops at each floor of the chase or every 10 ft
(3.05 m) to control spread of fire.
WARNING! Risk of Fire! DO NOT seal area between fire
stop opening and chimney pipe except where they enter
the attic or leave the warm air envelope of the home (use
600° F sealant).
WARNING! Risk of Fire! You must maintain a minimum
2 in. (51 mm) air space clearance to insulation and other
materials surrounding the chimney system.
• Insulation and other materials must be firmly secured to
prevent accidental contact with chimney system.
• The chase must be properly blocked to prevent blown
insulation or other combustibles from entering and
making contact with fireplace or chimney.
• Failure to prevent contact between insulation or other
materials and chimney system may cause overheating
and fire.
13
Heatilator • C40 Constitution • 480-2340 Installation Manual • Rev B 01-29-13

D. Frame the Fireplace
NOTICE: Hearth extension design must be determined
before installation of fireplace.
If the fireplace is placed on the fl oor the maximum height
of a fi nished raised hearth is 5-3/4”, if you want a higher
raised hearth the fireplace must be placed on a platform.
NOTICE: Wiring for fans must be done before framed
enclosure is completed. If using a Heat Zone Kit, it
also must be installed before enclosure is complete.
The C40 Fireplace will fit a framed opening height of
46-1/4 in. (1174 mm) tall and 42-1/4 in. (1073 mm) wide.
WARNING! Risk of Fire! You must comply with all
minimum air space clearances to combustibles. DO NOT
pack required air spaces with insulation or other materi-
als.
WARNING! Risk of Fire! Comply with all minimum clear-
ances specified.
• A minimum 1 in. (25 mm) air clearance must be
maintained at the back and 1 in. (25 mm) to the sides
of the fireplace assembly.
• Chimney sections at any level require a 2 in. (51 mm)
minimum air space clearance between the framing and
chimney section.
Figure 3.3 shows a typical framing (using 2 x 4 lumber)
of the fireplace, assuming combustible materials are
used. All required clearances to combustibles around the
fi replace must be adhered to. See Figure 3.2. Any framing
across the top of the fireplace must be above the level of
the top standoffs. (No recess above standoffs.)
The fi nished cavity depth must be no less than 24 in.
(610 mm) from the fi nished backwall to the outside of front
wall framing. Framing must extend straight up all the way
to the ceiling.
CAUTION! Risk of Cuts/Abrasions. Wear protective gloves
and safety glasses during installation. Sheet metal edges
are sharp.
WARNING! Risk of Fire! Prevent contact with sagging,
loose insulation.
•DO NOT install against vapor barriers or exposed
insulation.
• Secure insulation and vapor barriers.
• Provide minimum air space clearances at the sides and
back of the fireplace assembly as outlined in Section 3.
E. Secure and Level the Fireplace
This fireplace may be placed on either a combustible or
noncombustible continuous flat surface. Follow the in-
structions for framing in Section 3. Slide the fireplace into
position. Be sure to provide the minimum 1 in. air clear-
ance at the sides and 1 in. at the back of the fireplace.
The fireplace should be positioned so the face of the non-
combustible material on the fireplace will be flush with the
face of the drywall on the walls. See Figure 3.6.
Level the fireplace and shim as necessary.
These surfaces
must be even!
Drywall Non-combustible
facing material
Figure 3.6 Drywall - Non-combustible Facing Material
14 Heatilator • C40 Constitution • 480-2340 Installation Manual • Rev B 01-29-13

1in. (25 mm) Overlap
Metal strips 2 in. (51 mm) under edge of Fireplace
and Hearth Extension and extended 2 in. (51 mm)
beyond both sides of fireplace opening.
Nail or screw metal strips in place.
Pallet Mounting/Floor
Brackets
Raised Platform
Floor
2 in.
(51 mm)
1 in. (25 mm) min
.
overlap
2 in.
(51 mm)
T
op p
i
ece must over
l
ap
bottom piece
Nail or screw metal strips in place.
Figure 3.8 Protect the Front of an Elevated Platform
F. Protective Metal Hearth Strips
Figure 3.7 Position the Protective Metal Hearth Strips
• Locate the two protective metal hearth strips measuring
approximately 26 in. x 4 in. (660 mm x 102 mm) included
with this fireplace.
• Slide each metal strip 2 in. (51 mm) under front edge of
fireplace.
• Overlap strips in the middle of fireplace opening by 1 in.
(25 mm) minimum.
• Metal strips must extend beyond the front and sides
of the fi replace opening by at least 2 in. (51 mm),
Figure 3.7).
• Protect the front of a platform elevated above the hearth
extension with metal strips (not included with fi replace)
per Figure 3.8. See Section 6 for hearth extension
instructions.
WARNING! Risk of Fire! Protective metal hearth
strips MUST be installed on combustible surfaces. DO
NOT cover metal strips with combustible materials.
Sparks or embers may ignite flooring.
WARNING! Risk of fire! High temperatures, sparks,
embers or other burning material falling from the
fireplace may ignite flooring or concealed combustible
surfaces.
• Protective metal hearth strips MUST be installed.
• Hearth extensions MUST be installed exactly as
specified.
WARNING! Risk of Fire!
Follow these instructions exactly.
Facing materials must be installed properly to prevent
fire.
No materials may be substituted without authorization by
Hearth & Home Technologies
G. Facing Material
TOOLS NEEDED: Powered drill with #2 Phillips head bit;
caulking gun.
Only non-combustible materials (supplied with fi replace)
may be used to cover the metal fireplace front.
NOTE: All boards are pre-drilled for your convenience.
Boards MUST be attached in the following order:
bottom, top, and then the two sides, red-painted side
out. The top and bottom board should each have a hang
tag attached. Leave them attached for referral for the
finishing operation.
• Attach the bottom board to the bottom of the outer
fireplace can with enclosed screws, ensuring the board
is centered. DO NOT remove hang tags.
•Center and attach the top board to the outer can and
framing members. DO NOT remove hang tags.
• Using the Super Calstick, run a light bead (1/8 in.
minimum) between the metal surface of the fireplace
and the butt edges of the top board. See Figure 3.9.
• Ensuring the top of the side pieces and the top board
align, attach the side pieces to the outer can and framing
members.
• Use a wet or dry towel or a soft brush to remove any
dust or dirt from facing material.
Figure 3.9 Apply Non-combustible Materials
Side
Board
Bottom
Board
Side
Board
Top
Board
DO NOT
remove hang
tags
Apply bead of
Super Calstick to
edge here
15
Heatilator • C40 Constitution • 480-2340 Installation Manual • Rev B 01-29-13

H. Outside Air Kit
An outside air kit must be used for combustion. Hearth &
Home Technologies recommends you utilize the shortest
duct run to optimize the performance of the outside air kit.
The outside air kit inlet should be positioned in a manner
that will not allow snow, leaves, etc. to block the inlet. In
some installations the air duct may need to be run verti-
cally. In such an installation, a 3 ft (914 mm) height differ-
ence must be maintained from the top of the uppermost
chimney section to the outside combustion air inlet.
Refer to Figures 3.10 and 3.11 when placing the outside
air inlet.
The outside air kit is installed on the right hand side of the
fi replace. See Figure 3.12 for handle location/operation.
• Cut a 6 in. (152 mm) hole in outside wall to accommodate
air piping.
• Use 6 in. (152 mm) metal fl ex or rigid piping (not supplied)
to directly connect outside air to fi replace intake. Insulate
the pipe to prevent frost condensation.
• Use the supplied termination cap.
• Seal between the wall and the pipe with silicone to
prevent moisture penetration and air leaks.
• Seal between the termination cap and the house with
silicone to prevent air infiltration.
CAUTION! Risk of Cuts/Abrasions. Wear protective
gloves and safety glasses during installation. Sheet metal
edges are sharp.
CAUTION! Risk of Fire or Asphyxiation! DO NOT draw
outside combustion air from wall, floor or ceiling cavity, or
enclosed spaces such as an attic or garage.
•DO NOT place outside air hood close to exhaust vents or
chimneys. Fumes or odor could be drawn into the room
through the fireplace.
• Locate outside air inlet to prevent blockage from leaves,
snow/ice, or other debris. Blockages could cause
combustion air starvation.
Attic insulation shield
must be used to keep
insulation away from
chimney.
Ceiling firestop
on floor of attic.
3 ft min. from top of
uppermost chimney
section to air inlet.
Figure 3.10 Outside Air Inlet Locations
16 Heatilator • C40 Constitution • 480-2340 Installation Manual • Rev B 01-29-13

Outlet blocked by
snow, leaves, etc.
NO
Garage or
combustible
liquids storage
NO
Attic space
NO
Outlet placed
higher than 3 ft
below the
termination cap
NO
Use only duct materials
specified by manufacturer
Figure 3.11 Outside Air Installation
Figure 3.12 Outside Air
Termination Cap
supplied with
fireplace
6 in. (152mm) metal flex
or rigid pipe
Open/Close
Knob for
outside air
CLOSE
OPEN
17
Heatilator • C40 Constitution • 480-2340 Installation Manual • Rev B 01-29-13

DUCT RUN REQUIREMENTS
MAXIMUM Duct Run = 40-ft. (12 m)
MINIMUM Duct Run = 36 in. (914 mm)
DUCTING MATERIAL
6 in. (152 mm) B-Vent Only
DO NOT duct into existing furnace plenum
MINIMUM CLEARANCE TO COMBUSTIBLES
1 in. (25 mm) from the B-Vent
1 /2 in. (13 mm) from top & bottom of outlet box
0 in. (0 mm) from the sides of outlet box
12 in. (305 mm) from wall register to ceiling
Refer to Figure 3.13.
CAUTION! ALL wiring should be done by a qualified elec-
trician and shall be in compliance with local codes and
with the National Electric Code NFPA/NEC No. 70-current.
CSC22.1 Canadian Electric Code.

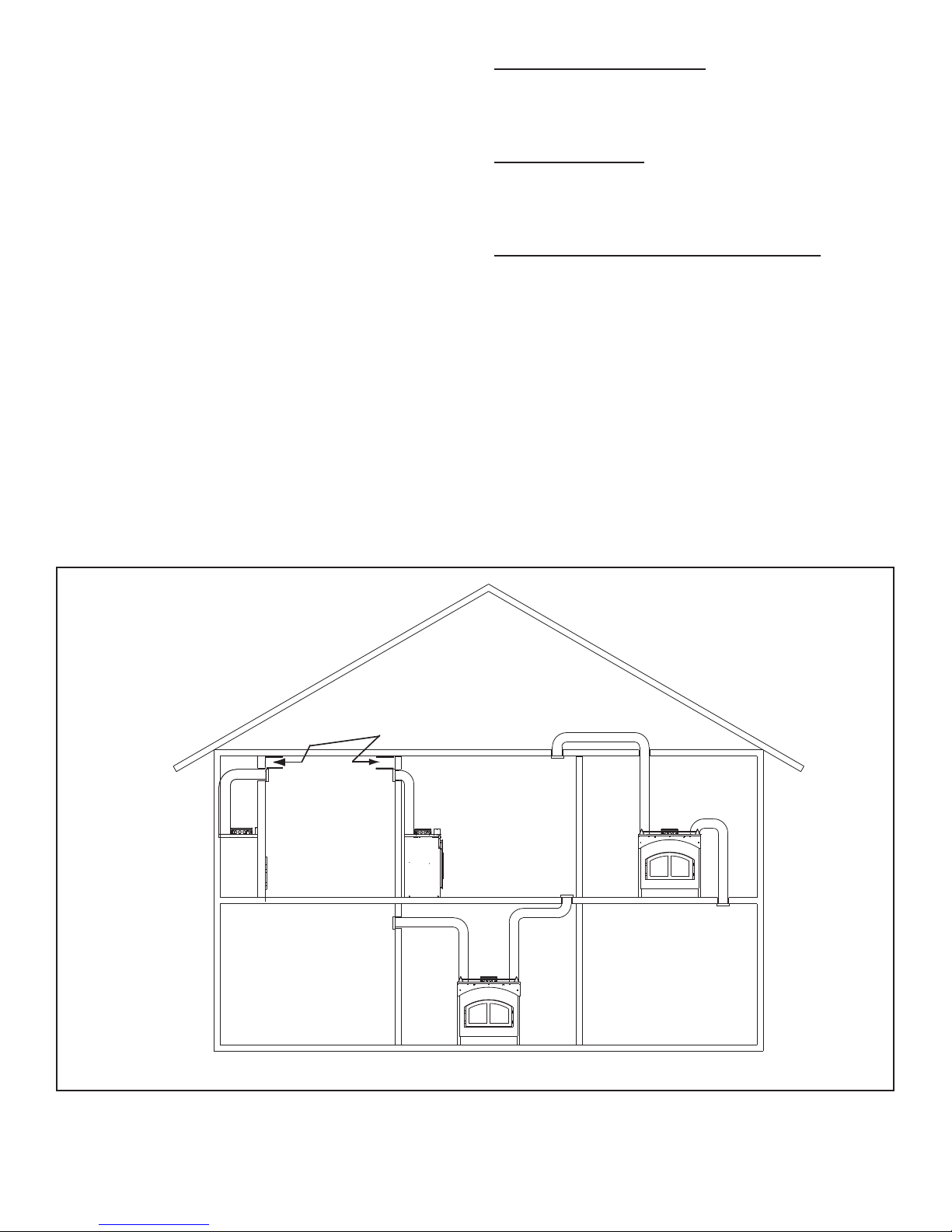

Possible Air Duct Runs / Locations
Figure 3.13 Minimum Clearances to Combustibles
Ceiling Register
Wall Register
Floor Register
Two Duct Kits
Ceiling Register
12 in. (305mm) minimum clearance
from register to ceiling

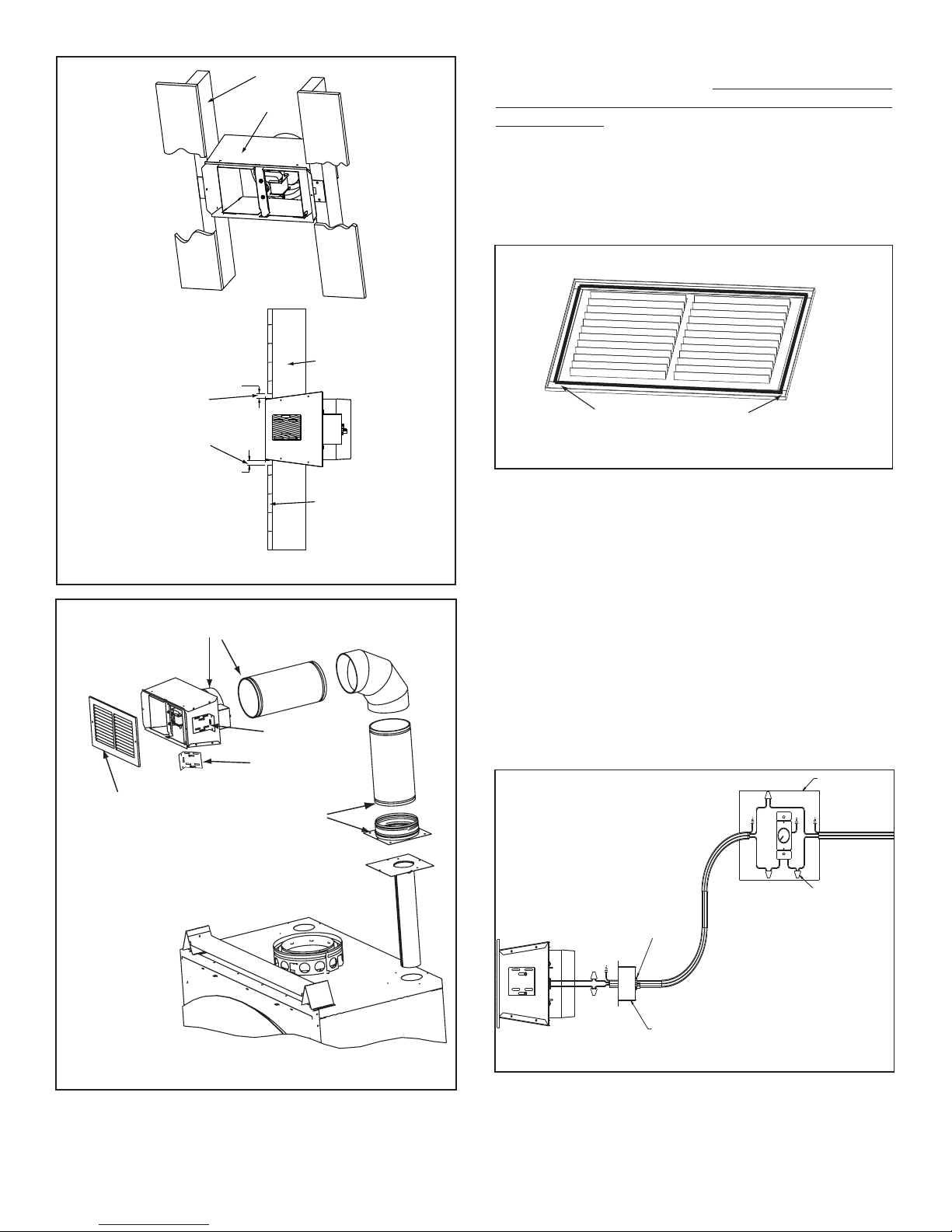

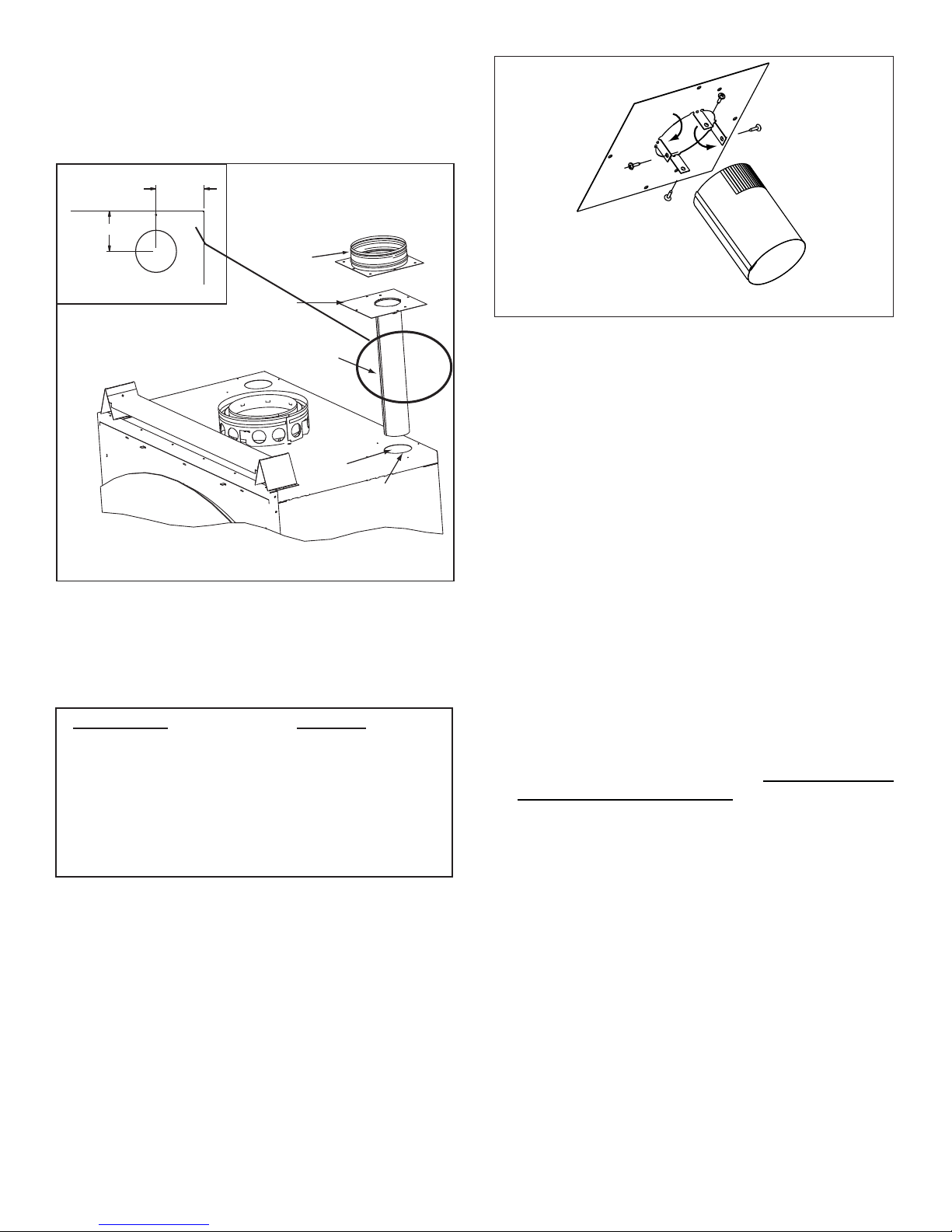

I. Heat Zone Kit (Optional)
The Heat-Zone accessory kit conveys warm air from the
fi replace through air duct(s) to remote locations in the
same room or other rooms of the building. You may install
1 or 2 Heat-Zone kits on the fireplace. Installation of this
kit MUST be performed by a qualified service technician.
If any parts are missing or damaged, contact your local
dealer before starting installation. DO NOT install a dam-
aged kit.
This kit is tested and safe when installed in accordance
with this installation manual. It is your responsibility to
read all instructions before starting installation and to fol-
low these instructions carefully during installations.
The Heat-Zone® Wood kit is carefully engineered and
must be installed only as specified. If you modify it or any
of its components you will void the warranty and you may
possibly cause a fi re hazard. Installation must be done
according to applicable local, state, provincial and/or
national codes.
Plan the location of the fi replace and warm air duct run(s).
18 Heatilator • C40 Constitution • 480-2340 Installation Manual • Rev B 01-29-13

Installation
• Remove the knockout or cover plate from the top of the
fi replace and discard it. See Figure 3.14.
• Cut a 3 in. (76 mm) hole in the insulation board as per
the dimensions shown in Figure 3.14.
Adapter
Mounting
Plate
Starter Pipe
Knockout
Cut a 3 in. (76 mm)
hole in insulation board
3-13/16 in.
(97 mm)
3-1/8 in. (79 mm)
C
L
Run Length Cut Pipe
20 - 40 ft (6-12 m) 2 in. (51 mm)*
*A minimum of 2 in. (51 mm) pipe must be used to
cover the raw insulation to prevent it from blowing
out through the return air grille.
10 - 20 ft (3 - 6 m) 8 in. (203 mm)
3 - 10 ft (1 - 3 m) No cut needed**
**Use full 16 in. (406 mm) as supplied
• Determine the necessary length of starter pipe from the
Table 3.1 and cut as required.
Figure 3.14
• Slide the starter pipe into the fireplace, matching the
holes in the plate to the holes in the fireplace.
• Place the adapter on the mounting plate lining up holes.
Using four sheet metal screws included in the kit, secure
the adapter and mounting plate into fireplace. After
securing to the fireplace, tape down the adapter edges
to the top of the fireplace with aluminum tape to prevent
leakage.
• Determine the location for the air register and fan
housing assembly. Cut a 7-5/8 in. x 13-5/8 in. (143 mm
x 346 mm) hole between framing members (wall studs
or fl oor joists). The brackets can be rotated 180° and
mounted to the back side of the 2 x 4 if necessary. See
Figure 3.16.
NOTICE: The fan and electrical connections must be
accessible for servicing per local code requirements.
NOTICE: If the fan housing is installed in a 2 x 4 wall,
the front of the housing will protrude approximately 1/4
in. (6 mm) from the finished wall.
• Attach enough 6 in. (152 mm) B-Vent as required for
your installation to the fan housing. A maximum of (4)
90° elbows is recommended. Securely twist lock the
B-Vent to the adapter.
Also screw the B-Vent to the outlet box on the fan
housing. See Figure 3.17. Support duct at intervals
of no greater than 4 ft (1 m) as required by local code.
Figure 3.15
WARNING! Risk of Fire! Comply with all minimum
clearances specified.
•A minimum 1 in. (13 mm) air clearance must be
maintained at the back and 1 in. (25mm) to the sides
of the fireplace assembly.
• The starter pipe is shipped flat. After cutting to the
required length, manually roll the pipe together and snap
lock into place.
NOTE: It is important the pipe length be adhered to
or it will affect the performance of your fireplace.
• On the mounting plate, hand bend the tabs downward.
Slide the tabs over the outside of the starter pipe. Secure
with four sheet metal screws included in fasteners
package. Figure 3.15.
Table 3.1
19
Heatilator • C40 Constitution • 480-2340 Installation Manual • Rev B 01-29-13

Securely Twist
Lock B-Vent to
Adapter
Secure B-Vent to Fan Housing
with sheet metal screws
Return Air Grille
Install with Louvers
pointed down
Bracket
Can rotate
180
o
2 x 4 Wall
Fan Housing
1/2 in. (13mm)
clearance to
combustibles
must be
maintained.
2x4wall
Sheet Rock
Leave 1/4" (6mm) clearance
from all 4 outer edges
Seal grille using gasketing supplied with the kit
• Install the variable speed wall rheostat (with setting on
“OFF”) in a convenient location. This switch will control
the Heat-Zone fan operation.
• Remove the junction box. Wire 110 VAC service TO
the wall rheostat and FROM the wall rheostat to the
fan junction box. Use wire nuts to secure the 110 VAC
service wires to the hot (black) and neutral (white) fan
wires and screw the 110 VAC ground wire to the junction
box. See Figure 3.19.
• Secure the return air grille to the fan housing making
sure it is flush. The grille must be installed with the
louvers pointing down.
NOTICE: DO NOT USE ADJUSTABLE REGISTERS.
Junction Box Removed
Wire Clamp
Wire Nuts
Junction Box
Black
White
NOTICE: Secure the duct so that clearance to the fire-
place outer wrap is maintained. Tape all seams with alumi-
num tape 1-1/4 in. (32 mm) minimum width or as specified
by local codes.)
• Seal all the way around the inside of the return air grille to
prevent hot air being drawn back into the venting system
using gasketing supplied with the kit. Leave 1/4 in. (6
mm) clearance from all four outer edges. Trim excess
gasketing. See Figure 3.18.
Figure 3.16
Figure 3.17
Figure 3.18
Figure 3.16
20 Heatilator • C40 Constitution • 480-2340 Installation Manual • Rev B 01-29-13
