Heatmiser Senior User manual

Heatmiser Senior
Engineers Set-up Guide
Revision 1
This product should be installed by a qualified electrician.
Improper installation may result injury, death or property damage.
Ref. HS1

Inside Front Cover Blank

Contents
Description Page
Keypad Layout 1
Standard Terms 1
Initial Setup 2
Boiler Setup 3-4
Optimiser Zone Setup 4
Compensator Zone Setup (With Internal Sensor) 5
Compensator Zone Setup (No Internal Sensor) 6
Timer Zone 6
Vent Zone Setup 7
Inputs Explained 7
Normal Run Mode Screen 7-9
Sensor Calibration 9
Title Setup 9
Viewing Zone Setup 10
Altering Zone Setup 11
Comms Setup 11
User Code Setup 11
System Reset 12
Wiring Diagrams 13-16

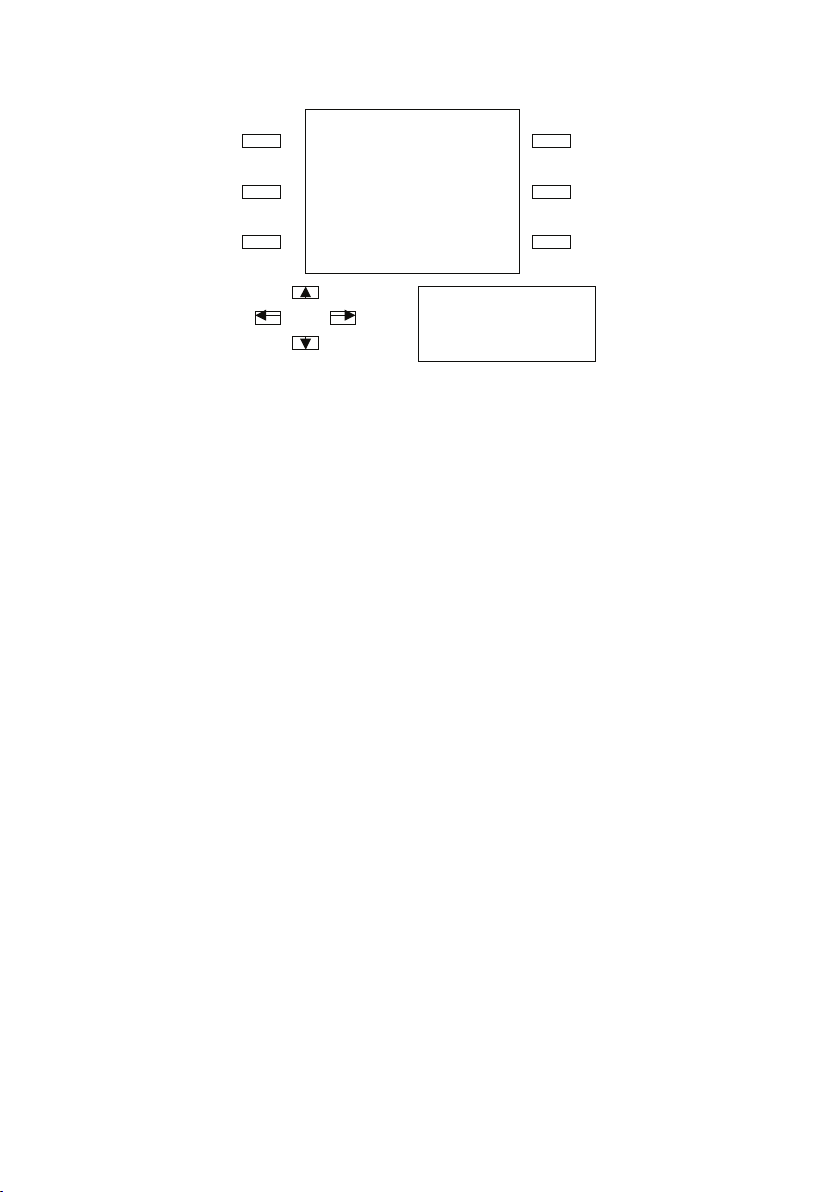

1. Heatmiser Senior Keypad
Soft Keys
The Heatmiser Senior features “soft keys” which can be seen above down each side of
the LCD. If you have used a cash machine, you will be familiar with soft keys The benefit
of soft keys is that the button text is displayed on the LCD and is constantly changed
as you use the control. This removes the need for dual purpose buttons which can be
confusing.
Navigating the Zones
Pressing the Left and Right arrow keys allows you to scroll through the zones set-up on
your system.
Display Back Light
To assist with programming the system, the backlight is permanently on.
2. Standard Terms
Self Learning Optimisation is a system whereby the Heatmiser control will automatically
calculate the start up time to ensure the building is up to temperature for the programmed
comfort level. It does this by monitoring the internal temperature readings, so that for
example in milder weather conditions heat up times are reduced – thus saving energy.
The Heatmiser Senior only optimises on the 1st switching level of each day.
Compensation is a system whereby the Heatmiser monitors the internal temperature
according to the preset slope setting in the control. By monitoring the internal and external
temperatures the Heatmiser can calculate the flow temperature needed to maintain the
programmed room temperatures.
Pump Overrun: To help dissipate the heat from the boiler, a pump overrun time can
be set for each zone. When enabled, the pump will run on for a number of minutes
(programmable) after the zone has switched off.
Alarm/Override Inputs: The Heatmiser Senior has 5 inputs which can be used as zone
overrides or alarm input. When set as an override, the zone will override on/off when the
inputs is made or broken. The alarm input mode makes the Heatmiser Senior flash an
alarm message on screen when the input is made.
1
LCD
1 2 3 DEL
4 5 6 0
7 8 9 OK

Preheat is the number of hours the control can come on before the programmed
switching time (when in optimising mode)
Rate of Change is the time it takes to raise the building 1ºC The factory default for this
setting is 20 minutes but the control will automatically adjust this according to the fabric
of the building.
3. Initial Set-up Procedure
This initial set-up guide has been designed to help you set-up the control to suit your
installation.
When setting up the Heatmiser Senior you must first set-up the Boiler zone and then any
other zones thereafter.
Apart from the Boiler zones, there are 4 other types available;
Opt: The control will automatically calculate the start up time to ensure the building
is warm by the start of the programmed switching time; it does this by monitoring the
internal temperature and adjusting the amount of preheat required.
Comp: Compensator. The control will automatically calculate the flow temperature
required to maintain room temperature. By monitoring the internal and external sensor
temperatures, the flow temperature can be increased or decreased to suit demand. This
calculation is worked from a slope factor which can be altered on screen. The slope
factor is set to 03 as factory default, which means that for every 1ºC rise in outside
temperature the flow temperature is decreased by 3ºC.
Timer: In this mode, the Heatmiser will simply work to the programmed times – and is
not dependant on any temperature settings.
Vent: In this mode, the Heatmiser works in reverse to a normal heating zone. In other
words, the output is active when the actual temperature rises above the programmed
temperature.
Begin Here . . .
• To run the set-up procedure, press Program, enter the Engineers Code of 6343
and press OK.
• Select Initial Set-up
• Confirm that you wish to proceed with the set-up routine
Note: This will delete all previous set-up data
Boiler Zone Set-up
A. Boiler Flow Sensor?
a. If you have a boiler flow sensor on the pipe-work, answer YES and go to step B.
b.
If you do not have a boiler flow sensor on the pipe-work, answer NO and go to step E.
2

B. Fixed or Variable – Select fixed if you require a fixed flow temperature. One reason
to select this option is if there is a hot water zone. Select variable if you wish the
Heatmiser Senior to calculate the flow temperature (compensate) depending on the
external temperature.
You should now set-up the following parameters according to whether you selected
Fixed or Variable.
C. Fixed Flow Boiler Parameters
Feature No Parameter Typical Description
1. Pump Overrun 20 minutes (00 disabled) The Pump Overrun is used to
dissipate the heat from the system
2. Fixed Flow 80ºC This is the flow temperature that
will be maintained when there is a
heat demand.
3. Flow Frost 08ºC Should the flow temperature drop
below this setting, even with no
demand, the boiler(s) will fire.
• When you have set-up the settings listed above, you need to press OK
D. Variable Boiler Zone Parameters
Feature No Parameter Typical Description
1. Pump Overrun 20 minutes (00=disabled) The Pump Overrun is used to
dissipate the heat from the
system
2. Flow Frost 08ºC Should the flow temperature
drop below this setting, even
with no demand, the boiler(s)
will fire.
3. Compensation Slope 03 For every 1ºC rise in outside
temperature, the flow will be
decreased by the “slope
setting”
4. Minimum Flow 40ºC This is the minimum flow
setting that will be allowed by
the control
5. Maximum Flow 80ºC This is the maximum flow
setting that will be allowed by
the control
6. Hysteresis 02 This is the number of degrees
above the flow set temperature
that the boilers will be turned
off.
• When you have set-up the settings listed above, you need to press OK
3

E. No Boiler Flow Sensor Parameters
Feature No Parameter Typical Description
1. Pump Overrun 20 minutes (00=disabled) The Pump Overrun is used
to dissipate the heat from
the system
• When you have set-up the settings listed above, you need to press OK
Notes:
i. When you have set-up a zone on the Heatmiser Senior, you will be shown a display
with the relay outputs and sensor input details. Make a note of these and confirm this
is how you have wired this particular zone.
ii. The settings above are typical; you should confirm that they are suitable for your
installation.
Next Zone . . .
You are now prompted to set-up another zone or if you have finished configuring the
Heatmiser Senior, press Finish.
We have detailed the different zone types available and their parameters below. After each
new zone, confirm the wiring outputs are correct as per the information screen displayed.
The Heatmiser Senior will automatically calculate how many relays you have used and
will only offer zone types which can be set-up on the Senior with the relays and sensor
connections remaining.
Optimiser Zone Set-up
When you have selected Optimisation, you are prompted to enter the following
parameters.
No Parameter Typical Description
1 Enable the Boiler ? Yes (Press 1) When enabled, the boiler will be enabled when
No (Press 0 there is a demand for heat from this zone.
2 Pump Overrun 20 minutes The Pump Overrun is used to dissipate the
heat from the system
3 Preheat Time 03 Hours Maximum number of hours the heating can
come on before the programmed time.
4 Rate of Change 20 minutes / ºC Number of minutes to raise the building 1ºC
5 Hot Water Boost Yes (Press 1) When enabled, the Hot water output is
No (Press 0) activated for 1 hour at
6 Apply Summer Yes (Press 1) If enabled, when the summer input is made,
(Follows the Summer No (Press 0) the zone will switch into System Frost temp
Input when made) Normally disabled for HW zones
7 Override Limit 08 Hours This limits the amount of hours
the zone can be overridden
8 Override Input Yes = Override Input (Press 1) To enable an override input for this zone, select
No = Alarm Indication (Press 0) Yes here. For an alarm indication, select No.
9 External Off Enter the Ext Off Temp Should the external temperature rise above this
temperature, the zone will be turned off
10 Average Sensor Yes (Press 1) In large areas, 2 sensors can be used to take
No (Press 0) an average temperature reading.
• When you have set-up the settings listed above, you need to press OK
4

Compensator Zone
The Heatmiser Senior asks you to select the zone with or without an internal sensor.
With an internal sensor, the Heatmiser Senior compensates the flow temperature only
when the Room temperature is within 2ºC of the set temperature. Without an internal
sensor, the Heatmiser Senior compensates whenever there is a demand for heat.
When you select a compensator zone, you are prompted to enter the following
parameters.
Compensating with an Internal Sensor
No Parameter Typical Description
1 Enable the Boiler Yes (Press 1)) When enabled, the boiler will be enabled
No (Press 0 when there is a demand
2 Pump Overrun 20 minutes The Pump Overrun is used to dissipate
the heat from the system
3 Preheat 03 hours Maximum number of hours the heating
can come on before the programmed time
4 Rate of Change 20 minutes per ºC Number of minutes to raise the building 1ºC
5 Flow Frost 08ºC Should the flow temperature drop below this
setting, even with no demand, the boiler(s)
will fire.
6 Compensation Slope 03 For every 1ºC rise in outside temperature,
the flow will be decreased by the “slope
setting”
7 Minimum Flow According to your system This is minimum flow setting that will
be allowed by the control
8 Maximum Flow 80ºC This is the maximum flow setting that
will be allowed by the control
9 Pulse Time 15 seconds This is the number of seconds the Senior
will signal to open or close the valve
10 Delay Time 150 seconds This is the number of seconds the Senior
will wait after pulsing the valve.
11 Apply Summer Input Yes (Press 1) If enabled, when the summer input is made,
No (Press 0) the zone will switch into System Frost temp
13 Override Limit 08 hours This is the maximum override time
allowed
14 Override Input Yes = Override input (Press 1) To enable an override input for this zone, select
No = Alarm indication (Press 0) Yes here. For an alarm indication, select No.
15 External Off Enter the Ext Off Temp Should the external temperature rise above
above this setting, this zone will switch off
16 Average Sensor Yes (Press 1) In large areas, 2 sensors can be used to
No (Press 0) take an average temperature reading.
• When you have set-up the settings listed above, you need to press OK
5

Compensating with no Internal Sensor
No Parameter Typical Description
1 Enable the Boiler Yes (Press 1) When enabled, the boiler will be enabled
No (Press 0) when there is a demand
2 Pump Overrun 20 minutes The Pump Overrun is used to dissipate the
heat from the system
3 Flow Frost 08ºC Should the flow temperature drop below
this setting, even with no demand, the
boiler(s) will fire.
4 Compensation Slope 03 For every 1ºC rise in outside temperature,
the flow will be decreased by the “slope
setting”
5 Minimum Flow 40 This is minimum flow setting that will be
allowed by the control
6 Maximum Flow 80 This is the maximum flow setting that will
be allowed by the control
7 Pulse Time 15 seconds This is the number of seconds the Senior
activate to open or close the valve
8 Delay Time 150 seconds This is the number of seconds the Senior
will wait after pulsing the valve.
9 Apply Summer Input Yes (Press 1) If enabled, when the summer input is
No (Press 0) made, the zone will switch into System
Frost temp
11 Override Input 08
To enable an override input for this zone, select
Yes here. For an alarm indication, select No.
12 Override Limit Yes = Override input (Press 1) Should the external temperature rise
No = Alarm Indication (Press 0) above this setting, this zone will switch off
13 External Off Enter the Ext Off Temp Should the external temperature rise above
this setting, this zone will switch off
• When you have set-up the settings listed above, you need to press OK
Timer Zone
The Heatmiser Senior allows you to set-up a timer zone. In this mode, the user has 4
switching periods per day available. When you select a Timer Zone you are prompted to
enter the following parameters.
Feature No Parameter Typical Description
1 Enable the Boiler Select Yes or No When enabled, the boiler will be enabled when
there is a demand
2 Apply Summer Select Yes or No If enabled, this zone will switch into summer
mode when the summer input is made
3 Override Input Yes = Override Input To enable an override input for this zone, select
No = Alarm Indication Yes here. For an alarm indication, select No.
4 Override Limit 08 hours Should the external temperature rise above this
setting, this zone will switch off
5 External Off Enter the Ext Off Temp Should the external temperature rise above this
setting, this zone will switch off
• When you have set-up the settings listed above, you need to press OK
6

Vent Zone
The Heatmiser Senior allows you to set-up a vent zone. In this mode, the user has 4
switching periods per day available. When you select a Vent Zone, you are prompted to
enter the following parameters.
Feature No Parameter Typical Description
1 Apply Summer Select Yes or No If enabled, this zone will switch into summer mode
when the summer input is made
2 Override Input Yes = Override Input To enable an override input for this zone, select
No = Alarm Indication Yes here. For an alarm indication, select No.
3 Override Limit 08 hours Should the external temperature rise above this
setting, this zone will switch off
4 Average Sensor Select Yes or No Should the external temperature rise above this
setting, this zone will switch off
• When you have set-up the settings listed above, you need to press OK
Inputs Explained
Inputs 1-3 are reserved as zone override or alarms depending on their configuration.
Input 4 is reserved as the Holiday Input. When this input is made, all of the zones will
control to the System Frost temperature. See the User Manual for more information.
Input 5 is reserved as the Summer Input. When this input is made, all of the zones
programmed to follow this input will control to the System Frost temperature. It is normal
for hot water zones to have this input disabled. You can do this by selecting “No” to the
question Apply Summer Input during configuration.
4. Normal Mode Screen Layouts
The screens displayed on your Heatmiser Senior are determined by how it was initially
set-up.
Boiler Enable Screen
This screen shows:
1. The current time and date
2. The pump and boiler enable status.
3. Note that on this screen there is only
1 menu button “Program”
7
Wednesday 15.12 16-08-06 23°C
Program
Pump Status
Off
Boiler Enable
Off

Boiler Screen
This screen shows:
1. The current time and date
2. The Flow Actual and Set
temperatures
3. The Pump and Boiler status
4. Note that on this screen there is
only 1 menu button “Program”
Optimiser Zone
This screen shows:
1. The current time and date
2. The actual and set temperatures
3. The heat and pump status
4. Menu Options as displayed
(The pump status will only be displayed
if a pump overrun time has been set-up)
Compensation Zone
This screen shows:
1. The current time and date
2. The actual and set flow temperatures
3. The actual and set room temperatures
4. The Pump and Valve status
5. The alarm status
6. Menu Options as displayed
Timer Zone
This screen shows:
1. The current time and date
2. The Timer status
3. The alarm status
4. Menu Options as displayed
8
Wednesday 15.12 16-08-06 23°C
Program BOILERS
FLOW TEMPERATURE
ACTUAL SET
75°C 80°C
PUMP STATUS
ON
BOILER SATUS
ON
Wednesday 15.12 16-08-06 23°C
Program ZONE 1 Override
TEMPERATURE
ACTUAL SET
20°C 22°C
PUMP STATUS
ON
HEAT STATUS Holiday
ON
Wednesday 15.12 16-08-06 23°C
Program ZONE 2 Override
FLOW TEMPERATURE
ACTUAL SET
70°C 80°C
ROOM TEMPERATURE View
ACTUAL SET
20°C 18°C
PUMP OFF
VALVE WAITING
HEAT OFF Holiday
ALARM: CLEAR
Wednesday 15.12 16-08-06 23°C
Program ZONE 3 Override
FLOW TEMPERATURE
ACTUAL SET
70°C 80°C
ROOM TEMPERATURE View
ACTUAL SET
20°C 18°C
PUMP OFF
VALVE WAITING
HEAT OFF Holiday
ALARM: CLEAR

Vent Zone
This screen shows:
1. The current time and date
2. The actual and set room temperature
3. The vent status
4. Menu Options as displayed
5. Zone Set-up Complete
You have now completed to set-up the zones within the Heatmiser Senior.
You now need to calibrate each sensor connected to the Heatmiser Senior.
6. Sensor Calibration
Each sensor connected to the Heatmiser Senior should be calibrated to ensure the
reading is accurate. We suggest you wait 1 hour after installation before calibrating.
You should have taken an accurate temperature reading from a digital thermometer for
each zone prior to beginning the calibration process.
To calibrate the sensor, follow the steps below:
• Press Program, enter the Engineers Code of 6343 and press OK
• Select Zone Set-up
• You need to work through each zone, so highlight the boiler zone and
press OK
• Select Sensor Cal from the menu
• You will now see the current sensor readings (all sensors for this
zone are shown on one screen) For the Boiler zone, the flow sensors
and external sensors are shown.
• You should now enter, using the numeric keypad, the calibrated reading.
• Select OK to confirm
• Press Back and then repeat this process for each zone
7. Title Set-up
You are able to program titles for a) Each Zone, b)Each Relay and c) Each Alarm This
allows you to easily identify each zone on the system.
Note: The Boiler zone titles cannot be customised.
Zone Title
A zone title of up to 12 characters can be programmed.
To customise the zone title, follow these steps:
9
Wednesday 15.12 16-08-06 23°C
Program ZONE 4 Override
ROOM TEMPERATURE
ACTUAL SET
20°C 18°C
View
SATUS
VENT ON
ALARM: CLEAR Holiday

• Press program, enter the Engineers code 6343 and press OK
• Select Zone Setup
• Highlight the zone you wish to alter, and press OK
• Select Titles
• Select Zone Title
• Using the Heatmiser keypad, you can enter the desired title.
• Press OK to store
Relay Title
A Relay title of up to 12 characters can be programmed.
To customise the relay title, follow these steps.
• Press Program, enter the Engineers code 6343 and press OK
• Select Zone Setup
• Highlight the zone you wish to alter, and press OK
• Select Titles
• Select Relay Title
• Using the keypad, you can enter the desired title.
• Press OK to store
• OR
• Move the cursor to the end of the Relay Title, and you will notice the
cursor jumps down to the Pump Title (if on the system) You can enter
this title in the same way
• Using the keypad, enter the desired title
• Press OK to store
Alarm Title
An alarm title of up to 12 characters can be programmed.
To customise the alarm title, follow these steps.
• Press program, enter the Engineers code and press OK
• Select Zone Setup
• Highlight the zone you wish to alter, and press OK
• Select Titles
• Select Alarm Title
• Using the keypad, you can enter the desired title.
• Press OK to store
8. Set-up Complete
The Heatmiser Senior is now set-up and is ready for use.
You should now consult the User Operators Guide for information on how to operate the
product.
9. Viewing the Zone Set-up
Once you have configured the Heatmiser Senior you can view the setting for each zone
by following the steps:
10

• Press Program and enter the configuration code (6343)
• Select Zone Set-up
• You can now select the zone you wish to view
• Select View Config
You will then be presented with the
configuration screen which will
display the settings for the zone
selected.
Note: You are unable to alter any
setting on this screen, it is for
viewing only.
10. Altering a Zone Set-up
Once you have configured the Heatmiser Senior you are able to change any of the zone
parameters, but you are not able to make changes to say the number of zones or add
additional sensors etc..
If you are looking to make signicant changes to the set-up of the control, you
must run the Initial Setup Procedure – this is to ensure the product is congured
properly therefore removing any risk of conict.
To adjust the configuration of a zone, follow the steps below.
• Press Program and enter the configuration code (6343)
• Select Zone Set-up
• You can now select the zone you wish to view
• Select Re-Config
• You can make any adjustments necessary
• Press OK to save
11. Comms Setup
When the Heatmiser Senior is used as part of a network system, a unique communication
address must be entered.
12. User Code Reset
Should you forget the User code, you can use this feature to reset it.
• Press Program, enter the Engineers code 6343 and press OK
• Select Code
• The Heatmiser Senior will display the Old User code
• You can now enter a new code using the keypad
• And press Confirm to store
11
Wednesday 15.12 16-08-06 23°C
1. ENABLE THE BOILER Y
2. PUMP OVERRUN 00M
3. PREHEAT 03H
4. RATE OF CHANGE 20M
5. HOT WATER BOOST N
6. APPLY SUMMER N
7. OVERRIDE LIMIT 08H
8. OVERRIDE INPUT N
9. EXTERNAL OFF 00C

13. System Reset
Should you need to reset the Heatmiser Senior back to the factory defaults, you can do
so by using this function. You should note that all your settings will be lost after resetting
the Senior.
12

13
DC 12V
SENSOR INPUTS
LEN
MAINS
Fused Spur
Mains supply
Pressurisation
unit if fitted
Low
High
+ s
Common to
all sensors
Common to
all sensors
room sensor zone 1
room sensor zone 2
room sensor zone 3
room sensor zone 4
Outside sensor (if fitted)
Switched live to boiler
valve / pump Zone 1
valve / pump Zone 2
valve / pump Zone 3
valve / pump Zone 4
4 optimised zones with pressurisation
+-S S
5
++
4 3 2 1
RL4
C C
NO
NC
RL5
C C
NO
NC
RL3
C C
NO
NC
RL2
C C
NO
NC
RL1
C C
NO
NC

14
-
-
+5+5
AB
COMMS

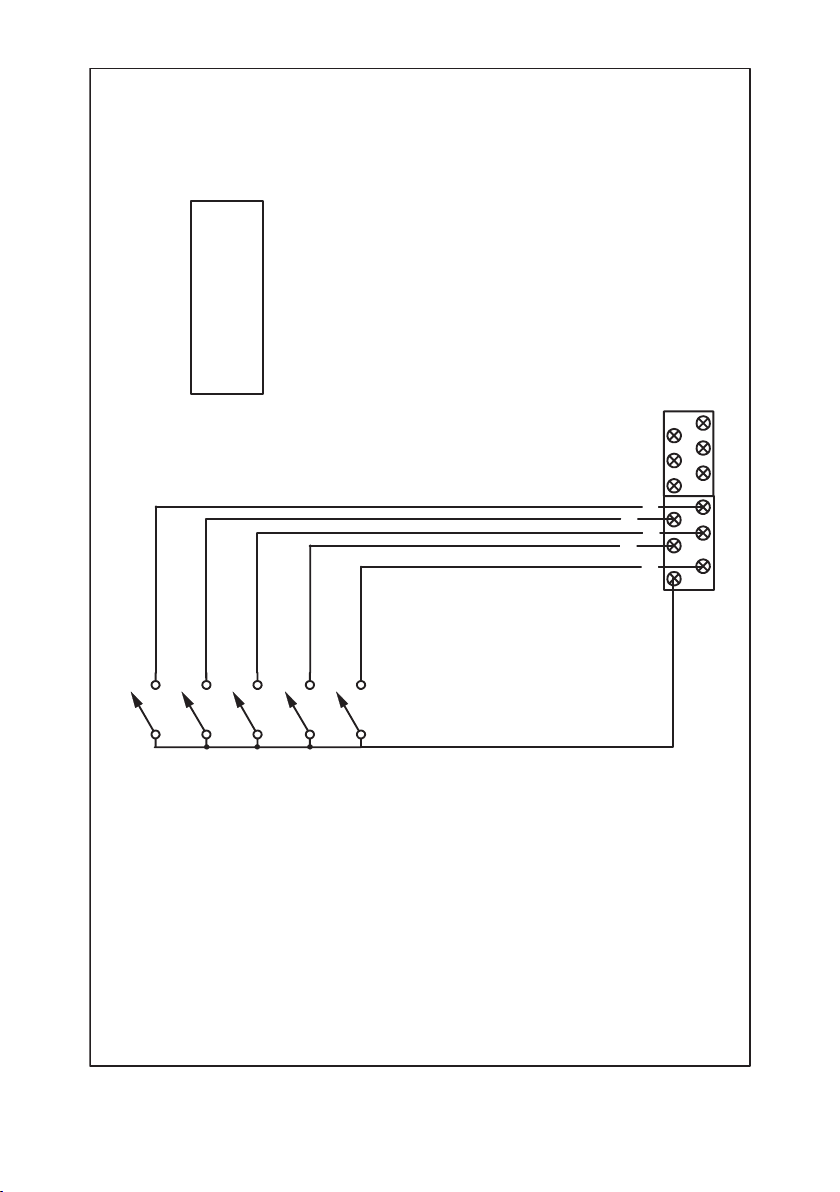

INPUTS / ALARMS
REMOTE HOLIDAY SWITCH
REMOTE SUMMER/WINTER SWITCH
ALARM OR REMOTE OVERRIDE INPUTS
ZONE 1
ZONE 2
ZONE 3
ZONE 4
ZONE 5

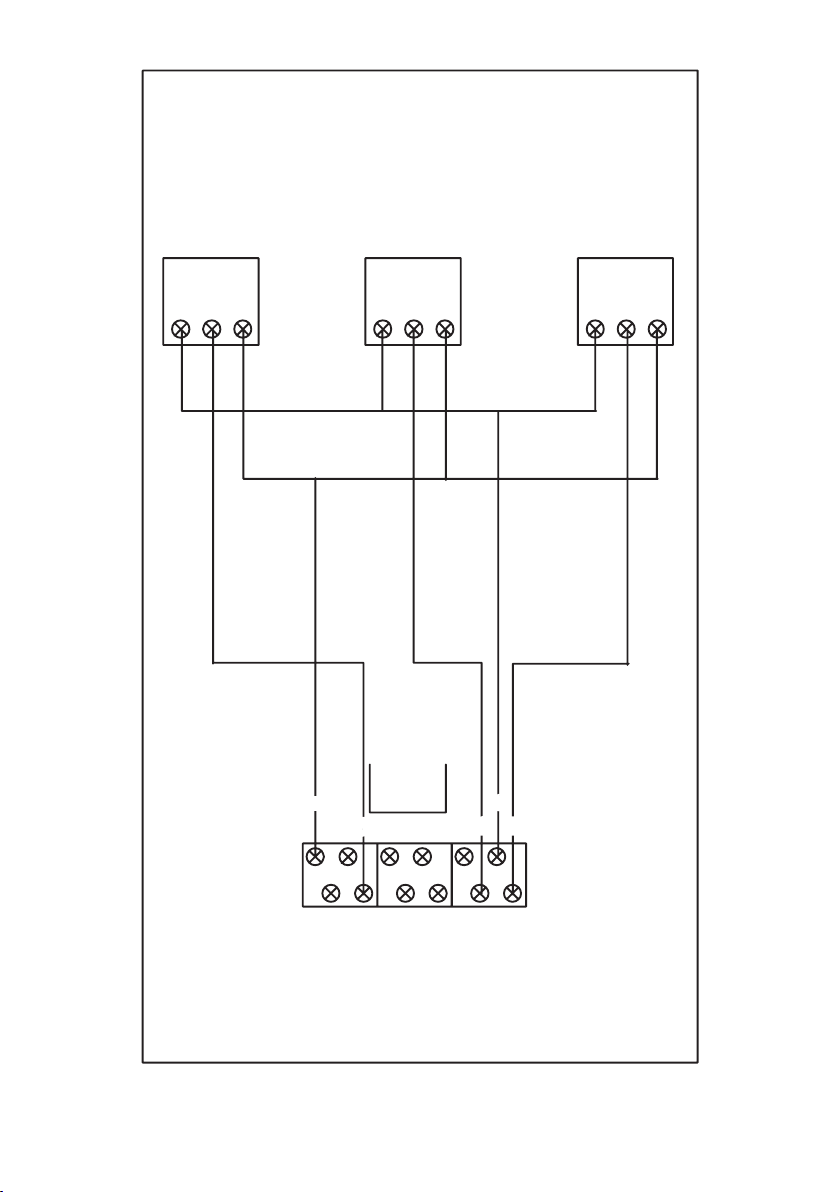

CONNECTING ALARM AND REMOTE OVERRIDE INPUTS
Use shielded cable on long cable runs
Beldon 8451 is recommended
RS PART NUMBER 360 649
+
11
22
33
44
55

15
Pressurisation
unit if fitted
+ s
Common to all sensors
Common to all sensors
Switched live to boiler
VT pump
VT valve open
VT valve close
hotwater valve / pump
Boiler enable with Compensated Heating and Hot Water system
+-
DC 12V
SENSOR INPUTS
MAINS
Fused Spur
Mains supply
Low
High
Room Sensor
cylinder sensor
outside sensor
VT flow sensor
RL4
C C
NO
NC
RL5
C C
NO
NC
RL3
C C
NO
NC
RL2
C C
NO
NC
RL1
C C
NO
NC
S S
5
++
4 3 2 1
LEN

16

6
'&9
6(1625,13876

6


6


6


&RQQHFWLQJWKHVHQVRUV
6(1625 6(1625
6(1625
1%8VH%HOGHQFDEOH56
WRFRQQHFWWKHVHQVRUV
5('
5('
5('
5('
6&5((1
6&5((1
6&5((1
%/$&.
%/$&.
%/$&.
%/$&.
%/$&.
%/$&.
6&5((1
  
6

Back Cover Blank
