Fitting Instructions and User Guide
SUPREME 150SS, 165SS, 180SS

2
Please read and understand these instructions prior to installing
your Supreme water heater. They are for use by competent
personnel i.e. trained, experienced and qualified. Instructions
only detail key operations. They do not supersede national,
mandatory or legal requirements which may apply to the product,
installation, environment or personnel associated with servicing
the Supreme. WARNING: electronics control by switching ‘N’
(neutral), in some instances neutral terminations will be at 230
volts with respect to earth.
Particular attention should be paid to the section headed
IMPORTANT INSTALLATION POINTS. Following installation and
commissioning, the operation of the heater should be explained
to the customer and these instructions left with them for future
reference.
TECHNICAL SPECIFICATIONS
Electrical rating 2.3 - 2.5 kW 220 - 240V
Nominal capacities Model 150SS 2.5 litres
Model 165SS 5.0 litres
Model 180SS 7.5 litres
Weight (full) Model 150SS 12 kg
Model 165SS 16 kg
Model 180SS 21 kg
Rated pressure 0MPa (0 bar)
Minimum supply pressure 0.05MPa (0.5 bar)
Maximum supply pressure 1.0MPa (10 bar)
Enclosure rated IP X2
A-weighted sound pressure level is below 70 dB
Nominal commissioning times (minutes) to temperature ready
Supreme 150SS 16
Supreme 165SS 24
Supreme 180SS 32

3
COMPONENT CHECKLIST
Before commencing installation check that all the following
components have been supplied with your Supreme heater.
• Wall mounting bracket
• No.12 x 2” screws (2 off)
• No.8 x 1” screw (1 off)
• No.12 x 2” wall plug (2 off)
• No.8 x 1” wall plug (1 off)
• Template - to aid in positioning the heater
• 15mm x 15mm straight push-fit connector
• 15mm x 15mm 90° elbow push fit connector

4
1.0 IMPORTANT INSTALLATION
POINTS
1.1 The Supreme stores and dispenses water at or close to boiling
point at all times it is switched on. Due caution must be taken
when choosing a location for the product to minimise misuse.
Locate the unit over a draining board NOT over the sink or basin.
1.2 Push fit connectors DO NOT grip chromed or stainless pipe.
1.3 The Supreme is a vented water heater. The vent pipe must never
be blocked or obstructed, it must be a minimum of 15mm outside
diameter pipe. Where the vent pipe length exceeds 3m the pipe
diameter should be increased. The vent pipe must be laid to a
continuous fall and discharge in a safe, visible position; it must
discharge via a tundish or finish a minimum of 20 mm above a
draining board. The vent pipe material must be capable of
conveying boiling water. The vent pipe must never be connected
directly to a soil pipe.
1.4 Wherever possible the Supreme should be supplied directly from
a rising main. If fed from a cold water feed cistern, the cistern
must comply with the Water Regulations Guide (clause R27.2).
It should be noted that water quality may be reduced when
supplied from a cistern and additional forms of water pretreatment
may be necessary.
1.5 In hard water areas, heated water will produce limescale which
will be deposited within the heater. If this is not regularly removed
it will impair the operation of the heater (see Supreme
Maintenance Plan). Where rapid and excessive scale build up is
likely to occur the use of a proprietary scale reducing device may
be beneficial.
1.6 The installation must comply with the relevant sections of the
Water Regulations, Building Regulations and BS 7671 (IEE
Wiring Regulations) in force at the time.
1.7 The Supreme will adjust for ambient (room) temperatures of
between 1°C and 40°C.
1.8 When not in use care must be taken to prevent it freezing; if
thought to be frozen it must not be switched on. It must be left to
thaw and must then be thorougly inspected to ensure it is totally
thawed and undamaged.
1.9 The unit is not suitable for installation in an area where a water jet
could be used.

5
2.0 INSTALLATION - MOUNTING
2.1 The Supreme must be vertically wall mounted using the bracket
supplied. Special precautions may be required for the protection
of children and/or infirm persons. The appliance is not intended
for use by young children or infirm persons without supervision.
Young children should be supervised to ensure that they do not
play with the appliance.
2.2 Fig.2 details the outside dimensions of the Supreme unit. A
template is supplied to aid positioning the heater. It is
recommended that the unit is positioned above a draining board.
If this is not possible consideration should be given to any
spillages that may occur under the heater. A drip tray is
available as an accessory (Heatrae Sadia Code No. 95 970
123). The heater should be positioned at a height to suit the
items being filled (flasks, pans, cups etc.). This is likely to
position the base of the unit 250mm above the work surface.
2.3 Sufficient room should be left around the heater for access for
maintenance and servicing. The top should not be covered as
this will reduce the efficiency of the Supreme.
2.4 Ensure that the wall can support the full weight of the unit (see
TECHNICAL SPECIFICATIONS) and that there are no hidden
services (electricity, gas or water) below the surface of the wall.
2.5 Using the template mark the fixing positions and water and vent
entry points. Drill and plug the fixing positions. Fix the mounting
bracket to the wall using the two No.12 x 2” screws provided
(confirm suitability of all screws and plugs for use with the
wall, if unsuitable due to wall type provide alternative
fixings).
2.6 If rear entry services are to be used the necessary holes for these
should be prepared prior to hanging the unit onto its bracket.
2.7 Remove the front cover by: unscrewing the cover fixing screws
(two at the bottom), hinging the cover slightly forward and then
lifting it clear. Hang the Supreme onto the wall mounting bracket.
Secure anchor point to the wall with the No.8 x 1” long screw
(provided).

6
Fig.2
B
A
D
E
F
250
approx
C
G
MODEL
ABCDEFG
OUTLET INLET VENT
CABLE
ENTRY
150SS 423 337 203 160 80 112 111
165SS 501 337 203 160 101 133 101
180SS 506 337 262 220 101 133 101
DIMENSIONS (mm)

7
4.0 INSTALLATION - WATER SUPPLY
4.1 Select appropriate push fit connector for chosen entry position:
Bottom entry water - 15mm x 15mm 90° elbow.
Rear entry water - 15mm x 15mm straight.
Note: stainless or chromed pipes do NOT provide secure
connections with push fit fittings (use copper pipe at joints).
4.2 Push the connector fully home (28mm engagement) onto the
solenoid valve inlet spigot. To remove a push fit connector the
collar (collet) should be pushed towards the body of the fitting
whilst pulling the connector off the pipe.
4.3 If the inlet pipe run is horizontal and beneath the unit ensure it
does not prevent access to the case screws.
4.4 Connect the inlet pipe to the push fit connector ensuring it is fully
pushed home (28mm engagement). After connection DO NOT
make soldered joints in the pipework close to the heater, as the
heat may damage the connector or the water heater itself.
4.5 A WRAS listed isolating valve should be fitted to the cold supply to
facilitate servicing the heater.
4.6 Push fit connectors are supplied to allow either bottom or rear
entry of services. If a combination of entry points are required an
additional connector will be required as follows:
Bottom inlet, rear vent 15mm x 15mm elbow
(Heatrae Sadia part no. 95 607 510)
Rear inlet, bottom vent 15mm x 15mm straight
(Heatrae Sadia part no. 95 607 509)
5.0 INSTALLATION - VENT PIPE
5.1 Select appropriate push fit connector for chosen entry position:
Bottom entry vent - 15mm x 15mm straight
Rear entry vent - 15mm x 15mm 90° elbow
5.2 Push the connector fully home (28mm engagement) onto the vent
pipe connection.
5.3 Connect the vent pipe to the push fit connector ensuring it is
pushed fully home (28mm engagement). Refer to the vent pipe
requirements detailed in IMPORTANT INSTALLATION POINTS.
If a bottom entry vent pipe is used the pipe must terminate below
the unit, in a safe visible position. After connection DO NOT make
soldered joints in the pipework close to the heater, as the heat
may damage the connector or the water heater itself.

8
6.0 INSTALLATION - ELECTRICAL
REQUIREMENTS
WARNING: This appliance must be earthed. It is suitable for a.c.
supply only. Disconnect the electrical supply before removing
the cover. Installation must be in accordance with the current
local Wiring Regulations.
6.1 Supremes must only be connected via Fixed Wiring (a plug and
socket must not be used).
6.2 A double pole isolating switch, with a contact separation of at least
3mm in both poles, should be incorporated in the electrical supply.
The supply should be fused 13 Amp.
6.3 The nominal cross sectional area of the supply cable must be a
minimum of 1.5mm2.
6.4 The outer sheath of the cable must be secured using the cable
clamp provided, unless using rear cable entry.
6.5 Strip the outer sheath from the cable for a maximum of 60mm.
Prepare and consolidate the ends and connect the cable to the
terminal block as follows:
BROWN or RED wire to terminal marked L.
BLUE or BLACK wire to terminal marked N.
GREEN/YELLOW or GREEN wire to terminal marked
If using “Twin and Earth” cable the bare earth wire must be
sleeved.
6.6 If Supremes are to be unused for significant periods of time
running costs can be reduced by switching the units off. It is
recommended that this is done automatically by incorporating a
suitable timeswitch in the supply to the unit. The use of Heatrae
Sadia accessory no. 95 970 124 is recommended. The
timeswitch can then be set to switch the unit on for a suitable
period to allow it to heat up before it is next to be used. NOTE: A
timeswitch must be capable of switching 13 Amps resistive load.

9
7.0 COMMISSIONING
7.1 The electronic control system of the Supreme has a self
commissioning and calibration function. Once the heater is
installed and all services have been connected the unit should
require no further adjustment before use.
7.2 Check that all electrical, water and vent pipe connections have
been made and are secure.
7.3 Replace the cover and secure with the fixing screws. Ensure the
tank discharge tube is centrally located in the outlet spout. Turn
on water and electrical supply.
7.4 The READY indicator will flash to indicate the unit is in its “self-
commissioning” mode. The water in the unit will not be hot
enough to use at this stage.
7.5 The READY indicator will continue to flash until the unit has
reached boiling and has “self-calibrated”. At this point the READY
indicator will remain illuminated. If for any reason the calibration
procedure is interrupted it will restart after a short delay but may
result in the calibrated temperature being too low. If this occurs
switch the electrical supply OFF for several seconds and then
switch ON. The calibration sequence will reset. Wait for the
READY indicator to remain illuminated.
7.6 The unit is now ready to use, however, it is recommended that the
first few fills be drawn off and discarded to ensure the freshness
of the water.
7.7 The tap sealing washer pressure has been already set. If the tap
drips after commissioning adjust the spring tension so that the
handle is just loose.
a) Remove the tap bezel after removing the two screws securing
it. Note: to remove the bezel the handle will have to be operated.
This will cause water to discharge from the outlet.
b) Tighten the tap headwork nut (turn clockwise) until the handle
is just loose. Replace bezel and securing screws. Note:
excessive adjustment will dismantle the tap, if heated this
would result in the uncontrollable release of boiling water.
7.8 Check for leaks.

10
8.0 MAINTENANCE
NOTE: Maintenance must be carried out by competent persons.
Competent - i.e. trained, experienced, qualified.
Disconnect the electrical supply before removing the cover.
WARNING: electronics control by switching ‘N’ (neutral), in some
instances neutral terminations will be at 230 volts with respect to
earth.
Maintenance instructions are available from the Heatrae Sadia
Service Department. Telephone [phone] , Fax [phone]
8.1 The electronic control system of the Supreme has a self-
diagnostic feature which determines if the unit is operating
satisfactorily. It will automatically calibrate for water quality and
temperature.
8.2 If steam or boiling water discharges from the vent pipe the
Supreme will switch off. A critical fault would render the unit
unsafe to use and so will deactivate both the element and
solenoid valve.
8.3 The Supreme incorporates an electronic scale conditioning
function which will reduce the rate of scale deposition in hard
water areas. However, some deposits may still occur in the
storage tank; these should be periodically removed.
Supreme Maintenance Plan
Heatrae Sadia are pleased to offer a preventative maintenance
program to ensure that your product will continue to operate to your
satisfaction in even the most troublesome of water conditions.
The service provided includes an inspection, descale and functional
test, scheduled to meet your requirements. All work under the plan
will be carried out by one of our authorised service engineers, who are
fully trained, regularly audited and carry a complete stock of spare
parts. This plan is in addition to the manufacturer’s warranty and does
not cover the cost of materials associated with any out of warranty
component repairs.
For further information on the Maintenance Plan please contact our
Service Department. Telephone [phone], Fax [phone].

11
9.0 FAULT FINDING
SAFETY NOTE: DISCONNECT THE ELECTRICAL SUPPLY
BEFORE REMOVING THE COVERS AND CARRYING OUT ANY OF
THE FOLLOWING ACTIONS. DO NOT BYPASS ANY SAFETY
CONTROLS.
SYMPTOM POSSIBLE CAUSE ACTION
No indicator lights
1. If no water or heat – no power to
unit
1. Check power supply is correctly
connected and switched on and that
primary cutout has not operated
2. If hot water available – no power
to indicator diodes
2. Check connections to indicators at
4 way plug
Unit does not fill on commissioning
1. If “ON” indicator not illuminated –
no power to unit
1. Check power supply is correctly
connected and switched on and that
primary cutout has not operated
2. If “READY” light flashing – water
supply not turned on
2. Check water supply
3. Solenoid fault
3. Check operation of solenoid valve,
replace if necessary
4. Low water pressure 4. Check supply
Unit does not heat on commissioning
1. If “ON” indicator not illuminated –
no power to unit
1. Check power supply is correctly
connected and switched on and that
primary cutout has not operated
2. If “READY” light flashing – water
supply not turned on
2. Check water supply
3. Solenoid fault
3. Check operation of solenoid valve,
replace if necessary
4. Low water pressure 4. Check supply
5. Element fault
5. Check element continuity. If faulty
replace
Unit does not fill after commissioning 1. Level sensor fault
1. Check level system earth
connections
2. Solenoid valve fault
2. Check operation of solenoid valve,
replace if necessary
3. Electronic control fault
3. Check connections to electronic
control. Replace if necessary
4. Low water pressure 4. Check supply
Unit does not heat after
commissioning
1. Element fault
1. Check element continuity. If faulty
replace
2. Electronic control fault
2. Check connections to electronic
control. Replace if necessary
3. Control thermistor fault – short
circuit
3. Check continuity (5Kohms at
100°C , 100Kohms at 25°C)

12
Any faults that cannot be identified using the Fault Finding chart, or in
case of doubt, contact the Heatrae Sadia Service Department,
telephone [phone], fax [phone].
SYMPTOM POSSIBLE CAUSE ACTION
Water flows from vent and primary
cutout activates
1. Solenoid valve fault
1. Check operation of solenoid valve,
replace if necessary
2. Level sensor fault
2. Check level system earth
connections
3. Electronic control fault
3. Check connections to electronic
control. Replace if necessary
Steam from vent pipe and primary
cutout operates
1. Control thermistor fault – open
circuit
3. Check continuity (5Kohms at
100°C , 100Kohms at 25°C)
2. Electronic control fault
2. Check connections to electronic
control. Replace if necessary
3. Scale build up 3. Descale unit
Drips from outlet 1. Incorrect spring tension
1. Ensure tap headwork nut correctly
adjusted
2. Scale : debris under tap seal 2. Remove and clean as necessary
3. Damaged tap seal 3. Replace tap seal
4. Scale on tap outlet spout 4. Clean tap outlet
Water “runs on” when tap released 1. Scale on tap outlet spout 1. Clean tap outlet
2. Scale :debris under tap seal 2. Remove and clean as necessary
3. Damaged tap seal 3. Replace tap seal
Stale taste to water Unit left unused for several days Empty and allow to refill before use
Tap sticks open Dirt around handle pivot Clean with a stiff paint brush
Water consistently cooler than when
new
1. Control thermistor pocket has a
covering of scale
1. Descale the pocket surface & unit
2. Control thermistor out of
calibration
2. Check values (5Kohms at 100°C,
100Kohms at 25°C)
3. Steam thermistor out of calibration
3. Check values (5Kohms at 100°C,
100Kohms at 25°C)

13
10.0 SPARE PARTS
The following comprehensive list of spare parts is available for your
Supreme water heater. Please refer to the rating label on the right
hand side of your heater before ordering to ensure the correct spare
parts are obtained.
DO NOT REPLACE WITH PARTS NOT RECOMMENDED BY
HEATRAE SADIA- THIS WILL INVALIDATE YOUR GUARANTEE
AND MAY RENDER THE INSTALLATION DANGEROUS.
1. Element assembly
(incorporating start dry cutout) 95 606 952
2. Element assembly sealing gasket 95 611 816
3. Primary cutout (vent pipe) 95 612 001
4. Solenoid valve assembly 95 605 877
5. Level sensor assembly (150 model) 95 612 010
6. Level sensor assembly (165 & 180 models) 95 612 011
7. Circuit board (150,165,180 models) 95 615 007
8. Wiring harness (4way inc. diodes) 95 612 006
9. Wiring harness (complete) 95 612 013
10. Thermistor control/steam 95 612 696
11. Outlet tap headwork (inc. handle) 95 605 019
12. Outlet tap stem 95 605 832
13. Outlet tap cup seal 95 611 731
14. Bezel for tap & cover 95 605 020
15. Stainless cover assy. & screws (150 model) 95 614 003
16. Stainless cover assy. & screws (165 model) 95 614 004
17. Stainless cover assy. & screws (180 model) 95 614 005
18. Steam condenser assembly (150 model) 95 607 015
19. Steam condenser assembly (165 model) 95 607 016
20. Steam condenser assembly (180 model) 95 607 018
21. Condenser sealing gasket (150 model) 95 611 817
22. Condenser sealing gasket (165 model) 95 611 819
23. Condenser sealing gasket (180 model) 95 611 820
24. ‘O’ ring kit 95 611 002
25. Hose kit (low pressure) 95 607 014
26. Hose kit (high pressure) 95 607 013
27. Outlet spout plastic - tank 95 604 668

14
28. Outlet spout - cover 95 604 001
29. Push fit connector 15x15 straight 95 607 509
30. Push fit connector 15x15 elbow 95 607 510
31. Inlet injector assembly (150 model) 95 607 019
32. Inlet injector assembly (165 model) 95 607 022
33. Inlet injector assembly (180 model) 95 607 026
34. Tank (150 model) 95 608 926
35. Tank (165 model) 95 608 927
36. Tank (180 model) 95 608 928
37. Tank drain & seal 95 608 929
38. Start dry cutout (element) 95 612 691
39. Solenoid valve coil 95 605 839
40. Fitting Kit (150 model) 95 607 024
41. Fitting Kit (165/180 model) 95 607 025

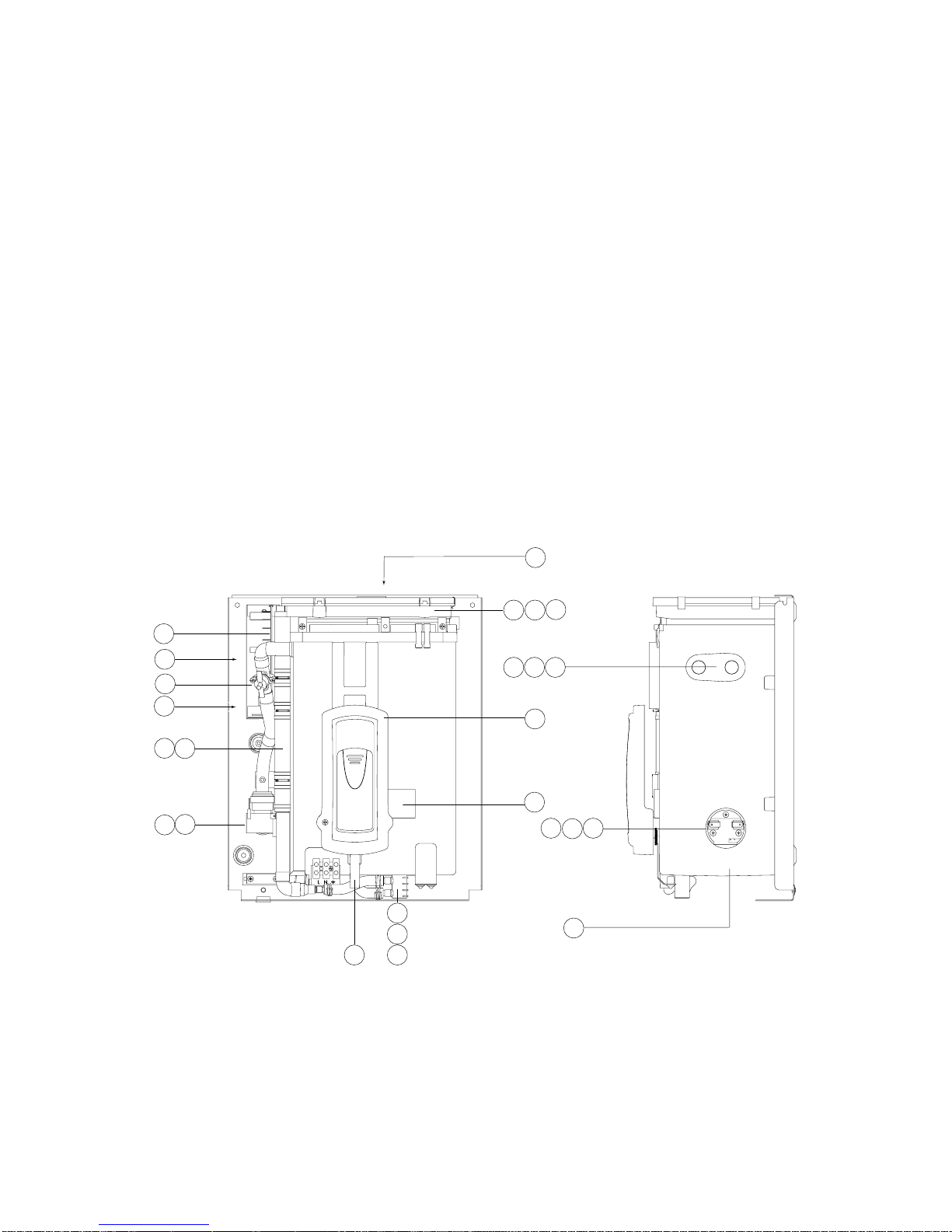

Fig. 3
37
12
3
4
56
7
11
8
10
10
18 19 20
27
32
33
34 35
36
38
39
14
31

15
Fig. 4
2.5 kW
ELEMENT 'A'
LL N
S
PRIMARY
CUTOUT 'A'
SOLENOID
VALVE
LOWER
SENSOR
EARTH
UPPER
SENSOR
EARTH
UPPER LEVEL SENSOR
LOWER LEVEL SENSOR
SCALE
CONDITIONING
FIELD WINDING
'AT TEMP' LED ANODE
'AT TEMP' LED CATHODE
'POWER ON' LED ANODE
'POWER ON' LED CATHODE
WIRING SCHEMATIC
H
N
W
L1
L2
L3
BACK
PLATE
J5
1
2
STEAM THERMISTOR
WATER THERMISTOR
6
5
7
8
9
10
J7
ELECTRONIC CONTROL
TERMINAL BLOCK
1
1

16
11.0 USER INSTRUCTIONS
11.1 Once installed the filling and heating cycles of the Supreme are
completely automatic.
11.2 To dispense water, a suitable container having been placed
under the outlet spout, the tap handle should be pulled down
and towards (or pushed away from) the user. The water
dispensed will at all times be boiling or close to boiling point so
due caution must be taken when using the product, especially if
it is likely to be used by children, aged or infirm persons.
11.3 The tap handle is spring loaded so that when released it will
spring back to the “off” position (no flow).
11.4 The Supreme is fitted with two indicators to give a visual
indication of the unit’s status.
ON Will be illuminated as long as the electrical supply
to the Supreme is switched on.
READY When fully illuminated indicates that the stored
water is hot enough to use.
11.5 If the store of hot water is completely withdrawn, the flowrate
from the outlet tap will reduce to the filling rate of the heater.
This slow flowrate allows the incoming water to be instantly
reheated, it does not indicate a fault with the water heater.
11.6 If the Supreme is not used for a few days the water may
become “stale”. In these instances it is advisable to draw off the
contents and discard the water at least twice to remove the
“stale” water. This will ensure that “freshly” boiled water is used
to make your drinks etc.
11.7 Similarly, if left unused it is possible that some scale residue will
collect in the outlet tap. This will cause the outlet water to
appear “milky” for a short while. If this condition occurs it is
recommended that the first few cups are drawn off and
discarded.

17
GUARANTEE
This Supreme water heater is guaranteed for a period of two years
from the date of purchase provided:
1. The unit has been installed in accordance with these instructions
and all necessary inlet, vent and electrical connections have been
fitted correctly.
2. Any valves or controls are of Heatrae Sadia recommended type.
3. The unit has not been tampered with and has been regularly
maintained as detailed in the maintenance instructions.
4. The unit has been used only for heating potable water.
The unit is not guaranteed against damage by frost or due to the build
up of scale. Please note that if Heatrae Sadia personnel or agents
are requested to descale a unit, this work will be chargeable.
This guarantee does not affect the statutory rights of the consumer.
ENVIRONMENTAL INFORMATION
This product is manufactured from many recyclable materials. At the
end of its useful life it should be disposed of at a Local Authority
Recycling Centre.

18
NOTES

19

20 36 00 5914
Issue G
Spares Stockists
For the fast and efficient supply of spares please contact the stockists
listed below.
Electric Water Heating Co.
2 Horsecroft Place, Pinnacles, Harlow, CM19 5BT
Tel: [phone]
E-mail: [email protected]
Eyre & Elliston
Unit 12, Spitfire Way, Airlinks Industrial Estate
Heston, Middlesex TW5 9NR
Tel: [phone]
Parts Center
Network 65 Buisness Park,
Bentley Wood Way, Burnley, Lancashire, BB11 5ST
Tel: [phone]
www.partscenter.co.uk
Newey & Eyre Specialists Products Division
Please contact your local branch
UK Spares Ltd.
Tower Lane, Warmley, Bristol BS30 8XT
Tel: [phone]
William Wilson Ltd.
Unit3A, 780 South Street, Whiteinch, Glasgow G14 0SY
Tel: [phone]
Heatrae Sadia Heating
Hurricane Way Norwich NR6 6EA
www.heatraesadia.com
Main No: 01603 420100
MainFax: 01603420218
Sales: 01603420110
Sales Fax: [phone]
Service: 01603420330
Service Fax: [phone]
