Heatrae Sadia SUPREME User manual

Fitting Instructions and User Guide
SUPREME COUNTER TOP

2
COMPONENT CHECKLIST
Before commencing installation check that all the following components
have been supplied with your Supreme heater.
Flexible water inlet hose•
Drip tray•
User instructions•
Warranty card•
INTRODUCTION
Thank you for purchasing a Heatrae Sadia Supreme. The boiling water
heater is manufactured to the highest standards and has been designed
tomeetallthelatestrelevantsafetyspecications.
This Heatrae Sadia water heater must be installed (Sections 1-6),
commissioned (Section 7) and maintained (Sections 8-11) by a
competent person. Please read and understand these instructions prior
to installing your Heatrae Sadia water heater. Following installation and
commissioning the operation of the heater should be explained to the user
(Section 12) and these instructions left with them for future reference.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning the use of the appliance by a person responsible for their
safety. Children should be supervised to ensure that they do not play
with the appliance.

3
TECHNICAL SPECIFICATIONS
Electrical rating 2.8 - 3.0 kW 230 - 240V
Capacity 9 Litres
Weight (full) 29kg
Rated pressure 0MPa (0 bar)
Minimum supply pressure 0.02MPa (0.2 bar)
Maximum supply pressure 1.0MPa (10 bar)
Nominal commissioning time 45 minutes

4
1.0 GENERAL INSTALLATION
POINTS
1.1 Wherever possible the Supreme should be supplied directly from
a rising main. If fed from a cold water feed cistern, the cistern must
comply with the Water Regulations Guide (clause R27.2).
It should be noted that water quality may be reduced when supplied
from a cistern and additional forms of water pre-treatment may be
necessary.
1.2 In hard water areas, heated water will produce limescale which will
be deposited within the heater. If this is not regularly removed it will
impair the operation of the heater. Where rapid and excessive scale
build up is likely to occur the use of a proprietary scale reducing
devicemaybebenecial.
1.3 The installation must be carried out in accordance with the relevant
requirements of:
•TheappropriateBuildingRegulationseitherTheBuilding
Regulations, The Building Regulations (Scotland) or Building
Regulations (Northern Ireland).
•TheWaterFittingsRegulationsorWaterByelawsinScotland.

5
2.0 INSTALLATION - LOCATION
2.1 The Supreme stores and dispenses water at, or close to, boiling
point at all times it is switched on. Due caution must be taken
when choosing a location for the product to minimise misuse. It is
recomended that the unit be mounted in such a manner that the
operator can stand directly facing the unit with the controls at a
recommendedheightfromtheoortothedraw-offtapof1200mm
+/- 100mm.
2.2Sufcientroomshouldbeleftaroundtheheatertoallowaccessfor
maintenance and servicing.
2.3 Install the unit on a surface suitable for near boiling temperatures
and the working weight of the unit.
2.4 The unit is not suitable for installation in an area where a water jet
could be used.
3.0 DIMENSIONS
B
D
C
A
OVERFLOW
INLET
CONNECTION

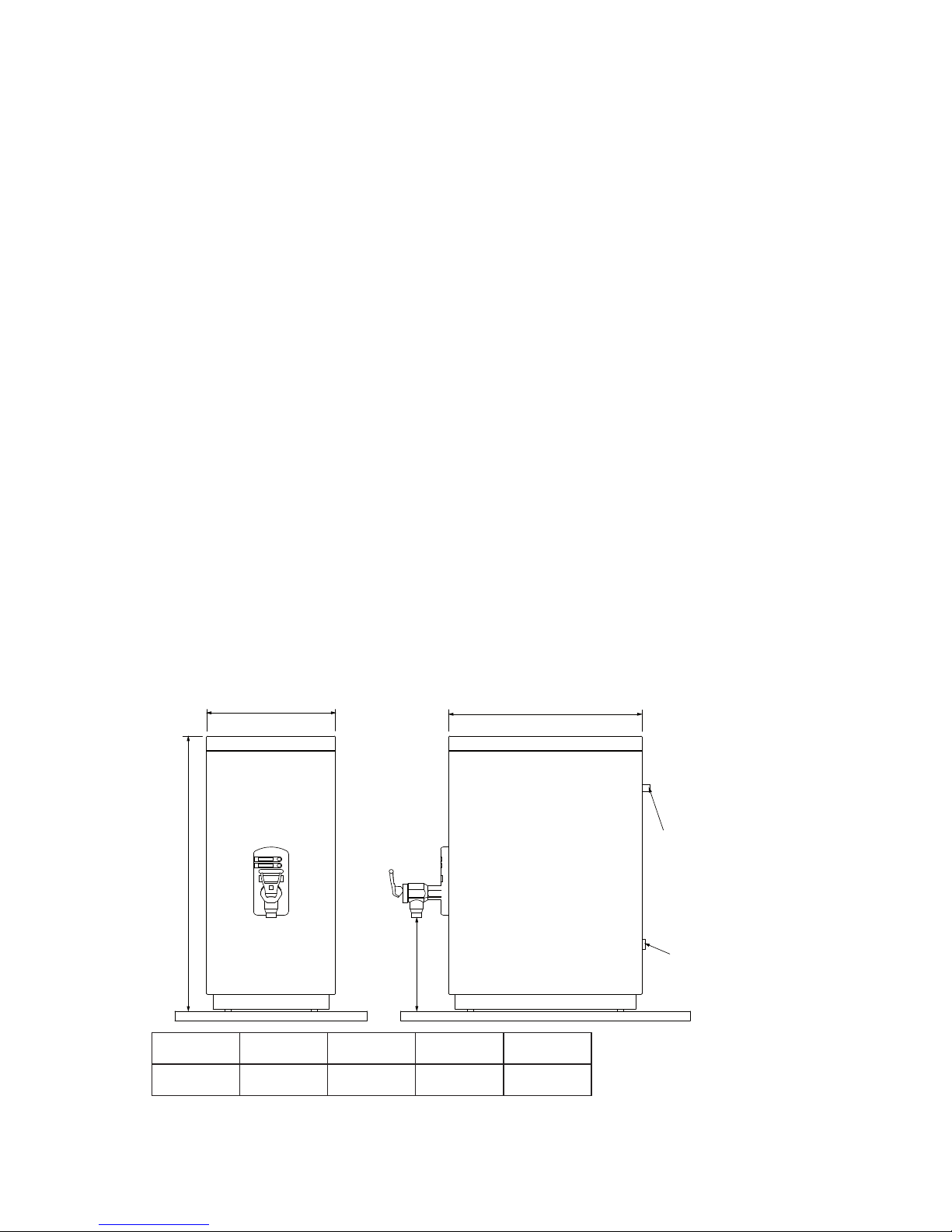

Figure 01: Dimensions
A B C D
mm 535 240 360 190

6
4.0 INSTALLATION - WATER SUPPLY
4.1AWRASlistedisolatingvalveshouldbettedtothecoldsupplyto
facilitate servicing the heater.
4.2 Before connecting the unit the supply pipe must be thoroughly
ushed out to ensure that foreign matter does not block or enter
the solenoid valve.
4.3 The unit must be connected to a potable water supply using the food
grade hose provided, in a manner which complies with UK water
regulations. The hose should be connected to a ½” (15mm) drinking
water supply via an appropriate isolating valve. The supply must
provide a constant pressure of between 20 KPa and 1000 KPa (0.2
to10Bar),viaanisolatingstopcockttedneartheunit.
4.4 If the water supply contains excessive solids in suspension it is
recommendedthatanemesh“inline”waterlteristtedinthe
pipe work after the stop cock. Failures due to scale and sediment
are not covered by the warranty.
5.0 INSTALLATION - VENT PIPE
NOTE: It is not advisable to create a permanent connection to the
vent which cannot be removed if maintanence is required.
5.1 Thevent/overowpipemustbeextendedandlaidwithacontinuous
fall, discharging to a safe and visible point. The pipe should not be
directly connected to a closed waste, as taste problems may occur
and should never be allowed to become blocked or restricted. One
way this could be connected is via a tundish arrangement. The
vent pipe material must be capable of conveying boiling water. If
themachineisoperatedwithouttheoverllpipebeingextendedas
advised, any subsequent damage incurred will be the responsibility
of the installer.

7
6.0 INSTALLATION - ELECTRICAL
REQUIREMENTS
6.1 Theunitissuppliedwithattedplugandleadandshouldbeplugged
into a 240v 13A electrical socket, capable of carrying a load of 3kW. If
the supply cord is damaged it must be replaced by the manufacturer,
itsserviceagent,orsimilarlyqualiedpersonsinordertoavoida
hazard.
6.2 The installation of a residual current device (RCD) having a rated
residual operating current not exceeding 30 mA is advisable.
6.3 This appliance must be earthed.
6.4 The installation, supply cable and circuit protection must conform
to the latest BS7671 ‘Requirements for electrical installations’ (IEE
Wiring Regulations).
6.5 IftheSupremeisnotusedforsignicantperiodsoftimerunningcosts
can be reduced by switching the unit off. It is recommended that this is
done automatically by incorporating a suitable timeswitch in the supply
to the unit. The use of accessory No. 95 970 124 is recommended. The
timeswitch can then be set to switch the unit on for a suitable period
to allow it to heat up before it is next to be used. NOTE:If a timeswitch
is used, it must be capable of switching 13 Amps resistive load.

8
RED YELLOW BLACK BLUE
PINK 0.75 2087
BROWN 0.75 2088
ORANGE 0.75 2089
WHITE 0.75 2105
BLACK 0.75 2092
RED 0.75 2107
YELLOW 0.75 2057
WHITE 0.75 2105
BLACK 1.5 2106
BLACK 1.5 2094
RED 1.5 2120
N L
BLUE
BLUE
LN
YELLOW / GREEN 1.5 2036
YELLOW / GREEN 1.5 2118
COLD WATER INLET SOLENOID VALVE
ELEMENT
TRIAC PCB
HIGH
NORMAL
LOW
LEVEL SENSORS
HEATER LED
SOLENOID LED
THERMISTOR
THERMAL CUTOUT EARTH
ON BODY
EARTH ON BASE
EARTH ON CASING
WHITE SHEATHING
IT IS RECOMMENDED THAT THIS MACHINE IS PLUGGED INTO A SOCKET PROTECTED BY AN RCD DEVICE HAVING A RATED RESIDUAL OPERATING CURRENT NOT EXCEEDING 30mA
LIGHT PCB
(TRANSPARENT LIGHT UPPER-MOST IN FASCIA)
SINGLE POLE ISOLATING SWITCH
RFI Suppression Roxburgh C215
RED
BLACK
RED 1.5 2120
BLUE
BROWN
2103
2102
BLACK 1.5 2026
RED 1.5 2068
RED 1.5 2097

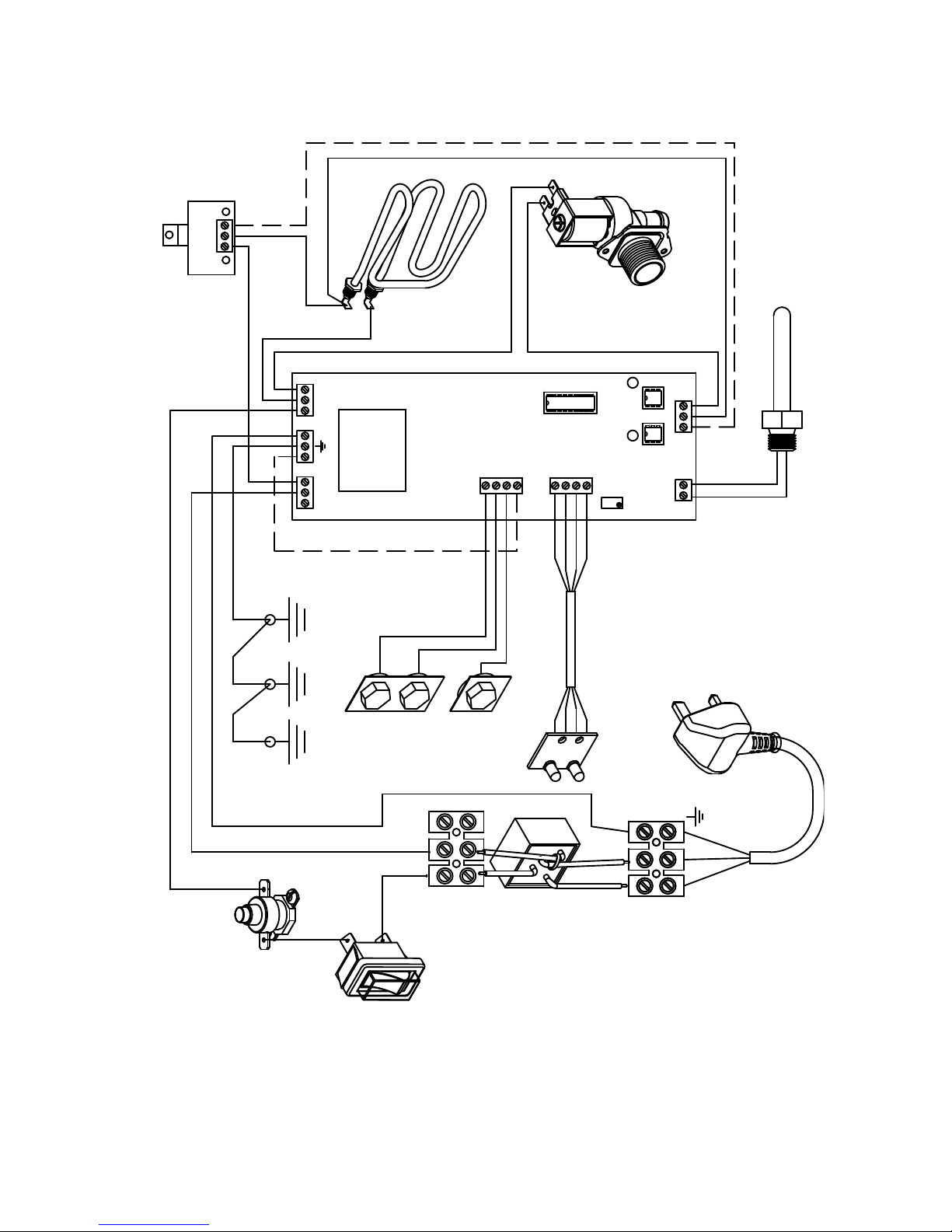

Diagram 02: Wiring Schematic

9
7.0 COMMISSIONING
7.1 Check that all electrical, water, and vent pipe connections have been
made and are secure.
7.2 Turn on the water supply and then switch on the electrical supply.
Ensure that the On/Off switch is in the On position. (Located at the
rear).
7.3 TheWait/Readylightwillashyellow(indicatingbelowtemperature)
andtheunitwillslowlyllwithwater(1.2L/Min).Whenwaterpasses
the low level sensor (just below tap level) the element will also be
energised. When the normal operating water level is reached the
solenoid will be disabled and the element will continue to heat the
unit until the full operating temperature has been reached. At this
point the Wait/Ready light will show solid orange indicating that the
unit is full and up to temperature.
7.4 Check for leaks.
Subsequent Use
7.5 Aftertheunithasnishedthecommissioningcycle,andwateris
drawn from the tap, water will be replaced in short cycles (small
amount of water and then heat). The solenoid and element will never
be on at the same time unless the unit is switched off and on again
(re-setting commission mode). In normal use the unit will always be
at operating temperature indicated by the Wait/Ready light showing
asolid(notashing)colour.Whentheunitisfullandready,thelight
will be orange and when the unit is only part full the light will be
yellow.

10
8.0 MAINTENANCE
NOTE: Maintenance must be carried out by competent persons.
Competent - i.e. trained, experienced, qualied.
Disconnect the electrical supply before removing the cover.
WARNING: Electronics control by switching ‘N’ (neutral). In some
instances neutral terminations will be at 240 volts with respect to
earth.
8.1 The production of scale is a natural phenomenon and commonly
occurs in hot water systems. The nature of the scale produced and
its rate of formation varies widely throughout the country.
8.2 To ensure continuous, reliable operation, the unit should be regularly
de-scaled by a suitably qualied engineer. Suitable chemical de-
scalants must only be used if the manufacturers recommendations
are strictly adhered to. This is to prevent health and safety issues,
taste problems and potential damage to the appliance. Misuse of
such chemicals is not covered by the product warranty.
8.3 The Supreme incorporates an electronic scale conditioning function
which will reduce the rate of scale deposition in hard water areas.
However, some deposits may still occur in the storage tank; these
should be periodically removed.
8.4 The amount of usage of the unit will also determine the quantity of
scale build up. A regular inspection of the tank every 6 to 12 months
will provide longer life of the product and optimum performance
(removal of the steam plate assembly will give acess to the storage
tank).

11
9.0 SERVICE
9.1 When the green service indicator light on the front of the unit is
showing solid colour, the machine has been starved of water for in
excess of 20 minutes and the solenoid valve has been disabled to
prevent damage to the solenoid coil through overheat. To re-energise
the solenoid, the unit must be disconnected from the electrical supply
andthenswitchedbackon,afterrstreinstatingthewatersupply.
9.2 Iftheunitrequiresservicingtheserviceindicatorwillashasequence
of light pulses. A 2 times or 3 times light pulse generally indicates
that the low or normal level sensors require de-scaling.
9.3 A 4 times light pulse means the water level has reached the high
level sensor and the likelihood is that the normal level sensor requires
de-scaling,orthemachinehasover-lledduetodebristrappedin
the solenoid valve. The debris can be removed by drawing plenty of
water from the dispense tap, causing the solenoid valve to operate
andushouttheobstruction.Themachinewillresetitselfoncethe
problem has cleared. If this does not rectify the problem, turn off
thewatersupplyandremovetheexiblehosetocheckfordebrisin
thesolenoidvalve’slter.Theunitcanbeusednormallywhilethe
serviceindicatorisashinga4timespulse.Forfurtherassistance,
contact the Heatrae Sadia Service Department, telephone [phone]
1535, fax [phone].
9.4 To gain access to internal components, the lid must be removed.
The lid ‘pops’ off in an upward motion. Beneath the lid there are four
screws holding the steam trap in place. Removing these will allow the
steam trap to be removed and access to the tank will be gained.
To gain access to the rear components the rear panel must be
removed which is held in place by six screws.
NOTE: Whenever the body lid has been removed from the unit a new
lid gasket may be required to ensure a steam-tight joint. Damage to
the unit caused by a poor lid seal is not covered by warranty.

12
9.5 Scale deposits should be removed from all internal surfaces,
particularly the heating element, thermistor, and level sensors by
gently tapping or scraping. If the deposits are soft, use a nylon
padandushout.Abrasivecleaningmaterialscontainingscouring
powders and detergents must not be used, as such materials can
cause taste problems.
9.6 Suitable chemical de-scalants must only be used in accordance with
the manufacturers recommendations. This will prevent health and
safety issues, taste problems, and potential damage to the appliance.
All trace of these chemicals must be removed from the appliance
before re-commissioning the unit . Misuse of such chemicals is not
covered by the product warranty.
IMPORTANT Before re-commissioning the unit, it is important that all
scale and moisture is removed from the level sensor insulating
gaskets to avoid a false signal being transmitted through the scale
to the unit body. Failure to remove this scale and/or moisture could
cause the sensor to indicate to the PCB that water is covering the
element, whether or not water is present. In this situation the PCB
could energise the element causing failure. If in doubt, protect the
elementbyhandllingwithwatertothelevelofthedraw-offtap
before switching on the electrical supply to the unit.
9.7 General function
  The printed circuit board (PCB) controls the heating and lling
functions of the unit by monitoring the thermistor and level sensors.
The PCB also controls the external light unit to indicate the current
state of the appliance. Red and yellow LED’S on the circuit board
indicate whether the PCB has energised the element or solenoid
respectively.
Should an element fail and need to be replaced, it may be necessary
to replace the lid gasket to ensure a steam-tight joint. Note: the
element has a permanent ‘Live’ feed, and the ‘Neutral’ is switched.

13
9.8 Printed Circuit Board replacement (PCB)
In the event of a PCB failing and a replacement being required, full
instructions will be supplied. It is important to note however, that the
Triac PCB must be securely mounted against the copper heat-sink
to ensure reliable heat dissipation. Heat transfer compound is also
supplied with all replacement circuit boards.
9.9 Adjusting the Water Temperature Set Point
The temperature potentiometer (Pot) is pre-set at Heatrae Sadia and
will only require adjustment in exceptional circumstances. Contact
Heatrae Sadia for advice.
Water boils at different temperatures depending on barometric
pressure. The temperature should not be tuned higher than 98°C,
or over boiling may occur during low barometric pressure conditions
causing the unit to trip the overheat cut-out device.
9.10 On / Off Switch
The On / Off switch is positioned at the rear of the machine. When
in the off position the unit will cease to function & the light on the
fascia will go out.
NOTE: This switch must not be used to isolate the electrical supply for
servicing / maintenance. When maintaining / servicing the unit the
power cord must be removed from the mains supply.

14
10.0 FAULT FINDING
YOUR HEATRAE SADIA SUPREME SHOULD GIVE TROUBLE FREE
OPERATION. HOWEVER SHOULD A FAULT OCCUR THE TABLE
BELOW SHOULD ALLOW MOST FAULTS TO BE IDENTIFIED. FAULT
FINDING SHOULD ONLY BE CARRIED OUT BY A COMPETENT
PERSON.
Symptoms Possible Cause Remedy
No lights on
front of unit
On/Off switch in Off position
Thermal cut-out tripped
Switch to On position
Reset and check for faults
(i.e. scale on thermistor)
No boiling
water
available
Broken tap top
Normal level sensor holding signal
Thermal cut-out tripped
(no lights lit on fascia)
On / Off switch in off position
Element failed
Replace tap top (or component)
De-scale / Clean / Dry
Reset and check for faults
(i.e. scale on thermistor)
Switch to On position
Replace element
Thermal
cut-out trips
regularly
Excessive internal scale. (See
‘service’ page 11)
Faulty wiring to thermistors / faulty
thermistors
Temperature controller needs
adjusting
Element failed to earth
Defective PCB
& / or triac PCB
De-scale the unit
(particularly thermistor)
Repair / replace as required
Lower operating temperature
Replace element
Replace PCB & triac
(sold as a matched pair)
Overows
Dirt in solenoid valve.
Level sensors require de-
scaling or replacing
PCB faulty
Cleansolenoidlterand“workthe
unit” or replace the solenoid - see
service Instructions (page 11).
De-scale / replace sensors
Replace PCB

15
11.0 SPARE PARTS
The following comprehensive list of spare parts are available for your Supreme
water heater.
DO NOT REPLACE WITH PARTS NOT RECOMMENDED BY HEATRAE
SADIA - THIS WILL INVALIDATE YOUR GUARANTEE AND MAY RENDER
THE INSTALLATION DANGEROUS.
1. Tap assembly......................................................95 605 098
5. Draw off tap body ...............................................95 605 174
6. Plastic moulded facia kit.....................................95 614 130
7. PCB inc Triac......................................................95 615 074
8. Light PCB ...........................................................95 615 075
9. 3kw element .......................................................95 601 725
10. Thermistor assembly kit......................................95 612 648
11. Solenoid valve ....................................................95 605 173
12. Body lid gasket ...................................................95 611 024
13. Water inlet hose 1M............................................95 607 392
Water inlet hose 2M............................................95 607 684
14. Manual reset thermal cutout...............................95 612 649
15. Level probes kit ..................................................95 607 393
16. Body lid gromet...................................................95 607 394
17. Single pole on/off switch (inc cover)...................95 613 007
18. Tap nozzle kit......................................................95 604 017
19. Tap heat shield ...................................................95 607 395

16
* Includes nuts, washers, etc.

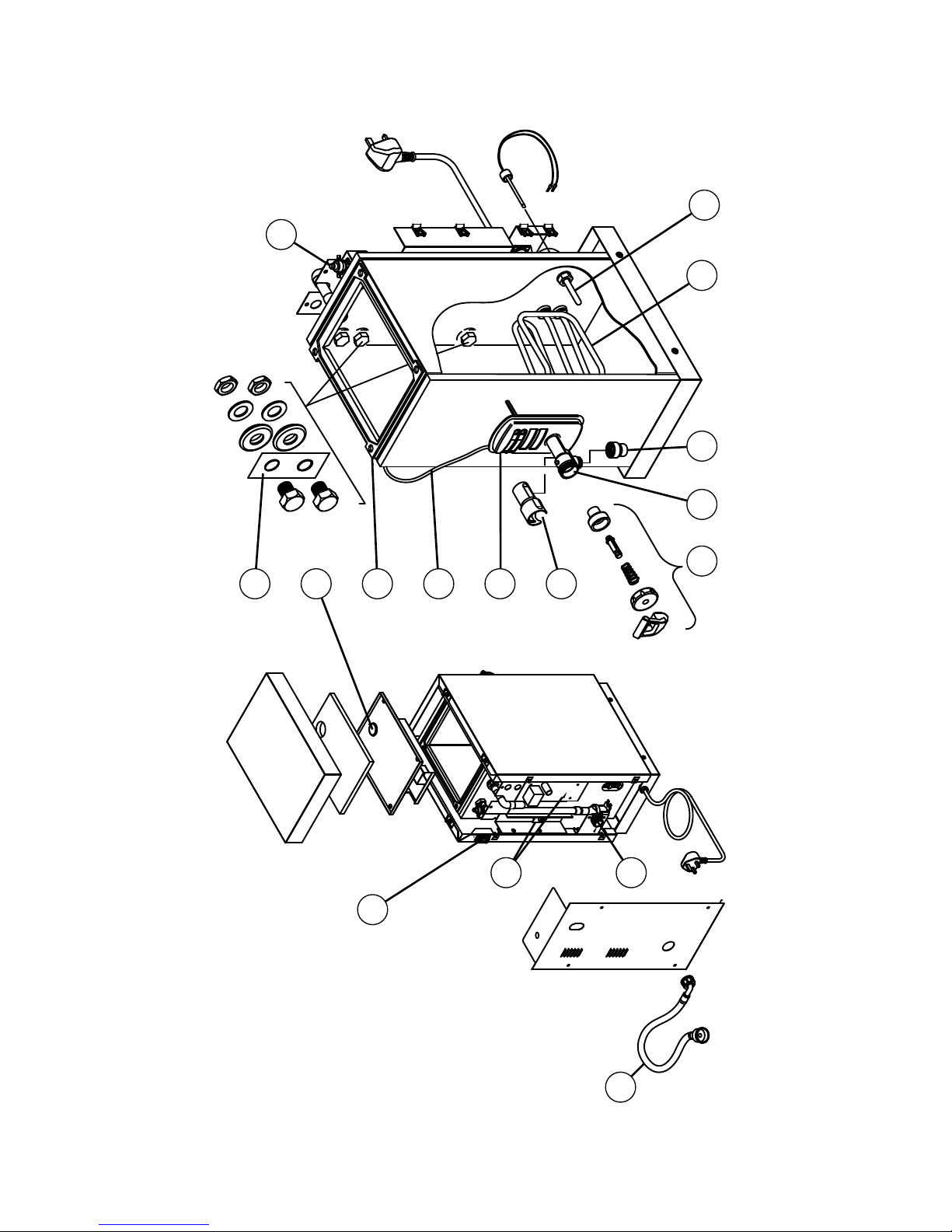

Figure 03: Exploded view
(Wrapper not shown for clarity)
13
17
16 12
8 6
19
1
15
14
518 910
7
11 *

17
12.0 USER INSTRUCTIONS
12.1 OnceinstalledthellingandheatingcyclesoftheSupremeare
completely automatic.
12.2 To dispense water, place a suitable container under the outlet
spout, the tap handle should be pulled down and towards (or
pushed away from) the user. The water dispensed will at all times
be boiling, or close to boiling point so due caution must be taken
when using the product.
12.3 If the handle is pulled all the way down it will stay open even when
the user lets go.
12.4 The tap handle is spring loaded so that when released (as long
as it has not been pulled all the way down) it will spring back to
the“off”position(noow).
12.5 TheSupremeisttedwithtwoindicatorstogiveavisualindication
of the unit’s status:
WAIT/READY When fully illuminated indicates that the stored
water is hot enough to use.
SERVICE See service section (section 9.0, page 11) for
the service light status.
12.6 If the Supreme is not used for a few days the water may become
“stale”.Intheseinstancesitisadvisabletodrawoffthecontents
anddiscardthewateratleasttwicetoremovethe“stale”water.
Thiswillensurethat“freshly”boiledwaterisusedtomakeyour
drinks etc.

18
GUARANTEE
This Supreme water heater is guaranteed for a period of two years from
the date of purchase, provided:
1. The unit has been installed in accordance with these instructions
and all necessary inlet, vent, and electrical connections have been
ttedcorrectly.
2. Any valves or controls are of Heatrae Sadia recommended type.
3. The unit has not been tampered with and has been regularly
maintained as detailed in the maintenance instructions.
4. The unit has been used only for heating potable water.
5. It has been installed in the UK.
The unit is not guaranteed against damage by frost or due to the build
up of scale. Please note that if Heatrae Sadia personnel or agents are
requested to descale a unit, this work will be chargeable.
This guarantee does not affect the statutory rights of the consumer.
The policy of Heatrae Sadia is one of continuous product development
and, as such, we reserve the right to change specications without
notice.
ENVIRONMENTAL INFORMATION
This product is manufactured from many recyclable materials. At the end
of its useful life it should be disposed of at a Local Authority Recycling
Centre.

19

36006156_issue_02
Spares Stockists
Forthefastandefcientsupplyofsparespleasecontactthestockists
listed below.
Electric Water Heating Co.
2 Horsecroft Place, Pinnacles
Harlow, Essex, CM19 5BT
Tel: [phone]
E-Mail: [email protected]
SPD
Units 9 & 10 Hexagon Business Centre
SpringeldRoad,Hayes
Middlesex, UB40 0TY
Tel: [phone]
Parts Center
Tel: [phone]
www.partscenter.co.uk
Newey & Eyre
Specialist Products Division
Please contact your local branch
UK Spares Ltd.
Unit 1155 Aztec West
Almondsbury, Bristol
BS32 4TF
Tel: [phone]
William Wilson Ltd.
Unit 3A, 780 South Street
Whiteinch, Glasgow, G14 OSY
Tel: [phone]
Advanced Water Company Ltd
Unit DS Enterprise Way
Vale Park, Evesham
Worcs, WR11 1GS
Tel: [phone]
Heatrae Sadia Heating
Hurricane Way Norwich NR6 6EA
www.heatraesadia.com
© 2012
Service: 0844 871 1535
Service Fax: [phone]
Service Email: heatraesadiaservice@
heateam.co.uk
