Heatrae Sadia STREAMLINE OVERSINK 95010283 User manual

1
STREAMLINE OVERSINK
Fitting Instructions and User Guide

2
CONTENTS
SECTION PAGE
1.0 INTRODUCTION 3
2.0 TECHNICAL SPECIFICATIONS 4
3.0 INSTALLATION 6
4.0 COMMISSIONING 10
5.0 EXPLANATION TO USER 11
6.0 MAINTENANCE 12
7.0 FAULT FINDING 14
8.0 SPARE PARTS 15
9.0 GUARANTEE 17
10.0 ENVIRONMENTAL INFORMATION 17
11.0 COMMISSIONING RECORD 18
12.0 SERVICE RECORD 19
13.0 SPARES STOCKISTS 20

3
1.0 INTRODUCTION
Thank you for purchasing a Heatrae Sadia Streamline Oversink Vented Water
Heater. The Streamline is manufactured in the UK to the highest standards and
has been designed to meet all the latest relevant safety specications.
1.1 IMPORTANT POINTS
The Streamline must be installed and commissioned by a competent person.
Please read and understand these instructions before installing the Streamline.
Following installation and commissioning, the operation of the Streamline
should be explained to the user and these instructions left with them for future
reference.
The Streamline is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
the use of the appliance by a person responsible for their safety.
Children should be supervised to ensure they do not play with the
Streamline.
1.2 PACK CONTENTS
Before commencing installation check that all the following components have
been supplied with your Streamline Oversink Water Heater:
• Wall Mounting Bracket
• Fixing Plugs and Screws
• Spout
Thermostat Knob•
Control Knob•
Control Knob Extension•
Flow Restrictor•

4
2.0 TECHNICAL SPECIFICATIONS
Electrical Rating 1.0kW @ 240v / 0.9kW @ 230v~
3.0kW @ 240v / 2.7kW @ 230v~
Capacity 7 and 10 litres
Weight (7 Litre) 3.6Kg (empty), 10.6Kg (full)
Weight (10 Litre) 4.0Kg (empty), 14.0Kg (full)
Enclosure rated IPX4
Operating Pressure 0 MPa (0 bar)
TABLE 01: PERFORMANCE DATA
MODEL HEAT UP (MINUTES) HEAT LOSS (kWhr/24hr)
7 Litre 1kW 25 0.5
7 Litre 3kW 9 0.5
10 Litre 1kW 35 0.6
10 Litre 3kW 12 0.6
ELEMENT PLATE
TERMINAL BLOCK
CONTROL VALVE
CABLE GLAND
INLET
THERMOSTAT
SPOUT
FIGURE 01: IMPORTANT FEATURES

5
A
346
R276
4
32.5
50
18.5
70
290
471
74
450
500
213

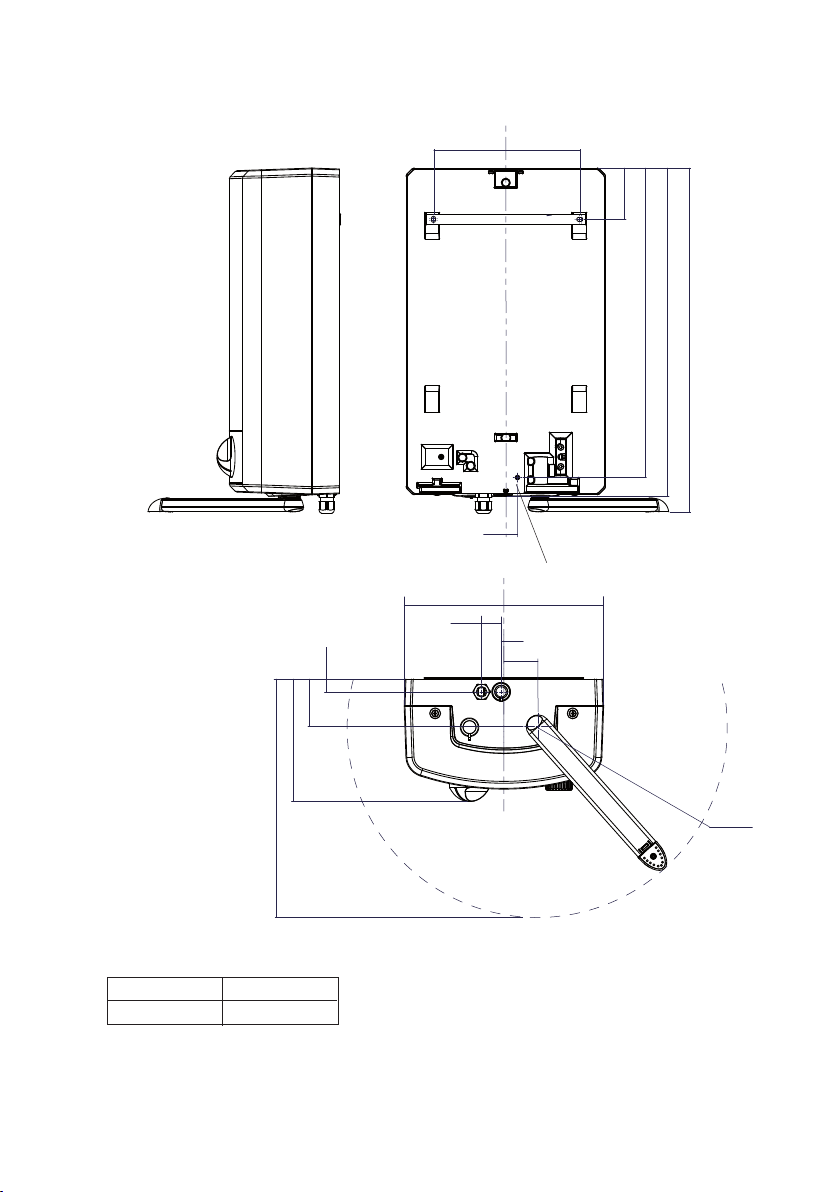

FIGURE 02: DIMENSIONS (IN mm)
THIRD
FIXING
HOLE
DIMENSION A
7 LITRE
10 LITRE 278
178
17

6
3.0 INSTALLATION
WARNING: THE STREAMLINE IS AN OPEN OUTLET WATER HEATER. THE
OUTLET OF THE STREAMLINE ACTS AS A VENT AND MUST ONLY BE
CONNECTED TO HEATRAE SADIA VENTED TAPS OR SPOUTS. THESE
FITTINGS MUST NEVER BE BLOCKED, RESTRICTED OR MODIFIED, IN
ANY WAY.
3.1 GENERAL
The Streamline Oversink Water Heater must be vertically wall mounted using
the wall bracket supplied. The water inlet connection must always be at the
bottom of the Streamline Oversink Water Heater on the right side.
3.2 LOCATION
Ensure that the wall can support the full weight of the Streamline and that1.
there are no hidden services (electricity, gas or water) below the surface
of the wall.
DO NOT install the Streamline where it may freeze.2.
Allow 50mm access above and 100mm below for maintenance.3.
NOTE: National Wiring Rules may contain restrictions concerning the
installation of the Streamline in bathrooms.

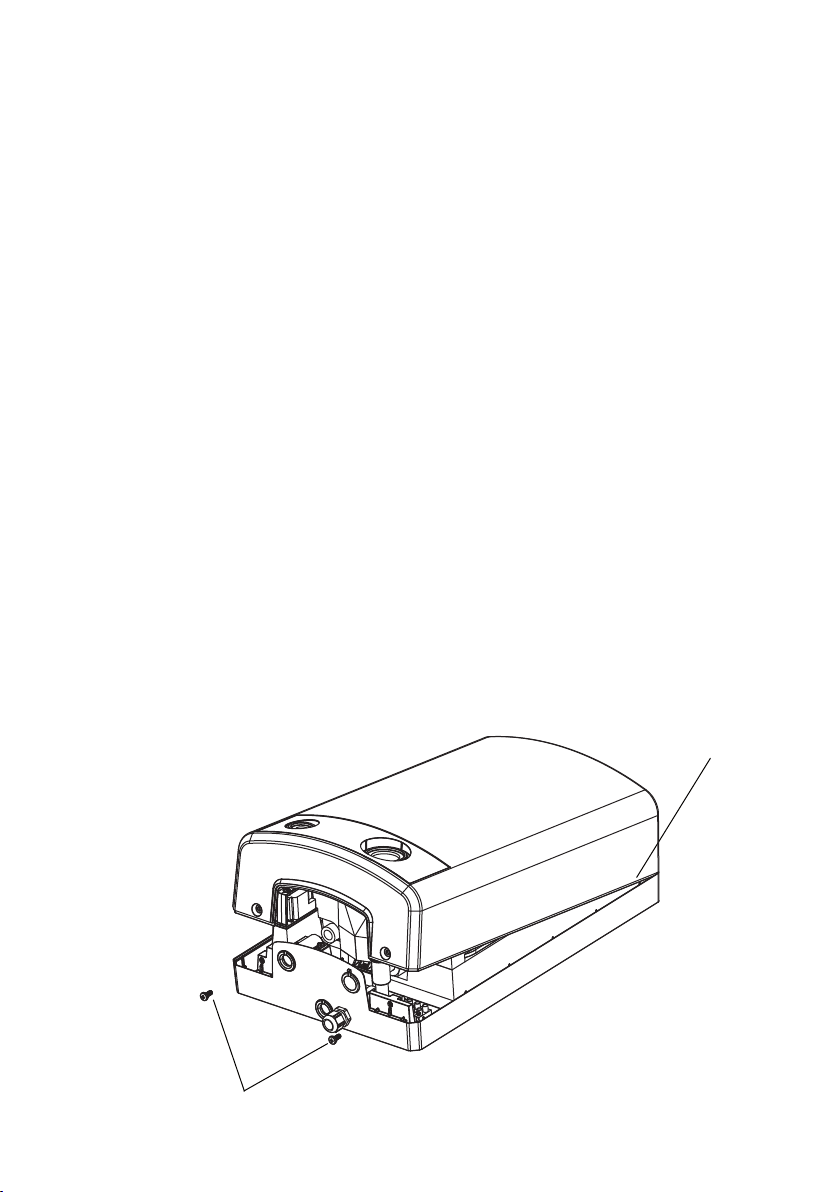

FIGURE 03 - FRONT COVER
COVER SCREWS
HINGE AT TOP

7
3.3 FIXING
Mark the position of the Streamline and the position of the xing bracket 1.
(see gure 2).
Fix the wall bracket using the two larger fixing plugs and screws2.
provided
Remove the cover of the Streamline by removing the two screws from the3.
bottom face and rotating the cover about the top edge.
Hang the Streamline on the wall bracket, and mark the position of the4.
xing hole (see gure 2)
Remove the Streamline from the bracket, drill the third xing hole, and t 5.
the third (smallest) xing plug.
Hang the Streamline on the wall bracket again and x securely with the 6.
third (smallest) xing screw provided.
3.4 PLUMBING
Plumb the Streamline direct to the cold water main using 15mm diameter1.
copper or plastic pipe. Water pressure should be no lower than 0.034MPa
(0.34bar) and no higher than 1.0MPa (10bar) (see gure 6 overleaf).
Fit the ow restrictor (supplied) in the incoming supply (see Figure 6 2.
overleaf).
The inlet connection of the Streamline Oversink is an internal 15mm push3.
t elbow. Fit the incoming supply pipe through the grommet (snapped to
the back plate) and in to the push t elbow. Ensure the grommet is re-
seated.
NOTE: It is recommended that a WRAS listed isolating valve (not supplied)
is tted in the cold water supply to the Streamline for servicing.
FIGURE 05 - FLOW RESTRICTOR
INLET
OUTLET

8
3.5 SPOUT ASSEMBLY
Fit the 1/2”BSP nut to the inner container boss.1.
Remove the spout clamp.2.
Fit the spout through the back plate and grommet.3.
Re-t the spout clamp (ensure the spout clamp ribs engage with the spout 4.
and hold it securely in place)
Tighten the 1/2” BSP nut.5.
Ensure the grommet is re-seated (snapped to the backplate)6.
Fit the spout front to the spout body (see gure 8 overleaf).7.
FIGURE 06 - PLUMBING DIAGRAM
INLET
WATER
HEATER
SERVICE
VALVE
FLOW
RESTRICTOR
WATER
SUPPLY
FIGURE 07: SPOUT
SPOUT
GROMMET
SPOUT CLAMP
BSP NUT
X2 SCREWS

9
3.6 ELECTRICAL
WARNING: THIS APPLIANCE MUST BE EARTHED. IT IS SUITABLE FOR
A.C. SUPPLY ONLY.
ELECTRICAL INSTALLATION MUST BE CARRIED OUT BYA COMPETENT
ELECTRICIAN AND BE IN ACCORDANCE WITH THE LATEST I.E.E. WIRING
REGULATIONS.
ENSURE THE ELECTRICAL SUPPLY IS SWITCHED OFF BEFORE MAKING
ANY CONNECTIONS TO THE STREAMLINE.
Connect the Streamline to a 230V or 240V a.c. earthed supply only.1.
A double pole isolating switch having a contact separation of at least 3mm2.
in each pole must be incorporated in the supply.
The Streamline must be tted with a 3 core 1.5mm3. 2 exible cable. The
cable must be tted through the cable gland and connections made to
the internal terminal block as follows:
BROWN or RED to terminal marked “L”
BLUE or BLACK to terminal marked “N”
GREEN/YELLOW or GREEN wire to terminal marked

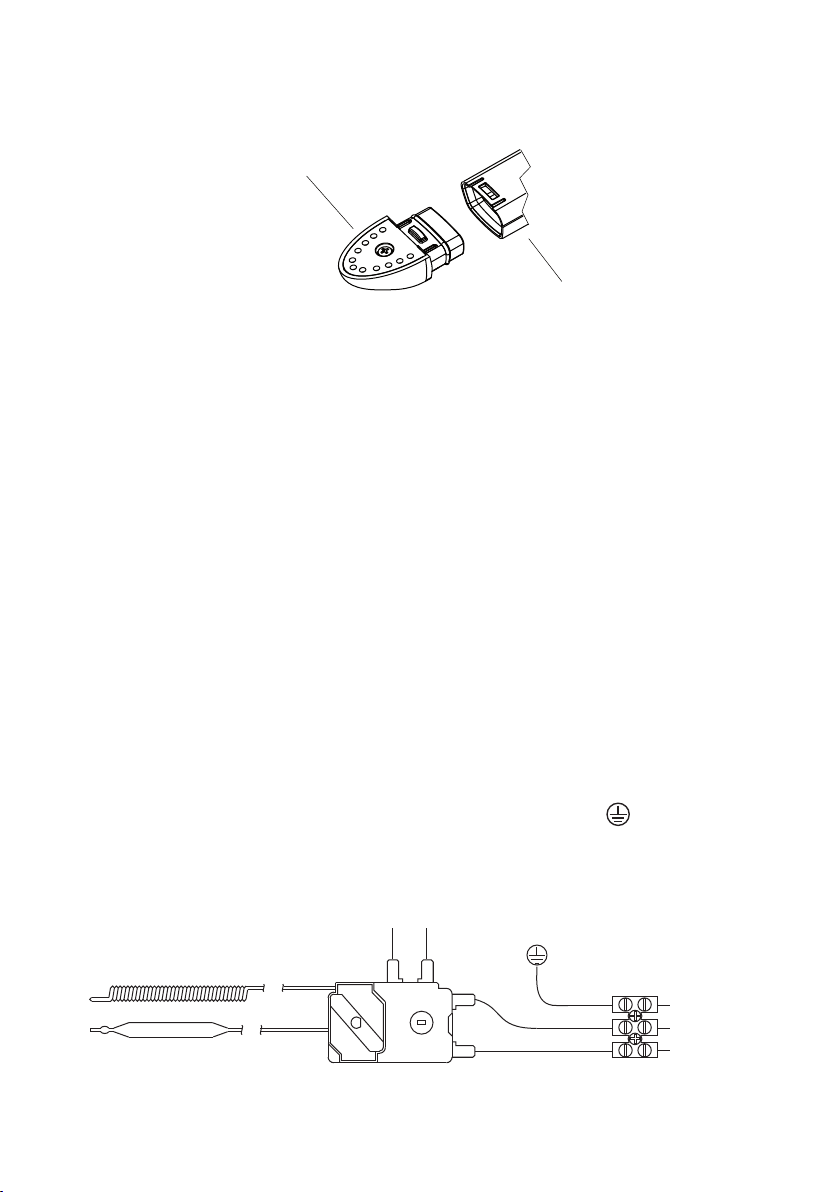

FIGURE 08: SPOUT FRONT
SPOUT FRONT
SPOUT BODY
GREEN&YELLOW
BROWN/RED
BLUE/BLACK
ELEMENT
EARTH POST
LIVE (RED)
NEUTRAL (BLACK)
CUT-OUT BULB
THERMOSTAT BULB
COMBINED THERMOSTAT
AND CUT OUT
TO ELEMENT
TERMINAL BLOCK
CUT OUT
RESET
A B
12
FIGURE 09 - WIRING DIAGRAM

10
4.0 COMMISSIONING
DO NOT SWITCH ON THE ELECTRICALSUPPLY UNTILTHE STREAMLINE
HAS BEEN FILLED WITH WATER AND CHECKED FOR LEAKS.
Check all water and electrical connections are tight.1.
Check that the thermostat and cutout capillaries are located correctly in2.
the element pockets.
Switch on the water supply and open the control valve. Fill the Streamline3.
and leave the water owing for a short while to ush out the pipework.
Close the control valve and check the system for leaks.4.
Ret the front cover and x2 securing screws.5.
Fit the thermostat knob (see gure 10).6.
Fit the control valve extension (see gure 11)7.
Fit the control valve knob (ensure the control knob is engaged with the8.
control valve extension and snaps to the front cover).
Set the temperature.9. The maximum setting is 70°C and the minimum is
5°C. Rotate the thermostat knob clockwise to increase the temperature,
and anticlockwise to decrease the temperature . Settings above 60°C
are recommended.
Switch the power on and check the water heats (see Table 1 for heat10.
up times).
Check the temperature and adjust if needed.11.
NOTE:
The thermostat can be locked in position to set the water temperature•
to 40°C.
Remove the locking screw from the inside of the front cover and ret it to •
the outside of the front cover (see gure 10).
Align the locking detail on the inside of the thermostat knob to the locking•
screw when tting the thermostat knob in place.
FIGURE 10 - THERMOSTAT KNOB
SPINDLE
SCREW DRIVER
RECESS
LOCKING
DETAIL
THERMOSTAT
KNOB
LOCKING SCREW

11
5.0 EXPLANATION TO USER
Following Installation and Commissioning of the water heater, the operation
should be fully explained to the user.
5.1 HOT WATER
Indicate the location of the water heater and identify the outlets to which1.
it is connected.
Explain how to adjust the temperature and conrm wether the temperature 2.
is locked or not.
Explain that the water in the Streamline will expand during heating causing3.
the tap to drip. This is normal and is not a fault with the Streamline.
5.2 SYSTEM MALFUNCTION
Explain how to isolate electrical and water supplies in case of a fault.1.
Explain that a qualied plumber and/or electrician should be contacted 2.
if there is a fault.
Explain how to identify/check basic faults.3.
5.3 SYSTEM MAINTENANCE
Explain the necessity to carry out regular maintenance of the water heater
to ensure its continued safe and efcient operation.
5.4 LITERATURE
Hand over the Fitting Instructions to the user.

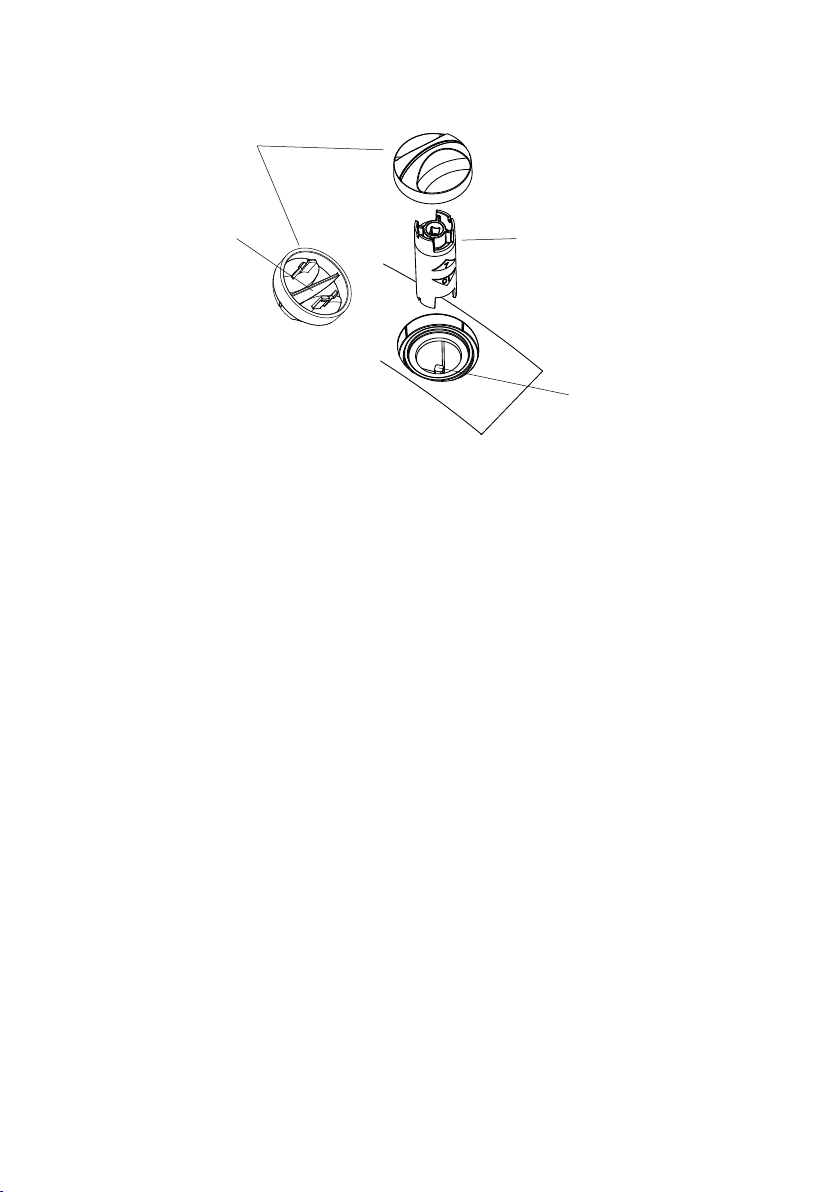

FIGURE 11: CONTROL KNOB ASSEMBLY
BRASS SPINDLE
CONTROL KNOB
EXTENSION
INTERNAL RIB

12
6.0 MAINTENANCE
WARNING: DISCONNECT FROM ALL ELECTRICAL SUPPLIES BEFORE
BEGINNING ANY WORK ON THE STREAMLINE. WATER CONTAINED IN
THE WATER HEATER MAY BE VERY HOT!
To ensure the continued safe and efcient operation of the Streamline, it
should be regularly maintained.
Maintenance should be carried out by a competent person and any
replacement parts used should be Heatrae Sadia ‘Streamline’ spare parts.
Little maintenance is required, however in hard water areas the Streamline
may require periodic descaling to ensure efcient operation.
6.1 DRAIN THE STREAMLINE
Ensure the water and power supplies to the Streamline are switched off1.
and the water is cold.
Remove the thermostat knob (use a medium sized at bladed screwdriver 2.
to carefully prise the thermostat knob from the front cover).
Remove the front cover (see section 3.3.3).3.
Disconnect the wires from the Element Plate Assembly (EPA).4.
Remove the capillary cut out and thermostat bulbs from the EPA.5.
Remove the front insulation.6.
Use a 5mm allen key to rotate the drain plug in an anti clockwise direction7.
through 180 degrees.
Use a medium sized at bladed screw driver to carefully prise the drain 8.
plug from the inner container.

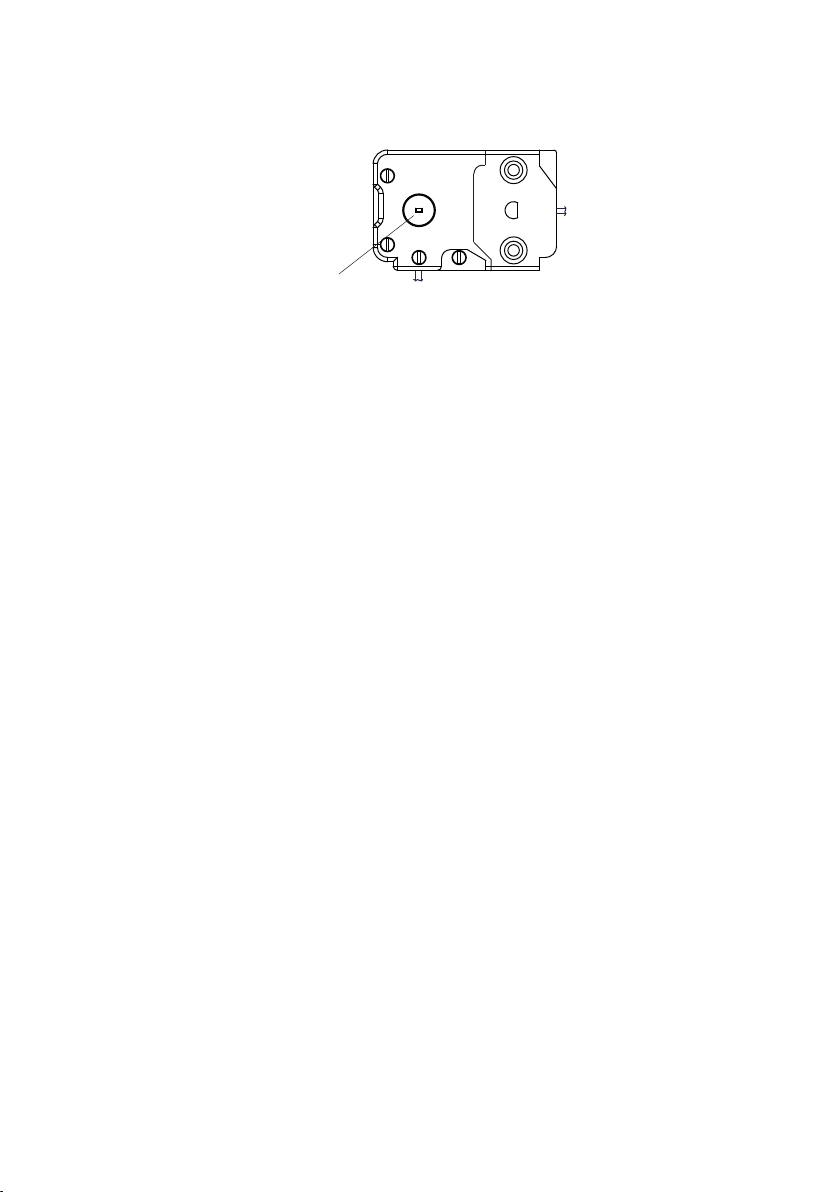

FIGURE 12 - DRAIN PLUG
DRAIN PLUG
OPEN
CLOSED
SCREW DRIVER RECESS

13

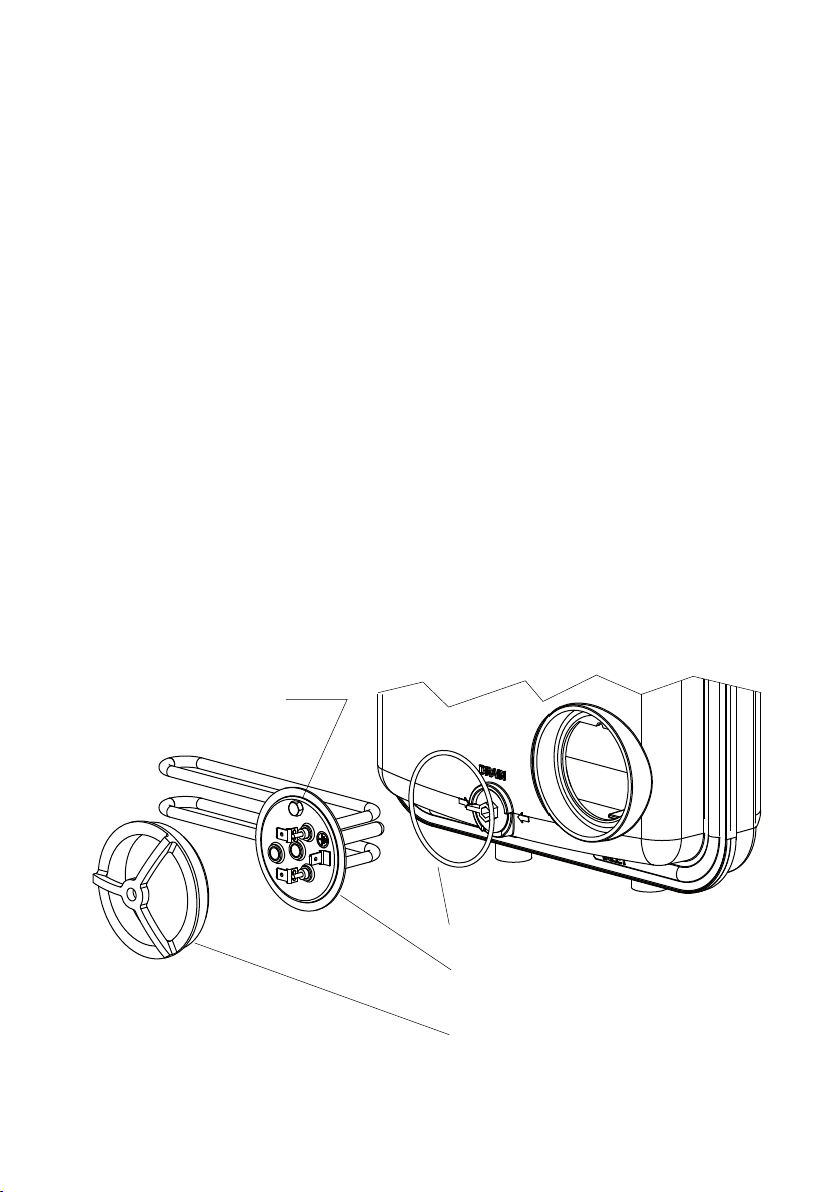

6.2 DESCALE THE STREAMLINE
Drain the Streamline (see section 6.1).1.
Undo the locknut (rotate the locknut anticlockwise until it is clear of the2.
inner container)
Remove the Element Plate Assembly (EPA) and gasket.3.
Remove scale from the element and the inner container.4.
Renew the gasket.5.
Ret to EPA and locknut to the inner container (ensure the EPA is aligned 6.
correctly. The element should be horizontal. A location pin is included in
the EPA to ensure correct alignment).
Ret the locknut (rotate the locknut clockwise until the EPA is held 7.
securely in place). NOTE: When tight, one of the locknut spokes should
be at ‘9 O’ Clock’ and central to the live and neutral connections.
Ret the drain plug (push the drain plug fully into the inner container and 8.
rotate clockwise 180 degrees using a 5mm allen key).
Ret the insulation.9.
Ret the wires and capillary bulbs (ensure the wires are re seated in the 10.
insulation tracks and the capillary cut out and thermostat bulbs are fully
pushed home).
Recommission the Streamline (see section 4).11.
FIGURE 13 - ELEMENT PLATE ASSEMBLY
LOCKNUT
GASKET
ELEMENT PLATE ASSMBLY
LOCATION PIN

14
7.0 FAULT FINDING
WARNING: DISCONNECT FROM ALL ELECTRICAL SUPPLIES BEFORE
BEGINNING ANY WORK ON THE WATER HEATER. WATER CONTAINED
IN THE WATER HEATER MAY BE VERY HOT!
The Streamline should give trouble free operation, however should a problem
occur, the table below should enable most faults to be identied with ease.
Fault Finding should be carried out by a competent person and any
replacement parts used should be authorised Heatrea Sadia spare parts.
TABLE 02: FAULT FINDING
SYMPTOM PROBABLE CAUSE ACTION
No water Mains water not turned
on.
Check supply and turn
on.
Insufcient mains
pressure.
Check supply.
Blockage in tap. Clean tap
No hot water No water in heater. Fill water heater.
Cut out has operated. Reset cut out.
Faulty thermostat. Replace thermostat.
Faulty element. Replace element.
Water is too hot Thermostat is set too
high.
Adjust thermostat.
Faulty thermostat. Replace thermostat.
NOTE: THE WATER IN THE STREAMLINE WILL EXPAND DURING HEATING
CAUSING THE TAP TO DRIP. THIS IS NORMALAND IS NOT A FAULT WITH
THE STREAMLINE.
7.1 CUT OUT RESET
Disconnect the electrical supply.1.
Remove the front cover (see section 3).2.
Depress the red button (see gure 14).3.
Recommission the Streamline (see section 4).4.
If the cut out continues to operate contact the Heatrae Sadia Service5.
Team.

15
8.0 SPARE PARTS
The following comprehensive list of spare parts is available for your Streamline
water heater.
Please refer to the rating label bottom face of the Streamline before ordering
to ensure the correct spare part is obtained.
DO NOT REPLACE WITH PARTS NOT RECOMMENDED BY HEATRAE
SADIA. THIS WILL INVALIDATE YOUR GUARANTEE AND MAY RENDER
THE INSTALLATION DANGEROUS.
1 1kW Element Plate (with O ring) 95606917
2 3kW Element Plate (with O ring) 95606918
3 EPA O Ring (pack of 10) 95611018
4 EPA Locknut 95607617
5 7 Litre Inner Container 95608028
6 10 Litre Inner Container 95608029
7 Drain Plug (with O ring) 95608929
8 Drain Plug O Ring (pack of 10) 95611017
9 Thermostat 95612647
10 Control Valve Assembly 95607618
11 Pusht Elbow 95607510
12 Spout Assembly 95604011
13 Spout Washer (pack of 10) 95611019
14 Spout O Ring (pack of 10) 95611020
15 7 Litre Front Cover (Oversink) 95614301
16 10 Litre Front Cover (Oversink) 95614303
17 Thermostat Knob 95605091
18 Control Valve Knob (with extension) 95605092
19 7 Litre Insulation Set 95607330
20 10 Litre Insulation Set 95607331
21 M4x6 Screws (pack of 10) 95607620
FIGURE 14 - OVER TEMPERATURE CUT OUT
RESET

16
FIGURE 15: SPARE PARTS
9
10
11
12 5
3
1
4
18
7
19
15
17

17
9.0 GUARANTEE
This Streamline water heater is guaranteed for a period of two years from the
date of purchase provided:
The Streamline has been installed in accordance with these instructions1.
and all necessary inlet, vent and electrical connections have been tted
correctly.
Any valves or controls are of Heatrae Sadia recommended type.2.
The Streamline has not been tampered with and has been regularly3.
maintained.
The Streamline has been used only for heating potable water.4.
The Streamline is not guaranteed against damage by frost or due to the build
up of scale.
Please note that if Heatrae Sadia personnel or agents are requested to descale
the Streamline, this work will be chargeable.
This guarantee does not affect the statutory rights of the consumer.
10.0 ENVIRONMENTAL INFORMATION
This product is manufactured from many recyclable materials. At the end of
its useful life it should be disposed of at a Local Authority Recycling Centre.

18
11.0 COMMISSIONING RECORD
Installation Date:____________________________________________
Model and Serial Number: __________________________________
Installer (Plumbing): ________________________________________
Contact Details: ____________________________________________
Competency Scheme & ID Number: _________________________
Installer (Electrical): ________________________________________
Contact Details: ____________________________________________
Competency Scheme & ID Number: _________________________
Comments: ________________________________________________
________________________________________________
________________________________________________
Mains supply pressure and ow rate
Isolation valve tted
Flow reducer tted
Pipework checked for leaks
Pipework bonded
Electrical connections checked
Thermostat locked
Thermostat setting
Water Temperature

19
12.0 SERVICE RECORD
Service Date:_______________________________________________
Engineer: __________________________________________________
Contact Details: ____________________________________________
Competency Scheme & ID Number: _________________________
Comments: ________________________________________________
________________________________________________
________________________________________________
Service Date:_______________________________________________
Engineer: __________________________________________________
Contact Details: ____________________________________________
Competency Scheme & ID Number: _________________________
Comments: ________________________________________________
________________________________________________
________________________________________________
Service Date:_______________________________________________
Engineer: __________________________________________________
Contact Details: ____________________________________________
Competency Scheme & ID Number: _________________________
Comments: ________________________________________________
________________________________________________
________________________________________________
Service Date:_______________________________________________
Engineer: __________________________________________________
Contact Details: ____________________________________________
Competency Scheme & ID Number: _________________________
Comments: ________________________________________________
________________________________________________
________________________________________________

13.0 SPARES STOCKISTS
For the fast and efcient supply of spares please contact the stockists listed below.
Advanced Water Company Ltd.
Unit D5 Enterprise way
Vale park, Evesham
Worcs, WR11 1GS
Tel: [phone]
Fax: [phone]
Electric Water Heating Co.
2 Horsecroft Place, Pinnacles
Harlow, Essex, CM19 5BT
Tel: [phone]
E-Mail: [email protected]
SPD
Units 9 & 10 Hexagon Business Centre
Springeld Road, Hayes
Middlesex, UB40 0TY
Tel: [phone]
Parts Center
Tel: [phone]
www.partscenter.co.uk
Newey & Eyre
Specialist Products Division
Please contact your local branch
UK Spares Ltd.
Tower Lane, Warmley
Bristol, BS30 8XT
Tel: [phone]
William Wilson Ltd.
Unit 3A, 780 South Street
Whiteinch, Glasgow, G14 OSY
Tel: [phone]
36005997 issue 01
Heatrae Sadia Heating
Hurricane Way Norwich NR6 6EA
www.heatraesadia.com
Service: 0844 8711535
Service Fax: [phone]
E-mail: heatraesadiaservice
@heateam.co.uk
