Heatrae Sadia SUPREME 140 Instruction Manual

1
SUPREME 140, 155, 170
Fitting Instructions and User Guide
FULL
HALF FULL
TEMPERATURE
READY
ON
11991 36005826 XPRESS 8/8/03 7:37 AM Page 1 (Black plate)

2
Please read and understand these instructions prior to installing
your Supreme water heater. Particular attention should be paid
to the section headed IMPORTANT INSTALLATION POINTS.
ollowing installation and commissioning, the operation of the
heater should be explained to the customer and these
instructions left with them for future reference.
TEC NICAL SPECIFICATIONS
Electrical rating 2.3 / 2.5 kW 230/240V
Nominal capacities Model 140 2.5 litres
Model 155 5.0 litres
Model 170 7.5 litres
Weight (full) Model 140 8.4 kg
Model 155 11.8 kg
Model 170 15.4 kg
Rated pressure 0 bar
Minimum supply pressure 0.5 bar (7 p.s.i.)
Maximum supply pressure 10 bar (145 p.s.i.)
Nominal commissioning times (minutes)
full temperature ready
Supreme 140 13 20
Supreme 155 23 36
Supreme 170 33 52
COMPONENT C ECKLIST
Before commencing installation check that all the following
components have been supplied with your Supreme heater.
• Wall mounting bracket
• No.12 x 2” screws (2 off)
• No.8 x 1” screw (1 off)
• No.12 x 2” Rawlplug (2 off)
• No.8 x 1” Rawlplug (1 off)
• 15mm x 15mm straight push-fit connector
• 15mm x 15mm 90° elbow push fit connector
A template to aid in positioning the heater is printed on the packaging.
2.3 - 2.5kW 230 - 240V
11991 36005826 XPRESS 8/8/03 7:37 AM Page 2 (Black plate)

3
1.0 IMPORTANT INSTALLATION
POINTS
1.1 The Supreme stores and dispenses water at or close to boiling
point at all times it is switched on. Due caution must be taken
when choosing a location for the product to minimise misuse.
Locate the unit over the draining board NOT over the sink or
basin.
1.2 The Supreme is a vented water heater. The vent pipe must never
be blocked or obstructed. The vent pipe must be a minimum of
15mm outside diameter pipe. Where the vent pipe length
exceeds 3m the pipe diameter should be increased. The vent
pipe must be laid to a continuous fall and discharge in a safe,
visible position. The vent pipe material must be capable of
conveying boiling water. The vent pipe must never be connected
directly to a soil pipe.
1.3 Wherever possible the Supreme should be supplied directly from
a rising main. If fed from a cold water feed cistern, the cistern
must comply with the Water Supply (Water Fittings) Regulations
1999, Schedule 2, Section 7 , Paragraph 16.
It should be noted that water quality may be reduced when
supplied from a cistern and additional forms of water
pretreatment may be found to be necessary.
VENT PIPE
SOLENOID
VALVE
CABLE
CLAMP
TERMINAL
BLOCK
INDICATOR
BOARD
PRIMARY
CUTOUT
ELEMENT
ASSY
ELECTRONIC
CONTROL
OUTLET
SPOUT
TAP
ANDLE
STEAM
T ERMISTOR
CONTROL
T ERMISTOR
LEVEL
SENSORS
TAP
BEZEL
Fig. 1
11991 36005826 XPRESS 8/8/03 7:37 AM Page 3 (Black plate)

4
2.0 INSTALLATION - MOUNTING
2.1 The Supreme should be vertically wall mounted using the bracket
supplied. Special precautions may be required for the protection
of children, aged or infirm persons.
2.2 Fig.2 details the outside dimensions of the Supreme unit. A
template is also supplied printed on the packaging to aid
positioning the heater. It is recommended that the unit is
positioned above a draining board, if this is not possible
consideration should be given to any spillages that may occur
under the heater. A drip tray is available as an accessory ( eatrae
Sadia Code No. 95.970.123). The heater should be positioned at
such a level that suitable tea, coffee, etc. making utensils can be
placed under the outlet spout (approximately 250mm above the
work surface is suggested).
2.3 Sufficient room should be left around the heater for access for
maintenance and servicing. Do not block the air flow louvres at
the top and bottom of the backplate as this will restrict the cooling
air flow through the unit.
2.4 Ensure that the wall can support the full weight of the unit (see
TEC NICAL SPECIFICATIONS) and that there are no hidden
services (electricity, gas or water) below the surface of the wall.
2.5 Mark the fixing positions and water, vent and electrical supply entry
points. Drill and plug the fixing positions. Fix the mounting
bracket to the wall using the two No.12 x 2” screws provided.
2.6 If rear entry services are to be used the necessary holes for these
should be prepared prior to hanging the unit onto its bracket.
2.7 Remove the front cover by unscrewing the cover fixing screws (two
at top, one at bottom on 140 model, two at bottom on 155 / 170
models) and pulling forwards. ang the Supreme onto the wall
mounting bracket. Secure using the No.8 x 1” long screw
provided.
of children or infirm persons.The appliance is not intended for
use by young children or infirm persons without supervision.
Young children should be supervised to ensure that they do not
play with the appliance.
2.2 Fig.2 details the outside dimensions of the Supreme unit. A
template is also supplied printed on the packaging to aid
positioning the heater. It is recommended that the unit is
positioned above a draining board, if this is not possible
consideration should be given to any spillages that may occur
under the heater. A drip tray is available as an accessory ( eatrae
Sadia Code No. 95.970.123). The heater should be positioned at
such a level that suitable tea, coffee, etc. making utensils can be
placed under the outlet spout (approximately 250mm above the
work surface is suggested).
2.3 Sufficient room should be left around the heater for access for
maintenance and servicing. Do not block the air flow louvres at
the top and bottom of the backplate as this will restrict the cooling
air flow through the unit.
2.4 Ensure that the wall can support the full weight of the unit (see
TEC NICAL SPECIFICATIONS) and that there are no hidden
services (electricity, gas or water) below the surface of the wall.
2.5 Mark the fixing positions and water, vent and electrical supply entry
points. Drill and plug the fixing positions. Fix the mounting
bracket to the wall using the two No.12 x 2” screws provided.
2.6 If rear entry services are to be used the necessary holes for these
should be prepared prior to hanging the unit onto its bracket.
2.7 Remove the front cover by unscrewing the cover fixing screws (two
at top, one at bottom on 140 model, two at bottom on 155 / 170
models) and pulling forwards. ang the Supreme onto the wall
mounting bracket. Secure using the No.8 x 1” long screw
provided.
11991 36005826 XPRESS 8/8/03 7:37 AM Page 4 (Black plate)

5
MODEL DIMENSION (mm)
ABCDEFG
INLET VENT INLET/
VENT OUTLET CABLE
ENTRY
140 443 290 195 85 115 101 152 40
155 510 335 205 103 133 101 163 72
170 510 335 270 103 133 101 225 72
250
approx
Fig.2
MODEL DIMENSION (mm)
ABCDEFGH
INLET VENT INLET/ OUTLET CABLE
VENT ENTRY
140 443 290 195 85 115 101 152 40
155 510 335 205 103 133 101 163 72
170 510 335 270 103 133 101 225 72
11991 36005826 XPRESS 8/8/03 7:37 AM Page 5 (Black plate)

6
3.0 INSTALLATION - WATER SUPPLY
3.1 Select the appropriate push fit connector for the chosen entry
position:
Bottom entry water - 15mm x 15mm 90° elbow.
Rear entry water - 15mm x 15mm straight.
3.2 Push the connector fully home (28mm engagement) onto the
solenoid valve inlet spigot. To remove a push fit connector the
grey collar should be pushed towards the body of the fitting whilst
pulling the connector off the pipe.
3.3 Connect the inlet pipe to the push fit connector ensuring it is fully
pushed home (28mm engagement). After connection DO NOT
make soldered joints in the pipework close to the heater, as the
heat may damage the connector or the water heater itself.
3.4 A WRAS listed isolating valve should be fitted to the cold supply to
facilitate servicing the heater.
3.5 Push fit connectors are supplied to allow either bottom or rear entry
of services. If a combination of entry points are required an
additional connector will be required as follows:
Bottom inlet, rear vent John Guest 15mm x 15mm elbow
( eatrae Sadia part no. 95 607 510)
Rear inlet, bottom vent John Guest 15mm x 15mm straight
( eatrae Sadia part no. 95 607 509)
4.0 INSTALLATION - VENT PIPE
4.1 Select the appropriate push fit connector for the entry position
chosen:
Bottom entry vent - 15mm x 15mm straight
Rear entry vent - 15mm x 15mm 90° elbow
4.2 Push the connector fully home (28mm engagement) onto the vent
pipe connection.
4.3 Connect the vent pipe to the push fit connector ensuring it is
pushed fully home (28mm engagement). Refer to the vent pipe
requirements detailed in IMPORTANT INSTALLATION POINTS. If
a bottom entry vent pipe is used the pipe must terminate below the
unit, in a safe visible position. After connection DO NOT make
soldered joints in the pipework close to the heater, as the heat may
damage the connector or the water heater itself.
11991 36005826 XPRESS 8/8/03 7:37 AM Page 6 (Black plate)

7
5.0 INSTALLATION - ELECTRICAL
REQUIREMENTS
WARNING: This appliance must be earthed. It is suitable for a.c
supply only. Disconnect the electrical supply before removing
the cover. Installation must be in accordance with the current
local Wiring Regulations.
5.1 A double pole isolating switch, with a contact separation of at least
3mm in both poles, should be incorporated in the electrical supply.
The supply should be fused 13 Amp.
5.2 The nominal cross sectional area of the supply cable should be
1.5mm2 minimum.
5.3 If using bottom cable entry, the thinned section in the backplate
should be removed using a pair of pliers. Any sharp edges should
be smoothed with a file. The outer sheath of the cable must be
secured using the cable clamp provided. It is not necessary to
clamp a rear cable entry.
5.4 Connect the cable to the terminal block as follows:
BROWN or RED wire to terminal marked L.
BLUE or BLACK wire to terminal marked N.
GREEN/YELLOW or GREEN wire to terminal marked
If using “Twin and Earth” cable the bare earth wire must be
sleeved.
5.5 If the Supreme is to be unused for significant periods of time (e.g.
overnight or at weekends) running costs can be reduced by
switching the unit off. It is recommended that this is done
automatically by incorporating a suitable timeswitch in the supply
to the unit. The use of eatrae Sadia accessory no. 95.970.124 is
recommended. The timeswitch can then be set to switch the unit
on for a suitable period to allow it to heat up before it is next to be
used. NOTE: The timeswitch must be capable of switching
13 Amps resistive load.
11991 36005826 XPRESS 8/8/03 7:37 AM Page 7 (Black plate)

8
6.0 COMMISSIONING
6.1 The electronic control system of the Supreme has a self
commissioning and calibration function. Once the heater is
installed and all services have been connected the unit should
require no further adjustment before use.
6.2 Check that all electrical, water and vent pipe connections have
been made and are secure.
6.3 Replace the front cover and secure with the fixing screws. Turn on
water and electrical supply.
6.4 The ON indicator will flash to indicate the unit is in its “self-
commissioning” mode. After a while the ALF FULL indicator will
illuminate to indicate the unit is half full of water. After a further
period the FULL indicator will illuminate to indicate the unit is full of
water. The water in the unit will not be hot enough to use at this
stage.
6.5 The ON indicator will continue to flash until the unit has reached
boiling and has “self-calibrated”. At this point the TEMPERATURE
READY indicator will illuminate and the ON indicator will stop
flashing and remain illuminated.
6.6 The unit is now ready to use, however, it is recommended that the
first few fills be drawn off and discarded to ensure the freshness of
the water.

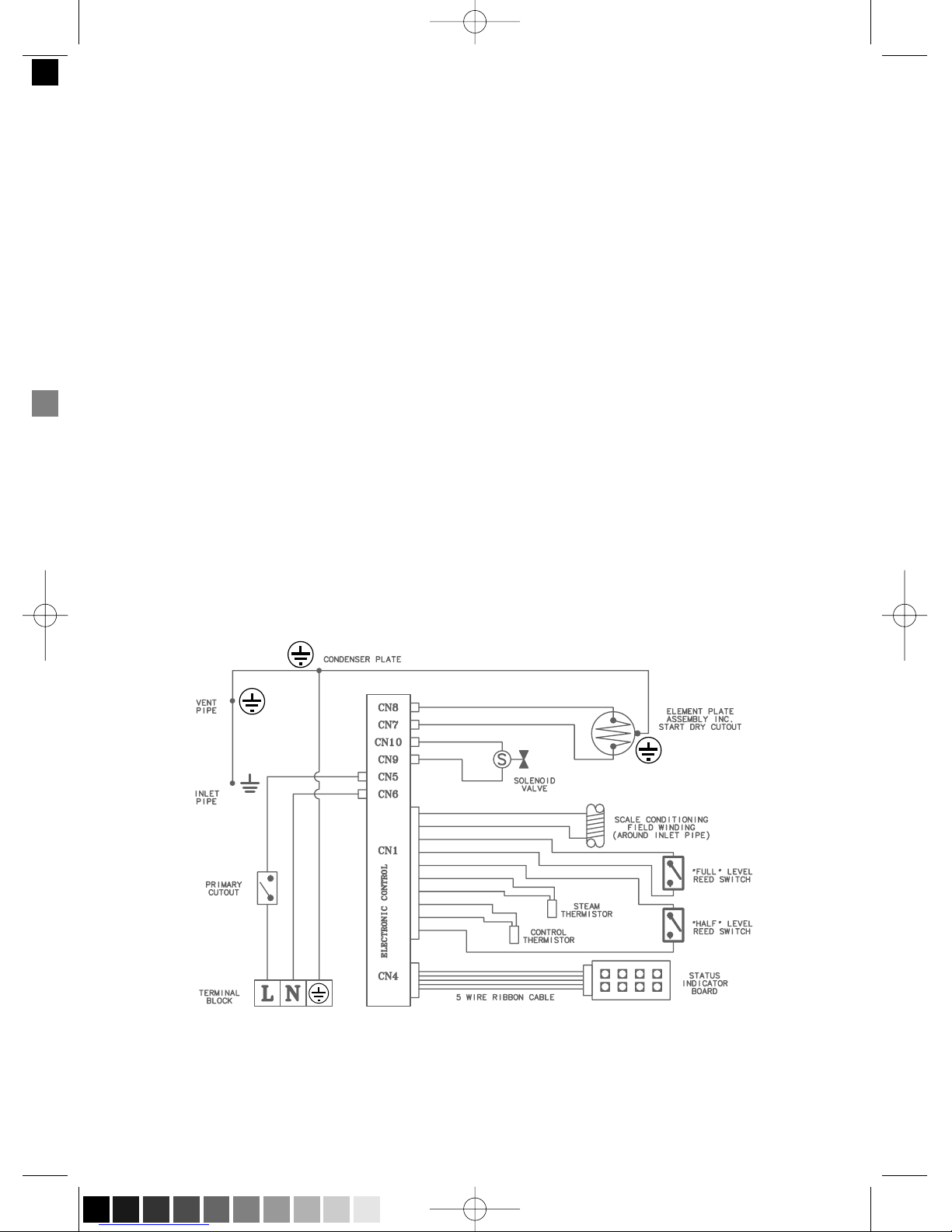

Fig. 3
11991 36005826 XPRESS 8/8/03 7:37 AM Page 8 (Black plate)

9
7.0 MAINTENANCE
NOTE: It is recommended that any maintenance be carried out by
competent persons. Disconnect the electrical supply before
removing the cover.
Maintenance instructions are available from the eatrae Sadia Service
Department. Telephone [phone] , Fax [phone]
7.1 The electronic control system of the Supreme has a self-diagnostic
feature which determines if the unit is operating satisfactorily. If it
is not operating correctly the nature of the fault is ascertained and
a fault mode is indicated.
7.2 If steam or boiling water discharges from the vent pipe the
Supreme will switch off. Other critical faults are indicated by the
indicators flashing. The cause of the fault will be indicated by
which is flashing (see Section 8.0 FAULT FINDING). A critical fault
would render the unit unsafe to use and so will deactivate both the
element and solenoid valve.
7.3 The Supreme incorporates an electronic scale conditioning
function which will reduce the rate of scale deposition in hard
water areas. owever, in extreme circumstances some deposits
may still occur in the storage tank, these should be periodically
removed.
Supreme Maintenance Plan
eatrae Sadia are pleased to offer a preventative maintenance
program to ensure that your product will continue to operate to your
satisfaction in even the most troublesome of water conditions.
The service provided includes an inspection, descale and functional
test, scheduled to meet your requirements. All work under the plan
will be carried out by one of our authorised service engineers, who are
fully trained, regularly audited and carry a complete stock of spare
parts. This plan is in addition to the manufacturer’s warranty and does
not cover the cost of materials associated with any out of warranty
component repairs.
For further information on the Maintenance Plan please contact our
Service Department. Telephone [phone], Fax [phone].
11991 36005826 XPRESS 8/8/03 7:37 AM Page 9 (Black plate)

10
8.0 FAULT FINDING
SA ETY NOTE: DISCONNECT THE ELECTRICAL SUPPLY
BE ORE REMOVING THE COVER AND CARRYING OUT ANY O
THE OLLOWING ACTIONS. DO NOT BYPASS ANY SA ETY
CONTROLS.
SYMPTOM POSSIBLE CAUSE ACTION
No indicator
lights
1. If no water or heat - no
power to unit.
2. If hot water available - no
power to indicator board.
1. Check power supply is
correctly connected and
switched on and that
primary cutout has not
operated.
2. Check connections to
indicator board.
Unit does not fill
on
commissioning
1. If "ON" indicator does not
flash - no power to unit.
2. If "ON" indicator flashes -
water supply not turned on.
3. Solenoid valve fault.
1. Check electrical supply to
unit and that primary cutout
has not operated.
2. Check water supply.
3. Check operation of
solenoid valve, replace if
necessary.
Unit does not
heat on
commissioning
1. If "ON" indicator does not
flash - no power to unit.
2. If "ON" indicator flashes -
check water is on, if not
start dry cut-out may have
operated.
3. Element fault.
1. Check electrical supply to
unit and that primary cutout
has not operated.
2. Turn on water supply -
allow unit to cool, start dry
cutout will automatically
reset.
3. Check element continuity.
If faulty replace.
Unit does not fill
after
commissioning
1. Level switch fault.
2. Solenoid valve fault.
3. Electronic control fault.
1. Check operation of level
switches.
2. Check operation of
solenoid valve, replace if
necessary.
3. Check conections to
electronic control. Replace
if necessary.
11991 36005826 XPRESS 8/8/03 7:37 AM Page 10 (Black plate)

11
SYMPTOM POSSIBLE CAUSE ACTION
Unit does not
heat after
commissioning.
1. Electronic control fault
2. Element fault.
1. Check connections to
electronic control. Replace
if necessary.
2. Check element continuity.
Replace if faulty.
Water flows from
vent and primary
cutout activates.
1. Level switch fault.
2. Solenoid valve fault.
3. Electronic control fault.
1. Check operation of level
switches.
2. Check operation of
solenoid valve, replace if
necessary.
3. Check connections to
electronic control. Replace
if necessary.
Steam from vent
pipe and primary
cutout operates.
1. Control thermistor fault.
2. Electronic control fault.
3. Scale build up.
1. Check continuity of
thermistor.
2. Check connections to
electronic control. Replace
if necessary.
3. Descale unit.
Drips from outlet 1. Incorrect spring tension.
2. Scale / debris under tap
seal.
3. Damaged tap seal.
4. Scale on tap outlet spout.
1. Ensure tap bezel is tight.
2. Remove and clean as
necessary.
3. Replace tap seal.
4. Remove tap outlet spout,
clean and replace.
Water "runs on"
when tap
released.
1. Scale on tap outlet spout.
2. Tap outlet spout not
correctly fitted.
1. Remove tap outlet spout,
clean and replace.
2. Ensure tap outlet spout is
pushed fully home onto tap
outlet spigot.
Stale taste to
water
Unit left unused for several
days.
Empty and allow to refill
before use
Any faults that cannot be identified using the Fault Finding chart, or in
case of doubt, contact the eatrae Sadia Service Department,
telephone [phone], fax [phone].
11991 36005826 XPRESS 8/8/03 7:37 AM Page 11 (Black plate)

12
9.0 SPARE PARTS
The following comprehensive list of spare parts is available for your
Supreme water heater. Please refer to the rating label on the top of
the backplate of your heater before ordering to ensure the correct
spare parts are obtained.
DO NOT REPLACE WITH PARTS NOT RECOMMENDED BY
HEATRAE SADIA - THIS WILL INVALIDATE YOUR GUARANTEE
AND MAY RENDER THE INSTALLATION DANGEROUS.
Element assembly 95 606 952
(incorporating start dry cutout)
Element assembly sealing gasket 95 611 816
Start dry cutout (element) 95 612 691
Solenoid valve assembly 95 605 877
Solenoid valve coil 95 605 839
Level sensor 95 612 692
Electronics assembly 95 615 043
Indicator board 95 615 039
Primary cutout 95 612 693
Wiring harness (complete) 95 612 694
Wiring harness (low voltage inc. thermistors) 95 612 695
Wiring harness (electronic control to 95 612 636
indicator board)
Thermistor control 95 612 696
Thermistor steam 95 612 690
Outlet tap headwork 95 605 834
Outlet tap stem 95 605 832
Outlet tap cup seal 95 611 731
Outlet spout plastic - tank 95 604 668
Outlet spout - cover 95 604 665
Front cover assembly (140 model) 95 614 247
Front cover assembly (155 model) 95 614 249
Front cover assembly (170 model) 95 614 250
Fascia 95 614 248
Tank (140 model) 95 608 926
Tank (155 model) 95 608 927
Tank (170 model) 95 608 928
11991 36005826 XPRESS 8/8/03 7:37 AM Page 12 (Black plate)

13
Steam condenser assembly (140 model) 95 607 574
Steam condenser assembly (155 model) 95 607 575
Steam condenser assembly (170 model) 95 607 576
Steam condenser sealing gasket (140 model) 95 611 817
Steam condenser sealing gasket (155 model) 95 611 819
Steam condenser sealing gasket (170 model) 95 611 820
‘O’ ring kit 95 611 818
Push fit connector 15mm x 15mm straight 95 607 509
Push fit connector 15mm x 15mm elbow 95 607 510
Float 95 607 577
Manifold (140 model) 95 607 578
Manifold (155 model) 95 607 579
Manifold (170 model) 95 607 580
Fig. 4
Tank Drain and Seal 95 608 929
11991 36005826 XPRESS 8/8/03 7:37 AM Page 13 (Black plate)

14
10.0 USER INSTRUCTIONS
10.1 Once installed the filling and heating cycles of the Supreme are
completely automatic.
10.2 To dispense the water the tap handle should be pulled down and
towards the user, a suitable container having been placed under
the outlet spout. The water dispensed will at all times be boiling or
close to boiling point so due caution must be taken when using the
product, especially if it is likely to be used by children, aged or
infirm persons.
10.3 The tap handle is spring loaded so that when released it will
spring back to the “off” position (no flow).
10.4 The Supreme is fitted with four indicators to give a visual
indication of the units status.
ON Will be illuminated as long as the
electrical supply to the Supreme is
switched on.
TEMPERATURE READY When illuminated indicates that the
stored water is hot enough to use.
ALF FULL When illuminated indicates that the
unit is at least half full.
FULL When illuminated indicates that the
unit is at its full capacity.
In addition to the above the indicators will alert the user to a fault
condition on the unit as follows (refer to the Fault Finding chart for
possible causes):
ON light flashes. Unit has not filled within a programmed time
limit.
TEMPERATURE READY light flashes. A temperature control fault
has occurred.
ALF FULL light flashes. alf full level sensor malfunction.
FULL light flashes. Full level sensor malfunction.
The above faults may be critical to the safe operation of the unit,
so the electronic unit will deactivate the element and solenoid
valve. The nature of the fault should be ascertained and rectified
before further use.
11991 36005826 XPRESS 8/8/03 7:37 AM Page 14 (Black plate)

15
10.5 If the store of hot water is completely withdrawn, the flowrate from
the outlet tap will reduce to the filling rate of the heater. This slow
flowrate allows the incoming water to be instantly reheated, it does
not indicate a fault with the water heater.
10.6 If the Supreme is not used for a few days the water may become
“stale”. In these instances it is advisable to draw off the contents
and discard the water at least twice to remove the “stale” water.
This will ensure that “freshly” boiled water is used to make your
drinks etc.
10.7 Similarly, if left unused it is possible that some scale residue will
collect in the outlet tap. This will cause the outlet water to appear
“milky” for a short while. If this condition occurs it is recommended
that the first few cups are drawn off and discarded.
GUARANTEE
This Supreme water heater is guaranteed for a period of two years
from the date of purchase provided:
1. The unit has been installed in accordance with these instructions
and all necessary inlet, vent and electrical connections have been
fitted correctly.
2. Any valves or controls are of eatrae Sadia recommended type.
3. The unit has not been tampered with and has been regularly
maintained as detailed in the maintenance instructions.
4. The unit has been used only for heating potable water.
The unit is not guaranteed against damage by frost or due to the build
up of scale. Please note that if eatrae Sadia personnel or agents are
requested to descale a unit, this work will be chargeable.
This guarantee does not affect the statutory rights of the consumer.
ENVIRONMENTAL INFORMATION
This product is manufactured from many recyclable materials. At the
end of its useful life it should be disposed of at a Local Authority
Recycling Centre.
11991 36005826 XPRESS 8/8/03 7:37 AM Page 15 (Black plate)

16
36 00 5826
Issue 1
Spares Stockists
For the fast and efficient supply of spares please contact the stockists
listed below.
Electric Water eating Co.
519 Barking Road, East am, London E6 2LN
Tel: [phone]
E-mail: [email protected]
Eyre & Elliston
Unit 12, Spitfire Way, Airlinks Industrial Estate
eston, Middlesex TW5 9NR
Tel: [phone]
eating Replacement Parts & Controls
PO Box 48, Tomlinson Road, Leyland, Preston, Lancashire PR5 1JX
Tel: [phone]
www.hrpc.co.uk
Newey & Eyre Specialists Products Division
Please contact your local branch
UK Spares Ltd.
Tower Lane, Warmley, Bristol BS30 8XT
Tel: [phone]
William Wilson Ltd.
94 Kinning Street, Glasgow G5 8LW
Tel: [phone]
eatrae Sadia eating Limited
urricane Way Norwich NR6 6EA
www.heatraesadia.com
Main No: 01603 420100
Main Fax: [phone]
Sales: 01603 420110
Sales Fax: [phone]
Service: 01603 420330
Service Fax: [phone]
Issue 2
11991 36005826 XPRESS 8/8/03 7:37 AM Page 16 (Black plate)
