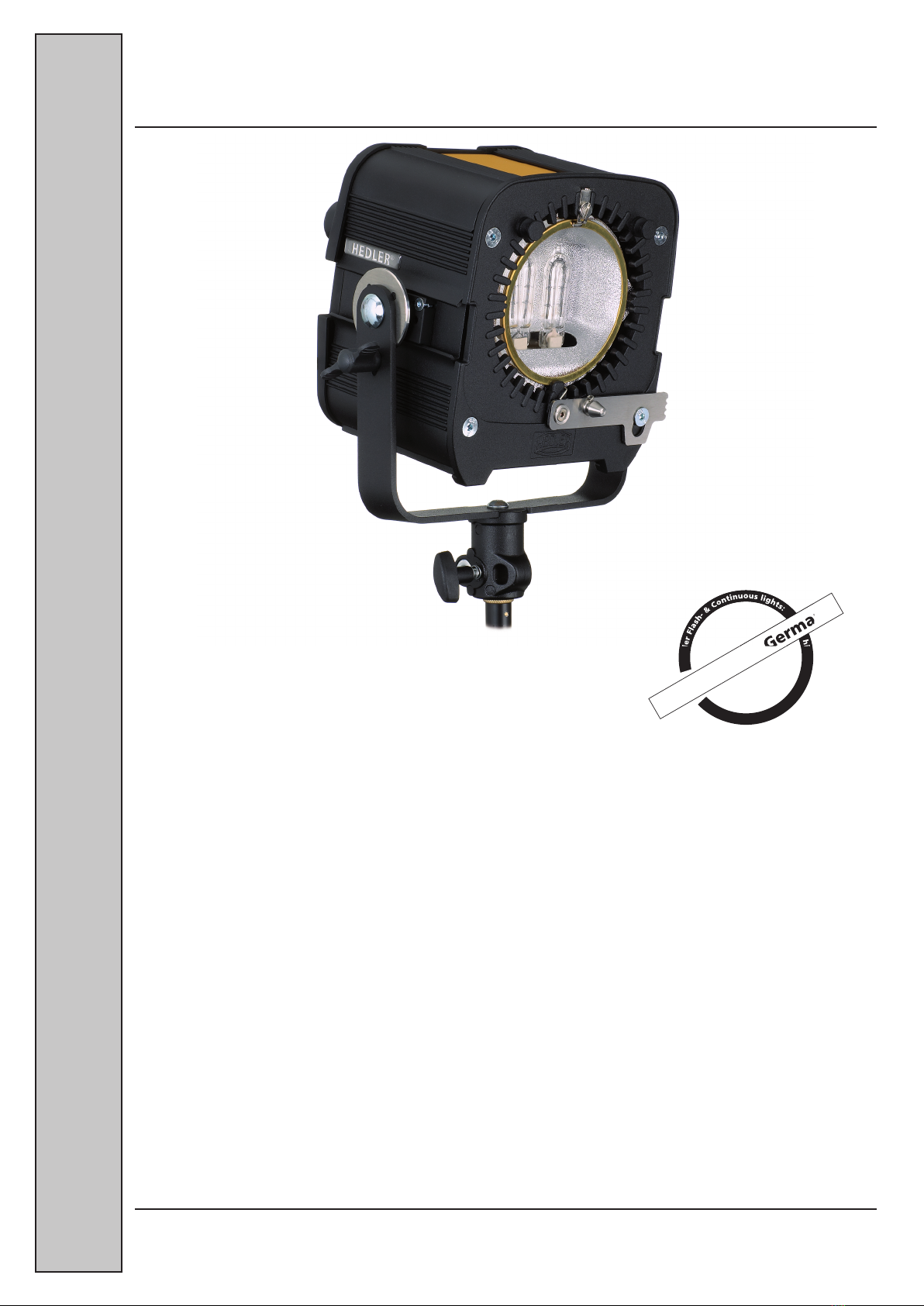

Hedler H25s User manual
H
e
d
l
e
r
F
l
a
s
h
-
&
C
o
n
t
i
n
u
o
u
s
l
i
g
h
t
s
:
h
i
g
h
p
e
r
f
o
r
m
a
n
c
e
,
f
i
r
s
t
-
c
l
a
s
s
q
u
a
l
i
t
y
!
Handmade in Germany
Thank you for chosing a Hedler light unit and your con dence in the Hedler light system.
Please, read the following technical informations carefully before using the light unit.
Codes are given in <Brackets>.
TECHNICAL DESCRIPTION
The light unit HEDLER H25s is designed for professional use, they are assembled by applying precision methods and tested individually for
function and quality. The HEDLER H25s is provided with an integrated U-bracket and a friction brake and a 5/8” Quick-Lock light stand
attachment. After loosening the hex key screws by app. 2 turns, the U-bracket can be moved back and forth in its keyway for gravity adjustment
and it is turnable for right and left hand use.
The HEDLER H25s uses AC 110 - 230 V and modern Tungsten halogen bulbs from 150 - 1250 Watts. The bulb sockets can be used with
individual bulbs from 150 - 1250 Watts for each socket. Because of that, the H25s main advantage is, that you can use different light power
settings without changing the color temperature of the light.
The use of an individual bulb in its socket results in a speci c bulb-fuse-combination, the technical information about this can be found on our
website www.hedler.com.
On its front side, the aluminium housing holds the Boro oat™ safety glass. AdditionalIy there are the Uni-Adapt studs for attaching re ectors.
Interchangeable re ectors with bayonet ring can be attached in the following way: place the rim of the ring into the guide grooves of the upper
studs and the round opening over the cone-shaped bolt, and lock it by a turn to the left. To attach the rotatable 4-Leaf barndoor or a MaxiSoft
folding re ector, place the rim of the ring into the guide grooves of the upper studs, and then push the complete re ector towards the QuickFit´s
cone-shaped bolt until the ring locks in the bolt´s groove. Detach the re ector by lifting the QuickFit´s handle, moving the lower side of the
re ector away from the light unit´s housing, and then lifting the re ector´s ring out of the guide grooves of the upper studs. The Boro oat™
safety glass is held by a clip, which turned sideways will permit removing the safety glass for replacing the bulb.
On the opposite side of the housing, one will nd the ergonomically incorporated handgrip, the cable, the non-detachable fuse holders and for
visual function control illuminated switches.
The HEDLER H25s is provided with a fan, driven by a DC motor, whose electronic will function on any AC supply of 110 - 230 V. It is controlled
by a thermostat, which also serves for protection of the electronics and permits continuous operation of the H25s in any position. After switching
the bulb(s) off, cooling will continue, until the temperature inside the housing has dropped to 35º C; then stop automatically. On account of this,
the H25s may remain connected to the main power supply permanently.
Accessories
It is recommended to use light units of the Hedler range only in combination with an original HEDLER 4-Leaf barndoor or one of the HEDLER
accessory re ectors. This permits adjusting the light beam to the requirements of any situation. In addition to the re ectors MaxiNorm, MaxiSun
and MaxiBrite or the MaxiSoft folding re ectors, 4-Leaf barndoor, re ex umbrellas and Honeycombs (grids) are available.
HEDLER Systemlicht GmbH Heerstrasse 112 D-65594 Runkel / Lahn www.hedler.com
Halogen H25s
l
e
r
F
l
a
s
h
-
&
C
o
n
t
i
n
u
o
u
s
l
i
g
h
t
s
:
h
i
Handmade in Germany
HEDLER®
Systemlicht
OPERATION MANUAL
HEDLER Systemlicht GmbH Heerstrasse 112 D-65594 Runkel / Lahn www.hedler.com
Halogen H25s
HEDLER®
Systemlicht
OPERATION MANUAL
SAFETY GLASS and BULBS and FUSES
To replace the safety glass: please, make sure that the housing of the HEDLER H25s has cooled off before interchanging the safety glass,
otherwise there is a risk of burning! Always disconnect the HEDLER H25s from the power supply before interchanging the safety glass.
Unscrew the securing screw, turn the clip sideways which is securing the Borooat™ safety glass and remove the glass. Replace the safety glass
with a new one, turn the clip sideways into the opposite direction until it secures the Borooat™ safety glass and thighten the securing screw.
Please, before taking the HEDLER H25s in operation, make sure that the safety glass and clip is mounted correctly and its clip is tightened.
For replacing the bulb: please, make sure that the housing of the HEDLER H25s has cooled off before interchanging the safety glass, otherwise
there is a risk of burning! Always disconnect the HEDLER H25s from the power supply before interchanging the safety glass. Unscrew the
securing screw, turn the clip sideways which is securing the Borooat™ safety glass and remove the glass. Make sure that the bulb has cooled off,
before pulling it upward and out of the socket. Push the new bulb into the socket, observing instructions by the bulb manufacturer. Replace the
safety glass, turn the clip sideways into the opposite direction until it secures the Borooat™ safety glass and thighten the securing screw. Please,
before taking the HEDLER H25s in operation, make sure that the safety glass is mounted correctly!
110 Volt = If you use the HEDLER H25s at a 110V power supply, please note that the Tungsten halogen bulbs and fuses have to be changed
to types which are appropriate for a voltage of 110V and a power of max. 850 Watt per bulb socket. Bulb socket type of the HEDLER H25s is:
GY, GZ 6,35.
For replacing fuse: please, make sure that the housing of the HEDLER H25s has cooled off before interchanging the fuse(s), otherwise there is
a risk of burning! Always disconnect the HEDLER H25s from the power supply before interchanging the fuse(s). Use a coin to unsrew the cap of
one of the fuse boxes, located left of the main switch on the backside of the light housing, by a counter-clockwise turn. Remove the spent fuse and
replace it by a new one of the appropriate type. Closing is done by pressing down the lid and screwing the cap into it´s place by a clockwise turn.
The HEDLER H25s can be equipped with Tungsten halogen bulbs of a different continuous light output power. Within the chart below you will
nd the information, which Tungsten halogen bulb(s) - appropriate fuse(s) - combination has to be used. Please, use bulbs with the appropriate
fuse(s) only.
Bulbs and fuses
Halogen bulbs Watts Volts average life time / h. Kelvin Fuse Code
Bulb-Type < 64502 > 150 230 25 3200 F 2 A < 1048 >
< 64515 > 300 230 15 3400 F 2 A < 1048 >
< 64516 > 300 230 75 3200 F 2 A < 1048 >
< 64540 > 650 230 15 3400 F 4 A < 1045 >
< 64575 > 1000 230 15 3400 F 6,3 A < 1039 >
< 64576 > 1000 230 75 3200 F 6,3 A < 1039 >
TECHNISCHE DATEN H25s
Type: H25s Voltage: 110 - 230 V ~ 2x 6,3A 50/60 Hz Power: max. 2000 W Fuse: 2x 6,3A
Color: CRI > 97 Kelvin: 3200K Safety class system: I Protection category: IP30 Risk group: 1-RG
Weight: 2450g Ambient temperature (Ta): -15° - +40° C Surface temperature: 120°C
Light stand attachment: 5/8“ Safety glass code: < 2051 > Light unit code: < 2511 >
Safety clearance: Position:
Under any circumstances do not under-run the safety Tilt light unit max.
clearances given within the graphic to inammable material! 45° upwards/down-
wards in operation!
max. +45°
max. -45°
0°
top
1m0,5m
0,5m
HEDLER Systemlicht GmbH Heerstrasse 112 D-65594 Runkel / Lahn www.hedler.com
Halogen H25s
HEDLER®
Systemlicht
OPERATION MANUAL
ACCESSORIES
It is recommended to use light units of the HEDLER Prolux®LED1000 range in combination with an original HEDLER 4-Leaf barndoor 360°or one
of the HEDLER accessory reectors only. This permits adjusting the light beam to the requirements of any situation. In addition to the reectors
MaxiNorm, MaxiSun, MaxiBrite, MaxiBeauty and MaxiBackground or the MaxiSoft folding reectors (=softboxes) 30 x 30cm, 50 x 50cm, 70
x 70cm, 90 x 90cm, L110 x 45cm and Octagon 100cm, the HEDLER 4-Leaf barndoor 360°, reex umbrellas and grids for several softboxes/
reectors are available. Additionally, the MaxiSpot 65 and MaxiSpot 130 are available for effect lighting.
Please note: while in operation reectors will heat up, some of them very much: there is a risk of serious burning if touched (intentionally or
unintended).
HEDLER WARRANTY
All Hedler equipment is fully guaranteed against any material or manufacturing defects for three years after date of purchase. Parts made out of
glass, fuses, halogen bulbs, ash tubes, Pyrex® coverings and single cell LED modules are not covered by this warranty.
MAINTENANCE and REPAIR
For a secure operation of light units they have to be maintained. Therefore: before using light units they have to be checked visually and an
electrical safety check has to be done every twelve month. The results of this check have to be documented and archived. If repair is required,
please, contact your dealer, the authorized distributor in your country or the Hedler factory directly. Please note, that a pre-dismantled light unit
could cause increased repair costs.
CHECK
All HEDLER light units are tested at HEDLER Systemlicht GmbH according to DIN 0701/0702 with protocol I.
Safety instructions for Hedler light units and accessories
The following safety instructions are valid for Hedler light units and their accessory. Please, read these safety inst-
ructions completely before setting up a Hedler light unit and/or putting Hedler light unit(s) into operation. Please
contact Hedler Systemlicht GmbH, 65594 Runkel directly, if you do have a technical question concerning Hedler
light units and/or Hedler accessories. Please keep these safety instructions close in reach, if neccessary you can
download them from our website www.hedler.com as a PDF.
Hedler light unit(s), Hedler reectors, softboxes, reex umbrellas and/or Hedler accessories are designed for pro-
fessional studio or indoor use only. Never use Hedler light unit(s), Hedler reectors, softboxes, reex umbrellas
and/or Hedler accessories outdoors.
Setting up and putting into operation
To put Hedler light unit(s) into operation it/they have to be set up, mounted, placed, secured and monitored
appropriately.
• Always use a Hedler light unit in combination with a steady and secure standing light stand which has a loading
capacity that is adequate for the weight of the light unit plus cable plus accessory/accessories. Always work
within the light stand´s loading capacity, especially if you are using, or plan to use, large and/or heavy folding
reectors.
• Appropriate action(s) to secure light stand(s) are (for example):
• - mounting the light stand legs to the (stage) oor,
• - weight down the light stand legs with appropriate lled sand bags for example,
• - blockade the light stand area.
• Please note the permitted tilting of the Hedler light unit(s) of max. 45° upwards and max. 45° downwards.
• Set up a Hedler light unit - light stand combination on leveled oor only. Please make sure for tilt resistance
while setting up / taking down and while in operation. Please make sure for an antislip stand while setting up /
taking down and while in operation.
• For light unit(s) in operation the ambient temperature should not underrun -15°C (5°F) or exceed approx.
35°C (95°F).
• Acclimatisation: Avoid condensation problems because of high variations of temperature. If there are high
variations of temperature do not use the Hedler light unit(s).
• Use Hedler light unit(s) in hospital(s), museum(s), factory (factories) asf. with permission of the appropriate /
responsible public authority, administration, company management or business management only.
• If not taking care of this safety instructions there is in particular a serious risk of squeezing, cutting and/or
burning caused by overthrowing, slipping or other reason(s) because of uncontrolled/unwanted movements
of a light unit(s) while setting up / taking down and/or while in operation.
• Always use a double securing like a safety wire, if you mount a Hedler light unit overhead, which has a loading
capacity that it could be loaded with the weight of the mounted light unit incl. accessory multiplied by ve (for
example: (light unit 4.5 kg + reector 1.2 kg) * 5 = 28.5 kg - for this case the safety wire to use must have a
loading capacity of minimum 28.5 kg).
• Before putting a Hedler light unit into operation check all safety and/or positioning and/or light stand srews
for being screwed in securely and/or hand-tight.
• Always keep a minimum distance of 100 cm between the safety glass (or accessories) and any combustible
materials and/or any inammable liquids, gases or explosives when a Hedler light unit is in use.
• Never use a Hedler light unit near any inammable liquids, gases, materials or explosives that may be ignited
by heat or spark.
• If you light through glass surfaces, windows and decoration surfaces keep appropriate distances between the
light unit(s) and these materials, because these materials can burst if overheatet and shatter could be an risk
of injuries.
• Never store any combustible material(s) and/or any inammable liquids, gases or explosives near any Hedler
light unit(s).
• Never touch a Hedler light unit with wet hand and/or feet.
• Never use a Hedler light unit in extremely dusty nor in exceptionally humid and/or wet conditions.
• Never obstruct the forced air cooling (intakes or exhausts) in any way when the Hedler light unit is in use.
• Never obstruct the cooling intakes or exhausts in any way when the Hedler light unit is in use.
• Under no circumstances - do not block the cooling fan of a Hedler light unit.
HEDLER Systemlicht GmbH Heerstrasse 112 D-65594 Runkel / Lahn www.hedler.com
Safety instructions
HEDLER®
Systemlicht
HEDLER Systemlicht GmbH Heerstrasse 112 D-65594 Runkel / Lahn www.hedler.com
Safety instructions
HEDLER®
Systemlicht
• Never obstruct any opening of the housing of a Hedler light unit. Never stick any item(s) into any opening of
the housing of a Hedler light unit. Otherwise there is the serious risk of an electrical shock, of a failure mal-
function of the Hedler light unit, a short-circuit and/or a re.
• Never carry a Hedler light unit by it´s power cord and/or it´s accessories.
• Always avoid the risk of a trip hazard caused by the power cord(s). If power cord(s) has/have to be layed
down to the oor to connect the light unit(s) to the power supply: if possible do not so without appropriate
marking or covering of the power cord(s).
• Always take care not to squeeze, to overrun, to stretch and/or to buckle the power cord of the Hedler light
unit.
• Always take care that the power cord of a Hedler light unit is not worn out and/or is damaged in any way.
• Always take care not to cause a damage of the power cord of a Hedler light unit because of thermic, mecha-
nical and/or chemical reason(s). Avoid such a risk under any circumstances.
• Never use a Hedler light unit with a defective power cord and/or plug. Replacement of a defective power
cord has to be done by Hedler Systemlicht GmbH or an authorized specialist shop only. Never use a Hedler
light unit with a „repaired“ power cord. A defective power cord must be replaced.
• Some of the Hedler continuous light units do have a high power consumption. Always take care, that the
power supply is designed for such a high power consumption.
• Before use check your Hedler product for possible damage(s):
Component: possible damage(s):
housing, lens, safety glass crack, split, deformation
power cord deformation, isolation damage, charred
power plug, mains plug deformation, broken, charred
bracket and handle not tightend, sliding block broken, brake disc doesn´t work
(correctly)
Operation
• Never use a Hedler light unit with a defective safety glass, a defective Pyrex® cover, a defective ash bulb,
defective bulb(s) and/or defective fuse(s).
• Never put a Hedler light unit into operation with a defective safety glass, a defective Pyrex® cover, a defecti-
ve ash bulb, defective bulb(s) and/or defective fuse(s).
• Under any circumstances keep the minimum safety distance(s) given on the identication plate and / or the
safety label to avoid damages caused by light beam(s) and / or thermal radiation and / or heat radiation to
person(s), animal(s) and / or item(s) and / or object(s).
• In the case of a defect or damage of the safety glass, the Pyrex® cover, the bulb(s), the ash bulb and/or the
fuse(s) of a Hedler light unit (particularly while it is in operation): switch of the light unit immediately, discon-
nect it from the power supply, let it cool down completely and replace the defective safety glass, Pyrex®
cover, the bulb(s) and/or fuse(s) with the intended original Hedler spare part. Changing/replacing a ash bulb
of a Hedler light unit is not allowed to be done by a customer. Changing/replacing of a ash bulb has to done
by Hedler Systemlicht GmbH only.
• Never use a Hedler light unit unattended.
• Always disconnect Hedler light unit(s) from the power supply if it/they is/are not in use or in operation.
• Hedler light units are not designed and they are not suitable for the use as a room lighting.
• Never use a Hedler light unit for any reason other than photographic or cinematic lighting.
• While in operation avoid to jar heavily, moving jerkily and/or overthrowing Hedler light units - this could
cause breaking, fragmenting into parts and/or bursting of the bulb(s) and/or ash bulbs and/or parts made out
of glass; because of this there is a serious risk of cutting and/or burning in particular and the risk of damage to
property like combustion, discoloring/staining, sparking, and so on.
• In the case of overthrowing, falling down and/or jaring heavily a Hedler light unit it has to be checked by Hed-
ler Systemlicht GmbH or a specialist shop authorized by Hedler Systemlicht GmbH for damages.
Safety glass, Pyrex® cover and ash bulbs, bulbs and fuses
• Before performing any kind of maintenance work on the light unit - always disconnect the Hedler light unit
from the power supply and let cool down the light unit completely.
• Before changing a safey glass or a Pyrex® cover - always disconnect the Hedler light unit from the power
supply and let cool down the light unit completely.
• Before changing a bulb and/or fuse - always disconnect the Hedler light unit from the power supply and let
cool down the light unit completely.
• For replacing a safety glass or Pyrex® cover - use the intended original Hedler spare parts only.
• For replacing a bulb and/or fuse(s) - use the intended original Hedler spare parts only.
• Never use a „repaired“ fuse.
• Changing/replacing a ash bulb of a Hedler light unit is not allowed to be done by a customer. Changing/repla-
cing of a ash bulb has to be done by Hedler Systemlicht GmbH only.
Additional safety instructions and explanation for symbols
• Hedler light units produce a very intensive and bright beam of light: never look directly into the bulb and/or
ash bulb. while it is in operation. Never light or ash directly into the eye(s) of a human or an animal, this can
cause permanent damage to the eye(s) or health threat(s) (like sunburn).
• Please note, dazzle / glare caused by continuous light unit(s) or ash light unit(s) can cause an immediate (part-
ly and/or temporarily) loss of vision - this can lead to accident(s) (trafc, stairs, and so forth).
• Before (inter-)changing accessories, light modier(s) or bulb(s) - switch off the light unit(s) and let it cool
down completely.
• Some Hedler light units and/or Hedler reectors, parts of softboxes and reex umbrellas and some accesso-
ries can heat up extremely while in operation: there is a serious risk of burning. Never touch these parts while
they are in operation. (Please, use heatresistant and heatprotecting gloves to avoid burning!).
• Please let cool down Hedler light units and/or Hedler reectors, parts of softboxes and reex umbrellas and
some accessories completely after using them and before packing them away: not doing so can cause serious
burnig and/or the risk of sparking.
• Not used as intended and/or in the case of inappropriate use of Hedler light units and/or Hedler reectors,
parts of softboxes and reex umbrellas and accessories there is the serious risk of a (deadly) electrical shock.
• Hedler light units, Hedler reectors, softboxes, reex umbrellas and/or Hedler accessories are no toys, they
are unsuitable for use by children. Always keep Hedler light units, Hedler reectors, softboxes, reex umbrel-
las and/or Hedler accessories out of the reach of children.
Explanation for symbols:
Minimum Heat Volt / Watt / Min. load Warning CE Bin
distance °C / °F Voltage Demand capacity Voltage WEEE
Maintenance
For a secure operation of light units they have to be maintained. Therefore: before using light units they have to
be checked visually and an electrical safety check has to be done every twelve month. The results of this check
have to be documented and archived.
Liability limitation
For all injuiries and/or damages to people and/or objects, which are caused by using Hedler products in a way that
the are not intended for the user is liable - not the manufacturer.
If you do have a question to set up and/or to operate Hedler light units, Hedler reectors, softboxes, reex
umbrellas and/or Hedler accessory, please ask at Hedler Systemlicht GmbH directly or at the Hedler authorized
photographic specialised dealer (a list with this dealers you will nd on our website www.hedler.com).
HEDLER Systemlicht GmbH Heerstrasse 112 D-65594 Runkel / Lahn www.hedler.com
Safety instructions
HEDLER®
Systemlicht
V
W
1m
min. kg
Table of contents
Other Hedler Lighting Equipment manuals
