Hegel H20 User manual

OWNERS MANUAL
H20
H30
P20
P30

OWNERS MANUAL
Congratulations with your new Hegel product. These HEGEL Reference series
amplifiers represent the absolute pinnacle of our technology.
Using real instruments as references we have used state-of-the-art technology to
provide you with the ultimate cost vs. performance in these high end products.
The H20, H30, P20 or P30 products will give you the most NATURAL and DYNAMIC
sound available today.
Bent Holter
President and Lead engineer
2

TABLE OF CONTENTS
General use page 4
H20 page 4
H30 page 5
P20 page 6
P30 page 7
Mono/Stereo mode (H30) page 8
RC8 remote control page 9
Cleaning/Warning/Warranty page 10
Technical Specifications page 11
3

H20 Audio Power Amplifier
Hegel, Oslo, Norway Left channel
Audio outputs
Input selector
Unbalanced
Balanced
Right channel
Audio inputs
Unbalanced
Balanced
Input selector
Left channel
Audio inputs
Right channel
Audio outputs
2
134
7
6
58
9

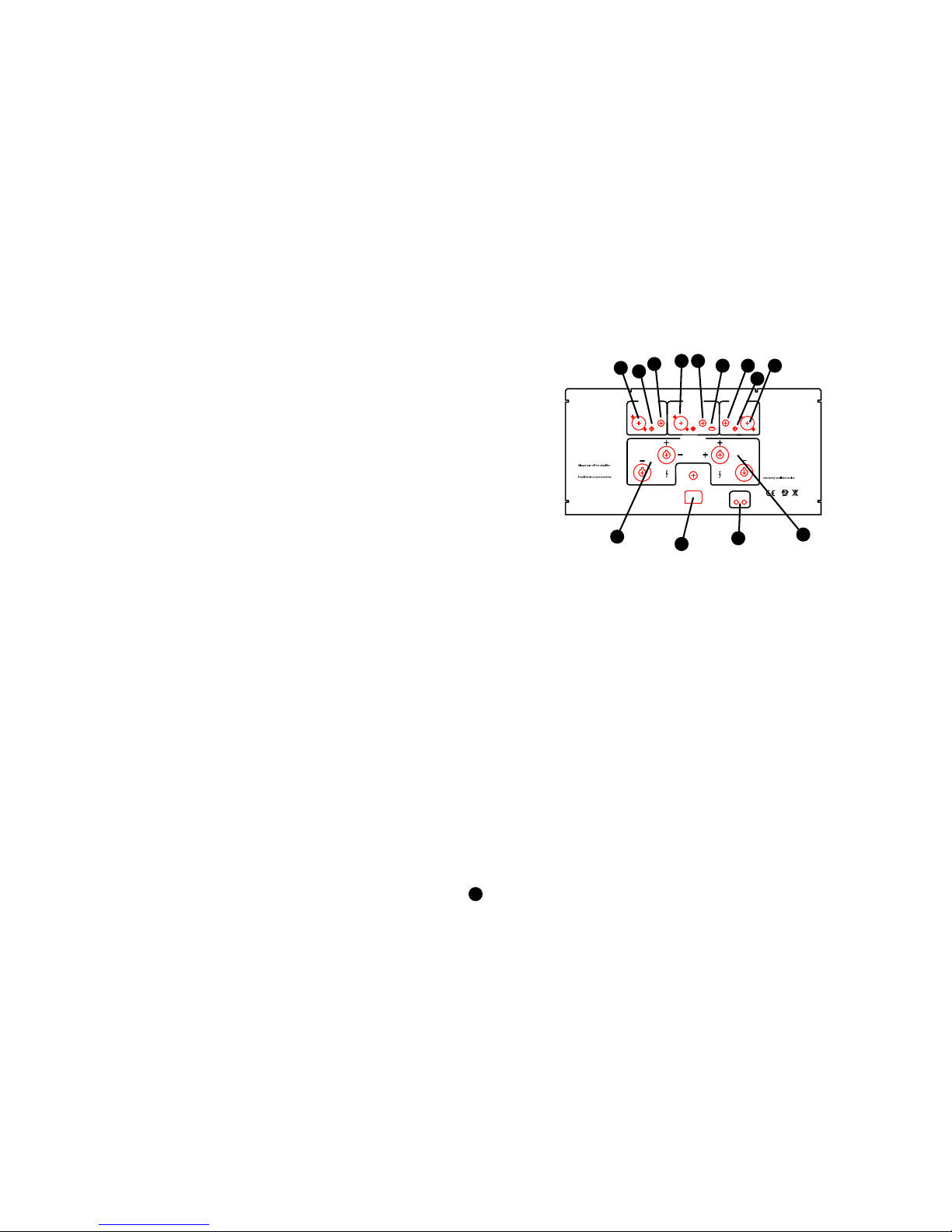

H20 Back panel
1,3 : Signal input selector left/right
2,4 : Balanced XLR signal input right/left
5,8 : Unbalanced (phono/RCA) right/left
6,7 : Speaker outputs right/left
9 : Mains connector
GENERAL USE H20
The amplifier is switched on with the button in the middle of the
front panel. A blue light indicates it is switched on.
The amplifier has two types of audio inputs: unbalanced audio
signal with phono plugs (RCA) and balanced audio signal with XLR
plugs (pin 2 is positive phase, pin 3 is negative phase and pin 1 is
chassis ground).
Selecting between balanced and unbalanced inputs:
Use the signal input selector (1,3) and point it in the
direction of the input you want to use.
NOTE: Do not connect both balanced and unbalanced cables at the
same time.
NOTE: We strongly recommend that the amplifier is turned off when
you switch between the inputs, and while connecting cables. Not
doing so may potentially harm your speakers.
After the amplifier is switched on, there is a delay of about 10-30
seconds before the speaker outputs are turned on.
4

GENERAL USE H30
The Hegel H30 is a mono-block amplifier that may be used as a
stereo power amplifier. Read more about the mono / stereo con-
nection on page 8.
The amplifier has two types of audio inputs: unbalanced audio
signal with phono plugs (RCA) and balanced audio signal with
XLR plugs (pin 2 is positive phase, pin 3 is negative phase and
pin 1 is chassis ground). You can switch between the two inputs
with the designated switches (fig. left. Number 6 and 12)
NOTE: Do not connect both balanced and unbalanced cables at
the same time.
NOTE: We strongly recommend that the amplifier is turned off
when you switch between the inputs, and while connecting
cables. Not doing so may potentially harm your speakers.
TRIGGER INPUT/OUTPUT
The H30 has a trigger input and output. If connected, a steady
5-12V signal will turn the outputs on. When the signal is 0V sig-
nal the output will be turned off. The trigger output allows you to
daisy chain more H30’s or other devices. The trigger port uses a
regular 3,5 mm jack plug.
The trigger port will function with most trigger outputs (5-12V)
from other manufacturers, but is only guaranteed with HEGEL
trigger outputs. Connecting a trigger port with output more than
12V may harm the amplifier and is not covered by the warranty
Balanced
Right
InputSelec tor
Unbalanced
Right Inputs
personnel.
not open cover.Only to be
To prevent electricshock do
Caution:
Mains Fuse
AC Power Connector
Unbalanced
InputSelec tor
Speaker Outputs
Mono
Unbalanced
Balanced
High End Power Amplifier
HEGEL, OSLO, NORWAY
Mono Inputs
Balanced
Left
InputSelec tor
Left Inputs
MonoStereo
before connecting cables
or switching input mode.
Hegel US Patent no.6.275.104
Control
Out
In
1234
5
7
8910 11 13
H30 Back panel
1,4 : Speaker outputs right/left
Speaker outputs mono
2 : Mains connector
3 : Trigger input/output
5,13: Balanced XLR signal input right/left
7,11: Unbalanced (phono/RCA) right/left
8 : Balanced XLR signal input mono
9 : Unbalanced (phono/RCA) mono
10 : Mono/Stereo selector
5
12
6

1

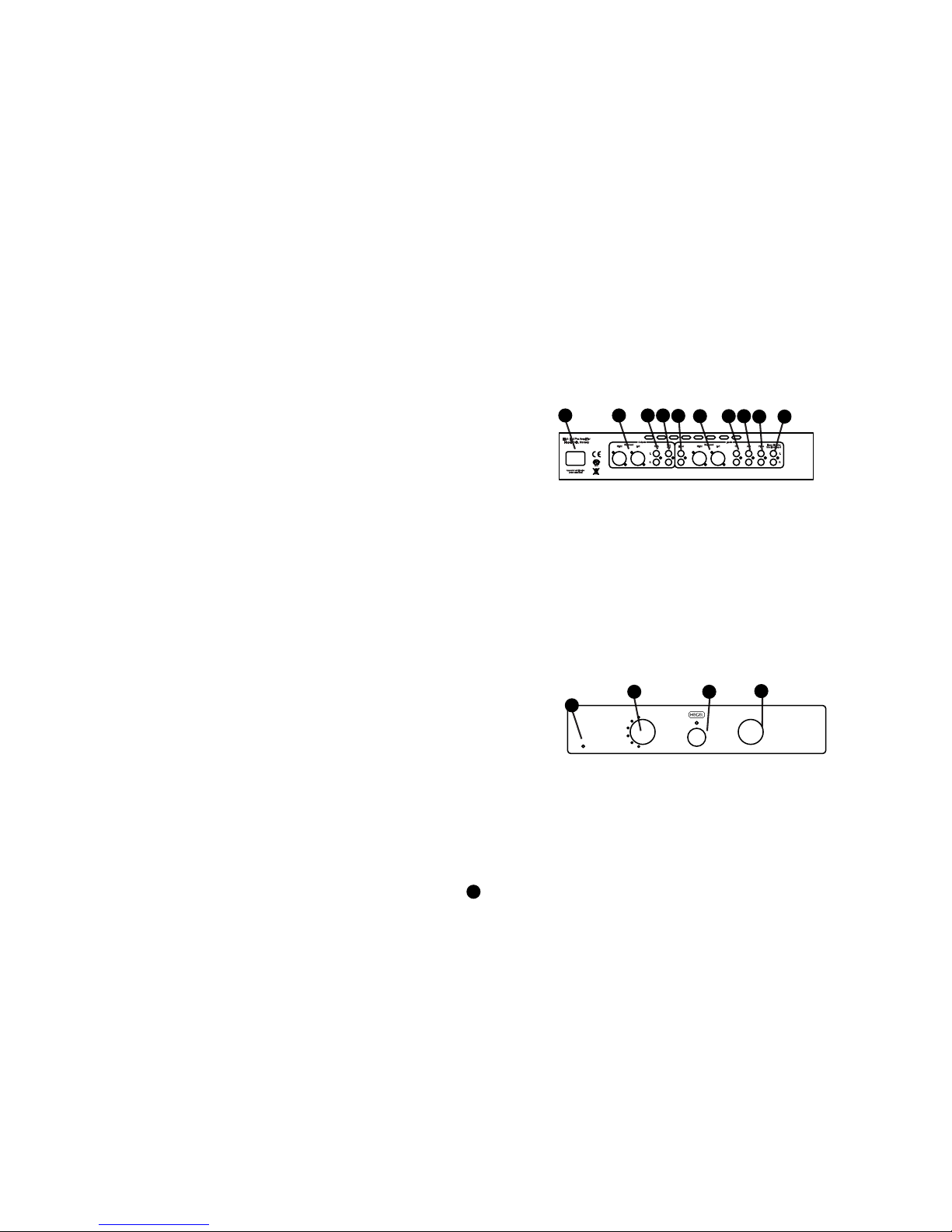

P20 Back panel
1 : Mains connector
2 : Balanced XLR signal output right/left
3 : Unbalanced RCA signal outputs right/left
4 : Unbalanced RCA Rec signal output right/left
5 : Unbalanced RCA Tuner signal input right/left
6 : Balanced XLR signal inputs right/left
7-9 : Unbalanced RCA signal inputs right/left
10 : Home Theatre input (volume bypass)
GENERAL USE P20
The amplifier is switched on with the button in the middle of the
front panel. A blue light indicates it is switched on. To the left the
channel selector with selections: Balanced, CD, Video, Tuner, Auxil-
liary and Home Theatre, and to the right the volume control. The
selected input is indicated by a blue light.
When the mute button on the Hegel Remote Control is pressed, the
amplifier outputs are muted. Mute is indicated by a flashing blue
power light. To go back to normal operation press the mute button
one more time. After the amplifier is switched on, there is a delay of
a few seconds while the volume control circuit is being calibrated.
Avoid connecting input cables without making certain the unit is
completely turned off. We also recommend that you reduce volume
levels before changing inputs, as either may damage your loud-
speakers.
WARNING: The Home Theatre input bypasses the volume control.
Connecting a regular source to this input may potentially harm you
system and your hearing.
P20 Front panel
1 : IR - remote control receiver
2 : Input selector knob
3 : Power on/off switch
4 : Volume attenuator
2 3 456 7 8 9 10
1
234
6
High End Pre Amplifier
Hegel, Oslo, Norway
R
L
Inputs
VideoAuxCDLeft
Balanced
RightTuner
Rec
RCALeft
Outputs
Right
L
R
Apparatet må tilkoples
jordet stikkontakt
RA 46
Home Theatre
Max level inputOut
Balanced
Volume
Bal
CD
Video
Tuner
Aux
HT

GENERAL USE P30
The P30 has two types of audio inputs: unbalanced audio signal
with phono plugs (RCA) and balanced audio signal with XLR plugs
(pin 2 is positive phase, pin 3 is negative phase and pin 1 is chassis
ground).
After the amplifier is switched on, there is a delay of about 60
seconds while the volume control circuit is being calibrated. This is
indicated by the flashing blue power LED. When the LED stops flash-
ing and gives a steady blue signal, the P30 is ready to operate.
The amplifier is switched on with the button on the front panel. To
the right you have the volume attenuator, and to the left the input
selector knob.
If you have a source with fully balanced outputs, we recommend you
use high quality balanced cables to connect the source to the P30.
WARNING: The Home Theatre input bypasses the volume control.
Connecting a regular source to this input may potentially harm your
system and your hearing.
High End Pre Amplifier
Hegel, Oslo, Norway
R
L
Inputs
CD Aux
Video
LeftRight
RCA 1Left
Audio Outputs
Right
L
R
RCA 2 Right Left
Balanced 1 Balanced2 Home Theatre
Max level input
Control
IR in out
Amplifier circuit protected by
Hegel US Patent no.6.275.104
123457
68910 11 12

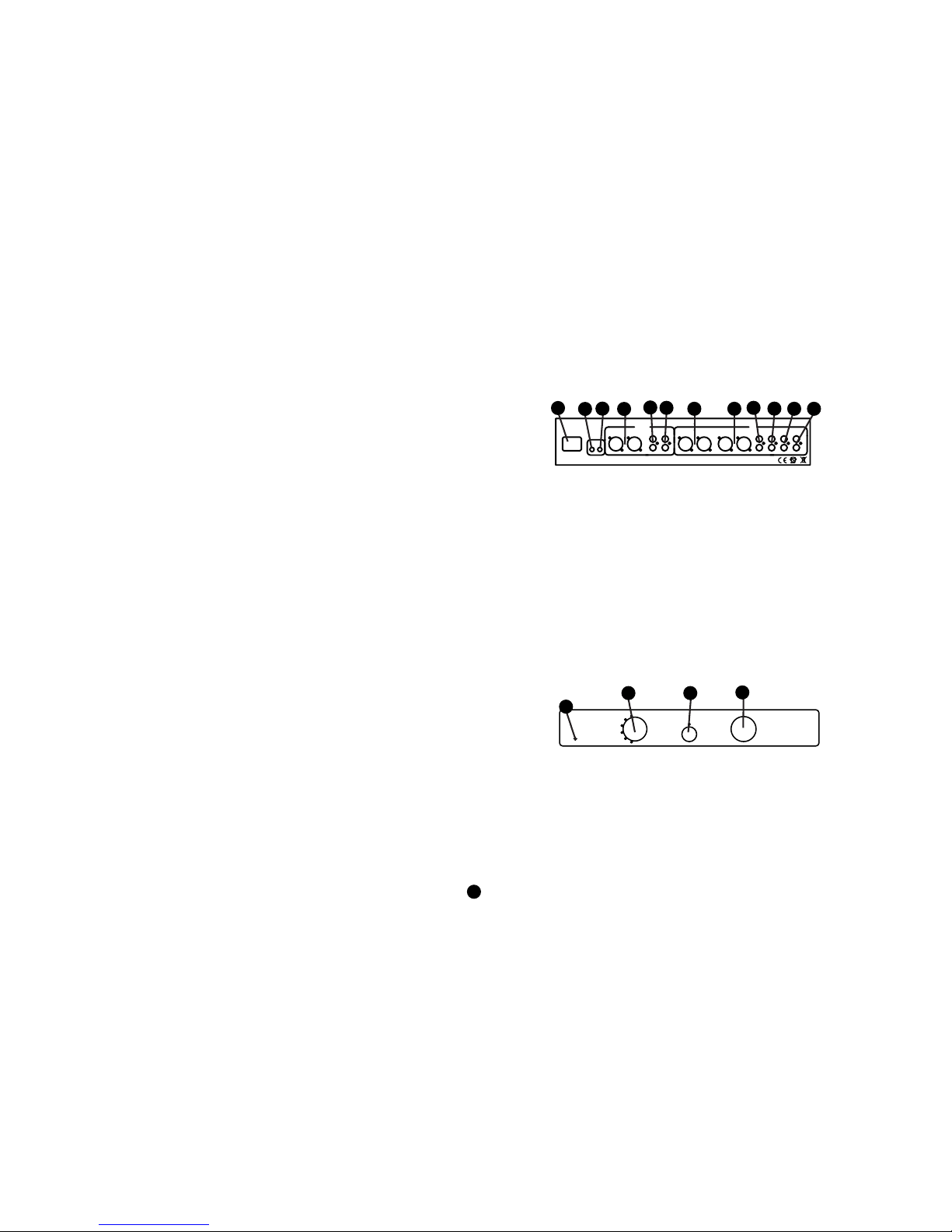

P30 Back panel
1 : Mains connector
2 : IR-direct input
3 : 12V trigger output
4 : Balanced XLR signal output right/left
5,6 : Unbalanced RCA signal outputs right/left
7,8 : Balanced XLR signal inputs right/left
9-11 : Unbalanced RCA signal inputs right/left
12 : Home Theatre input (volume bypass)
Bal 1
Bal 2
CD
DVD
Tuner
HT/Aux Volume
1
234
P30 Front panel
1 : IR - remote control receiver
2 : Input selector knob
3 : Power on/off switch
4 : Volume attenuator
7

Balanced
Right
InputSelector
Unbalanced
Right Inputs
personnel.
not open cover.Only to be
Toprevent electric shock do
Caution:
Mains Fuse
ACPower Connector
Unbalanced
InputSelector
Speaker Outputs
Mono
Unbalanced
Balanced
High End Power Amplifier
HEGEL, OSLO, NORWAY
Mono Inputs
Balanced
Left
InputSelector
LeftInput s
MonoStereo
beforeconnecting cables
or switching input mode.
Hegel US Patentno.6.275.104
Control
Out
In
High End Pre Amplifier
Hegel, Oslo, Norway
R
L
Inputs
CD Aux
Video
LeftRight
RCA1Left
Audio Outputs
Right
L
R
RCA2 Right Left
Balanced 1 Balanced 2 Home Theatre
Max level input
Control
IR in out
Amplifiercircuit protected by
HegelUS Patent no.6.275.104
1: Connect left channel line output from your
pre amp to the mono input on your H30
3: Connect the mono +
and mono - terminals on
the H30 to your loud-
speaker.
2: Make sure the switch is
in mono mode (pointing left)
SETTING UP THE H30 IN MONO MODE
The H30 is intended to be run as a mono block. As such it will drive
virtually any speaker on the market.
To use the H30 as a mono block, connect each of the mono blocks as
described in the figure “Mono mode” (upper right).
WARNING: The H30 is extremely powerful and it is important that
you make the connections and flip the mono switch when the ampli-
fier is turned completely off. Not only with the trigger switch.
We do recommend you use balanced (XLR) interconnect cables of
good quality to obtain the best sound quality.
SETTING UP THE H30 IN STEREO MODE
The H30 may also be used as a stereo power amplifier, and will
deliver in excess of 300 watts pr. channel in this configuration.
Hook it up as described in the figure “Stereo mode” (lower right)
WARNING: The H30 is extremely powerful and it is important that
you make the connections and flip the stereo/mono switch when the
amplifier is turned completely off. Not only with the trigger switch.
We do recommend you use balanced (XLR) interconnect cables of
good quality to obtain the best sound quality.
Balanced
Right
InputSelector
Unbalanced
Right Inputs
personnel.
not open cover.Only to be
Toprevent electric shock do
Caution:
Mains Fuse
ACPower Connector
Unbalanced
InputSelector
Speaker Outputs
Mono
Unbalanced
Balanced
High End Power Amplifier
HEGEL, OSLO, NORWAY
Mono Inputs
Balanced
Left
InputSelector
LeftInput s
MonoStereo
beforeconnecting cables
or switching input mode.
Hegel US Patentno.6.275.104
Control
Out
In
High End Pre Amplifier
Hegel, Oslo, Norway
R
L
Inputs
CD Aux
Video
LeftRight
RCA1Left
Audio Outputs
Right
L
R
RCA2 Right Left
Balanced 1 Balanced 2 Home Theatre
Max level input
Control
IR in out
Amplifiercircuit protected by
HegelUS Patent no.6.275.104
1: Connect left+right channel line output
from your pre amp to the left+right
inputs on your H30
3: Connect the right +/-
and left +/- terminals on
the H30 to your loud-
speakers.
2: Make sure the
switch is in stereo
mode (pointing left)
Mono mode
Stereo mode
8

RC8 REMOTE CONTROL
All HEGEL pre amplifiers can be controlled by the included HEGEL sys-
tem remote control, RC8. Like with other HEGEL products, the number of
buttons is kept to a minimum.
The input source is selected by pressing IN+ and IN-, the volume is
adjusted by pressing VOL+ and VOL-. The Mute function toggles on and
off by pressing the MUTE button. The HEGEL system remote control will
also control other HEGEL products like CD-players and integrated ampli-
fiers. When used with a P30 pre amplifier, pressing the ECO-button will
set it in a low power mode.
The remote control is using 2 standard 1.5-volt LR03 AAA batteries. To
insert the batteries please use a normal type cross head screwdriver
to gently remove the four screws in the bottom of the remote control.
Be careful and use a normal cross head screwdriver to remove the four
Philips cross head screws.
Be sure to insert the batteries with the correct polarity with + sign and
– sign as shown inside the battery holder, and be careful when insert-
ing the batteries to not damage the battery holder.
Be careful when inserting the screws after fitting the batteries. Please
turn the screws gently by hand first to avoid damaging the threads in
the remote control body. Do not tighten the screws to hard, as this also
can damage the screws and the soft metal body of the remote control.
Please do not drop the remote control hard down in the floor, as this can
damage internal parts of the remote control and the battery holder.
9
ECO
STOP
PREV
DAC+
PLAY
PREV PLAY
DISP
NEXT
IN+
NEXT
VOL+
MUTE
IN- VOL-
COMPUTER

USE/PLACEMENT
The amplifier should be placed on a flat, hard surface for prop-
er cooling. The amplifier performs best after being switched
on for 1 hour for heating up. Plenty of space is required for air
circulation above, below and around the amplifier. The ampli-
fier must never be placed on a carpet or similar surface that
obstructs air circulation through the component. Nor must it be
covered while in use or placed on a narrow shelf or in another
confined space.
Always use the main power switch on the front panel to
switch the amplifier on and off. Never switch on or off the AC
voltage supply to the H20 or H30 with an external switch.
The amplifier will automatically switch itself off if overheated
(H20 and H30).
The amplifier will need some break-in time before maximum
sound quality can be experienced.
CLEANING
The top, side and front panels are made of bead blasted and
anodized aluminium. Fingerprints can be wiped with a damp
cloth.
NOTE/WARNING
HEGEL products must never be opened by anyone other than
certified technicians. The devices contain electronic compo-
nents that can cause electric shock. Work performed on HEGEL
products by unqualified persons can cause serious damage and
personal injury. The products must not be exposed to rain or
moisture.
WARRANTY
All HEGEL products come with a 2-year guarantee against
defective materials and workmanship.
10

HEGEL P30
Volume, source and mute
3 unbalanced, 2 balanced (XLR), 1 Home Theatre
2 unbalanced, 1 balanced (XLR)
Direct IR in - 3,5mm jack, 12V trigger out - 3,5mm jack
Less than -130 dB
Less than -100 dB
Less than 0.005 %
Less than 0.01% (19kHz+20kHz)
6cm x 43cm x 30cm (HxWxD), 10kg
Pre Amplifiers
Remote functions :
Line inputs :
Line outputs :
Remote inputs/out :
Noise floor :
Crosstalk :
Distortion :
Intermodulation :
Dimensions/weight :
HEGEL H20
More than 200W + 200W in 8 ohms, Dual mono
RCA unbalanced and XLR balanced
Two pairs of heavy duty gold plated
More than 100dB
Less than -100dB
Less than 0.006 % at 100W i 8 ohm
Less than 0.01 % (19kHz + 20kHz)
More than 1000
1000VA dual mono, 90 000uF capacitors
20 pcs 15A 150W high speed bipolar transistors
60W in idle mode switched on
12cm x 43cm x 37cm (HxWxD), 25kg
HEGEL H30
More than 1100W mono in 8 ohms.
RCA unbalanced and XLR balanced
Heavy duty gold plated
More than 100dB
Less than -100dB
Less than 0.003 % at 100W i 8 ohm
Less than 0.01 % (19kHz + 20kHz)
More than 1000
2000VA dual mono, 320 000uF capacitors
60 pcs 15A 150W high speed bipolar transistors
120W in idle mode switched on / 30 W in low power mode
21cm x 43cm x 55cm (HxWxD), 55kg
Power Amplifiers
Output power :
Line inputs :
Speaker terminals :
Signal to noise ratio :
Crosstalk :
Distortion :
Intermodulation :
Damping factor :
Power Supply :
Output stage :
Power consumption :
Dimensions/weight :
HEGEL P20
Volume, source and mute
4 unbalanced, 1 balanced (XLR), 1 Home Theatre
1 unbalanced, 1 balanced (XLR), 1 Recording out
Less than -130 dB
Less than -100 dB
Less than 0.005 %
Less than 0.01% (19kHz+20kHz)
6cm x 43cm x 30cm (HxWxD), 10kg
11
Technical specifications are subject to change without notice

If you have questions regarding any of the HEGEL products we recommend you con-
tact the nearest HEGEL dealer or distributor. You can find them on www.hegel.com in
the “how to buy” section.
Hegel Music System AS - Oslo - Norway
