Heil Sound NCS-E326 User manual

N
NC CS S- -E E3 32 26 6
H
He ei il l S So ou un nd d P PR RO O S SE ET T E EL LI IT TE E i iC C
H
He ea ad ds se et t
New Communications Solutions, LLC
Norcross, Georgia
TEL/FAX: [phone]
EMAIL: [email protected]
Website: www.
ncsradio.com
Using the
Pro Set
Elite
iC
with the NCS
-
C003 Headset Interface Box
To connect the Pro Set Elite iC to the NCS-C003 Headset Interface Box requires the NCS-003-
HHS-0.7 Headset Adaptor Cable. The two Pro Set Elite iC 3.5 mm phone plugs connect to their
respective jacks on the Headset Adaptor Cable. Make sure that the color of the plug and jack
match. The optional NCS-F230 Hand Switch is connected directly to the ¼ inch phone jack on
the front of the NCS-C003.
NCS-003-HHS-0.7 Headset Adaptor Cable
Installation of Microphone Jumpers in the NCS-C250
Microphone jumpers must be installed in the NCS-C250 to match the pin outs of the NCS-C003
Headset Interface Box. The proper installation of the mic jumpers for use with the NCS-C003
and adaptor cable is shown below. After all jumpers are installed refer to the NCS-C250
Instruction Manual and set the mic audio level for proper audio output.
The Sel Audio and Unsel Audio jumpers can be swapped to reverse the audio in the headset
earpieces.
To NCS-C003
PTT
NCS-F230
Hand Switch
Receive Audio
Mic Audio
To NCS-C003
Push connector to engage
Pull Release Ring Back
to Unplug Connector
Line Up the WHITE DOT with the WHITE DOT on
the Mating Connector Before Engaging
Red = Mic Audio
Mic Audio
PTT
Ground
Unsel
Audio
AUXV
Sel
Audio
1 2 3 4 5 6 7 8
5V 12V
AUXV
Electret Voltage
Jumper

Features
 Full Ear Muff with 40 dB of Outside Noise Rejection
 Speaker Phase Reversal Switch
 Adjustable Boom
 Stereo Headset for Dual Receiver Operation
Mechanical Adjustments
The microphone boom has a steel rod inside that can be easily bent to place the microphone
holder in the desired position.
Microphone Element
The Heil PRO SET Elite iC
is equipped with an electret microphone element. This element has
a wide frequency response for full voice range articulation. The element is optimized with an
increased output of +6 dB at 2000 Hz (middle of the human voice pattern).
Pro Set Elite iC Termination
Microphone Audio
The microphone audio cable for the PRO-SET Elite iC is terminated with a 3.5 mm mono
phone plug. A RED band around the plug housing identifies this phone plug.
Earpiece Audio
The earpiece audio cable is terminated with a 3.5 mm stereo phone plug.
Speaker Phase Reversal Switch
The Phase Reversal Switch allows the operator to acoustically “move” the signal being
monitored just by reversing the phase switch. This feature is best used when monitoring
multiple signals as in HF operation. In one position the signals appear to be centered between
the two speakers while the other position creates a spatially widening sound field that appears
to “spread” multiple signals making the desired signal easier to copy.

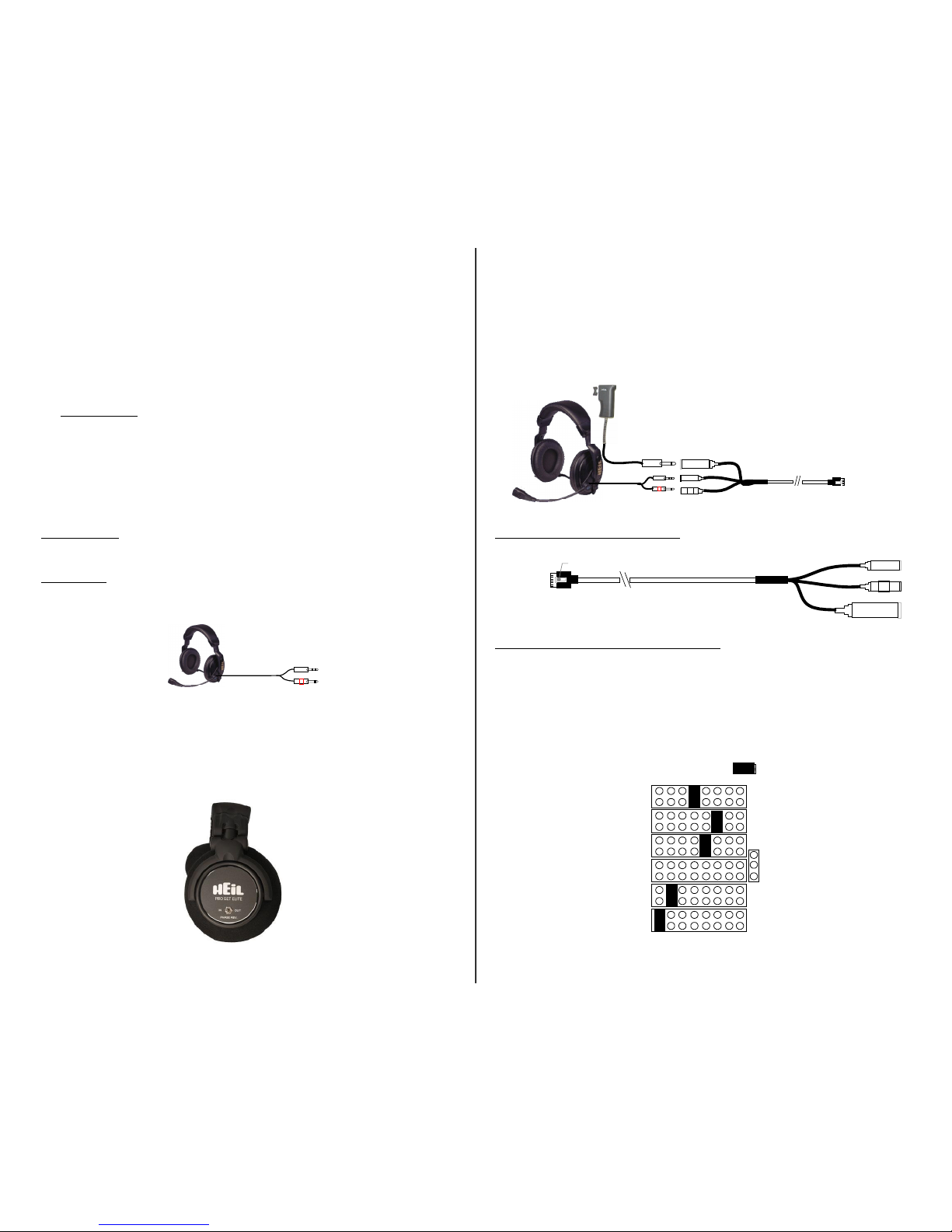

Using the
PRO
-
SET
Elite
iC
with the NCS
-
C250 Mobile Multi
-
Switcher
To connect the Pro Set iC to the RJ45 mic jack on the NCS-C250 requires the NCS-250-HHS-216
Headset Adaptor Cable. The RJ45 plug on the adaptor cable connects to the mic jack on the front
or rear of the NCS-
C250. The two Pro Set 3.5 mm phone plugs connect to their respective jacks on
the Headset Adaptor Cable. Make sure that the colors of the plugs and jacks match. The optional
NCS-F230 Hand Switch is connected via the ¼ inch phone jack on the Headset Adaptor Cable.
NCS-250-HHS-216 Headset Adaptor Cable
Installation of Microphone Jumpers in the NCS-C250
Jumpers must be installed in the NCS-C250 so that the RJ45 mic jack pin-
outs on the front and rear
panels match that of the NCS-250-HSS-216 Headset Adaptor Cable. Refer to the NCS-C250
Instruction Manual for detail instructions on setting these jumpers.
The proper placement of the mic jumpers for use with the NCS-250-HSS-216 Headset and adaptor
cable is shown below. After all jumpers are installed refer to the NCS-C250 Instruction Manual and
set the mic audio level for proper audio output.
Receive Audio
Mic Audio
NCS-250-HSS
Headset Adaptor Cable
PRO SET Elite iC
To NCS-C250
PTT
HS-2
Hand Switch
Receive Audio
Mic Audio
1
8
Clip on Top
RJ-45
3.5 mm Stereo Jack
3.5 mm Mono Jack
1/4 in. Mono Jack
Mic Audio
PTT
Ground
Unsel
Audio
AUXV
Sel
Audio
1 2 3 4 5 6 7 8
5V 12V
AUXV
Electret Voltage
Jumper
Headset Adaptor Cable NCS-250-
HSS
-
216
NCS-F230
Hand Switch
