Heinner HC-M241NFBI+ User manual

BUILT IN COMBI FRIDGE
Model: HC-M241NFBI+
www.heinner.com
Built in combi fridge
Net capacity: 241 L
Energy class: A+

www.heinner.com
1
Thank you for chosing this product!
Please read this instruction manual carefully before using it and keep it for later
information
This manual is conceived for ofering you all of the necessary info regarding instalation, using
and maintenance of the machine. For a correctly and safely use of the machine, please, read
this manual before instalation and using.
I. INTRODUCTION
II. PACKAGE CONTENTS
Built In Combi fridge
Instruction Manual
Warranty card

www.heinner.com
2
III. SAFETY WARNINGS
WARNING - Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
WARNING - Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
WARNING - Do not damage the refrigerant circuit.
WARNING - Do not use electrical appliances inside the food storage compartments of
the appliance, unless they are of the type recommended by the manufacturer.
The appliance has to be unplugged after use and before carrying out user maintenance
on the appliance.
This appliance can be used by children aged from 8 years and above and persons with
reduce physical sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a hazard.
Please recycle the refrigerator according to local regulators for it use flammable blowing
gas and refrigerant.
Please according to local regulations regarding disposal of the appliance for its
flammable refrigerant and blowing gas. Before you scrap the appliance, please take off
the doors to prevent children trapped.
Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
This appliance is intended to be used in household and similar applications such as:
staff kitchen areas in shops, offices and other working environments.
farm houses and by clients in hotels, motels and other residential type
environments.
bed and breakfast type environments.
catering and similar non-retail applications.
WARNING - Do not store explosive substances such as aerosol cans with a flammable
propellant in this appliance.
WARNING - The refrigerant and insulation blowing gas are flammable. When disposing
of the appliance, do so only at an authorized waste disposal centre. Do not expose to
flame.
WARNING - When positioning the appliance, ensure the supply cord is not trapped or
damaged.
WARNING - Do not locate multiple portable socket-outlets or portable power supplies at
the rear of the appliance.

www.heinner.com
3
WARNING - The illuminating lamps must not be replaced by the user! If the illuminating
lamps is damaged, contact the customer helpline for assistance. This warning is only for
refrigerators that contain illuminating lamps.
DANGER: Risk of child entrapment. Before you throw away your old refrigerator or
freezer:
Take off the doors.
Leave the shelves in place so that children may not easily climb inside.
The refrigerator must be disconnected from the source of electrical supply before
attempting the installation of accessory.
Refrigerant and cyclopentane foaming material used for the refrigerator are flammable.
Therefore, when the refrigerator is scraped, it shall be kept away from any fire source
and be recovered by a special recovering company with corresponding qualification
other than be disposed by combustion, so as to prevent damage to the environment or
any other harm.
According to IEC standard
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Keep all packaging away from children as there is risk of suffocation.
If you are discarding the appliance, pull the plug out of the socket, cut the
connection cable (as close to the appliance as you can) and remove the door to
prevent children playing from suffering an electric shock or from closing
themselves inside it.
If this appliance, featuring a magnetic door seals, is to replace an older appliance
having a spring lock (latch) on the door or lid, be sure to make the spring lock
unusable before you discard the old appliance. This will prevent it from
becoming a death trap for a child.
Children should be supervised to ensure that they do not play with the
appliance.
Refrigerant
The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the
appliance, a natural gas with a high level of environmental compatibility, which is
nevertheless flammable. During transportation and installation of the appliance, ensure
that none of the components of the refrigerant circuit becomes damaged. The
refrigerant (R600a) is flammable.

www.heinner.com
4
Risk of fire/flammable materials
If the refrigerant circuit should be damaged:
Avoid opening flames and sources of ignition.
Thoroughly ventilate the room in which the appliance is situated.
WARNING - Refrigerators contain refrigerant and gases in the insulation. Refrigerant and
gases must be disposed of professionally as they may cause eye injuries or ignition.
Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal.
Electrical safety
Do not pull the power cord when pulling the power plug of the refrigerator.
Please firmly grasp the plug and pull out it from the socket directly.
To ensure safe use, do not damage the power cord or use the power cord when
it is damaged or worn.
Please use a dedicated power socket and the power socket shall not be shared
with other electrical appliances. The power plug should be firmly contacted with
the socket or else fires might be caused.
Please ensure that the grounding electrode of the power socket is equipped with
a reliable grounding line.
Please turn off the valve of the leaking gas and then open the doors and
windows in case of leakage of gas and other flammable gases. Do not unplug the
refrigerator and other electrical appliances considering that spark may cause a
fire.
Do not use electrical appliances on the top of the appliance, unless they are of
the type recommended by the manufacturer.
Warnings for using:
Do not arbitrarily disassemble or reconstruct the refrigerator, nor damage
the refrigerant circuit; maintenance of the appliance must be conducted by
aspecialist.
Damaged power cord must be replaced by the authorized service, its
maintenance department or related professionals in order to avoid danger.
The gaps between refrigerator doors and between doors and refrigerator
body are small, be noted not to put your hand in these areas to prevent from
squeezing the finger. Please be gentle when close the refrigerator door to
avoid falling articles.
Do not pick foods or containers with wet hands in the freezing chamber when
the refrigerator is running, especially metal containers in order to avoid
frostbite.

www.heinner.com
5
Do not allow any child to get into or climb the refrigerator; otherwise
suffocation or falling injury of the child may be caused.
Do not place heavy objects on the top of the refrigerator considering that
objectives may fall when close or open the door, and accidental injuries might
be caused.
Please pull out the plugin case of power failure or cleaning. Do not connect
the freezer to power supply within five minutes to prevent damages to the
compressor due to successive starts.
Warnings for placement
Do not put flammable, explosive, volatile and highly corrosive items in the
refrigerator to prevent damages to the product or fire accidents.
Do not place flammable items near the refrigerator to avoid fires.
The refrigerator is intended for household use, such as storage of foods; it
shall not be used for other purposes, such as storage of blood, drugs or
biological products, etc.
Do not store beer, beverage or other fluid contained in bottles or enclosed
containers in the freezing chamber of the refrigerator; otherwise the bottles
or enclosed containers may crack due to freezing to cause damages.
Warnings for energy
Refrigerating appliances might not operate consistently (possibility of
defrosting of contents or temperature becoming too warm in the frozen food
compartment) when sited for an extended period of time below the cold end
of the range of temperatures for which the refrigerating appliance is designed.
The fact that effervescent drinks should not be stored in food freezer
compartments or cabinets or in low-temperature compartments or cabinets,
and that some products such as water ices should not be consumed too cold.
The need to not exceed the storage time(s) recommended by the food
manufacturers for any kind of food and particularly for commercially
quick-frozen food in food-freezer and frozen-food storage compartments or
cabinets.
The precautions necessary to prevent an undue rise in the temperature of the
frozen food while defrosting the refrigerating appliance, such as wrapping the
frozen food in several layers of newspaper.
The fact that a rise in temperature of the frozen food during manual
defrosting, maintenance or cleaning could shorten the storage life.
The necessity that, for doors or lids fitted with locks and keys, the keys be
kept out of the reach of children and not in the vicinity of the refrigerating
appliance, in order to prevent children from being locked inside.

www.heinner.com
6
Warnings for disposal
Refrigerant and cyclopentane foaming material used for the refrigerator are
flammable. Therefore, when the refrigerator is scraped, it shall be kept away from
any fire source and be recovered by a special recovering company with
corresponding qualification other than be disposed by combustion, so as to prevent
damage to the environment or any other harm.
When the refrigerator is scraped, disassemble the doors, and remove gasket of door
and shelves; put the doors and shelves in a proper place, so as to prevent trapping
of any child.
IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO
CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.
TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

www.heinner.com
7
IV. INSTALLATION
Placement
Before use, remove all packing materials, including bottom cushions, foam pads
and tapes inside of the refrigerator, tear off the protective film on the doors and
the refrigerator body.
Keep away from heat and avoid direct sunlight. Do not place the freezer in moist
or watery places to prevent rust or reduction of insulating effect.
Do not spray or wash the refrigerator; do not put the refrigerator in moist places
easy to be splashed with water so as not to affect the electrical insulation
properties of the refrigerator.
The refrigerator is placed in a well-ventilated indoor place; the ground shall be
flat, and sturdy.

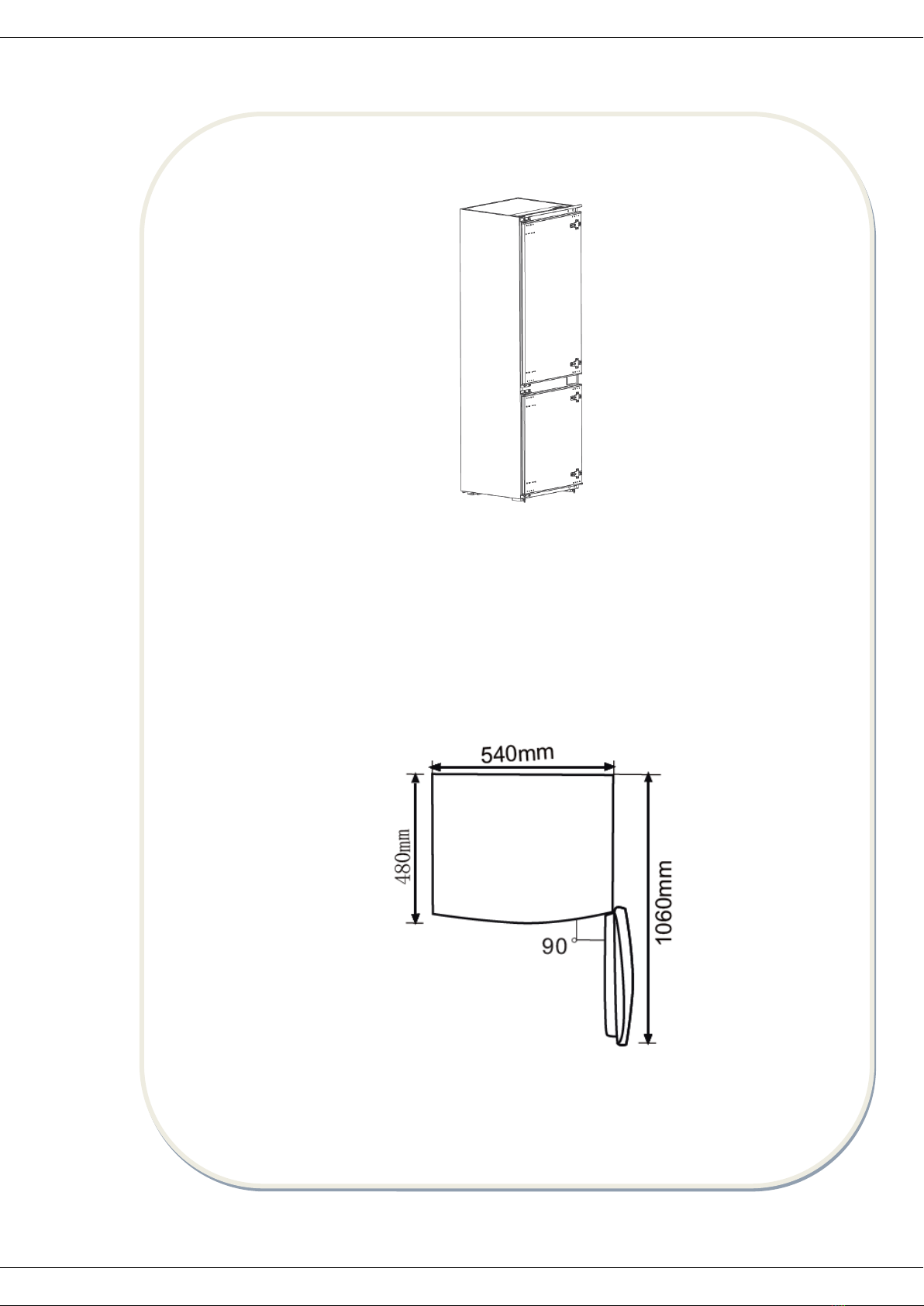

Outer cabinet dimensions, please refer to shown as the below picture
Precautions before installation: Before installation and adjusting of accessories, it shall be
ensured that the refrigerator is disconnected from power.

www.heinner.com
8
Installation in cabinet
Cabinet size requirement

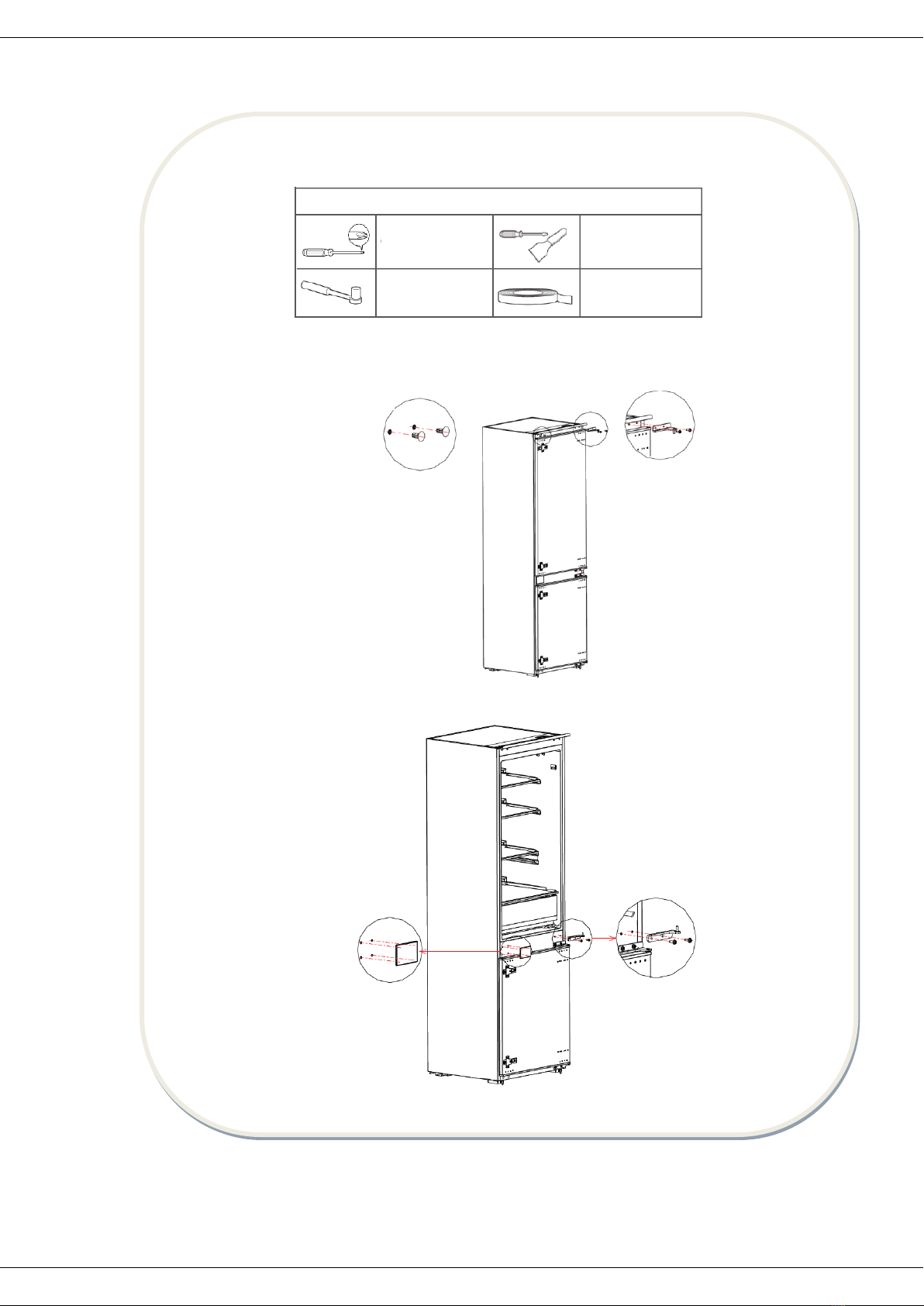

Push the refrigerator into the cabinet and adjust it to make sure the edgefold of
top baffle completely touch the top edge of the cabinet, and the limit hook of
supporting leg completely touch the bottom edge of the cabinet.
Fix the supporting leg with screws, then install the screw caps.
Edgefold of top baffle
Limit hook
Screw cap
Screw

www.heinner.com
9
Fix the top baffle to the top of the cabinet inner with screws, then install the
screw caps.
Open the lower door of cabinet the maximum angle and open the lower door of
the refrigerator to the corresponding position. Sliding the block to make sure
inner edge align with the lower door edge of refrigerator, then fix the block to
the door of cabinet with screw and install screw caps. Fix the upper refrigerator
door to the cabinet door in the same way.
Take out the sealing strip from accessory bag and press it in the gap between the
cabinet and the refrigerator. Installation is completed.
Screw cap
Screw
Block
Sealing strip

www.heinner.com
10
Door right-left change
Power off the refrigerator and remove all objects from the door trays.
Remove the upper hinge and hole caps of refrigerator door.
Remove the refrigerator door, the bottom hinge and the hole cover.
List of tools to be provided by the user
Cross screwdriver
5/16” Socket and ratchet
Putty knife
Thin-blade screwdriver
Masking tape
hole caps
upper hinge
R: bottom hinge
hole cover

www.heinner.com
11
Exchange the R: bottom hinge and R: upper hinge,then install them according
to below steps, and install top hole caps.
Remove the two fixed blocks of refrigerator door and rotate them for 180°and
install them on other side of refrigerator door.
Remove the upper hinge of freezer door.
R: upper hinge
Step 1:
Install left bottom hinge
Step 3:
Install left upper hinge
R: bottom hinge
Step 2:
Put refrigerator door on left
bottom hinge vertically
hole caps
fixed block
F: upper hinge

www.heinner.com
12
Remove the freezer door, the bottom hinge and the hole caps.
Exchange the F: bottom hinge and F: upper hinge, then install them according
to below steps, and install top hole cover and lower hole caps.
Remove the two fixed blocks of freezer door and rotate them for 180°and
install them on other side of freezer door.
F: bottom hinge
hole caps
F: bottom hinge
Step 3:
Install left upper hinge
Step 2:
Put refrigerator door on
left bottom hinge
vertically
F: upper hinge
Step 1:
Install left bottom hinge
hole cover
fixed block
hole caps

www.heinner.com
13
The picture after completion is shown as below
Starting
Before initial start, keep the refrigerator still for half an hour before
connecting it to power supply.
Before putting any fresh or frozen foods, the refrigerator shall have run for 2-3
hours, or for above 4 hours in summer when the ambient temperature is high.
Spare enough space for convenient opening of the doors and drawers or
statement by the distributor.

www.heinner.com
14
Cleaning Before Use
Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with
warm water using a 'Wrung-out' sponge or cloth. Wash the shelves and salad bin in
warm soapy water and dry completely before replacing in the unit. Clean the exterior of
the unit with a damp cloth.
If you require more information refer to the Cleaning section.
Before Using Your Unit
Do not damage the power cord under any condition so as to ensure safety use, do not
use when the power cord is damaged or the plug is worn.
Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator
to prevent damages to the product or fire accidents.
Do not place flammable items near the refrigerator to avoid fires.
This product is household refrigerators and shall be only suitable for the storage of
foods. According to national standards, household refrigerators shall not be used for
other purposes, such as storage of blood, drugs or biological products.
Do not place items such as bottled or sealed container of fluid such as bottled beers and
beverages in the freezer to prevent bursts and other losses.
Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is
working properly and to allow it time to fall to the correct temperature. Your unit
should not be overfilled.
Before Plugging in
You must check that you have a socket which is compatible with the plug supplied with
the unit.
Before Turning On!
Do not turn on until two hours after moving the unit.
In order to make the most of the volume of the fresh food storage compartment
and frozen-food storage compartment, the user can remove one or more shelves,
drawers, out of the appliance, according to your daily use.
V. BEFORE USING

www.heinner.com
15
*The picture above is only for reference. The actual configuration will depend on the physical
product or statement by the distributor.
VI. PRODUCT DESCRIPTION
LED lighting
Door tray
Shelf
Temperature control panel
Fruits and vegetables box
Storage box
Drawer

www.heinner.com
16
Functions
1. Key
A. Temperature setting button of refrigerator compartment.
2. Display screen
Setting 1: 8°C
Setting 2: 6°C
Setting 3: 4°C
Setting 4: 2 °C
3. Display
Once initially powered on, the display screen is on full display for 3s and then the
refrigerator runs according to setting 3.
Normal operation display:
In case of a failure, the corresponding LED blinks.
In case of no failures, it shows the actual temperature setting of
refrigerator.
Fault code
Fault description
indicator setting 1
Refrigerator temperature sensor circuit
indicator setting 2
Refrigerator defrost sensor
indicator setting 3
Freezer defrost sensor
indicator setting 4
Ambient temperature sensor
4. Temperature setting
Each time the temperature setting button A is pressed once, the temperature
setting changes one time. After the temperature setting has been completed, the
refrigerator will run according to the set value after 30s.
VII. USING INSTRUCTION

www.heinner.com
17
The shift regulation is:
5. Lock/Unlock
When the temperature control panel is in lock state, it needs to long press temperature
setting key for 3 seconds for unlocking the panel, all LEDs will blink for 2 second when
panel is unlocked.
When the temperature control panel is in unlock state, if there is no operation on control
panel within 30 seconds, it will enter into lock state automatically.
6. Memory function
Power off memory function of the control device, memory contents:
Refrigerator setting temperature: set the gear.
Standby mode.
Press total run time (when power on freezing frost sensor temperature greater than 8 ℃,
press total run time).
7. Control of standby function
Entry mode:
In the unlocking state, set the SET key for 10S (when the display and control of
the refrigerator are all off, the standby button will take effect when the key is
released). After 30S, the refrigerator will enter the standby function mode, and
the display and control of the refrigerator will be all off in the standby mode.
Exit method:
In standby mode, press the SET key to exit the standby mode and the refrigerator
will return to normal con.
Noise Inside the Unit
You may notice that your unit makes some unusual noises. Most of these are perfectly
normal, but you should be aware of them!
These noises are caused by the circulation of the refrigerant liquid in the cooling system.
It has become more pronounced since the introduction of CFC free gases. This is not a
fault and will not affect the performance of your unit. This is the compressor motor
working, as it pumps the refrigerant around the system.
Refrigerating chamber
The Refrigerating Chamber is suitable for storage of a variety of fruits, vegetables,
beverages and other food consumed in the short term.
Cooking foods shall not be put in the refrigerating chamber until cooled to room
temperature.
Foods are recommended to be sealed up before putting into the refrigerator.
The glass shelves can be adjusted up or down for a reasonable amount of storage
space and easy use.
Setting 1
Setting 2
Setting 3
Setting 4

www.heinner.com
18
Order
Compartments TYPE
Target storage
temp. [ ℃ ]
Appropriate food
1
Fridge
+2≤+6
Eggs, cooked food, packaged food, fruits and vegetables, dairy
products, cakes, drinks and other foods are not suitable for
freezing.
2
(***)*-Freezer
≤-18
Seafood (fish, shrimp, shellfish), freshwater aquatic products
and meat products (recommended for 3 months, the longer
the storage time, the worse the taste and nutrition), suitable
for frozen fresh food.
3
***-Freezer
≤-18
Seafood (fish, shrimp, shellfish), freshwater aquatic products
and meat products (recommended for 3 months, the longer the
storage time, the worse the taste and
nutrition), are not suitable for frozen fresh food.
4
**-Freezer
≤-12
Seafood (fish, shrimp, shellfish), freshwater aquatic products and
meat products (recommended for 2 months, the longer the storage
time, the worse the taste and nutrition), are not suitable for frozen
fresh food.
Freezing chamber
The low temperature freezing chamber may keep food fresh for a long time and it
is mainly used to store frozen foods and making ice.
The freezing chamber is suitable for storage of meat, fish, rice balls and other
foods not to be consumed in short term.
Chunks of meat are preferably to be divided into small pieces for easy access.
Please be noted food shall be consumed within the shelf time.
Note: Storage of too much food during operation after the initial connection to power may
adversely affect the freezing effect of the refrigerator. Foods stored shall not block the air
outlet; or otherwise the freezing effect will also be adversely affected.
To avoid contamination of food, please respect the following instructions:
Opening the door for long periods can cause a significant increase of the
temperature in the compartments of the appliance.
Clean regularly surfaces that can come in contact with food and accessible
drainage systems.
Store raw meat and fish in suitable containers in the refrigerator, so that it is not in
contact with or drip onto other food.
Two-star frozen-food compartments are suitable for storing pre-frozen food,
storing or making ice cream and making ice cubes.
One, two- and three-star compartments are not suitable for the freezing of fresh
food.

www.heinner.com
19
5
*-Freezer
≤-6
Seafood (fish, shrimp, shellfish), freshwater aquatic products and
meat products (recommended for 1 months, the longer the storage
time, the worse the taste and nutrition), are not suitable for frozen
fresh food.
6
0-star
-6≤0
Fresh pork, beef, fish, chicken, some packaged processed foods,
etc. (Recommended to eat within the same day, preferably no
more than 3 days). Partially encapsulated processed foods
(non-freezable foods)
7
Chill
-2≤+3
Fresh/frozen pork, beef, chicken, freshwater aquatic products, etc.
(7 days below 0 ℃and above 0 ℃is recommended for
consumption within that day, preferably no more than 2 days).
Seafood (less than 0 for 15 days, it is not recommended to store
above 0 ℃).
8
Fresh Food
0≤+4
Fresh pork, beef, fish, chicken, cooked food, etc. (Recommended to
eat within the same day, preferably no more than 3 days).
9
Wine
+5≤+20
Red wine, white wine, sparkling wine, etc.
Note: please store different foods according to the compartments or target storage
temperature of your purchased products.
If the refrigerating appliance is left empty for long periods, switch off, defrost, clean,
dry, and leave the door open to prevent mould developing within the appliance.
4. Change the Light Bulb
WARNING—The illuminating lamps must not be replaced by the user! If the illuminating lamps
is damaged, contact the customer helpline for assistance.
This warning is only for refrigerators that contain illuminating lamps.
