HELVIA LIDO Series User manual

LIDO Series
Waterproof Wall-Mount 2-Way Passive Speakers
Manuale d’uso
en-ita
Please read this manual carefully and keep it for future reference
Leggete questo manuale e conservatelo per future consultazioni
User Manual

Dear value Customer,
First, thank you for purchasing a HELVIA® product. Our mission is to oer
solutions based on the most up-to-date technologies for all systems integration
needs in the private, commercial and corporate sectors.
We hope you are satised with this product and, if you wish to participate, we
would be very pleased to receive your feedback on the operation of this product
and possible improvements for the future. You can go to “CONTACT” section of
www.frenexport.com and send an e-mail with your opinion; this would help us
make equipment that are closer to the real needs of our customers.
Finally, please read this user manual carefully before using the product; incorrect
use could cause damages to you and the product. Take care!
The HELVIA team

TABLE OF CONTENTS
1. IMPORTANT SAFETY INSTRUCTIONS......................................... 4
2. UNPACKING ...................................................................................... 4
3. PRODUCT OVERVIEW ..................................................................... 5
3.1. Features: .................................................................................................................................5
3.2. Powers.....................................................................................................................................5
3.3. Product Appearance...........................................................................................................6
4. INSTALLATION...................................................................................7
4.1. Wall-Mount Bracket and Speaker Installation ............................................................8
4.2. Speaker Connection............................................................................................................9
5. UNDER-POWERING VS OVER-POWERING...............................10
5.1. Example of 70V/100V System Conguration ............................................................10
5.2. Example of Low-Impedance Conguration .............................................................. 11
6. TECHNICAL PARAMETERS ............................................................ 11
6.1. Frequency Response Charts........................................................................................... 11
6.2. Specications ......................................................................................................................13
7. WARRANTY AND SERVICE ...........................................................14
8. WARNING.........................................................................................14

LIDO Series Waterproof 2-Way Wall-Mount Speakers
4
1. IMPORTANT SAFETY INSTRUCTIONS
yRead these instructions
yKeep these instructions
yHeed all warning
yFollow all instructions
Heat
The apparatus should be located away from heat sources such as radiators, stoves
or other appliances that produce heat.
Cleaning
Clean only with a dry cloth. Do not use any solvents such as benzene or alcohol.
Servicing
Do not implement any servicing other than those means described in the manual.
Refer all servicing to qualied service personnel only. Only use accessories/attach-
ments or parts recommended by the manufacturer.
2. UNPACKING
Thank you for purchasing your LIDO Series wall-mount speakers. All units have
been rigorously tested before leaving the factory. Carefully unpack the carton and
check the contents to ensure that all parts are present and in good conditions:
y2 x LIDO series wall-mount speakers
y2x Wall-mount brackets with screws
yThis User manual
If anything damaged during transport, notify the shipper immediately and keep
packing material for inspection. Again, please save its carton and all packing
materials. If the unit must be returned to the manufacturer, it is important that
the unit is returned in the original manufacturer’s packing. Please do not take any
action without rst contacting us.
Our products are subject to a continuous process of further development. There-
fore modications to the technical features remain subject to change without
further notice.

LIDO Series
Waterproof 2-Way Wall-Mount Speakers
5
3. PRODUCT OVERVIEW
LIDO series is specically designed for indoor and outdoor applications and proj-
ects in constant voltage or low impedance systems. Thanks to the IP65 protection
rating, to the PP woofers, to the UV-resistant PP cabinets, to the stainless-steel
metal parts, and the aluminum grille, these speakers do not fear the rigors of
exposure to atmospheric agents.
The high excursion custom transducers guarantee a clear and dened sound,
always providing a higher audio quality even at high sound pressures. The pow-
er-tap selector allows you to select 3 powers and adapt the speaker to 100V or
low impedance systems.
The C-bracket allows you to adjust the horizontal (+55°/-55°) and vertical position
(+20°/-20°).
3.1 . Features:
y2-Way Passive with RMS Powers from 20W to 40W
yIP65 Protection Rating for Outdoor/Indoor Applications
yAvailable in Black or White Finish
yUV-Resistant PP Housing
yBuilt-in 100V Line Transformer
yPower Tap Selector for 100V or low-impedance systems
yHorizontal and Vertical adjustable C-Bracket
yPaintable Housing and Grille
3.2. Powers
LIDO Series speakers are equipped with a built-in line transformer and a power
selector to better adapt each speaker to the type of line (constant voltage @ 70V
or 100V, or low-impedance), the power of the amplier, and the number of speak-
ers in the system.
The power selector is located on rear side of the speakers, inside the recessed
compartment. To access, remove the rubber cover and check the values related to
each position of the knob.

LIDO Series Waterproof 2-Way Wall-Mount Speakers
6

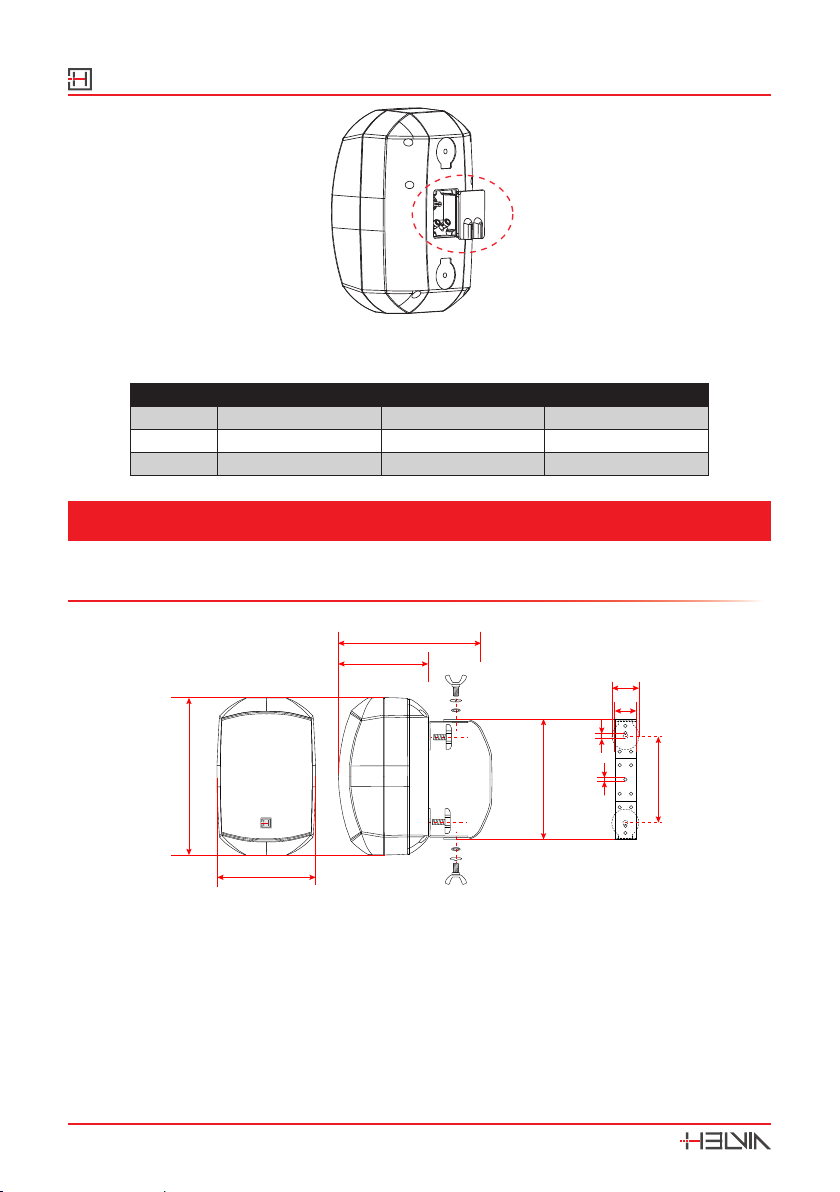

Please check the following table and adjust the knob accordingly.
Line LIDO-420 WP LIDO-530 WP LIDO-640 WP
8Ω 20W 30W 40W
70V 2.5W – 5W – 10W 3.75W – 7.5W – 15W 5W – 10W – 20W
100V 5W – 10W – 20W 10W – 20W – 30W 20W – 30W – 40W
3.3. Product Appearance
LIDO-420 WPW / WPB Size
138mm
220mm
120mm
196mm
168mm
38mm
30mm
Ø7mm
Ø5mm
120mm

LIDO Series
Waterproof 2-Way Wall-Mount Speakers
7

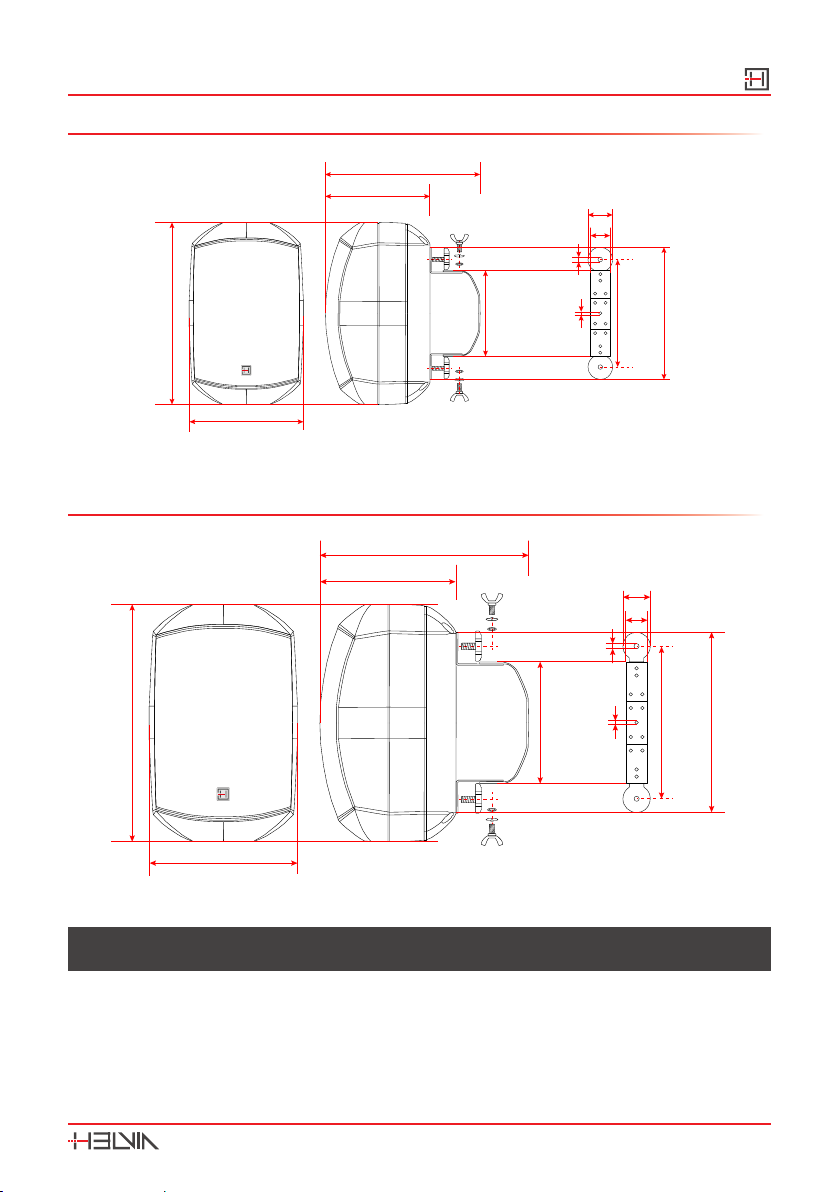

LIDO-530 WPW / WPB Size
175mm
280mm
156mm
210mm
132mm
206mm
38mm
30mm
Ø7mm
Ø5mm 170mm
LIDO-640 WPW / WPB Size
205mm
328mm
182mm
246mm
168mm
249mm
38mm
30mm
Ø7mm
Ø5mm 210mm
4. INSTALLATION
Read these instructions carefully before installing and using the product.
1. When the speaker is installed in a wall, check that the wall structure is reliable
and that the speaker is rmly attached.
2. Do not install the speakers in ne wood or soft wall material because the

LIDO Series Waterproof 2-Way Wall-Mount Speakers
8
screws can get loose, causing the crash or breakdown of the speakers and
personal injury.
3. Do not use nails, adhesives or other unauthorized devices. Long-term use
and vibrations may cause it to fall easily.
4. Do not place the speakers on a turntable or movable support.
5. Do not touch or bump the woofer and tweeter. If these are damaged, the
sound will be distorted.
6. Do not listen to sound at a very high level when you are changing the input
source (for example, from FM Tuner to CD player). Please be sure the power
amplier is turned o or master volume is at lower level.
7. Do not attempt to clean the speakers with chemical solvents as this may
damage the paint surface. Clean with a dry cloth.

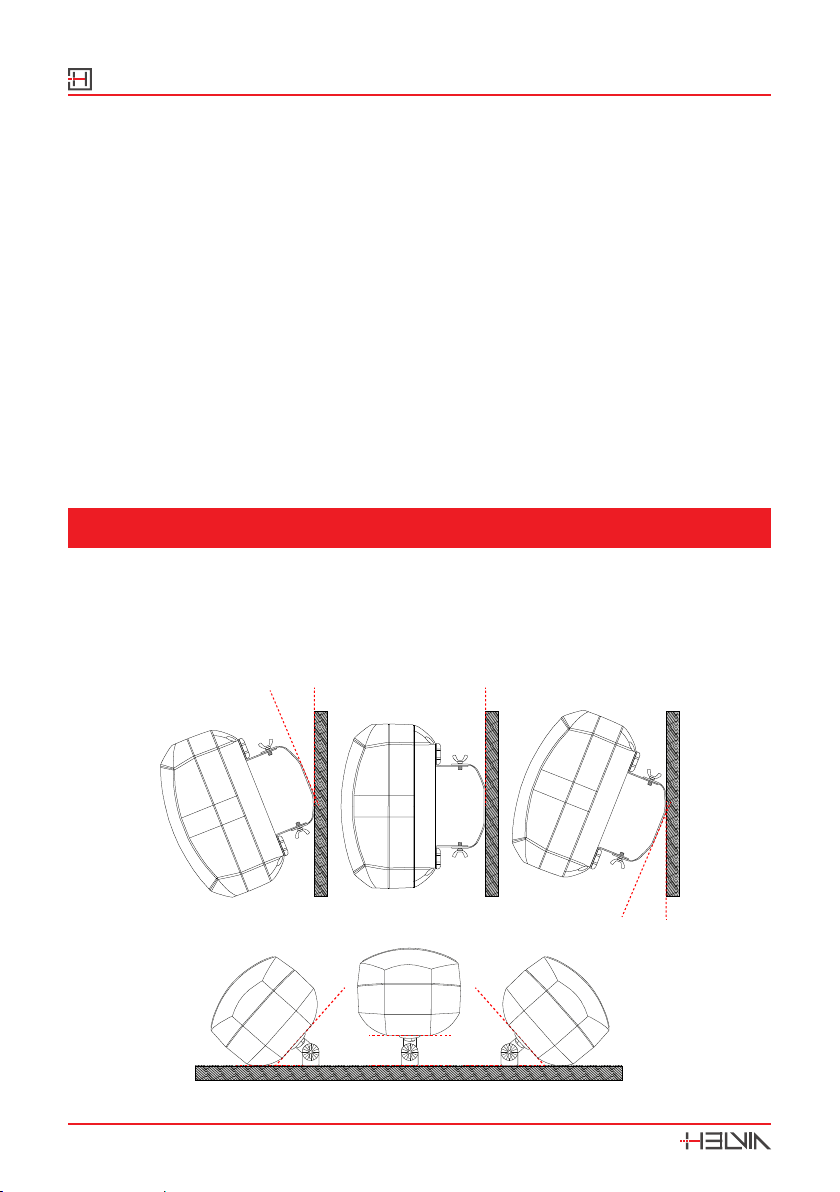

4.1. Wall-Mount Bracket and Speaker Installation
LIDO speakers can be installed on walls either in horizontal or vertical position. All
screws and tools to install the bracket are not provided with the speaker.
The supplied bracket allows the adjustment of the horizontal and vertical inclina-
tion.
20°
20°
+55° 0°
-55°

LIDO Series
Waterproof 2-Way Wall-Mount Speakers
9

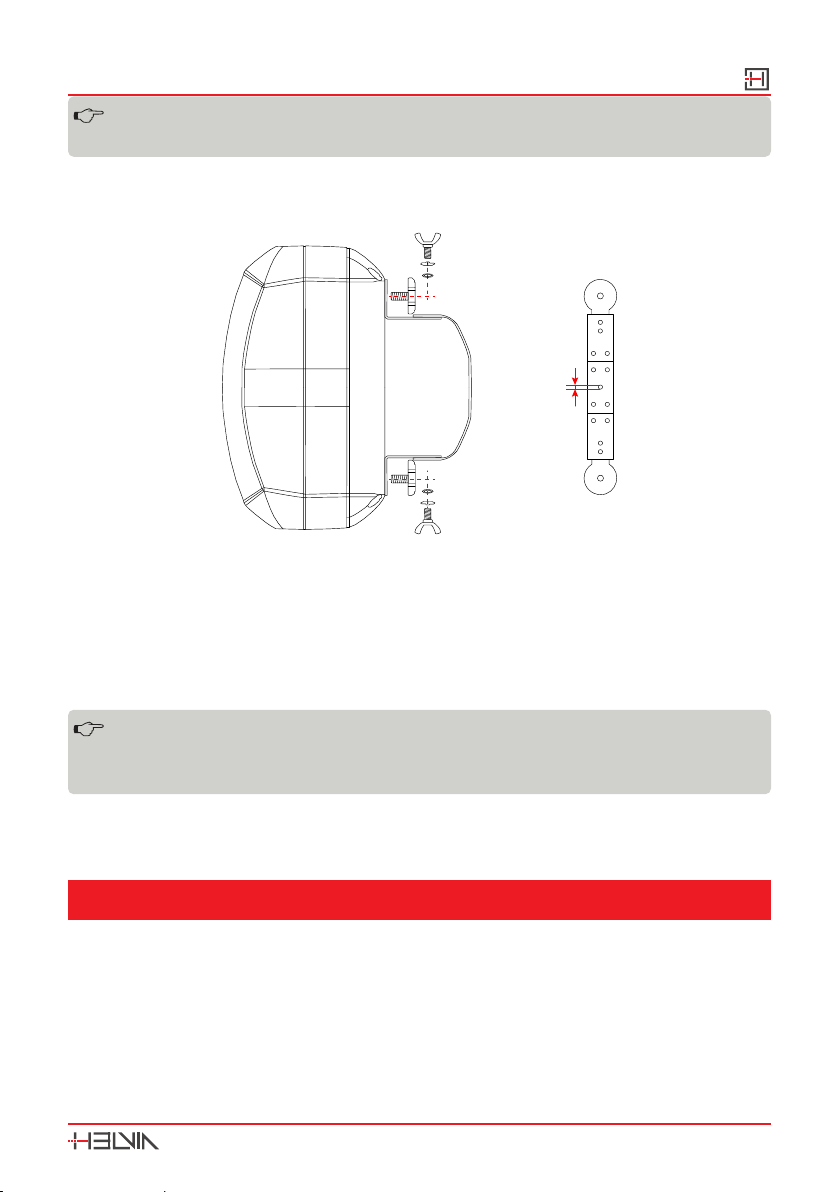

The installer is responsible of installation. Please pay attention to
install speakers according to local safety regulations.
yUse the bracket as a template to choose the holes position, and mark them on
the wall. Holes diameter is 5mm.
Ø5mm
yThen use the appropriate hardware and tools (not supplied) tp properly x the
bracket to the wall.
yPlace the speakers to the bracket using the supplied screws and washers ac-
cording to the speaker.
yFit two screws into the mounting slot of the speaker’s back (parallel to the col-
umn to help t the screws).
When placing speakers horizontally, be careful not to touch and load
the front of the speaker net with hard facing, otherwise it will deform
the front net.
yAccording to the installation plan and the adjustable range shown before,
choose the most appropriate height, pan and tilt, and then tighten the screws.
4.2. Speaker Connection
yConnect the speaker to the 70/100V or low-impedance line. Pay attention to
polarity. Adjust power knob according to requirement (see section “3.2. Powers”
at page 5).
yThe speaker termination is red on one side (+), and black on the other side (-).
Connect the red side of the amplier to the red speaker termination (+). Con-
nect the black side of the amplier to the black speaker termination (-).
yIn case of parallel speaker connection, please make sure that there is not in-

LIDO Series Waterproof 2-Way Wall-Mount Speakers
10
verted polarity (+ connected to -). If the polarity of the speakers is reversed, the
sound will be unnatural and will play without bass.
5. UNDER-POWERING VS OVER-POWERING
Most speaker damages are caused by ampliers with too little power (wattage).
Overdriven ampliers clip output waveforms and send distortion to the speakers.
Clipping is usually audible; it may vary from a harsh sound to a fuzzy or unclear
sound.
If you hear this condition at loud volume levels, turn down the amplier volume
until the distortion is no longer present. Damages caused by operating the speak-
ers at distorted volume levels are no covered by warranty.
5.1. Example of 70V/100V System Configuration
5 speakers connected in parallel using 20W Taps
NOTE: Total number of speakers multiplied by tap value cannot
exceed the output power (in watts) of the 70V/100V amplifier. The
above examples shows 5 total speakers in a 100V system. If you use
20W tap position, you need an amplifier with at least 5x20=100W. A
good rule of thumb is to use an amplifier with 20% greater power; in
this case, an amplifier with 120W.

LIDO Series
Waterproof 2-Way Wall-Mount Speakers
11
5.2. Example of Low-Impedance Configuration
2 speakers connected to 8Ω outputs of a stereo low-impedance amplier
6. TECHNICAL PARAMETERS
6.1. Frequency Response Charts
NOTE: All Frequency charts below show dB SPL (1W @ 1m).
LIDO-420 WP
20 50 100 200 500 1k 2k 5k 10k 20k
Frequency (Hz)
-10
0
10
20
30
40
50
60
70
80
90
100
110
dB SPL

LIDO Series Waterproof 2-Way Wall-Mount Speakers
12

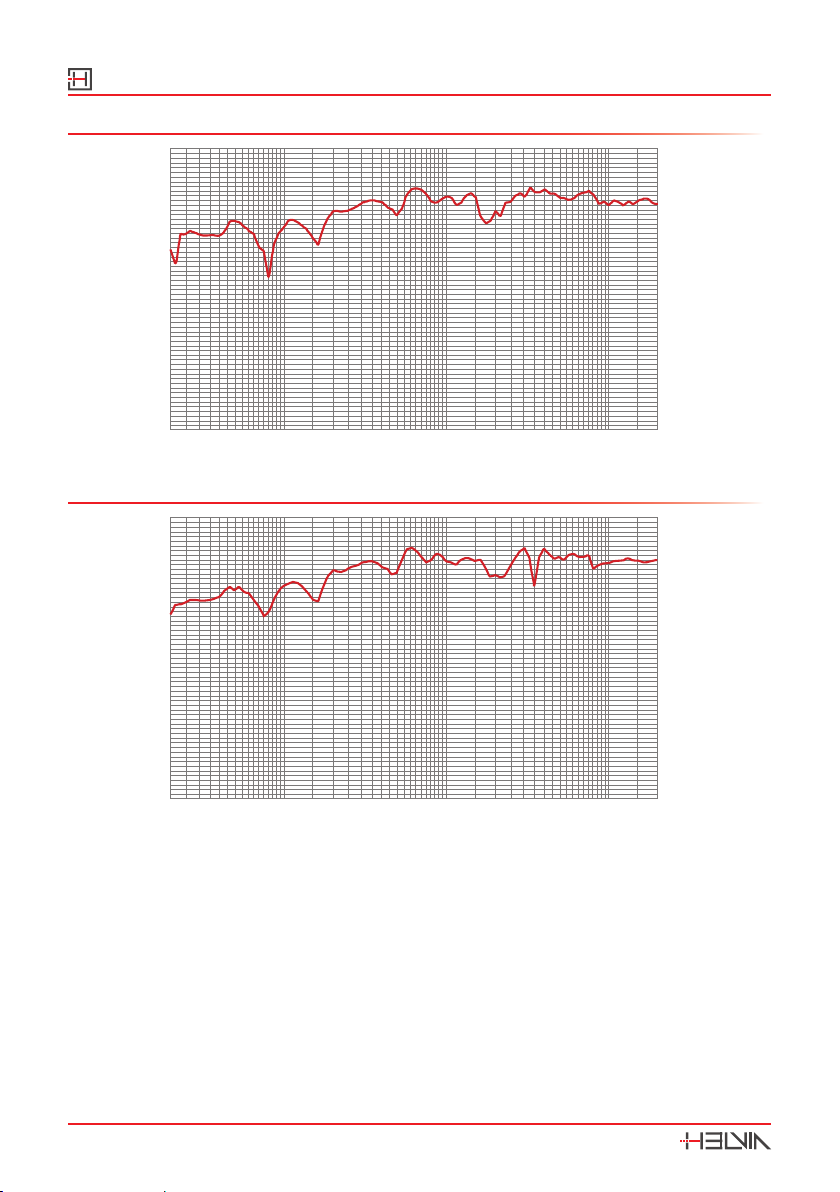

LIDO-530 WP
20 50 100 200 500 1k 2k 5k 10k 20k
Frequency (Hz)
-10
0
10
20
30
40
50
60
70
80
90
100
110
dB SPL
LIDO-640 WP
20 50 100 200 500 1k 2k 5k 10k 20k
Frequency (Hz)
-10
0
10
20
30
40
50
60
70
80
90
100
110
dB SPL

LIDO Series
Waterproof 2-Way Wall-Mount Speakers
13
6.2. Specifications
Model LIDO-420 WP LIDO-530 WP LIDO-640 WP
Speaker Type 2-Way Passive
IP Rating IP65
RMS Power (@ 8ohm) 20W 30W 40W
70V Powers 2.5W – 5W – 10W 3.75W – 7.5W – 15W 5W – 10W – 20W
100V Powers 5W – 10W – 20W 10W – 20W – 30W 20W – 30W – 40W
Frequency Response (-10dB) 90Hz-18kHz 80Hz-18kHz 65Hz-18kHz
Sensitivity (1w@1m) 88dB 90dB 92dB
Impedance 8ohm
Woofer 4” (103mm), PP cone 5.25” (135mm), PP
cone
6.5” (165mm), PP
cone
Tweeter 0.5” (13mm), Mylar dome
Housing UV-Resistant PP, paintable
Bracket C-Bracket with Pan/Tilt adjustable angle and stainless steel screws
Grille Perforated aluminum, powder coated paint, acoustic transparent
foam inside, paintable
Colors White or Black
Product Size (WxDxH) 138 x 120 x 220mm 175 x 156 x 280mm 205 x 182 x 328mm
Speaker Weight (single unit) 1,432 kg 2,246 kg 3,475 kg
Bracket Weight (single unit) 0,205 kg 0,185 kg 0,200 kg
Packing Size (WxDxH) (pair) 335 x 190 x 260 mm 428 x 215 x 320 mm 465 x 245 x 365 mm
Packing Weight (pair) 3,6 kg 5,4 kg 8,2 kg
Our products are subject to change. Modications to technical features remain subject to change without notice

LIDO Series Waterproof 2-Way Wall-Mount Speakers
14
7. WARRANTY AND SERVICE
All HELVIA® products are covered by warranty according to European regulations (2 years
in the case of purchase by private person - B2C; 1 year in the case of purchase by company
- B2B). The warranty is valid from the date of purchase by the end user (private individual
or company), indicated in the purchase document (receipt in the case of private person;
invoice in the case of company). The following cases / components are not covered by the
above warranty:
yAll accessories supplied with the product;
yImproper use;
yFailure due to wear and tear;
yAny unauthorized modication of the product by the user or third parties.
HELVIA must meet the warranty obligations due to any non-compliant materials or manu-
facturing defects, by remedying free of charge at HELVIA’s discretion by either repairing or
replacing specic parts or the entire equipment. Any defective parts removed by a product
in the event of a warranty claim become property of HELVIA.
During the warranty period, defective products can be returned to HELVIA retailer or
installer with proof of original purchase (receipt or invoice). To avoid damage during trans-
port, please use the original packaging, if available. For more information, visit the website:
www.frenexport.com.
8. WARNING
READ CAREFULLY - only for EU and EEA (Norway, Iceland and Liechtenstein).
This symbol indicates that the product must not be disposed of with household waste,
according to the WEEE directive (2202/96/EC and subsequent amendments) and national
legislation.
The product must be delivered to a designated waste collection center (e.g. on an autho-
rized one-for-one basis when you buy a new similar product, or to an authorized collection
site for recycling waste electrical and electronic equipment).
Improper handling of this type of waste can have a negative impact on the environment
and human health due to potentially dangerous substances that are generally associated
with electrical and electronic equipment. At the same time, your cooperation in the proper
disposal of this product will contribute to the eective use of natural resources.
For more information about where you can drop o your waste equipment for recycling,
please contact your local city oce, waste authority, approved WEEE scheme or your
household waste disposal service.

Gentile Cliente,
Prima di tutto, grazie per aver acquistato un prodotto HELVIA®. La nostra missio-
ne e di orire soluzioni basate sulle tecnologie più aggiornate a tutte le esigenze
di integrazione di sistemi nei settori privati, commerciali e corporate.
Speriamo che siate soddisfatti da questo prodotto e, qualora vogliate partecipare,
saremmo molto lieti di poter ricevere il vostro feedback sul funzionamento del
prodotto e su possibili miglioramenti da apportare in futuro. Potete andare sulla
sezione CONTATTACI del sito www.frenexport.com e inviare una e-mail con la vo-
stra opinione; questo ci aiuterebbe a realizzare apparecchiature sempre più vicine
alle reali esigenze dei Clienti.
Vi preghiamo, inne, di leggere attentamente questo manuale di istruzioni prima
di utilizzare il prodotto; un uso incorretto potrebbe causare danni a voi e al pro-
dotto stesso: pensateci!
Il team HELVIA

SOMMARIO
1. IMPORTANTI ISTRUZIONI DI SICUREZZA.................................17
2. CONTENUTO DELL’IMBALLO........................................................17
3. DESCRIZIONE DEL PRODOTTO....................................................18
3.1. Caratteristiche:....................................................................................................................18
3.2. Potenze.................................................................................................................................18
3.3. Aspetto del prodotto........................................................................................................19
4. INSTALLAZIONE ............................................................................. 20
4.1. Installazione della Staa da parete e del Diusore ................................................21
4.2. Connessione del Diusore............................................................................................. 22
5. SCELTA DELL’AMPLIFICATORE..................................................... 23
5.1. Esempio di congurazione di sistema a 70V/100V................................................ 23
5.2. Esempio di congurazione a bassa impedenza ..................................................... 24
6. PARAMETRI TECNICI ..................................................................... 24
6.1. Risposta in Frequenza..................................................................................................... 24
6.2. Speciche ............................................................................................................................ 26
7. GARANZIA E ASSISTENZA ........................................................... 27
8. AVVISO ............................................................................................. 27

Serie LIDO
Diffusori 2-Vie per Montaggio a Muro da Esterno
17
1. IMPORTANTI ISTRUZIONI DI SICUREZZA
yLeggete queste istruzioni
yConservate queste istruzioni
yRispettate tutte le avvertenze
ySeguite tutte le istruzioni
Calore
L’apparecchio deve essere posto lontano da fonti di calore come radiatori, stufe o
altri apparecchi che producono calore.
Pulizia
Pulite solo con un panno asciutto. Non utilizzate solventi come benzolo o alcol.
Manutenzione
Non eettuate qualsiasi altro intervento al di fuori di quelli descritti nel manuale.
Per eventuale assistenza rivolgetevi solo a personale qualicato. Utilizzate solo
accessori / componenti suggeriti dal produttore.
2. CONTENUTO DELL’IMBALLO
Grazie per aver acquistato i diusori della serie LIDO. Tutte le unità sono state
rigorosamente testate prima di lasciare la fabbrica. Disimballare con cura la confe-
zione e controllare il contenuto per assicurarsi che tutte le parti siano presenti e in
buone condizioni:
y2 x Diusori a muro della serie LIDO
y2x Stae per montaggio a parete con viti
yQuesto manuale di istruzioni
In caso di danni durante il trasporto, informare immediatamente lo spedizioniere
e conservare il materiale di imballaggio per l’ispezione. Ancora una volta, si prega
di conservare la confezione e tutti i materiali di imballaggio. Se l’unità deve essere
restituita al produttore, è importante che questa venga restituita nella confezio-
ne originale del produttore. Si prega di non intraprendere alcuna azione senza
prima averci contattato. I nostri prodotti sono soggetti a un processo continuo di
sviluppo. Pertanto, le modiche alle caratteristiche tecniche rimangono soggette a
modiche senza preavviso.

Serie LIDO Diffusori 2-Vie per Montaggio a Muro da Esterno
18
3. DESCRIZIONE DEL PRODOTTO
La serie LIDO è stata pensata per applicazioni e progetti al chiuso e all’aperto in
sistemi a tensione costante o a bassa impedenza. Grazie al grado di protezione
IP65, ai woofer in Polipropilene, al cabinet sempre in Polipropilene ma resistente
ai raggi UV, alle parti metalliche in acciaio inox e alla griglia in alluminio, questi
diusori non temono i rigori di una esposizione agli agenti atmosferici.
I trasduttori custom ad alta escursione garantiscono un suono chiaro e denito,
garantendo un livello di qualità audio superiore anche a pressioni sonore elevate.
Il selettore di potenza permette di selezionare 3 potenze e adattare il diusore a
reti a 100V o a bassa impedenza.
La staa a C consente di regolare la posizione orizzontale (+55°/-55°) e verticale
(+20°/-20°).
3.1 . Caratteristiche:
ySistemi Passivi a 2-Vie con Potenze RMS da 20W a 40W
yGrado di protezione IP65 per applicazioni esterne / interne
yDisponibile in nitura nera o bianca
yCabinet in PP resistente ai raggi UV
yTrasformatore per linee a 100V interno
ySelettore Power Tap per sistemi a 100 V o bassa impedenza
yStaa a C regolabile in orizzontale e verticale
yCabinet e griglia riverniciabili
3.2. Potenze
I diusori della serie LIDO sono dotati di un trasformatore di linea incorporato e
di un selettore di potenza per adattare meglio ciascun diusore al tipo di linea (a
tensione costante da 70V o 100V, o a bassa impedenza), alla potenza dell’ampli-
catore e al numero di altoparlanti nel sistema.
Il selettore di potenza si trova sul lato posteriore degli altoparlanti, all’interno del
vano a incasso. Per accedere, rimuovere il coperchio di gomma e controllare i
valori relativi a ciascuna posizione della manopola.

Serie LIDO
Diffusori 2-Vie per Montaggio a Muro da Esterno
19
Controllare la tabella seguente e regolare la manopola secondo i valori esposti.
Linea LIDO-420 WP LIDO-530 WP LIDO-640 WP
8Ω 20W 30W 40W
70V 2.5W – 5W – 10W 3.75W – 7.5W – 15W 5W – 10W – 20W
100V 5W – 10W – 20W 10W – 20W – 30W 20W – 30W – 40W
3.3. Aspetto del prodotto
Dimensioni LIDO-420 WPW / WPB
138mm
220mm
120mm
196mm
168mm
38mm
30mm
Ø7mm
Ø5mm
120mm

Serie LIDO Diffusori 2-Vie per Montaggio a Muro da Esterno
20
Dimensioni LIDO-530 WPW / WPB
175mm
280mm
156mm
210mm
132mm
206mm
38mm
30mm
Ø7mm
Ø5mm 170mm
Dimensioni LIDO-640 WPW / WPB
205mm
328mm
182mm
246mm
168mm
249mm
38mm
30mm
Ø7mm
Ø5mm 210mm
4. INSTALLAZIONE
Leggere attentamente queste istruzioni prima di installare e utilizzare il prodotto.
1. Quando l’altoparlante è installato su una parete, vericare che la struttura
della parete sia adabile e che l’altoparlante sia saldamente ssato.
2. Non installare gli altoparlanti su pareti di legno compensato o materiale per
pareti leggere (ad es., cartongesso) perché le viti possono allentarsi, causando
il la caduta o la rottura degli altoparlanti e lesioni personali.
