Thermo-Protector
In order to start the first washing cycle of the day,
both temperatures in the tank and the boiler must
reach operational values (60 ℃ & 85 ℃ respectively).
In all the other cycles, due to Thermo-Protector
system, if the temperature in the boiler is not ap-
propriate for rinsing, the washing cycle continues
until the rinse water becomes sufficiently heated.
A message on the screen informs the user that the
washing cycle continues; LCD1 shows the current
value of the water temperature in the boiler and
LCD2 shows “ht” (i.e. heating).
Washing Cycle Selection - Start

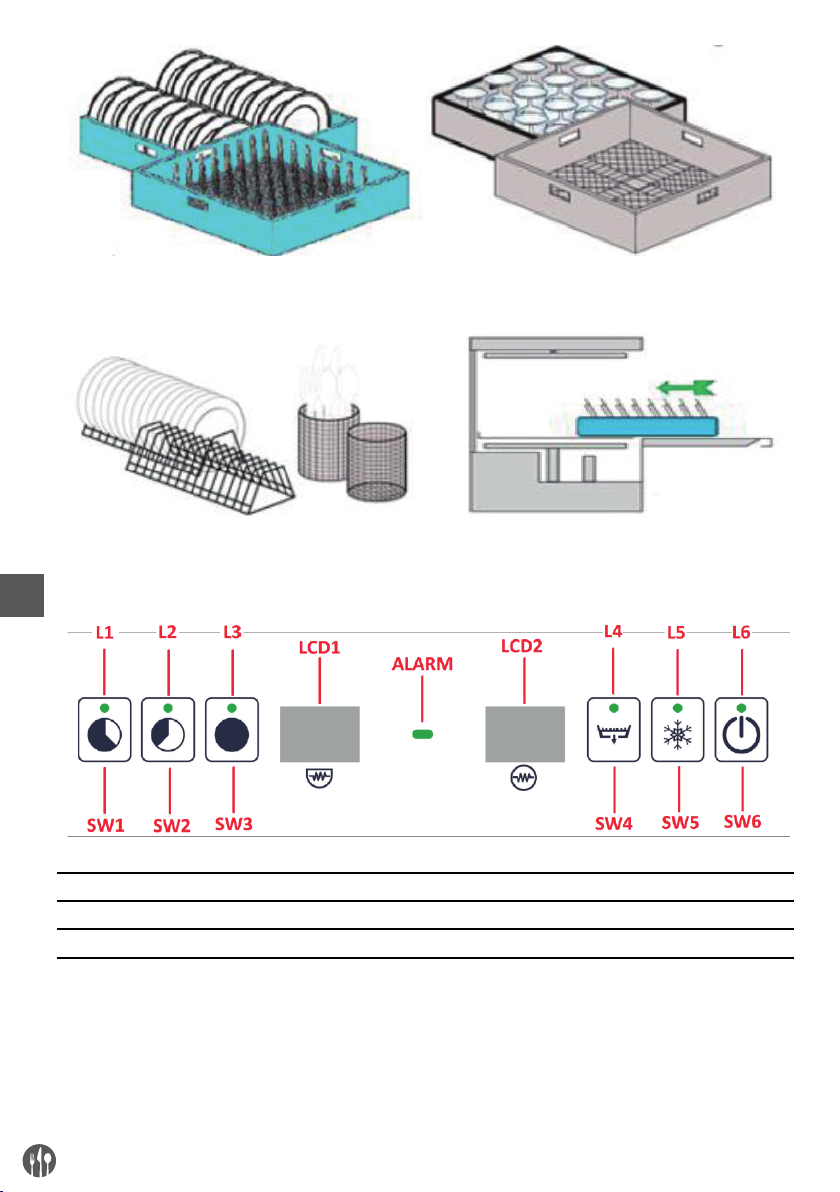

This washing machine has three washing cycle
program options. The user could choose be-tween
short, medium and long program by pushing one of
the buttons SW1, SW2 or SW3 ac¬cordingly. After
pushing the corresponding button, the washing cy-
cle starts automatically, UNLESS the door is acci-
dentally open. In the latter case a message “door”
is shown in the Dash and the washing starts again
as soon as the door is closed. The remaining time
(in seconds) is displayed on the Dash.
Important note: In case that the door is open accidentally before program is fin-
ished, the washing stops and the timer resets. Therefore, in order to finish the cycle,
you should start the procedure from the beginning.
Important note: 10 sec before finishing main wash the draining pump starts work-
ing and it stops 10 sec after rinse cycle.
After completion of the washing cycle, a message
“end” on the dash informs the user that the pro-
gram is finished. The message appears until the
door is opened again.
Draining
This machine has draining pump, so that the drain-
ing cycle is performed automatically. If you want to
perform draining on demand, please remove the
overflow hose that is placed on the wash tank and
press the Button SW4. After 15 sec the draining
starts and LED L4 flashes.
During draining, an internal check of the system is
performed, ensuring that the heating resis¬t¬anc-
es are switched off. In that sense, any possible
overheating caused by heating re-sistances not
immersed in water is avoided. As soon as drain-
ing stops, for the next 30 sec the system performs
self-cleaning (door must be closed).
Kindly note that after every On-Demand draining execution, the machine shuts
down.
Filling of Detergent and Rinse Aid
This machine is equipped with peristaltic pumps
for the rinse aid and the detergent filling. The fill-
ing inlets for each one are the two corresponding
hoses which should be immersed in the appropri-
ate tanks.
The filling procedure is performed in two stages.
The initial filling (when you turn the ma-chine on)
and additional re-fillings after each washing cycle:
1st Stage: During automatic preparation (before
the first wash) the machine receives from the tank
