Henkel Loctite EQ CL36 LED Cure Chamber User manual

1

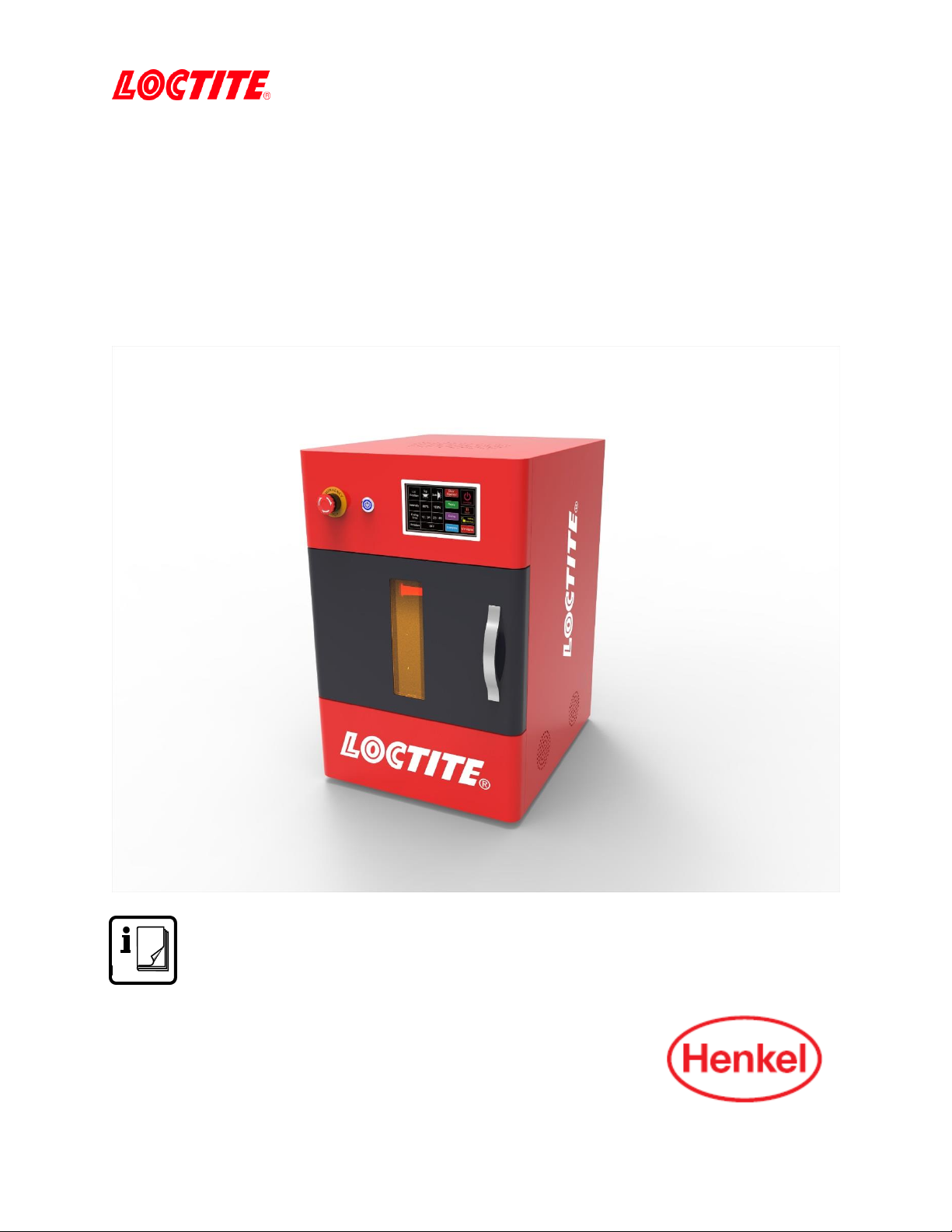

2331226 EQ CL36 LED Cure Chamber
Operating Manual

2
Table of Contents
1Please Observe the Following...................................................................................................3
1.1 Emphasized Sections...........................................................................................................3
1.2 For Your Safety.....................................................................................................................3
1.3 Unpacking and Inspection ..................................................................................................4
1.4 Items supplied ......................................................................................................................4
1.5 Features.................................................................................................................................4
1.6 Usage .....................................................................................................................................4
2Description...................................................................................................................................5
3Technical Data.............................................................................................................................6
4Installation....................................................................................................................................6
4.1 Environmental and Operating Conditions..............................................................................6
4.2 Connecting the Unit..................................................................................................................6
5Setup.............................................................................................................................................7

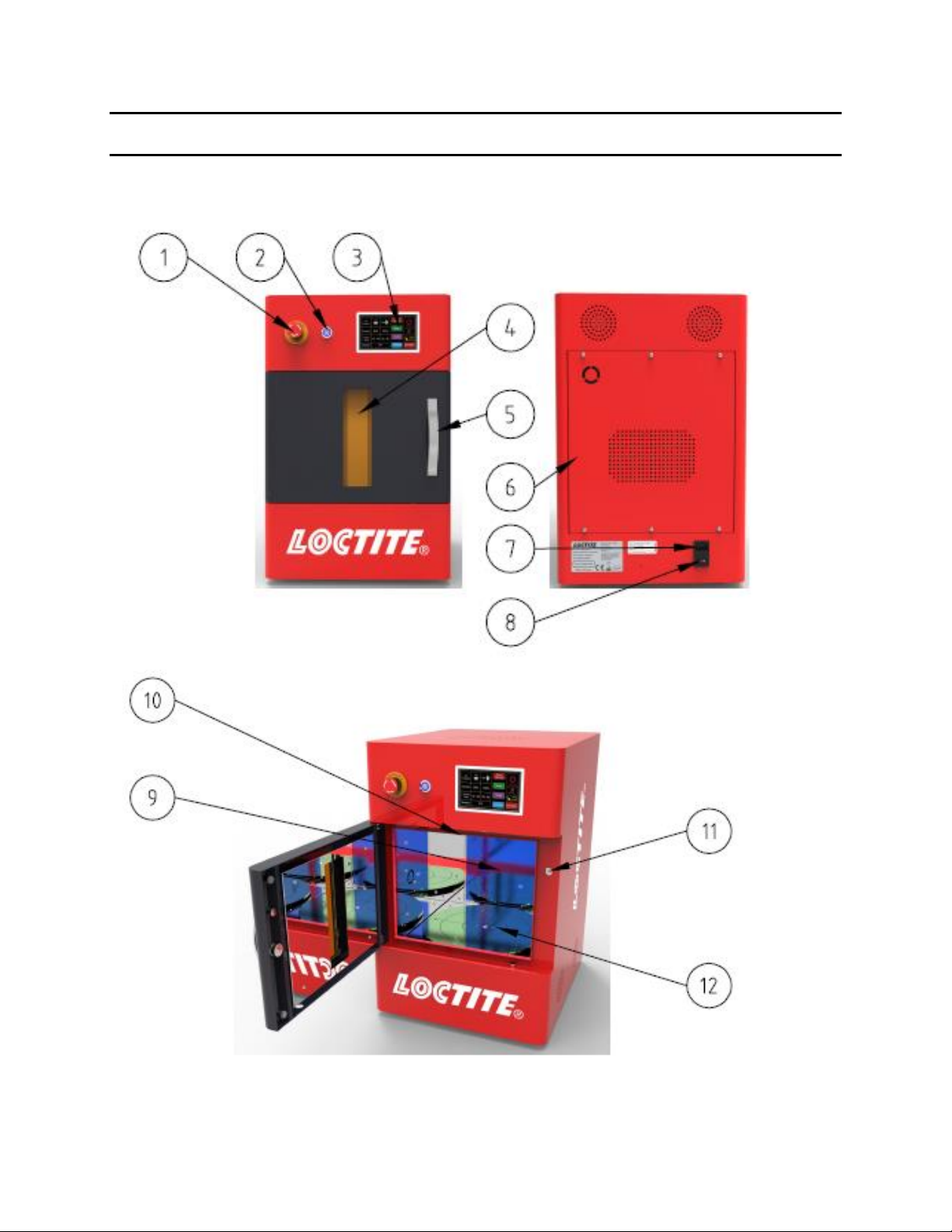

5.1 Overview.....................................................................................................................................7
5.2 Electrical Connection................................................................................................................8
5.3 Turn on Chamber ......................................................................................................................8
6Operation......................................................................................................................................9
6.1 Setup Parameter .......................................................................................................................9
6.2 Run the Chamber ....................................................................................................................11

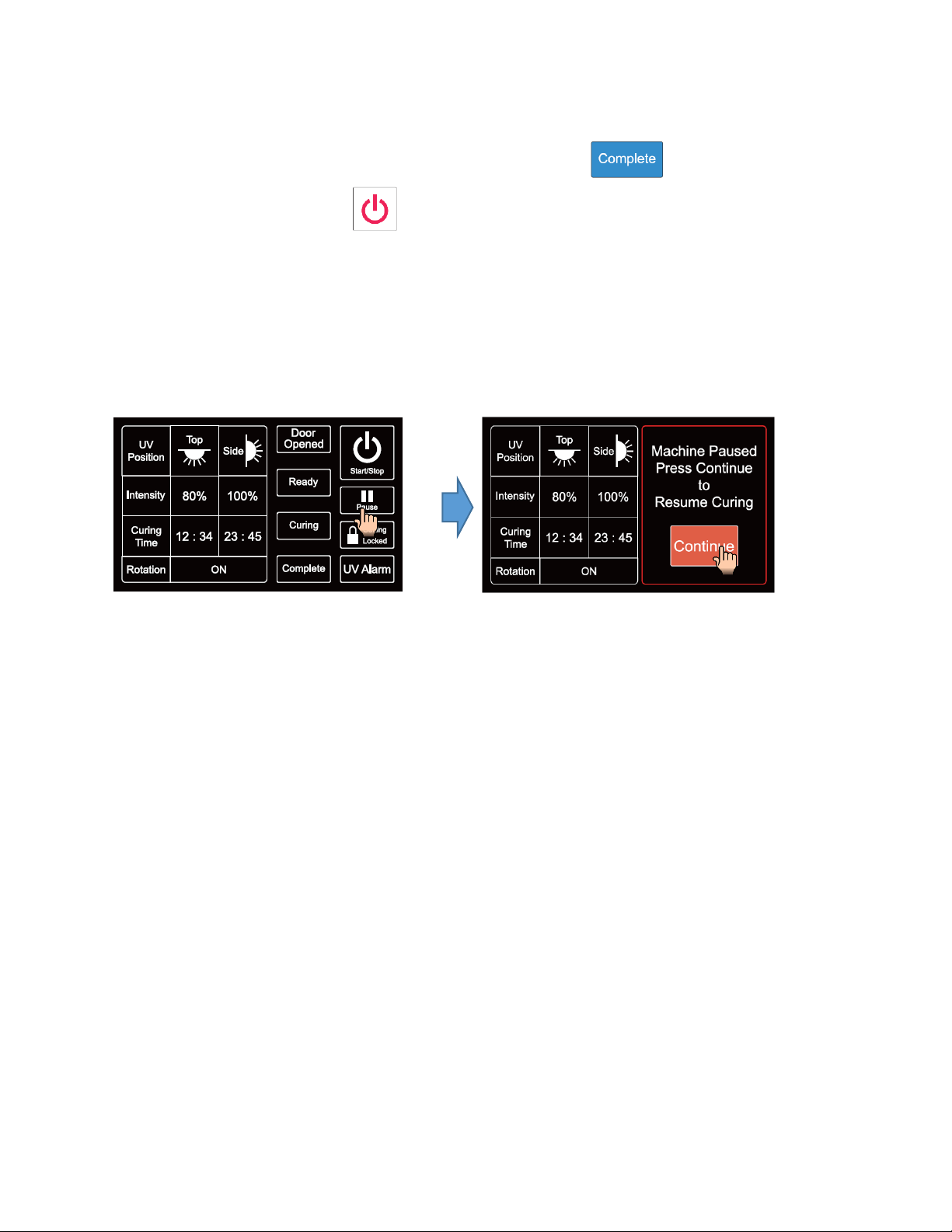

6.3 Pause ........................................................................................................................................12
7Troubleshooting.........................................................................................................................13
8Care and Maintenance .............................................................................................................13
9Accessories and Spare Parts...................................................................................................14

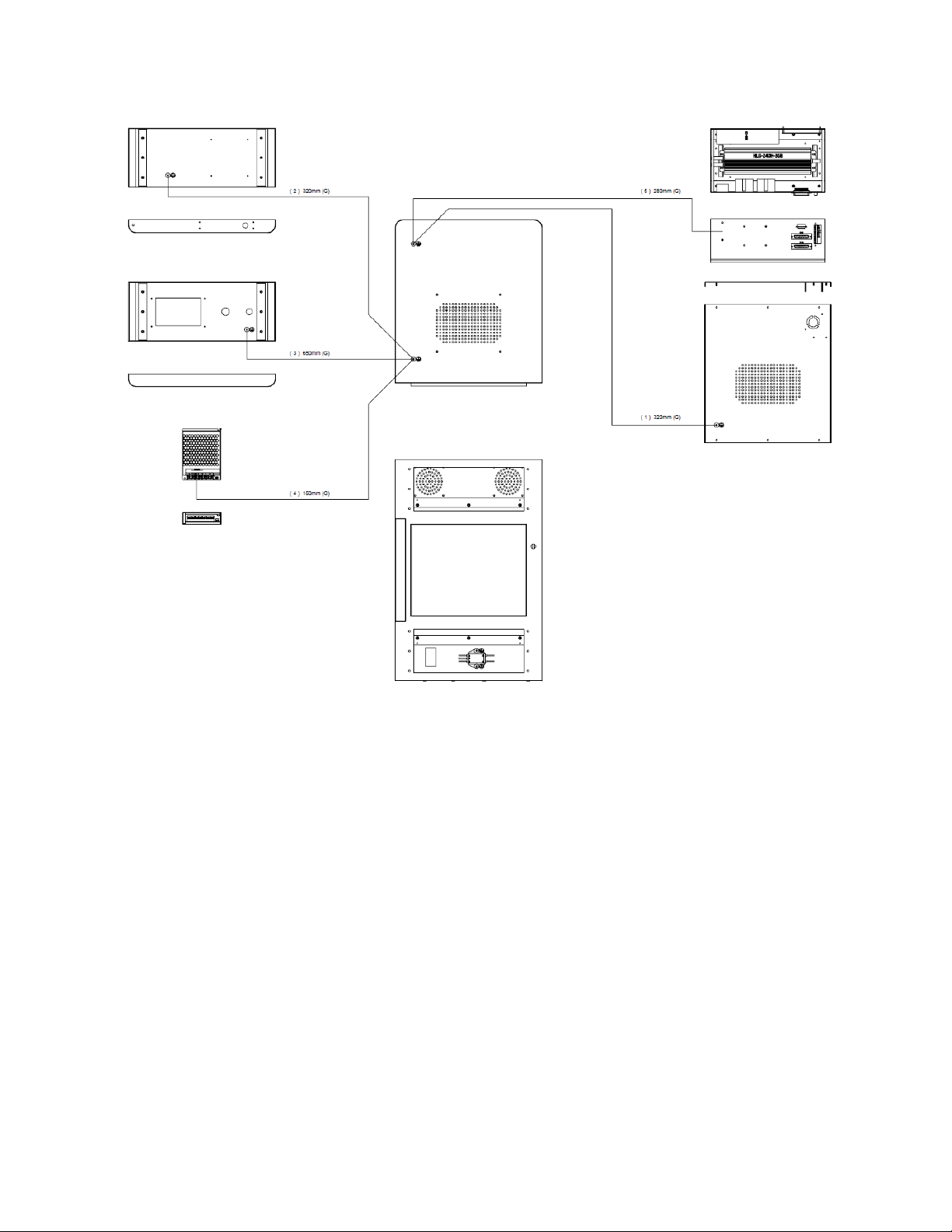

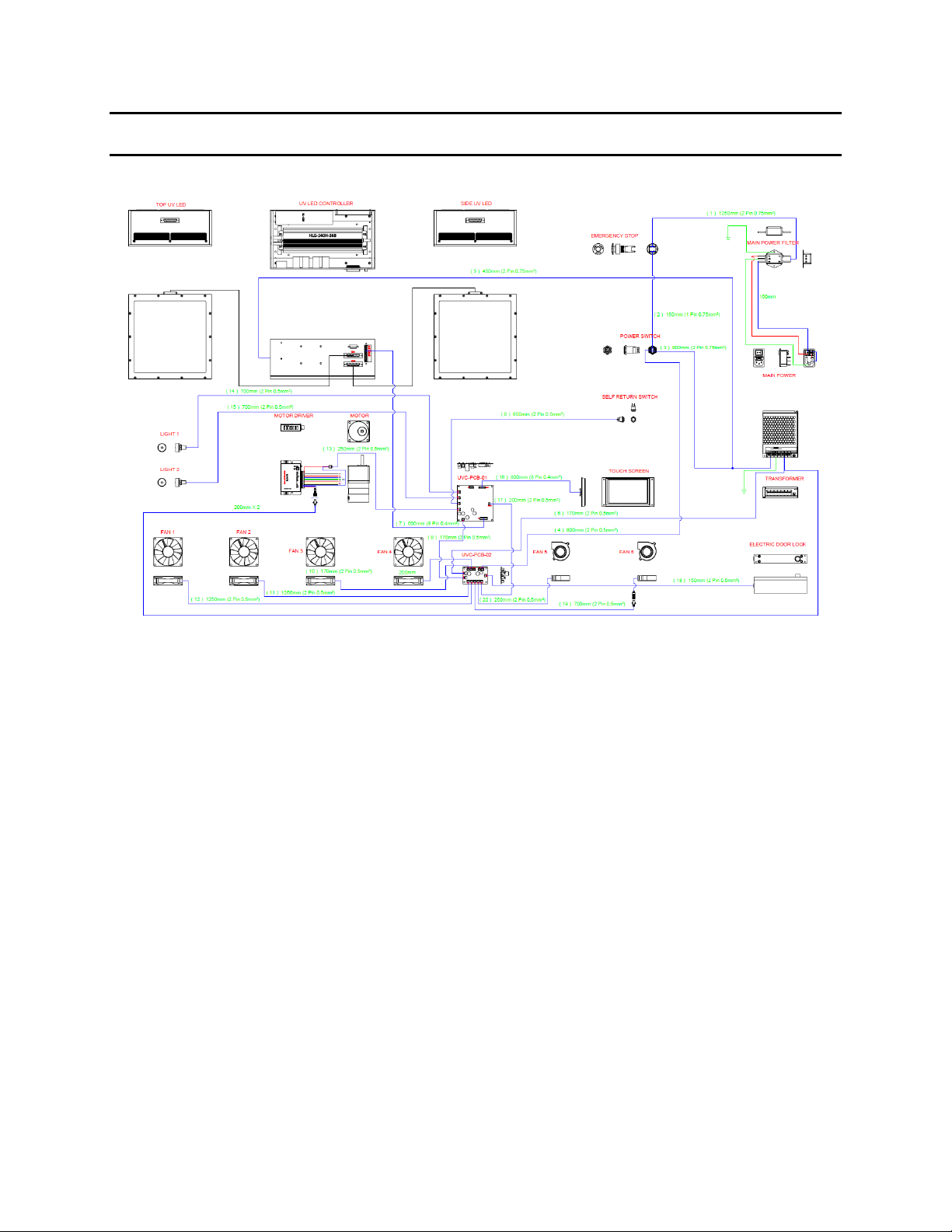

10 Diagrams ....................................................................................................................................15
11 Warranty .....................................................................................................................................17
12 Declaration of Conformity........................................................................................................19

3
1 Please Observe the Following
1.1 Emphasized Sections
Warning!
Refers to safety regulations and requires safety measures that protect the operator
or other persons from injury or danger to life.
Caution!
Emphasizes what must be done or avoided so that the unit or other property is not
damaged.
Notice:
A notice gives recommendations for better handling of the unit during operation or
adjustment as well as for service activities.
1.2 For Your Safety
For safe and successful operation of the unit, read these instructions
completely. If the instructions are not observed, the manufacturer can assume no
responsibility.
Do not expose the connecting cable to heat, oil, or sharp edges.
Do not bypass interlock any time.
Make sure the Unit stands stable and secure.
Use only original equipment replacement parts.
Always wear UV glasses when operating the chamber.
Always disconnect the power supply before servicing the unit.
Observe general safety regulations for the handling of chemicals such as
Loctite®adhesives and sealants. Observe the manufacturer’s instructions as stated
in the Safety Data Sheet.
While under warranty, the unit may be repaired only by an authorized Loctite
service representative.

4
1.3 Unpacking and Inspection
Carefully unpack the Loctite®CL36 LED Cure Chamber and examine the items
contained in the carton. Inspect the unit for any damage that might have occurred in
transit. If such damage has occurred, notify the carrier immediately. Claims for
damage must be made by the consignee to the carrier and should be reported to the
manufacturer.
1.4 Items supplied
1.4.1 CL36 LED Cure Chamber
1.4.2 Equipment Manual
1.4.3 Power Cord
1.5 Features
1.5.1 Variable light intensity
1.5.2 Two 200mm x 200mm LED flood lights, top and side
1.5.3 Rotary table with 2kg payload
1.5.4 Touch screen user interface with color display
1.5.5 Accepts part sizes up to 300mm x 300mm x 255mm
1.5.6 Independently adjustable digital timers for top and side LED floods
1.5.7 Uniform intensity throughout chamber volume
1.5.8 Universal power supply
1.6 Usage
The Loctite®CL36 LED Curing Chamber is an all-new, state-of-the-art UV curing
station that’s been specifically designed and engineered for printed parts with
Loctite resin.
Providing a reliable and professional post-curing solution, the Form Cure has 405 nm
UV light from multi-directional UV LEDs and a rotating turntable ensure complete
penetration, while a constant heart source bakes parts to achieve the most desirable
finish for all engineering resins.

5
2 Description
The Loctite®CL36 LED Curing Chamber a high-performance LED system for curing
UV adhesive. The chamber is a closed system. It is used for applications permitting
manual loading of the cure chamber.
The chamber offers 405nm LED. There are 2 pcs of 200x200 mm LED floods in one
chamber, one on top and one on side. With a rotary table, the chamber can cure all
sides of parts in one time.
Variable intensity capability allows adjustment of the light intensity based on the
application and resin type, resulting in optimal cured performance of the resin.
Adjustable from 10-100% in 1% increments.
Large 200 x 200mm top and side LED flood lights allow for a wide range of part sizes.
LED floods provide instant on/off and do no emit infrared emissions, which can
cause part warpage. LED life ~ 20,000 hours

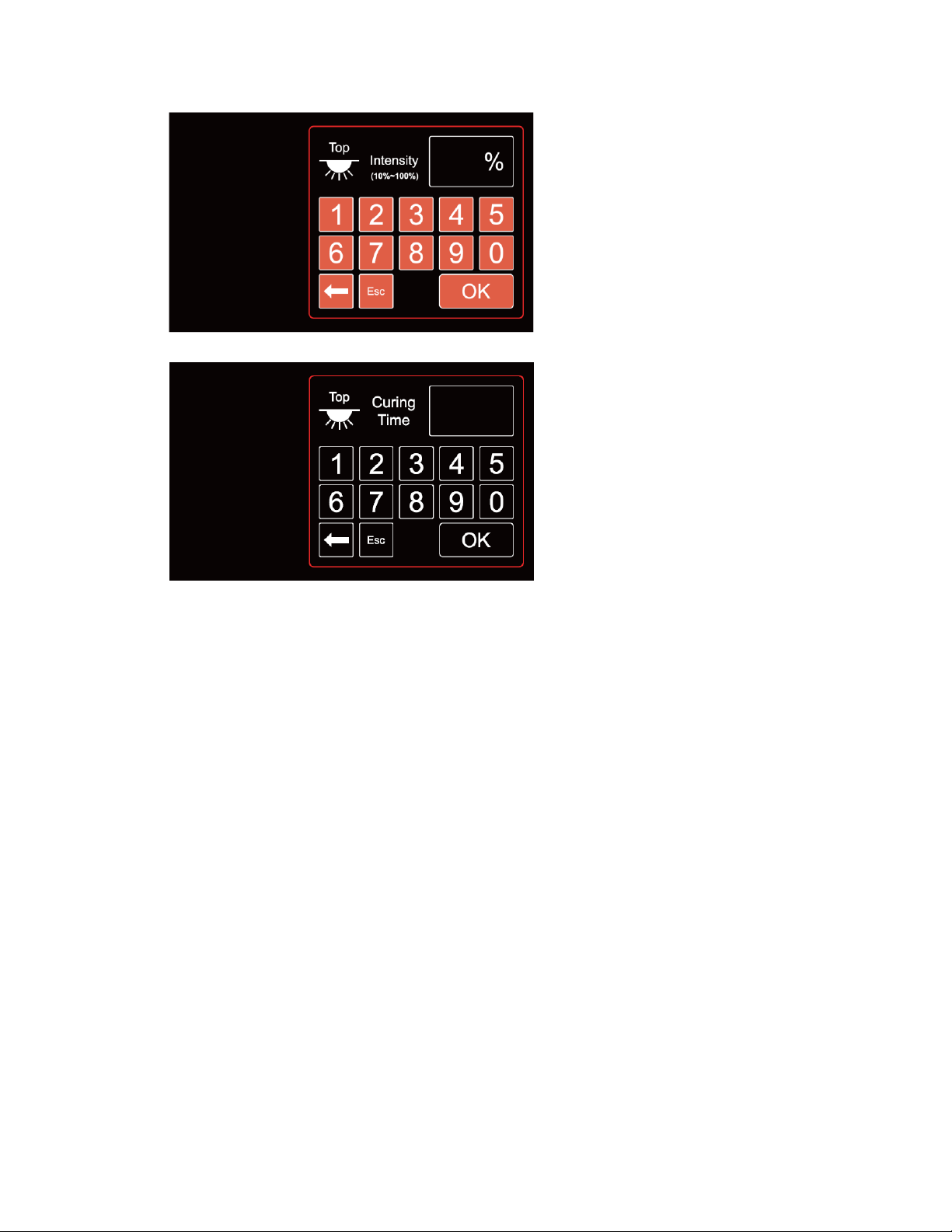

The chamber equips touch screen, which offers friendly UI.
