General Information
The Henny Penny ODE/ODG-323
open fryer is designed to combine the
flexibility of multi-well frying with the
convenience and efficiency of an
integral product dump station.
Cooked product is drained over fry
wells and then dumped directly into
the central well. Extra motion in work
flow is reduced, and the need for a
separate dumping station is
eliminated. The dump station also
cuts down on messy drips and helps
conserve frying oil. Excess oil from
product drains directly from the dump
well back into the fryer filter pan.
The ODE/ODG-323 offers high-
volume two-well frying on a three-well
platform, with programmable
operation, oil management functions
and fast, easy filtration.
Henny Penny’s unique heat-
exchange design produces extremely

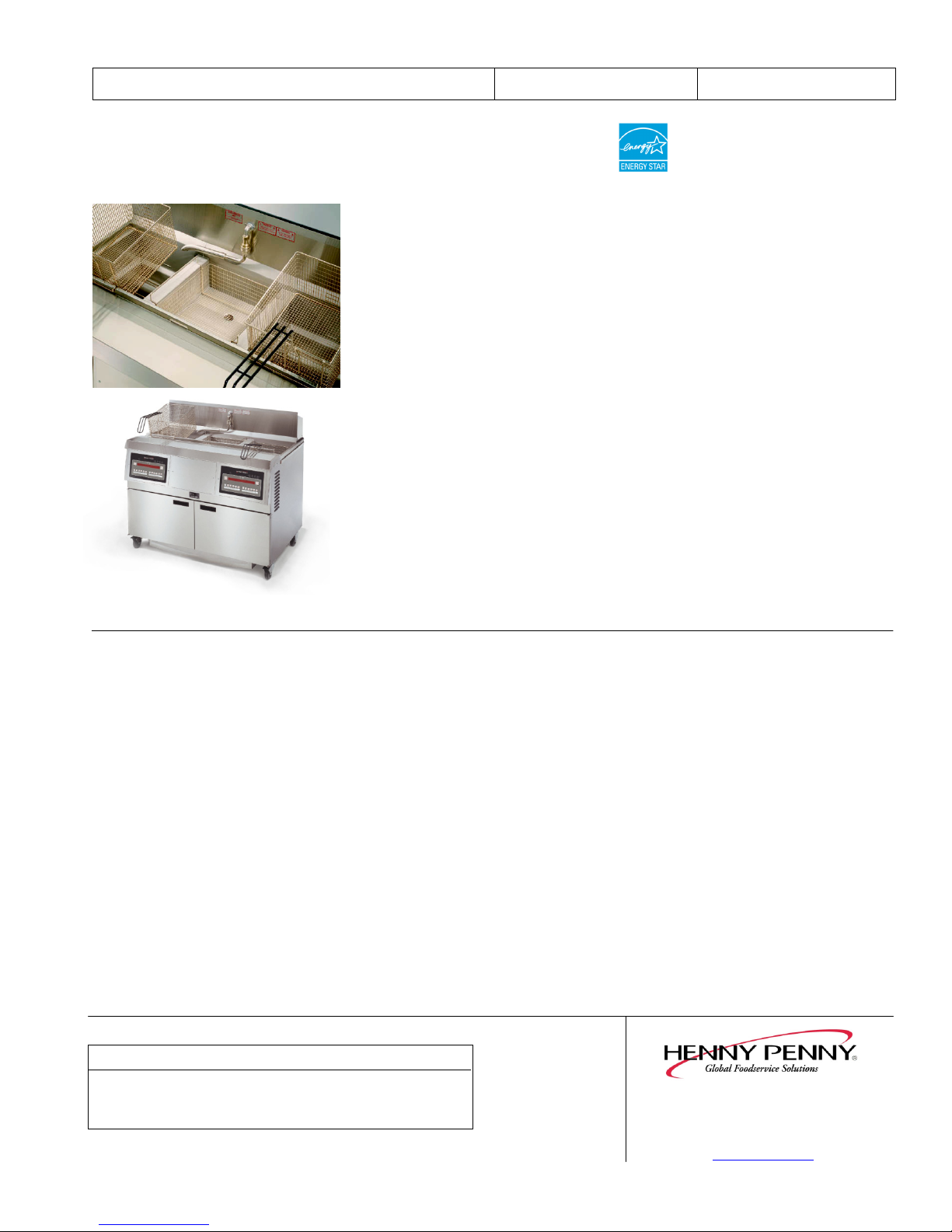

Two-well open fryer with
central dump station, model ODE-323.
Henny Penny Corporation
PO Box 60 Eaton OH 45320 USA
+1 937 456.8400 800 417.8417
+1 937 456.8434 Fax [phone] Fax
www.hennypenny.com
Standard Features
•Stainless steel construction for
easy-cleaning and long life.
•Two heavy-duty stainless steel
rectangular fry pots with 7-year
warranty.
•Central dump well
Serves both fry wells
Drains directly into filter pan
Integral stainless steel
construction
Coved corners for easy cleaning
•Fry pot protection system (gas.)
•Easy basket set and release.
•Specially designed cold zone
prevents scorching.
•Four heavy-duty casters, two
locking.
•COMPUTRON™8000 control
(additional charge.)
12 programmable cook cycles
Melt mode
Idle mode
Load compensation
Proportional control
Optional filter prompt and
customizable filter tracking
Clean-out mode.
16-character digital display with
multiple language settings.
•COMPUTRON™1000 simple digital
control
▪Programmable
▪LED Time/Temp display
▪Simple UP/DOWN arrows
•Built-in filtration (additional charge.)
Single well/sequential filter pan
Three-well filter pan
Accessories shipped with unit
•Fry baskets—please select one
2 full baskets
1 full and 2 half baskets
4 half baskets
•2 basket supports
Accessories and options available
separately
Direct Connect shortening disposal
(filtration equipped units, only)
Shortening shuttle
Filter rinse hose
Fry well covers
APPROVED APPROVED AS NOTED RESUBMIT
AUTHORIZED SIGNATURE DATE
fast temperature recovery—typically in
seconds—while requiring less than 2
kW per gallon of oil or shortening.
That level of efficiency has earned the
Henny Penny 320 series open fryer
the ENERGY STAR®mark.
Fast recovery also increases frying
program profits with increased
throughput, lower energy costs, and
longer frying oil life that comes from
reduced temperature fluctuations.
A built-in filtration system filters hot
frying oil in under 4 minutes, with no
separate pumps or pans required. Hot
filtered oil returns directly to each well.
Henny Penny’s heavy-duty stainless
steel rectangular fry pots promote fast
even cooking and come with a 7-year
warranty—the best in the business.
Available with COMPUTRON™8000
control or COMPUTRON™1000
simple digital control.
Open fryer with dump station
Two fry wells, one dump well
MODEL ODE-323 electric
ODG-323 gas

© 2006 Henny Penny Corporation, Eaton, OH 45320 USA Revised 09/10/08
Laboratory certifications
Continuing product improvement may subject specifications to change without notice.
PROJECT ITEM NO
www.hennypenny.com
Bidding Specifications
•Provide Henny Penny open fryers, models
ODE-323 electric and ODG-323 gas with
integral dump station and available built-in
filtration system (additional charge.)
•Units shall have two-fry wells and one
product dump well located in between or to
the left.
•Units shall incorporate either
COMPUTRON™1000 simple digital controls
or COMPUTRON™ 8000 control system
with (additional charge.)
•Materials—cabinet, deck, exhaust stack, filter
drain pan and various fittings are stainless
steel. Dump station is integral stainless steel.
Fry pots are heavy duty stainless steel.
•Units shall incorporate high-efficiency heat-
exchange design for extremely fast recovery.
•Units qualify for the ENERGY STAR®mark.
•Heating elements encircle the fry pot part-
way up the side, and are not located at the
bottom or below the pot. This design
produces a “cold zone” that extends oil life.
•Unit’s controller provides for programmable
or manual operation with press-key controls
and LED digital display. COMPUTRON™8000
control offers idle and melt modes, load
compensation, filtration tracking and 7-day
history.
•Units will include four heavy-duty casters, two
locking.
•Units with filtration system ship with stainless
steel Max filtration screen and (2) PHT filter
envelopes. All units ship with choice of (2) full
baskets, (1) full and (2) half baskets, or (4) half
baskets.
MODEL ODE-323 electric
ODG-323 gas
Dimensions
Width 49 3/8 in. (1254 mm)
Depth 37 3/8 in. (949 mm)
Height 44 in. (1118 mm)
Required clearances
Sides: 6 in. (152 mm) air flow
Back: 6 in. (152 mm) air flow, connections
Front: 30 in. (762 mm) filter pan removal
Crated dimensions
Length 55 in. (1397 mm)
Depth 39 in. (991 mm)
Height 54 in. (1372 mm)
Volume 67.0 cu. ft. (1.90 m³)
Net weight N/A
Crated weight
Electric Please contact Henny Penny
Gas Please contact Henny Penny
Heating
Electric Immersed elements, 28.8 kW
Gas Natural or liquid petroleum
(4) burners,170,000 BTU/hr (50 kW)
(1) ¾ in. connection
Watts Amps
Volts Phase Cycle/Hz
Per well Total Per well Total
Wire
208 3 60 14400 28800 39.9 79.8 3+G
240 3 60 14400 28800 37.2 74.4 3+G
480 3 60 14400 28800 17.5 35.0 3+G
Two electrical connections required, one for each well. Power cord and plug must be
installed on site by a qualified electrician.
Gas models
120 1 60 N/A 12.0 24.0 2+G
230 1 50 N/A 2.5 5.0 1NG
49 3/8 in. (1254 mm)
37 3/8 in. (949 mm)
44 in. (1118 mm)
Height includes
casters
PLAN
Electric units:
(2) electrical connections,
one per well
FRONT
Gas units:
(1) ¾ inch gas
connection
Open fryer with dump station
Two fry wells, one dump well
Capacity
Product 12.5 lbs. (5.7 kg) per fry well
25 lbs. (11.4 kg) total
Oil 65 lbs. (30.3 l) per fry well
130 lbs. (60.6 l) total
Electrical
