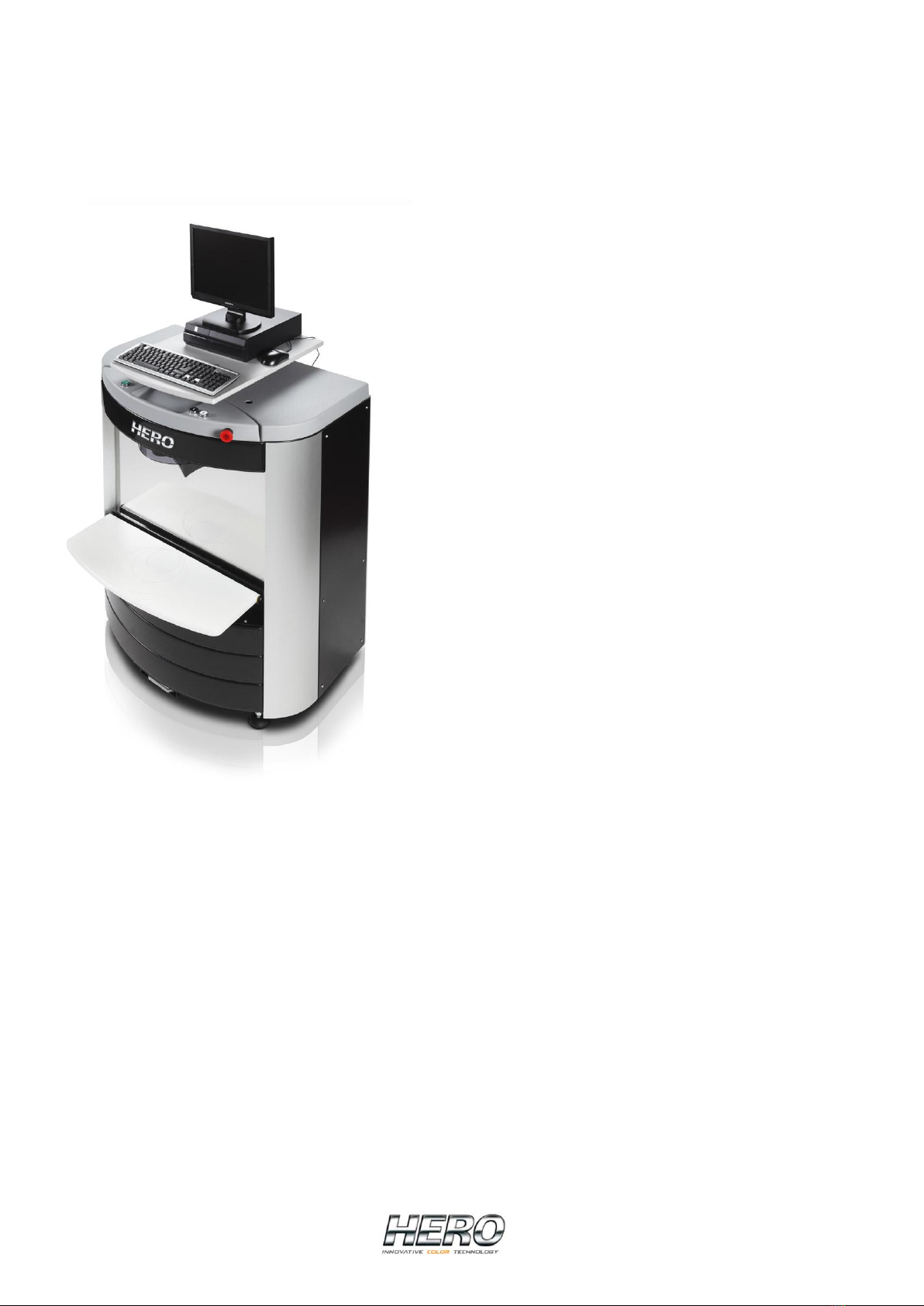

HERO A450 User manual

●EUREKA ●
●A450 –A550 ●
Automatic colorant dispenser
USER MANUAL

2
Declaration of Compliance with the CE Regulations
HERO EUROPE S.r.l.
Fraz. Buretto, 12/A
12041 –Bene Vagienna (CN)
ITALY
Declares that:
The Automatic Dispenser model: EUREKA A-450 –A550
Serial number:____
Is in compliance with the EC Machinery Directives:
Machinery Directive 2006/42/CEE
Low tension 2006/95/CEE
Electromagnetic Compatibility 2004/108/CEE
Is in compliance with the standardized European Regulations:
EN 292-1, EN 292-2, EN 418 & EN 1050
EN 60204-1
EN 61000-6-2, EN 61000-6-3, EN 61000-3-2 & EN 61000-3-3
HERO EUROPE S.r.l. Alessandro Sacchet
Fraz. Buretto, 12/A
12041 –Bene Vagienna (CN) Chairman
ITALY HERO EUROPE S.r.l.

3

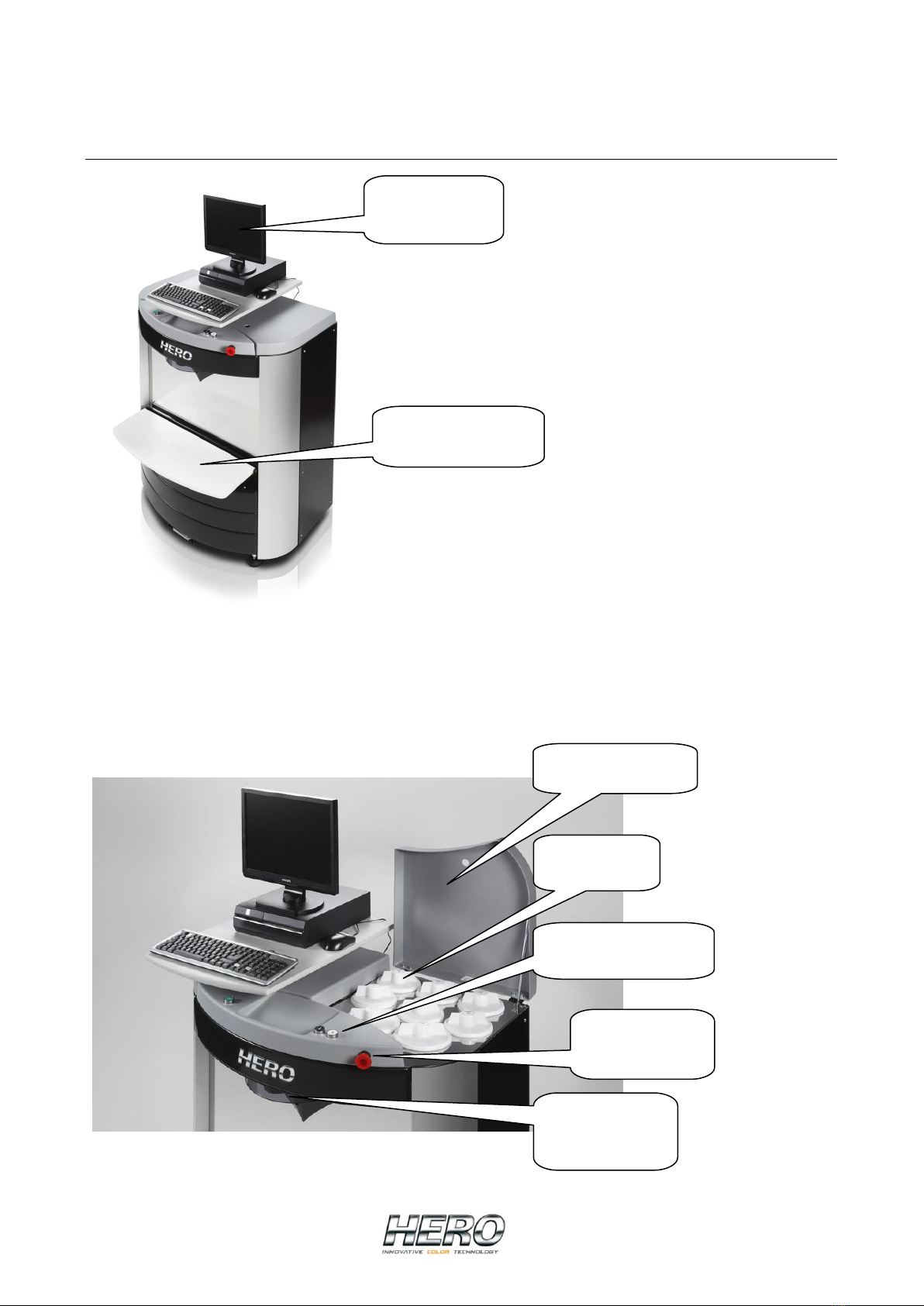

EUREKA Automatic Dispenser key
Automatic plane
for cans
Canister door
Nozzles
dispensing
colorants
Personal
Computer
Emergency
button
Elevator command
buttons
Canisters for
colorants

4

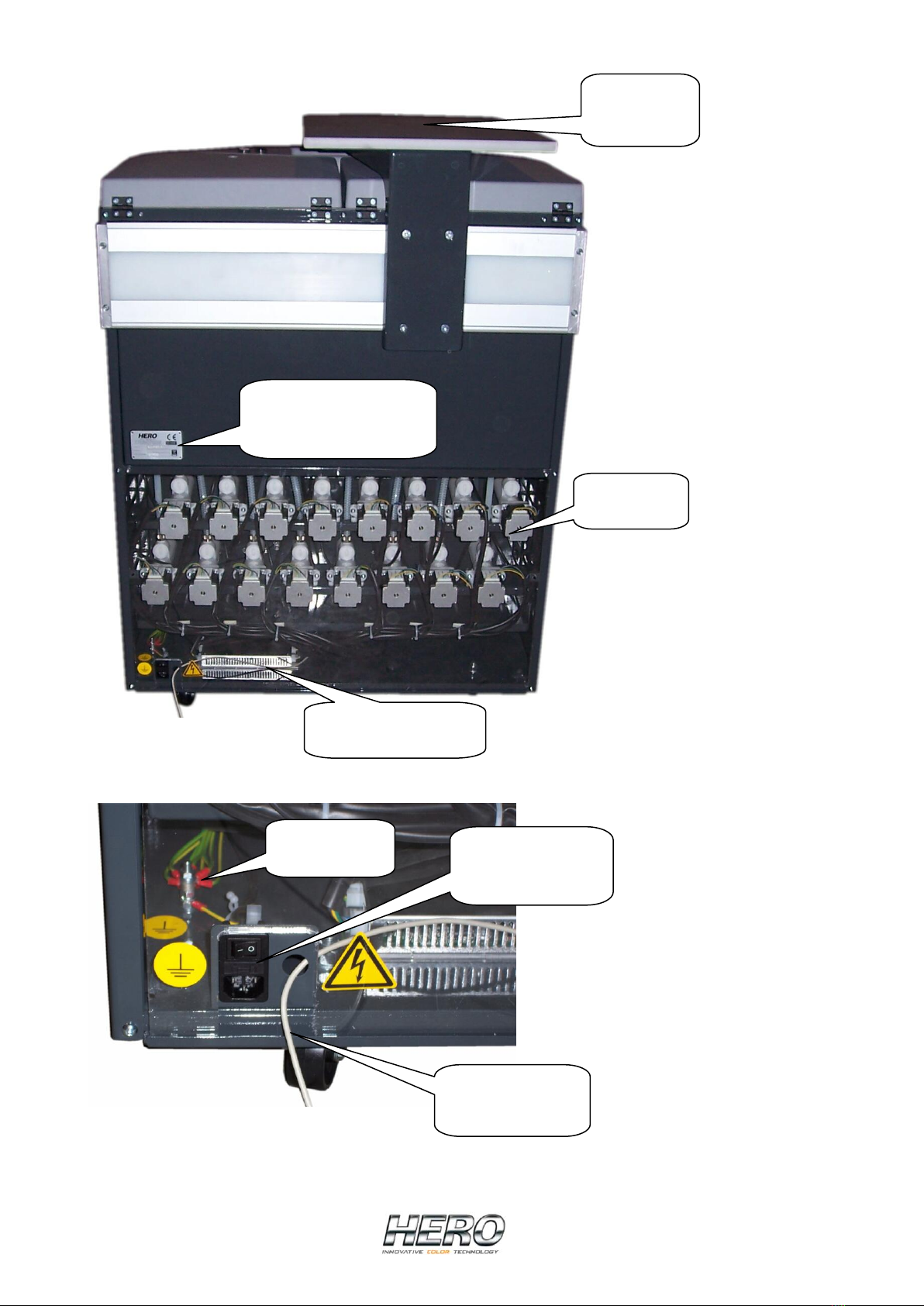

Identification Label
with trade mark and
certification logos
Electronic Board
(PCB)
Cartridge
Pumps
PC sliding
plane
Ground
connections
Main switch and
power supplier
plug
USB
comunication
cable

5
GENERAL CONDITIONS
By choosing EUREKA automatic colorant -dispensing machine manufactured by HERO
EUROPE, you have selected a product which represents the result of intensive research in
the field of high-tech fluid-dosing equipment. Top quality material, modern designing tools
such as the use of CAD three-dimensional parametrical systems, together with the
attention given to ergonomics, guarantee an easy to use, long lasting machine.
The machine is in compliance with the 89/392/EEC directive regarding machinery, the
89/336/EEC directive regarding electromagnetic compatibility, as well as the 73/32/EEC
directive regarding electrical equipment to be used within a specific tension range
compiled by the European Community Council of Ministers, and is provided with the EC
trademark.
The handbook explains how to install an HERO EUROPE automatic dispenser and
provides all the necessary information in order to insure easy use and good maintenance.
It is very important to read the handbook carefully and completely before
implementing any task on the dispenser, in order to work with the machine in
perfect conditions
The dispenser carries out sequential dosing of colorant pastes for the production of paints
in the colors requested, by means of progressive cavity volumetric pumps. It is absolutely
forbidden to start the pumps, either by hand or through automatic cycles, if there is
no colorant in the relative tank. Should this occur, irreparable damage would be
caused to the pump.
36 hours is the maximum allowed time between one agitation cicle and the other.
To ensure good functioning of the machine, the few, simple tasks requested must be
implemented within due time and solely by authorized technicians. Good functioning of the
dispenser is guaranteed if the place in which it is installed fulfils the following
characteristics:
· Room temperature: 15÷40°C
· Relative humidity: 30÷90%
The dispenser must be connected to an electric installation with a totally efficient
grounding system.
The dispenser warranty will no longer be considered valid should any of the above
mentioned criteria not be respected.
For technical assistance, please contact the vendor‟s engineering department.
This handbook should be kept in a safe place

6
TERMS OF WARRANTY
The EUREKA automatic dispenser terms of warranty are summarized as follows:
1. HERO EUROPE provides a one year warranty on the correct functioning of the products supplied, except for
break downs due to normal usage. If a breakdown is not covered by the warranty, the counterpart will be
charged for the inspection, implemented by HERO EUROPE, to determine whether the breakdown is covered
by the warranty or not. Should the break down result covered by warranty, HERO EUROPE will deliver an
identical or equivalent product. The terms of warranty, herewith described , solely apply if the products supplied
by HERO EUROPE are used in compliance with what is stated in the handbook. The number of working hours
necessary to implement the work related to the warranty, together with transfer time, travel, meals and
accommodation expenses will be calculated according to current tariffs.
2. Derogating what is above mentioned, HERO EUROPE is not obliged to respect any terms of warranty if:
a. The product was repaired or attempted to be repaired by the counterpart or by a third party, unless
HERO EUROPE previously refused to repair the product at a reasonable price;
b. HERO EUROPE demonstrates that no defect was detected after testing;
c. The counterpart did not immediately and precisely communicate the breakdown to HERO EUROPE,
when possible, in writing and/or via fax, and/or did not carefully follow HERO EUROPE‟s instructions;
d. The counterpart used or treated the product incorrectly or differently to what was established by
HERO EUROPE;
e. The damage was originated by circumstances that occurred during transport or installation and cannot
be verified by HERO EUROPE.
3. From now on, with the definition “program” we intend the standard computer program that HERO EUROPE has
put at the counterparts disposal , based on computer software and on relevant documents (Software
handbook), including any improved or updated versions. With the definition “PC” we intend the machine to
which the program is associated and should solely be used in relation to such program.
4. The counterpart has the right to copy the program partially or completely (up to a maximum of two copies) for
internal security reasons; the copies must bear the same trademarks, indications pertinent to copy right and any
other identification marks present on the original version of the program.
5. The counterpart does not have the right to modify, translate, decode or adapt and reconduct the program to its
original code unless specific written consent is granted by HERO EUROPE. Furthermore, if requested by the
counterpart, HERO EUROPE must provide information on how to obtain effective program interchange with
another software.
6. In case of PC breakdown, the counterpart has the option to use the program on another PC until the broken PC
functions again, however, HERO EUROPE must be notified within 5 days.
7. In case of PC break down, the PC manufacturer‟s terms of warranty will be considered valid, even if the PC
was supplied by HERO EUROPE.
8. Should a definite transfer of the program to another PC result necessary, the counterpart must ask HERO
EUROPE to provide written consent, which cannot be refused on unreasonable grounds.

7
SAFETY INSTRUCTIONS
Please read the instructions carefully before installing and operating the machine, as a
personal safety measure as well as to avoid needless damage to the machine
HERO EUROPE declines any responsibility should the following instructions not be
followed:
Do not turn on a damaged machine (for example, if the machine is damaged during
carriage). If in doubt, first contact the back up service or the reseller.
Position and connect the machine by carefully following the installation instructions
and by respecting the conditions stated in this handbook.
All the instructions and local safety regulations must be observed.
The machine must only be connected to a wall socket assembled according to
regulations, with the grounding circuit and the tension value in compliance with what
is written on the machine plate.
The user must maintain the machine in good working condition and replace any
broken components.
Any assistance on the machine, other than routine, can only be carried out by a
qualified technician. Make sure that the power cable is not plugged into the
socket whilst the machine is being repaired.
A standard machine is solely suited to dosing water-diluted colorant pastes in
standard paint cans.
The elastomer parts inside the dosing circuits could undergo damage if other
thinners are used.
Never set the dosing pumps going if there is no colorant in the respective circuit,
otherwise the friction within the pumps would lead to an increase in temperature
capable of damaging the pumps.

8
MACHINE POSITIONING AND INSTALLATION
Instructions for correct positioning
Be certain to respect the following details whilst positing the machine:
Place the machine on a steady, horizontal surface by using a level.
The area must be well ventilated. To avoid pastes from drying, make sure the
machine is not exposed to the sun or near heaters or any other source of heat.
The surrounding temperature should be kept as constant as possible, around 18°C
(and anyhow, always between 15÷40°C) so as to prevent variations in the specific
weight and viscosity of the pastes.
Make sure the machine is only connected to a wall socket assembled according to
regulations, with its grounding circuit and tension value in compliance with what is
written on the machine plate.
Machine unpacking
Remove the external extensible nylon film from the package
Remove the fastening straps placed around the outside of the packaging box
Remove the packaging box by lifting it upwards
Pallet removal
Carefully manoeuvre the machine backwards with two people behind and one person in
front of it, then slowly put the machine down on its rear wheels as shown in the pictures
below. Without altering the position of each person, tilt the machine backwards until the
pallet is free and easily removed. Once the pallet has been removed carefully place the
machine down on its wheels.
Machine positioning
The EUREKA dosing machine is fitted out with wheels and levelling feet. When the
machine rests on its wheels and is positioned on a hard, well levelled floor it can be easily
shifted by pushing it by hand.
Locate the machine where it is intended to be put to use, then lift the feet and verify that
the dispenser is in a steady, well levelled position.

9
Computer and monitor assembly
The EUREKA dispenser is provided with a
shelf in the upper part of the machine at an
ergonomic height of approximately 110
centimetres. The shelf can be used to
position the PC , the LCD monitor and the
keyboard, or in alternative a laptop
computer Moreover, the PC could also be
placed in another compartment located in
the lower part of the machine, just under
the can lodging. After having positioned the
PC, you must connect it to the electronic
card that commands and controls the
dispenser. In order to do so, you will find a
USB connecting cable included inside the
package.
On one side, connect the USB cable to the
appropriate socket positioned on the
electronic card of the dispenser, whilst on
the other side, connect it to one of the USB
sockets on the PC. A correct configuration
of the USB port of the PC will be made
possible by using the software provided
with the dispenser.
We suggest to use the upper shelf of the
dispenser to position the PC so that it is
totally protected from possible colorant
spills or leakages.

10
Starting the dispenser
Connect the power cables of the machine and the PC to a wall socket (refer to what is
stated in the paragraphs regarding “General conditions” and “Safety instructions”) then
turn on the PC.
By following the instructions in the software handbook, install the software, which is
provided with the machine, on the PC.
Load the colorants into the storage tanks but be careful not to exceed the limit.
Carry out the following procedure to load the colorants:
Open the upper door of the machine.
Remove the lid.
Fill the canister, but be very careful not to spill any colorant on the central part of the
mixing vane however protected by a cap to preserve the internal leakage.
Replace the lid once the canister has been filled.
Close the upper door.
After having loaded all the circuits, the calibration procedure must be implemented before
being able to use the machine.
A precision scale is necessary to accomplish the calibration procedure.
Please refer to the software handbook for instructions regarding calibration.

11

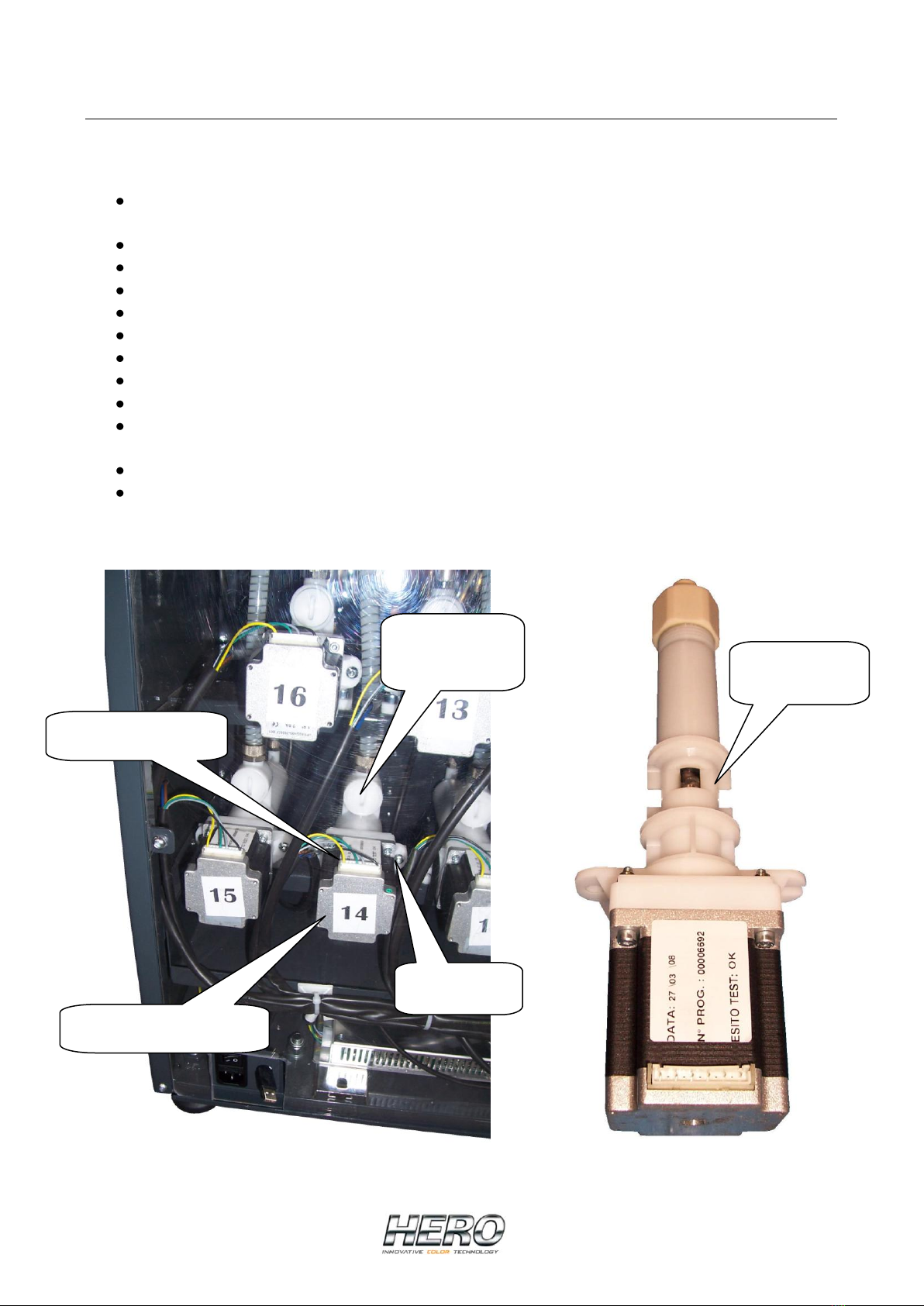

CARTRIDGE PUMP SUBSTITUTION
When a pump needs to be replaced please proceed as follows:
In order to disconnect the machine‟s power supply, pull the power plug out of the
socket.
Remove the transparent panel placed in the back side of the machine
Disconnect the pump connector that you intend to substitute.
Close the integrated valve onto the external body pump.
Unscrew the 2 screws which fixed the cartridge pump.
Put out the cartridge from its slot.
Insert a new cartridge into its slot.
Fix the cartridge by the 2 screws previously unscrewed.
Reopen the valve.
Connect the electric motor power cable that starts the canister pump. CAUTION:
make sure the plug is well connected and completely pushed into the socket.
Put back the rear panel paying attention of power and USB communication cables.
Give back the power supply to the machine reconnecting the plug previously
disconnected.
Cartridge
fixing screws
7
Motor connector
Pump stepping motors
Interception
pump valve
Cartridge
Pump

12
AUTOMATIC CAP
The Eureka dispenser is equipped of an automatic
cap, necessary to avoid the exsiccation of the
colorants. Set the “suck back” function with the
software parameters in the correct way, to avoid problems of contamination or dripping of
colorant. The cap, with a completely automatic process, open before each dosage and
close at the end of it; with this device the possibility of exsiccation of the products is largely
reduced. The part of the cap containing the sponge is simply extractable, so the operation
of cleaning results very rapid, as shown in the pictures below.
Inside the cap case there are two micro-switches that control the two positions of the
automatic cap. The automatic cap have been engineered to be simple and rapid to extract.
In case of substitution, disconnect the power supply connection and pull the cap in the
sense of the front of the machine; the fixing hooks will release and the cap will slide out.
Now the new automatic cap can be positioned and fixed without using any tool.
Is very important to keep the sponge clean and humid to preserve the good working
of the dosages, so we advise to do regularly the operations of cleaning and
moisturizing.
Tappo aperto
Power supply
connection
Fixing hooks
Cap closed
Cap open

13
TELESCOPIC ELEVATOR
The automatic dispenser Eureka is equipped of a telescopic elevator for the lifting of the
supporting plane for cans; this device permit that even the little cans can be positioned
very near to the dosage nozzles.
The elevator driving buttons are positioned onto the top of the machine.
In case of necessary substitution of the telescopic column, please proceed as explained
below:
Switch off the machine and disconnect the plug of the electrical power supply.
Remove the supporting plane for cans after the removal of the four screws under
the overturnable plane.
Remove the four screws that fix the telescopic column to the base plate of the
machine.
Open the two front doors; please take care of the cables connected to the doors.
Remove the horizontal fixing of the telescopic column.
Remove the electrical connection of the telescopic column and extract it (pull it up,
incline it on the right and extract it on the left carefully).

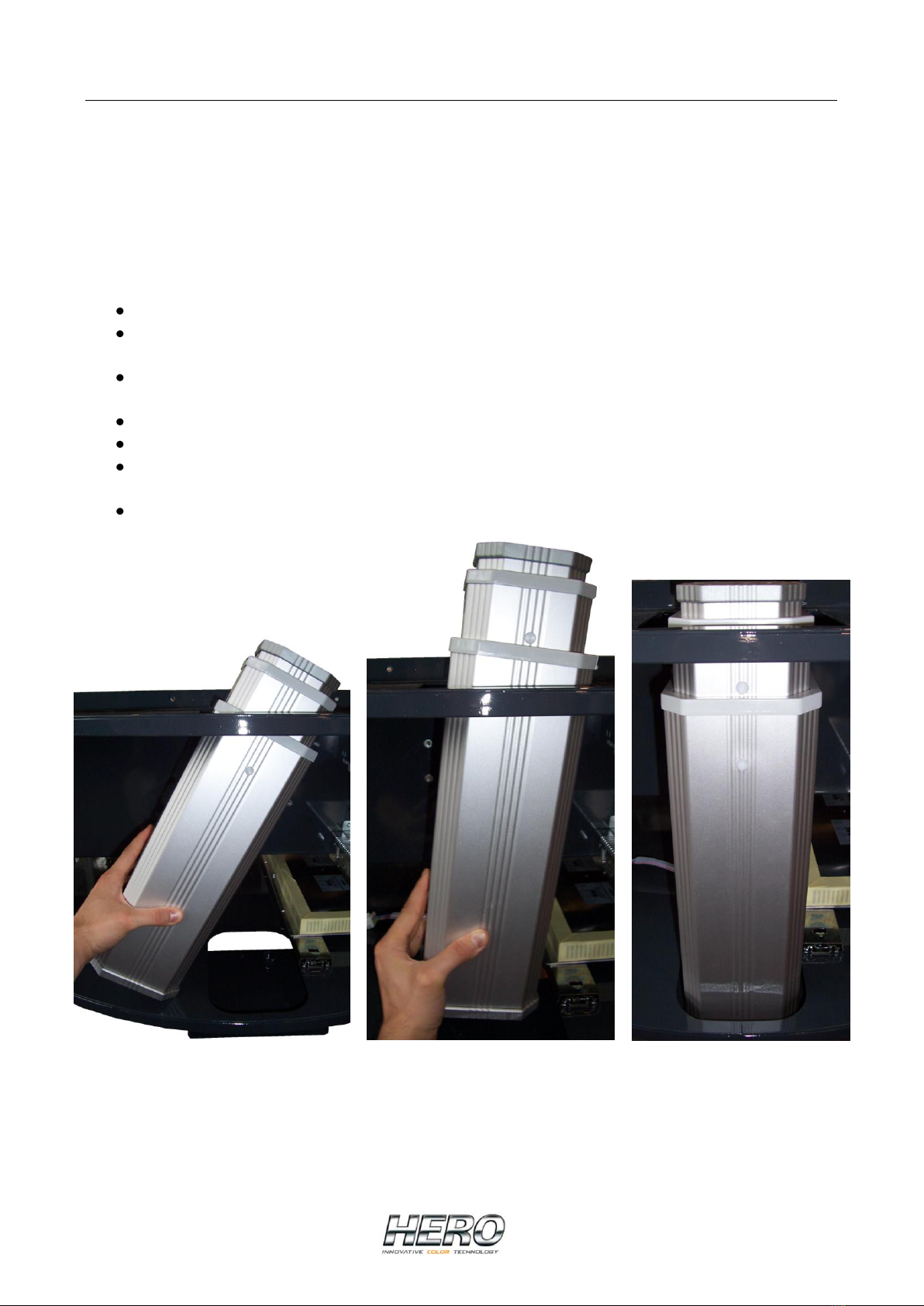

Locate the new telescopic column into the machine as shown in the pictures a, b, c.
Picture aPicture b Picture c

14
Fix the new telescopic column with the four screws previously removed (Picture d).
Fix the supporting plane for cans onto the top of the telescopic column with the four
screws previously removed (Picture e).
Reassemble the horizontal fixing of the telescopic column with the screws
previously removed (Picture f).
Connect the electrical plug for the power supply of the telescopic column
(Picture f).
Close the front doors of the machine.
Reconnect the electrical plug for the power supply of the machine.
Picture dPicture e
Picture f
Commands and
Power supply plug
Horizontal
fixing

15
SIMULTANEOUS ELECTRONIC BOARD
The Eureka automatic dispenser realize all its functions thanks to the PCB electronic
board located onto the base of the machine. The simultaneous model permit to the
machine to do dosages of many colorants simultaneously. The PCB electronic board is
fixed on two practical slides that make it simply extractable; thanks to this device, the PCB
board is accessible for maintenance or eventual substitution.
In case of necessary substitution of the PCB electronic board, please proceed as
explained below:
Switch off the machine and disconnect the plug of the electrical power supply.
Remove the transparent cover from the rear of the machine.
Extract carefully the PCB electronic board; please take care of all the cables
connected, to avoid any damage.
Disconnect all the connected plugs from the PCB electronic board.
Remove the three screws that fix the board onto the slides; pull out the PCB board.
Locate the new PCB electronic board onto the slides and fix it with the screws
previously removed; this positioning is univocal.
Reconnect the wires from canister agitators and pumps; please respect the
correspondence of circuit number with its connection onto the PCB board.
Reconnect the two power supply connections, the connection for auxiliary Inputs
and Outputs, and the USB connection.
Push carefully the PCB board to put it again into the machine.
Locate and fix the rear transparent cover; please take care of the power supply
cable and of the USB wire.
Reconnect the electrical plug for the power supply of the machine.

16
Slides
Wires from canister
agitators and pumps
PCB electronic
board
(simultaneous)
Fixing screws

17
SEQUENTIAL ELECTRONIC BOARD
The sequential electronic board permit to the machine to do dosages of only one colorant
sequentially. Analogously to the simultaneous electronic board, it is fixed on two practical
slides that make it simply extractable; thanks to this device, the PCB board is accessible
for maintenance or eventual substitution.
In case of necessary substitution of the PCB electronic board, please proceed as
explained below:
Switch off the machine and disconnect the plug of the electrical power supply.
Remove the transparent cover from the rear of the machine.
Extract carefully the PCB electronic board; please take care of all the cables
connected, to avoid any damage.
Disconnect all the connected plugs from the PCB electronic board.
Remove the three screws that fix the board onto the slides; pull out the PCB board.
Locate the new PCB electronic board onto the slides and fix it with the screws
previously removed; this positioning is univocal.
Reconnect the wires from canister agitators and pumps; please respect the
correspondence of circuit number with its connection onto the PCB board.
Reconnect the power supply connection, the connection for auxiliary Inputs and
Outputs, and the USB connection.
Push carefully the PCB board to put it again into the machine.
Locate and fix the rear transparent cover; please take care of the power supply
cable and of the USB wire.
Reconnect the electrical plug for the power supply of the machine.

18
Slides
Wires from canister
agitators and pumps
PCB electronic
board
(sequential)
Fixing screws

19
DISPENSE TUBE SUBSTITUTION
The Eureka automatic dispenser execute its dosages through the dispense tubes of the
machine; these are that pipes that connect the delivery side of the pumps with the dosage
head situated in the front part of the machine.
In case of necessary substitution of a dispense tube, please proceed as explained below:
Implement the “empty dispense tube” operation, launching it with the managing
software of the machine; select Dispenser utilities / Maintenance and click on the
Empty dispense tube button in the maintenance window (Pictures aand b).
Picture a
Picture b

20
Select the circuit that have to be emptied and click on Next button in the canister
selection window; click on the Ok button in the dispense window (Pictures cand d).
Picture c
Picture d
