HERO PW-2530-AC Installation manual

Page 1Owners Manual PW2530-AC
PW-2530-AC
COMMERCIAL GRADE
COLD WATER PRESSURE WASHER
2500 PSI @ 3 GPM
FACTORY LOCATED AT:
720 EATON WAY
DELTA, B.C. CANADA
V3M 6J9
U.S.A ADDRESS:
P.O. BOX 75
CUSTER, WASHINGTON
98240-0075
PHONE: [phone] FAX: [phone] TOLL FREE: [phone]
SAFETY AND OPERATING MANUAL
Version 5 Feb 2006
www.hero.ca
WARNING: DO NOT OPERATE THIS EQUIPMENT WITHOUT READING
AND UNDERSTANDING ALL SAFETY AND OPERATING INSTRUCTIONS
SEE PAGES 3 – 14

Page 2Owners Manual PW2530-AC
Table of Contents
Safety Instructions 3
Important Operating / Maintenance Instructions 3
Start-Up & Operation 4
Nozzle Selection & Chemical Injection 5
Trouble Shooting 6
Pump Schematic & Parts List 7
Unloader Valve/Chemical Injector Schematic & Parts List 8
Pressure Washer Cart Exploded View 9
Warranty 10

Page 3Owners Manual PW2530-AC
IMPORTANT SAFETY INSTRUCTIONS
This manual has important information for the use and safe operation of this
machine. Read thoroughly and understand all warnings before using.
 Read all the instructions before using machine
 To reduce risk of injury, close supervision is necessary when the machine is used near
children. Do not allow children to operate pressure washer at any time.
 Know how to stop the machine and bleed pressure quickly.
 Keep operating area clear of all persons.
 Follow the maintenance instructions specified in the manual.
 Operate this unit in a well ventilated area.
 Wear protective eye wear & clothing when operating.
 Do not operate the machine when fatigued or under the influence of alcohol or drugs.
 Do not overreach or stand on unstable support. Keep good footing and balance at all times.
 To prevent fire hazard, do not use with or near inflammables such as gasoline, grain dust,
solvents and thinners. Do not spray flammable liquids.
 Never add gasoline to a hot engine as this can result in a fire or explosion. Allow engine to
cool before refueling.
 Never direct spray at pressure washer unit.
 Keep water spray away from any electrical wiring.
**WARNING**
Risk of injection or injury.
Do not direct discharge stream at people.
The high pressure water stream can cause injury or death!
IMPORTANT OPERATION / MAINTENANCE INSTRUCTIONS
 Change oil in pump after the first 50 hours, then every 500 hours.
Use 30W Non-Detergent Hydraulic oil.
Available from Hero Industries, Part # PW-5015
 Change engine oil as specified by the Honda. See Honda owners manual.
 Do Not run washer longer than 3 minutes with gun closed, as this can result in
damage to the seals. Heat generated by the re-circulating water can damage seals.
 Avoid freezing pump. Drain unit prior to storage, or run an antifreeze solution
through pump. Ensure the pump and hoses are completely bled of all liquid.

Page 4Owners Manual PW2530-AC
1.Verify that the vented YELLOW dip stick is installed in the
pressure washer pump. Remove the RED shipping plug (if
present) from top of the pump and replace it with the
YELLOW oil level dipstick provided. Fig. 1 Pump oil should
be visible half way up sight glass. Use 30W non-detergent
hydraulic oil.
2.Before first use, check engine and pump oil levels.
For shipping purposes, engine oil has not been added.
Before each use, check engine oil level by unscrewing the oil
dipstick. Add motor oil (consult Honda manual for correct grade)
as required to bring to proper level, approximately mid-way on
dipstick.
3.Check water supply volume. To operate correctly, the unit
requires a water supply 25% greater than the units output. (i.e.
Model APS2500 = 4 GPM (gallons per minute), of water flow).
Damage to the pump will occur if there is not enough volume.
To check the water supply volume, obtain a empty 5 gallon
container and record the time it takes to fill the container. It
should be within the required GPM, if it is not then you should
find another water supply.
4.Connect a minimum 5/8” diameter garden hose to the water
inlet or bottom connection on the pump head (Female hose
connector). Fig. 4
5.Connect the high pressure hose to the water “Outlet”or upper
connection on the pump head. (Male quick connect nipple) as
shown in Fig. 5.
6.Turn the unloader knob on top of the pump head counter
clockwise to reduce the pressure prior to starting the engine.
7.Remove high pressure nozzle from quick coupler & open gun.
This will allow pump to be fully primed before starting engine.
8.Turn on the water supply and make sure that there is no leaks
in water supply hose.
9.Trigger the spray gun to purge all air from the system, PRIOR
to starting engine.
10.Start the engine by following this procedure:
a) - Turn the ON/OFF switch to ON.
b) - Turn the GAS to ON.
c) - Turn the CHOKE to FULL.
d) - Push the THROTTLE lever to the ON position.
e) - Pull the STARTING cord. Gun should be held open ,with
water flowing freely while pulling starting cord.
f) - Once the engine has started, reduce the CHOKE until it is
OFF, and open the THROTTLE to full ON. It is now safe to
release trigger to the off position. Use these instructions in
conjunction with instructions provided in the Honda manual.
Continued on page 5

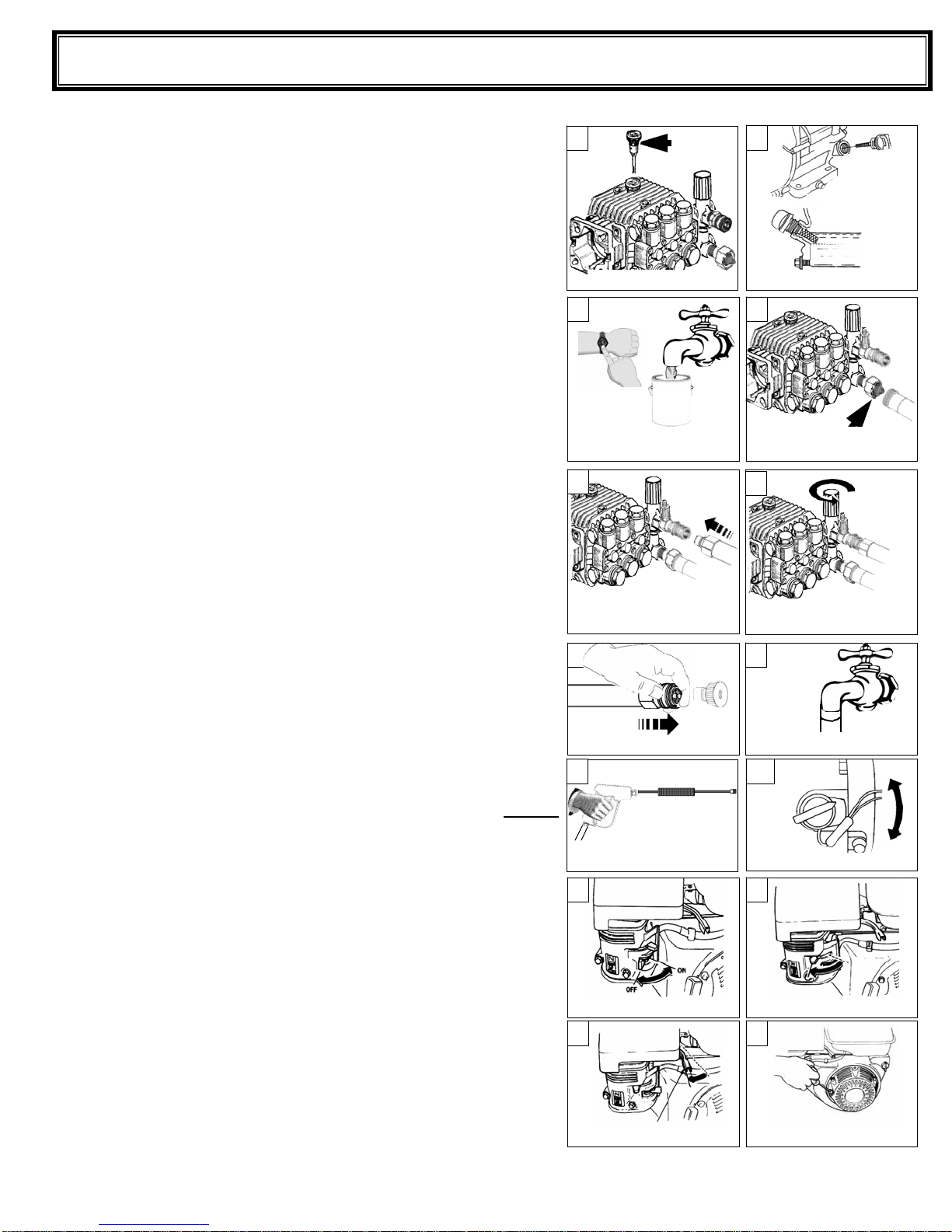

START-UP AND OPERATION INTRODUCTION
b
Choke On
a
Fuel On
c
Set Throttle
d
Pull Start Cord
3
Check Water Supply
Volume
Dipstick
(Yellow)
1
Check Pump Oil
Connect Water Supply
Hose
4
Check Engine Oil
2
Turn Unloader Knob
Back Counter Clockwise
Connect High Pressure
Hose
5
Gallon
5 6
Trigger Gun Open
8
Turn Switch On
ON
OFF
10
Open Water Supply
97
Remove Nozzle

Page 5Owners Manual PW2530-AC
START-UP AND OPERATION INTRODUCTION
Chemical and Soap Spray
To introduce chemicals/detergent to the spray,
1. Turn unit off.
2. Trigger gun to relieve all internal fluid pressure.
3. Attach chemical injector to unit if using a quick disconnect injector.
4. Open the chemical injector knob by turning it counter clockwise.
5. Connect the chemical injector line to the chemical injector.
6. Place the suction line filter end into the chemical / detergent jug. Use
only detergent designed for use with pressure washers. Only use
chemicals/detergents in well ventilated areas.
1. Install “Black” injector tip into gun. VERY IMPORTANT. The injector will
only dispense detergent with the BLACK nozzle.
2. Re-start pump and set pressure to low.
3. Apply detergent to work surface. Do not allow detergents to dry on any
surface.
Injector siphoning is best at very low pressure. Once the injector
material stream has been established, the pump operating pressure
can be increased. Remember to flush injector with clean water after
use.
Install Soap (Black) Nozzle
6
11. Select the desired tip for the job. Insert tip into wand
(quick- connect fittings).
RED 0º Direct Spray, Direct or Concentrated Cleaning.
YELLOW 15º Narrow Fan, General Use.
GREEN 25º Medium Fan, General use.
WHITE 40º Wide Fan, Soft Pattern, For Rinsing.
BLACK 65º Chemical Injector Tip. Must be used when operating
chemical injector
12. Trigger the gun and begin turning the unloader knob in a clockwise
direction until you reach your desired pressure.
Turn Engine Off
ON
OFF
1
Trigger Gun Open
To Relieve Pressure
2
4
Install Chemical Suction Hose Onto
Chemical Injector
Turn Injector Knob Counter Clockwise
To Open
3
Install Chemical Suction Hose Onto
Chemical Injector
SOAP
OR
CLEANING
CHEMICAL
5
7
Start Engine
5
Turn Unloader Knob Counter
Clockwise To Lower Pressure
Select & Insert Nozzle
11 12
Turn Unloader Knob
Clockwise To Increase
Pressure

Page 6Owners Manual PW2530-AC
Ref # Part # Description Kit # Qty
PW-2555 Pump / Unloader Assy.
PW-2540 Pump Only
1 PW-51010622 Crankcase 1
2 PW-98210000 Cap 2
3 PW-90383300 O-Ring 1
4 PW-51209051 Cover 1
5 PW-90156500 Oil Seal 83 3
6 PW-98204100 Cap 1
7 PW-51120041 Manifold 1
8 PW-96693800 Washer 8
9 PW-99194300 Screw,M6 X40 8
10 PW-90384100 O-RIng 1 6
11 Sold Only in Kit 1 1 6
12 Sold Only in Kit 1 1 6
13 Sold Only in Kit 1 1 6
14 Sold Only in Kit 1 1 6
15 PW-90384700 O-Ring 84 6
16 PW-98221800 Valve Cap 84 6
17 PW-36703201 Valve Assembly 1 6
18 PW-51100051 Head Ring 96,97 3
19 PW-90262000 Packing 96, 97 3
20 PW-51080070 Packing Retainer 86,96 3
21 PW-90360400 O-Ring 86,96,97 3
22 PW-90383500 O-Ring 86,96,97 3
23 PW-97596800 SightGlass 1
24 PW-91801500 Needle Bearing 1
Ref # Part # Description Kit # Qty
25 PW-98210300 Dip Stick 1
26 PW-92221600 Nut, M8 3
27 PW-96700800 Washer, M8 3
28 PW-51040009 Plunger,(15 mm) 3
29 PW-90357200 O-RIng 3
30 PW-90502200 Back-up Ring 3
31 PW-967070 Washer,Finger 3
32 PW-9773100 Connecting Rod Pin 3
33 PW-51160022 Crankcase Cover 1
34 PW-99186700 Screw,M6 X18 4
35 PW-90391700 Gasket 1
36 PW-51030022 Connecting Rod End 3
37 PW-51050056 Piston Guide 3
38 PW-99334500 Screw, 3/8-BSPP 4
39 PW-96710400 Washer,M10 4
40 PW-99186700 Screw,M6 X18 4
41 PW-96693800 Washer, M6.4 4
42 PW-10034422 Flange 1
43 PW-50211551 Spacer 1
44 PW-90409700 O-Ring 1
45 PW-90164400 Oil Seal 1
46 PW-90066700 Snap Ring 1
47 PW-20283521 Bearing 1
48 PW-51020935 Crankshaft 1
49 PW-1077 Thermal Relief Valve 1
REPAIR KITS
Kit # 1 83 84 86 96 97
Ref # Included 6, 7, 8,10, 11, 12,(17) 5 15, 16 20, 21,22 18, 19,20, 21, 22 18, 19, 21, 22
Numberof Pieces

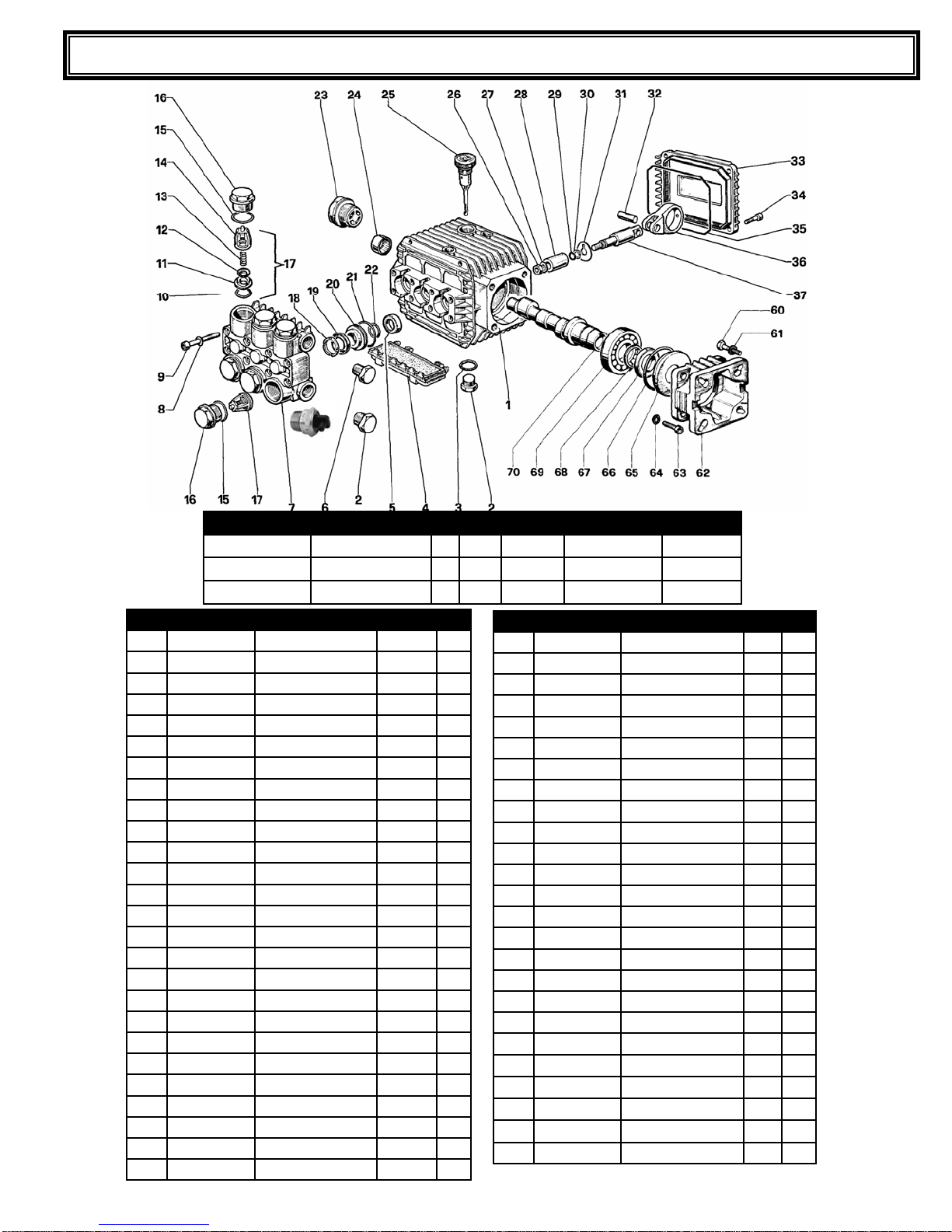

PUMP SCHEMATIC & PARTS LIST
49

Page 7Owners Manual PW2530-AC
Ref # Part # Description Kit Qty
PW-1130 Unloader Assembly 1
1 PW-1060 Filter Washer 1
2 PW-1400 Inlet 1
3 PW-60080331 Banjo Bolt, 3/8”, Brass 1
4 PW-14410000 Washer, 3/8” 1
5 PW-60082135 Manifold 1
6 PW-10310996 O-Ring 1
7 PW-60038231 Housing 1
8 PW-10306600 O-Ring 1
9 PW-10300500 O-Ring * 1
10 PW-60031151 Seat * 1
11 PW-60033321 Ball & Housing * 1
12 PW-60038531 Banjo Bolt, 1/4”, Brass 1
13 PW-60080135 Housing 1
14 PW-14381322 Aluminum Washer 1
15 PW-10400600 Back Up Ring * 1
16 PW-10305101 O-Ring * 1
17 PW-10306600 O-Ring * 1
18 PW-60030331 Housing * 1
19 PW-60031731 Lock Nut 1
20 PW-60033151 Piston 1
21 PW-10305500 O-Ring * 1
22 PW-10400800 Back Up Ring * 1
23 PW-60031061 Spring Seat 1
24 PW-60031361 Spring 1
25 PW-60030431 Knob, Brass 1
26 PW-60031584 Knob, Plastic 1
27 PW-60030135 O-Ring * 1
28 PW-60038311 Check Valve 1
29 PW-60031251 Spring 1
30 PW-10306600 O-Ring 1
31 PW-21021351 Injector Nozzle 1
32 PW-100824 Chemical Injector Assembly 1
33 PW-21021131 Injector Body 1
34 PW-21016051 Spring 1
35 PW-14742001 Ball 1
36 PW-10304900 O-Ring 1
37 PW-21016131 Nipple 1
* PW-60039824 Unloader Repair Kit * 1
38 PW-21015851 Spring 1
39 PW-10304301 O-Ring 1
42 PW-1050 Coupler, 3/8” NPT, Female 1
43 PW-1180 O-Ring, 3/8 Coupler 1
PW-1060 Filter Washer, Pack of2 1
40 PW-21015532 Hose Barb 1
41 PW-21017184 Knob 1
UNLOADER SERVICE
The unloader is made up of may small o-rings,
springs and check balls. Repair kits are
available to replace these “Soft Goods”. Repairs
requiring the replacement of valve bodies or
“Hard Goods” may be more economically solved
through the replacement of the entire “Bolt On”
unloader. Shop labor may make an unloader a
poor economical choice.
UNLOADER VALVE AND CHEMICAL INJECTOR

Page 8Owners Manual PW2530-AC

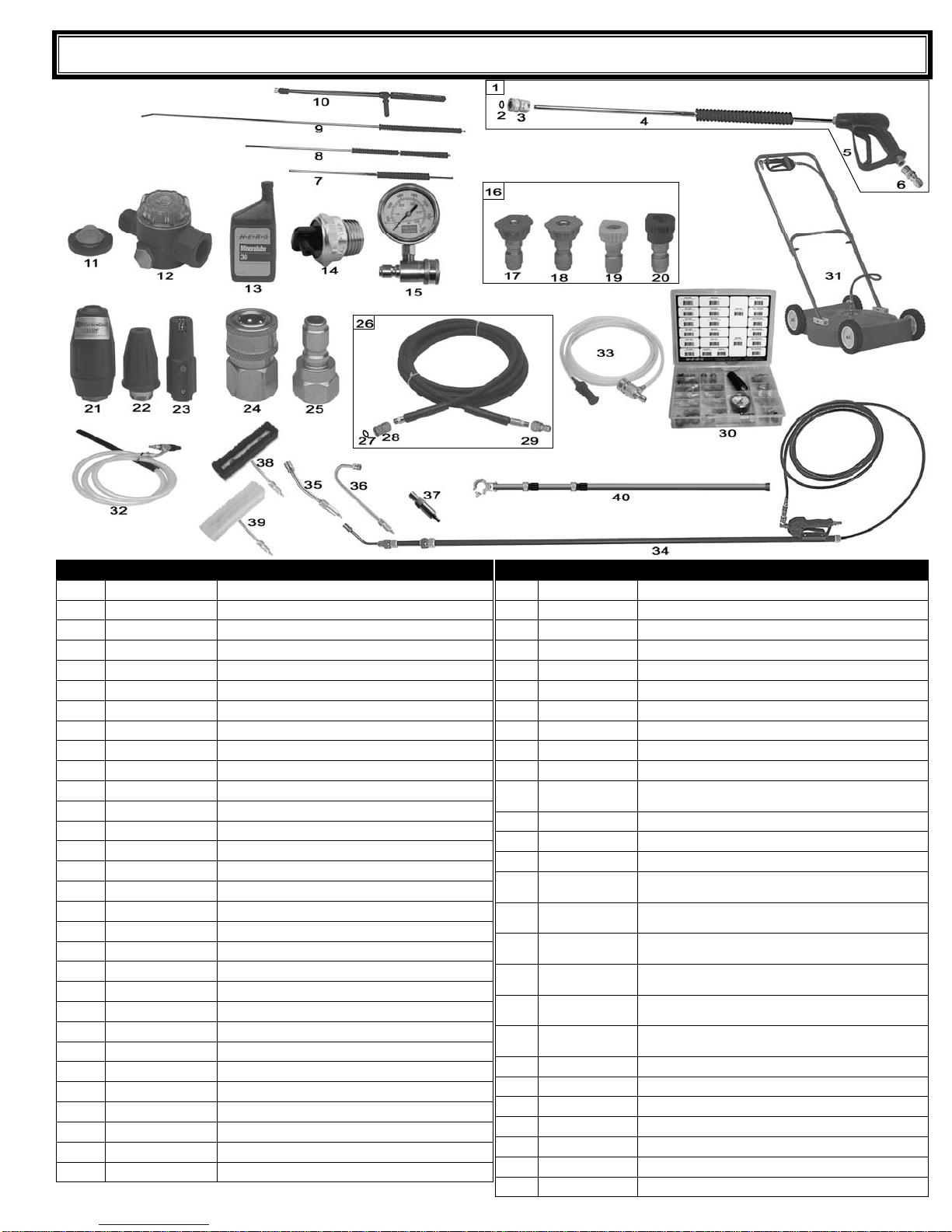

PRESSURE WASHER CART SCHEMATICS
REF # PART NUMBER DESCRIPTION QTY REQ’D
1 PW4330-1781 BASE 1
2 PW4330-1441 HANDLE, LONG 1
3 PW4330-1434 HANDLE, SHORT 1
4 PW4330-1436 FOOT BRACKET 1
5 PW4330-1726 WHEEL, TIRE 10.5” PNUEMATIC 2
6 PW4330-1727 AXLE 1
7 PW4330-1435 GROMMET 5
9 PW4330-1211 CARRIAGE BOLT, 3/8-16 X 1” 2
10 PW4330-1114 FOOT PAD, 2.5” DIA 2
11 PW4330-1115 FLAT WASHER, 3/8” 2
12 PW4330-1116 NUT, 3/8-16 NYLOCK 2
13 PW4330-1407 AXEL NUT, PUSH ON 5/8” 2
14 PW4330-1241 CARRIAGE BOLT, 1/4- 20 X 1” 8
15 PW4330-1209 NUT, 1/4-20 NYLOCK 8
16 PW4330-1792 AXEL SUPPORT, 5/8” 2

Page 9Owners Manual PW2530-AC
WARRANTY
I.C.T.C. H.E.R.O. Products Group pressure washer is warranted to be free from
defects in materials and workmanship under normal use for a period of two years from
the original date of purchase, when operated and maintained in accordance with the
Maintenance and Operation Instructions supplied with the unit.
The warranty does not cover:
1. Misuse or negligence
2. Normal wear & tear items i.e. nozzles, hoses, quick couplers, O-rings, trigger guns,
wands, belts, packings, pistons, valve assemblies, strainers or filters, thermal
protectors
3. Damage due tofreezing or fluctuations in water supply
This warranty is extended only to the original purchaser. Warranty is void if repairs are
attempted by anyone other than an Authorized Service Center. Engines are warranted
by their manufacturer & are assisted by their local service centers.
I.C.T.C. H.E.R.O. Products Group liability under warranty is limited to repair of product
and /or replacement of parts, and is given to the purchaser in lieu of all other remedies
including incidental and consequential charges. There are no expressed warranties
other than those specified herein.
OIL CHANGE RECORD
DATE OIL CHANGED DAY/MONTH/YEAR ESTIMATED HOURS OF USE SINCE LAST
OIL CHANGE

Page 10Owners Manual PW2530-AC
Problem Possible Cause Solution
Pump running normally
but pressure washer
does not achieve rated
pressure
Pump is sucking in air.
Valves worn or dirty.
Insufficient water flow.
Unloader valve packing is worn.
Nozzle incorrect size or worn.
Worn piston packing.
Check that all hoses and fittings are tight.
Check valves, clean or replace.
Increase water supply.
Check and replace.
Check and replace.
Check and replace.
Fluctuating pressure Valves worn, dirty or stuck.
Pump sucking air.
Wornpistonor packing.
Insufficient water flow.
Check, clean or replace.
Check that all hoses and fittings are tight.
Check and replace.
Increase water supply. Make require a dif-
ferent water supply source.
Pressure drops after
period of normal use Nozzle worn.
Valves worn, dirty or stuck.
Unloader valve packing is worn.
Wornpistonor packing.
Check and replace.
Check, clean or replace.
Check and replace.
Check and replace.
Pump noisy/making
unusual sounds Pump is sucking in air.
Valves worn or dirty.
Worn bearings.
Water too hot.
Check that all hoses and fittings are tight.
Check valves, clean or replace.
Check and replace if necessary.
Reduce temperature.
Water and/or foam in
the oil High humidity in the air.
Piston packing and oil seal worn.
Check and change oil twice as often.
Check and replace.
Water dripping from
under pressure washer Piston Packing worn.
Piston Plungers cracked.
Thermal relief valve opened.
Check and replace.
Check and replace.
Designed to open at 140°F. Check and
replace if necessary. Pressure washer
running at idle too long. Shut down if not
using for more than 2 minutes.
Oil dripping Oil seal worn. Check and replace.
Engine will not start or
stalls Lever not set to ON/Start position
Fuel valve closed.
Lowor out of fuel.
Low oil shutdown.
Worn or fouled spark plug.
Check switch and move to ON position.
Check switch and move to open position.
Check fuel level and refill.
Check oil and add if necessary.
Check and replace if necessary.
TROUBLE SHOOTING
