Component identificationComponent identification
This chapter describes the external and internal server features and components.
Component identification 9

Front panel componentsFront panel components

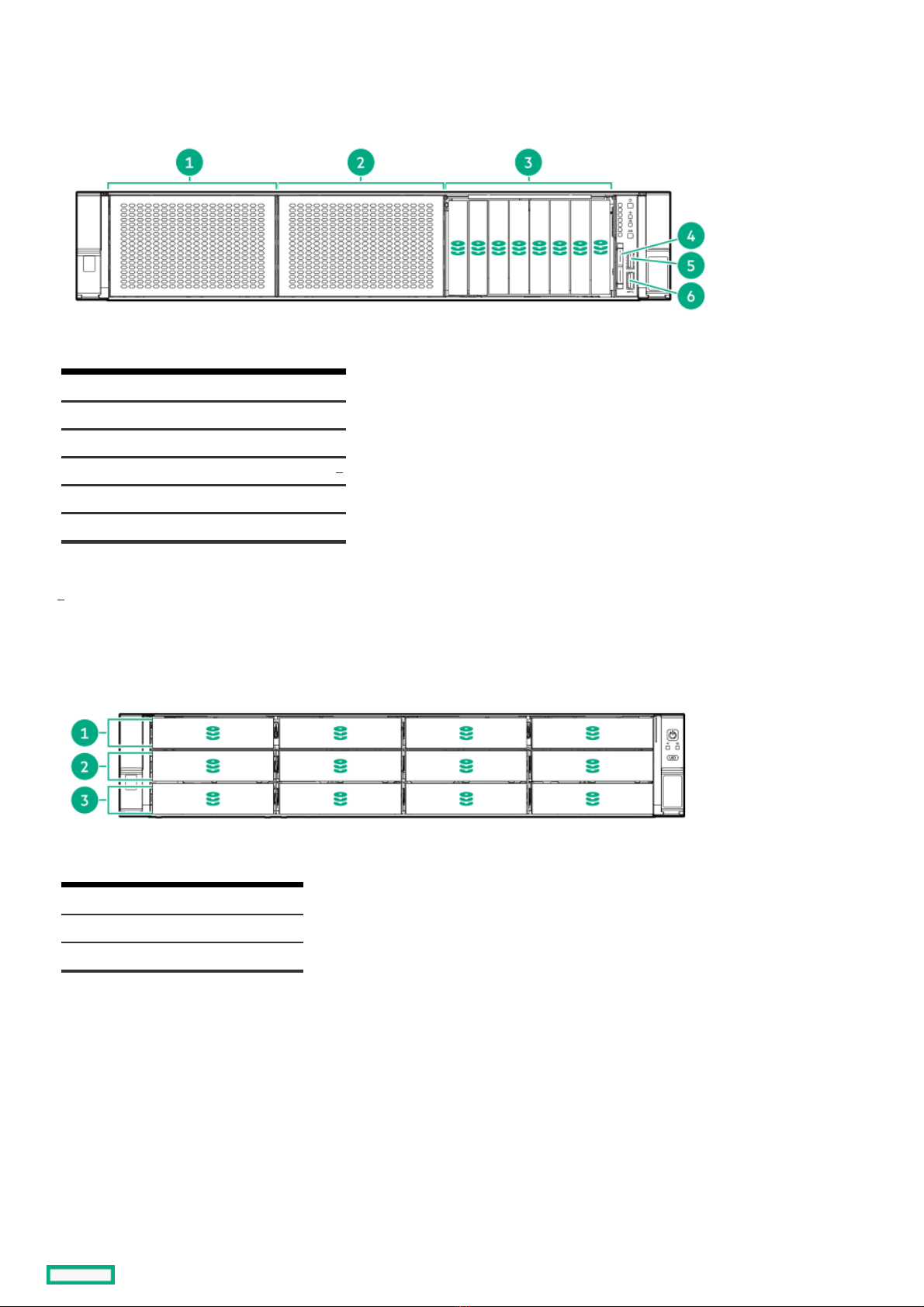

SFF front panel componentsSFF front panel components
ItemItem DescriptionDescription
1 Box 1
2 Box 2
3 Box 3
4 Serial number/iLO information pull tab
5 iLO Service port
6 USB 3.0 port
The serial number/iLO information pull tab is double-sided. One side shows the server serial number and the customer asset tag
label. The other side shows the default iLO account information.

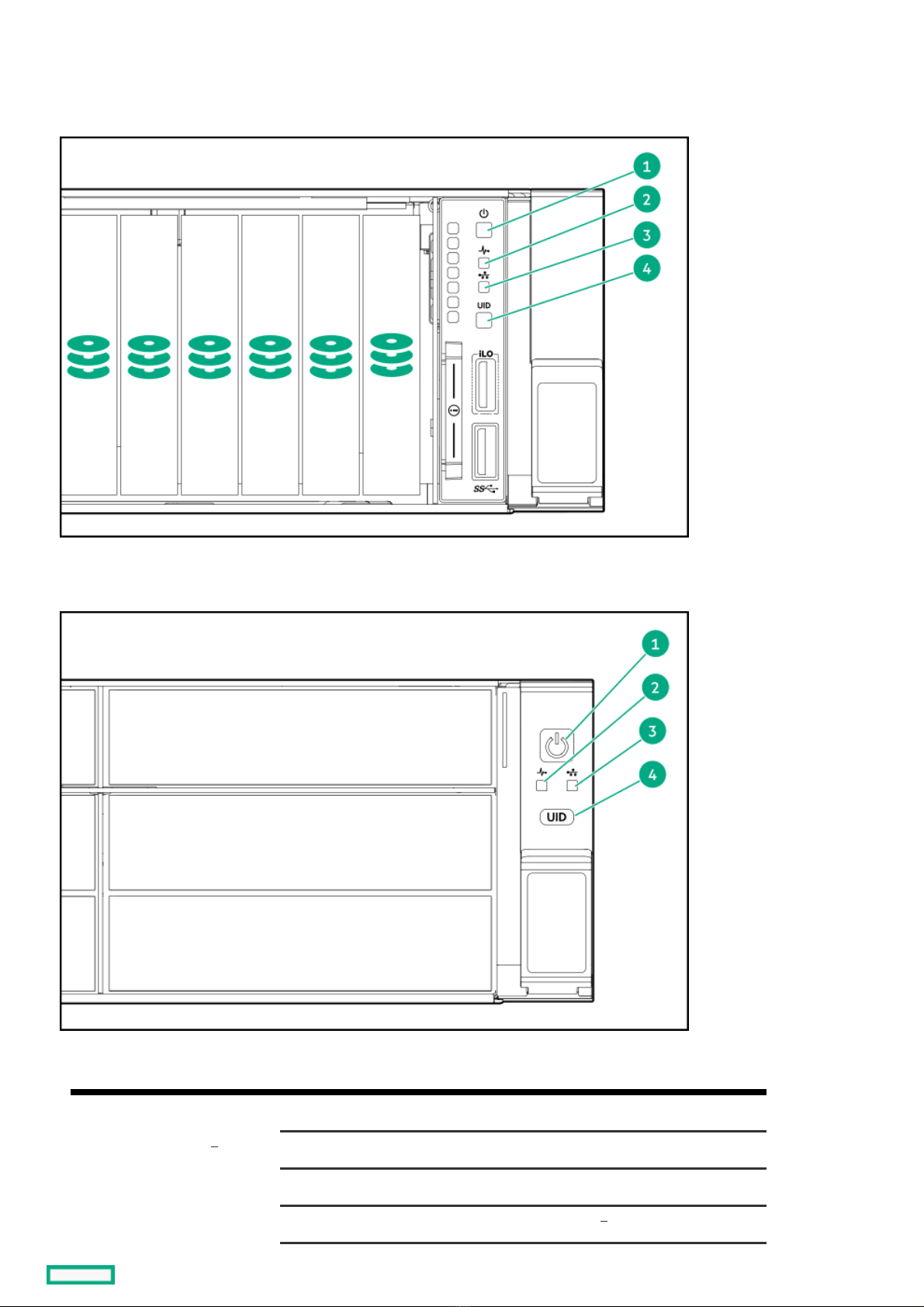

LFF front panel componentsLFF front panel components
ItemItem DescriptionDescription
1 Box 1
2 Box 2
3 Box 3
1
1
Front panel components 10

Front panel LEDs and buttonsFront panel LEDs and buttons
SFF front panel LEDs and buttonsSFF front panel LEDs and buttons
LFF front panel LEDs and buttonsLFF front panel LEDs and buttons
ItemItem DescriptionDescription StatusStatus DefinitionDefinition
1 Power On/Standby
button and system
power LED
Solid green System on
Flashing green Performing power-on sequence
Solid amber System in standby
Off No power present
1
2
Front panel LEDs and buttons 11

2 Health LED Solid green Normal
Flashing green iLO is rebooting
Flashing amber System degraded
Flashing red System critical
3 NIC status LED Solid green Linked to network
Flashing green Network active
Off No network activity
4 UID button/LED Solid blue Activated
Flashing blue 1 flash per second = Remote management
or firmware upgrade in progress
4 flashes per second = iLO manual reboot
sequence initiated
8 flashes per second = iLO manual reboot
sequence in progress
Off Deactivated
ItemItem DescriptionDescription StatusStatus DefinitionDefinition
When all four LEDs described in this table flash simultaneously, a power fault has occurred. For more information, see
Front panel LED power fault codes
.
Facility power is not present, power cord is not attached, no power supplies are installed, power supply failure has occurred, or the
front I/O cable is disconnected.
If the health LED indicates a degraded or critical state, review the system Integrated Management Log (IML) or use
HPE
iLO to review the system health status.
1
3
3
1
1
1
2
3
Front panel LEDs and buttons 12

UID button functionalityUID button functionality
The UID button can be used to display the Server Health Summary when the server will not power on. For more information, see the
latest HPE iLO 5 User Guide on the Hewlett Packard Enterprise websiteHewlett Packard Enterprise website .
UID button functionality 13

Front panel LED power fault codesFront panel LED power fault codes
The following table provides a list of power fault codes, and the subsystems that are affected. Not all power faults are used by all
servers.
SubsystemSubsystem LED behaviorLED behavior
System board 1 flash
Processor 2 flashes
Memory 3 flashes
Riser board PCIe slots 4 flashes
FlexibleLOM 5 flashes
Storage controller 6 flashes
System board PCIe slots 7 flashes
Power backplane 8 flashes
Storage backplane 9 flashes
Power supply 10 flashes
PCIe expansion cards installed in riser board 11 flashes
Chassis 12 flashes
GPU card 13 flashes
Front panel LED power fault codes 14

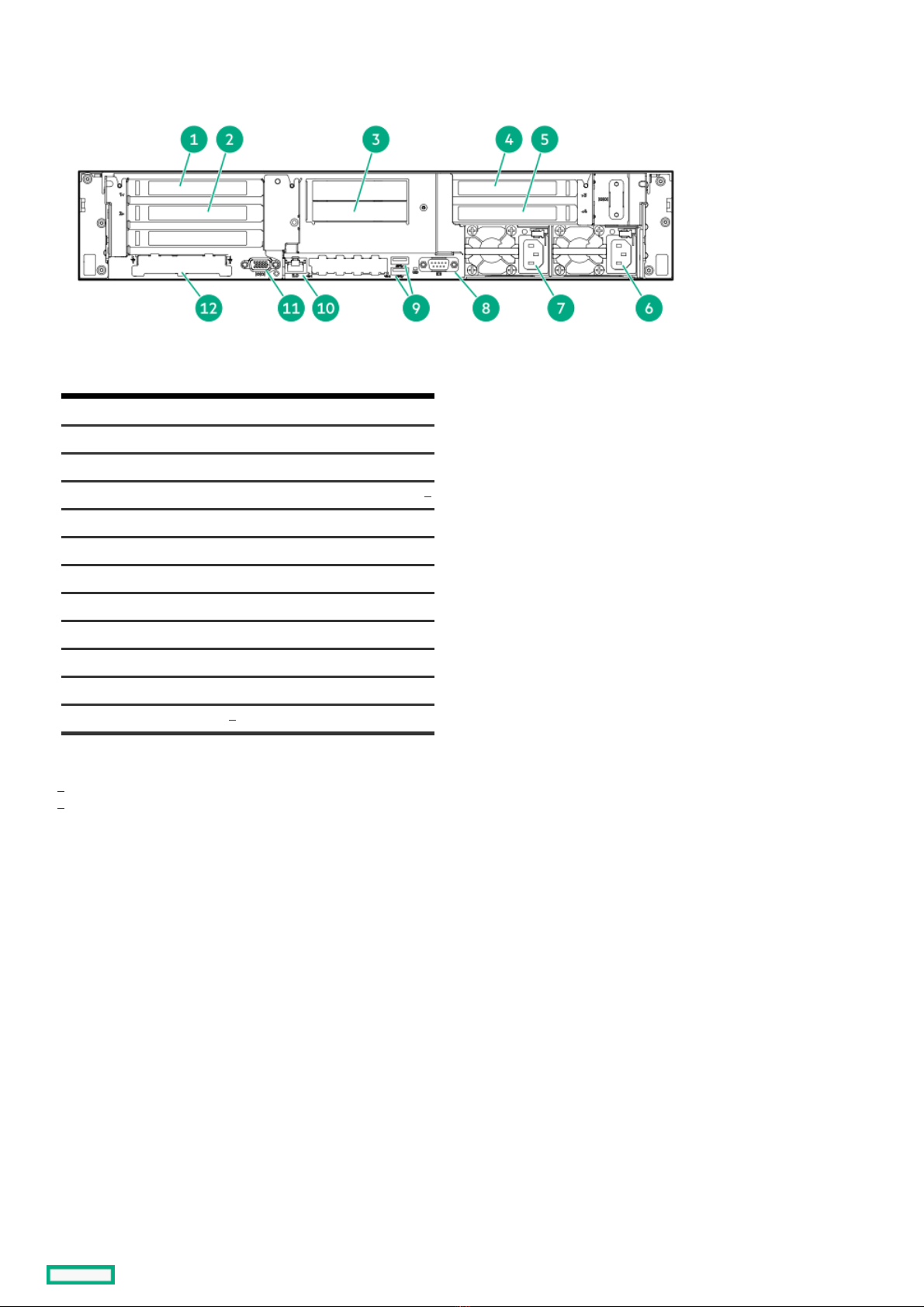

Rear panel componentsRear panel components
ItemItem DescriptionDescription
1 Slot 1 PCIe4 x16 (16, 8, 4, 1)
2 Slot 2 PCIe4 x16 (16, 8, 4, 1)
3 Box 4
4 Slot 3 PCIe4 x8 (8, 4, 1) or PCIe4 x16 (16, 8, 4, 1)
5 Slot 4 PCIe4 x8 (8, 4, 1)
6 Flex Slot power supply 1
7 Flex Slot power supply 2 (optional)
8 Serial port (optional)
9 USB 3.0 ports
10 iLO Management port
11 Video port
12 OCP NIC 3.0 slot
The slot 3 specifications depends on the secondary riser option installed.
This slot supports a SFF OCP NIC 3.0 adapter.
1
2
1
2
Rear panel components 15

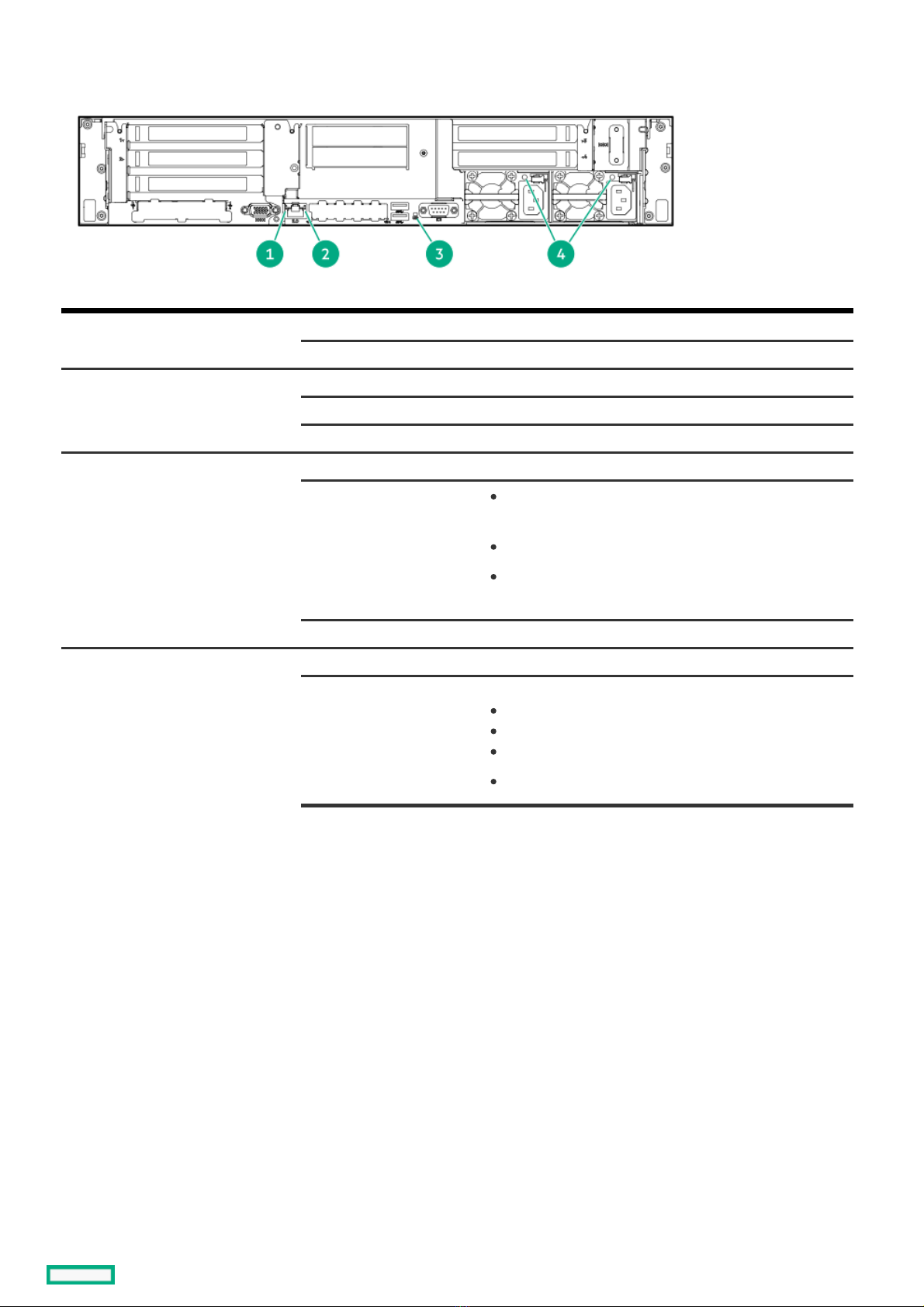

Rear panel LEDsRear panel LEDs
ItemItem LEDLED StatusStatus DefinitionDefinition
1 iLO link Solid green Network link
Off No network link
2 iLO status Solid green Linked to network
Flashing green Network active
Off No network activity
3 UID Solid blue Activated
Flashing blue 1 flash per sec = Remote management or firmware
upgrade in progress
4 flashes per sec = iLO manual reboot sequence initiated
8 flashes per sec = iLO manual reboot sequence in
progress
Off Deactivated
4 Power supply Solid green The power supply is operating normally
Off One or more of the following conditions exists:
Power is unavailable
Power supply failure
Power supply is in standby mode
Power supply error
Rear panel LEDs 16

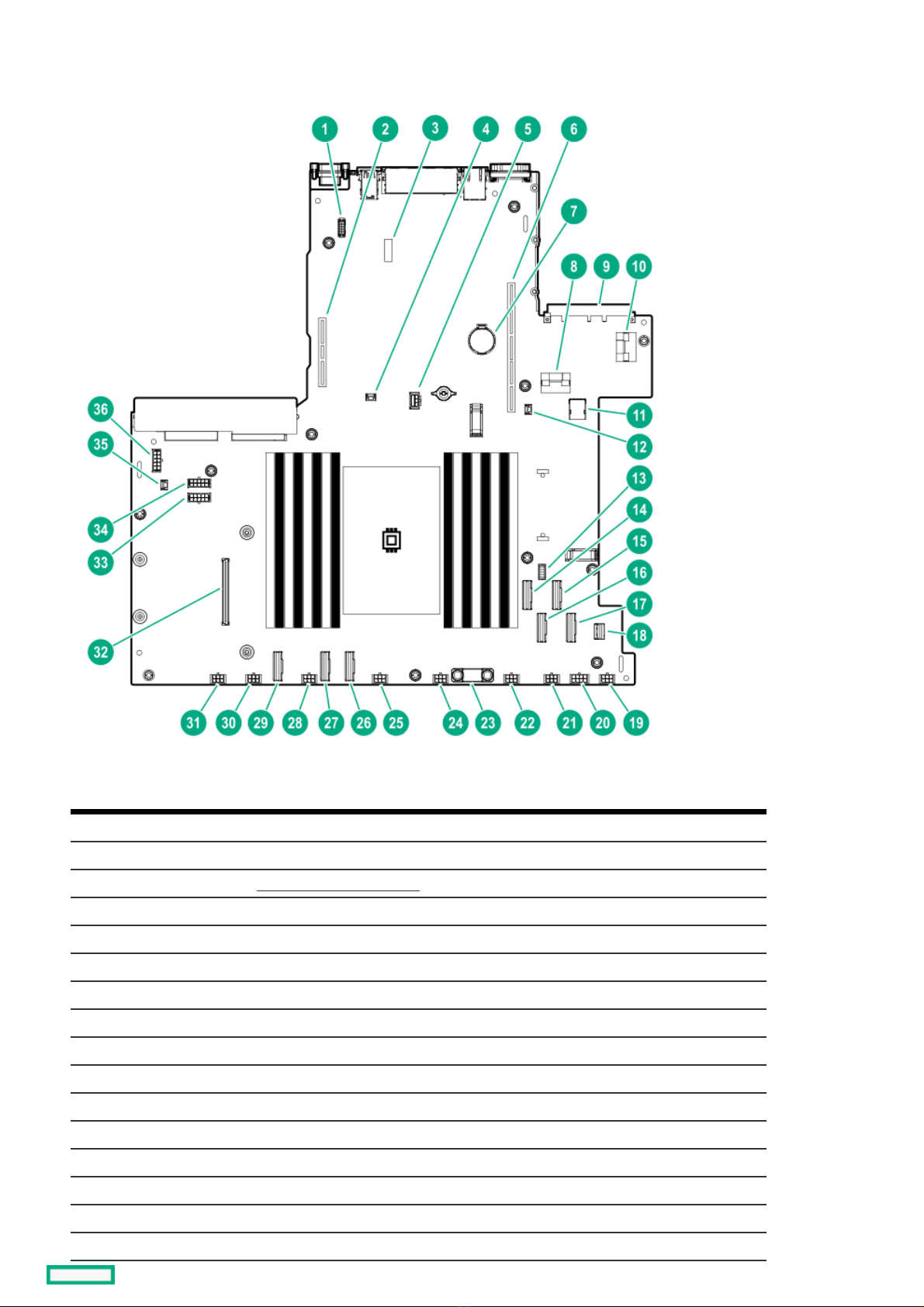

System board componentsSystem board components
ItemItem DescriptionDescription
1 Serial port connector
2 Secondary PCIe4 riser connector
3 System maintenance switch
4 Storage controller backup power connector 2
5 Graphics card power connector 2
6 Primary PCIe4 riser connector
7 System battery
8 NVMe port 6A
9 OCP NIC 3.0 slot
10 OCP NIC 3.0 x16 upgrade connector
11 Internal USB 3.0 port
12 Storage controller backup power connector 1
13 Energy pack connector
14 NVMe/SATA port 9A
15 NVMe port 4A
16 NVMe/SATA port 8A
System board components 17

17 NVMe port 5A
18 Front I/O connector
19 Fan connector 6
20 Graphics card power connector 1
21 Fan connector 5
22 Not for use in this server
23 TPM connector
24 Fan connector 4
25 Fan connector 3
26 NVMe port 3A
27 NVMe port 1A
28 Fan connector 2
29 NVMe port 2A
30 Not for use in this server
31 Fan connector 1
32 Type-a modular storage controller slot
33 Drive backplane power connector 3
34 Drive backplane power connector 2
35 Chassis intrusion detection switch connector
36 Drive backplane power connector 1
ItemItem DescriptionDescription
System board components 18

System maintenance switch descriptionsSystem maintenance switch descriptions
PositionPosition DefaultDefault FunctionFunction
S1 Off Off = iLO 5 security is enabled.
On = iLO 5 security is disabled.
S2 Off Reserved
S3 Off Reserved
S4 Off Reserved
S5 Off Off = Power-on password is enabled.
On = Power-on password is disabled.
S6 Off Off = No function
On = Restore default manufacturing settings
S7 Off Reserved
S8 — Reserved
S9 — Reserved
S10 — Reserved
S11 — Reserved
S12 — Reserved
To access the redundant ROM, set S1, S5, and S6 to On.
When the system maintenance switch position 6 is set to the On position, the system is prepared to restore all configuration settings
to their manufacturing defaults.
When the system maintenance switch position 6 is set to the On position and Secure Boot is enabled, some configurations cannot be
restored.
For more information, see Secure Boot.
1
1
1,2,3
1
2
3
System maintenance switch descriptions 19

DIMM slot locationsDIMM slot locations

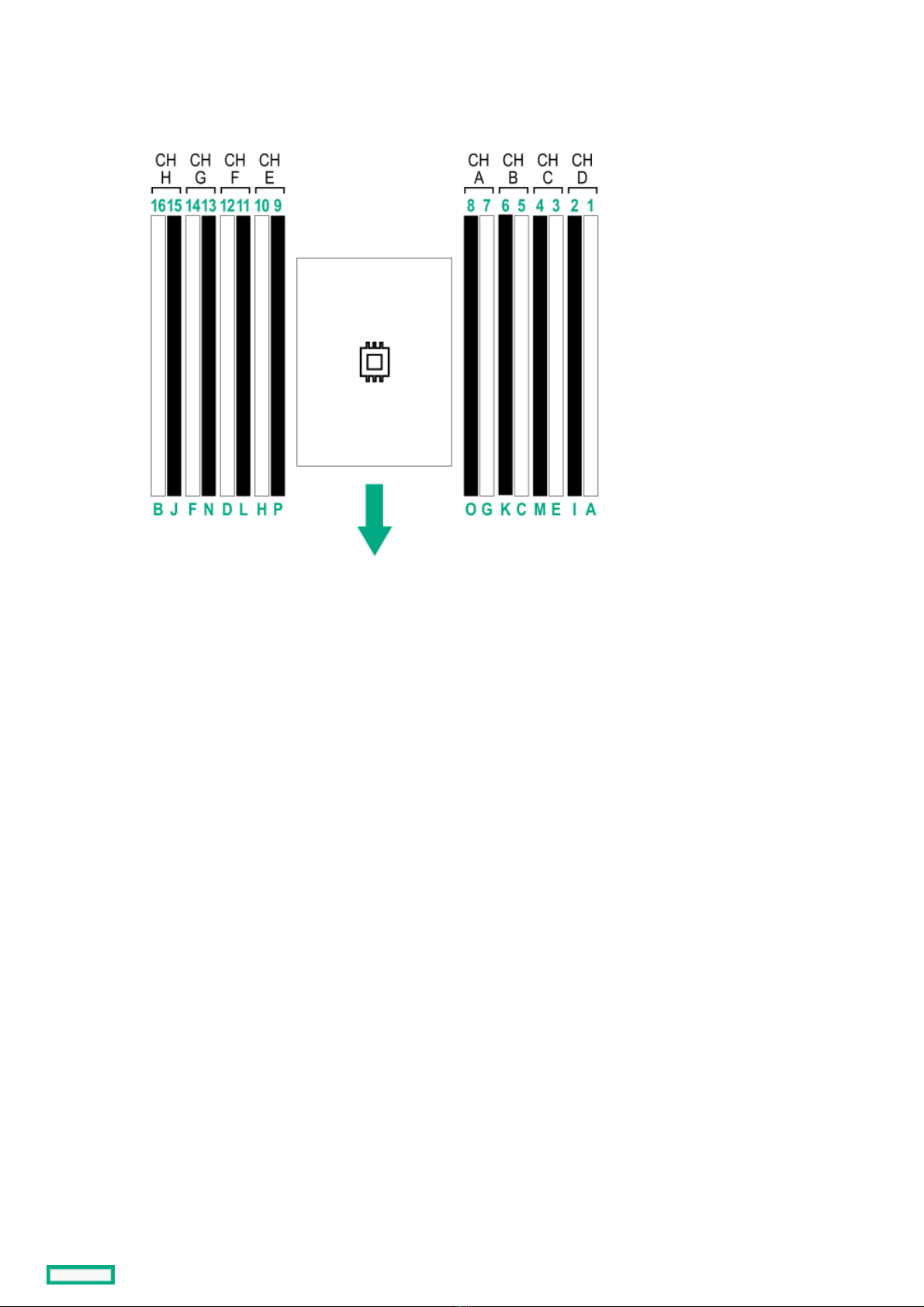

DIMM slots are numbered sequentially (1 through 16). The supported Advance Memory Protection (AMP) modes use the letter
assignments for population guidelines.
The arrow points to the front of the server.
DIMM slot locations 20
