HGLRC Rekon6 LR User manual

1
www.hglrc.com
Rekon6 LR
FPV Racing Drone
Manual

2
www.hglrc.com
Contents
Product Specifications.............................................................................................................................1
Interface Description...............................................................................................................................2
Check the flight control drive................................................................................................................3
Calibration accelerometer......................................................................................................................4
UART serial port use.................................................................................................................................5
Select aircraft model.................................................................................................................................6
Choose ESC protocol..................................................................................................................................7
Select ESC telemetry..................................................................................................................................8
Voltage and current parameters setting.............................................................................................9
Setting up the
receiver..............................................................................................................................10
VTX serial port use. DJI serial port use..............................................................................................11
GPS parameters setting...........................................................................................................................12
Check receiver
signal................................................................................................................................13
Select flight mode startup mode...........................................................................................................14
OSD settings.................................................................................................................................................15
LED settings.................................................................................................................................................16
Troubleshooting.........................................................................................................................................1
7
.......................................................................................

3
www.hglrc.com
Package IncIuded
Rekon6 LR FPV Racing Drone*1
Accessory Package*1
1.Product Specifications
Product parameters
Model
Rekon6 LR VTX FPV Racing
Drone
Frame Kit
Rekon6 LR Frame Kit
Flight Controller
Zeus F722 mini Flight Controller
ESC
28A 4in1 ESC
VTX
Zeus VTX 800mW
Motor
2105.5 Motor
4S KV1500
Support Neceiver
SBUS .DSMX.CRSF
Input Voltage
3-6S Lipo

4
www.hglrc.com
2.Interface Description

5
www.hglrc.com
3.Check the flight control drive
1. Long Press BOOT buttons.connect USB.The system automatically
install the driver
2.Driver cannot be installed, please download ImpulseRC_Driver_Fixer
3.Double-click on the run(Plug in the flight controller to automatically
install the driver)
4.open betaflight configurator ，enter DFU mode
5.Click Select firmware version

6
www.hglrc.com
6.Click Load firmware.Waiting for
completion It will be prompted upon completion.
7. open betaflight configurator .Controller plugged into the
computer. Betaflight Automatically assigned port，click “Connect”
Enter setup interface（Different computer COM）
4. Calibration accelerometer
1. Put the aircraft horizontal and click“Reset Z axis”
Click again

7
www.hglrc.com
5.UART serial port use
1.UART1 uses the receiver
2.UART2 uses GPS
3.UART3 uses 5.8G VTX
4.UART4 uses DJI
5.UART6 uses ESC telemetry
6.Select aircraft model
1.Click Select model

8
www.hglrc.com
2.Click Click “I understand the risks”Push Master to check motor
steering“Master”Steering can be changed at BLHeliSuite
7.Choose ESC protocol
1.Choose the right ESC protocol, the optional universal protocol
DSHOT600.

9
www.hglrc.com
8.Turn on ESC telemetry
1.Use BLHeli_32 ESC telemetry over a separate wire
2.Open ESC telemetry serial port.TX on the ESC needs to be connected
to the RX6 on the flight controller to use the ESC telemetry
3.View telemetry data on OSD

10
www.hglrc.com
9.Voltage and current
parameters setting
1.Click Setting parameters
10.Setting up the receiver
1.Receiver connection diagram

11
www.hglrc.com
2.Click .have found“UART1”Open the receiver serial port
3.Set the SBUS receiver

12
www.hglrc.com
4.Set the DSMX receiver
5.Set the CRSF receiver
11. VTX serial port use wiring .
DJI serial port use wiring
1. 5.8G VTX connection

13
www.hglrc.com

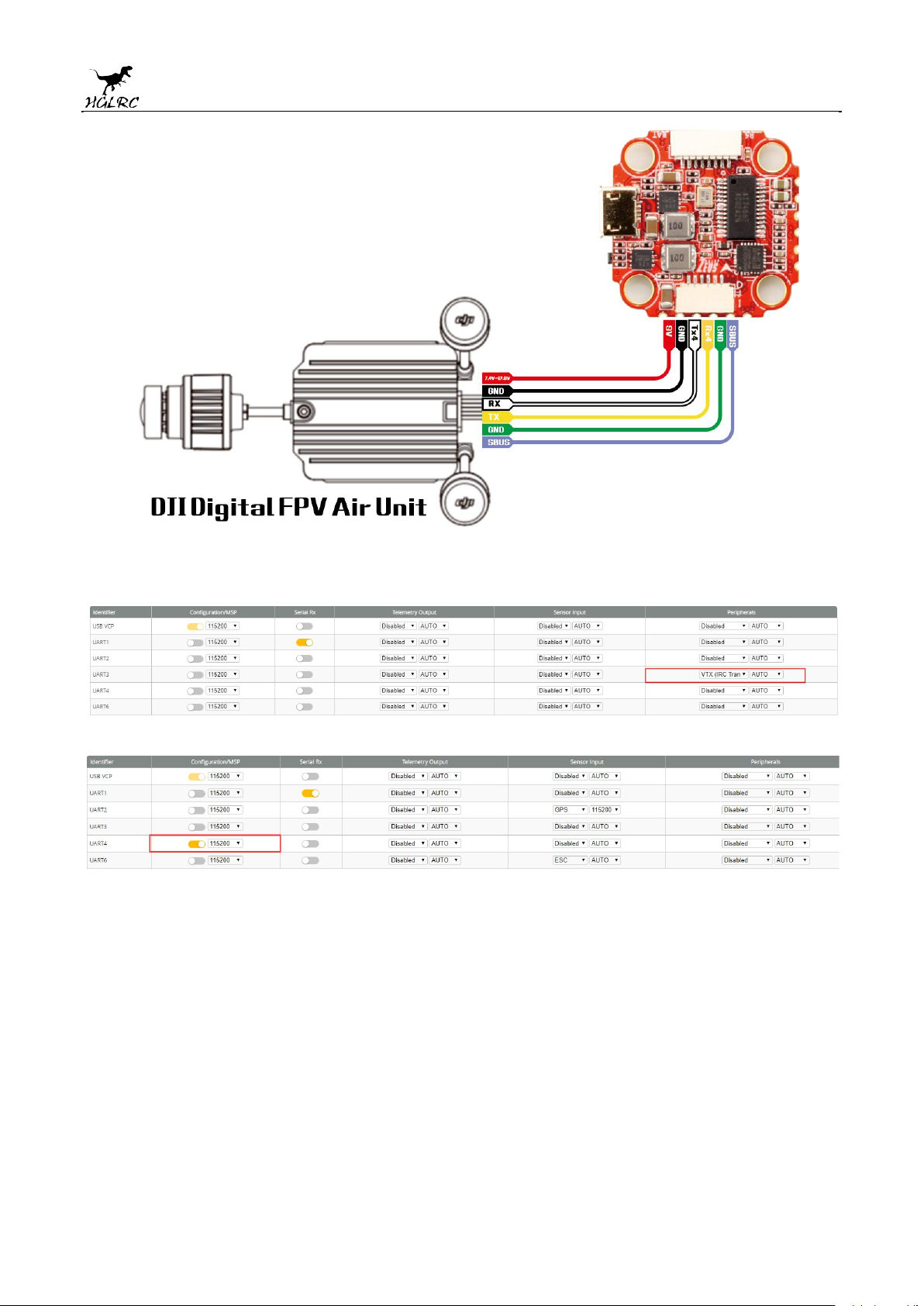

2. DJI FPV Air Unit wiring

14
www.hglrc.com
3. 5.8G VTX serial port opens. The protocol is selected according to its own
VTX protocol.
4. DJI serial port opens
5.Use OSD to adjust VTX
which displays information like battery voltage and mAh consumed while you fly. In addition, the
Betaflight OSD can be used to configure the quadcopter, making in-field adjustments and tuning more
convenient.
MODE2 MODE1

15
www.hglrc.com
The graphics above show the stick command to bring up the OSD menu. The stick command is: throttle
centered, yaw left, pitch forward. The exact stick command therefore depends on which mode your
transmitter sticks are in.
In the OSD menu, use pitch up/down to move the cursor
between menu items. When a menu option has a > symbol
to the right of it, this indicates that it contains a sub-menu.
Roll-right will enter the sub-menu. For example, in the
screen to the right, moving the cursor to “Features” and
then moving the roll stick to the right will enter the
“Features” sub-menu.
If you are using a video transmitter that supports remote
configuration, enter the “Features” menu to configure the
vTX. From there, enter either “VTX SA” if you are using
SmartAudio (TBS Unify) or “VTX TR” if you are using IRC
Tramp Telemetry.
To adjust PIDs, rates, and other tuning-related parameters,
enter the “Profile” sub-menu.
In the “Scr Layout” sub-menu, you can move the OSD
elements (like battery voltage, mAh, and so forth) around on
the screen.
The “Alarms” sub-menu lets you control when the OSD will
try to alert you that battery voltage is too low or mAh
consumed is too high.
When a parameter can be modified, the parameter’s current
value will be shown on the right-hand side of the screen. In
this case, roll left/right will adjust the parameter up and
down.
The screen to the right shows the current vTX settings. From
here, you can change the frequency band, channel, and
power level of the video transmitter. After making the
changes, move the cursor to “Set” and press roll-right to
confirm the settings.

16
www.hglrc.com
12.GPS parameters setting
1.GPS connection diagram
2.Open the GPS serial port
3.When using the GPS function, remember to configure the serial port
(via the Ports tab).

17
www.hglrc.com
13.Check receiver signal
1.Click Check the remote control output signal
14.Select flight mode startup
mode
1.Click set up the function of remote control switch across the
channel (below are for reference only)

18
www.hglrc.com
15.OSD settings
1. Click the OSD Settings, according to the need to choose, drag
the OSD schematic diagram of the parameters can be adjusted.
16. LED settings
1.Click Turn on LED support
2.Click .Click set according to
need

19
www.hglrc.com
17.Troubleshooting
Warning:
Please read the cautions as follows, otherwise stability of your flight
controller cannot be ensured, your flight controller will even get damaged.
●Keep focus on the polarity. Check carefully before power supply.
●Cut off the power when you connect, plug and pull anything.
●The refresh rate of PID and Gyroscope is up to 8K/8K.
after sales question:
1. After receiving the goods, it is found that the product can not be used
normally. If the return to the factory is a quality problem, the repair
service will be provided free of charge.
2. If the product is damaged due to improper operation, the repair service
may be provided under the condition that the inspection can be repaired.
3. For domestic customers, please contact the after-sales service
personnel. For overseas customers, please contact the official website for
after-sales service.
Product daily problems
1.OSD garbled:
If you find garbled characters, please open Betaflight, click “OSD” .and click “Font Manager”
clicks on “Upload Font” to update
1. When plugged in the battery, the aircraft does not pass the self-test
without "BBB" sound. There is only one sound.

20
www.hglrc.com
Please check if the ESC agreement is correct
3.The spin of the aircraft keeps spinning
1. Please check if the propeller is correct
2. Please check if the motor direction is correct
