Hi-Lux PHENOM ED FIELD FLATTENED Operating and maintenance manual

PHENOM ED FIELD
FLATTENED BINOCULARS
INSTRUCTIONAL MANUAL

PHENOM ED FIELD FLATTENED
1
CONGRATULATIONS! You have just
purchased our PHENOM ED Field Flattened
binocular; one of the best binoculars in its
class. The Phenom ED binoculars deliver
phenomenal edge to edge image sharpness
due to the addition of a flat view lens in the
optical system. The High Definition Extra
Low Dispersion glass lenses eliminate color
fringing and chromatic aberration. This
allows the operator to focus solely on the
target, whether you’re tracking big game or
birding.
The Phenom ED binoculars enable its
users to completely compensate for their
individual eyesight. The center focus wheel
is first used to adjust the left eye. Next, the
lockable right eye diopter can be deployed
by simply pulling up on the center focus
knob.

BINOCULAR MANUAL
2

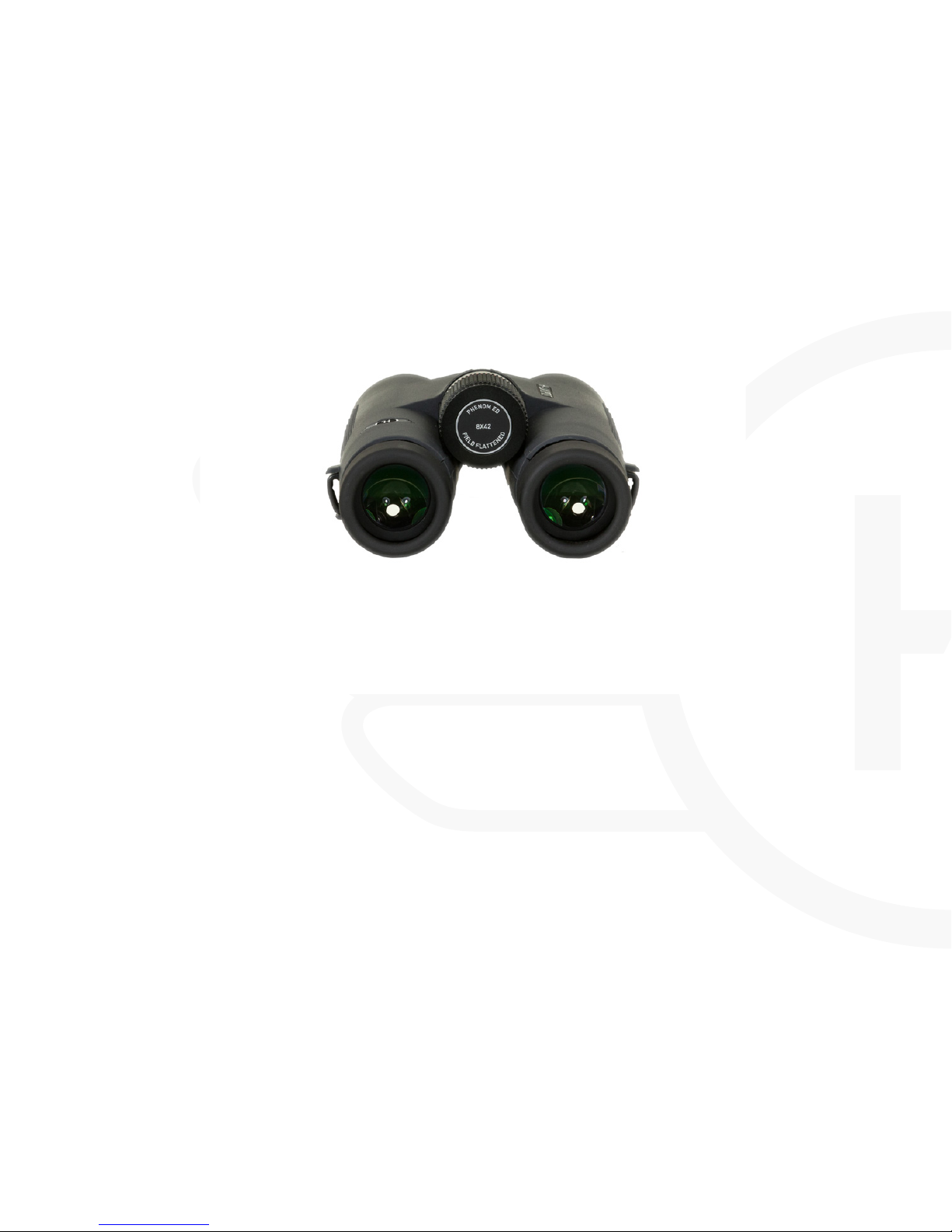

Not only do the Phenom ED binoculars
showcase superb image quality, they are
ergonomically designed to be compact
and comfortable to use. With RubberGuard
armoring encasing the magnesium-
aluminum alloy chassis, the Phenom ED
offers outstanding durability at a fraction of
the weight. The two thumb indents in the
RubberGuard armor on the bottom of each
barrel improve grip and user accessibility.
No corners have been cut in the production
of these binoculars. All glass lenses are
meticulously polished to photographic
quality for exceptional clarity and light
gathering capability, which is especially
critical during the low light hunting
conditions of daybreak and dusk.
All Phenom ED binoculars feature:
A. Flat View Lens
B. DiamondTuff14 Fully
Multi-Coated Lenses
C. Extra Low Dispersion Glass
D. Dielectric Reflective Coating
E. RubberGuard body armor
F. Magnesium alloy chassis
Clarity doesn’t mean a thing if your optics
can’t keep up with the rugged requirements
demanded by the modern outdoorsman.
Leatherwood/Hi-Lux is committed to
manufacturing high quality optics that meet
these demands. The Phenom ED Field
Flattened binoculars are backed by our
DiamondTuff Lifetime Guarantee.

PHENOM ED FIELD FLATTENED
3
TABLE OF CONTENTS
SECTION 1 : SPECIFICATIONS AND BASIC DEFINITIONS 4
SECTION 2 : CUSTOMIZING YOUR PHENOM ED SETUP 6
SECTION 3 : FOCUSING YOUR BINOCULARS 7
SECTION 4 : MAINTAINING YOUR BINOCULARS 8
SECTION 5 : DIAMONDTUFF GUARANTEE 10

BINOCULAR MANUAL
4
SECTION 1
SPECIFICATIONS AND BASIC DEFINITIONS
(1) SPECIFICATIONS:
Model Power Obj.
(mm)
F.O.V.@
1000 Yds
(Feet)
Interpupillary
Distance
(mm)
Close
Focus
Distance
(ft)
Weight
(O.Z.)
Twilight
Factor Luminosity
PM8X42 8X 42 421’ 56-74mm 4.9’ 28 18.33 27.0
PM10X42 10X 42 342’ 56-74mm 4.9’ 29 20.5 17.6
All glass lenses are fully multi-coated with DiamondTuff14 to maximize the light
transmission.

PHENOM ED FIELD FLATTENED
5

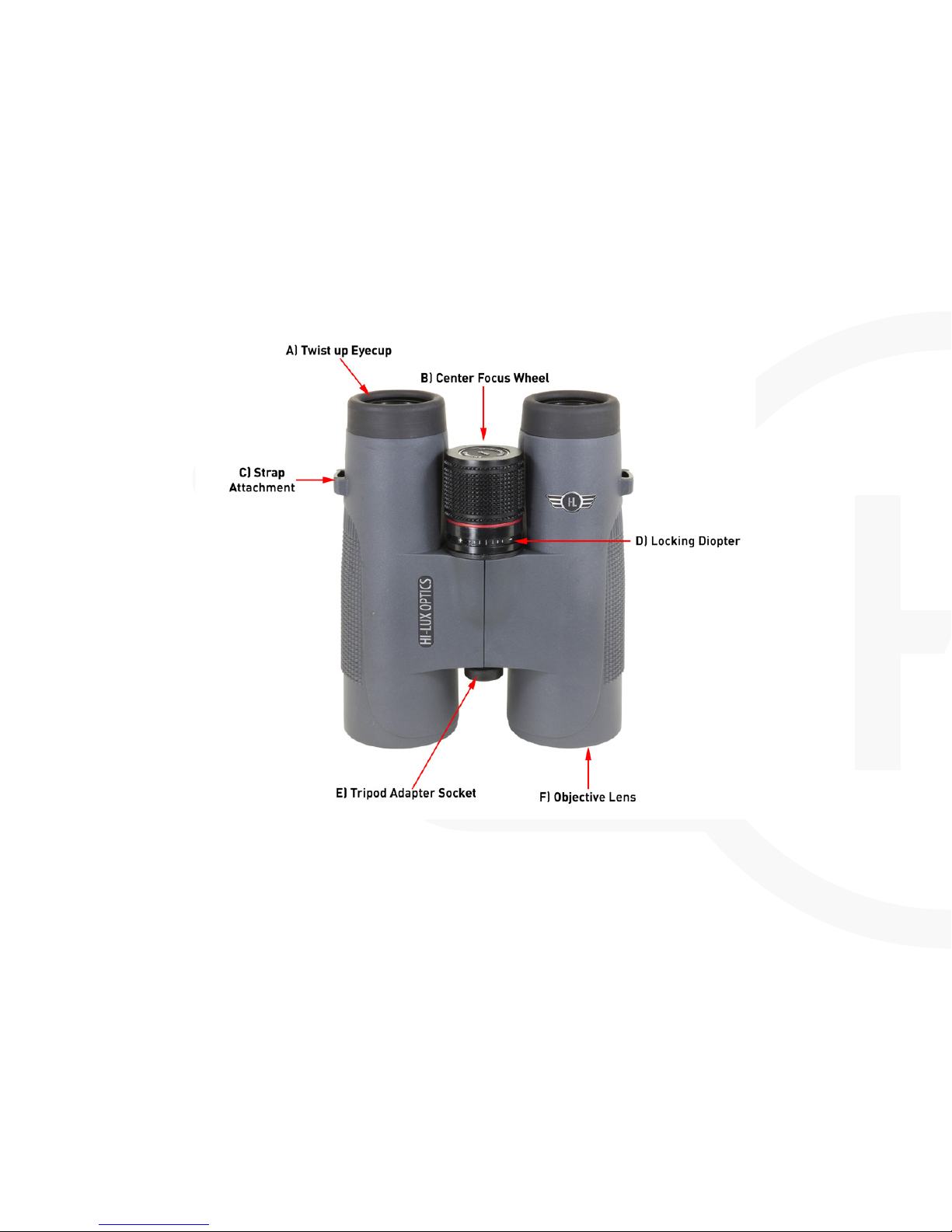

(2) BASIC DEFINITIONS:
A) Twist Up Eyecup; B) Center Focus Wheel; C) Strap/Harness Attachment;
D) Locking Diopter; E) Tripod Adapter Socket; F) Objective Lens

BINOCULAR MANUAL
6
SECTION 2
CUSTOMIZING YOUR PHENOM ED SETUP
The eyecups of the Phenom ED binoculars are adjustable so that every viewer
can comfortably look through these binoculars. Simply twist the eyecups
counterclockwise to raise the eyecups. There are two set positions for the eyecups.

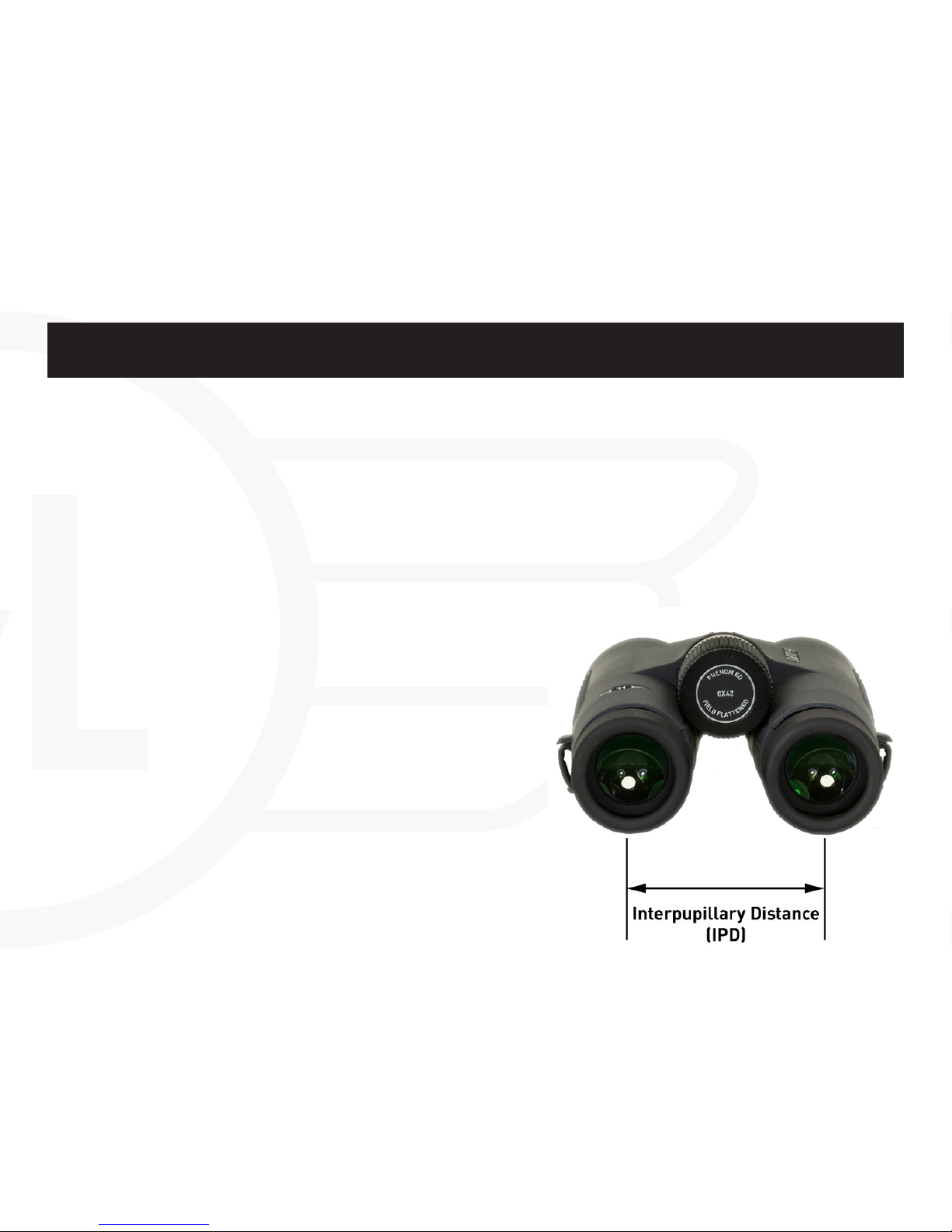

Additionally, you can also adjust the
Interpupillary distance (IPD) by rotating both
barrels of the binocular inward or outward. The
IPD is the distance between the center of your
left and right pupils. Match the IPD of your eye
so that you can comfortably look through both
barrels of the binocular and see a single image
without any shading.

PHENOM ED FIELD FLATTENED
7
SECTION 3
FOCUSING YOUR PHENOM ED BINOCULARS
For the best results in the field, follow this three step procedure to properly adjust
the center focus and diopter for your individual eyesight. Scan and find an object
at least 10 yards away from you and stay in the same spot until you have adjusted
the binocular for both eyes.
1) Adjust the Center Focus Wheel for your LEFT eye
- Close your right eye or cover the right objective lens with your hand.
- Focus your left eye on the object and adjust the center focus wheel
until the image is in sharp focus.
2) Adjust the Diopter for your RIGHT Eye
- Pull up on the center focus wheel to unlock the Right Eye Diopter
- Close your left eye and turn the right eye diopter until the image is in
sharp focus.
- Press down on the center focus wheel after you have adjusted the right

BINOCULAR MANUAL
8
eye diopter to lock this setting in place.
3) Use Center Focus Wheel to Fine Tune Focus
- Keep both eyes open and adjust only the center focus wheel
(if necessary) to fine tune the image sharpness.
SECTION 4
MAINTAINING YOUR BINOCULARS
Your binoculars, though amazingly tough, is a precision instrument that deserves
reasonable and cautious care. For normal maintenance:
A. Do not attempt to disassemble or clean the binoculars internally.
B. First remove any dust or sand from the lens surfaces before wiping. Use a can
of pressurized air, a soft camel hair brush, or acrylic optical brush.
C. The external optical surfaces should occasionally be wiped with the microfiber

PHENOM ED FIELD FLATTENED
9
lens cloth provided or an optical/non-abrasive lens wipe. NEVER USE FACIAL
TISSUE, HEAVY COTTON, OR FLANNEL CLOTH ON LENSES. THESE
MATERIALS WILL SCRATCH AND DAMAGE THE LENSES.
D. Keep the protective lens covers in place when the binoculars are not in use.
E. Wipe the rubberbody with a damp cloth, followed by a dry cloth.
F. Store the binoculars in a moisture-free environment.
G. Avoid storing the binoculars in a hot place, such as the passenger compartment
of a vehicle on hot days. The high temperatures could adversely affect the
lubricants and sealants. A vehicle’s trunk, a cabinet or a closet are the preferred
storage locations.
H. Never leave your binoculars where direct sunlight can enter either the objective
or the eyepiece lens. Damage may result from the concentration of the sun’s
rays (burning glass effect).
WARNING: UNNECESSARY RUBBING OR USE OF A COARSE CLOTH MAY CAUSE
PERMANENT DAMAGE TO LENS COATINGS.

BINOCULAR MANUAL
10
SECTION 5
DIAMONDTUFF GUARANTEE
Hi-Lux, Inc. warranties its products against defects arising from faulty workmanship
or materials, for the lifetime of the product. Normal wear and tear, accidental or
intentional misuse, and theft are not covered under this warranty policy. After one
year, optical components may need to be serviced as part of general optic care.
Such services are not warrantable. Any attempt to alter, dismantle or change the
standard specifications of the products, will make this warranty null and void. This
warranty is made to the original purchaser of the goods, and applies only to the
products purchased in the United States. The warranty is transferable.
Warranty obligation is limited to the repair or replacement of any product returned
to Hi-Lux, Inc. that is determined by the manufacturer to have defects arising from
faulty workmanship or materials that adversely affect the satisfactory operation
of the product. It should be noted that on items containing an etched glass

PHENOM ED FIELD FLATTENED
11
reticle, which the occasional appearance of some small particles is common and
not a warrantable repair. Hi-Lux provides a two-year warranty for the electronic
components that are contained on the products.
Hi-Lux, Inc. reserves the right to request proof of purchase and purchase date.
Hi Lux assumes no liability for any incidental or consequential damages, theft,
or incidental expenses. Some states do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitations or exclusion may
not apply. No warranties are made, or are authorized to be made, other than those
expressly contained herein.
To file a claim under this warranty, please contact the Customer Service Department
of Hi-Lux, Inc. at [phone] to obtain a Return Authorization number (RA
number). After receiving your RA number, please mark the number on the outside
of the package; enclose the defective item with a brief explanation of the problem.
Please be sure to include your name, address and phone number. Failure to obtain a
RA number may result in either refusal upon delivery, or lengthy delays for warranty
repairs and service required for the item returned to us.

BINOCULAR MANUAL
12
All returns are to be shipped prepaid direct to Hi-Lux, Inc. including a check or
money order in the amount of $21 to cover postage and handling. Additional fees
will be applied to all returns from outside the continental United States.
Attn.: Warranty & Service Dept.
Hi-Lux, Inc.
3135 Kashiwa Street
Torrance, CA 90505
Tel: [phone], Fax: [phone]
E-Mail: [email protected]
www.hi-luxoptics.com
In the event of a non-warranty repair, you will receive an estimate prior to any work
being done. This warranty gives you specific legal rights and you may have other
rights, which vary from state to state. As defined by federal law, this is a limited
warranty.
