Leica TRINOVID HD Series User manual

LEICA TRINOVID 8x32 HD
LEICA TRINOVID 1Ox32 HD
LEICA TRINOVID
8x42 HD
LEICA TRINOVID 1Ox42 HD

-
------t--
-m
D
~
~
:
UUlJL
_
--++--
~
~
~
~
~----++--
-------r
-
~
I

FOREWORD
Dear Customer,
The name Leica is synonymous worldwide with
the highest quality, precision mechanics, extreme
reliability
and long service life.
We wish you a great deal of fun and success with
your
new Leica Trinovid HD binoculars. In order
that
you can make full use of their possibilities,
we recommend that you first read these instruc-
tions.
PACKAGE CONTENTS
-Binoculars
-Adventure strap (only 8x42HD/1
Ox42HD)
-Carrying strap
-
Lens cloth
-
Eyepiece cap
- 2 lens caps
-Instructions
-Warranty
card
- Test certificate
DESIGNATION
OF PARTS
I] Eyes for carrying strap
~ Diopter ring
~ Eyecups
Position a: fully screwed out, e.g. for use of
the binoculars without spectacles
Position b: fully screwed
in, e.g. for use of
the binoculars with spectacles
~ Diopter scale
~ Central focusing wheel
~ Pivot exes for adjustment of the interocular
distance

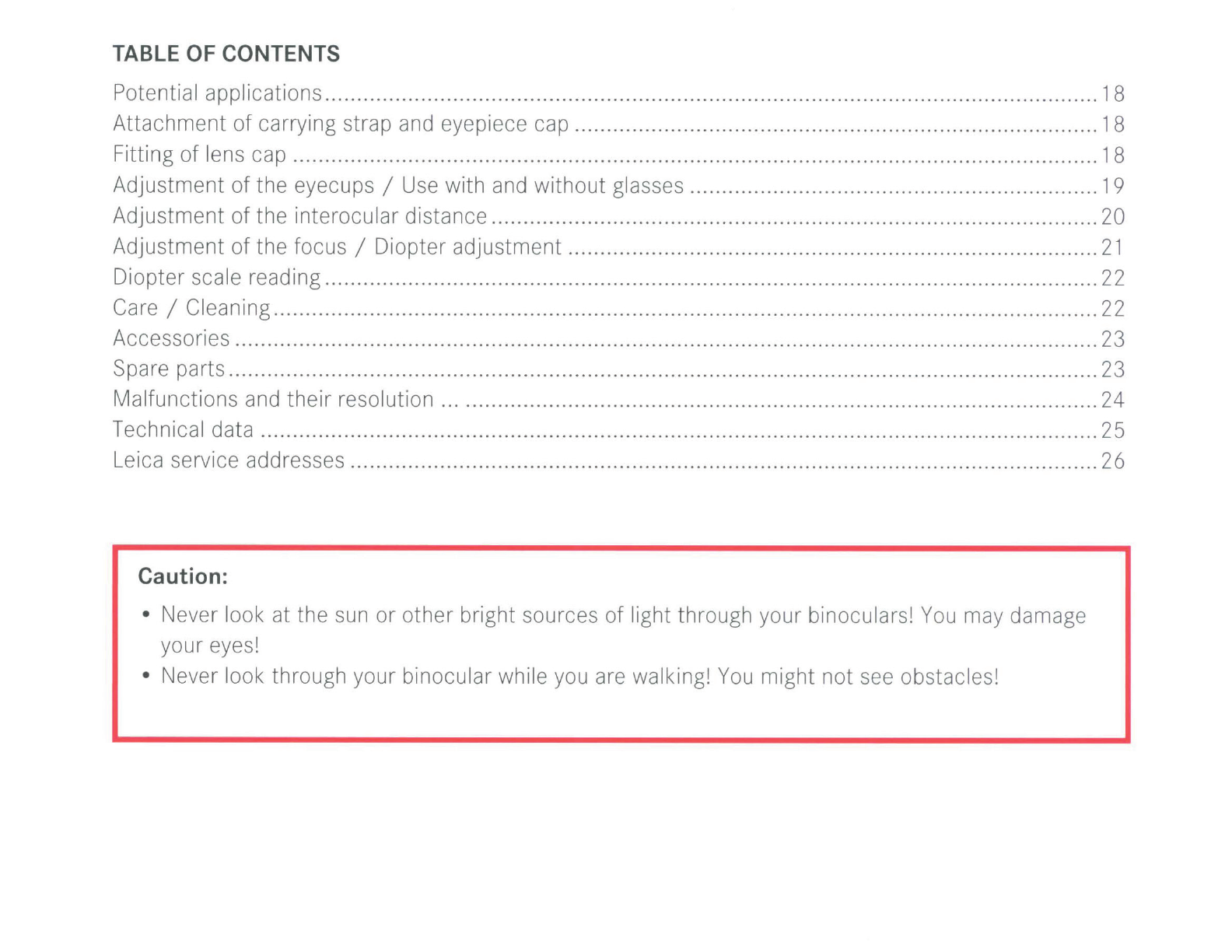

TABLE OF CONTENTS
Potential appl ications .. ... ... .. .. ... ..... .. .. ............ .. ........... .. .. ....................................................................18
Attachment of carrying strap
and eyep i ece cap ......... ... . .. .................................. .. ...............................18
Fitti
ng of le ns cap . .. ..... .. ..... .. ........................... .. .... .... .. .. ...... .. ..... .. .. .. .......... .. .. .. ................................. 18
Adjustment of the eyecups I
Use with and without glasses ..... .. ........ .. ........ .. ..... .. ... .. .. ....................... 19
Adj ustment of the interocular distance .. . .. .. .. .. ... ......................................................... .. ........... .. ......... 20
Ad justment of the focus I Diopter ad justment ................. .. .. .. . .. . .... . ... ........ .. ...... .. .............................. 21
Diopter scale reading .......... .. . ... . .. ... .. .. .... ..... .... ... .. .... .. .... .. ....... .. . .. .............................. .. ..................... 22
Ca re I Cleaning .... .......... .. .......... .... .. . ... .. ................................ ... ..... ... ................................................ 22
Accessori es .. ......... .. . .. .. . .. .......... .. ..... .. ................... .. .......................................................... ... ............. 23
Spare parts .. ... ... .. ...... ... ..... .. ..... .. .... .. ....... .. ........................................ .. .............. .... ... .......... .. ............. 23
Malfuncti ons and their resolution ... ...................... ... . .. ........... .. ................ ... ....................................... 24
Technical d ata ........... .. ............. .. .. .. ...... .... .. ........................... .. . .... ..... .. ...... .. ...................................... 25
Lei ca service addresses ....... .. ............ .. ... .. .. ...... .. ... .... ........ ... ................................. .. .............. .... ........ 26
Caution:
• Neve r look at the sun or other bright sources of light through your binoculars! You may damage
yo ur eyes!
• Neve r look through your binocular wh i le you are walki ng! You might not see obstacles!

POTENTIAL
APPLICATIONS
The
Leica
Trinovid
HD
binoculars
have
a hermeti-
cally sealed, nitrogen-filled magnesium housing.
They
are
therefore suitable for outdoor
use.
Wet
weather
is
no
problem -the binoculars
are
absolutely water-tight to a depth of
4m
and
the
internal
lenses
do
not fog.
ATTACHING
THE
CARRYING
STRAP
AND
THE
EYEPIECE
CAP
In
the delivered condition, the Adventure Strap
is
already attached to your binoculars (only
8x42HD/1
Ox42HD).
This
carrying strap
can
also
be
used
as
a
bag.
Please
refer to the enclosed
instructions for details of its
use.
If
you
want to attach a different carrying strap:
you
will find a relevant illustration
on
the back of
the cover.
Note:
If
you
want to attach the eyepiece
cap
to the
car
rying
strap, this must
be
done
at
the
same
time
as
the carrying strap
is
attached.
ATTACHING
THE
LENS
CAPS
To
do
this, carefully pull the rubber rings
on
the
cap
over the binoculars from the
lens
side.

~ ~
I I I
IllI HIll \ IllU I
II II )
c
~ll~
(
~ll~
H H
ADJUSTMENT OF THE EYECUPS/
USE WITH AND WITHOUT GLASSES
I
~
T he eyec u ps 8J can be eas il y adjusted by turning
and they lock sec u re ly in the se l ec ted pos itions.
Th
ey can be removed completely for thorough
cl
ean i ng.
If you want to use the binoculars with spectacles,
they remain
fu ll y sc rewed in (picture ~ ) , or
slightly screwed out.
Fo r use of the binocul ars
without spectacl es they can be screwed out by
turning in counter-clockwi se direction. Two
positions are ava ilable for optimum adjustment.
~
[E
B
\ '
ol
I
Ill II IIIII\
(
J~V
/1 1111111 \
~ ~
~~~~
R R
If the eyepieces are heavi ly soiled, we recom-
mend removing the eyecups for cleaning. To do
this, simply pull out ofthe comletely screwed out
position
(pictures ~ . [E ).

ADJUSTMENT OF THE
INTEROCULAR DISTANCE
The
individual interocular distance
can
be
adjusted
by
bending the binoculars about the
pivot
axes
~
.
When
the interocular distance
has
been
set correctly, the right
and
left
visual
field
merge
into a circular
image.

I \
/IIIII
II
II II
II
II
\\
ij
~
1
ooo
o
~
o
-
o
ooo
J
L
r-
I--
-
I-
ADJUSTMENT OF THE
FOCUS/
DIOPTER ADJUSTMENT
The
focus for objects at different distances
is
adjusted
on
the
Leica
Trinovid
HD
binoculars
using the central focusing
wheel
~
.
~
The
diopter ring
is
used
to adjust for individual
visual impairments
so
the binocul
ars
can
be
used
without
spectacles;
~
this changes only the focus
of the right-hand system.
l I )
I
IIIII
11
11
II
\\
ll
~
~
ij~~~l
l o
o
o
o~
I
-
O
eJJ
~
J
)
L
""
r-
..
I--
-
I-
Procedure
1. Close your right
eye
or cover the right-hand
lens.
Then
adjust the central focusi
ng
wheel
so
that
you
can
see
the target object with
optimum focus through the left-hand
binocular tube.
2.
Close your left
eye
or cover the left-hand
lens.
Then
adjust the diopter
whee
l
so
tha
t
you
can
see
the target object with optimum
focus through the right-hand binocular tube.

DIOPTER
SCALE
READING
The
user's individual
value
determined using the
focus adjustment
can
then
be
adjusted
again
within seconds using the scale setting that
has
been
determined once.
CARE/CLEANING
Your
Leica
Trinovid
HD
binoculars
have
been
designed for constant
use
outdoors.
No
particu-
lar care
is
needed other than occasional
cleaning. Fingerprints, droplets of water, etc.
on
lenses
and
eyepieces
can
be
wiped off using a
soft, lint-free cloth. Breathing
on
the lenses
beforehand
may
help.
Coarse
soiling
on
the
glass
surfaces,
such
as
sand,
should
be
removed using
a fine
brush
or blown off.
In
the
case
of
severe
soiling, the binoculars
may
be
cleaned
by
rinsing
them under running water that
is
hand-hot at
most. Salt water should
also
be
washed
off.
Alcohol or other chemical solutions
may
not
be
used
for cleaning.

Important:
• Make
sure
not to touch the
glass
surfaces with
your fingers, especially if
you
previously
been
applying
hand
cream, insect repellent, etc.
These
substances
may
contain chemicals that
damage
or destroy the coatings
on
the
glass
surfaces.
•
Do
not apply excessive pressure
when
cleaning heavily soiled
lens
surfaces. Although
the coating
is
abrasion-resistant, it
can
nevertheless
be
damaged
by
sand
or salt
crystals.
ACCESSORIES
You
will find details of the extensive
range
of
accessories for your
Leica
Trinovid HD binoculars
on
the
Leica
Camera
AG
website:
www.leica-camera.com
SPARE
PARTS
Should
you
require
spare
parts for your binocu-
lars,
e.g.
eyecups,
caps
or carrying straps,
please
contact our Customer
Care
department
or
your
national
Leica
agency.
The
addresses
can
be
found
on
your warranty card.

MALFUNCTIONS AND THEIR RESOLUTION
Fault
No
circular
is
obtained
during viewing.
a)
The
binoculars
are
not
sufficiently adapted to your
personal interocular distance.
b)
The
pupils of the viewer
are
not
in
the exit
pupil
of the
binoculars.
c)
The
position of the eyecups
does
not correspond to correct
use
with
and
without specta-
cles.
d)
The
position of left
and
right
eyecups
is
different.
a)
Correct the distance between
the two binocular tubes simply
by
bending the pivot
axis
more
or
less.
b)
Correct
head,
eye
and
binocular
position.
c)
Correct adjustment:
Wearers
of spectacles screw the eyecups
in;
when
viewing without spec-
tacles: screw
eyecups
out.
d)
Move
both eyecups to the
same
position.

TECHNICAL
DATA
LEICA TRINOVID 8
x
32
HD LEICA TRINOVID 10
x
32
HD
Magnification
8x
10x
Lens diameter
32mm
32mm
Exit pupil
4mm
3.2mm
Twilight
factor
16
1
7.
9
Light transmission
90% 90%
Subjective viewing
angle/
53.5°
I
61.3°
I
visual field to
1
,OOOm
124m 114m
Exit pupil position
17mm
15.5mm
Closest focusing distance (at 0 diopter) approx.1 m approx. 1m
Diopter
adjustment/
at=
±
5dpt.
±
-5dpt.
Eyepiece for wearers
of
spectacles yes yes
Eyecup Adjustable and removable with 5 locking steps
Adjustable interocular distance
58-76mm
Focusing Internal focusing via
center
wheel
Working/
storage temperature
-25°+55°
/-40
°
+85°
Water tightness Pressure water
tight
to 4 m water depth
Dimensions
(W
x H x
D)
11
7 x 65 x
130mm
Weight approx.
630
g approx. 640 g

TECHNICAL DATA
LEICA TRINOVID 8 x 42 HD
LEICA TRINOVID 10 x 42 HD
Magnification
8x 10x
Lens diameter 42mm 42mm
Exit pupil 5.25
mm
4.2mm
Twilight factor 18.33 20.5
Light transmission
90%
90%
Subjective viewing angle/
53.5°/
61 .3 o I
visual field to 1 ,OOOm
124m 113m
Exit pupil position 17mm 1
5.5 mm
Closest focusing distance (at 0 diopter) approx.1 .8m approx. 1
.6 m
Diopter adjustment/
at=
± 5dpt. ± 5dpt.
Eyepiece for wearers of spectacles
yes
yes
Eyecup
Adjustable and removable with 5 locking steps
Adjustable interocular distance 58-76mm
Focusing Internal focusing
via center wheel
Working/storage temperature -25°+55°/-40°+85°
Water tightness Pressure water tight to 4 m water depth
Dimensions
(W x H x D)
11 7 x 65 x 145mm
Weight approx. 750 g approx. 760 g

LEICA
PRODUCT
SUPPORT
The
Leica
Camera
AG
Product Support depart-
ment
can
provide
you
with
an
answer to
any
technical application questions relating to the
Leica
range
either
in
writing,
on
the telephone or
by
e-mail.
Leica
Camera
AG
Product Support
Am
Leitz-Park 5
D-35578 Wetzlar,
Germany
Telephone: +49
(0)
6441-2080-111 I
-1
08
Fax:
[phone]
[email protected]
LEICA
CUSTOMER
CARE
Authorized
Leica
agents
and
Leica
Camera
AG
Customer
Care
department
are
available
in
your
country for the
service
and
repair of
your
Leica
equipment
(a
list of addresses
is
provided
on
your Guarantee
Card).
Leica
Camera
AG
Customer
Care
Am
Leitz-Park 5
D-35578 Wetzlar,
Germany
Telephone: [phone]
Fax:
[phone]
customer.
care@
I
e
i
ca
-
ca
me
ra.
com

GUARANTEE
OF
THE
LEICA
CAMERA
AG
Dear
Leica
customer,
Congratulations
on
your well-considered purchase. With the
Leica
binoculars
you
have
obtained a world-famous trademark product.
Alongside
your
statutory
guarantee
rights
towards
your
distributor,
you
will
also
receive
a 1
0-year guarantee from
Leica
Camera
AG
for
these
Leica
binoculars, according to the conditions below.
The
Leica
guarantee
does
not, therefore, affect your
legal
rights
as
a consumer
under relevant national
law,
nor
the
consumer's rights
in
terms of
the dealer,
as
detailed
in
the
sales
contract concluded between the
two parties.
Yours
sincerely,
Leica
Camera
AG
CONDITIONS
OF
THE
GUARANTEE
With
the
purchase
of these
Leica
binoculars
you
have
acquired a prod-
uct which
has
been manufactured to special quality standards
and
checked at the various
stages
of production
by
experienced special-
ists.
For
this product the Leica Camera
AG
provides a guarantee
of 10
years.
The
period commences
on
the date of purchase from
an
authorized dealer
and
the guarantee
is
subject to the following
conditions:

1)
During
the
guarantee period
Leica
Camera
AG
shall
assume
all
material costs for repair of defects resulting from manufacturing
faults. During the first
five
years,
Leica
Camera
AG
shall
further
bear
any
necessary labor costs.
Leica
Camera
AG
will,
at
its
own
discretion, repair the product, replace the defective parts, or
replace the binoculars with
an
identical flawless product.
Conse-
quential claims irrespective of their nature
and
legal
basis
in
con
-
nection with this guarantee cannot
be
accepted.
2)
Wearing
parts
as
rubber
eyecups,
leatherette,
rubber
armoring,
carrying
strap
and
accessories
shall
be
excluded
from
the
extended
guarantee.
3)
Claims
under
guarantee
are
null
and
void
if
the
defect
has
been
caused
by
improper
handling
-
which
also
can
include
the
use
of
non-Leica
ac-
cessories
-if
the
binoculars
has
been
serviced
by
unauthorized
persons
or
workshops,
or
if
the
serial
number
has
been
obliterated.
4)
Guarantee claims
can
only
be
made
by
submission of this
Guar-
antee
Card
which
has
been
completed with date of purchase,
ad-
dress
and
signature of the authorized photo dealer.
5)
When
submitting claims under guarantee
please
return the
Leica
binoculars together with
the
Guarantee
Card
and
adescription of
the claim to
the
Customer
Care
department of
Leica
Camera
AG
or to a
Leica
Camera
agency.
6)
Tourists
may,
if required,
make
use
of the agency of the country
in
which they
are
traveling (within
the
terms of the guarantee of the
Leica
Camera
AG)
by
presenting the
Guarantee
Card.
For
Australia
only:
Our
goods
come
with guarantees that cannot
be
excluded under
the Australian Consumer
Law.
You
are
entitled
to
a replacement or
refund for a major failure
and
for compensation for
any
other reason-
ably
foreseeable
loss
or
damage.
You
are
also
entitled to
have
the
goods repaired or replaced if the goods fail to
be
of acceptable qual-
ity
and
the failure
does
not amount to a major failure.
