HIK VISION Ds-7604ni-e1, ds-7608ni-e1 User manual

www.hikvision.com/en/us
Quick Start Guide
Plug ’n Play NVR
DS-7604NI-E1/4P
DS-7608NI-E2/8P
DS-7616NI-E2/16P
Note: For more information refer to the complete User Manual located on the CD-ROM

www.hikvision.com/en/us
Please connecta monitor and a USB mouse (supplied) to the NVR for configuration purposes
CONTENTS
1. Overview
2. Device Activation
3. Main Menu Layout
4. Formatting the HDD
5. Date and Time Setup
6. Setting up Network Access
7. Adding IP Cameras (Non-PoE Models)
8. Setting up Recording
9. Configuring the Mobile APP
10.Playing Back Recorded Video
10.Making a Backup

www.hikvision.com/en/us
Please note, that the Quick Start Guide is compiled for the latest firmware versions. Please
upgrade the firmware of the NVR to the latest version before proceeding. Also note, thattheCD
maycontainoutdatedmanualsandsoftware.
Forthelatestfirmware,manualandsoftwaredownloadspleasevisit:
www.hikvision.com/en/us/download.asp
1. OVERVIEW

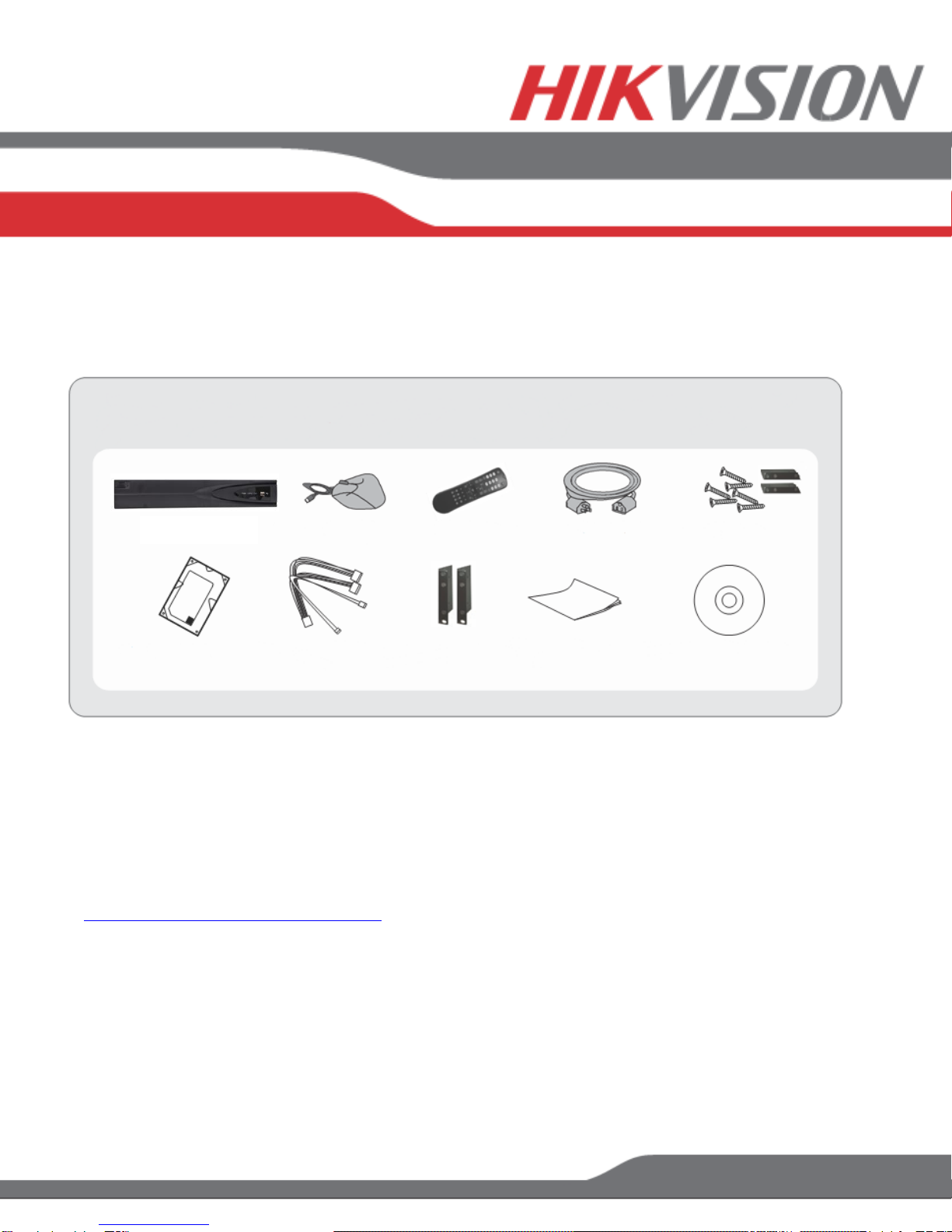

THE BOX CONTAINS:
:
NVR
USB Mouse
IR Remote
(Batteries not included)
Power Cord
Hard Drive Mounting
screws and brackets
Hard Drive
(Preinstalled)
Hard Drive Cables
Rack Mount Ear
(not included in 4-ch
model box)
Quick Start Guide
Manual/Software CD

www.hikvision.com/en/us

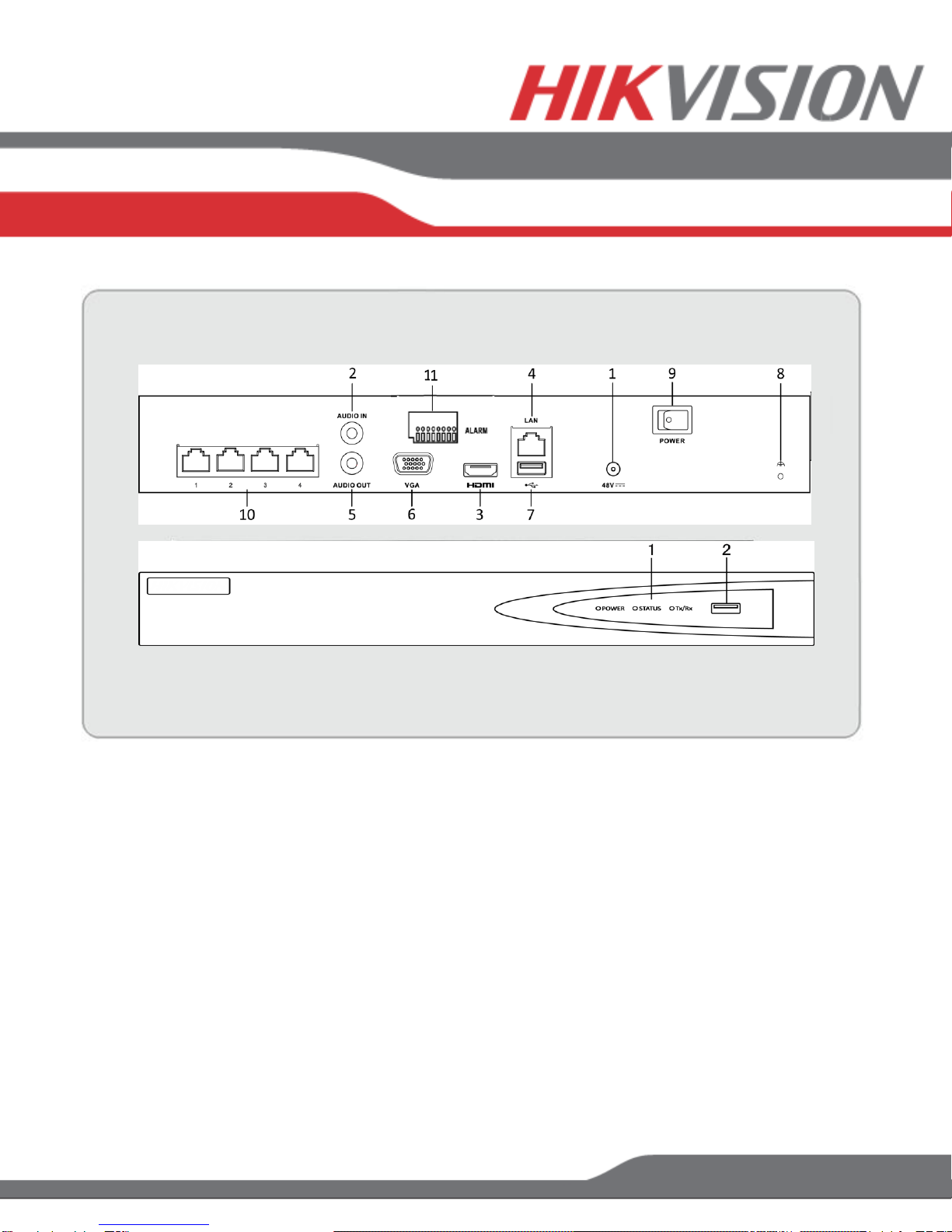

DS-7604NI-E1/4P
FRONT VIEW
1. Power, Status and Tx/Rx indicators
2. USB Port
REAR VIEW
1. Power Supply Port
2. Audio In
3. HDMI Monitor Output
4. Network Interface(RJ45)
5. Audio Out
6. VGA Output
7. USB Port
8. Grounding Screw
9. Power Switch
10.Built in POE Switch
11.Alarm In/Out
1
2
3
4
5
6
7
8
9
10

www.hikvision.com/en/us
NOTE: The rear panel of 7616NI-E2/16P provides 16 independent 100 Mbps PoE network
interfaces
DS-7608NI-E2/8P / DS-7616NI-E2/16P
REAR VIEW
1. Power Supply Port
2. Audio In
3. HDMI Monitor Output
4. Network Interface(RJ45)
5. Audio Out
6. VGA Output
7. USB Port
8. Grounding Screw
9. Power Switch
10.Built in POE Switch
11.Alarm In/Out
FRONT VIEW
1. Power, Status and Tx/Rx indicators
2. USB Port

www.hikvision.com/en/us
To ensure the highest level of protection, Hikvision requires users to create a new
password for the admin account upon first login to a device. The system will check the
password strength; “Risky” passwords will not be accepted.
Device Firmware with Secure Activation
Device Type
Model Number
Firmware Version
Value Series IP Camera
DS-2CD2xxx
V5.3.0
Smart Series IP Camera
DS-2CD4xxx
V5.3.0
NVR/Hybrid
DS-9016HWI-ST
DS-96xxNI-ST
DS-7716NI-SP/16
V3.1.5
Plug-n-Play NVR
DS-76xxNI-EI(E2)/P
V3.1.0
Turbo DVR
DS-72xxHGHI-SH
DS-73xxHQHI-SH
V3.1.6
Super NVR
DS-96128NI-E24/H
DS-96256NI-E24/H
TBD
NOTE: DVRs/NVRs starting with the latest firmware (see chart, above) WILL NO
LONGER HAVE A DEFAULT PASSWORD. The user must activate the
DVR/NVR by creating a password for the admin account in one of four ways:
•Local Activation
2. DEVICE ACTIVATION

www.hikvision.com/en/us

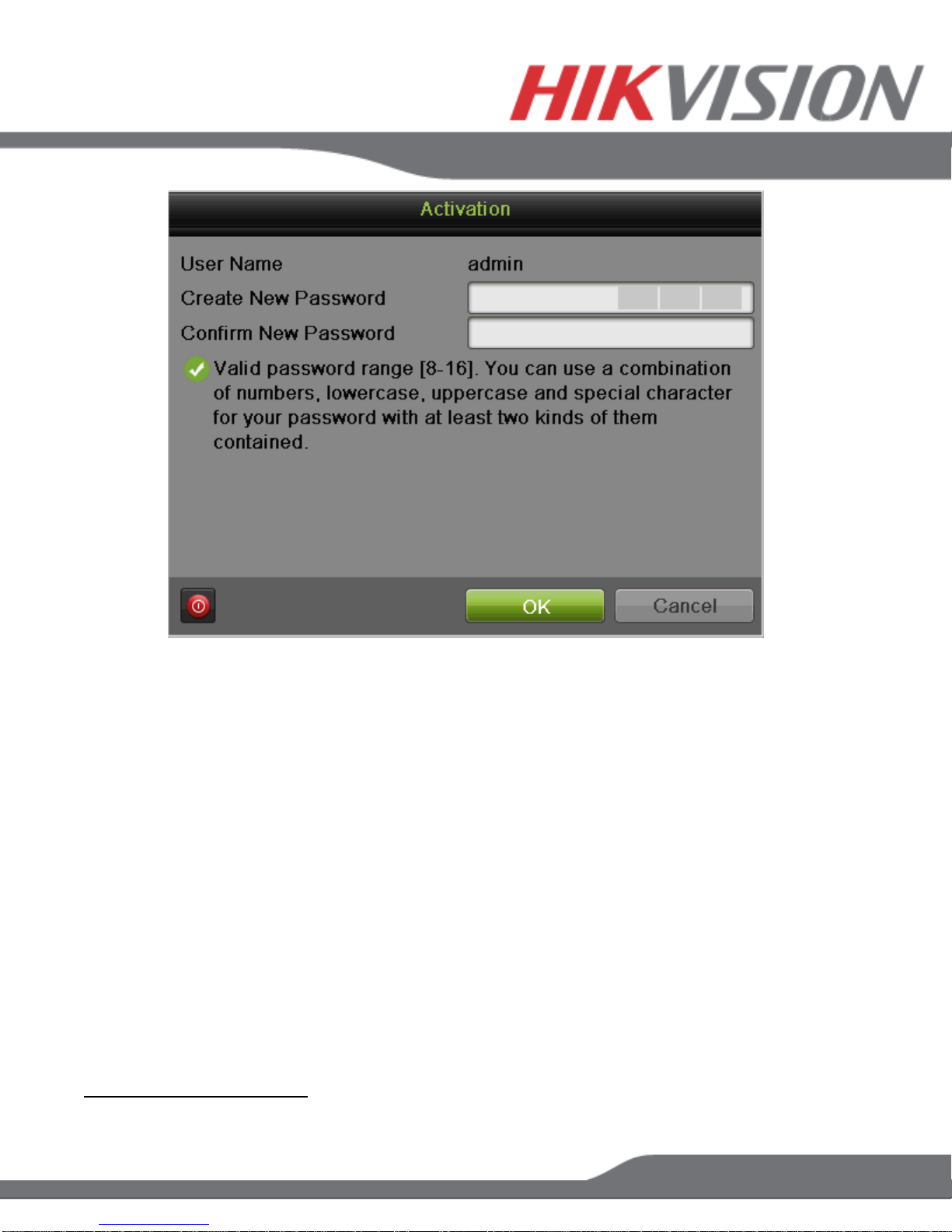

1. Power on the DVR/NVR.
- A message will appear, prompting user to activate the device.
- The username field will be greyed-out with the username set to admin.
2. Type in a password of your choosing (see “Password Strength Levels” table for
guidelines).
- The password strength will be displayed, accompanied by a color indicator:
•Level 0–Risky (red indicator): Not acceptable
•Level 1–Weak (red indicator): Acceptable
•Level 2–Fair (orange indicator): Acceptable
•Level 3–Strong (blue indicator): Acceptable
- Activation will not be allowed unless the password is of acceptable strength.
NOTE: The strength level indicator colors can vary by activation process, model number, and
device type.

www.hikvision.com/en/us
3. Retype the password into the “Confirm Password” field.
4. After an acceptable password has been created, a confirmation message will
appear on the screen.
5. Press the OK button to proceed.
•SADP Software Activation (v2.2.3.5 or higher)
1. Launch the new version of the SADP software (v2.2.3.5).
- The software will display all Hikvision devices on the network.
- A new field called “Security” will be displayed
2. If the DVR/NVR is “Inactive,” highlight the DVR/NVR and enter a new password
into the “New Password” field on the bottom right of the screen.
- The password strength will be displayed, accompanied by a color indicator:
•Level 0–Risky (no indicator): Not acceptable
•Level 1–Weak (pink indicator): Acceptable
•Level 2–Medium (yellow indicator): Acceptable
•Level 3–Strong (green indicator): Acceptable
- Bar length indicates strength level.
- Activation will not be allowed unless the password is of acceptable strength. If
the password is unacceptable strength (“Risky”), a warning box will be
displayed.
3. Retype the password into the “Confirm Password” field.
4. After the password has been entered and confirmed, press the OK button to
display the pop-up confirmation window.
5. Press the “X” in the top right corner of the pop-up confirmation window to dismiss
the window.

www.hikvision.com/en/us
•iVMS-4200 Windows Client Software (v2.3.1.3 or higher) Activation
1. Launch the iVMS-4200 software.
2. Go to Control PanelDevice Management.
- On the bottom of the screen in the Online Devices section the screen will
display all Hikvision devices on the network.
- A new field called “Security” will be displayed.
3. If the DVR/NVR is “Inactive,” highlight the DVR/NVR and press the Activate
button to display the “Activation” window.
4. Enter a new password into the “Password” field.
- The password strength will be displayed, accompanied by a color indicator:
•Level 0–Risky (no indicator): Not acceptable
•Level 1–Weak (pink indicator): Acceptable
•Level 2–Medium (yellow indicator): Acceptable
•Level 3–Strong (green indicator): Acceptable
- Bar length indicates strength level.
- Activation will be allowed if the password is of acceptable strength.
- If the password is of unacceptable strength (“Risky”), a warning box will be
displayed explaining the requirements for an acceptable password.
5. Retype the password into the “Confirm Password” field.
6. After the password has been entered and confirmed, press the OK button.
- The DVR’s/NVR’s status will change to “Active.”

www.hikvision.com/en/us
•Web Interface Activation
1. In a Web browser, type the DVR’s/NVR’s IP address and press Enter.
- The Activation Window will appear instead of the login page.
2. Enter a new password into the “Password” field.
- The password strength will be displayed, accompanied by a color indicator:
•Level 0–Risky (no indicator): Not acceptable
•Level 1–Weak (pink indicator): Acceptable
•Level 2–Medium (yellow indicator): Acceptable
•Level 3–Strong (green indicator): Acceptable
- Bar length indicates strength level.
- Activation will be allowed if the password is of acceptable strength. A white
checkmark will appear in a green circle to the right of the password field.
- If the password is unacceptable strength (“Risky”, a white X will appear in a
red circle to the right of the password field and a warning dialog box will be
displayed explaining the requirements for an acceptable password.
3. Press the OK button.
- Upon successful activation, user will be logged in to the DVR’s/NVR’s live
view page.

www.hikvision.com/en/us
Password Strength Levels
STRENGTH LEVEL
DESCRIPTION
Level 0 (Risky)
NVRs will not accept a Level 0
password
Password length is fewer than eight
characters, contains only one type of
character, is the same as the user name,
and/or is the mirror writing of the user name.
This type of password will not be accepted.
Level 1 (Weak)
NVRs will accept a Level 1 password
Password contains two kinds of characters.
The combination is number + lowercase letter
or number + uppercase letter, and the
password length is at least eight characters.
This type of password will be accepted.
Level 2 (Medium/Fair)
NVRs will accept a Level 2 password
Password contains two types of characters.
The combination is neither number +
lowercase letter nor number + uppercase
letter, and the password length is at least
eight characters. This type of password will
be accepted.
Level 3 (Strong)
NVRs will accept a Level 3 password
Password contains more than three types of
characters, and the password length is at
least eight characters. This type of password
will be accepted.
NOTE: Types of characters are lowercase letters, uppercase letters,
numbers, and special characters. Only ASCII characters are
allowed.

www.hikvision.com/en/us
3. MAIN MENU LAYOUT
View recorded video
and make Backup
Setup recording
type, motion
detection, resolution
and frame rate and
more
Setup Date/Time,
network, screen
settings, user
accounts and more
Model number,
firmware version,
camera status, HDD
status and more
Search for
snapshots, make
large backups
Add cameras,
Change brightness,
contrast… Camera
name, PTZ, Privacy
mask
Upgrade firmware,
factory default,
system logs,
import/export
settings
Display the current
logged in user
Exit MENU to
Live View
DEFAULT USERNAME: admin
(Please note, that the username and password are case sensitive)
Log Out and Lock
the NVR
Search for VCA
event

www.hikvision.com/en/us

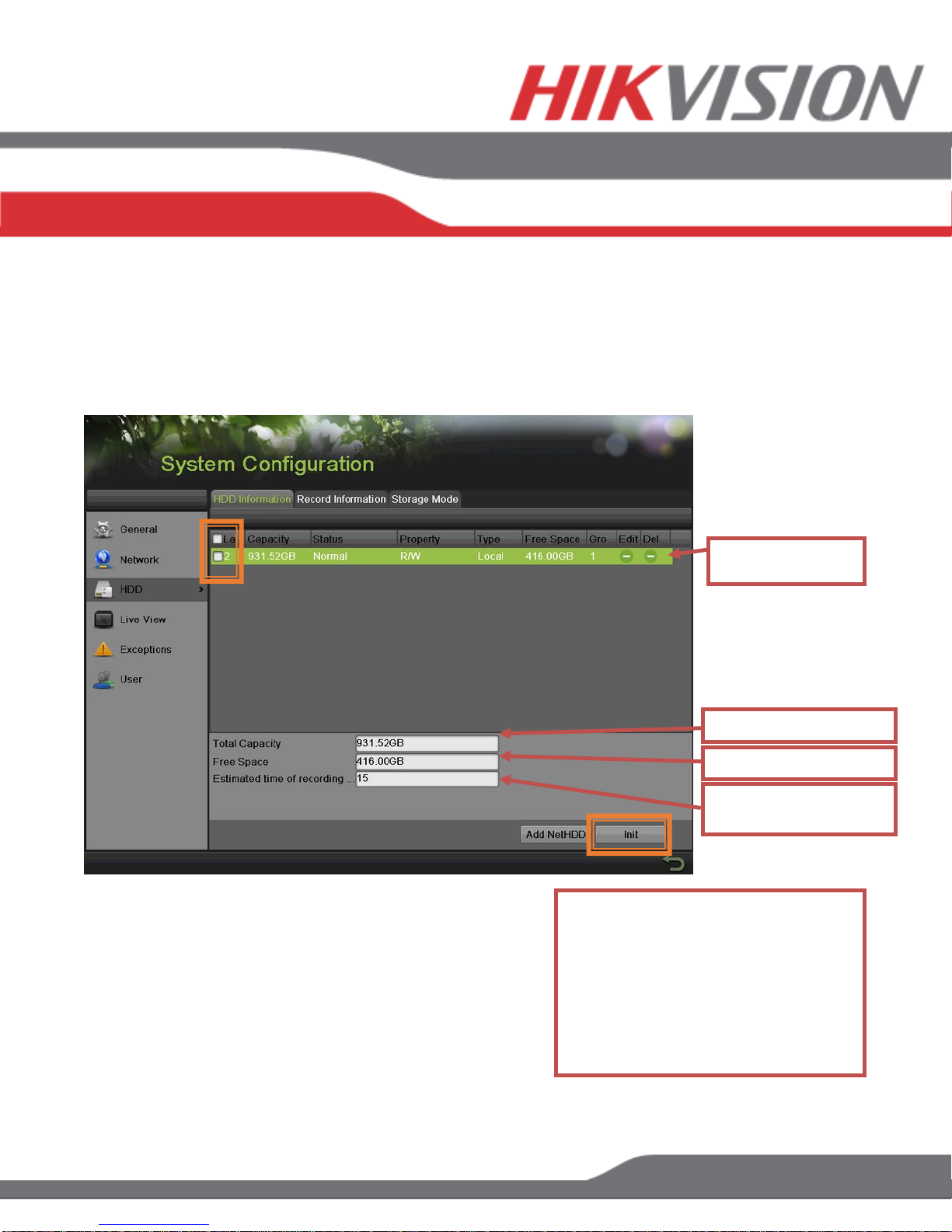

If the Hard Drive (HDD) is not formatted (initialized), the NVR will begin to beep. The beeping
will continue until the HDD is formatted. To format the HDD, go to:
“MENU” > “SYSTEM CONFIGURATION” > “HDD”
Select the HDDs that need to be formatted, and press “INIT”
4. FORMATTING THE HARD DRIVE
Please Note:
Units purchased with HDDs, already
come with formatted HDDs
Formatting the HDDs also erases the
recorded video from the HDDs (this
does not affect the settings).
Free Space
Total HDD Space
List of HDDs
Estimated time of
recording(days)

www.hikvision.com/en/us
To setup the Time and Date on a NVR, please go to:
“MENU” > “SYSTEM CONFIGURATION” > “GENERAL”
5. DATE AND TIME SETUP
NTP Settings
Time Zone
and Daylight
Savings Time
settings
Date and Time
settings

www.hikvision.com/en/us
Networking a NVR requires 3 steps:
1. Assign an IP address, Default Gateway, Subnet Mask, and a DNS server (Please
note: DNS, not DDNS) to the NVR
2. Forward the appropriate ports on the router (Port Forwarding).

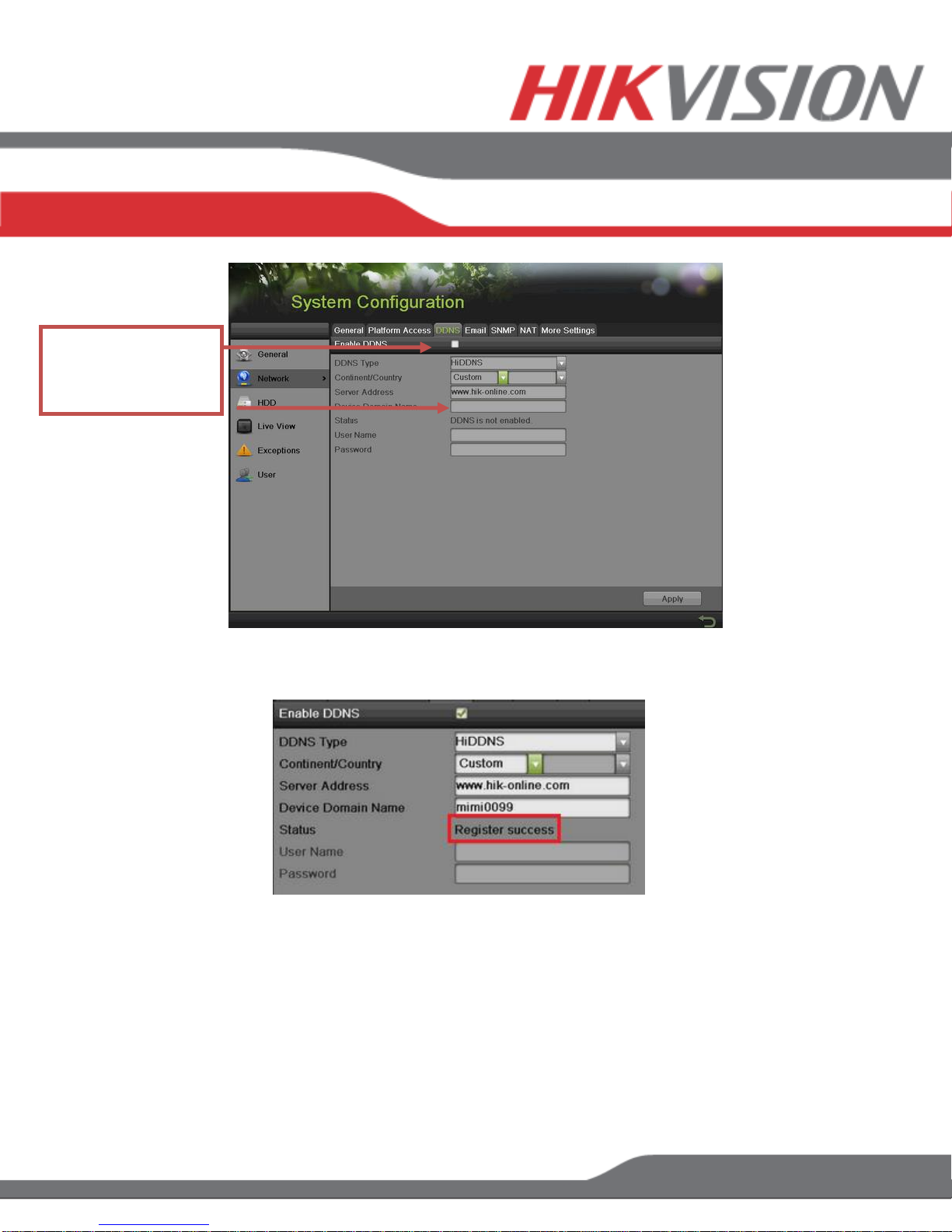

3. Register DDNS (DDNS registration is required only if the public IP address is Dynamic).

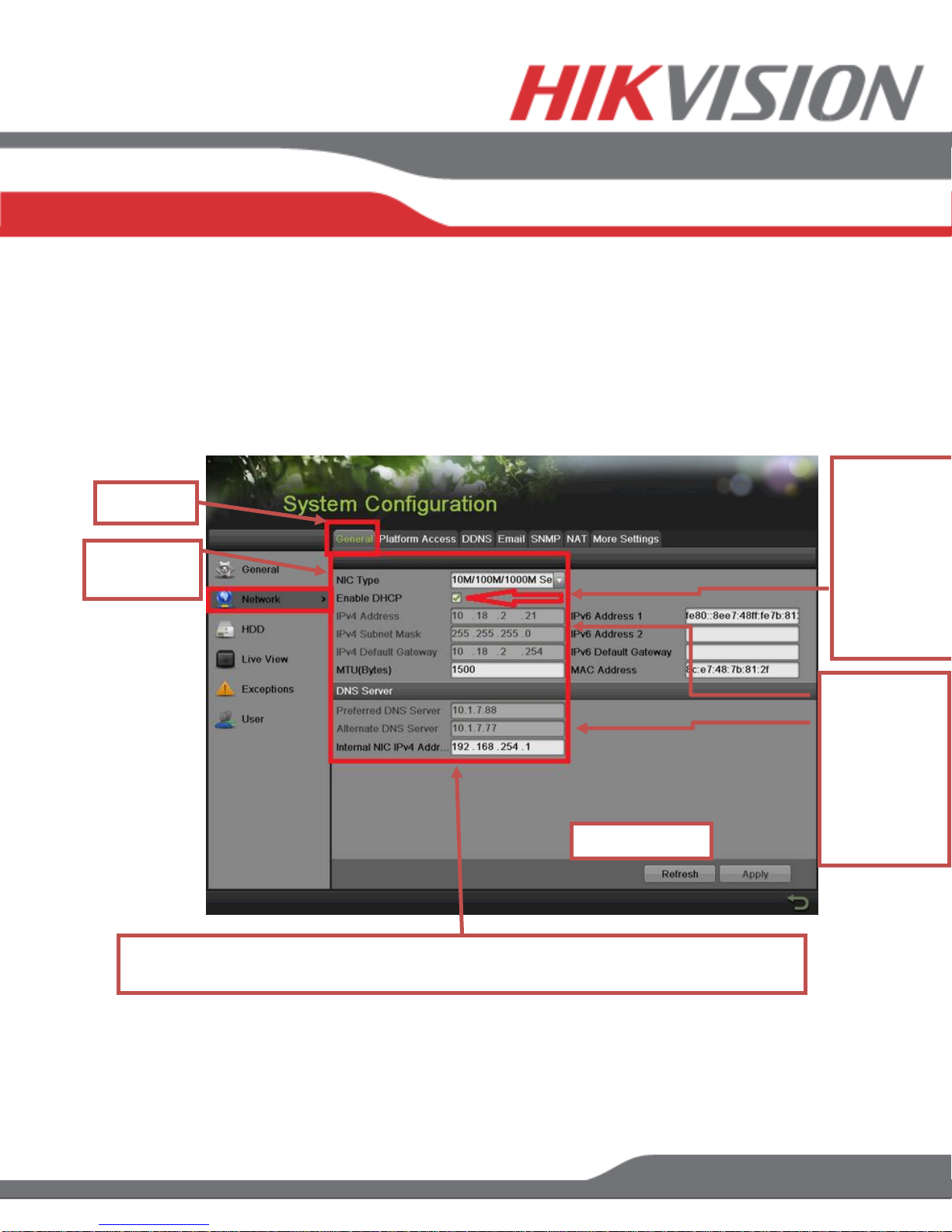

To assigning an IP ADDRESS, go to “MENU”>”SYSTEM CONFIGURATION”>”NETWORK”
6. SETTING UP NETWORK
ACCESS
General
IP CONFIGURATION
Please note that the NVR’s default IP Address is set to 192.0.0.64
Enable
DHCP
With DHCP
enabled, the
router will
assign an IP
address to
the NVR
Select NIC
Type
Please Note:
After
enabling
DHCP,
The IP
configuration
becomes
“Greyed out”
REFRESH ↓

www.hikvision.com/en/us
Step 1.
Enable DHCP (check the checkbox). Press “APPLY” and then press “REFRESH”
Step 2.
After pressing refresh, the IPv4 Address,IPv4 Subnet Mask and IPv4 Default Gateway will
have new values.
Step 3.
Disable DHCP (uncheck the checkbox)
Step 4.
Change the value of “PREFFERED DNS SERVER” to 8.8.8.8 (“ALTERNATE DNS
SERVER” can be left blank).
After assigning the IP information, click on the “MORE SETTINGS” tab

www.hikvision.com/en/us

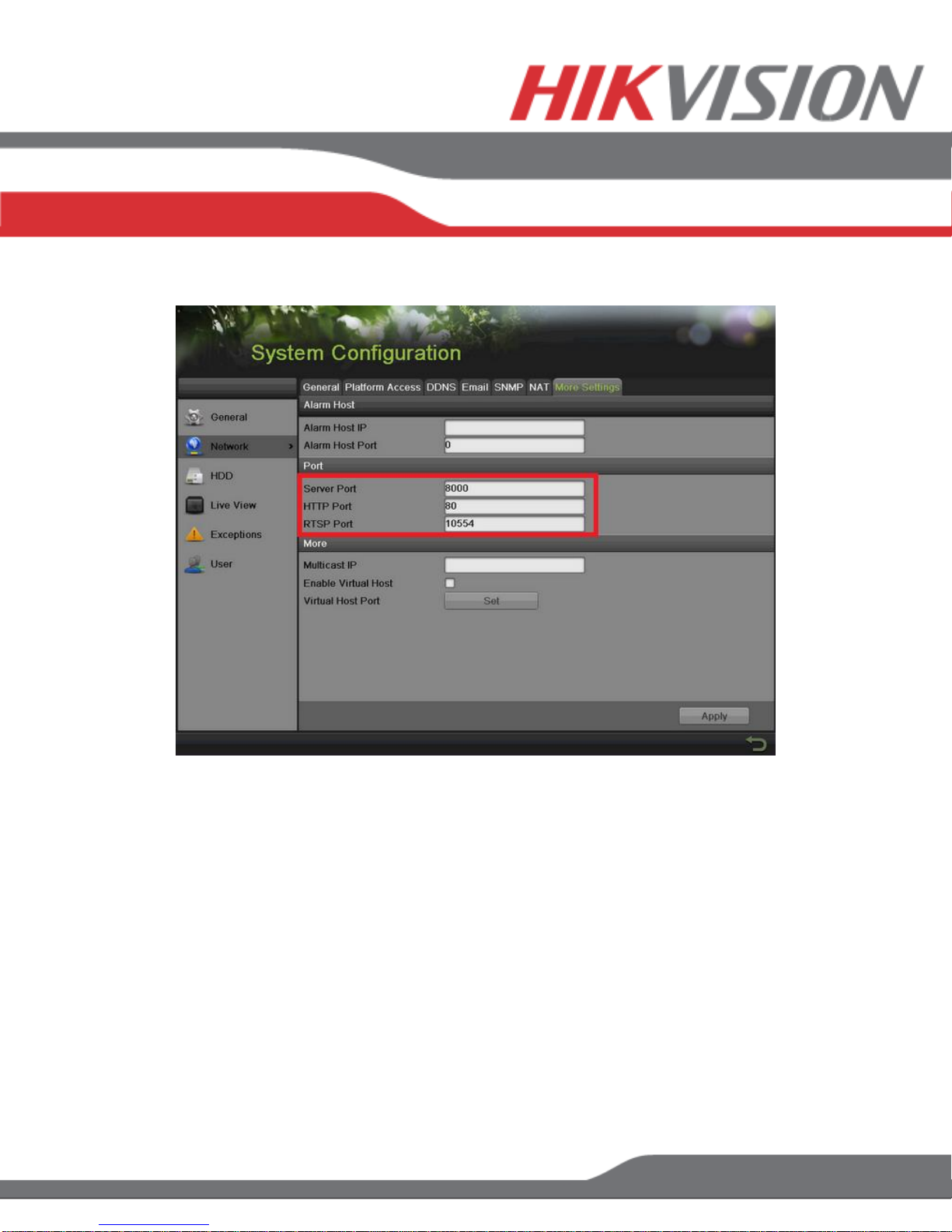

The “MORE SETTINGS” tab contains the ports that need to be forwarded for remote access
The SERVER PORT is responsible for the MOBILE APP and CLIENT SOFTWARE log-in.
The HTTP PORT is responsible for WEB BROWSER log-in.
The RTSP PORT is responsible for VIDEO/AUDIO STREAMING.
The HTTP PORT and the SERVER PORT can be changed if desired, in order to avoid
conflicts with the ISP or the existing network configuration.

www.hikvision.com/en/us
PORT FORWARDING
After assigning the IP information to the NVR, connect a computer to the same router that the
NVR is connected to (wired connection is recommended, to avoid complications). Log into the
ROUTER, and proceed with PORT FORWARDING.
For PORT FORWARDING assistance contact the Internet Service Provider (ISP), or the router
manufacturer. Also refer to www.portforward.com for port forwarding step by step instructions.
Please be aware, that Hikvision USA is not associated with www.portforward.com, and not
responsible for any activity between the user and www.portforward.com. Please refrain from
downloading any software from the abovementioned website.
Proceed to the “ROUTERS” section for step by step instructions.
DDNS SETUP
DDNS registration has been made more user friendly, and takes only a few seconds to
complete. The legacy units require user registration on www.hik-online.com. This step is no
longer needed.
Click on the DDNS tab
In the DDNS tab:
a. Enable DDNS
b. Change the DDNS TYPE to HiDDNS (in some cases HkDDNS)
c. Make sure that the SERVER ADDRESS is set to www.hik-online.com
d. Create a DEVICE DOMAIN NAME (the domain name CANNOT contain spaces,
special characters and/or upper case letters, as well as it cannot begin with a
number)

www.hikvision.com/en/us
After the changes have been made, presses “APPLY”. Status will be changed to “Register
success”.
If the Domain Name does not meet the acceptable criteria, and/or is already registered, an
error message will appear(The domain name cannot contain upper case characters, begin with
a number, spaces, special characters…).
Enable DDNS and
create a DOMAIN
NAME

www.hikvision.com/en/us

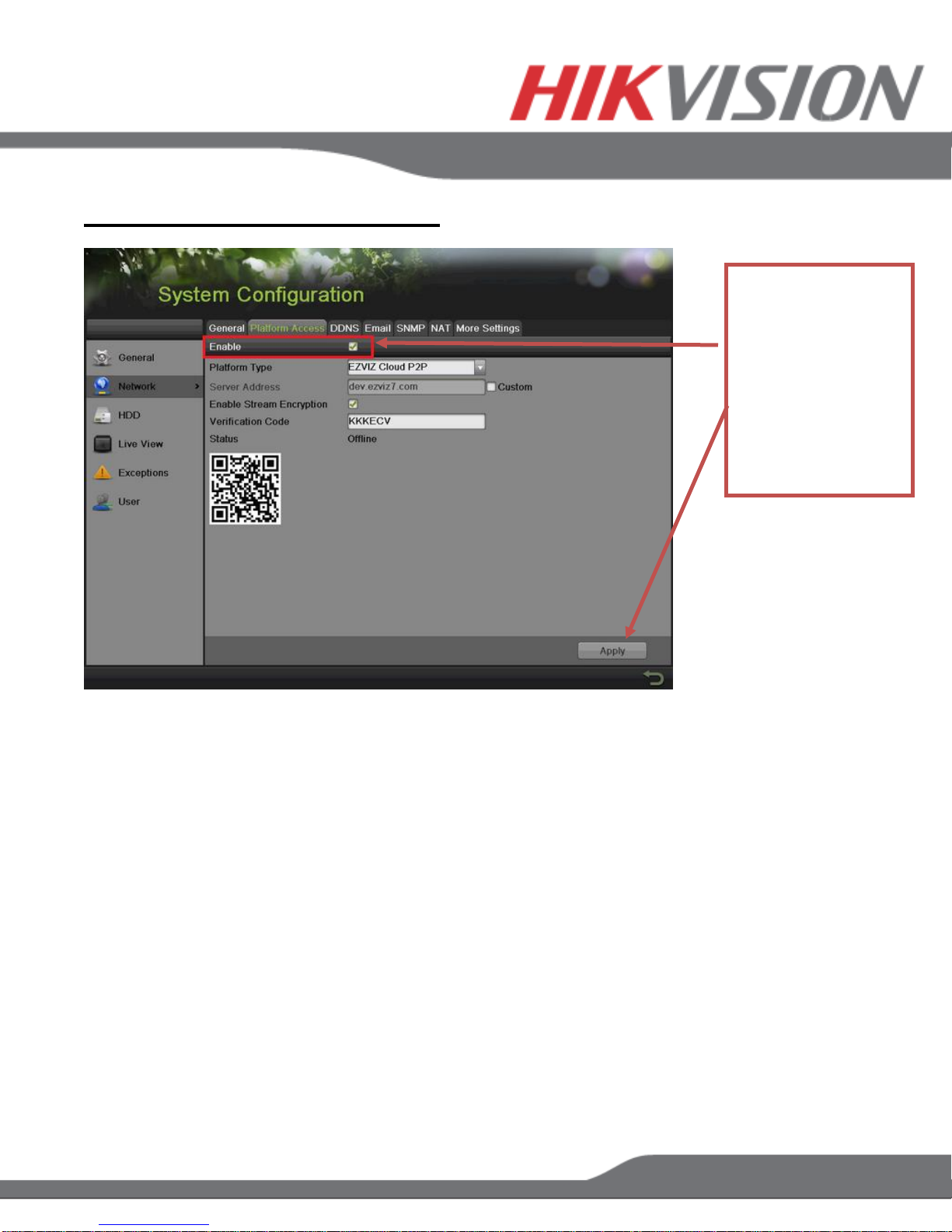

Platform Access SETUP
EZVIZ is used for a connection through a secure server. In this case port forwarding is not
required.
Please contact Technical Support for more details.
Enable EZVIZ P2P
and click Apply.
When Status
change to Online,
the function is
enabled.
