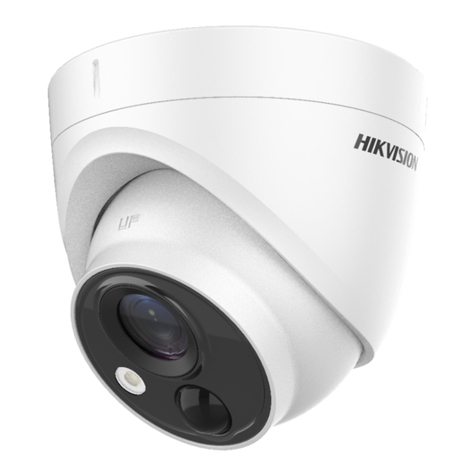

HIK VISION TURBO HD DS-2CE5AD0T-VPIT3F User manual

TURBO HD
2 MP Dome Camera
User Manual
User Manual
Thank you for purchasing our product. If there are any
questions, or requests, do not hesitate to contact the
dealer.
This manual applies to the model listed below.
Model
DS-2CE5AD0T-VPIT3F
This manual may contain several technically incorrect
places or printing errors, and the content is subject to
change without notice. The updates will be added to the
new version of this manual. We will readily improve or
update the products or procedures described in the
manual.
0300001080504

Regulatory Information
FCC Information
FCC compliance: This equipment has been tested and
found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against
harmful interference when the equipment is operated in
a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction
manual, may cause harmful interference to radio
communications. Operation of this equipment in a
residential area is likely to cause harmful interference in
which case the user will be required to correct the
interference at his own expense.
FCC Conditions
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation.
EU Conformity Statement
This product and - if applicable - the
supplied accessories too are marked with
"CE" and comply therefore with the
applicable harmonized European standards
listed under the EMC Directive 2014/30/EU, the RoHS
Directive 2011/65/EU.
2012/19/EU (WEEE directive): Products
marked with this symbol cannot be
disposed of as unsorted municipal waste in
the European Union. For proper recycling,
return this product to your local supplier
upon the purchase of equivalent new
equipment, or dispose of it at designated collection
points. For more information see: www.recyclethis.info.
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (A)/NMB-3(A)
standards requirements.
Warning
This is a class A product. In a domestic environment this
product may cause radio interference in which case the
user may be required to take adequate measures.

Safety Instruction
These instructions are intended to ensure that user can
use the product correctly to avoid danger or property
loss.
The precaution measure is divided into “Warnings” and
“Cautions”.
Warnings: Serious injury or death may occur if any of the
warnings are neglected.
Cautions: Injury or equipment damage may occur if any
of the cautions are neglected.
Warnings
In the use of the device, you must be in strict
compliance with the electrical safety regulations of the
nation and region.
Input voltage should meet both the SELV (Safety Extra
Low Voltage) and the Limited Power Source with 12
VDC according to the IEC60950-1 standard. Refer to
technical specifications for detailed information.
Do not connect multiple devices to one power adapter
to avoid over-heating or a fire hazard caused by
overload.
Make sure that the plug is firmly connected to the
power socket.
Make sure that the device is firmly fixed if wall
mounting or ceiling mounting is adopted.
If smoke, odor or noise rise from the device, turn off
the power at once and unplug the power cord, and
then contact the service center.
Never attempt to disassemble the camera by
unprofessional personal.
Cautions
Do not drop the camera or subject it to physical shock.
Do not touch senor modules with fingers.
Do not place the camera in extremely hot, cold (the
operating temperature shall be -40°C to 60°C), dusty or
damp locations, and do not expose it to high
electromagnetic radiation.
If cleaning is necessary, use clean cloth with a bit of
ethanol and wipe it gently.
Do not aim the camera at the sun or extra bright places.
The sensor may be burned out by a laser beam, so
when any laser equipment is in using, make sure that
the surface of sensor will not be exposed to the laser
beam.
Do not expose the device to high electromagnetic
radiation or extremely hot, cold, dusty or damp
environment.
To avoid heat accumulation, good ventilation is
required for the operating environment.
Keep the camera away from liquid while in use for non-
water-proof device.
Warnings Follow
these safeguards to
prevent serious injury
or death.
Cautions Follow these
precautions to prevent
potential injury or
material damage.

While in delivery, the camera shall be packed in its
original packing, or packing of the same texture.
Mark Description
Table 0-1 Mark Description
Mark
Description
DC Voltage
1Introduction
1.1 Product Features
The camera is applicable for both indoor and outdoor
conditions, and the application scenarios include road,
warehouse, parking lot, office, campus, etc..
The main features are as follows:
High performance CMOS sensor
1080p resolution
Auto white balance
Auto electronic shutter
Auto gain control (AGC)
IR cut filter
4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
3-axis adjustment
1.2 Overview
DC12VIN
Black Liner
Bubble
Switch Button
Power Cord
(12 VDC)
Video Cable
(TVI)
Back Box
Lens
Figure 1-1 Overview of Type I Camera
Note:
Press and hold the switch button for 5 seconds to switch
the video output. Four kinds of video outputs are
available: TVI, AHD, CVI, and CVBS.
2Installation
Before you start:
 Make sure that the device in the package is in good
condition and all the assembly parts are included.
 Make sure that all the related equipment is power-off
during the installation.
 Check the specification of the products for the
installation environment.
 Check whether the power supply is matched with your
power output to avoid the damage.
 Make sure the wall is strong enough to withstand
three times the weight of the camera and the mount.

 If the wall is cement, insert expansion bolts before
installing the camera. If the wall is wooden, use self-
tapping screws to secure the camera.
 If the product does not function properly, contact your
dealer or the nearest service center. Do NOT
disassemble the camera for repair or maintenance by
yourself.
2.1 Ceiling Mounting
Before you start:
Both wall mounting and ceiling mounting are suitable for
the dome camera. Ceiling mounting will be taken as an
example in this section. And you can take steps of ceiling
mounting as a reference for wall mounting.
Steps:
1. Paste the drill template to the celling.
2. Drill screw holes and the cable hole (optional) on the
ceiling according to the supplied drill template.
50.3 mm (1.98" )
50 mm (1.97" )
25.1 mm
(0.98" )
58 mm
(2.28" )
29 mm
(1.14" )
43.3 mm
(1.7" )
Figure 2-1 The Drill Template
Note:
Drill the cable hole (hole A) when adopting the ceiling
outlet to route the cable.
3. Loosen the screws on the bubble of the dome camera
to remove the bubble, and the black liner.
Figure 2-2 Remove the Bubble and the Black Liner
4. Attach the back box of camera to the ceiling and
secure them with supplied screws.
Figure 2-3 Attach the Back Box/Base Plate

Note:
The supplied screw package contains self-tapping
screws, and expansion bolts.
For cement ceiling, expansion bolts are required to
fix the camera. For wooden ceiling, self-tapping
screws are required.
5. Route the cables through the cable hole, or the side
opening.
6. Connect the corresponding cables, such as power
cord, and video cable.
7. Power on the camera to check whether the image on
the monitor is gotten from the optimum angle. If not,
adjust the camera according to the figure below to get
an optimum angle.
Pan Position
0° to 355°
Rotation Position
0° to 355°
Tilt Position
0° to 60°
Figure 2-4 3-Axis Adjustment
8. Fit the black liner back to the camera.
Figure 2-5 Fit the Black Liner Back
9. Tighten the screws on the bubble of the dome camera
to finish the installation.
Figure 2-6 Tighten the Bubble
2.2 Wall Mounting
Before you start:
You need to purchase a wall mount first.
Steps:
1. Drill four screw holes in the wall according to the
holes of the mount.

2. Attach the mount to the wall by aligning the four
screw holes of the mount with expansion screws on
the wall.
3. Secure the mount with four hex nuts, and washers.
Figure 2-7 Install Wall Mount
4. Refer to step 3 of 2.1 Ceiling Mounting to remove
dome camera’s bubble and the black liner.
5. Attach the back box of the dome camera to the wall
mount, and secure them with supplied screws.
Figure 2-8 Attach the Back Box to the Mount
6. Route the cables through the mount.
7. Repeat steps 6 to 9 of the 2.1 Ceiling Mounting to
complete the installation.
2.3 Inclined Ceiling Mounting
Before you start:
You need to purchase an inclined ceiling mount first.
Steps:
1. Paste the drill template to the celling.
2. Drill screw holes and the cable hole (optional) on the
ceiling according to the supplied drill template.
138 mm (5.43" )
138 mm (5.43" )
Figure 2-9 The Drill Template
Note:
Drill the cable hole when adopting the ceiling outlet to
route the cable.
3. Install the inclined ceiling mount to the ceiling with
supplied screws, as shown in Figure 2-10.

Figure 2-10 Fix the Inclined Base
4. Route the cables through the cable hole, or the side
opening of the inclined ceiling mount.
5. Fix the camera to the inclined ceiling mount with the
supplied screws.
Figure 2-11 Fix the Camera to the Mount
6. Repeat the steps 5 to 9 of the 2.1 Ceiling Mounting to
complete the installation.
3Menu Description
Purpose:
Call the menu by clicking button on the PTZ Control
interface, or call the preset No.95.
Steps:
1. Connect the camera with the TVI DVR, and the
monitor, shown as the figure 3-1.
Camera
TVI DVR
Monitor
Figure 3-1 Connection
2. Power on the analog camera, TVI DVR, and the
monitor to view the image on the monitor.
3. Click PTZ Control to enter the PTZ Control interface.
4. Call the camera menu by clicking button, or call the
preset No. 95.

AE EXPOSURE MODE
MAIN MENU
VIDEO
SETTINGS
SAVE & EXIT
AGC
RETURN
DWDR
CONTRAST
SHARPNESS
COLOR GAIN
DNR
MIRROR
RETURN
RESET
BRIGHTNESS
MODE
WB
RETURN
MODE
FORMAT
LANGUAGE
DAY-NIGHT INFRARED
SMART IR
RETURN
MODE
Figure 3-2 Main Menu Overview
5. Click the direction arrow to control the camera.
1). Click up/down direction button to select the item.
2). Click Iris + to confirm the selection.
3). Click left/right direction button to adjust the value
of the selected item.
3.1 VIDEO FORMAT
You can select the video format as 1080p@25fps , or
1080p@30fps.
3.2 LANGUAGE
Supports English, and Chinese.
3.3 MAIN MENU
3.3.1 EXPOSURE
You are allowed to set BRIGHTNESS, EXPOSURE MODE,
AGC, and DWDR.

EXPOSURE
BRIGHTNESS
EXPOSUREMODE
AGC
DWDR
RETURN
5
G LO B AL
H IG H
O FF

Figure 3-3 EXPOSURE
BRIGHTNESS
Brightness refers to the brightness of the image. You can
set the brightness value from 1 to 10 to darken or
brighten the image. The greater the value is, the brighter
the image is.
EXPOSURE MODE
You can set the EXPOSURE MODE as GLOBAL, or BLC.
GLOBAL
GLOBAL refers to the normal exposure mode which
adjusts lighting distribution, variations, and non-standard
processing.
BLC (Backlight Compensation)
BLC (Backlight Compensation) compensates light to the
object in the front to make it clear, but this may cause the
over-exposure of the background where the light is
strong.
You can set the brightness value from 0 to 8 to darken or
brighten the image. The greater the value is, the brighter
the image is.
AGC (Auto Gain Control)
It optimizes the clarity of the image in poor light
conditions. The AGC level can be set as HIGH, MIDDLE, or
LOW. Select OFF to disable the AGC function.
Note:
The noise will be amplified when the AGC is on.
DWDR (Digital Wide Dynamic Range)
The digital wide dynamic range helps the camera provide
clear images even under backlight circumstances. WDR
balances the brightness level of the whole image and
provides clear images with details.
3.3.2 WB (White Balance)
White balance, the white rendition function of the
camera, is to adjust the color temperature according to
the environment. It can remove unrealistic color casts in
the image. You can set WB mode as ATW, or MWB.
ATW
Under the ATW mode, white balance is being adjusted
automatically according to the color temperature of the
scene illumination.
MWB
You can set the RGAIN/BGAIN value from 1 to 255 to
adjust the shades of red/blue color of the image.
WB
MODE
RGAIN
BGAIN
RETURN
MWB
5
5

Figure 3-4 MWB MODE

3.3.3 DAY/NIGHT
COLOR, B/W (Black White), and SMART are selectable for
DAY and NIGHT switches.
COLOR
The image is colored in day mode all the time.
B/W
The image is black and white all the time.
SMART
You can turn on/off the INFRARED, and set the value of
SMART IR in this menu.
DAY/NIGHT
MODE
INFRARED
SMART IR
RETURN
SM AR T
ON
1

Figure 3-5 DAY NIGHT
IR LIGHT
You can turn on/off the infrared to meet the
requirements of different circumstances.
SMART IR
The Smart IR function is used to adjust the light to its
most suitable intensity, and prevent the image from over
exposure. The SMART IR value can be adjusted from 0 to
3. The greater the value is, the more obvious effects are.
3.3.4 VIDEO SETTINGS
Move the cursor to VIDEO SETTINGS and click Iris+ to
enter the submenu. IMAGE MODE, CONTRAST,
SHARPNESS, COLOR GAIN, DNR, and MIRROR are
adjustable.
VIDEO SETTINGS
IMAGE MODE
CONTRAST
SHARPNESS
COLOR GAIN
DNR
MIRROR
RETURN
ST D
5
5
5
O FF


5
Figure 3-6 VIDEO SETTINGS
IMAGE MODE
IMAGE MODE is used to adjust the image saturation, and
you can set it as STD (Standard) or HIGH-SAT (High
Saturation).
CONTRAST
This feature enhances the difference in color and light
between parts of an image. You can set the CONTRAST
value from 1 to 10.

SHARPNESS
Sharpness determines the amount of detail an imaging
system can reproduce. You can set the SHARPNESS value
from 1 to 10.
COLOR GAIN
Adjust this feature to change the gain of the color. The
value ranges from 1 to 10.
DNR (Digital Noise Reduction)
The DNR function can decrease the noise effect,
especially when capturing moving images in poor light
conditions, and delivering more accurate and sharper
image. You can set the DNR value from 1 to 9.
MIRROR
OFF, H, V, and HV are selectable for mirror.
OFF: The mirror function is disabled.
H: The image flips 180° horizontally.
V: The image flips 180° vertically.
HV: The image flips 180° both horizontally and vertically.
3.3.5 RESET
Reset all the settings to the factory default.
3.3.6 SAVE & EXIT
Move the cursor to SAVE & EXIT, and click Iris+ to save
the settings, and exit the menu.
UD10286B
