HIKOKI DH 18DPC User manual

DH 18DPC
Handling instructions
00BookDH18DPCUK.indb100BookDH18DPCUK.indb1 2023/02/099:52:152023/02/099:52:15

2
1
2
00BookDH18DPCUK.indb200BookDH18DPCUK.indb2 2023/02/099:52:162023/02/099:52:16

3
34
5
6
00BookDH18DPCUK.indb300BookDH18DPCUK.indb3 2023/02/099:52:172023/02/099:52:17

4
78
910
11 12
00BookDH18DPCUK.indb400BookDH18DPCUK.indb4 2023/02/099:52:182023/02/099:52:18

5
13 14
950 min-1
n0700
3170 4300
950
Bpm
15 16
17
00BookDH18DPCUK.indb500BookDH18DPCUK.indb5 2023/02/099:52:192023/02/099:52:19

6
18
19
00BookDH18DPCUK.indb600BookDH18DPCUK.indb6 2023/02/099:52:202023/02/099:52:20

7
c) Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking up
or carrying the tool.
Carrying power tools with your finger on the switch
or energising power tools that have the switch on
invites accidents.
d) Remove any adjusting key or wrench before
turning the power tool on.
A wrench or a key left attached to a rotating part of
the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and
balance at all times.
This enables better control of the power tool in
unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away
from moving parts.
Loose clothes, jewellery or long hair can be caught in
moving parts.
g) If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used.
Use of dust collection can reduce dust-related
hazards.
h) Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles.
A careless action can cause severe injury within a
fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the correct
power tool for your application.
The correct power tool will do the job better and safer
at the rate for which it was designed.
b) Do not use the power tool if the switch does not
turn it on and off.
Any power tool that cannot be controlled with the
switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/
or remove the battery pack, if detachable, from
the power tool before making any adjustments,
changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of
starting the power tool accidentally.
d) Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool.
Power tools are dangerous in the hands of untrained
users.
e)
Maintain power tools and accessories. Check
for misalignment or binding of moving parts,
breakage of parts and any other condition that
may affect the power toolʼs operation. If damaged,
have the power tool repaired before use.
Many accidents are caused by poorly maintained
power tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions and
the work to be performed.
Use of the power tool for operations different from
those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean
and free from oil and grease.
Slippery handles and grasping surfaces do not
allow for safe handling and control of the tool in
unexpected situations.
GENERAL POWER TOOL SAFETY
WARNINGS
WARNING
Read all safety warnings, instructions, illustrations and
specifications provided with this power tool.
Failure to follow all instructions listed below may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-
operated (corded) power tool or battery-operated (cordless)
power tool.
1) Work area safety
a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust.
Power tools create sparks which may ignite the dust
or fumes.
c) Keep children and bystanders away while
operating a power tool.
Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools.
Unmodified plugs and matching outlets will reduce
risk of electric shock.
b) Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators.
There is an increased risk of electric shock if your
body is earthed or grounded.
c) Do not expose power tools to rain or wet
conditions.
Water entering a power tool will increase the risk of
electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts.
Damaged or entangled cords increase the risk of
electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the
risk of electric shock.
f) If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply.
Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired
or under the influence of drugs, alcohol or
medication.
A moment of inattention while operating power tools
may result in serious personal injury.
b) Use personal protective equipment. Always
wear eye protection.
Protective equipment such as a dust mask, non-skid
safety shoes, hard hat or hearing protection used for
appropriate conditions will reduce personal injuries.
00BookDH18DPCUK.indb700BookDH18DPCUK.indb7 2023/02/099:52:212023/02/099:52:21

8
5) Battery tool use and care
a) Recharge only with the charger specified by the
manufacturer.
A charger that is suitable for one type of battery pack
may create a risk of fire when used with another
battery pack.
b) Use power tools only with specifically
designated battery packs.
Use of any other battery packs may create a risk of
injury and fire.
c) When battery pack is not in use, keep it away
from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects,
that can make a connection from one terminal to
another.
Shorting the battery terminals together may cause
burns or a fire.
d) Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation or
burns.
e) Do not use a battery pack or tool that is damaged
or modified.
Damaged or modified batteries may exhibit
unpredictable behaviour resulting in fire, explosion
or risk of injury.
f) Do not expose a battery pack or tool to fire or
excessive temperature.
Exposure to fire or temperature above 130°C may
cause explosion.
g) Follow all charging instructions and do not
charge the battery pack or tool outside the
temperature range specified in the instructions.
Charging improperly or at temperatures outside
the specified range may damage the battery and
increase the risk of fire.
6) Service
a) Have your power tool serviced by a qualified
repair person using only identical replacement
parts.
This will ensure that the safety of the power tool is
maintained.
b) Never service damaged battery packs.
Service of battery packs should only be performed
by the manufacturer or authorized service providers.
PRECAUTION
Keep children and infirm persons away.
When not in use, tools should be stored out of reach of
children and infirm persons.
CORDLESS ROTARY HAMMER
SAFETY WARNINGS
1) Safety instructions for all operations
a) Wear ear protectors
Exposure to noise can cause hearing loss.
b) Use auxiliary handle(s), if supplied with the tool.
Loss of control can cause personal injury.
c) Hold the power tool by insulated gripping
surfaces, when performing an operation where
the cutting accessory may contact hidden
wiring.
Cutting accessory contacting a “live” wire may make
exposed metal parts of the power tool “live” and
could give the operator an electric shock.
2) Safety instructions when using long drill bits with
rotary hammers
a) Always start drilling at low speed and with the
bit tip in contact with the workpiece.
At higher speeds, the bit is likely to bend if allowed
to rotate freely without contacting the workpiece,
resulting in personal injury.
b) Apply pressure only in direct line with the bit
and do not apply excessive pressure.
Bits can bend causing breakage or loss of control,
resulting in personal injury.
ADDITIONAL SAFETY WARNINGS
1. Do not allow foreign matter to enter the hole for
connecting the rechargeable battery.
2. Never disassemble the rechargeable battery and
charger.
3. Never short-circuit the rechargeable battery.
Shortcircuiting the battery will cause a great electric
current and overheat. It results in burn or damage to the
battery.
4. Do not dispose of the battery in fire. If the battery is burnt,
it may explode.
5. When using this unit continuously, the unit may overheat,
leading to damage in the motor and switch. Please leave
it without using it for approximately 15 minutes.
6. Do not insert object into the air ventilation slots of the
charger. Inserting metal objects or inflammables into the
charger air ventilation slots will result in electrical shock
hazard or damaged charger.
7. Bring the battery to the shop from which it was purchased
as soon as the post-charging battery life becomes too
short for practical use. Do not dispose of the exhausted
battery.
8. Before starting to break, chip or drill into a wall, floor or
ceiling, thoroughly confirm that such items as electric
cables or conduits are not buried inside.
9. Ensure that the power switch is in the OFF position. If the
battery is installed while the power switch is in the ON
position, the power tool will start operating immediately,
which could cause a serious accident.
10. Do not touch the bit during or immediately after
operation. The bit becomes very hot during operation
and could cause serious burns.
11. Always hold the body handle and side handle of the
power tool firmly. Otherwise the counterforce produced
may result in inaccurate and even dangerous operation.
12. Wear a dust mask
Do not inhale the harmful dusts generated in drilling or
chiseling operation. The dust can endanger the health of
yourself and bystanders.
13. Make sure that the battery is installed firmly. If it is at all
loose it could come offand cause an accident.
14. To prevent accidents, make sure to turn the switch off
and pull out the battery before changing accessories,
storing, carrying or when not using the tools.
15. Mounting the drill bit
○To prevent accidents, make sure to turn the switch off
and pull out the battery.
○When using tools such as bull points, drill bits, etc.,
make sure to use the genuine parts designated by our
company.
○Clean the shank portion of the drill bit.
○Check the latching by pulling on the drill bit.
16. Operate the change lever only when the motor is at a
full stop. Operating the change lever while the motor is
running may cause the tip tool to unexpectedly rotate
and result in an accident. (Fig. 10)
00BookDH18DPCUK.indb800BookDH18DPCUK.indb8 2023/02/099:52:212023/02/099:52:21

9
17. Rotation + hammering
When the drill bit touches construction iron bar, the bit
will stop immediately and the rotary hammer will react
to revolve. Therefore firmly tighten the side handle, hold
the body handle and side handles.
18. Rotation only
○To drill wood or metal material using the drill chuck and
chuck adapter (optional accessories).
○Not using dust extractor system
○Do not apply excessive force during operation. Doing so
will not only damage the tip of the drill bit, but also reduce
the service life of the rotary hammer.
○A drill bit can snap offupon penetrating a drilled hole.
When the drill is near penetration, lighten the pressure on
the rotary hammer and continue drilling until penetration
is achieved.
○Do not attempt to drill anchor holes or holes in concrete
with the machine set in the rotation only function.
○Do not attempt to use the rotary hammer in the rotation
and striking mode with the drill chuck and chuck adapter
attached. This would seriously shorten the service life of
every component of the machine.
19. Hammering only
○Not using dust extractor system
20. Do not look directly into the light. Such actions could
result in eye injury.
Wipe offany dirt or grime attached to the lens of the LED
light with a soft cloth, being careful not to scratch the
lens.
Scratches on the lens of the LED light can result in
decreased brightness.
21. Always use the tool and battery at temperatures between
-5°C and 40°C
22. Always charge the battery at an ambient temperature of
0–40°C.
23. Make sure to securely hold the tool as shown in Fig. 18
during operation.
CAUTION ON LITHIUM-ION BATTERY
To extend the lifetime, the lithium-ion battery equips with the
protection function to stop the output.
In the cases of 1 to 3 described below, when using this
product, even if you are pulling the switch, the motor may
stop. This is not the trouble but the result of protection
function.
1. When the battery power remaining runs out, the motor
stops.
In such a case, charge it up immediately.
2. If the tool is overloaded, the motor may stop. In this
case, release the switch of tool and eliminate causes of
overloading. After that, you can use it again.
3. If the battery is overheated under overload work, the
battery power may stop.
In this case, stop using the battery and let the battery
cool. After that, you can use it again.
Furthermore, please heed the following warning and caution.
WARNING
In order to prevent any battery leakage, heat generation,
smoke emission, explosion and ignition beforehand, please
be sure to heed the following precautions.
1. Make sure that swarf and dust do not collect on the
battery.
○During work make sure that swarf and dust do not fall on
the battery.
○Make sure that any swarf and dust falling on the power
tool during work do not collect on the battery.
○Do not store an unused battery in a location exposed to
swarf and dust.
○Before storing a battery, remove any swarf and dust that
may adhere to it and do not store it together with metal
parts (screws, nails, etc.).
2. Do not pierce battery with a sharp object such as a
nail, strike with a hammer, step on, throw or subject the
battery to severe physical shock.
3. Do not use an apparently damaged or deformed battery.
4. Do not use the battery in reverse polarity.
5. Do not connect directly to an electrical outlets or car
cigarette lighter sockets.
6. Do not use the battery for a purpose other than those
specified.
7. If the battery charging fails to complete even when a
specified recharging time has elapsed, immediately stop
further recharging.
8. Do not put or subject the battery to high temperatures or
high pressure such as into a microwave oven, dryer, or
high pressure container.
9. Keep away from fire immediately when leakage or foul
odor are detected.
10. Do not use in a location where strong static electricity
generates.
11. If there is battery leakage, foul odor, heat generated,
discolored or deformed, or in any way appears abnormal
during use, recharging or storage, immediately remove it
from the equipment or battery charger, and stop use.
12. Do not immerse the battery or allow any fluids to flow
inside. Conductive liquid ingress, such as water, can
cause damage resulting in fire or explosion. Store your
battery in a cool, dry place, away from combustible and
flammable items. Corrosive gas atmospheres must be
avoided.
CAUTION
1. If liquid leaking from the battery gets into your eyes,
do not rub your eyes and wash them well with fresh
clean water such as tap water and contact a doctor
immediately.
If left untreated, the liquid may cause eye-problems.
2. If liquid leaks onto your skin or clothes, wash well with
clean water such as tap water immediately.
There is a possibility that this can cause skin irritation.
3. If you find rust, foul odor, overheating, discolor,
deformation, and/or other irregularities when using the
battery for the first time, do not use and return it to your
supplier or vendor.
WARNING
If a conductive foreign matter enters in the terminal of lithium
ion battery, the battery may be shorted, causing fire. When
storing the lithium ion battery, obey surely the rules of
following contents.
○Do not place conductive debris, nail and wires such as
iron wire and copper wire in the storage case.
○To prevent shorting from occurring, load the battery in
the tool or insert securely the battery cover for storing
until the ventilator is not seen.
REGARDING LITHIUM-ION BATTERY
TRANSPORTATION
When transporting a lithium-ion battery, please observe the
following precautions.
WARNING
Notify the transporting company that a package contains a
lithium-ion battery, inform the company of its power output
and follow the instructions of the transportation company
when arranging transport.
○Lithium-ion batteries that exceed a power output of
100 Wh are considered to be in the freight classification
of Dangerous Goods and will require special application
procedures.
○For transportation abroad, you must comply with
international law and the rules and regulations of the
destination country.
00BookDH18DPCUK.indb900BookDH18DPCUK.indb9 2023/02/099:52:212023/02/099:52:21

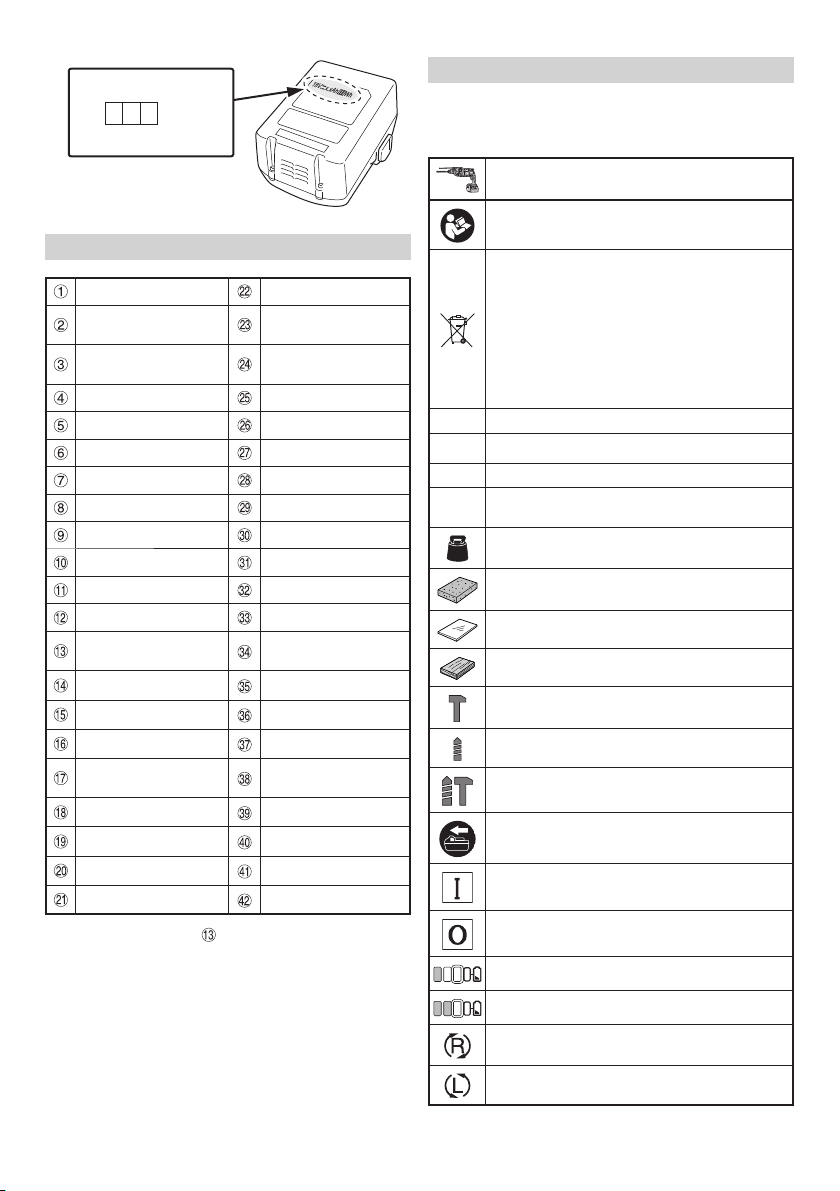

10
Wh
Power Output
2 to 3 digit number
NAMES OF PARTS (Fig. 1–Fig. 19)
Handle Nozzle
Switch trigger Depth adjustment
button
Pushing button Nozzle adjustment
button
Housing Dust housing
Side handle Dust box
Depth gauge Dust box latch
Drill bit Filter
Front cap Adapter
Grip Latch
Name plate Pilot lamp
Change lever Indicator lamp: Lights
Gear cover Grease
Cap* Pushing button
(Change lever)
Motor Cold chisel
LED light Auto stop lamp: Blinks
Battery Auto stop lamp: Lights
Display panel Battery sliding
grooves
Changeover switch Terminal (Product)
Display lamp Air gun
Auto stop lamp Terminal (Battery)
Indicator lamp Sliding grooves
* Do not remove the cap ( ) from the rotary hammer unless
you are installing the dust extractor system. Operating
the tool with the cap removed will decrease work output.
In addition, dust can clog the net which may result in
malfunction.
SYMBOLS
WARNING
The following show symbols used for the machine.
Be sure that you understand their meaning before
use.
DH18DPC: Cordless Rotary Hammer
To reduce the risk of injury, user must read
instruction manual.
Only for EU countries
Do not dispose of electric tools together with
household waste material!
In observance of European Directive
2012/19/EU on waste electrical and electronic
equipment and its implementation in
accordance with national law, electric tools
that have reached the end of their life must
be collected separately and returned to an
environmentally compatible recycling facility.
V Rated voltage
n0No-load speed
Bpm Full-load impact rate
φ
max Drilling diameter, max.
kg
Weight*
(According to EPTA-Procedure 01/2014)
Concrete
Steel
Wood
Hammering only function
Rotation only function
Rotation and hammering function
Disconnect the battery
Switching ON
Switching OFF
Low mode
Normal mode
Clockwise rotation
Counterclockwise rotation
* Depending on attached battery. The heaviest weight is
measured with BSL36B18 (sold separately).
00BookDH18DPCUK.indb1000BookDH18DPCUK.indb10 2023/02/099:52:212023/02/099:52:21

11
Table 1
Indications of the pilot lamp
Pilot lamp
(red)
Before charging Blinks Lights for 0.5 seconds. Does not light for 0.5 seconds. (offfor 0.5 seconds)
While charging Lights Lights continuously
Charging
complete Blinks Lights for 0.5 seconds. Does not light for
0.5 seconds. (offfor 0.5 seconds)
Charging
impossible Flickers Lights for 0.1 seconds. Does not light for
0.1 seconds. (offfor 0.1 seconds) Malfunction in the battery or
the charger
Overheat
standby Blinks Lights for 1 second. Does not light for
0.5 seconds. (offfor 0.5 seconds) Battery overheated. Unable
to charge. (Charging will
commence when battery cools)
STANDARD ACCESSORIES
In addition to the main unit (1 unit), the package contains the
accessories listed on page 17.
Standard accessories are subject to change without notice.
APPLICATIONS
Rotation and hammering function
○Drilling anchor holes
○Drilling holes in concrete
○Drilling holes in tile
Rotation only function (without dust extractor system)
○Drilling in steel or wood
(with optional accessories)
○Tightening machine screws, wood screws
(with optional accessories)
Hammering only function (without dust extractor system)
○Light-duty chiselling of concrete, groove digging and
edging.
SPECIFICATIONS
The specifications of this machine are listed in the Table on
page 17.
*1 Specifications are for when a dust extractor system has
been installed.
NOTE
Due to HiKOKI’s continuing program of research and
development, the specifications herein are subject to
change without prior notice.
CHARGING
Before using the power tool, charge the battery as follows.
1. Connect the charger’s power cord to the receptacle.
When connecting the plug of the charger to a receptacle,
the pilot lamp will blink in red (At 1- second intervals).
2. Insert the battery into the charger.
Firmly insert the battery into the charger as shown in
Fig. 4 (on page 3).
3. Charging
When inserting a battery in the charger, charging will
commence and the pilot lamp will light continuously in
red.
When the battery becomes fully recharged, the pilot lamp
will blink in red. (At 1-second intervals) (See Table 1)
●Pilot lamp indication
The indications of the pilot lamp will be as shown in
Table 1, according to the condition of the charger or the
rechargeable battery.
00BookDH18DPCUK.indb1100BookDH18DPCUK.indb11 2023/02/099:52:222023/02/099:52:22

12
●Regarding the temperatures and charging time of the battery.
The temperatures and charging time will become as shown in Table 2.
Table 2
Charger UC18YFSL
Battery
Type of battery Li-ion
Temperatures at which the
battery can be recharged 0°C–50°C
Charging voltage V 14.4 18
Charging time,
approx. (At 20°C)
BSL14xx series BSL18xx series Multi volt
series
(4 cells) (8 cells) (5 cells) (10 cells) (10 cells)
min.
BSL1415S : 20
BSL1415
: 22
BSL1415X
: 22
BSL1420
: 30
BSL1425
: 35
BSL1430C
: 45
BSL1430
: 45
BSL1440
: 60
BSL1450
: 75
BSL1460
: 90
BSL1815S : 20
BSL1815 : 22
BSL1815X : 22
BSL1820 : 30
BSL1825 : 35
BSL1830C : 45
BSL1850C : 75
BSL1830 : 45
BSL1840 : 60
BSL1850 : 75
BSL1860 : 90
BSL36A18 : 75
BSL36B18 :
120
CAUTION
○If the battery is charged while it is heated because it has
been left for a long time in a location subject to direct
sunlight or because the battery has just been used,
the pilot lamp of the charger lights up green or lights
for 1 second, does not light for 0.5 seconds (offfor
0.5 seconds). In such a case, first let the battery cool,
then start charging.
○When the pilot lamp flickers in red (at 0.2-seconds
intervals), check for and take out any foreign objects in
the charger’s battery connector. If there are no foreign
objects, it is probable that the battery or charger is
malfunctioning. Take it to your authorized Service
Center.
○Since the built-in micro computer takes about 3 seconds
to confirm that the battery being charged with chargers
are taken out, wait for a minimum of 3 seconds before
reinserting it to continue charging. If the battery is
reinserted within 3 seconds, the battery may not be
properly charged.
MOUNTING AND OPERATION
Action Figure Page
Names of parts - Cordless rotary
hammer 12
Names of parts - Dust extractor
system for Rotary hammer* 22
Removing and inserting the battery 3 3
Charging 4 3
Indicator lamp lights when battery
is low 53
Installing / Removing the side handle 6 3
Inserting SDS-plus drilling tools 7 4
Removing SDS-plus drilling tools 8 4
Selecting rotation direction 9 4
Selecting the operating mode 10 4
NOTE
The recharging time may vary according to the ambient
temperature and power source voltage.
CAUTION
When the battery charger has been continuously used,
the battery charger will be heated, thus constituting
the cause of the failures. Once the charging has been
completed, give 15 minutes rest until the next charging.
4. Disconnect the charger’s power cord from the
receptacle.
5. Hold the charger firmly and pull out the battery.
NOTE
Be sure to pull out the battery from the charger after use,
and then keep it.
Regarding electric discharge in case of new batteries,
etc.
As the internal chemical substance of new batteries and
batteries that have not been used for an extended period
is not activated, the electric discharge might be low when
using them the first and second time. This is a temporary
phenomenon, and normal time required for recharging
will be restored by recharging the batteries 2–3 times.
How to make the batteries perform longer.
(1) Recharge the batteries before they become completely
exhausted.
When you feel that the power of the tool becomes
weaker, stop using the tool and recharge its battery. If
you continue to use the tool and exhaust the electric
current, the battery may be damaged and its life will
become shorter.
(2) Avoid recharging at high temperatures.
A rechargeable battery will be hot immediately after
use. If such a battery is recharged immediately after
use, its internal chemical substance will deteriorate, and
the battery life will be shortened. Leave the battery and
recharge it after it has cooled for a while.
00BookDH18DPCUK.indb1200BookDH18DPCUK.indb12 2023/02/099:52:222023/02/099:52:22

13
Adjusting the drilling depth 11 4
Changing the chisel position 12 4
Switch operation 13 5
Setting the speed 14 5
Auto stop function 15 5
How to use the LED light 16 5
Cleaning of the battery installation
compartment 17 5
Installing the side handle 19 6
Selecting accessories ―18, 19
* For details on how to use the Dust extractor system, refer
to the system’s instruction manual.
SELECT OPERATION MODE
Pressing the changeover switch allows the selection of
rotation speed and the auto stop function.
○Rotation speed (Low mode/Normal mode) (Fig. 14)
Select either Low mode or Normal mode and operate the
tool in the selected speed.
○Auto stop mode (on/off) (Fig. 15)
This product is equipped with an auto stop function to
support continuous drilling work. The function features a
memory mode for storing the work time for drilling from
switch ON to switch OFF, and an auto stop mode that
automatically stops the motor from the second drilling
onward should the work exceed the stored work time
while the switch is ON.
AUTO STOP FUNCTION
In selection mode, pressing the button for longer than two
seconds will move to memory mode. (Fig. 15)
(At the same time the auto stop lamp will blink.)
Conduct drilling when the auto stop lamp is flashing. The
time between switching ON and switching OFF is stored by
the tool.
(At the same time, the auto stop lamp will light up.)
Conduct drilling when the auto stop lamp is flashing.
Continuous drilling is possible as the memory storage time
will be recorded by the tool until the auto stop function’s auto
stop mode is cancelled.
The auto stop function is cancelled by pressing the
changeover switch once again for over two seconds.
(At the same time, the auto stop lamp will switch off.)
CAUTION
○Switch ON the tool once you place the tip of the tool on
the work material.
○The rotation speed and the level at which the switch is
pulled during drilling is not stored to memory.
○Fully carry out drilling in one go during auto stop mode.
○The motor will stop even if you switch OFF within the
memory storage time.
○When you switch OFF within the memory storage time,
the count will be reset. If you rework a task in which a
hole has been partially drilled, the memory storage time
will be fully recounted.
○The auto stop function will remain active until canceled.
REACTIVE FORCE CONTROL
This product is equipped with a Reactive Force Control
(RFC) feature that reduces jerking of the tool body.
If the tool bit is suddenly overburdened, any jerking of the
tool body is reduced by activation of the slip clutch or by
stopping of the motor by the sensor built into the tool body.
If the motor is stopped because of overburdening detection
by the controller, the RFC indicator lamp will blink while the
switch is pulled. In addition, the lamp will continue blinking
for approximately three seconds after the switch is released.
The motor will remain stopped while the lamp is blinking.
(Fig. 20)
Because the RFC feature may not activate or its performance
may be insufficient depending on the working environment
and conditions, be careful not to suddenly overburden the
tool bit while operating.
●Possible causes of sudden overburdening
Tool bit biting into material
Impact against nails, metal or other hard objects
Tasks involving prying or any excess application of
pressure, etc.
Also, other causes include any combination of the
aforementioned.
●When the reactive force control (RFC) is triggered
When the RFC is triggered and the motor stops, turn
offthe tool’s switch and remove the cause of the
overburdening before continuing operation.
Fig. 20
00BookDH18DPCUK.indb1300BookDH18DPCUK.indb13 2023/02/099:52:232023/02/099:52:23

14
ABOUT THE PROTECTION
FUNCTION
This tool has a built-in protection circuit for preventing
damage to the unit in the event of an abnormality. Depending
on the following, the display lamp and the indicator lamp will
flash, and the unit will cease to operate. Verify the problem
indicated by the flashing and take the necessary steps to
correct the problem.
When pressing the changeover switch, do so when the
switch is not being pulled.
Changeover switch
Display lamp Indicator lamp
Fig. 21
Table 3
Display
lamp
flashing Cause Solution
Operation has
ceased because the
internal temperature
has exceeded the
temperature limit.
(High temperature
protection function)
Allow the unit to cool
for 15 to 30 minutes.
When the temperature
goes down and the
display lamp and the
indicator lamp blinking
stops, pull the switch
trigger to recover
operation.
Sudden
overburdening of
the tool bit has
activated the RFC,
stopping further
operation of the
tool.
RFC (See page 13
“REACTIVE FORCE
CONTROL”)
Release the switch
trigger and leave it
until the display lamp
blinking stops. Pull the
switch trigger again to
recover operation.
Before continuing
operation, remove
the cause of the
overburden.
NOTE
Despite taking steps to correct a problem, the display
lamp may continue to blink. Should this be the case, the
unit may require repair. If so, please contact the outlet
from which this product was purchased for repairs.
LUBRICATION
This Rotary Hammer is of full air-tight construction to protect
against dust.
Therefore, this Rotary Hammer can be used without
lubrication for long periods.
After purchase, periodically replace grease. Ask for grease
replacement at the nearest authorized Service Center.
CAUTION
A specific grease is used with this machine, therefore,
the normal performance of the machine may be badly
affected by use of different grease. Please be sure to let
one of our service centers to undertake replacement of
the grease.
MAINTENANCE AND INSPECTION
WARNING
Be sure to turned offthe switch and remove the battery
before maintenance and inspection.
1. Inspecting the tool
Since use of as dull tool will degrade efficiency and
cause possible motor malfunction, sharpen or replace
the tool as soon as abrasion is noted.
2. Inspecting the mounting screws
Regularly inspect all mounting screws and ensure that
they are properly tightened. Should any of the screws be
loose, retighten them immediately. Failure to do so could
result in serious hazard.
3. Maintenance of the motor
The motor unit winding is the very “heart” of the power
tool. Exercise due care to ensure the winding does not
become damaged and/or wet with oil or water.
4. Inspection of terminals (tool and battery)
Check to make sure that swarf and dust have not
collected on the terminals.
On occasion check prior, during and after operation.
CAUTION
Remove any swarf or dust which may have collected on
the terminals.
Failure to do so may result in malfunction.
5. Cleaning on the outside
When the power tool is stained, wipe with a soft dry cloth
or a cloth moistened with soapy water. Do not use chloric
solvents, gasoline or paint thinner, for they melt plastics.
6. Cleaning the battery installation compartment and
the battery
After drilling concrete, if concrete dust has accumulated
on the battery installation compartment and the battery,
clean offthe accumulated concrete dust with an air gun
or a dry cloth before using the tool. (Fig. 17)
Also, after cleaning, ensure that the battery can be
installed and removed smoothly from the tool.
CAUTION
Using the tool when the battery is covered with concrete
dust may lead to accidents such as the battery falling
during use.
Furthermore, such use may cause a malfunction or
contact failure between the battery and the terminals.
7. Storage
Store the power tool and battery in a place in which
the temperature is less than 40°C and out of reach of
children.
NOTE
Storing lithium-ion batteries.
Make sure the lithium-ion batteries have been fully
charged before storing them.
Prolonged storage (3 months or more) of batteries with
a low charge may result in performance deterioration,
significantly reducing battery usage time or rendering
the batteries incapable of holding a charge.
However, significantly reduced battery usage time may
be recovered by repeatedly charging and using the
batteries two to five times.
If the battery usage time is extremely short despite
repeated charging and use, consider the batteries dead
and purchase new batteries.
CAUTION
In the operation and maintenance of power tools, the
safety regulations and standards prescribed in each
country must be observed.
00BookDH18DPCUK.indb1400BookDH18DPCUK.indb14 2023/02/099:52:232023/02/099:52:23

15
Important notice on the batteries for the HiKOKI
cordless power tools
Please always use one of our designated genuine
batteries. We cannot guarantee the safety and
performance of our cordless power tool when used with
batteries other than these designated by us, or when
the battery is disassembled and modified (such as
disassembly and replacement of cells or other internal
parts).
GUARANTEE
We guarantee HiKOKI Power Tools in accordance with
statutory/country specific regulation. This guarantee does
not cover defects or damage due to misuse, abuse, or
normal wear and tear. In case of complaint, please send
the Power Tool, undismantled, with the GUARANTEE
CERTIFICATE found at the end of this Handling instruction,
to a HiKOKI Authorized Service Center.
Information concerning airborne noise and vibration
The measured values were determined according to
EN62841 and declared in accordance with ISO 4871.
Measured A-weighted sound power level: 101 dB (A)
Measured A-weighted sound pressure level: 90 dB (A)
Uncertainty K: 3 dB (A).
Wear hearing protection.
Vibration total values (triax vector sum) determined
according to EN62841.
Hammer drilling into concrete:
Vibration emission value ah, HD = 15.1 m/s2
Uncertainty K = 1.5 m/s2
Equivalent chiselling value:
Vibration emission value ah, CHeq = 11.8 m/s2
Uncertainty K = 1.5 m/s2
The declared vibration total value and the declared noise
emission value have been measured in accordance with a
standard test method and may be used for comparing one
tool with another.
They may also be used in a preliminary assessment of
exposure.
WARNING
○The vibration and noise emission during actual use
of the power tool can differ from the declared total
value depending on the ways in which the tool is used
especially what kind of workpiece is processed; and
○Identify safety measures to protect the operator that
are based on an estimation of exposure in the actual
conditions of use (taking account of all parts of the
operating cycle such as the times when the tool is
switched offand when it is running idle in addition to the
trigger time).
NOTE
Due to HiKOKI’s continuing program of research and
development, the specifications herein are subject to
change without prior notice.
00BookDH18DPCUK.indb1500BookDH18DPCUK.indb15 2023/02/099:52:232023/02/099:52:23

16
TROUBLESHOOTING
Use the inspections in the table below if the tool does not operate normally. If this does not remedy the problem, consult your
dealer or the HiKOKI Authorized Service Center.
Symptom Possible cause Remedy
Tool doesn’t run No remaining battery power Charge the battery.
Battery isn’t securely attached. Push in the battery until a click is heard.
Concrete dust has accumulated on
the terminals of the battery installation
compartment as well as on the battery
sliding grooves.
Clean offthe accumulated concrete dust
with an air gun or a dry cloth.
Tool suddenly stopped Tool was overburdened Get rid of the problem causing the
overburden.
Reactive force control was activated
The battery is overheated. Let the battery cool down.
Tool bits
-can’t be attached
-fall off
The shape of the attachment portion doesn’t
match For the SDS-plus shank type , use a bit with a diameter that is within the designated
range.
Holes can’t be smoothly
drilled. The drill is worn Replace with a new drill.
The drill is rotating in reverse Switch to forward rotation.
Screw head slips or comes
loose. Bit number doesn’t match with the screw size Install a suitable bit.
The bit is worn Replace with a new bit.
Battery cannot be installed Attempting to install a battery other than that
specified for the tool. Please install batteries that are multi volt or BSL18xx series.
00BookDH18DPCUK.indb1600BookDH18DPCUK.indb16 2023/02/099:52:232023/02/099:52:23

17
BSL1850
UC18YFSL
DH18DPC 2JAS 1 1 1 1 21111
2JA 1 1 1 – 2 1 1 – 1
NN111––––––
DH18DPC DH18DPC*1
V 18 V
n00–950 min-1
Bpm 0–4300 min-1
φmax / 26 mm 20 mm
φmax 13 mm –
φmax 27 mm –
kg 3.2–3.8 kg 4.3–4.9 kg
00BookDH18DPCUK.indb1700BookDH18DPCUK.indb17 2023/02/099:52:232023/02/099:52:23

18
335273 303709 376759
BSL18.. BSL36..18.. UC18YFSL (14.4 V–18 V)
329897 337528 376763
376971 336471 376764
376972
00BookDH18DPCUK.indb1800BookDH18DPCUK.indb18 2023/02/099:52:242023/02/099:52:24

19
971787 306885
944477
1: 303617
2: 303618
A: 303619
B: 303620
316656 303046
316657 316658
316659
981122 321814 303623
373378
372200
(A): 982684
(B): 982685
(A) 105 mm: 303625
300 mm: 303626
(B) 300 mm: 303627
303332
12.7 mm: 303044
19 mm: 303045
DH18DPC
(When the dust
extractor system
is removed)
00BookDH18DPCUK.indb1900BookDH18DPCUK.indb19 2023/02/099:52:252023/02/099:52:25

20
00BookDH18DPCUK.indb2000BookDH18DPCUK.indb20 2023/02/099:52:252023/02/099:52:25
