English (Original instructions)
SAFETY PRECAUTIONS FOR THE
CORDLESS TOOL
○In order to prevent accidents, such as fires, electric
shock, and injuries, be sure to follow the “Safety
Precautions” stated below.
○Before use, read all of the “Safety Precautions” and use
the appliance correctly according to the instructions.
○Be sure to keep this instructions manual in the place
where it can be consulted by the user at any time.
WARNING
1. Keep the workplace clean. Littered place or workbench
may cause accidents.
2. Pay attention to the situation around the workplace as
well. Make the workplace bright enough. Do not use the
appliance in places with inflammable liquid or gas.
3. Keep children away. Do not let other persons than the
operator touch the cleaner or the cord. Keep persons
other than the operator away from the workplace.
4. Use the cleaner suitable for the work. Use the appliance
only for the specified applications.
5. Do not handle the power cord roughly.
○Do not carry the charger with only the power cord or
pull the plug from the socket while holding the power
cord.
○Keep the power cord away from heat, oil and sharp
corners.
6. The cleaner should be maintained carefully.
Replacement of accessories should follow the
instructions manual. Regularly check the power cord
of the charger and ask your dealer for repairs in the
event of it being damaged. If an extension cord is used,
check it periodically, and when damaged, replace it.
7. In the following cases, switch offthe cleaner and turn
OFF the main power supply:
The cleaner is not used or it is sent for repair.
Accessories, such as a hose and a filter, are replaced.
Danger is expected.
8. Avoid sudden starting. Do not carry the appliance
which is connected to the power supply with your finger
placed on the switch. Confirm that the switch is off
before insert the battery.
9. Do the work with enough care. When you use the
cleaner, pay attention to the handling method, how to
do the work, the surrounding situation, etc. and perform
the operation in a cautious manner. When you do the
work at a distance from the cleaner, pay attention to the
operation condition of the cleaner. (abnormal sound,
dust blow off, emitting smoke, etc.) Exercise common
sense. Do not use the appliance when you are tired.
10. Check for any damaged part.
○Before use, check for any damages in the protective
cover or other parts and confirm whether the appliance
operates normally and performs specified functions.
○Check for any abnormalities in all places that may
affect the operation, the position adjustment and
clamping state of movable portions, damaged parts or
attachment state.
○Replacement and repair of damaged protective cover
and other parts should follow the provisions of the
handling instructions. If there are no such provisions
in the manual, please request repair from your local
retailer or authorized servicing agent.
○If the switch fails, please request repair from your local
retailer or authorized servicing agent. Avoid using the
cleaner which cannot be started or stopped by the
switch.
11. Contact the specialty store for repair of the cleaner.
○Since this cleaner conforms to the corresponding
safety standard, do not modify it.
○Be sure to request repair from your local retailer or
authorized servicing agent. Self-repair may cause
accidents or injuries.
12. Never allow children, persons with reduced physical,
sensory or mental capabilities, or lack of experience
and knowledge to use the appliance. Children shall not
play with the appliance.
13. Operators shall be adequately instructed on the use of
the appliance.
PRECAUTIONS FOR USE OF THE
CORDLESS CLEANER
The precautions common to the cleaners have been
described. For the cleaners for electric tools, follow further
precautions described below:
WARNING
1. Prevent the appliance from sucking in the following:
○Generated spark during metal grinding or cutting.
○High temperature things, such as lighted cigarette.
○Inflammable substances (gasoline, thinner, benzine,
kerosene, paint, etc.), explosive substances
(nitroglycerine, etc.), combustible substances
(aluminum, zinc, magnesium, titanium, red
phosphorus, yellow phosphorus, celluloid, etc.)
○Sharp things, such as nail and razor.
○Wood chip, metal, stone, string, etc.
○Solidification materials, such as cement powder and
toner, and conductive fine dusts, such as metal powder
and carbon powder.
○Foaming liquids, such as oil, boiling water, chemical
fluid, and detergent. Liquids, such as water and oil.
May cause fires or injuries.
2. Set the filter correctly before use. Do not use the
appliance without the filter or with it set in a wrong
position, or do not use a torn filter. May cause failures,
such as motor burnout.
3. Do not use the appliance with its suction opening, air
inlet or exhaust opening obstructed. The temperature
of the motor may rise abnormally, causing troubles
such as deformation of parts or motor burnout.
4. Do not douse the unit with water or oil.
Doing so may result in electric shock or malfunction as
the unit is not waterproofed.
5. Do not topple the appliance or do not use it on its side.
May cause electric shock or failures.
6. To prevent deformation or breakage of the appliance
due to toppling etc., the appliance should be moved
calmly. Breakage, crack, or deformation may cause
injuries.
7. When you drop or bump the appliance accidentally,
check for breakage, crack, or deformation in the
appliance. Breakage, crack or deformation may cause
injuries.
8. When the appliance is out of condition or emits
abnormal sound during use, immediately turn offthe
switch and request repair from your local retailer or
authorized servicing agent. If you continue to use the
appliance as it is, it may lead to injuries.
9. This appliance is designed for industrial use. This
appliance is only used indoors. Never use it outdoors.
Insulation deterioration may cause electric shock or
electrical fire. This appliance shall be stored indoors
only.
10. Do not use the product if the tool or the battery terminals
(battery mount) are deformed.
Installing the battery could cause a short circuit that
could result in smoke emission or ignition.
00BookRP3608DBWENE.indb800BookRP3608DBWENE.indb8 2019/07/2414:06:472019/07/2414:06:47
9
English
11. Keep the tool’s terminals (battery mount) free of swarf
and dust.
○Prior to use, make sure that swarf and dust have not
collected in the area of the terminals.
○During use, try to avoid swarf or dust on the tool from
falling on the battery.
○When suspending operation or after use, do not leave
the tool in an area where it may be exposed to falling
swarf or dust.
○Wipe clean any dust, dirt, water or other liquid which
may collect on the battery connector.
Doing so could cause a short circuit that could result in
smoke emission or ignition.
12. Do not dispose of the battery in fire. If the battery is
burnt, it may explode.
13. Bring the battery to the shop from which it was
purchased as soon as the post-charging battery life
becomes too short for practical use. Do not dispose of
the exhausted battery.
14. The frequency band of this product operates on electric
medical devices, industrial or scientific equipment
as well as local wireless stations used for identifying
mobile objects utilized in factory production lines
(radio stations that require a license) and specified low
power radio stations (radio stations that do not require
a license).
Use of this product in these locations may result in
radio frequency interference.
15. The effective range for wireless linking is approximately
10 m. However, this range may be shortened by
obstructions between the electric power tool and the
cordless cleaner.
16. Prior to use, make sure that the cordless cleaner and
the electric power tool can be linked when using the
wireless linking function.
If used without establishing a link, the operator may
breathe in the dust released by the electric power tool.
CAUTION ON LITHIUM-ION BATTERY
To extend the lifetime, the lithium-ion battery equips with
the protection function to stop the output.
In the cases of 1 to 3 described below, when using this
product, even if you are pulling the switch, the motor may
stop. This is not the trouble but the result of protection
function.
1. When the battery power remaining runs out, the motor
stops.
In such a case, charge it up immediately.
2. If the tool is overloaded, the motor may stop. In this
case, release the switch of tool and eliminate causes of
overloading. After that, you can use it again.
3. If the battery is overheated under overload work, the
battery power may stop.
In this case, stop using the battery and let the battery
cool. After that, you can use it again.
Furthermore, please heed the following warning and
caution.
WARNING
In order to prevent any battery leakage, heat generation,
smoke emission, explosion and ignition beforehand,
please be sure to heed the following precautions.
1. Make sure that swarf and dust do not collect on the
battery.
○During work make sure that swarf and dust do not fall
on the battery.
○Make sure that any swarf and dust falling on the power
tool during work do not collect on the battery.
○Do not store an unused battery in a location exposed to
swarf and dust.
○Before storing a battery, remove any swarf and dust
that may adhere to it and do not store it together with
metal parts (screws, nails, etc.).
2. Do not pierce battery with a sharp object such as a
nail, strike with a hammer, step on, throw or subject the
battery to severe physical shock.
3. Do not use an apparently damaged or deformed
battery.
4. Do not use the battery in reverse polarity.
5. Do not connect directly to an electrical outlets or car
cigarette lighter sockets.
6. Do not use the battery for a purpose other than those
specified.
7. If the battery charging fails to complete even when a
specified recharging time has elapsed, immediately
stop further recharging.
8. Do not put or subject the battery to high temperatures
or high pressure such as into a microwave oven, dryer,
or high pressure container.
9. Keep away from fire immediately when leakage or foul
odor are detected.
10. Do not use in a location where strong static electricity
generates.
11. If there is battery leakage, foul odor, heat generated,
discolored or deformed,orinany wayappears abnormal
during use, recharging or storage, immediately remove
it from the equipment or battery charger, and stop use.
12. Do not immerse the battery or allow any fluids to flow
inside. Conductive liquid ingress, such as water, can
cause damage resulting in fire or explosion. Store your
battery in a cool, dry place, away from combustible and
flammable items. Corrosive gas atmospheres must be
avoided.
CAUTION
1. If liquid leaking from the battery gets into your eyes,
do not rub your eyes and wash them well with fresh
clean water such as tap water and contact a doctor
immediately.
If left untreated, the liquid may cause eye-problems.
2. If liquid leaks onto your skin or clothes, wash well with
clean water such as tap water immediately.
There is a possibility that this can cause skin irritation.
3. If you find rust, foul odor, overheating, discolor,
deformation, and/or other irregularities when using the
battery for the first time, do not use and return it to your
supplier or vendor.
WARNING
If a conductive foreign matter enters in the terminal of
lithium ion battery, the battery may be shorted, causing
fire. When storing the lithium ion battery, obey surely the
rules of following contents.
○Do not place conductive debris, nail and wires such as
iron wire and copper wire in the storage case.
○To prevent shorting from occurring, load the battery in
the tool or insert securely the battery cover for storing
until the ventilator is not seen.
00BookRP3608DBWENE.indb900BookRP3608DBWENE.indb9 2019/07/2414:06:472019/07/2414:06:47
10
English
REGARDING LITHIUM-ION BATTERY
TRANSPORTATION
When transporting a lithium-ion battery, please observe
the following precautions.
WARNING
Notify the transporting company that a package contains a
lithium-ion battery, inform the company of its power output
and follow the instructions of the transportation company
when arranging transport.
○Lithium-ion batteries that exceed a power output of
100Wh are considered to be in the freight classification
of Dangerous Goods and will require special
application procedures.
○For transportation abroad, you must comply with
international law and the rules and regulations of the
destination country.
○If the BSL36B18 is installed in the power tool, the power
output will exceed 100 Wh and the unit will be classified
as Dangerous Goods for freight classification.
Wh
Power Output
2 to 3 digit number
USB DEVICE CONNECTION
PRECAUTIONS (UC18YSL3)
When an unexpected problem occurs, the data in a USB
device connected to this product may be corrupted or lost.
Always make sure to back up any data contained in the
USB device prior to use with this product.
Please be aware that our company accepts absolutely no
responsibility for any data stored in a USB device that is
corrupted or lost, nor for any damage that may occur to a
connected device.
WARNING
○Prior to use, check the connecting USB cable for any
defect or damage.
Using a defective or damaged USB cable can cause
smoke emission or ignition.
○When the product is not being used, cover the USB
port with the rubber cover.
Buildup of dust etc. in the USB port can cause smoke
emission or ignition.
NOTE
○There may be an occasional pause during USB
recharging.
○When a USB device is not being charged, remove the
USB device from the charger.
Failure to do so may not only reduce the battery life
of a USB device, but may also result in unexpected
accidents.
○It may not be possible to charge some USB devices,
depending on the type of device.
WIRELESS TECHNOLOGY
The Bluetooth device equipped with this product operates
on a 2.4 GHz frequency range.
To ensure proper use, please be aware of the following.
●In using this product, a radio station license is not
required as this product is granted a certification
of conformance to technical standards as a low
power data communication system wireless
station facility.
●Since this product complies with the certification
of conformance to technical standards, never
disassemble or modify this product.
●This product operates on the same frequency
bands as those for equipment such as microwave
ovens, digital cordless phones, wireless LAN
systems, and other Bluetooth equipment. To
avoid radio interference between the product and
the aforementioned equipment, keep the units
separated during use.
Radio signals may not reach the product.
●With the exception of this product’s malfunction,
the company is not responsible for any damage
that may occur from Bluetooth communication.
●mark and logo are registered trademarks
of Bluetooth SIG, Inc., and are used under license.
●Individuals using pacemakers or other medical
devices should contact the device’s manufacturer,
appropriate medical institution or dealer to verify
the effects of electromagnetic wave interference.
●Do not use in the vicinity of automatically
controlled devices including automatic doors and
fire alarms.
Electromagnetic wave interference from the product
may affect automatically controlled devices, causing
malfunction or accident.
●Avoid use in crowded locations where an
individual wearing a pacemaker may be present.
The electromagnetic wave emitted from the product
can adversely affect a pacemaker’s operation.
00BookRP3608DBWENE.indb1000BookRP3608DBWENE.indb10 2019/07/2414:06:472019/07/2414:06:47
11
English

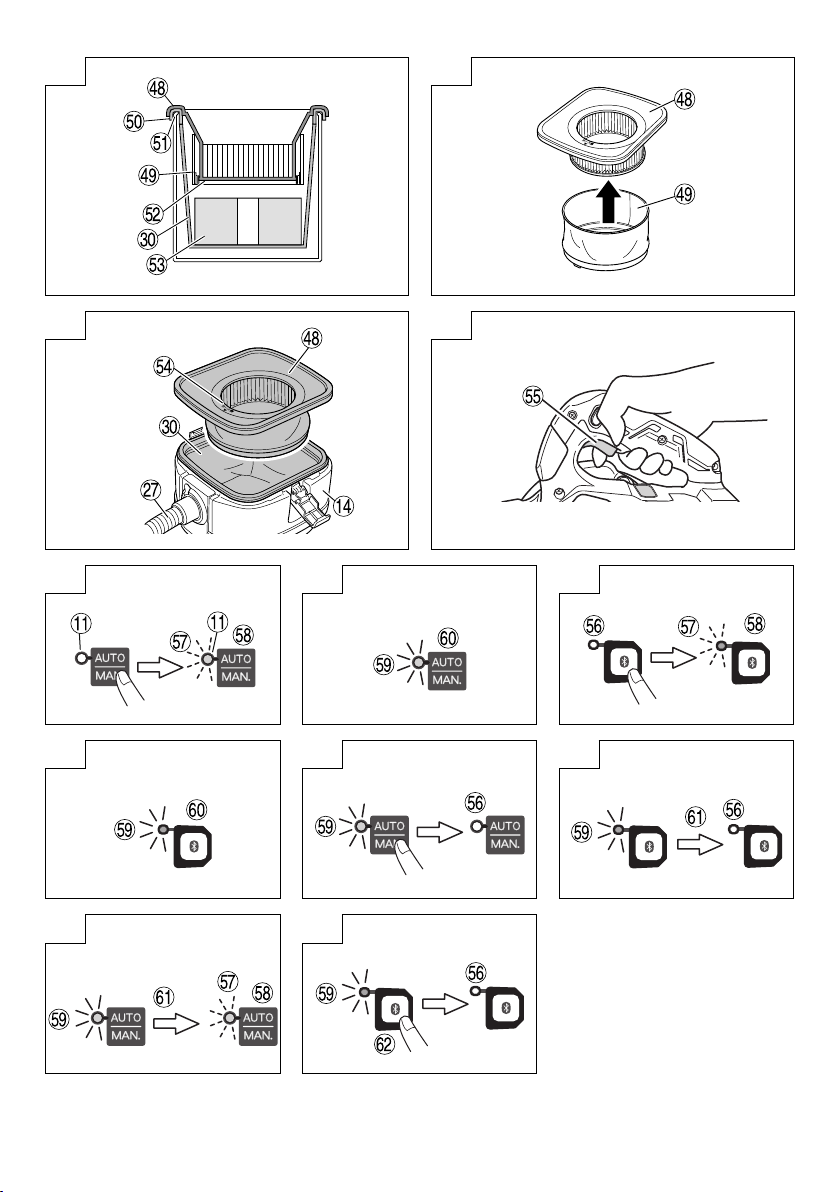

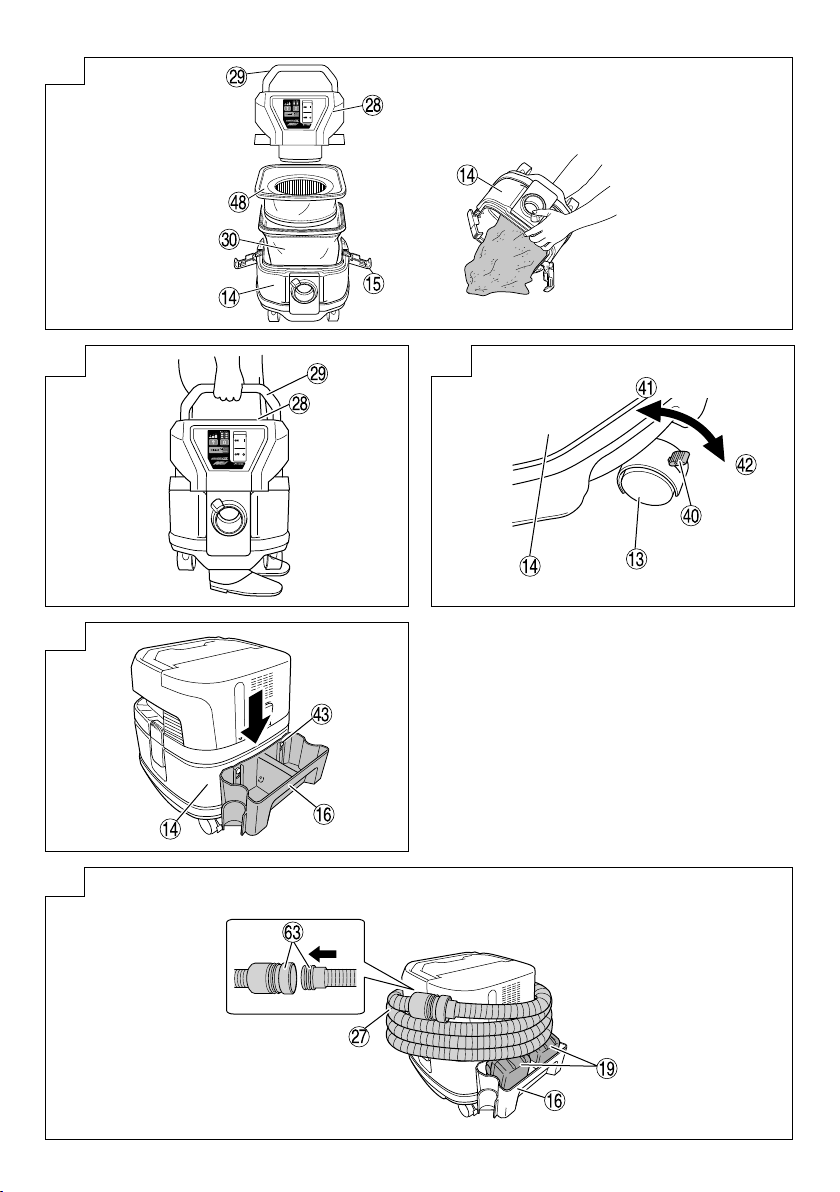

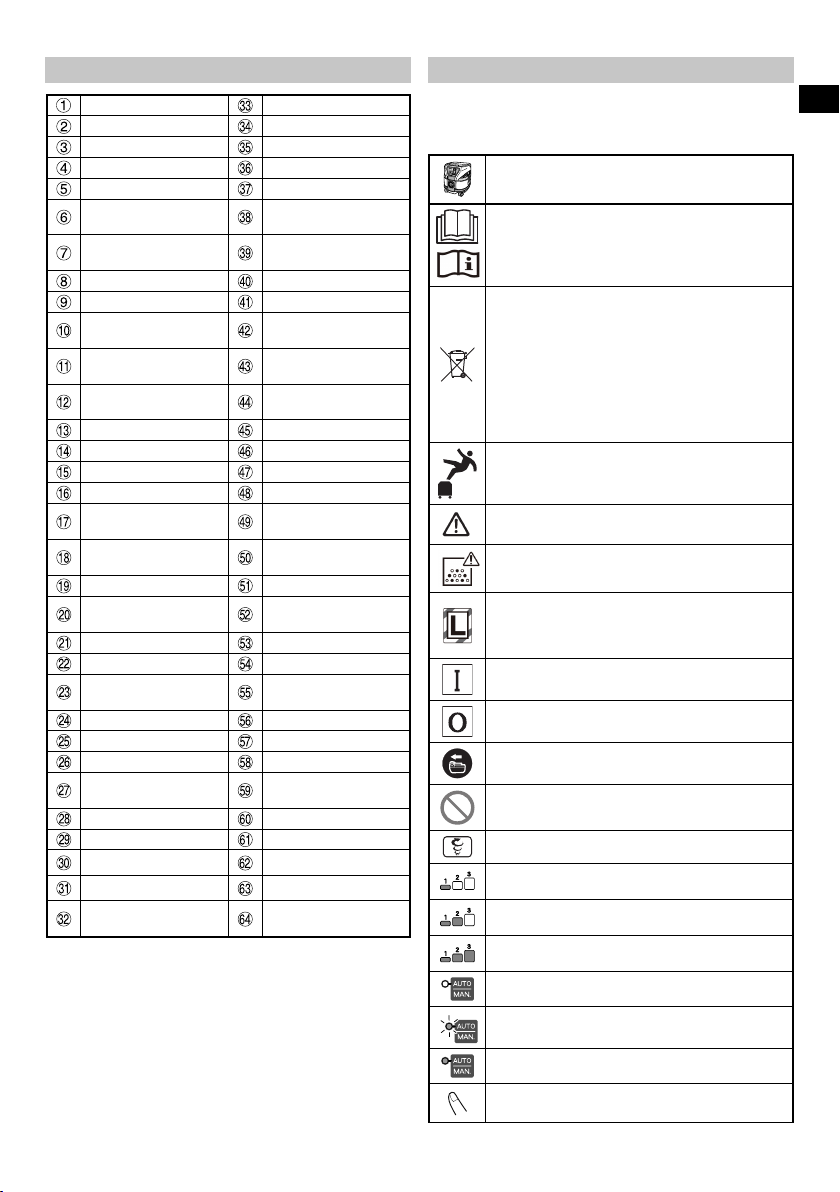

NAMES OF PARTS (Fig. 1 – Fig. 31)
Vacuum switch Paper filter
Name plate Suction hole
Joint (A) Cardboard
Operation panel Fold
Auto/manual switch Bend
Remaining battery
indicator switch Stopper
Remaining battery
indicator lamp Rubber packing
Battery number Lever
Mode display lamp Release
Mode change-over
switch Fix
Auto mode display
lamp Hook bolt
Suction opening Remaining battery
indicator lamp
Caster Rubber cover
Tank USB port
Clamp USB cable
Tool box (2XC only) Dust filter
Suction opening /
Exhaust opening Cloth fiIter
Charge indicator
lamp Packing of the
prefilter
Battery Tank Iip
Clamp (A) Bottom of the dust
fiIter
Battery guard FiIter damper
Groove Hose side
Terminal Switch of the power
tool
Battery number Lamp off
Latch Flashing
Button Searching
Hose
(id 28 mm × 5 m long) Lamp on
Head Capable of linking
Handle Auto
Pre filter Long press
Filter’s seam Both ends of hose
Suction opening
(Inside of the tank) Plastic bag
SYMBOLS
WARNING
The following show symbols used for the machine.
Be sure that you understand their meaning before
use.
RP3608DB: Cordless Cleaner
To reduce the risk of injury, user must read
instruction manual.
Only for EU countries
Do not dispose of electric tools together with
household waste material!
In observance of European Directive 2012/19/
EU on waste electrical and electronic
equipment and its implementation in
accordance with national law, electric tools
that have reached the end of their life must
be collected separately and returned to an
environmentally compatible recycling facility.
Never stand on the cleaner.
Warning
Warning! The cleaner may contain hazardous
dust.
Dust class L (light). The cleaners are capable
of picking up dust class L. Follow your
country's regulations relating to dusts and to
occupational health and safety.
Switching ON
Switching OFF
Disconnect the battery
Prohibited action
Mode selection switch
Eco mode
Standard mode
Turbo mode
Manual mode
Pairing mode
Auto mode
Push
00BookRP3608DBWENE.indb1100BookRP3608DBWENE.indb11 2019/07/2414:06:472019/07/2414:06:47
12
English

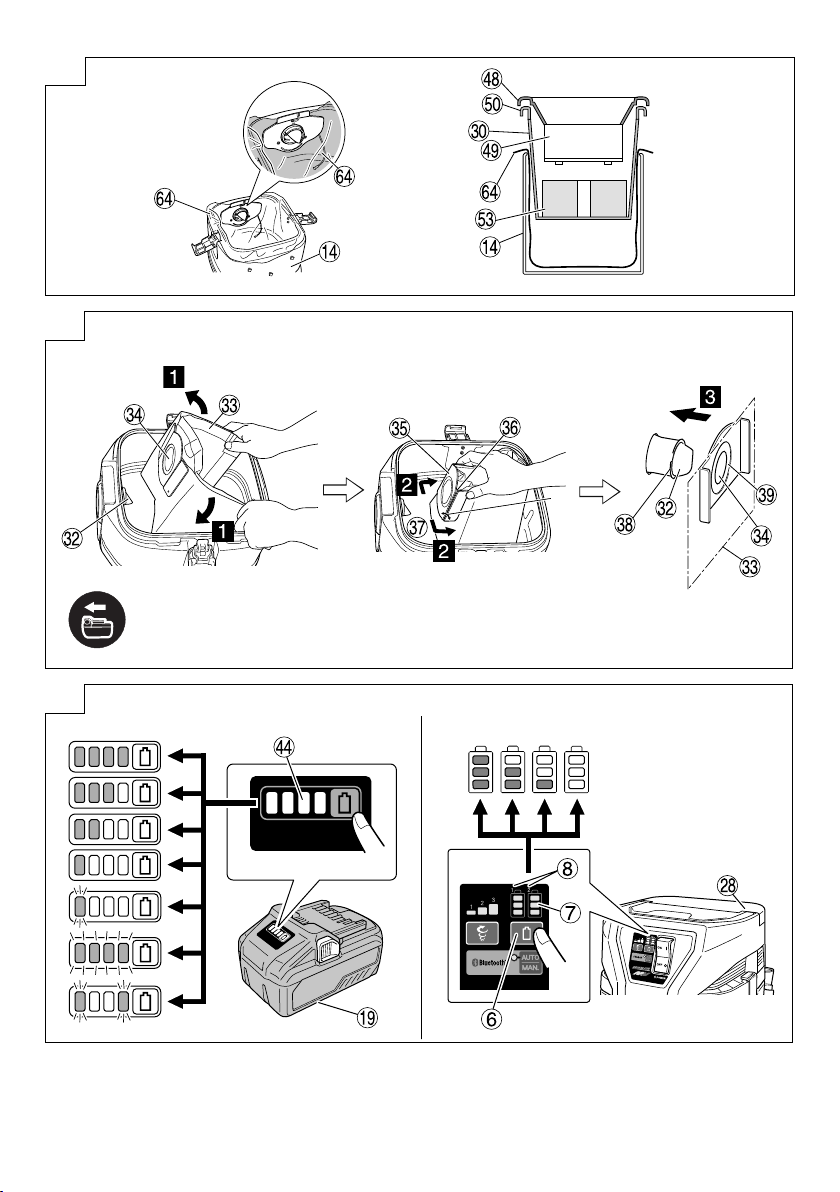

Changes over when the switch is pressed
Automatically changes over when pairing is
complete
Remaining battery indicator switch
Lights ;
The battery remaining power is over 75%.
Lights ;
The battery remaining power is 50% – 75%.
Lights ;
The battery remaining power is 25% – 50%.
The battery remaining power is less than 25%.
Recharge the battery soonest possible.
Battery
Lights ;
The battery remaining power is over 75%
Lights ;
The battery remaining power is 50% – 75%.
Lights ;
The battery remaining power is 25% – 50%.
Lights ;
The battery remaining power is less than 25%
Blinks ;
The battery remaining power is nearly empty.
Recharge the battery soonest possible.
Blinks ;
Output suspended due to high temperature.
Remove the battery from the tool and allow it to
fully cool down.
Blinks ;
Output suspended due to failure or
malfunction. The problem may be the battery
so please contact your dealer.
NOTE
To prevent the battery power consumption caused by
forgetting to turn offthe LED light, the light goes off
automatically in about 2 minutes.
STANDARD ACCESSORIES
(1) Hose (Inner Diameter Φ28 x Length 5m)
(For connection with electric tool) .................................1
(2) Plastic bag (5 pcs.) .......................................................1
(3) Joint (A) ........................................................................1
(4) Joint (D) ........................................................................1
(5) Tool Box* ......................................................................1
(6) Battery (BSL36A18)* ....................................................2
(7) Charger (UC18YSL3)* ..................................................1
(8) Battery cover* ...............................................................2
Standard accessories are subject to change without
notice.
* (NN) specifications is excluded.
SELECTING ACCESSORIES
The accessories of this machine are listed on page 138.
Optional accessories are subject to change without notice.
APPLICATIONS
○General cleaning in workplaces and others.
○Collection of fine dusts generated during grinding,
cutting or drilling of concrete or wood using power tools.
SPECIFICATIONS
1. Power tool
Model
Item RP3608DB
Rated voltage 36 V
Motor DC motor
Application Dry type
Max. Airflow 3.5 m3/min
Max. Vacuum 20.1 kPa
Details-Dry 8 L
Filter Class L
Bluetooth Bluetooth Ver. 5.0
Bluetooth frequency range:
2.402-2.480GHz
Battery available for this
tool* Multi volt battery
Dimensions (W × D × H) 331 mm × 369 mm × 382 mm
Weight** 10.5 kg (BSL36A18 x 2pcs.)
11.0 kg (BSL36B18 x 2pcs.)
* Existing batteries (BSL3660/3626X/3626/3625/3620,
BSL18xx and BSL14xx series) cannot be used with
this tool.
** According to EPTA-Procedure 01/2014
2. Battery
Model BSL36A18
Voltage 36 V / 18 V (Automatic Switching*)
Battery capacity 2,450 mAh / 4,900 mAh
(Automatic Switching*)
Available cordless
products** Multi volt series, 18 V product
Available charger Sliding charger for lithium ion
batteries
* The tool itself will automatically switch over.
** Please see our general catalogue for details.
CHARGING
Before using the power tool, charge the battery as follows.
1. Connect the charger’s power cord to the
receptacle.
When connecting the plug of the charger to a
receptacle, the charge indicator lamp will blink in red
(At 1- second intervals).
2. Insert the battery into the charger.
Firmly insert the battery into the charger as shown in
Fig. 2 (on page 2).
3. Charging
When inserting a battery in the charger, the charge
indicator lamp will blink in blue.
When the battery becomes fully recharged, the charge
indicator lamp will light up in green. (See Table 1)
(1) Charge indicator lamp indication
The indications of the charge indicator lamp will be
as shown in Table 1, according to the condition of the
charger or the rechargeable battery.
00BookRP3608DBWENE.indb1200BookRP3608DBWENE.indb12 2019/07/2414:06:502019/07/2414:06:50
13
English
Table 1
Indications of the charge indicator lamp
Charge
indicator
lamp
(RED /
BLUE /
GREEN /
PURPLE)
Before
charging Blinks
(RED)
Lights for 0.5 seconds. Does not light
for 0.5 seconds. (offfor 0.5 seconds) Plugged into power source
While
charging
Blinks
(BLUE)
Lights for 0.5 seconds. Does not light
for 1 second. (offfor 1 second) Battery capacity at less than 50%
Blinks
(BLUE)
Lights for 1 second. Does not light
for 0.5 seconds. (offfor 0.5 seconds) Battery capacity at less than 80%
Lights
(BLUE) Lights continuously Battery capacity at more than 80%
Charging
complete Lights
(GREEN)
Lights continuously
(Continuous buzzer sound: about 6
seconds)
Overheat
standby Blinks
(RED)
Lights for 0.3 seconds. Does not light
for 0.3 seconds. (offfor 0.3 seconds) Battery overheated. Unable to
charge. (Charging will commence
when battery cools)
Charging
impossible Flickers
(PURPLE)
Lights for 0.1 seconds. Does not light
for 0.1 seconds. (offfor 0.1 seconds)
(Intermittent buzzer sound: about 2
seconds)
Malfunction in the battery or the
charger
(2) Regarding the temperatures and charging time of the rechargeable battery
The temperatures and charging time will become as shown in Table 2.
Table 2
Charger UC18YSL3
Battery
Type of battery Li-ion
Temperatures at which
the battery can be
recharged 0°C – 50°C
Charging voltage V 14.4 18
Charging time,
approx. (At 20°C)
BSL14xx series BSL18xx series Multi volt
series
(4 cells) (8 cells) (5 cells) (10 cells) (10 cells)
min.
BSL1415S
:
15
BSL1415
:
15
BSL1415X
:
15
BSL1420
:
20
BSL1425
:
25
BSL1430C
:
30
BSL1430
:
20
BSL1440
:
26
BSL1450
:
32
BSL1460
:
38
BSL1815S : 15
BSL1815 : 15
BSL1815X : 15
BSL1820 : 20
BSL1825 : 25
BSL1830C: 30
BSL1830 : 20
BSL1840 : 26
BSL1850 : 32
BSL1860 : 38
BSL36A18 : 32
BSL36B18: 52
USB Charging voltage V 5
Charging current A 2
NOTE
The recharging time may vary according to the ambient
temperature and power source voltage.
4. Disconnect the charger’s power cord from the
receptacle.
5. Hold the charger firmly and pull out the battery.
NOTE
Be sure to pull out the battery from the charger after
use, and then keep it.
Regarding electric discharge in case of new
batteries, etc.
As the internal chemical substance of new batteries
and batteries that have not been used for an extended
period is not activated, the electric discharge might be
low when using them the first and second time. This is a
temporary phenomenon, and normal time required for
recharging will be restored by recharging the batteries
2 – 3 times.
00BookRP3608DBWENE.indb1300BookRP3608DBWENE.indb13 2019/07/2414:06:512019/07/2414:06:51
14
English
How to make the batteries perform longer.
(1) Recharge the batteries before they become completely
exhausted.
When you feel that the power of the tool becomes
weaker, stop using the tool and recharge its battery. If
you continue to use the tool and exhaust the electric
current, the battery may be damaged and its life will
become shorter.
(2) Avoid recharging at high temperatures.
A rechargeable battery will be hot immediately after
use. If such a battery is recharged immediately after
use, its internal chemical substance will deteriorate,
and the battery life will be shortened. Leave the battery
and recharge it after it has cooled for a while.
CAUTION
○If the battery is charged while it is heated because it
has been left for a long time in a location subject to
direct sunlight or because the battery has just been
used, the charge indicator lamp of the charger lights
for 0.3 seconds, does not light for 0.3 seconds (offfor
0.3 seconds). In such a case, first let the battery cool,
then start charging.
○When the charge indicator lamp flickers (at 0.2-second
intervals), check for and take out any foreign objects in
the charger’s battery connector. If there are no foreign
objects, it is probable that the battery or charger is
malfunctioning. Take it to your authorized Service
Center.
○Since the built-in micro computer takes about
3 seconds to confirm that the battery being charged
with UC18YSL3 is taken out, wait for a minimum of
3 seconds before reinserting it to continue charging. If
the battery is reinserted within 3 seconds, the battery
may not be properly charged.
PRIOR TO OPERATION
WARNING
Before use, check the following. 1 to 2 should be
checked before insert the battery.
1. Confirm that the vacuum switch is OFF. (Fig. 3)
If, without knowing that the vacuum switch is ON, the
battery is inserted, the appliance will start suddenly,
causing unexpected accidents. The vacuum switch will
be turned on by pushing “ON” and it will be turned offby
returning it to “OFF”. Be sure to check that the vacuum
switch is OFF.
2. Order of use for batteries
When two batteries are installed, the battery with the
least remaining power is used first until it is empty.
Once empty, use is automatically switched over to the
other battery.
Use is still possible with a single installed battery.
NOTE
When there is no more remaining power in a battery,
immediately recharge the battery for convenient use
later.
3. Check the filter
Referring to “2. Filter installation/confirmation” the filter
should be correctly attached.
4. Inserting the battery (Fig. 4)
As you pull on the clamp lever, open the battery guard.
Next, match the battery with the unit’s groove and
firmly press the battery in until you hear a click.
CAUTION
Do not touch the terminals. Doing so may result in
cutting your hand on the terminals or other unexpected
injury.
5. Removing the battery (Fig. 4)
When removing the battery from the unit, press the
latches on both sides and slide the battery upwards to
pull it out.
6. Mode change-over switch operation (Fig. 5)
During operation, the suction power will change each
time the mode selection switch is pressed.
7. Auto/manual switch operation (Fig. 6)
Switches between “Auto” and “Manual” each time the
Auto/Manual switch is pressed.
HOW TO USE
CAUTION
Do not use the head top as a footstool or do not sit on
it. Otherwise the appliance begins to move suddenly,
causing an injury.
NOTE
Handle the hose with care. Do not bend the hose by
force, or do not trample it, or do not pull it to move the
cleaner. Moreover, do not put away the hose as it is
bent. Otherwise troubles such as its deformation may
be caused.
1. Connecting the hose (Fig. 7)
Press the attached hose into the suction opening of the
tank until it clicks and connect it. When removing the
hose, pull out the hose while pushing the button of the
suction opening.
2. Filter installation/confirmation
WARNING
○Make sure the filters (dust filter and prefilter) are always
installed.
Failure to do so may result in damage to the motor.
NOTE
Water cannot be sucked.
(1) Install the filter’s seam so that it is on the other side of
the hose air intake. (Fig. 8)
(2) Make sure the packing of the prefilter is hooked on the
lip of the tank.
Next, insert a filter damper at the bottom of the prefilter.
(Fig. 9)
(3) Insert and attach the cloth filter to the dust filter in the
direction indicated by the arrow. (Fig. 10)
(4) Match the indication of the “hose side” and insert the
dust filter. (Fig. 11)
3. Inserting the battery(Fig. 4)
See “4. Inserting the battery” in “PRIOR TO
OPERATION”.
4. Connect cordless tools (Fig. 6)
Connect in order of Hose (id 28 mm × 5 m long) and
Joint (A) or Joint (D) (Standard Accessory). Connection
is done by pressing in the direction of the arrow.
5. Switch ON
(1) When linking with electric power tool
○Push vacuum switch to “ON” position. (Fig. 5)
○Press Auto/Manual switch and select “Auto”. (Fig. 6)
○Press mode change-over switch and select 1, 2 or 3
according to application. (Fig. 5)
○Press the product’s Auto/Manual switch and the
electric power tool’s wireless linking switch to activate
pairing. (See “WIRELESS LINKING FUNCTION”)
○Use the ON/OFF switch of the linked electric power tool
to simultaneously operate this product.
(2) For independent operation
○Push vacuum switch to “ON” position. (Fig. 5)
○Press Auto/Manual switch and select “Manual”. (Fig. 6)
○Press mode change-over switch and select 1, 2 or 3
according to application. (Fig. 5)
○Conduct floor cleaning.
00BookRP3608DBWENE.indb1400BookRP3608DBWENE.indb14 2019/07/2414:06:512019/07/2414:06:51
15
English
NOTE
○The product is equipped with memory function.
After switching the product OFF, switching it ON will
return the mode change-over switch and Auto/Manual
switch to the OFF state. Mode “3” will return to mode “2”.
○The product’s temperature protection mechanism
could be activated, depending on the operating
environment, to shut the unit down. If the unit shuts
down, see “TROUBLESHOOTING” on page 18.
6. Filter dust removal
The product features a dust removal mechanism that is
activated each time the power is switched OFF.
If the suction worsens during operation, switch OFF the
power.
The dust tank is probably full if the suction does not
recover when you operate the product once again. See
“Dump dusts” and follow the instructions to dispose the
dust.
7. Dump dusts (Fig. 21)
WARNING
○Be sure to turn offthe vacuum switch and disconnect
the battery.
○This appliance contains dust that is harmful to health.
Discharge and maintenance operations (including
disposal of the dust collection containers) must only be
carried out by qualified specialists wearing appropriate
protective clothing and equipment.
○Put on a dust mask.
○Dispose of the vacuumed material in accordance with
legal regulations.
○If the appliance is pushed on its side while the tank
contains liquid, the liquid will get inside the motor or
switch region, causing an electric shock or motor failure.
CAUTION
○Do not impact the tank, the filter, or the head. Otherwise
they will be deformed or damaged.
○Although it is based on the amount of suction of dusts
and liquids, dump dusts and liquids in the tank at least
once a day and keep the appliance, the filter, etc. clean.
Otherwise suction power fall, motor failure, bad smell
or rusting may be caused.
○Do not hold the clamps when you dump dusts in the
tank. Otherwise the clamps may be damaged.
NOTE
○When removing the plastic bag filled with dust from the
tank, make sure the bag does not become caught on
parts inside the tank.
○Empty the plastic bag regularly so that it does not
become excessively filled with dust.
○Do not tilt the tank with accessories inserted in the head
or in the tank. Otherwise any part may be damaged.
(1) Remove the clamps (2 pieces) and raise the handle of
the head.
(2) Lightly striking the inner side of the prefilter several
times, remove dusts attached to the prefilter.
(3) Tilt the tank and dump dusts.
(4) Attach the dust filter, the prefilter, the head, and the
clamp in the initial positions.
8. Attaching the plastic bag (Can be used without a
plastic bag)
WARNING
Be sure to turn offthe appliance and remove the
battery.
(1) Detach two clamps, pull up the head by the handle and
remove it from the tank. (Fig. 21)
Remove the dust filter and prefilter inside the tank.
(2) Insert the supplied plastic bag between the inside of
the tank and the bag guide.
Insert the bag first along the bottom of the bag guide
and then on both sides. (Fig. 26)
(3) After spreading the plastic bag along the inside of the
tank, draw the end of the plastic bag outside the tank.
Following the directions on page 14 “Filter installation/
confirmation”, insert the prefilter and dust filter.
At this point attach the prefilter so that the plastic bag is
secured by the packing of the prefilter. (Fig. 26)
NOTE
The edge of the plastic bag on the air intake should not
extend out of the top of the tank. (See Fig. 26)
If all of the edge of the plastic bag extends out of the top
of the tank, the air intake will be blocked, obstructing
dust collection.
9. Transportation and storage
(1) How to use the handle (Fig. 22)
When carrying or moving the appliance, hold the
handle of the head part. When you do not use the
handle, put it in the head part.
(2) Fixation and release of the caster (Fig. 23)
By lowering the lever of the caster with the brake, the
rotation of the wheel is fixed. When releasing the fixed
wheel, raise the lever. When moving with the appliance
on a vehicle, fix the caster to retain the appliance.
However, when you move the appliance, check that the
caster is released, or the caster will be damaged.
(3) Tool box assembly (2XC only) (Fig.24)
(4) Store the product. (Fig. 25)
NOTE
○To store the hose, you can connect both ends or use
the tool box.
○In addition to connecting the battery to the product, the
battery can be stored in the tool box.
10. How to attach the paper filter (Optional) (Fig. 27)
WARNING
○Be sure to turn offthe appliance and remove the
battery.
○When using a paper filter, use it in combination with the
standard dust filter and prefilter.
If the paper filter gets torn, dust may get inside the motor,
causing abnormal noise or fire due to overheating.
CAUTION
○When using a paper filter, avoid sucking in liquids such
as water or wet dust, as this may lead to tearing of the
filter.
○Do not use a filter damper.
Doing so can reduce the dust collection capacity.
(1) Open the paper filter horizontally so that the suction
hole in the paper filter is over the top of the tank.
(2) Before attaching the filter to the appliance, bend the
two folds in the cardboard approx. 90° in the direction
of the arrow.
(3) Match the suction hole in the paper filter with the
suction opening of the appliance. Insert the filter in
the direction of the arrow as shown in the illustration,
so that the cardboard of the paper filter goes past the
stopper on the suction opening.
WIRELESS LINKING FUNCTION
By setting this product for “Auto” mode, the ON/OFF
switch of the wireless linked electric power tool connected
by Bluetooth can be used to activate or deactivate this
product.
(For compatible models and specifications, refer to the
latest catalogue or consult with the dealer of this product.)
(Fig. 6)
Linking
To simultaneously use this product with an electric
power tool with wireless linking function, pair the units by
Bluetooth connection when starting work.
Make sure that the electric power tool and this product is
connected by hose before taking the following steps to
establish a connection.
(It does not matter whether you start the instructions with
this product or the electric power tool.)
00BookRP3608DBWENE.indb1500BookRP3608DBWENE.indb15 2019/07/2414:06:512019/07/2414:06:51
16
English
This Product Bluetooth Compatible
Product
Turn ON the power
switch (Fig. 5)Draw the switch once
(Fig. 12)
Begin search
(Select “Auto” with the
Auto/Manual switch)
(Fig. 13)
Begin search
(Press the wireless link
switch) (Fig. 15)
Connection (Pairing)
complete* (Fig. 14)Connection (Pairing)
complete* (Fig. 16)
* Requires 1 to 3 seconds (time may vary depending
on distance and obstructions) for both units to search
(flashing lamps) and establish a connection (lamps lit).
NOTE
○No more than two units can be paired simultaneously.
○It will take approximately 0.5 seconds for the product to
activate after switching ON the electric power tool.
Also, when you switch OFF, the product will stop a few
seconds later to complete vacuuming the waste in the
hose.
○While the electric power tool is searching (flashing
display lamp), drawing the electric power tool’s switch
will activate the cleaner’s motor.
Upon completion of the connection (lamp lit), the
product will be activated.
The cleaner’s motor will not start during a search.
○When pairing multiple sets, pair one set at a time.
○While in Auto mode, the product will be automatically
powered OFF if there is no operation for two hours.
○The effective range for wireless linking is approximately
10 m.
This range may be shortened by obstructions between
this product and the electric power tool.
○When disconnected, this product will return to search
status.
Turn Auto OFF
Switching Auto OFF using the product
Pressing the Auto/Manual switch of the product will
activate Manual mode and break the connection.
When the connection is broken, the Auto mode of the
electric power tool will be automatically switch OFF.
This Product Bluetooth Compatible
Product
Auto OFF (Manual mode)
(Fig. 17)Connection OFF (Auto OFF
(Manual mode)) (Fig. 18)
* Auto mode can be switched OFF by switching offthe
product’s power.
Switching Auto OFF using the electric power tool
A long press of the wireless link switch of the electric power
tool will switch to Manual mode, cutting the connection.
When the connection is cut, the electric power tool will
automatically begin searching.
This Product Bluetooth Compatible
Product
Connection OFF
(Searching) (Fig. 19)Auto OFF (Manual mode)
(Fig. 20)
ABOUT REMAINING BATTERY
INDICATOR
Remaining battery power can be verified with either the
battery or with the cleaner itself. (Fig. 28)
NOTE
○The reading for the remaining battery power may differ
on the battery from that of the cleaner.
○Use the remaining battery power as a guideline since
the readings may somewhat differ due to surrounding
temperature or battery feature.
○Verify the cleaner’s remaining battery power when the
product is powered OFF.
HOW TO RECHARGE USB DEVICE
(UC18YSL3)
(1) Select a charging method
○Charging a USB device from a electrical outlet
(Fig. 29-a)
○Charging a USB device and battery from a electrical
outlet (Fig. 29-b)
(2) How to recharge USB device (Fig. 30)
(3) When charging of USB device is completed (Fig. 31)
MAINTENANCE AND INSPECTION
WARNING
○For inspection and maintenance, be sure to turn offthe
vacuum switch and disconnect the battery.
○Do not work with wet hands. May cause electric shock
or injuries.
1. Filter maintenance
To maintain the product’s suction power, frequently
remove any attached dust from the dust filter, prefilter,
cloth filter or filter damper. (Fig. 9)
(1) Gently tap by hand to remove dust from the prefilter,
cloth filter and filter damper. Using compressed air will
make the task easier.
(2) For the dust filter, use a brush or compressed air to
clean.
Regularly wash offany dust from the dust filter with
water once every month or two months.
After washing the filter, sufficiently dry it in the shade
and use the filter once again.
NOTE
○Even if the prefilter is clogged, gently tap it to clear
away dust.
Scrubbing it with a brush or other tool will only shorten
its lifespan.
○Do not inflict impact on the dust filter.
Doing so may crack the resin portion of the filter.
2. Inspecting the mounting screws
Regularly inspect all mounting screws and ensure that
they are properly tightened. Should any of the screws
be loose, retighten them immediately. Failure to do so
could result in serious hazard.
3. Maintenance of the motor
The motor unit winding is the very “heart” of the power
tool.
Exercise due care to ensure the winding does not
become damaged and/or wet with oil or water.
4. Inspection of terminals (tool and battery)
Check to make sure that swarf and dust have not
collected on the terminals.
On occasion check prior, during and after operation.
CAUTION
Remove any swarf or dust which may have collected on
the terminals.
Failure to do so may result in malfunction.
00BookRP3608DBWENE.indb1600BookRP3608DBWENE.indb16 2019/07/2414:06:512019/07/2414:06:51
17
English
5. Check for Dust
Dust may be removed with a soft cloth or a cloth
dampened with soapy water. Do not use bleach,
chlorine, gasoline or thinner, for they may damage the
plastics.
6. Storage
Storing in a place below 40°C and out of the reach of
children.
NOTE
Storing lithium-ion batteries.
Make sure the lithium-ion batteries have been fully
charged before storing them.
Prolonged storage (3 months or more) of batteries with
a low charge may result in performance deterioration,
significantly reducing battery usage time or rendering
the batteries incapable of holding a charge.
However, significantly reduced battery usage time may
be recovered by repeatedly charging and using the
batteries two to five times.
If the battery usage time is extremely short despite
repeated charging and use, consider the batteries
dead and purchase new batteries.
CAUTION
In the operation and maintenance of power tools, the
safety regulations and standards prescribed in each
country must be observed.
Important notice on the batteries for the HiKOKI
cordless power tools
Please always use one of our designated genuine
batteries. We cannot guarantee the safety and
performance of our cordless power tool when used
with batteries other than these designated by us, or
when the battery is disassembled and modified (such
as disassembly and replacement of cells or other
internal parts).
GUARANTEE
We guarantee HiKOKI Power Tools in accordance with
statutory/country specific regulation. This guarantee does
not cover defects or damage due to misuse, abuse, or
normal wear and tear. In case of complaint, please send
the Power Tool, undismantled, with the GUARANTEE
CERTIFICATE found at the end of this Handling instruction,
to a HiKOKI Authorized Service Center.
Information concerning airborne noise and vibration
The measured values were determined according to
EN60335-2-69 and declared in accordance with ISO 4871.
Measured A-weighted sound power level: 88 dB (A)
Measured A-weighted sound pressure level: 75 dB (A)
Uncertainty K: 2 dB (A).
Wear hearing protection.
Vibration total values according to EN60335-2-69:
ah≤2.5 m/s2
Uncertainty K = 1.5 m/s2
NOTE
Due to HiKOKI’s continuing program of research and
development, the specifications herein are subject to
change without prior notice.
00BookRP3608DBWENE.indb1700BookRP3608DBWENE.indb17 2019/07/2414:06:512019/07/2414:06:51
18
English
TROUBLESHOOTING
Use the inspections in the table below if the tool does not operate normally. If this does not remedy the problem, consult
your dealer or the HiKOKI Authorized Service Center.
1. Power tool
Symptom Possible cause Remedy
Tool doesn’t run No remaining battery power Charge the battery.
Battery isn’t fully installed. Push in the battery until a click is heard.
Concrete dust has accumulated on
the terminals of the battery installation
compartment as well as on the battery
sliding grooves.
Clean offthe accumulated concrete dust
with a dry cloth.
Suction power is weak.
Fails to suck in dust. The tank is full of dust or water. Dispose of the dust or water.
After that, remove any dust attached to the
filter.
Filter is clogged. Conduct air blow dusting or remove the
dust attached to the filter.
The filter is not installed.
(Not set in place) Check to see if the filter is properly set.
Plastic bag is incorrectly installed. Properly install the plastic bag.
Dust leaks from the vent. Filter is not installed.
Filter is improperly installed. Properly install the filter.
Filter is damaged. Replace the damaged filter.
Tool suddenly stopped Tool was overburdened Get rid of the problem causing the
overburden.
The battery is overheated. Let the battery cool down.
The product is overheated. Allow the product to fully cool down.
Attachments such as the
connection adapter or joint
-can’t be attached
-fall off
The shape or the dimensions of an
attachment part does not match. Check the model in use and make sure
to use the designated accessories and
attachments listed in this document or in
our catalogue.
Battery cannot be installed Attempting to install a battery other than
that specified for the tool. Please install a multi volt type battery.
Cannot be connected
by Bluetooth or the
connection breaks off
Pairing is unsuccessful Fully read the electric tool’s instruction
manual and properly pair the tool with the
product.
Please note that continued use after a
break may require pairing once again.
Affected by nearby wireless LAN or
equipment emitting radio waves. Put some distance between the product
and the equipment which may be affecting
the connection.
Bluetooth compatible device is too far
from the product Shorten the distance between the product
and the Bluetooth compatible device.
Trying to connect a non-designated
device Only use electric tools designated by our
company.
A device is already connected Two devices cannot be connected to
the product at the same time. Select the
device that you wish to use and connect it
to the product.
00BookRP3608DBWENE.indb1800BookRP3608DBWENE.indb18 2019/07/2414:06:522019/07/2414:06:52
19
English
2. Charger
Symptom Possible cause Remedy
The charge indicator lamp
rapidly flickers purple, and
battery charging doesn’t
begin.
The battery is not inserted all the way. Insert the battery firmly.
There is foreign matter in the battery
terminal or where the battery is attached. Remove the foreign matter.
The charge indicator lamp
blinks red, and battery
charging doesn’t begin.
The battery is not inserted all the way. Insert the battery firmly.
The battery is overheated. If left alone, the battery will automatically
begin charging if its temperature
decreases, but this may reduce battery
life. It is recommended that the battery be
cooled in a well-ventilated location away
from direct sunlight before charging it.
Battery usage time is short
even though the battery is
fully charged.
The battery’s life is depleted. Replace the battery with a new one.
The battery takes a long
time to charge. The temperature of the battery, the
charger, or the surrounding environment is
extremely low.
Charge the battery indoors or in another
warmer environment.
The charger’s vents are blocked, causing
its internal components to overheat. Avoid blocking the vents.
The cooling fan is not running. Contact a HiKOKI Authorized Service
Center for repairs.
The USB power lamp
has switched offand the
USB device has stopped
charging.
The battery’s capacity has become low. Replace the battery with one that has
capacity remaining.
Plug the charger’s power plug into an
electric socket.
USB power lamp does not
switch offeven though the
USB device has finished
charging.
The USB power lamp lights up green to
indicate that USB charging is possible. This is not a malfunction.
It is unclear what the
charging status of a USB
device is, or whether its
charging is complete.
The USB power lamp does not switch off
even when charging is complete. Examine the USB device that is charging to
confirm its charging status.
Charging of a USB device
pauses midway. The charger was plugged into an electrical
socket while the USB device was being
charged using the battery as the power
source.
This is not a malfunction.
The charger pauses USB charging for
about 5 seconds when it is differentiating
between power sources.
A battery was inserted into the charger
while the USB device was being charged
using a power socket as the power source.
Charging of the USB
device pauses midway
when the battery and the
USB device are being
charged at the same time.
The battery has become fully charged. This is not a malfunction.
The charger pauses USB charging for
about 5 seconds while it checks whether
the battery has successfully completed
charging.
Charging of the USB
device doesn’t start when
the battery and the USB
device are being charged
at the same time.
The remaining battery capacity is
extremely low. This is not a malfunction.
When the battery capacity reaches a
certain level, USB charging automatically
begins.
00BookRP3608DBWENE.indb1900BookRP3608DBWENE.indb19 2019/07/2414:06:522019/07/2414:06:52
20
Deutsch
○Kontrollieren Sie alle Stellen des Geräts, die den
Betrieb, die Positionseinstellung und die Befestigung
der beweglichen Teile beeinträchtigen können auf
Störungen, beschädigte Teile und korrekte Befestigung.
○Austausch und Reparatur einer beschädigten
Schutzabdeckung und anderer Komponenten sollte
nach den Vorschriften der Bedienungsanleitung
erfolgen. Enthält die Bedienungsanleitung keine
derartigen Vorschriften, wenden Sie sich wegen der
Reparatur an Ihren Einzelhändler vor Ort oder einen
Vertragskundendienst.
○Wenden Sie sich bei einem Defekt des Schalters wegen
der Reparatur an Ihren Einzelhändler vor Ort oder einen
Vertragskundendienst.
Vermeiden Sie es, den Staubsauger zu verwenden,
wenn dieser nicht durch den Schalter gestartet oder
gestoppt werden kann.
11. Kontaktieren Sie für die Reparatur des Staubsaugers ein
Fachgeschäft.
○Da dieser Staubsauger einen entsprechenden
Sicherheitsstandard erfüllt, darf er nicht verändert
werden.
○Lassen Sie Reparaturen unbedingt von Ihrem
Einzelhändler vor Ort oder einem Vertragskundendienst
durchführen. Selbst durchgeführte Reparaturen können
zu Unfällen oder Verletzungen führen.
12.
Lassen Sie Kinder oder Personen mit eingeschränkten
physischen, sensorischen oder geistigen Fähigkeiten oder
einem Mangel an Erfahrung und Wissen niemals das Gerät
verwenden. Kinder dürfen nicht mit dem Gerät spielen.
13. Bediener müssen ausreichend in die Verwendung des
Geräts eingewiesen werden.
VORSICHTSMASSNAHMEN BEI
DER VERWENDUNG DES AKKU-
STAUBSAUGERS
Die allgemeinen Vorsichtsmaßnahmen für die Staubsauger
wurden beschrieben. Befolgen Sie für Staubsauger für
Elektrowerkzeuge die weiteren unten beschriebenen
Vorsichtsmaßnahmen:
WARNUNG
1. Vermeiden Sie ein Aufsaugen der folgenden Dinge
durch das Gerät:
○Beim Schleifen oder Schneiden von Metall entstehende
Funken.
○Gegenstände mit hohen Temperaturen wie z. B.
brennende Zigaretten.
○Entzündbare Stoffe (Benzin, Verdünner, Benzol,
Kerosin, Farbe etc.) explosive Stoffe (Nitroglyzerin etc.),
brennbare Stoffe (Aluminium, Zink, Magnesium, Titan,
roter Phosphor, gelber Phosphor, Zelluloid etc.)
○Scharfe Gegenstände wie Nägel oder Rasierklingen.
○Holzspäne, Metall, Stein, Draht etc.
○Festwerdende Materialien wie Zementpulver und
Toner sowie leitende Feinstäube wie Metallpulver und
Kohlenstaub.
○Schäumende Flüssigkeiten wie Öl, kochendes Wasser,
Chemikalien und Reinigungsmittel. Flüssigkeiten wie
Wasser und Öl. Kann zu Feuer oder Verletzungen
führen.
2. Setzen Sie den Filter vor der Verwendung
ordnungsgemäß ein. Benutzen Sie das Gerät nicht ohne
Filter oder mit falsch eingesetztem oder eingerissenem
Filter. Kann zu Defekten wie der Überhitzung des Motors
führen.
3.
Verwenden Sie das Gerät nicht mit verstopfter
Saugöffnung, Lufteinlassöffnung oder Abluftöffnung,
anderenfalls kann es zu einem übermäßigen Anstieg der
Motortemperatur und zu Problemen wie Deformationen
oder der Überhitzung des Motors kommen.
SICHERHEITSVORKEHRUNGEN FÜR
DAS AKKU-WERKZEUG
○Befolgen Sie die im Folgenden aufgeführten
“Sicherheitsmaßnahmen”, um Unfälle wie Feuer,
elektrische Schläge und Verletzungen zu vermeiden.
○Lesen Sie die “Sicherheitsmaßnahmen” vor der
Verwendung des Geräts vollständig durch und benutzen
Sie das Gerät anweisungsgemäß.
○Bewaren Sie dieses Bedienungsanleitung an einem Ort
auf, an dem sie dem Benutzer jederzeit zugänglich ist.
WARNUNG
1. Halten Sie den Arbeitsplatz sauber. Ein unaufgeräumter
Platz oder eine unsaubere Werkbank kann zu Unfällen
führen.
2. Achten Sie auch auf die Umgebung des Arbeitsplatzes.
Sorgen Sie für ausreichende Beleuchtung. Benutzen Sie
das Gerät nicht in der Nähe entzündbarer Flüssigkeiten
oder Gase.
3. Von Kindern fernhalten. Lassen Sie keine anderen
Personen als den Bediener den Staubsauger oder das
Kabel berühren. Halten Sie Personen, vom Bediener
abgesehen, vom Arbeitsplatz fern.
4. Verwenden Sie den Staubsauger, der für die anfallenden
Arbeiten geeignet ist. Verwenden Sie das Gerät
ausschließlich für die angegebenen Anwendungen.
5. Behandeln Sie das Stromkabel nicht grob.
○Tragen Sie das Ladegerät nicht, indem Sie es nur am
Netzkabel festhalten, und ziehen Sie den Stecker nicht
aus der Steckdose, indem Sie das Netzkabel festhalten.
○Halten Sie das Stromkabel fern von Hitze, Öl und
scharfen Kanten.
6. Der Staubsauger sollte sorgfältig gepflegt werden.
Das Auswechseln von Zubehör sollte nach den
Anweisungen der Bedienungsanleitung erfolgen. Prüfen
Sie in regelmäßigen Abständen das Netzkabel des
Ladegeräts und wenden Sie sich an Ihren Händler für
Reparaturen, falls es beschädigt ist.
Überprüfen Sie bei Verwendung eines
Verlängerungskabels dieses regelmäßig und tauschen
Sie es im Falle von Beschädigungen aus.
7. Schalten Sie in den folgenden Fällen den Staubsauger
und die Hauptstromversorgung AUS:
Der Staubsauger wird nicht verwendet oder wird zur
Reparatur eingeschickt.
Zubehörteile wie Schlauch oder Filter werden
ausgetauscht.
Es wird von einer Gefahr ausgegangen.
8. Vermeiden Sie ungewolltes Einschalten des Geräts.
Tragen Sie das an die Stromversorgung angeschlossene
Gerät nicht mit dem Finger auf dem Schalter.
Vergewissern Sie sich, dass der Schalter ausgeschaltet
ist, bevor Sie den Akku einsetzen.
9. Führen Sie die Arbeiten mit angemessener Sorgfalt
aus. Wenn Sie den Staubsauger verwenden, achten
Sie auf die Handhabung, die Ausführung der Arbeit, die
Umgebungssituation usw. und führen Sie die Bedienung
vorsichtig aus. Wenn Sie mit Abstand vom Staubsauger
arbeiten, achten Sie auf den Betriebszustand des
Staubsaugers. (ungewöhnliche Geräusche, Abblasen
von Staub, Rauchaustritt usw.) Lassen Sie sich von
Ihrem gesunden Menschenverstand leiten. Benutzen
Sie das Gerät nicht, wenn Sie müde sind.
10. Überprüfen Sie das Gerät auf beschädigte Teile.
○Überprüfen Sie das Gerät vor der Verwendung
auf Beschädigungen der Schutzabdeckung und
anderer Teile und stellen Sie das ordnungsgemäße
Funktionieren des Geräts und die korrekte Durchführung
der beschriebenen Funktionen sicher.
(Übersetzung der Original-Gebrauchsanweisung)
00BookRP3608DBWENE.indb2000BookRP3608DBWENE.indb20 2019/07/2414:06:522019/07/2414:06:52
Table of contents
Languages:
Other HIKOKI Vacuum Cleaner manuals
HIKOKI
HIKOKI RP 3608DA User manual
HIKOKI
HIKOKI RP 18DA User manual
HIKOKI
HIKOKI RP 3615DA User manual
HIKOKI
HIKOKI Dust Extractor System User manual
HIKOKI
HIKOKI R 14DSL User manual
HIKOKI
HIKOKI R 12DA User manual
HIKOKI
HIKOKI R 18DSAL User manual
HIKOKI
HIKOKI RP 3608DA User manual
HIKOKI
HIKOKI R 18DC User manual
HIKOKI
HIKOKI R 18DA User manual
