Hillrom Liko SafetyVest 93 Manual

Product Description
The Liko SafetyVest is a sit-to-stand vest that is
unique in terms of safety, form and function.This vest
is designed to lift around the back and under the
arms. The inside is lined with a material that is inten-
ded to prevent the vest from sliding up on the body.
The waist belt, which is sewn to the vest, is a safety
feature that helps to avoid the risk of a patient sliding
out of the sit-to-stand vest.
You must use a combination of two loops on each
hook when attaching the sling to the lift.
The Liko SafetyVest is available in two models and
several different sizes. Model 94 is equipped with a
higher back to provide extra support for the back.
The Liko SafetyVest is mainly intended for use in
combination with the Sabina sit-to-stand lift with a
narrow slingbar (350-slingbar).
In combination with Sabina, the SafetyVest forms a
functional unit. For complete information and best
results, read the instruction guides for both products.
A complete understanding of the contents of these
instruction guides is essential, and the equipment
should only be used by staff who are fully informed.
Caution triangles are used to warn of situations that demand extra care and attention.
In this document, the person being lifted is referred to as the ”patient” and the person helping them is referred to
as the ”caregiver”.
Mod. 94
Mod. 93
Before using lifts and lifting accessories, read the instructions for both the sling and the lift that will
be used. Instruction guides can be downloaded, free of charge, at www.liko.com.
Liko SafetyVest™, Mod. 93, 94
Instruction Guide
English
7EN160146-03

2
Liko SafetyVest • 7EN160146-03 www.liko.com
Outer Vest Straps
1. Outer vest
2. Product label
3. Size (colour)
4. Serial number
5. Outer vest strap
6. Inner vest strap
7. Loop strap
8. Lower edge
9. Waist belt
10. Inner strap guide
11. Outer strap guide
12. Extra back support
13. Label: Periodic Inspection
14. Label: Individual marking
(Belongs to)
Description of Vest Strap Function
The outer vest is equipped with two vest straps: outer and
inner strap, for maximum exibility during use. Generally, you
should use the inner strap (A) to achieve a maximum upright
stance. The outer strap (B) is used when the patient’s girth so
requires it, or if the patient is short in relation to the height of
the slingbar hooks on the Sabina.
In cases where the inner strap is used, we recommend that
you also hook the outer strap to the lift in order to have better
visual control of the straps.
Inner strap guide
Outer strap guide
Inner strap
(A)
Outer strap
(B)
Mod. 93
Mod. 94
2
3
8
8
7
7
5
5
6
6
4
9
1
1
10
11
1
8
9
6
5
7
12
13 14
12
Before lifting, keep the following points in mind:
• A responsible person within your organization should decide on a case-by-case basis whether one or more care-
givers are needed.
• Ensure that the sling selected meets the patient’s needs with reference to model, size, fabric and design.
• For safety and hygiene reasons, use individual slings.
• Before lifting, plan the lifting operation so that it can be done as safely and smoothly as possible.
• Although Liko’s sling bars are equipped with safety latches, special caution must be exercised: Before the patient
is lifted from the underlying surface, but after the straps have been fully extended, make sure the straps are pro-
perly connected to the sling bar.
• The height to which the lift should proceed varies from person to person.
• Never leave a patient unattended during a lifting situation.
• Make sure that the wheels on the wheelchair, bed, gurney, etc., are locked during the lifting/transfer operation.
• Always work ergonomically.
Safety Instructions
Denitions

3
Liko SafetyVest • 7EN160146-03 www.liko.com

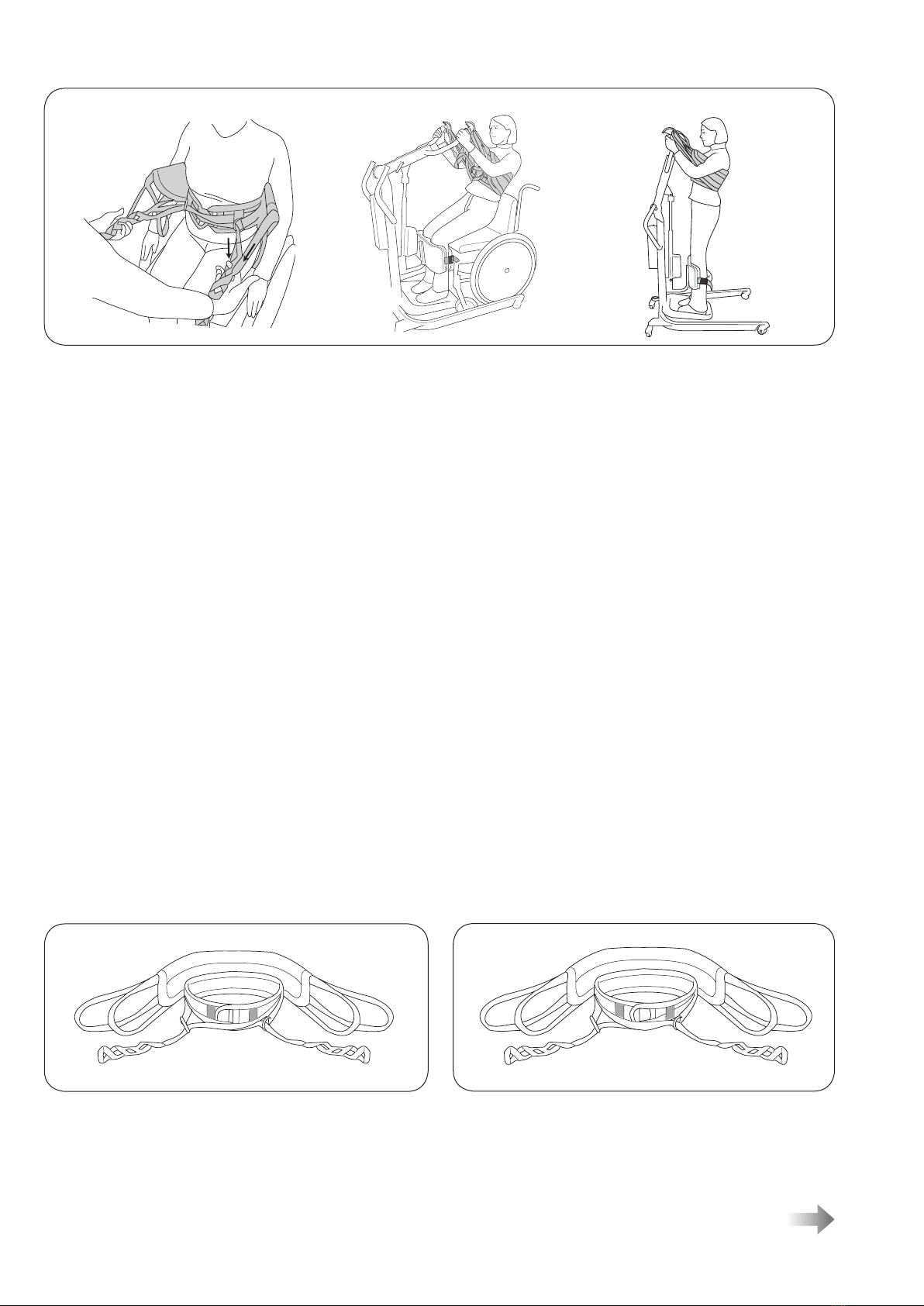

Active Stand-up Lifting with Sabina and Liko SafetyVest
Slide the SafetyVest down behind
the patient to waist level. The lower
edge of the waist belt should be
farthest down and be placed closest
to the body with the patient’s arms
outside the vest and the waist belt.
An inner loop gives a tighter t.
Loop Straps
Cross the loop straps and thread
them through the D-rings on the
opposite sides. See description on
page 4-5 for different tting alterna-
tives.
An outer loop gives a looser t.
Pull on the straps to check the
tension.
If the waist belt does not tighten
sufciently, change the threading
of the loop straps.
This practical accessory is used to mark the loops that have
been tried out for a certain person. It makes it easier for the
caregivers to choose the right loop to attach to the slingbar.
Loop Clips

4
Liko SafetyVest • 7EN160146-03 www.liko.com
Determine which of the straps should be
hooked to the lift by pulling (straight for-
ward) on the outer vest straps and loop
straps simultaneously (see diagram of
loop straps, page 2-3: Loop straps).
Try to achieve optimal t around the abdo-
men by using a conguration that enables
equal tension on the vest straps and loop
straps as they tighten while the patient
stands.
Position Sabina and adjust the width of
the base, so that the patient’s feet can be
centered on the footrest. The lower legs
(below the knees) should be parallel to
the lower-leg pad on the lift. Adjust the
horizontal and vertical position of the pad
for comfortable resistance just below the
kneecaps.
Attach and tighten the strap around the
lower legs.
Now you are ready to attach the loop
straps and vest straps (which you have
tested according to the above) to the sling-
bar.
Raising: Maneuver the lift by pres-
sing the up and down buttons (two
possible speeds). The patient should,
if possible, participate by grasping the
slingbar and pulling himself/herself
upwards.
Hint! We recommend that patients
lean the upper body back somewhat,
to compensate for weak muscles in
the lower body. This facilitates stan-
ding, enhances comfort and prevents
the vest from sliding upward.
Hint! Remember, the raising proce-
dure is easier if the patient sits rela-
tively high, i.e., with the hip joints at
the same or a somewhat higher level
than the knees.
How high should the patient be
lifted?
The height a patient is lifted should be
determined from case to case.
The maximum stand-up height can be
regulated as follows.
AAdjust the Sabina base for the lifting
height. See the Sabina instruction
guide.
BSelect either the inner or the outer
strap on the outer vest. See page 2:
Outer vest straps.
Different Loop-strap Threading Alternatives
Alt. A: For very thin patients
Remove the loop straps from the inner strap guides before
threading them through the metal D-rings. This enables the
tightest t.
Alt. B: For average patients
Remove only one of the loop straps from an inner strap
guide. Then cross the loop straps and thread them through
the metal D-rings.

5
Liko SafetyVest • 7EN160146-03 www.liko.com
Accessories for Liko SafetyVest
Alt. C: For large patients
Thread the loop straps through both the inner and both outer
strap guides before threading them through the metal D-rings.
Hint!
To further increase the width, the loop straps can be used
together with Liko Extension Loops.
The SafetyVest is equipped with a zipper, so that a padding
of synthetic sheepskin can be added for a softer surface
that distributes pressure more evenly.
In some cases, a SeatStrap (accessory: 3591115) may be
used to assist lifting. The SeatStrap is guided down towards
the caudal vertebra as far as possible. This helps to lift from
under the buttocks. When an upright stance has been achie-
ved, load is relieved from the SeatStrap and it can be easily
moved aside, e.g., during visits to the lavatory. When lowe-
ring to a sitting position, it may be appropriate to remove the
SeatStrap so that the patient can sit farther back in the chair.
When using the SeatStrap, a special accessory must be
attached to the lift: the SeatStrap SlingBar.
Make sure to thoroughly study the instruction guide for the
SeatStrap before using it.
SeatStrap Padding (for Mod. 93)

© Copyright Liko AB 2010-09
Facts about the Liko SafetyVest
Caution!
Lifting and transferring a patient always involves a degree
of risk. Study the instruction guides for both lift systems
and accessories carefully. A complete understanding of the
contents of instructions is essential. Only trained personnel
should use the equipment.
Make certain that the lifting accessories are appropriate for
the lift you are using and for the lifting situation. Exercise
caution and care when using lift equipment and accessories.
As a caregiver, you are responsible for the patient’s safety.
You must be well informed of the patient’s condition and abi-
lity to manage the lifting situation.
Inspect the sling regularly, especially after laundering. Check
carefully for wear and damage to seams, fabric, straps and
loop straps. Never use damaged accessories! When in doubt,
contact the manufacturer or supplier.
Combinations
The SafetyVest is intended for use only with Liko Sabina sit-to-stand lifts. We recommend Sabina with 350-slingbar (narrow).
Description Prod. No. Size Body weight* Vest width
Liko SafetyVest 3593115 Medium < 80 kg (176 lbs.) A: 90 cm (35 inch.)
Liko SafetyVest 3593116 Large > 70 kg (154 lbs.) A: 105 cm (41 inch.)
Liko SafetyVest w. extra back support 3594415 Medium < 80 kg (176 lbs.) A: 90 cm (35 inch.)
Liko SafetyVest w. extra back support 3594416 Large > 70 kg (154 lbs.) A: 105 cm (41 inch.)
*Note! Weights given are approximate guides. Variations are normal.
Liko slings are approved for 200 kg (440 lbs.) maximum load or more. See product label.
Advice for choosing size
The net-clad vest component should reach properly around the back and under the arms.
If the vest is too large, the patient may not be able to grasp the slingbar.
Accessory Prod. No.
Padding Medium (ts 3593115) 3691035
Padding Large (ts 3593116) 3691036
SeatStrap 3691115
Loop clips, yellow 3666035 The Loop clips are also available in other colours.
Loop clips, blue 3666036
Class I medical device
Liko's products are constantly being updated and rened. Liko reserve the right to change aspects of the products
without prior notice. Contact your local Liko representative for updated information and advice.
A
Manufacturer:
Liko AB
SE-975 92 Luleå
Sweden
[email protected]
www.liko.com
Washing instructions: See the sling’s product label.
Expected Life Time
The product has an expected life time of 1-5 years with normal use. Expected life time varies depending on the fabric, use
frequency, washing procedure, and weight carried.
Periodic Inspection
The product must be inspected at least once every 6 months. More frequent inspections might be required if the product is used
or washed more often than normal. See Liko’s protocol for Periodic Inspection for the respective product.
Combinations of accessories/products other than those recommended by Liko can result in risks for the safety of the patient.
In those cases where another manufacturer recommends Liko’s accessories/products in combination with their or others’
accessories/products, and the combinations are not approved by Liko, that manufacturer assumes the responsibility for that
combination. Liko then refers to the responsible manufacturer’s instruction guides and recommendations concerning usage,
maintenance, cleaning, checking and inspection of the combination in order to full the EN ISO 10535 requirements.
