ORIGINAL OPERATING INSTRUCTIONS
AG 125-A22 angle grinder
It is essential that the operating instructions
are read before the power tool is operated for
the first time.
Always keep these operating instructions to-
gether with the power tool.
Ensure that the operating instructions are
with the power tool when it is given to other
persons.
Contents Page
1 General information 1
2 Safety instructions 2
3Description 6
4Consumables 7
5 Technical data 8
6Beforeuse 9
7 Operation 10
8 Care and maintenance 11
9 Troubleshooting 11
10 Disposal 12
11 Manufacturer’s warranty - tools 12
12 EC declaration of conformity (original) 13
1These numbers refer to the illustrations. You can
find the illustrations at the beginning of the operating
instructions.
In these operating instructions, the designation “power
tool” always refers to the AG 125‑A22 cordless angle
grinder.

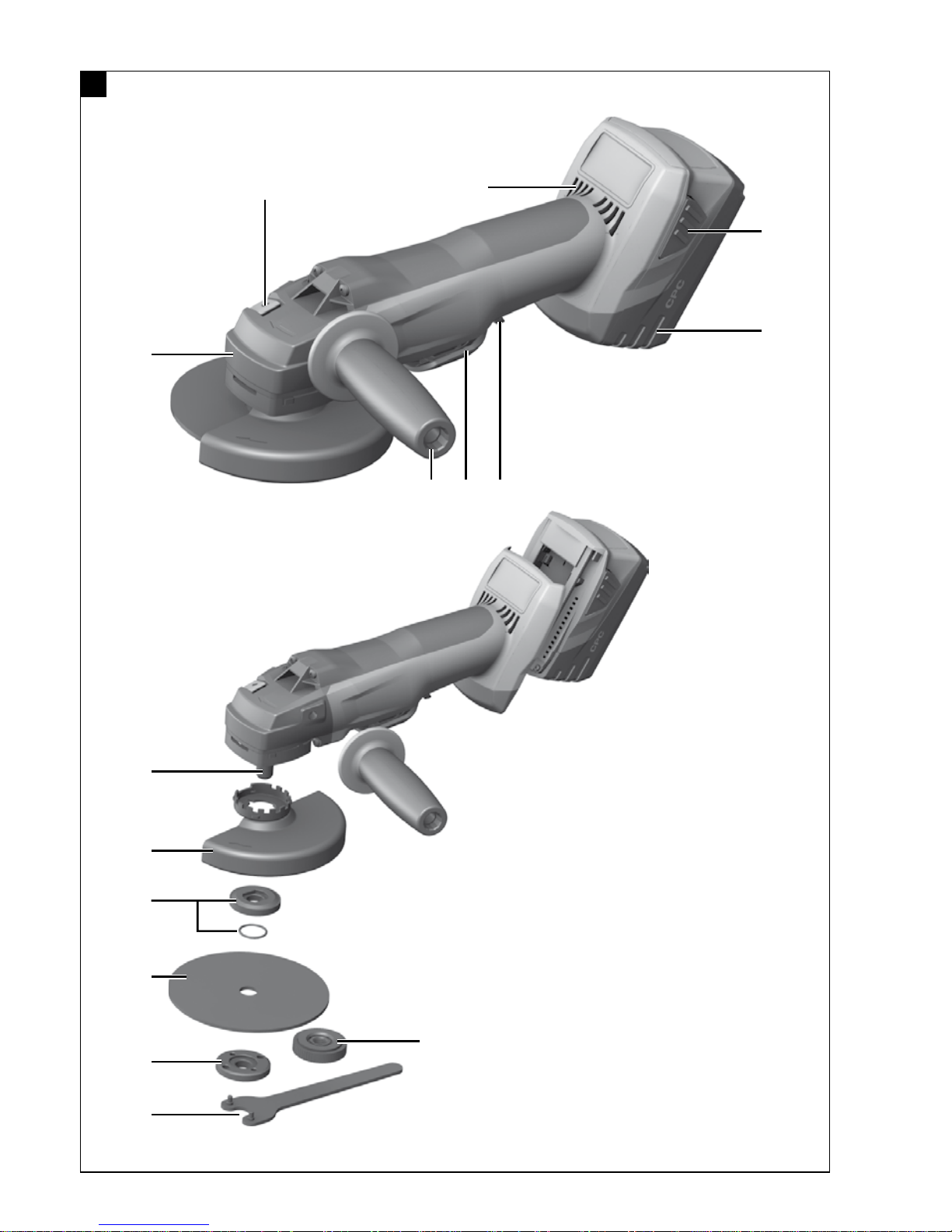

Operating controls and parts 1
@Guard release button
;Spindle lockbutton
=Ventilation slots
%Release buttons with additional function (charge
status display activation)
&Battery
(Switch-on interlock
)On / off switch
+Vibration-absorbing side handle
§Spindle
/Guard
:Clamping flange with O-ring
·Abrasive cutting disc / abrasive grinding disc
$Clamping nut
£Kwik‑Lock quick-release clamping nut (optional)
|Wrench
1 General information
1.1 Safety notices and their meaning
DANGER
Draws attention to imminent danger that will lead to
seriousbodilyinjuryorfatality.
WARNING
Draws attention to a potentially dangerous situation that
could lead to serious personal injury or fatality.
CAUTION
Draws attention to a potentially dangerous situation that
could lead to slight personal injury or damage to the
equipment or other property.
NOTE
Draws attention to an instruction or other useful informa-
tion.
1.2 Explanation of the pictograms and other
information
Warning signs
General
warning
Obligation signs
Wear eye
protection Read the operating
instructions
before use.
en
1
Printed: 20.01.2015 | Doc-Nr: PUB / 5071442 / 000 / 04

Symbols
Rated speed Revolutions
per minute Revolutions per minute
Location of identification data on the power tool
The type designation and serial number can be found
on the type identification plate on the machine or tool.
Makeanoteofthisdatainyouroperatinginstructions
and always refer to it when making an enquiry to your
Hilti representative or service department.
Type:
Generation: 01
Serial no.:
2 Safety instructions
NOTE
The safety rules in section 2.1 contain all general safety
rules for power tools which, in accordance with the
applicable standards, must be listed in the operating
instructions. Accordingly, some of the rules listed may
not be relevant to this tool.
2.1 General power tool safety warnings
a) WARNING
Read all safety warnings and all instructions. Fail-
ure to follow the warnings and instructions may result
in electric shock, fire and/or serious injury. Save all
warnings and instructions for future reference.
The term “power tool” in the warnings refers to
your mains-operated (corded) power tool or battery-
operated (cordless) power tool.
2.1.1Workareasafety
a) Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
b) Do not operate power tools in explosive atmo-
spheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
c) Keep children and bystanders away while operat-
ing a power tool. Distractions can cause you to lose
control.
2.1.2 Electrical safety
a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any ad-
apter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce
risk of electric shock.
b) Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet condi-
tions. Water entering a power tool will increase the
risk of electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
f) If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk
of electric shock.
2.1.3 Personal safety
a) Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the influence of drugs, alcohol or medication. A
moment of inattention while operating power tools
may result in serious personal injury.
b) Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce
personal injuries.
c) Prevent unintentional starting. Ensure the switch
is in the off‐position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your finger on the
switch or energising power tools that have the switch
on invites accidents.
d) Remove any adjusting key or wrench before turn-
ing the power tool on. A wrench or a key left at-
tached to a rotating part of the power tool may result
in personal injury.
e) Do not overreach. Keep proper footing and bal-
ance at all times. This enables better control of the
power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves
en
2
Printed: 20.01.2015 | Doc-Nr: PUB / 5071442 / 000 / 04

away from moving parts. Loose clothes, jewellery
or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust
extraction and collection facilities, ensure these
are connected and properly used. Use of dust
collection can reduce dust-related hazards.
2.1.4 Power tool use and care
a) Do not force the power tool. Use the correct
power tool for your application. The correct power
tool will do the job better and safer at the rate for
which it was designed.
b) Do not use the power tool if the switch does not
turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be
repaired.
c) Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
d) Store idle power tools out of the reach of chil-
dren and do not allow persons unfamiliar with the
power tool or these instructions to operate the
power tool. Power tools are dangerous in the hands
of untrained users.
e) Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and
any other condition that may affect the power
tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by
poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly main-
tained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to
be performed. Use of the power tool for opera-
tions different from those intended could result in a
hazardous situation.
2.1.5 Battery tool use and care
a) Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one
type of battery pack may create a risk of fire when
used with another battery pack.
b) Use power tools only with specifically designated
battery packs. Use of any other battery packs may
create a risk of injury and fire.
c) When battery pack is not in use, keep it away
from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects,
that can make a connection from one terminal to
another. Shorting the battery terminals together may
cause burns or a fire.
d) Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact acci-
dentally occurs, flush with water. If liquid contacts
eyes, additionally seek medical help. Liquid ejec-
ted from the battery may cause irritation or burns.
2.1.6 Service
a) Have your power tool serviced by a qualified repair
person using only identical replacement parts.
This will ensure that the safety of the power tool is
maintained.
2.2 Safety warnings for abrasive cutting-off
operations
a) This power tool is intended to function as a cut-
off tool. Read all safety warnings, instructions,
illustrations and specifications provided with this
power tool. Failure to follow all instructions listed
below may result in electric shock, fire and/or serious
injury.
b) Operations such as sanding, wire brushing or
polishing are not recommended to be performed
with this power tool Operations for which the power
tool was not designed may create a hazard and cause
personal injury.
c) Do not use accessories which are not specifically
designed and recommended by the tool manufac-
turer. Just because the accessory can be attached
to your power tool, it does not assure safe operation.
d) The rated speed of the accessory must be at
least equal to the maximum speed marked on the
power tool. Accessories running faster than their
rated speed can break and fly apart.
e) The outside diameter and the thickness of your
accessory must be within the capacity rating of
your power tool. Incorrectly sized accessories can-
not be adequately guarded or controlled.
f) Threaded mounting of accessories must match
the grinder spindle thread. For accessories moun-
ted by flanges, the arbour hole of the accessory
must fit the locating diameter of the flange. Ac-
cessories that do not match the mounting hardware
of the power tool will run out of balance, vibrate
excessively and may cause loss of control.
g) Do not use a damaged accessory. Before each
use inspect the accessory such as abrasive
wheels for chips and cracks, backing pad for
cracks, tear or excess wear, wire brush for loose
or cracked wires. If power tool or accessory
is dropped, inspect for damage or install an
undamaged accessory. After inspecting and
installing an accessory, position yourself and
bystanders away from the plane of the rotating
accessory and run the power tool at maximum
no-load speed for one minute. Damaged
accessories will normally break apart during this test
time.
h) Wear personal protective equipment. Depending
on application, use face shield, safety goggles or
safety glasses. As appropriate, wear dust mask,
hearing protectors, gloves and workshop apron
capable of stopping small abrasive or workpiece
fragments. The eye protection must be capable of
stopping flying debris generated by various opera-
tions. The dust mask or respirator must be capable of
filtrating particles generated by your operation. Pro-
en
3
Printed: 20.01.2015 | Doc-Nr: PUB / 5071442 / 000 / 04

longed exposure to high intensity noise may cause
hearing loss.
i) Keep bystanders a safe distance away from
work area. Anyone entering the work area must
wear personal protective equipment. Fragments
of workpiece or of a broken accessory may fly
away and cause injury beyond immediate area of
operation.
j) Hold the power tool by insulated gripping surfaces
only, when performing an operation where the
cutting accessory may contact hidden wiring or
its own cord. Cutting accessory contacting a "live"
wire may make exposed metal parts of the power tool
"live" and could give the operator an electric shock.
k) Position the cord clear of the spinning accessory.
If you lose control, the cord may be cut or snagged
and your hand or arm may be pulled into the spinning
accessory.
l) Never lay the power tool down until the access-
ory has come to a complete stop. The spinning
accessory may grab the surface and pull the power
tool out of your control.
m) Do not run the power tool while carrying it at your
side. Accidental contact with the spinning accessory
could snag your clothing, pulling the accessory into
your body.
n) Regularly clean the power tool’s air vents. The
motor’sfanwilldrawthedustinsidethehousing
and excessive accumulation of powdered metal may
cause electrical hazards.
o) Do not operate the power tool near flammable
materials. Sparks could ignite these materials.
p) Do not use accessories that require liquid
coolants. Using water or other liquid coolants may
result in electrocution or shock.
2.3 Kickback and related warnings
Kickback is a sudden reaction to a pinched or snagged
rotating wheel, backing pad, brush or any other access-
ory. Pinching or snagging causes rapid stalling of the
rotating accessory which in turn causes the uncontrolled
power tool to be forced in the direction opposite of the
accessory’s rotation at the point of the binding.
For example, if an abrasive wheel is snagged or pinched
by the workpiece, the edge of the wheel that is entering
into thepinch point can dig into the surface ofthe material
causing the wheel to climb out or kick out. The wheel may
either jump toward or away from the operator, depending
on direction of the wheel’s movement at the point of
pinching. Abrasive wheels may also break under these
conditions.
Kickback is the result of power tool misuse and/or in-
correct operating procedures or conditions and can be
avoided by taking proper precautions as given below.
a) Maintain a firm grip on the power tool and po-
sition your body and arm to allow you to resist
kickback forces. Always use auxiliary handle, if
provided, for maximum control over kickback or
torque reaction during start-up. The operator can
control torque reactions or kickback forces, if proper
precautions are taken.
b) Never place your hand near the rotating access-
ory. Accessory may kickback over your hand.
c) Do not position your body in the area where power
tool will move if kickback occurs. Kickback will
propel the tool in direction opposite to the wheel’s
movement at the point of snagging.
d) Use special care when working corners, sharp
edges etc. Avoid bouncing and snagging the ac-
cessory. Corners, sharp edges or bouncing have a
tendency to snag the rotating accessory and cause
loss of control or kickback.
e) Do not attach a saw chain woodcarving blade or
toothed saw blade. Such blades create frequent
kickback and loss of control.
2.4 Safety warnings specific for grinding and
abrasive cutting-off operations
a) Use only wheel types that are recommended for
your power tool and the specific guard designed
for the selected wheel. Wheels for which the power
tool was not designed cannot be adequately guarded
and are unsafe.
b) The grinding surface of centre depressed wheels
must be mounted below the plane of the guard lip.
An improperly mounted wheel that projects through
the plane of the guard lip cannot be adequately
protected.
c) The guard must be securely attached to the power
tool and positioned for maximum safety, so the
least amount of wheel is exposed towards the op-
erator. The guard helps to protect operator from
broken wheel fragments, accidental contact with
wheel and sparks that could ignite clothing.
d) Wheels must be used only for recommended ap-
plications. For example: do not grind with the side
of cut-off wheel. Abrasive cut-off wheels are inten-
ded for peripheral grinding, side forces applied to
these wheels may cause them to shatter.
e) Always use undamaged wheel flanges that are of
correct size and shape for your selected wheel.
Proper wheel flanges support the wheel thus redu-
cing the possibility of wheel breakage. Flanges for
cut-off wheels may be different from grinding wheel
flanges.
f) Do not use worn down wheels from larger power
tools. Wheel intended for larger power tool is not
suitable for the higher speed of a smaller tool and
may burst.
2.5 Additional safety warnings specific for abrasive
cutting-off operations
a) Do not "jam" the cut-off wheel or apply excessive
pressure. Do not attempt to make an excessive
depth of cut. Overstressing the wheel increases the
loading and susceptibility to twisting or binding of
the wheel in the cut and the possibility of kickback or
wheel breakage.
b) Do not position your body in line with and behind
the rotating wheel. When the wheel, at the point
of operation, is moving away from your body, the
en
4
Printed: 20.01.2015 | Doc-Nr: PUB / 5071442 / 000 / 04

possible kickback may propel the spinning wheel
and the power tool directly at you.
c) When wheel is binding or when interrupting a cut
for any reason, switch off the power tool and hold
the power tool motionless until the wheel comes
to a complete stop. Never attempt to remove the
cut-off wheel from the cut while the wheel is in
motion otherwise kickback may occur.Investigate
and take corrective action to eliminate the cause of
wheel binding.
d) Do not restart the cutting operation in the work-
piece. Let the wheel reach full speed and carefully
re-enter the cut. The wheel may bind, walk up or
kickback if the power tool is restarted in the work-
piece.
e) Support panels or any oversized workpiece to
minimize the risk of wheel pinching and kickback.
Large workpieces tend to sag under their own weight.
Supports must be placed under the workpiece near
the line of cut and near the edge of the workpiece on
both sides of the wheel.
f) Use extra caution when making a "pocket cut"
into existing walls or other blind areas. The pro-
truding wheel may cut gas or water pipes, electrical
wiring or objects that can cause kickback.
2.6 Additional safety instructions
2.6.1 Personal safety
a) Modification of the machine or tampering with its
parts is not permissible.
b) Wear ear protectors. Exposure to noise can cause
hearing loss.
c) Always hold the power tool securely with both
hands on the grips provided. Keep the grips dry,
clean and free from oil and grease.
d) Breathing protection must be worn if the power
tool is used without a dust removal system for
work that creates dust.
e) Improve the blood circulation in your fingers by
relaxing your hands and exercising your fingers
during breaks between working.
f) Avoid touching rotating parts. Switch the power
tool on only after bringing it into position at the
workpiece. Touching rotating parts, especially rotat-
ing insert tools, may lead to injury.
g) The appliance is not intended for use by debilit-
ated persons who have received no special train-
ing. Keep the appliance out of reach of children.
h) Dust from materials, such as paint containing lead,
some wood species, concrete / masonry / stone con-
taining silica, and minerals as well as metal, may be
harmful. Contact with or inhalation of the dust may
cause allergic reactions and/or respiratory or other
diseases to the operator or bystanders. Certain kinds
of dust are classified as carcinogenic such as oak and
beech dust, especially in conjunction with additives
for wood conditioning (chromate, wood preservative).
Material containing asbestos must only be treated by
specialists. Wheretheuseofadust-extraction
device is possible it shall be used. To achieve a
high level of dust collection, use a suitable dust
extractor. When indicated wear a respirator ap-
propriate for the type of dust generated. Ensure
that the workplace is well ventilated. Follow na-
tional requirements for the materials you want to
work with.
i) The user and any other persons in the vicinity
must wear suitable eye protection, a hard hat,
ear protection, protective gloves and breathing
protection while the tool is in use.
j) If the electric tool detects that it is being operated
beyond its limits or if the battery is fully discharged,
it may happen that the disc is no longer braked by
the motor.
2.6.2 Power tool use and care
a) Grinding discs must be stored and handled care-
fully in accordance with the manufacturer’s in-
structions.
b) Never use the power tool without the guard.
c) The workpiece must be fixed securely in place.
d) Do not use cutting discs for grinding.
e) If the nut securing the disc and flange is not
tightened firmly, the disc may work loose from
the spindle due to the braking effect of the motor.
Tighten the disc / flange securing nut in accordance
with the directions given in the operating instructions.
Wait until the disc comes to a standstill.
2.6.3 Electrical safety
a) Before beginning work, check the working area
(e.g. using a metal detector) to ensure that no
concealed electric cables or gas and water pipes
are present. External metal parts of the power tool
may become live, for example, when an electric cable
is damaged accidentally. This presents a serious risk
of electric shock.
b) Dirty or dusty power tools that have been used fre-
quently for work on conductive materials should
be checked at regular intervals at a Hilti Service
Center. Under unfavorable circumstances, damp-
ness or dust adhering to the surface of the tool,
especially dust from conductive materials, may lead
to damage to the tool.
2.6.4 Careful handling and use of batteries
a) Observe the special guidelines applicable to the
transport, storage and use of Li-ion batteries.
b) Do not expose batteries to high temperatures and
keep them away from fire. This presents a risk of
explosion.
c) Do not disassemble, squash or incinerate batter-
ies and do not subject them to temperatures over
80°C. This presents a risk of fire, explosion or injury
through contact with caustic substances.
d) Do not charge or continue to use damaged bat-
teries (e.g. batteries with cracks, broken parts,
bent or pushed-in and/or pulled-out contacts).
e) If the battery is too hot to touch it may be defective.
Place the tool in a location where it can be kept
under observation, well away from flammable ma-
en
5
Printed: 20.01.2015 | Doc-Nr: PUB / 5071442 / 000 / 04

terials, and allow it to cool down. Contact Hilti
Service after the battery has cooled down.
2.6.5Workareasafety
a) If the work involves breaking right through, take
the appropriate safety measures at the opposite
side. Parts breaking away could fall out and / or fall
down and injure other persons.
b) Slits cut in loadbearing walls of buildings or other
structures may influence the statics of the structure,
especially when steel reinforcing bars or load-bearing
components are cut through. Consult the structural
engineer, architect, or person in charge of the
building project before beginning the work.
3 Description
3.1 Use of the product as directed
The power tool is designed for cutting and grinding metals and mineral materials.
Do not use the battery as a power source for other unspecified appliances.
Working with metals: Synthetic resin-bonded, fiber-reinforced grindingorcuttingdiscs.
Working with mineral materials: Cutting and slitting using the corresponding guard (DC-EX 125/5"-C), grinding using
the corresponding guard (DG-EX 125/5").
Use only discs (abrasive grinding discs, abrasive cutting discs, etc.) that are approved for use at a speed of at least
11,000/min, with a maximum thickness of 6.4 mm (grinding discs) or 2.5 mm (cutting discs) and a diameter of max.125
mm.
The power tool may be used only for dry cutting or grinding.
Working on materials hazardous to the health (e.g. asbestos) is not permissible.
Observe the national health and safety requirements.
To avoid the risk of injury, use only genuine Hilti accessories and insert tools.
The power tool is designed for professional use and may be operated, serviced and maintained only by trained,
authorized personnel. This personnel must be informed of any special hazards that may be encountered. The power
tool and its ancillary equipment may present hazards when used incorrectlybyuntrainedpersonnelorwhenusednot
as directed.
3.2 Items supplied as standard include:
1 Power tool
1Sidehandle
1Guard
1Frontcover
1 Clamping flange
1Clampingnut
1Wrench
1 Operating instructions
NOTE
Accessories can be found at your Hilti Center or online at www.hilti.com.
3.3 Additional items required for operating the tool
A suitable battery of the specified type (see table in the Technical Data section) and a suitable battery charger from
the C 4⁄36 series.
3.4 Temperature-dependent motor protection
The temperature-dependent motor protection system prevents the power tool overheating by monitoring current input
and motor temperature.
In the event of motor overload due to application of excessive pressure to the disc, performance will drop noticeably
or the power tool may stop running (avoid stalling the power tool in this way).
Permissible tool overload cannot be given as a specific value as it depends on the temperature of the motor.
If the power tool has been overloaded, release the pressure applied and then allow it to run under no load for approx.
30 seconds.
en
6
Printed: 20.01.2015 | Doc-Nr: PUB / 5071442 / 000 / 04

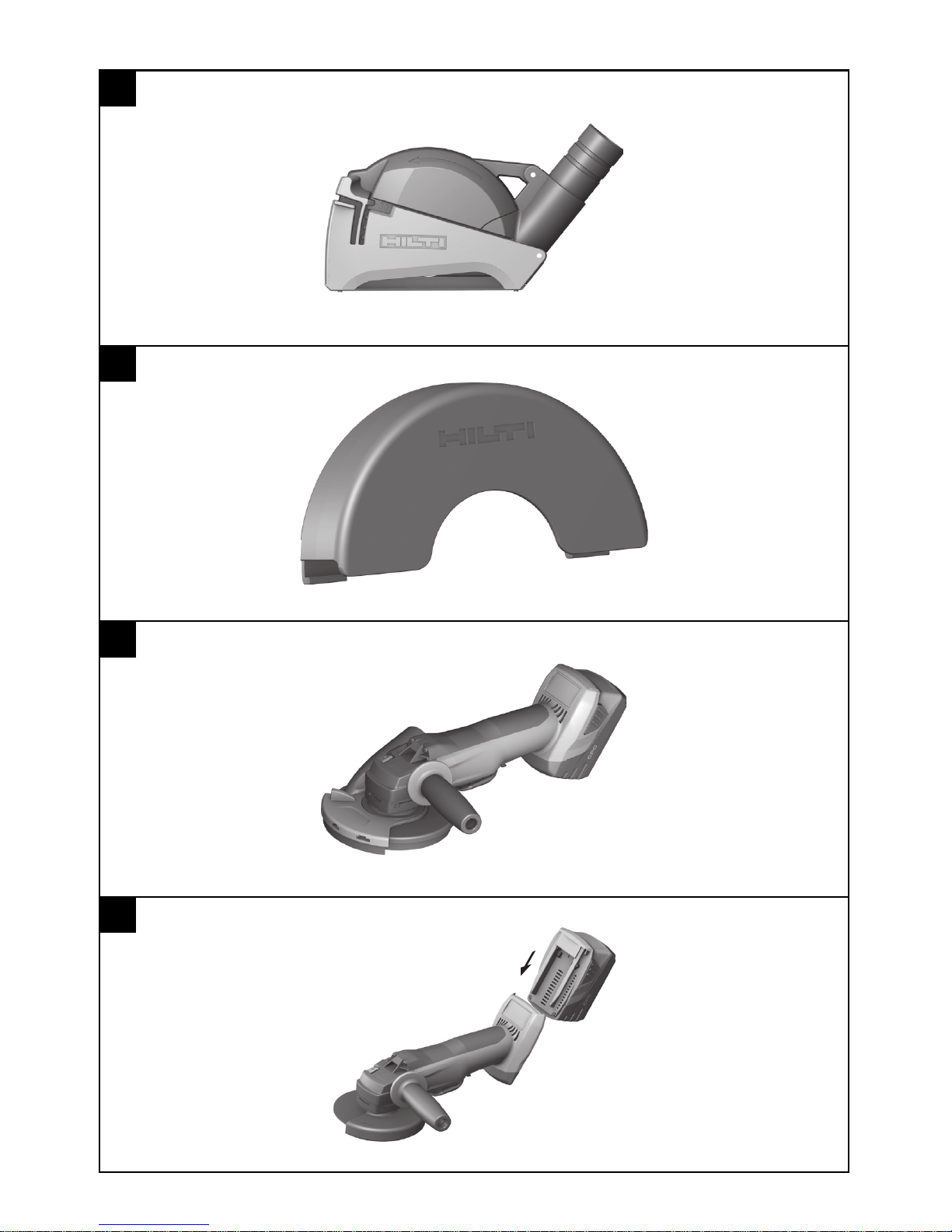

3.5 DC‑EX 125/5"‑C compact dust removal hood for cutting 2
For cutting masonry and concrete.
CAUTION
Use of this guard for working on metal is not permissible.
NOTE
It is recommended that a dust removal system consisting of matched components, i.e. dust removal hood and a
suitable Hilti vacuum cleaner, are used for cutting and slitting mineral materials, such as concrete or stone. These
serve to protect the operator and increase the life of the power tool and discused.
3.6 Guard with front cover 3
CAUTION
When grinding with straight grinding discs and cutting with cutting discs in metalworking applications, use the
guard with front cover.
3.7 DG-EX 125/5" dust removal hood for grinding 4
The tool is suitable only for occasional use with diamond cup wheels for grinding mineral materials.
CAUTION
Use of this guard for working on metal is not permissible.
NOTE
It is recommended that a dust removal system consisting of matched components, i.e. dust removal hood and a
suitable Hilti vacuum cleaner, are used for cutting and slitting mineral materials, such as concrete or stone. These
serve to protect the operator and increase the life of the power tool and discused.
3.8 Lithium‑ion battery charge status
When the lithium-ion battery is in use, the charge status can be indicated bygentlypressingoneofthebatteryrelease
buttons (press until resistance is felt - do not release the battery). The display on the rear of the battery provides the
following information:
LEDs light constantly LEDs blink Charge status C
LED1,2,3,4 -C≧75%
LED1,2,3 -50 % ≦ C < 75 %
LED 1, 2 -25 % ≦ C < 50 %
LED 1 -10 % ≦ C < 25 %
-LED 1 C<10%
NOTE
Indication of the charge status is not possible while the power tool is in operation or immediately after operation. If the
battery charge status LEDs flash, please refer to the information given in the Troubleshooting section.
4Consumables
Discs with a diameter of max. 125 mm, designed for a speed of 11000/min and a peripheral speed of 80 m/sec,
and with a maximum thickness of 6.4 mm (abrasive grinding discs) or 2.5 mm (abrasive cutting discs).
Discs Application Designation Material
Abrasive cutting disc Cutting, slitting AC‑D metal
Diamond cutting disc Cutting, slitting DC‑D mineral
Abrasive grinding disc Rough grinding AG‑D, AF‑D, AN‑D metal
Diamond grinding disc Rough grinding DG‑CW mineral
en
7
Printed: 20.01.2015 | Doc-Nr: PUB / 5071442 / 000 / 04

Assignment of discs to the equipment used
Item Equipment AC‑D AG-D AF-D AN-D DG‑CW DC‑D
AGuard XXXXXX
B Front cover (in combin-
ation with A) X----X
C DG‑EX 125/5" surface
guard
----X-
D DC‑EX 125/5"-C com-
pact guard (in combin-
ation with A)
-----X
ESidehandle XXXXXX
F DC BG 125 hoop grip
(optional for E) XXXXXX
GClampingnut XXXXXX
H Clamping flange X X X X X X
I Kwick-Lock (optional
for G) XXXX-X
5 Technical data
Right of technical changes reserved.
Power tool AG 125‑A22
Rated voltage 21.6 V
Rated speed 9,500/min
Max. washer diameter Ø125mm
Weight in accordance with EPTA procedure 01/2003 2.7 kg
Battery B 22/2.6 Li‑Ion (01) B 22/3.3 Li‑Ion (01)
Rated voltage 21.6 V 21.6 V
Capacity 2.6 Ah 3.3 Ah
Energy capacity 56.16 Wh 71.28 Wh
Weight 0.78 kg 0.78 kg
Information about the power tool and applications
Drive spindle thread (arbor size) M 14
Spindle length 22 mm
NOTE
The vibration values given in these instructions have been measured in accordance with a standardized test and may
be used to compare one electric tool with another. They may be used for a preliminary assessment of exposure.
The data given represents the main applications of the electric tool. However, if the electric tool is used for different
applications, with different accessories or is poorly maintained, the data may vary. This may significantly increase
exposure over the total working period. An accurate estimation of exposure should also take into account the times
when the tool is switched off, or when it is running but not actually being used for a job. This may significantly reduce
exposure over the total working period. Identify additional safety measures to protect the operator from the effects of
noise and/or vibration, for example: maintain the tool and the accessories, keep the hands warm, organization of work
patterns.
en
8
Printed: 20.01.2015 | Doc-Nr: PUB / 5071442 / 000 / 04

Noise information (as perEN 60745‑2‑3):
Typical A-weighted sound power level, LWA 94 dB (A)
Typical A-weighted emission sound pressure level, LpA 83 dB (A)
Uncertainty for the given sound level, K 3 dB (A)
Vibration information in accordance with EN 60745
Triaxial vibration value (vibration vector sum) for the
AG 125‑A22 Measured in accordance with EN 60745‑2‑3
Surface grinding using the vibration-absorbing side
handle, ah,AG
3.8 m/s²
Uncertainty (K) 1.5 m/s²
Additional information Other applications, such as cutting, may produce vibra-
tion values that deviate from the given values.
6Beforeuse
6.1 Inserting the battery 5
CAUTION
Check that the power tool is switched off and the
switch interlock activated before fitting the battery.
CAUTION
Before inserting the battery in the power tool, check
to ensure that the battery terminals and the contacts
in the power tool are free from foreign objects.
1. CAUTION If the battery is not fitted correctly
itmaydropoutandfallwhiletheworkisin
progress.
CAUTION A falling battery may present a risk of
injury to yourself and others.
Before beginning the work, check that the battery is
securely seated in the tool.
6.2 Removing the battery from the power tool 6
6.3 Transport and storage of batteries
Pull the battery out of the locked position (working posi-
tion) and move it into the first latching position (transport
position).
Observe national and international transport regulations
when shipping batteries (transportation by road, rail, sea
or air).
6.4 Fitting the side handle
Screw the side handle into one of the threaded bushings
provided.
6.5 Guards
CAUTION
Wear gloves when fitting or removing parts, when
making adjustments or when remedying malfunc-
tions.
Read the instructions for fitting the corresponding guard.
6.5.1 Fitting and removing the guard 7
NOTE
The guard is equipped with locating lugs that ensure only
guards of a type suitable for use with the power tool can
be fitted. The locating lugs of the guard fit into the guard
mount on the power tool.
1. Fit the guard onto the drive spindle collar so that the
two triangular marks on the guard and on the power
tool are in alignment.
2. Push the guard onto the drive spindle collar; press
the guard release button.
3. Rotate the guard until it engages and the guard
release button jumps back into its original position.
4. To remove the guard from the power tool, follow the
instructions for fitting the guard but carry out the
steps in the reverse order.
6.5.1.1 Adjusting the guard
1. Press the guard release button and then rotate the
guard until it engages in the desired position.
6.5.2 Fitting the cutting guard 89
NOTE
Take care to ensure that the on / off switch is freely
accessible and operable at all times.
6.5.3 Fitting and removing the front cover 
NOTE
If you use the front cover, fit it by pushing it onto the
guard.
1. Press the front cover onto the standard guard, with
the closed side positioned as shown in the illustra-
tion, until it engages.
2. To remove the front cover, release the catch and
then pull the front cover away from the standard
guard.
en
9
Printed: 20.01.2015 | Doc-Nr: PUB / 5071442 / 000 / 04

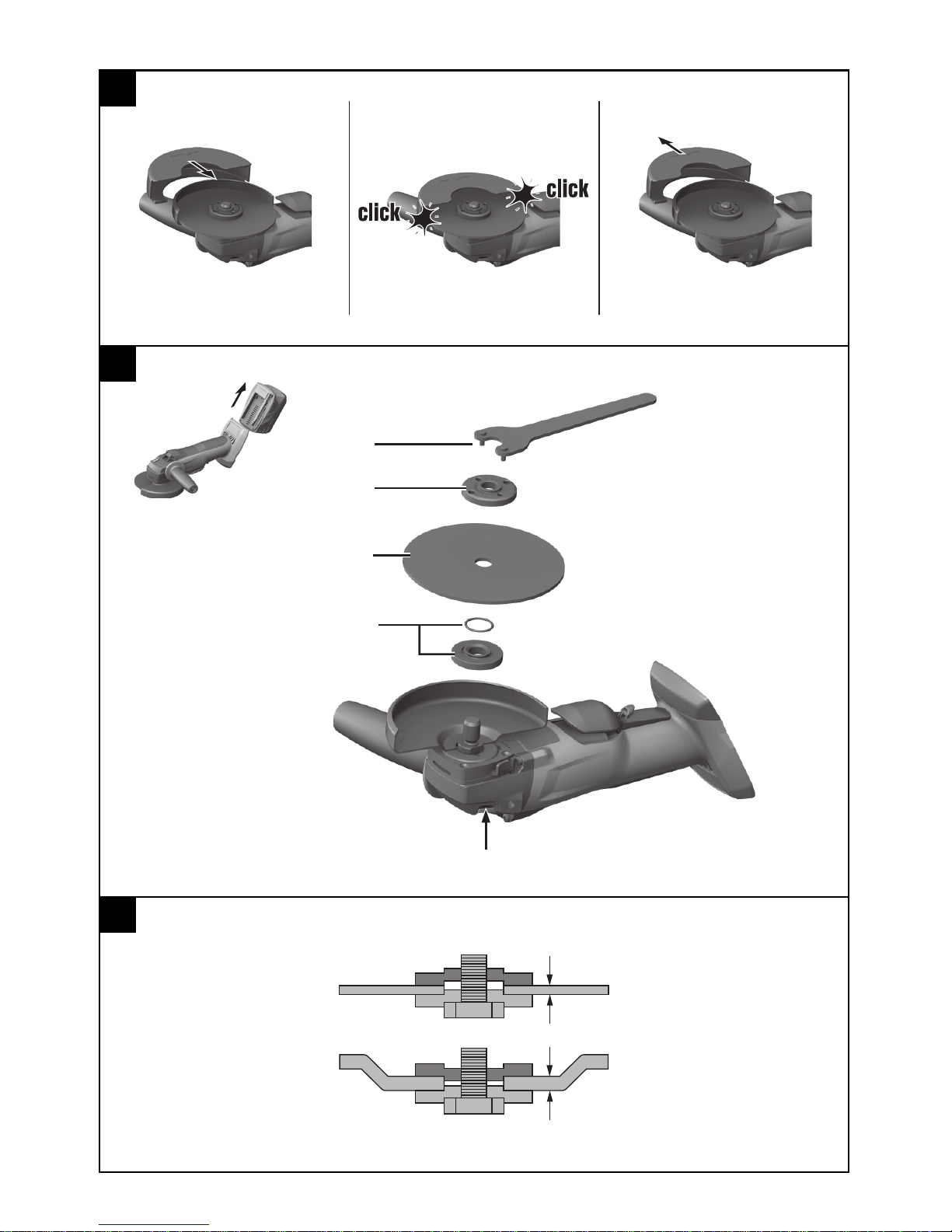

6.6 Fitting and removing the disc  
WARNING
If the nut securing the disc and flange is not tightened
firmly, the disc may work loose from the spindle due
to the braking effect of the motor. Tighten the disc
/ flange securing nut in accordance with the directions
given in the operating instructions. Wait until the disc
comes to a standstill.
NOTE
Diamond discs must be replaced when the cutting or
grinding performance drops significantly. This generally
is the case when the segments reach a height of less
than 2 mm. Other discs must be replaced when the
cutting performance drops significantly or other parts of
the angle grinder (not the disc) come into contact with
the material you are working on. Abrasive discs generally
have to be replaced when the durability date has been
reached.
1. Remove the battery from the power tool.
2. CAUTION The clamping flange is equipped with an
O-ring. The O-ring must be replaced if missing or
damaged.
Fit the clamping flange onto the drive spindle (keyed
fit to prevent slipping/rotation).
3. Fit the insert tool.
4. Screw on the clamping nut corresponding to the
type of disc fitted .
5. CAUTION Do not press the spindle lockbutton
before the drive spindle has stopped rotating.
Press the spindle lockbutton and hold it in this
position.
6. Use the wrench to tighten the clamping nut securely
and then release the spindle lockbutton.
7. To remove the disc from the power tool, follow the
instructions for fitting the disc but carry out the steps
in the reverse order.
6.7 Fitting and removing the insert tool using the
Kwik-Lock quick-release nut 
NOTE
The Kwik-Lock nut may be used instead of the standard
clamping nut. No tools are then required for changing
insert tools.
CAUTION
When operating the power tool, take care to ensure
that the Kwik-Lock nut does not come into contact
with the work surface. Do not use a damaged Kwik-
Lock nut.
NOTE
The arrow on the upper surface of the nut must be within
the index marks. If the arrow is not within the index marks
when the nut is tightened it will be impossible to release
the nut by hand. In this case, use the pin wrench to
release the Kwik-Lock nut (do not use a pipe wrench!).
1. Remove the battery from the power tool.
2. Clean the clamping flange and the quick-release
clamping nut.
3. CAUTION The clamping flange is equipped with an
O-ring. The O-ring must be replaced if missing or
damaged.
Fit the clamping flange onto the drive spindle.
4. Fit the insert tool.
5. Screw the Kwik-Lock nut onto the spindle until it
contacts the insert tool (the side with the lettering
should be visible after the nut is screwed on).
6. CAUTION Do not press the spindle lockbutton
before the drive spindle has stopped rotating.
Press the spindle lockbutton and hold it in this
position.
7. Use the wrench to tighten the clamping nut or,
respectively, rotate the insert tool firmly by hand in a
clockwise direction until the Kwik‑Lock nut is tight,
and then release the spindle lockbutton.
8. To remove the disc from the power tool, follow the
instructions for fitting the disc but carry out the steps
in the reverse order.
7Operation
WARNING
Always use the side handle with the power tool (use
the hoop handle as an option).
CAUTION
The insert tool may get hot during use. Wear protective
gloves when changing insert tools.
7.1 Rough grinding
CAUTION
Never use abrasive cutting discs for grinding.
Best results are obtained when the disc maintains an
angle of 5° to 30° with the working surface when grinding.
Move the power tool to and fro while applying moderate
pressure. This will avoid overheating and discoloration of
the workpiece and ensure an even surface finish.
7.2 Cutting
When cutting, apply moderate feed pressure and do not
tilt the power tool or, respectively, the cutting disc (hold
at approx. 90° to the surface being cut). For best results,
start cutting at the smallest cross section when cutting
profiles and square tube.
7.3 On / off switch with switch-on interlock 
Theon/offswitchwithsafetylock(switch-oninterlock)
gives you full control of the switch function and avoids
unintentional restarting.
en
10
Printed: 20.01.2015 | Doc-Nr: PUB / 5071442 / 000 / 04

1. Push the safety lock (switch-on interlock) forward to
unlock the on / off switch and then press the switch
fully.
2. The safety lock (switch-on interlock) returns auto-
matically to the locked position when the on / off
switch is released.
8 Care and maintenance
WARNING
Repairs to the electrical section of the power tool may
be carried out only by trained electrical specialists.
CAUTION
Before beginning cleaning, remove the battery in or-
der to prevent the electric tool starting unintentionally.
8.1 Care of the power tool
DANGER
Under extreme conditions, when used for working on
metal, conductive dust may accumulate inside the tool.
This may have an adverse effect on the tool’s protective
insulation. In this case, use of a stationary dust extrac-
tion system and frequent cleaning of the ventilation
slots are recommended.
The outer casing of the power tool is made from impact-
resistant plastic. Sections of the grip are made from a
synthetic rubber material.
Never operate the power tool when the air vents are
blocked. Regularly clean the power tool’s air vents care-
fully with a dry brush. Do not permit foreign objects to
enter the interior of the tool. The motor’s fan will draw
dust into the casing and an excessive accumulation of
conductive dust (e.g. metal, carbon fiber) may cause
electrical hazards. Clean the outside of the power tool at
regular intervals with a slightly damp cloth. Do not use
a spray, steam pressure cleaning equipment or running
water for cleaning. This may negatively affect the elec-
trical safety of the tool. Always keep the grip surfaces
of the tool free from oil and grease. Do not use cleaning
agents which contain silicone.
NOTE
Frequent work on conductive materials (e.g. metal, car-
bon fiber) may make shorter maintenance intervals ne-
cessary. Take your individual work place risk assessment
into account.
8.2 Care of the Li‑ion battery
NOTE
Battery performance drops at low temperatures.
NOTE
Store the battery in a cool and dry place.
In order to achieve maximum battery life, stop using the
battery as soon as a significant drop in battery perform-
ance is noticed.
NOTE
- If use continues, further battery discharge will be
stopped automatically before the battery cells suffer
damage.
- Charge the batteries using the specified and approved
Hilti battery chargers for Li‑ion batteries.
8.3 Checking the power tool after care and
maintenance
After carrying out care and maintenance work on the
power tool, check that all protective and safety devices
are fitted and that they function faultlessly.
9 Troubleshooting
Fault Possible cause Remedy
The battery runs down more
quickly than usual. Very low ambient temperature. Allow the battery to warm up slowly to room temperature.
The battery doesn’t engage with
an audible click. The retaining lugs on the battery are
dirty. Clean the retaining lugs and push the battery in until it engages. Contact
Hilti Service if the problem persists.
LED 1 blinks. The battery is discharged. Charge the battery.
The tool is overloaded (application
limits exceeded). Use the right power tool for the job (don’t use a low-powered tool for
heavy work).
The power tool doesn’t run and
1LEDblinks. The battery is discharged. Change the battery and charge the empty battery.
The battery is too hot or too cold. Bring the battery to the recommen-
ded working temperature.
The tool doesn’t work and all 4
LEDs blink. The power tool has been overloaded briefly. Release the switch and press it again.
en
11
Printed: 20.01.2015 | Doc-Nr: PUB / 5071442 / 000 / 04

Fault Possible cause Remedy
The tool doesn’t work and all 4
LEDs blink. The overheating prevention cut-out
has been activated. Allow the power tool to cool down.
The power tool or the battery
becomes very warm. Electrical fault. Switch the power tool off immedi- ately, remove the battery from the
tool and allow it to cool down while
keeping an eye on it, contact Hilti
Service.
The power tool has been overloaded
(application limits exceeded). Use the right power tool for the job (don’t use a low-powered tool for
heavy work).
The power tool doesn’t achieve
full power. A battery with inadequate capacity was used. Use a battery with a capacity of at least 2.6 Ah.
No braking function. The battery is discharged. Charge the battery.
The tool is overloaded (application
limits exceeded). Switch the power tool off and on again.
10 Disposal
Most of the materials from which Hilti power tools or appliances are manufactured can be recycled. The materials
must be correctly separated before they can be recycled. In many countries, Hilti has already made arrangements for
taking back your old power tools or appliances for recycling. Please ask your Hilti customer service department or
Hilti representative for further information.
For EC countries only
Disposal of electric tools together with household waste is not permissible.
In observance of the European Directive on waste electrical and electronic equipment and its imple-
mentation in accordance with national law, electrical appliances that have reached the end of their life
must be collected separately and returned to an environmentally compatible recycling facility.
11 Manufacturer’s warranty - tools
Please contact your local Hilti representative if you have
questions about the warranty conditions.
en
12
Printed: 20.01.2015 | Doc-Nr: PUB / 5071442 / 000 / 04

12 EC declaration of conformity (original)
Designation: Angle grinder
Type: AG 125-A22
Generation: 01
Year of design: 2011
We declare, on our sole responsibility, that this product
complies with the following directives and standards:
2006/42/EC, 2004/108/EC, 2006/66/EC, 2011/65/EU,
EN 60745‑1, EN 60745‑2‑3, EN ISO 12100.
Hilti Corporation, Feldkircherstrasse 100,
FL‑9494 Schaan
Paolo Luccini Jan Doongaji
Head of BA Quality and Process Man-
agement
Executive Vice President
Business Area Electric Tools & Ac-
cessories
Business Unit Power
Tools & Accessories
01/2012 01/2012
Technical documentation filed at:
Hilti Entwicklungsgesellschaft mbH
Zulassung Elektrowerkzeuge
Hiltistrasse 6
86916 Kaufering
Deutschland
en
13
Printed: 20.01.2015 | Doc-Nr: PUB / 5071442 / 000 / 04

原始操作說明
AG 125-A22 有角研磨器
第一次使用機具前，先務必閱讀操作說明。
務必將操作說明和機具放在一起。
將機具交給其他人時，應將操作說明一併轉交。
內容 頁次
1 一般使用說明 14
2 安全說明 15
3 產品說明 17
4耗材 19
5 技術資料 19
6 使用前注意事項 20
7操作 21
8 維護和保養 22
9 故障排除 22
10 廢棄機具處置 23
11 製造商保固－機具 23
12 EC歐規符合聲明（原版） 23
1這些號碼表示在圖示中的位置，您可以在操作說明的
開始處找到圖示。
本操作說明中所稱「機具」，係指AG 125‑A22充電式有
角研磨機。
操作控制及零件 1
@防護套拆卸鈕
;主軸鎖定開關
=通風槽
%帶有其他功能的鬆開鈕（充電狀態顯示啟動）
&電池
(開啟聯鎖裝置
)ON/OFF開關
+減震側向握把
§主軸
/防護套
:夾緊凸緣附O型環
·研磨切割碟片 / 研磨碟片
$夾頭螺帽
£Kwik‑Lock快拆螺帽（選配）
|扳手
1 一般使用說明
1.1 安全須知及其意義
危險
用於告知可能會發生對人體造成嚴重傷害甚至死亡的立即
性危險情況。
警告
用於告知可能會發生造成人員受傷或死亡之重度危險情
況。
注意
用於告知可能會發生造成人員受傷，或造成設備及其他財
產損壞的輕度危險情況。
附註
注意操作說明或其他有用的資訊內容。
1.2 圖形符號之說明及其他資訊
警告標誌
一般警告
遵守標誌
配戴護目鏡 使用前請閱
讀本操
作說明
符號
額定速率 每分鐘轉數 每分轉數
機具上辨識資料的位置
型號及序號位在機具或機器的型號識別牌上。請在操作說
明中記下該資料，並在詢問Hilti代表人員或維修部門時參
考該資料。
型號：
zh
14
Printed: 20.01.2015 | Doc-Nr: PUB / 5071442 / 000 / 04
