Hilti NURON TE 30-22 User manual
1
2
3
4
5
6
7
8
9
10
11
TE 30-22
en Originaloperatinginstructions....................................... 1
da Originalbrugsanvisning .......................................... 13
sv Originalbruksanvisning........................................... 26
no Originalbruksanvisning .......................................... 39
fi Alkuperäisetohjeet ............................................. 52
ru Перевод оригинального руководства по эксплуатации . . . . . . . . . . . . . . . . . . . . 65
bg Оригинално Ръководство за експлоатация . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
ro Manualdeutilizareoriginal ........................................ 94
tr Orijinalkullanımkılavuzu ......................................... 108
sr Originalnouputstvozaupotrebu .................................... 121
ar ﺩﻟﻴﻞﺍﻻﺳﺘﻌﻤﺎﻝﺍﻷﺻﻠﻲ .......................................... 134
lv Oriģinālā lietošanas instrukcija . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
lt Originalinaudojimoinstrukcija...................................... 161
et Originaalkasutusjuhend .......................................... 174
kk Түпнұсқа пайдалану бойынша нұсқаулық . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
ja オリジナル取扱説明書 ............................................ 201
ko 오리지널사용설명서............................................. 214
zh 原始操作說明.................................................. 226
cn 原版操作说明译文 ............................................... 238
*2264908* 2264908 English 1
Original operating instructions
1 Information about the documentation
1.1 About this documentation
• Read this documentation before initial operation or use. This is a prerequisite for safe, trouble-free
handling and use of the product.
• Observe the safety instructions and warnings in this documentation and on the product.
• Always keep the operating instructions with the product and make sure that the operating instructions
are with the product when it is given to other persons.

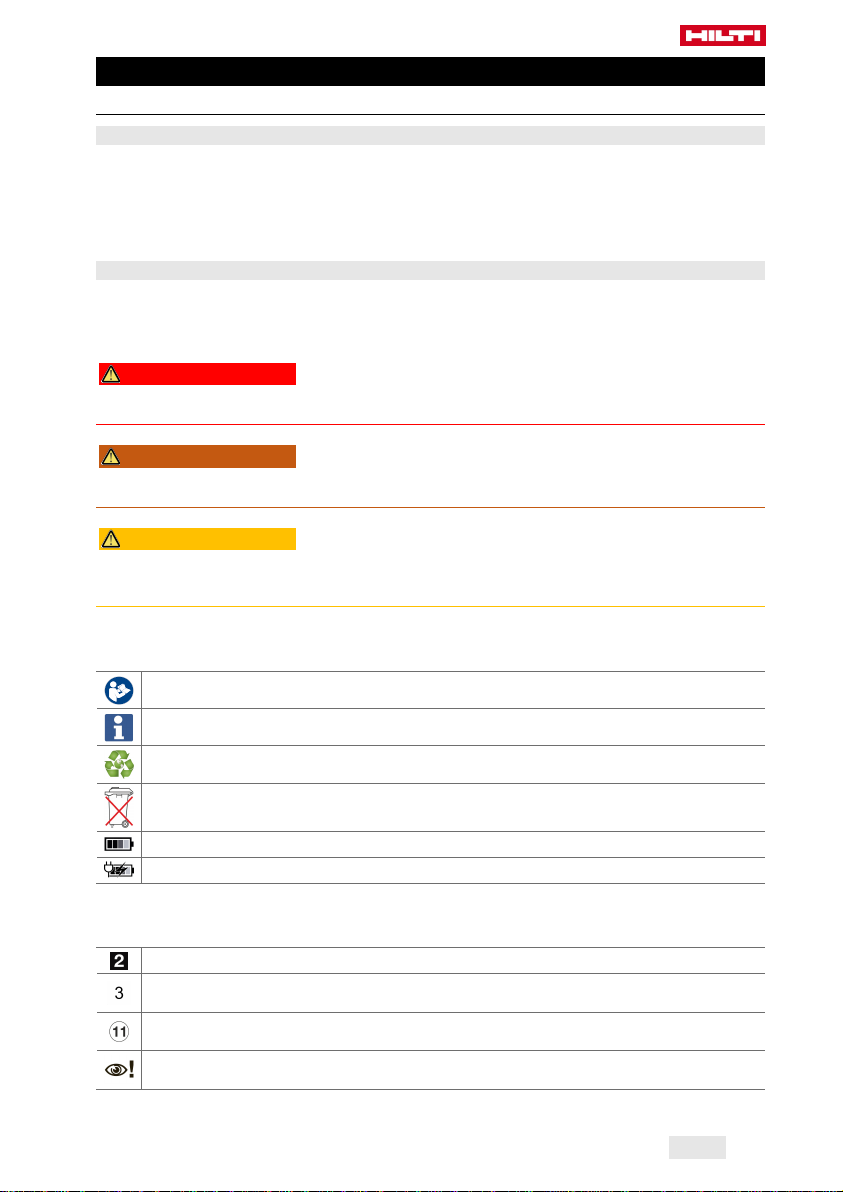

1.2 Explanation of symbols
1.2.1 Warnings
Warnings alert persons to hazards that occur when handling or using the product. The following signal words
are used:
DANGER
DANGER !
▶Draws attention to imminent danger that will lead to serious personal injury or fatality.
WARNING
WARNING !
▶Draws attention to a potential threat of danger that can lead to serious injury or fatality.
CAUTION
CAUTION !
▶Draws attention to a potentially dangerous situation that could lead to personal injury or damage to the
equipment or other property.
1.2.2 Symbols in the operating instructions
The following symbols are used in these operating instructions:
Comply with the operating instructions
Instructions for use and other useful information
Dealing with recyclable materials
Do not dispose of electric equipment and batteries as household waste
Hilti Liion battery
Hilti charger
1.2.3 Symbols in illustrations
The following symbols are used in illustrations:

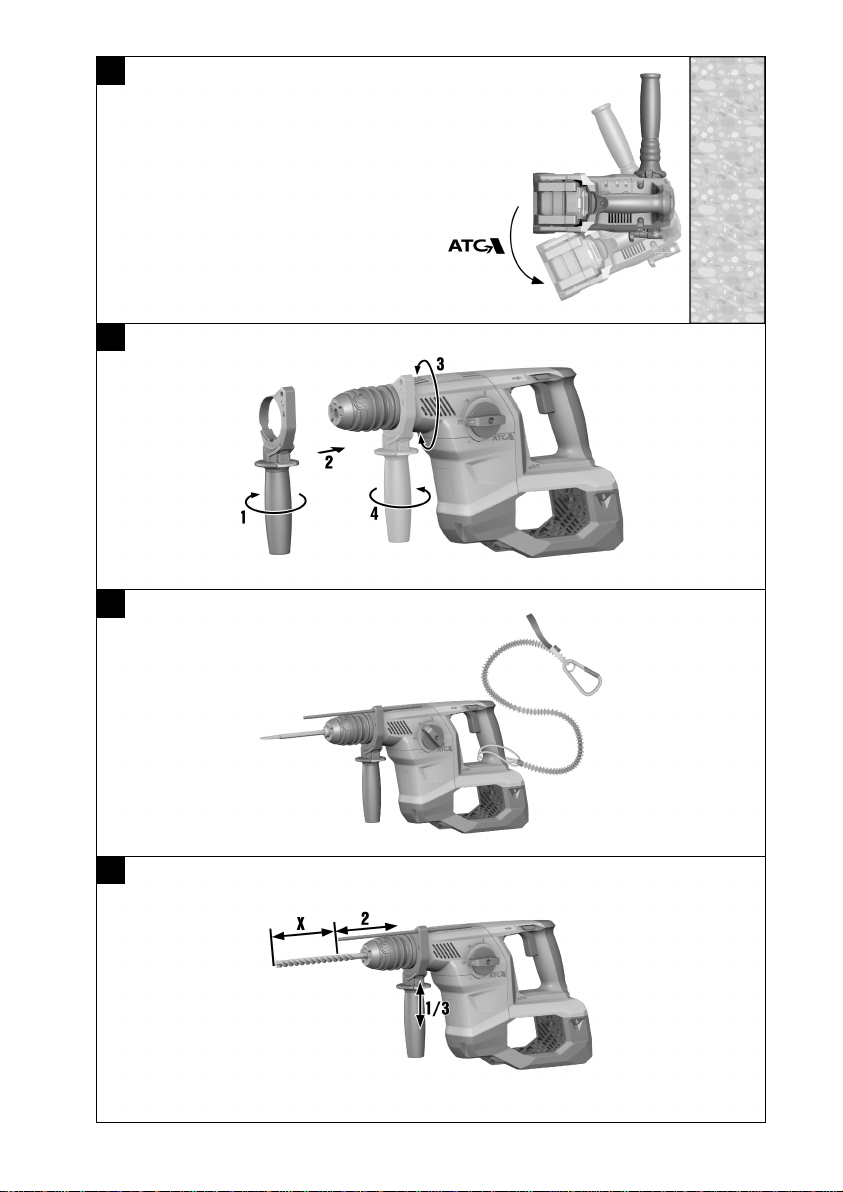

These numbers refer to the illustrations at the beginning of these operating instructions.
The numbering reflects the sequence of operations shown in the illustrations and may deviate
from the steps described in the text.

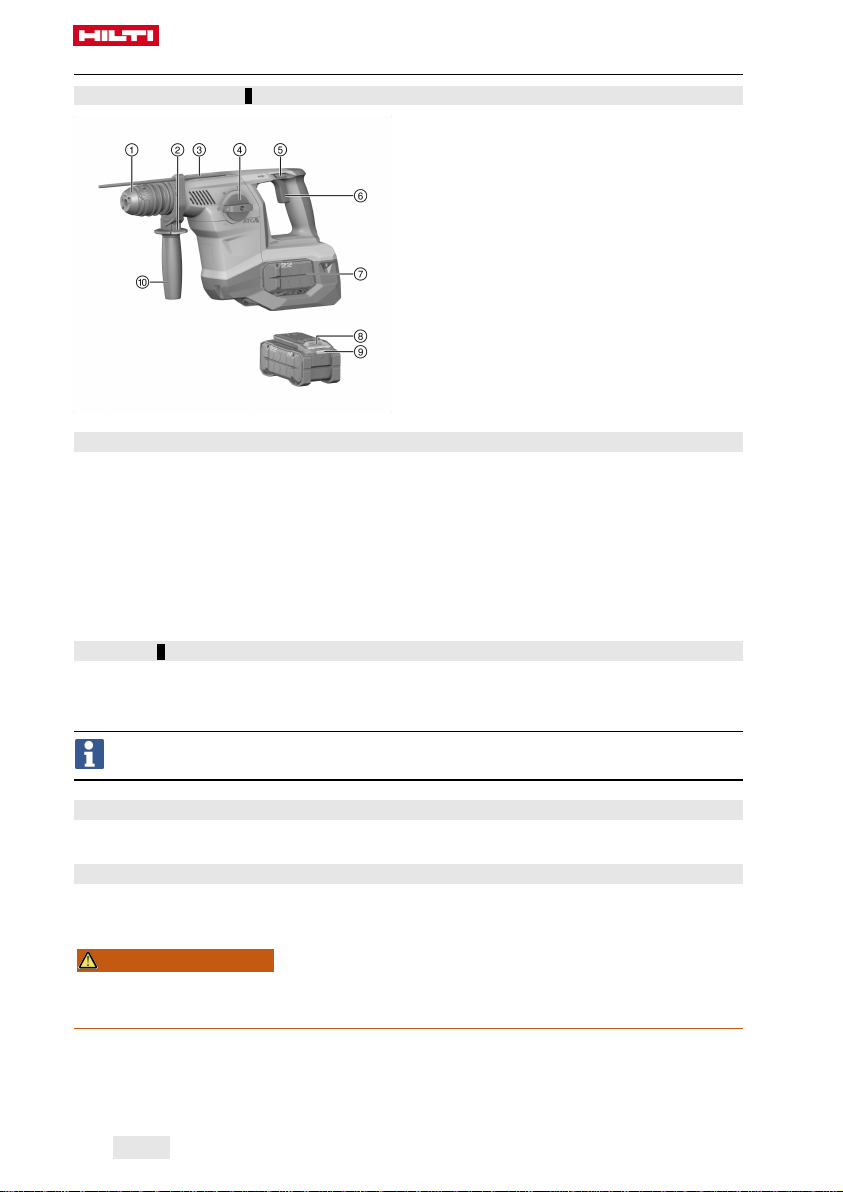

Item reference numbers are used in the overview illustration and refer to the numbers used in
the key in the product overview section.
These characters are intended to specifically draw your attention to certain points when handling
the product.
2 English 2264908 *2264908*
1.3 Product-dependent symbols
1.3.1 Symbols on the product
The following symbols can be used on the product:

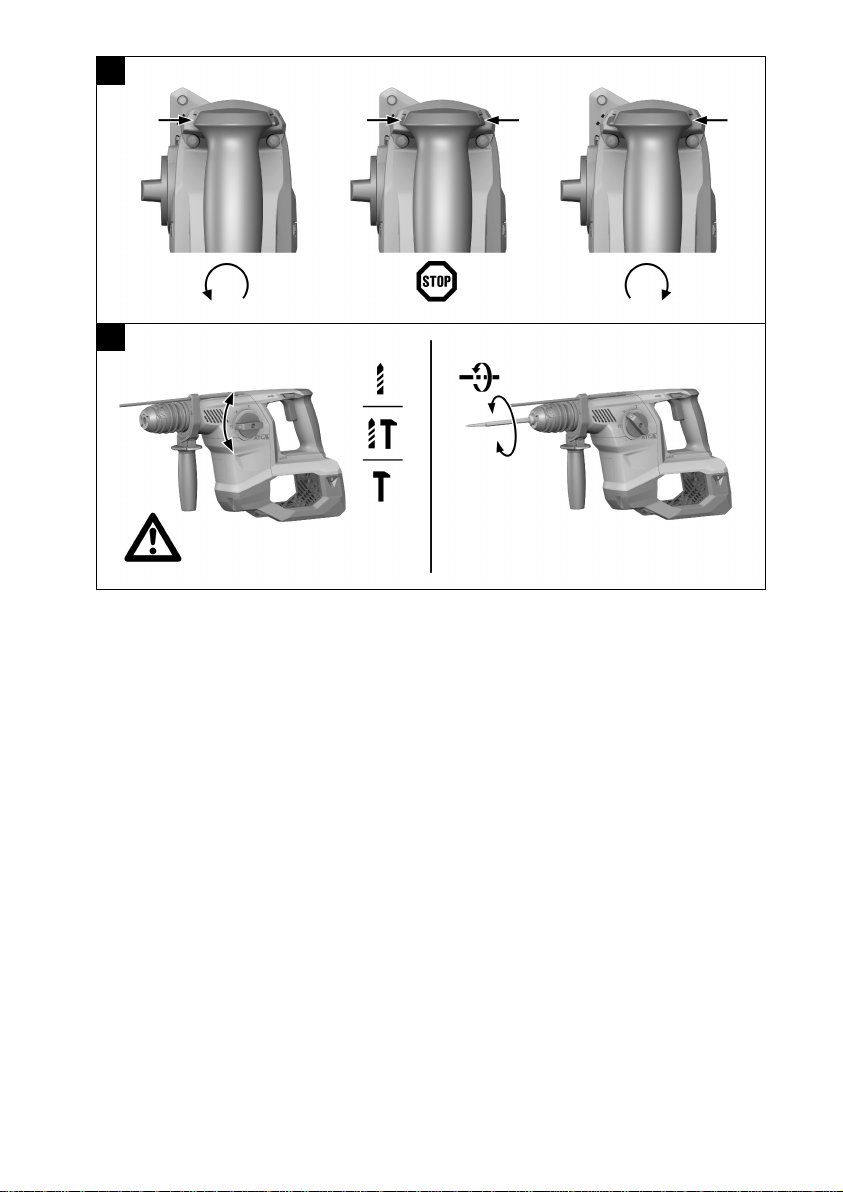

Drilling without hammer action
Drilling with hammering action (hammer drilling)
Chiseling
Chisel positioning
Forward / reverse
Diameter
Rated speed under no load
Revolutions per minute
Direct current (DC)
The product supports near-field communication (NFC) technology compatible with iOS and
Android platforms.
Li-ion battery
Never use the battery as a striking tool.
Do not drop the battery. Never use a battery that has suffered an impact or is damaged in any
other way.
1.4 Product information
products are designed for professional users and only trained, authorized personnel are
permitted to operate, service and maintain the products. This personnel must be specifically informed about
the possible hazards. The product and its ancillary equipment can present hazards if used incorrectly by
untrained personnel or if used not in accordance with the intended use.
The type designation and serial number are printed on the rating plate.
▶Write down the serial number in the table below. You will be required to state the product details when
contacting Hilti Service or your local Hilti organization to inquire about the product.
Product information
Cordless rotary hammer drill SDSPlus TE 30-22
Generation 03
Serial no.
1.5 Declaration of conformity
The manufacturer declares, on his sole responsibility, that the product described here complies with the
applicable legislation and standards. A copy of the declaration of conformity can be found at the end of this
documentation.
The technical documentation is filed here:
Hilti Entwicklungsgesellschaft mbH | Tool Certification | Hiltistrasse 6 | D-86916 Kaufering, Germany
2 Safety
2.1 General power tool safety warnings
WARNING Read all safety warnings, instructions, illustrations and specifications provided with this
power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
*2264908* 2264908 English 3
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work area safety
▶Keep work area clean and well lit. Cluttered or dark areas invite accidents.
▶Do not operate power tools in explosive atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
▶Keep children and bystanders away while operating a power tool. Distractions can cause you to lose
control.
Electrical safety
▶Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of
electric shock.
▶Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
▶Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
▶Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the
risk of electric shock.
▶When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
▶If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
Personal safety
▶Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in serious personal injury.
▶Use personal protective equipment. Always wear eye protection. Protective equipment such as a
dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will
reduce personal injuries.
▶Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power
source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on
the switch or energising power tools that have the switch on invites accidents.
▶Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
▶Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
▶Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from
moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
▶If devices are provided for the connection of dust extraction and collection facilities, ensure these
are connected and properly used. Use of dust collection can reduce dust-related hazards.
▶Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore
tool safety principles. A careless action can cause severe injury within a fraction of a second.
Power tool use and care
▶Do not force the power tool. Use the correct power tool for your application. The correct power tool
will do the job better and safer at the rate for which it was designed.
▶Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
▶Disconnect the plug from the power source and/or remove the battery pack, if detachable, from
the power tool before making any adjustments, changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of starting the power tool accidentally.
▶Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands
of untrained users.
▶Maintain power tools and accessories. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tool’s operation. If damaged,
have the power tool repaired before use. Many accidents are caused by poorly maintained power
tools.
4 English 2264908 *2264908*
▶Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
▶Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous situation.
▶Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
Battery tool use and care
▶Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type
of battery pack may create a risk of fire when used with another battery pack.
▶Use power tools only with specifically designated battery packs. Use of any other battery packs may
create a risk of injury and fire.
▶When battery pack is not in use, keep it away from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects, that can make a connection from one terminal to
another. Shorting the battery terminals together may cause burns or a fire.
▶Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid
ejected from the battery may cause irritation or burns.
▶Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may
exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
▶Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature
above 130° C (265 °F) may cause explosion.
▶Follow all charging instructions and do not charge the battery pack or tool outside the temperature
range specified in the instructions. Charging improperly or at temperatures outside the specified range
may damage the battery and increase the risk of fire.
Service
▶Have your power tool serviced by a qualified repair person using only identical replacement parts.
This will ensure that the safety of the power tool is maintained.
▶Never service damaged battery packs. Service of battery packs should only be performed by the
manufacturer or authorized service providers.
2.2 Hammer safety warnings
▶Wear ear protectors. Exposure to noise can cause hearing loss.
▶Use auxiliary handles, if supplied with the tool. Loss of control can cause personal injury.
▶Hold power tool by insulated gripping surfaces, when performing an operation where the cutting
accessory may contact hidden wiring.. Cutting accessory contacting a "live" wire may make exposed
metal parts of the power tool "live" and could give the operator an electric shock.
2.3 Additional safety instructions
Personal safety
▶Use the product and accessories only when they are in perfect working order.
▶Never tamper with or modify the product or accessories in any way.
▶Use auxiliary grips supplied with the product. Keep the grips clean and dry. Loss of control can cause
personal injury.
▶Always check that you have a safe and firm stance when you use the product. Make sure that you are
securely balanced and have control before you start the operation.
▶Risk of injury by falling tools and/or accessories. Before starting work, check that the battery and installed
accessories are secure.
▶Keep the air vents clear at all times. Risk of burn injuries due to blocked air vents!
▶Dust produced by grinding, sanding, cutting and drilling can contain dangerous chemicals. Some
examples are: lead or lead-based paints; brick, concrete and other masonry products, natural stone
and other products containing silicates; certain types of wood, such as oak, beech and chemically
treated wood; asbestos or materials that contain asbestos. Determine the exposure of the operator and
bystanders by means of the hazard classification of the materials to be worked. Implement the necessary
measures to restrict exposure to a safe level, for example by the use of a dust collection system or by
the wearing of suitable respiratory protection. The general measures for reducing exposure include:
▶working in an area that is well ventilated,
▶avoidance of prolonged contact with dust,
*2264908* 2264908 English 5
▶directing dust away from the face and body,
▶wearing protective clothing and washing exposed areas of the skin with water and soap.
▶Apply appropriate safety measures at the opposite side of the workpiece in work that involves breaking
through. Parts breaking away could fall out and / or fall down causing injury to other persons.
▶When chiseling into ceilings, walls and floors, always make sure that you have a safe and firm stance. A
sudden break-through can affect your balance!
▶Do not touch rotating parts – risk of injury!
▶Wear eye protection, a hard hat and ear protection while the product is in use.
▶Wear eye protection. Flying fragments can injure the body and eyes.
▶Wear protective gloves when changing the accessory tool. Touching the accessory tool can result in
cuts and burns.
▶Take frequent breaks and do physical exercises to improve the blood circulation in your fingers. High
vibration during long periods of work can lead to disorders of the blood vessels and nervous system in
the fingers, hands and wrists.
Electrical safety
▶Before beginning work, check the working area for concealed electric cables or gas and water pipes.
External metal parts of the product could give you an electric shock or cause an explosion if you
accidentally damage an electric cable or a gas or water pipe.
Power tool use and care
▶Switch the product off immediately if the accessory tool jams. The product might twist off-line.
▶Switch the product on only after bringing it to the working position.
▶Wait until the product has come to a complete stop before you lay it down.
2.4 Battery use and care
▶Comply with the following safety instructions for the safe handling and use of Li-ion batteries.
Failure to comply can lead to skin irritation, severe corrosive injury, chemical burns, fire and/or explosion.
▶Use only batteries that are in perfect working order.
▶Treat batteries with care in order to avoid damage and prevent leakage of fluids that are extremely
harmful to health!
▶Do not under any circumstances modify or tamper with batteries!
▶Do not disassemble, crush or incinerate batteries and do not subject them to temperatures over 80 °C
(176 °F).
▶Never use or charge a battery that has suffered an impact or been damaged in any other way. Check
your batteries regularly for signs of damage.
▶Never use recycled or repaired batteries.
▶Never use the battery or a battery-operated power tool as a striking tool.
▶Never expose batteries to the direct rays of the sun, elevated temperature, sparking, or open flame. This
can lead to explosions.
▶Do not touch the battery poles with your fingers, tools, jewelry, or other electrically conductive objects.
This can damage the battery and also cause material damage and personal injury.
▶Keep batteries away from rain, moisture and liquids. Penetrating moisture can cause short circuits,
electric shock, burns, fire and explosions.
▶Use only chargers and power tools approved for the specific battery type. Read and follow the relevant
operating instructions.
▶Do not use or store the battery in explosive environments.
▶If the battery is too hot to touch, it may be defective. Put the battery in a place where it is clearly visible
and where there is no risk of fire, at an adequate distance from flammable materials. Allow the battery to
cool down. If it is still too hot to touch after an hour, the battery is faulty. Consult Hilti Service or read the
document entitled "Instructions on safety and use for Hilti Li-ion batteries".
Observe the special guidelines applicable to the transport, storage and use of lithium-ion batteries.
→ page 11
Read the instructions on safety and use of Hilti Li-ion batteries that you can access by scanning
the QR code at the end of these operating instructions.
6 English 2264908 *2264908*
3 Description
3.1 Product overview 1
@Chuck
;Depth gauge release button
=Depth gauge
%Function selector switch
&Forward/reverse switch with switch-on inter-
lock
(Control switch
)Battery
+Battery release button
§Battery status indicator
/Side handle
3.2 Intended use
The product described is a cordless SDSPlus rotary hammer drill with pneumatic hammering mechanism.
It is designed for drilling in concrete, masonry, wood and metal. The product can also be used for light-
to medium-duty chiseling on masonry and surface finishing work on concrete and for driving and removing
screws in combination with a suitable chuck in accordance with www.hilti.group
• For this product, use only Hilti Nuron lithium-ion batteries of the B 22 series. For optimum performance,
Hilti recommends the batteries stated in the table at the end of these operating instructions for this
product.
• For these batteries, use only Hilti chargers of the type series stated in the table at the end of these
operating instructions.
3.3 ATC 2
The product is equipped with the ATC (Active Torque Control) quick-acting electronic cut-out.
If the accessory tool sticks or stalls, the product will suddenly pivot about its own axis in the opposite direction.
ATC detects this sudden pivoting movement of the product and switches the product off immediately.
For ATC to function correctly, the product must be free to pivot.
After an ATC cut-out, switch the product off and then on again.
3.4 Active Vibration Reduction
The tool is equipped with an Active Vibration Reduction (AVR) system which reduces vibration noticeably.
3.5 Status indicators of the Liion battery
Hilti Nuron Li-ion batteries can indicate state of charge, fault messages and the battery's state of health.
3.5.1 Indicators for state of charge and fault messages
WARNING
Risk of injury by a falling battery!
▶If the release button is pressed with a battery inserted in the product, subsequently check that the battery
is correctly re-engaged and secure.
Short-press the release button of the battery to get whichever of the following status indications is applicable
at the time.
State of charge and, if applicable, faults are indicated constantly as long as the connected product is
switched on.
*2264908* 2264908 English 7
Status Meaning
Four (4) LEDs show constantly green State of charge: 100 % to 71 %
Three (3) LEDs show constantly green State of charge: 70 % to 51 %
Two (2) LEDs show constantly green State of charge: 50 % to 26 %
One (1) LED shows constantly green State of charge: 25 % to 10 %
One (1) LED slow-flashes green State of charge: < 10 %
One (1) LED quick-flashes green The Li-ion battery is completely discharged.
Recharge the battery.
If the LED again starts quick-flashing after the bat-
tery has been charged, consult Hilti Service.
One (1) LED quick-flashes yellow The Li-ion battery or the product in which it is in-
serted is overloaded, too hot or too cold, or experi-
encing some other fault.
Bring the product and the battery to the recom-
mended working temperature and do not overload
the product when it is in use.
If the message persists, consult Hilti Service.
One (1) LED shows yellow The Li-ion battery and the product in which it is
inserted are not compatible. Consult Hilti Service.
One (1) LED quick-flashes red The Li-ion battery is locked and cannot be used.
Consult Hilti Service.
3.5.2 Indicators showing the battery's state of health
To check the battery's state of health, press the release button and hold it down for longer than three
seconds. The system does not detect a potential malfunction of the battery due to misuse, for example
battery dropped or pierced, external heat damage, etc.
Status Meaning
All LEDs show in sequence, followed by one (1)
LED showing constantly green. The battery can remain in use.
All LEDs show in sequence, followed by one (1)
LED quick-flashing yellow. The check to ascertain the battery's state of health
did not complete. Repeat the procedure, or consult
Hilti Service.
All LEDs show in sequence, followed by one (1)
LED showing constantly red. If a connected product can still be used, the re-
maining battery capacity is below 50 %.
If a connected product can no longer be used, the
battery has reached the end of its useful life and
has to be replaced. Consult Hilti Service.
3.6 Items supplied
SDSPlus rotary hammer drill, side handle with depth gauge, operating instructions.
Other system products approved for use with this product can be found at your local Hilti Store or at:
www.hilti.group
4 Technical data
TE 30-22
Rated voltage 21.6 V
Single impact energy 3.6 J
Weight in accordance with EPTA Procedure 01, without battery 3.9 kg
Drilling diameter range in concrete/masonry (hammer drilling) 4 mm … 28 mm
Storage temperature −20 ℃ … 70 ℃
Ambient temperature for operation −17 ℃ … 60 ℃
8 English 2264908 *2264908*
4.1 Battery
Battery operating voltage 21.6 V
Weight, battery See the end of these
operating instructions
Ambient temperature for operation −17 ℃ … 60 ℃
Storage temperature −20 ℃ … 40 ℃
Battery charging starting temperature −10 ℃ … 45 ℃
4.2 Noise information and vibration values in accordance with EN 60745
The sound pressure and vibration values given in these instructions were measured in accordance with a
standardized test and can be used to compare one power tool with another. They can also be used for a
preliminary assessment of exposure. The data given represents the main applications of the power tool.
However, if the power tool is used for different applications, with different accessory tools, or is poorly
maintained, the data can vary. This can significantly increase exposure over the total working period. An
accurate estimation of exposure should also take into account the times when the tool is switched off, or
when it is running but not actually being used for a job. This can significantly reduce exposure over the
total working period. Identify additional safety measures to protect the operator from the effects of noise
and/or vibration, for example: Maintaining the power tool and accessory tools, keeping the hands warm,
organization of work patterns.
Noise emission values
Sound (power) level 102 dB
Uncertainty for the sound power level / sound level 3 dB
Sound pressure level (L, pA)91 dB
Uncertainty for the sound pressure level (KpA)3 dB(A)
Total vibration
Chiseling (ah, Cheq) B 2285 7.4 m/s²
B 22255 8.4 m/s²
Hammer drilling in concrete (a h, HD) B 2285 11.4 m/s²
B 22255 10.7 m/s²
Uncertainty 1.5 m/s²
5 Preparations at the workplace
WARNING
Risk of injury by inadvertent starting!
▶Before inserting the battery, make sure that the product is switched off.
▶Remove the battery before making any adjustments to the power tool or before changing accessories.
Observe the safety instructions and warnings in this documentation and on the product.
5.1 Charging the battery
1. Before charging the battery, read the operating instructions for the charger.
2. Make sure that the contacts on the battery and the contacts on the charger are clean and dry.
3. Use an approved charger to charge the battery. → page 6
5.2 Inserting the battery
WARNING
Risk of injury by short circuit or falling battery!
▶Before inserting the battery, make sure that the contacts on the battery and the contacts on the product
are free of foreign matter.
▶Make sure that the battery always engages correctly.
*2264908* 2264908 English 9
1. Charge the battery fully before using it for the first time.
2. Push the battery into the product until it engages with an audible click.
3. Check that the battery is seated securely.
5.3 Removing the battery
1. Press the battery release button.
2. Remove the battery from the product.
5.4 Fitting the side handle 3
CAUTION
Risk of injury! Loss of control over the product.
▶Check that the side handle is fitted correctly and tightened securely. Check that the clamping band is
engaged in the groove in the product.
1. Release the side handle clamping band by turning the handle grip.
2. Slide the side handle clamping band over the chuck from the front and into the recess provided.
3. Set the side handle to the desired position.
4. Tighten the side handle clamping band by turning the handle grip.
5.5 Fall arrest 4
WARNING
Risk of injury by falling tool and/or accessory!
▶Use only the Hilti tool tether recommended for your product.
▶Prior to each use, always check the attachment point of the tool tether for possible damage.
Comply with the national regulations for working at heights.
As drop arrester for this product, use only the Hilti tool tether #2261971.
▶Use the loop to secure the tool tether to the product as shown in the illustration. Check that it holds
securely.
▶Secure the carabiner to a load-bearing structure. Check that the carabiner holds securely.
Comply with the operating instructions of the Hilti tool tether.
5.6 Adjusting the depth gauge (optional) 5
1. Press the release button on the side handle.
2. Adjust the depth gauge to the desired drilling depth.
3. Release the release button.
4. Check that the side handle is securely attached.
5.7 Removing the chuck 6
CAUTION
Risk of injury. The depth gauge, if fitted but not used, might hinder the operator.
▶Remove the depth gauge from the product.
Set the function selector switch to the “Chiseling” position for changing the chuck.
1. Grip the chuck as shown in the illustration and pull the three chuck release rings upwards.
2. Lift the chuck up and off.
10 English 2264908 *2264908*
5.8 Fitting the chuck 7
CAUTION
Risk of injury. The depth gauge, if fitted but not used, might hinder the operator.
▶Remove the depth gauge from the product.
When changing the chuck, set the function selector switch to this position: .
1. Grip the chuck as shown in the illustration and pull the three chuck release rings upwards.
2. Fit the chuck on to the chuck mount.
3. Rotate the chuck until it engages in position.
5.9 Inserting accessory tool 8
1. Lightly grease the connection end of the accessory tool.
▶Use only genuine Hilti grease. Using the wrong grease can result in damage to the product.
2. Push the accessory tool into the chuck as far as it will go (until it engages).
3. After fitting the accessory tool, grip it and pull it in order to check that it is securely engaged.
▶The product is ready for use.
5.10 Removing accessory tool 9
CAUTION
Risk of injury by the accessory tool! The accessory tool might be hot or have sharp edges.
▶Wear protective gloves when changing the accessory tool.
▶Pull the chuck ring back as far as it will go and remove the accessory tool.
6 Operation
Observe the safety instructions and warnings in this documentation and on the product.
6.1 Switching on / off
1. To switch the product on, operate the control switch.
Speed can be controlled steplessly by varying how far the control switch is pressed in.
2. To switch the product off, release the control switch.
6.2 Forward / reverse 10
▶Set the forward / reverse switch to the desired direction of rotation.
6.3 Function selector switch 11
▶Set the function selector switch to the desired working position.
▶Do not operate the function selector switch while the motor is running. Risk of damage!
6.3.1 Drilling without hammering
▶Set the function selector switch to this symbol: .
6.3.2 Drilling with hammering action (hammer drilling)
▶Set the function selector switch to this symbol: .
6.3.3 Chisel positioning
▶Set the function selector switch to this symbol: .
▶The chisel can be adjusted to 12 different positions (in 30° increments). This ensures that flat chisels
and shaped chisels can always be set to the optimum working position.
*2264908* 2264908 English 11
6.3.4 Chiseling
▶Set the function selector switch to this symbol: .
6.4 Screwdriving
1. Change the chuck.
2. Set the forward/reverse switch to the desired direction of rotation.
7 Care and maintenance
WARNING
Risk of injury with battery inserted !
▶Always remove the battery before carrying out care and maintenance tasks!
Care of the product
• Carefully remove stubborn dirt.
• Carefully clean the air vents, if present, with a dry, soft brush.
• Use only a slightly damp cloth to clean the housing. Do not use cleaning agents containing silicone as
these can attack the plastic parts.
• Use a dry, clean cloth to clean the contacts of the product.
Care of the Liion batteries
• Never use a battery with clogged air vents. Clean the air vents carefully using a dry, soft brush.
• Avoid unnecessary exposure of the battery to dust and dirt. Never expose the battery to high levels of
moisture (e.g. by being dipped in water or left in the rain).
If a battery has been soaked by moisture, treat it as a damaged battery. Isolate it in a non-flammable
container and consult Hilti Service.
• Keep the battery free of extraneous oil and grease. Do not permit dust or dirt to accumulate unnecessarily
on the battery. Clean the battery with a dry, soft brush or a clean, dry cloth. Do not use cleaning agents
containing silicone as these can attack the plastic parts.
Do not touch the contacts of the battery and do not remove the factory-applied grease from the contacts.
• Use only a slightly damp cloth to clean the housing. Do not use cleaning agents containing silicone as
these can attack the plastic parts.
Maintenance
• Check all visible parts and controls for signs of damage at regular intervals and make sure that they all
function correctly.
• Do not use the product if signs of damage are found or if parts malfunction. Immediately have the product
repaired by Hilti Service.
• After cleaning and maintenance, install all guards and protective devices and check that they are in full
working order.
To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare
parts, consumables and accessories approved by Hilti for use with your product can be found at your
Hilti Store or online at: www.hilti.group
8 Transport and storage of cordless tools and batteries
Transport
CAUTION
Accidental starting during transport !
▶Always transport your products with the batteries removed!
▶Remove the battery/batteries.
▶Never transport batteries loose and unprotected. During transport, batteries should be protected from
excessive shock and vibration and isolated from any conductive materials or other batteries that may
come in contact with the terminals and cause a short circuit. Comply with the locally applicable
regulations for transporting batteries.
▶Do not send batteries through the mail. Consult your shipper for instructions on how to ship undamaged
batteries.
12 English 2264908 *2264908*
▶Prior to each use and before and after prolonged transport, check the product and the batteries for
damage.
Storage
WARNING
Accidental damage caused by defective or leaking batteries !
▶Always store your products with the batteries removed!
▶Store the product and the batteries in a cool and dry place. Comply with the temperature limits stated in
the technical data.
▶Do not store batteries on the charger. Always remove the battery from the charger when the charging
operation has completed.
▶Never leave batteries in direct sunlight, on sources of heat, or behind glass.
▶Store the product and batteries where they cannot be accessed by children or unauthorized persons.
▶Prior to each use and before and after prolonged storage, check the product and the batteries for
damage.
9 Troubleshooting
If a problem occurs, always observe the charge-status and fault indicator of the battery. See the section
headed Status indicators of the Liion battery.
If the trouble you are experiencing is not listed in this table or you are unable to remedy the problem by
yourself, please contact Hilti Service.
Trouble or fault Possible cause Action to be taken
No hammering action. The product is too cold. ▶Bring the product into contact
with the working surface, switch
it on and allow it to idle. If
necessary, repeat the procedure
until the hammering mechanism
begins to operate.
The battery runs down more
quickly than usual. Battery condition is not optimal. ▶Call up the battery’s state of
health. → page 6
LEDs of the battery show
nothing. Battery defective. ▶Contact Hilti Service.
The battery doesn’t engage
with an audible click. The retaining lugs on the battery
are dirty.
▶Clean the retaining lug and refit
the battery.
The control switch can’t be
pressed, i.e. the switch is
locked.
The forward / reverse switch is in
the middle position.
▶Push the forward / reverse
switch to the right or left.
The drive spindle doesn’t
rotate. Battery defective. ▶Contact Hilti Service.
Product switches off if drill bit
jams. The electronic safety shut-down
has tripped to prevent further jam-
ming.
▶Release the drill bit.
Product or battery gets very
hot. Electrical fault ▶Immediately switch off the
product. Remove the battery
and keep it under observation.
Allow it to cool down. Contact
Hilti service.
The insert tool cannot be re-
leased from the chuck. Chuck not pulled back fully. ▶Pull the chuck back as far
as it will go and remove the
accessory tool.
The drill bit makes no
progress. Product has been set to reverse
rotation.
▶Move the forward / reverse
switch to the “Forward” posi-
tion.
*2264908* 2264908 Dansk 13
Trouble or fault Possible cause Action to be taken
The drill bit does not rotate. The function selector switch is not
engaged or is in the "Chiseling"
position or the "Chisel position-
ing" position .
▶With the motor at a standstill,
set the function selector switch
to the "Hammer drilling"
position.
Product does not start. The electronic restart interlock is
activated after an interruption in
the electricity supply.
▶Release the control switch and
then press it again.
10 Disposal
WARNING
Risk of injury due to incorrect disposal! Health hazards due to escaping gases or liquids.
▶DO NOT send batteries through the mail!
▶Cover the terminals with a non-conductive material (such as electrical tape) to prevent short circuiting.
▶Dispose of your battery out of the reach of children.
▶Dispose of the battery at your Hilti Store, or consult your local governmental garbage disposal or public
health and safety resources for disposal instructions.
Most of the materials from which Hilti products are manufactured can be recycled. The materials must be
correctly separated before they can be recycled. In many countries, your old tools, machines or appliances
can be returned to Hilti for recycling. Ask Hilti Service or your Hilti sales representative for further information.
▶Do not dispose of power tools, electronic equipment or batteries as household waste!
11 Manufacturer’s warranty
▶Please contact your local Hilti representative if you have questions about the warranty conditions.
12 Further information
For more information on operation, technology, environment and recycling, follow this link:
qr.hilti.com/manual?id=2264906&id=2264908
This link is also to be found at the end of the documentation, in the form of a QR code.
Original brugsanvisning
1 Oplysninger vedrørende dokumentationen
1.1 Vedrørende denne dokumentation
• Læs denne dokumentation igennem før ibrugtagning. Det er en forudsætning for sikkert arbejde og
korrekt håndtering.
• Følg sikkerheds- og advarselshenvisningerne i denne dokumentation og på produktet.
• Opbevar altid brugsanvisningen sammen med produktet, og overdrag det kun til andre personer sammen
med denne anvisning.
1.2 Tegnforklaring
1.2.1 Advarsler
Advarsler advarer mod farer ved håndtering af produktet. Følgende signalord anvendes:
FARE
FARE !
▶Betegner en umiddelbart truende fare, der kan medføre alvorlige kvæstelser eller døden.
14 Dansk 2264908 *2264908*
ADVARSEL
ADVARSEL !
▶Står ved en potentielt truende fare, der kan medføre alvorlige kvæstelser eller døden.
FORSIGTIG
FORSIGTIG !
▶Advarer om en potentielt farlig situation, der kan forårsage personskader eller materielle skader.
1.2.2 Symboler i brugsanvisningen
Der benyttes følgende symboler i denne brugsanvisning:
Se brugsanvisningen
Anvisninger for anvendelse og andre nyttige oplysninger
Håndtering af genvindbare materialer
Elektriske maskiner og batterier må ikke bortskaffes som almindeligt husholdningsaffald
Hilti Lithium-ion-batteri
Hilti Lader
1.2.3 Symboler i illustrationer
Følgende symboler anvendes på illustrationer:
Disse tal henviser til den pågældende illustration i begyndelsen af denne brugsanvisning.
Nummereringen udtrykker arbejdstrinnenes rækkefølge på illustrationen og kan afvige fra arbejds-
trinnene i teksten.
Positionsnumre anvendes i illustrationen Oversigt og refererer til tallene i symbolforklaringen i
afsnittet Produktoversigt.
Dette symbol skal sikre skærpet opmærksomhed ved omgang med produktet.
1.3 Produktspecifikke symboler
1.3.1 Symboler på produktet
Følgende symboler kan forekomme på produktet:
Boring uden slagfunktion
Boring med slagfunktion (hammerboring)
Mejsling
Placering af mejsel
Højre-/venstreløb
Diameter
Nominelt omdrejningstal, ubelastet
Omdrejninger pr. minut
Jævnstrøm
Produktet understøtter NFC-teknologi, som er kompatibel med iOS- og Android-platforme.
Other manuals for NURON TE 30-22
1
Table of contents
Languages:
Other Hilti Rotary Hammer manuals
