Hilti NURON SC 6WP-22 User manual

SC 6WP-22 English 1
Français 17
Español 34
Português 52

1

2
3
4
5

6
7
8
9

10
11

SC 6WP-22
en Originaloperatinginstructions....................................... 1
fr Noticed'utilisationoriginale ....................................... 17
es Manualdeinstruccionesoriginal .................................... 34
pt Manualdeinstruçõesoriginal ...................................... 52

*2373403* 2373403 English 1
Original operating instructions
1 Information about the operating instructions
1.1 About these operating instructions
• Read these operating instructions before the product is used or operated for the first time. This is a
prerequisite for safe, trouble-free handling and use of the product.
• Observe the safety instructions and warnings in these operating instructions and on the product.
• Always keep the operating instructions with the product and make sure that the product is accompanied
by these operating instructions only, when the product is given to other persons.
1.2 Explanation of symbols
1.2.1 Warnings
Warnings alert persons to hazards that occur when handling or using the product. The following signal words
are used:
DANGER
DANGER !
▶Draws attention to imminent danger that will lead to serious personal injury or fatality.
WARNING
WARNING !
▶Draws attention to a potential threat of danger that can lead to serious injury or fatality.
CAUTION
CAUTION !
▶Draws attention to a potentially dangerous situation that could lead to personal injury or damage to the
equipment or other property.
1.2.2 Symbols in the operating instructions
The following symbols are used in these operating instructions:
Comply with the operating instructions
Instructions for use and other useful information
Dealing with recyclable materials
Do not dispose of electric equipment and batteries as household waste
Hilti Liion battery
Hilti charger
1.2.3 Symbols in illustrations
The following symbols are used in illustrations:

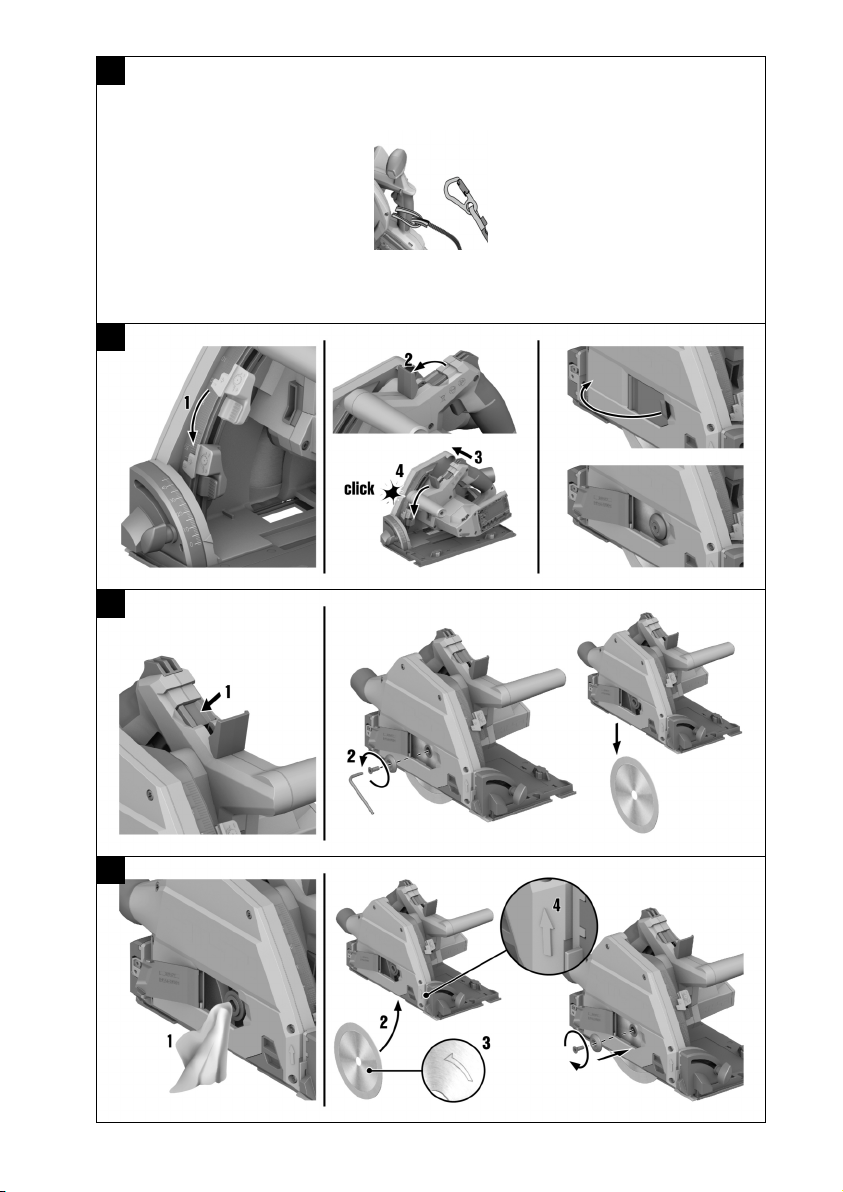

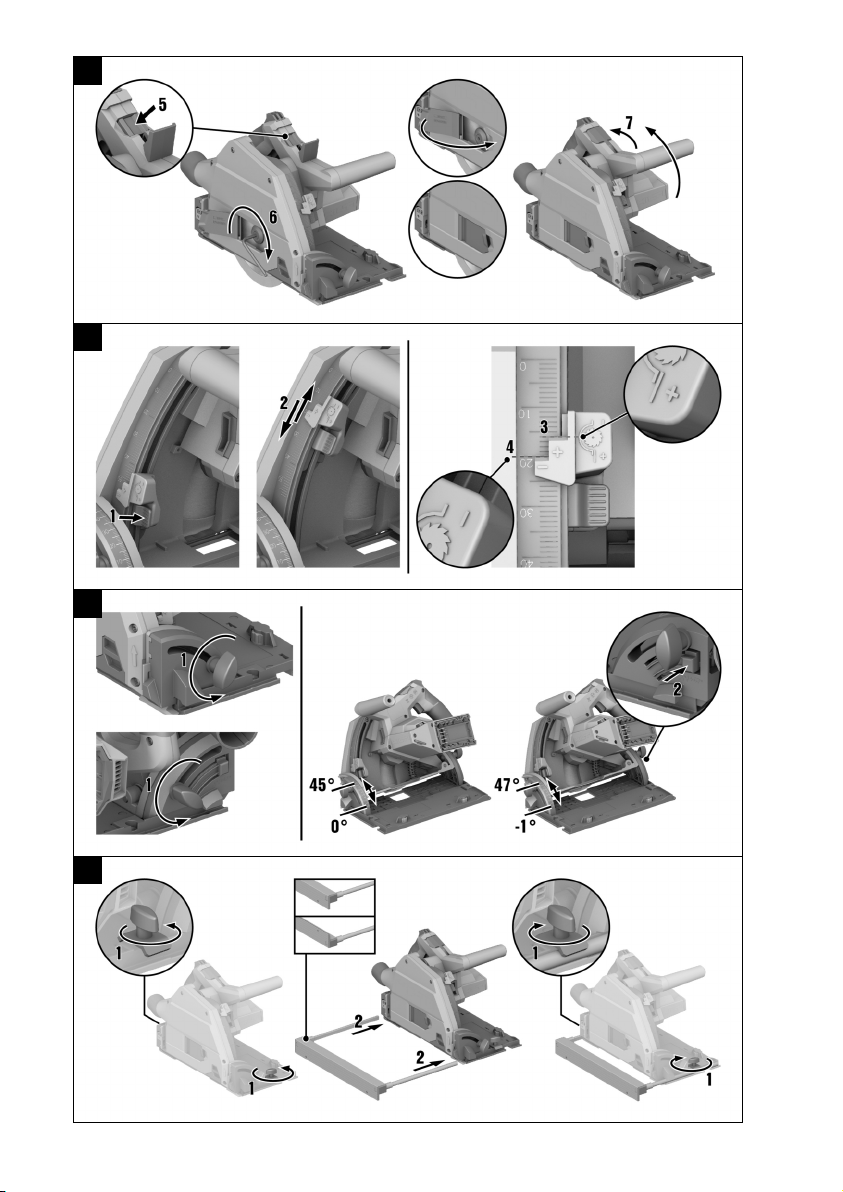

These numbers refer to the illustrations at the beginning of these operating instructions.
The numbering reflects the sequence of operations shown in the illustrations and may deviate
from the steps described in the text.

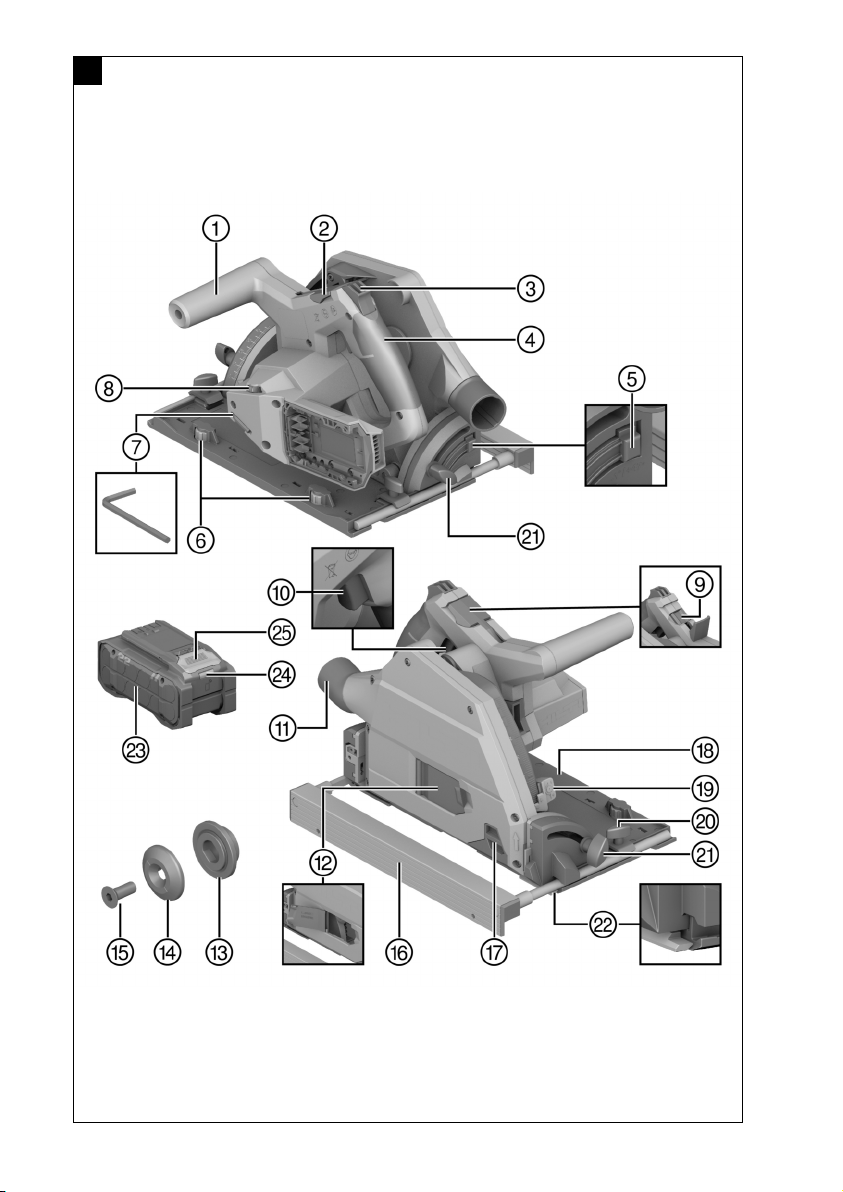

Item reference numbers are used in the overview illustration and refer to the numbers used in
the key in the product overview section.
These characters are intended to specifically draw your attention to certain points when handling
the product.

2 English 2373403 *2373403*
1.3 Product-dependent symbols
1.3.1 General symbols
Symbols used in relation to the product.
Rated speed under no load
Direct current (DC)
Direction-of-rotation arrow
Revolutions per minute
Diameter
Saw blade
The product supports wireless data transmission compatible with iOS and Android platforms.
If applied on the product, the product has been certified by this certification body for the US and
Canadian markets according to the applicable standards.
Li-ion battery
Never use the battery as a striking tool.
Do not drop the battery. Never use a battery that has suffered an impact or is damaged in any
other way.
1.3.2 Obligation symbols
The following obligation symbols are used on the product:
Wear eye protection
1.4 Product information
products are designed for professional users and only trained, authorized personnel are
permitted to operate, service and maintain the products. This personnel must be specifically informed about
the possible hazards. The product and its ancillary equipment can present hazards if used incorrectly by
untrained personnel or if used not in accordance with the intended use.
The type designation and serial number are printed on the rating plate.
▶Write down the serial number in the table below. You will be required to state the product details when
contacting Hilti Service or your local Hilti organization to inquire about the product.
Product information
Cordless plunge-cut circular saw SC 6WP-22
Generation 01
Serial no.
2 Safety
2.1 General power tool safety warnings
WARNING Read all safety warnings, instructions, illustrations and specifications provided with this
power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work area safety
▶Keep work area clean and well lit. Cluttered or dark areas invite accidents.

*2373403* 2373403 English 3
▶Do not operate power tools in explosive atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
▶Keep children and bystanders away while operating a power tool. Distractions can cause you to lose
control.
Electrical safety
▶Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of
electric shock.
▶Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
▶Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
▶Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the
risk of electric shock.
▶When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
▶If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
Personal safety
▶Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in serious personal injury.
▶Use personal protective equipment. Always wear eye protection. Protective equipment such as a
dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will
reduce personal injuries.
▶Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power
source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on
the switch or energising power tools that have the switch on invites accidents.
▶Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
▶Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
▶Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from
moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
▶If devices are provided for the connection of dust extraction and collection facilities, ensure these
are connected and properly used. Use of dust collection can reduce dust-related hazards.
▶Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore
tool safety principles. A careless action can cause severe injury within a fraction of a second.
Power tool use and care
▶Do not force the power tool. Use the correct power tool for your application. The correct power tool
will do the job better and safer at the rate for which it was designed.
▶Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
▶Disconnect the plug from the power source and/or remove the battery pack, if detachable, from
the power tool before making any adjustments, changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of starting the power tool accidentally.
▶Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands
of untrained users.
▶Maintain power tools and accessories. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tool’s operation. If damaged,
have the power tool repaired before use. Many accidents are caused by poorly maintained power
tools.
▶Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
▶Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous situation.

4 English 2373403 *2373403*
▶Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
Battery tool use and care
▶Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type
of battery pack may create a risk of fire when used with another battery pack.
▶Use power tools only with specifically designated battery packs. Use of any other battery packs may
create a risk of injury and fire.
▶When battery pack is not in use, keep it away from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects, that can make a connection from one terminal to
another. Shorting the battery terminals together may cause burns or a fire.
▶Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid
ejected from the battery may cause irritation or burns.
▶Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may
exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
▶Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature
above 130° C (265 °F) may cause explosion.
▶Follow all charging instructions and do not charge the battery pack or tool outside the temperature
range specified in the instructions. Charging improperly or at temperatures outside the specified range
may damage the battery and increase the risk of fire.
Service
▶Have your power tool serviced by a qualified repair person using only identical replacement parts.
This will ensure that the safety of the power tool is maintained.
▶Never service damaged battery packs. Service of battery packs should only be performed by the
manufacturer or authorized service providers.
2.2 Safety instructions for all saws
Cutting procedures
▶DANGER: Keep hands away from cutting area and the blade. Keep your second hand on
auxiliary handle, or motor housing. If both hands are holding the saw, they cannot be cut by the blade.
▶Do not reach underneath the workpiece. The guard cannot protect you from the blade below the
workpiece.
▶Adjust the cutting depth to the thickness of the workpiece. Less than a full tooth of the blade teeth
should be visible below the workpiece.
▶Never hold the workpiece in your hands or across your leg while cutting. Secure the workpiece
to a stable platform. It is important to support the work properly to minimise body exposure, blade
binding, or loss of control.
▶Hold the power tool by insulated gripping surfaces, when performing an operation where the
cutting tool may contact hidden wiring. Contact with a "live" wire will also make exposed metal parts
of the power tool "live" and could give the operator an electric shock.
▶When ripping, always use a rip fence or straight edge guide. This improves the accuracy of cut and
reduces the chance of blade binding.
▶Always use blades with correct size and shape (diamond versus round) of arbour holes. Blades
that do not match the mounting hardware of the saw will run off-centre, causing loss of control.
▶Never use damaged or incorrect blade washers or bolt. The blade washers and bolt were specially
designed for your saw, for optimum performance and safety of operation.
Kickback causes and related warnings
• kickback is a sudden reaction to a pinched, jammed or misaligned saw blade, causing an uncontrolled
saw to lift up and out of the workpiece toward the operator;
• when the blade is pinched or jammed tightly by the kerf closing down, the blade stalls and the motor
reaction drives the unit rapidly back toward the operator;
• if the blade becomes twisted or misaligned in the cut, the teeth at the back edge of the blade can dig
into the top surface of the wood causing the blade to climb out of the kerf and jump back toward the
operator.
Kickback is the result of saw misuse and/or incorrect operating procedures or conditions and can be avoided
by taking proper precautions as given below.
▶Maintain a firm grip with both hands on the saw and position your arms to resist kickback forces.
Position your body to either side of the blade, but not in line with the blade. Kickback could cause

*2373403* 2373403 English 5
the saw to jump backwards, but kickback forces can be controlled by the operator, if proper precautions
are taken.
▶When blade is binding, or when interrupting a cut for any reason, release the trigger and hold the
saw motionless in the material until the blade comes to a complete stop. Never attempt to remove
the saw from the work or pull the saw backward while the blade is in motion or kickback may
occur. Investigate and take corrective actions to eliminate the cause of blade binding.
▶When restarting a saw in the workpiece, centre the saw blade in the kerf so that the saw teeth are
not engaged into the material. If a saw blade binds, it may walk up or kickback from the workpiece as
the saw is restarted.
▶Support large panels to minimise the risk of blade pinching and kickback. Large panels tend to sag
under their own weight. Supports must be placed under the panel on both sides, near the line of cut and
near the edge of the panel.
▶Do not use dull or damaged blades. Unsharpened or improperly set blades produce narrow kerf
causing excessive friction, blade binding and kickback.
▶Blade depth and bevel adjusting locking levers must be tight and secure before making the cut. If
blade adjustment shifts while cutting, it may cause binding and kickback.
▶Use extra caution when sawing into existing walls or other blind areas. The protruding blade may
cut objects that can cause kickback.
Guard function
▶Check the guard for proper closing before each use. Do not operate the saw if the guard does
not move freely and enclose the blade instantly. Never clamp or tie the guard so that the blade is
exposed. If the saw is accidentally dropped, the guard may be bent. Check to make sure that the guard
moves freely and does not touch the blade or any other part, in all angles and depths of cut.
▶Check the operation and condition of the guard return spring. If the guard and the spring are
not operating properly, they must be serviced before use. The guard may operate sluggishly due to
damaged parts, gummy deposits, or a build-up of debris.
▶Assure that the base plate of the saw will not shift while performing a “plunge cut”. Blade shifting
sideways will cause binding and likely kick back.
▶Always observe that the guard is covering the blade before placing the saw down on bench or
floor. An unprotected, coasting blade will cause the saw to walk backwards, cutting whatever is in its
path. Be aware of the time it takes for the blade to stop after the switch is released.
2.3 Additional safety instructions
Personal safety
▶Never tamper with or modify the power tool or accessories in any way.
▶Operate the power tool only together with the safety devices that belong to it.
▶If you use the power tool without a dust extractor, always wear light respiratory protection when
undertaking work that creates dust.
▶Always hold the power tool firmly with both hands on the grips provided.
▶Wear ear protectors. Exposure to noise can cause hearing loss.
▶Improve the blood circulation in your fingers by relaxing your hands and exercising your fingers during
breaks between working.
▶The power tool is not intended for use by debilitated persons who have received no special training.
▶Do not switch the power tool on until it is at the workplace and has been brought to its working position.
▶Remove the battery if a problem occurs with the power tool, whenever you change accessory tools or
accessories and before storing or transporting the power tool.
▶Do not work overhead with the power tool.
▶Do not attempt to brake the power tool by applying lateral pressure to the saw blade.
▶Before inserting the battery, check that the saw is switched off and that the switch-on interlock is
engaged. In this way you avoid injuries due to unintentional starting of the power tool.
▶While the power tool is running, do not touch the clamping flange or the clamping screw.
▶Before you lay down the power tool, wait until the saw blade has come to a complete stop.
▶Before changing the accessory tool, wait until the power tool has cooled down.
▶Never actuate the drive spindle lock while the saw blade is rotating.
▶Never direct the power tool toward persons.
▶The switch-on interlock must always be engaged whenever you change accessories or the battery, for
transport and when you are going to stow the power tool away.
▶Always use a saw blade suitable for the material and the condition of the workpiece.

6 English 2373403 *2373403*
▶Never install abrasive wheels of any kind whatsoever on this power tool.
▶Bring the power tool into contact with the workpiece only when the power tool is switched on.
▶Adapt forward pressure to the saw blade and the material being cut. In this way you prevent the saw
blade from stalling and possibly causing kickback.
▶Avoid overheating the tips of the saw blade teeth.
▶The rated speed of the accessory tool must be at least equal to the maximum speed marked on the
power tool. Accessories running faster than their rated speed can disintegrate and fly apart.
▶Do not work in an environment heavily contaminated with dust.
▶Dust produced by grinding, sanding, cutting and drilling can contain dangerous chemicals. Some
examples are: lead or lead-based paints; brick, concrete and other masonry products, natural stone
and other products containing silicates; certain types of wood, such as oak, beech and chemically
treated wood; asbestos or materials that contain asbestos. Determine the exposure of the operator and
bystanders by means of the hazard classification of the materials to be worked. Implement the necessary
measures to restrict exposure to a safe level, for example by the use of a dust collection system or by
the wearing of suitable respiratory protection. The general measures for reducing exposure include:
▶working in an area that is well ventilated,
▶avoidance of prolonged contact with dust,
▶directing dust away from the face and body,
▶wearing protective clothing and washing exposed areas of the skin with water and soap.
▶You and all others in the work area must always wear dust masks appropriate to the requirements of the
application.
▶You and all others in the work area must wear suitable eye protection, hard hat, ear protection, protective
gloves and safety footwear while the power tool is in use.
▶Before starting work, check the hazard class of the dust that will be produced when working. Use an
industrial vacuum cleaner with an officially approved protection classification in compliance with locally
applicable dust protection regulations.
▶Comply with national health and safety requirements.
▶Use clamps or some other practical means to secure the workpiece and keep it in a stable position.
Attempting to stabilize the workpiece by hand or with your body is inadequate and can result in loss of
control. Do not have the workpiece held in position by a helper.
▶Never cut into unknown materials and keep the line of cut above and below the workpiece free of
obstacles. The power tool can kick back if the saw blade comes into contact with an obstructing object.
▶Risk of injury by falling tools and/or accessories. Before starting work, check that installed accessories
are secure.
▶When sawing in combination with a dust extractor, avoid touching the dust hood or the suction hose.
When a material that produces dust in large quantities is worked, there can be an elevated risk of
electrostatic shock.
▶Make sure that the path of the saw is free of obstructions such as nails, screws and other metal objects.
▶Use only saw blades recommended by Hilti that comply with the EN 847-1 standard.
▶When cutting plastic, make sure that the workpiece does not become too hot and melt.
Electrical safety
▶Before beginning work, check the working area (e.g. using a detector) to ensure that no concealed
electric cables or gas and water pipes are present. External metal parts of the power tool can become
live, for example if you accidentally damage electric wiring. This causes an increased risk of electric
shock.
2.4 Careful handling and use of batteries
▶Comply with the following safety instructions for the safe handling and use of Li-ion batteries.
Failure to comply can lead to skin irritation, severe corrosive injury, chemical burns, fire and/or explosion.
▶Use only batteries that are in perfect working order.
▶Treat batteries with care in order to avoid damage and prevent leakage of fluids that are extremely
harmful to health!
▶Do not under any circumstances modify or tamper with batteries!
▶Do not disassemble, crush or incinerate batteries and do not subject them to temperatures over 80 °C
(176 °F).
▶Never use or charge a battery that has suffered an impact or been damaged in any other way. Check
your batteries regularly for signs of damage.
▶Never use recycled or repaired batteries.

*2373403* 2373403 English 7
▶Never use the battery or a battery-operated power tool as a striking tool.
▶Never expose batteries to the direct rays of the sun, elevated temperature, sparking, or open flame. This
can lead to explosions.
▶Do not touch the battery poles with your fingers, tools, jewelry, or other electrically conductive objects.
This can damage the battery and also cause material damage and personal injury.
▶Keep batteries away from rain, moisture and liquids. Penetrating moisture can cause short circuits,
electric shock, burns, fire and explosions.
▶Use only chargers and power tools approved for the specific battery type. Read and follow the relevant
operating instructions.
▶Do not use or store the battery in explosive environments.
▶If the battery is too hot to touch, it may be defective. Put the battery in a place where it is clearly visible
and where there is no risk of fire, at an adequate distance from flammable materials. Allow the battery to
cool down. If it is still too hot to touch after an hour, the battery is faulty. Consult Hilti Service or read the
document entitled "Instructions on safety and use for Hilti Li-ion batteries".
Observe the special guidelines applicable to the transport, storage and use of lithium-ion batteries.
→ page 15
Read the instructions on safety and use of Hilti Li-ion batteries that you can access by scanning
the QR code at the end of these operating instructions.
3 Description
3.1 Product overview 1
@Auxiliary handle
;Latching lever for changing saw blade
=Switch-on interlock
%Main grip
&Release button for cutting angle -1° and 47°
(Adjusting knob for equalizing play
(play between guide rail and guide groove in
the base plate)
)Hex key
+Adjusting knob for saw blade speed
§Spindle lock button
/On/off switch
:Chip ejector / hose connector
∙Installation flap for changing saw blade
$Mounting flange
£Clamping flange
|Clamping screw
¡Parallel guide
QMovable dust shield window
WBase plate
ECutting depth adjustment
RClamping screw for parallel guide
TClamping screw for cutting angle adjustment
ZAdaptive cutting line indicator
UBattery
IBattery status indicator
ORelease button, battery
3.2 Intended use
The product described is a cordless plunge-cut circular saw. It is designed for cutting and for making
plunge-cuts exclusively in the following materials:
• Wood and wood-like materials

8 English 2373403 *2373403*
• Plastics
• Gypsum board
• Fiber-cement boards
• Non-ferrous metals
The product is intended for carpentry work and for work in interior finishing.
The circular saw is equipped with a hose connector for an optional dust extractor; this connector fits
standard-diameter vacuum cleaner hoses. A suitable adapter might be required for connecting the dust-
extractor hose to the saw.
Use only saw blades approved for the product that comply with the specifications set out in the technical
data (e.g. diameter, speed of rotation, thickness, material, etc...). Grinding and cut-off wheels and saw
blades made of highly alloyed high speed steel (HSS) are not permissible.
Saw only flat workpieces that offer a big enough contact surface to accommodate the whole of the base plate.
• For this product, use only Hilti lithiumion batteries of the B 22 series. For this product, Hilti recommends
the use of the batteries stated in the table at the end of these operating instructions.
• For these batteries, use only Hilti chargers of the type series listed at the end of these operating
instructions.
3.3 Items supplied
Cordless circular saw, saw blade, operating instructions
Other system products approved for use with this product can be found at your local Hilti Store or at:
www.hilti.group
3.4 Status indicators of the Liion battery
Hilti Nuron Li-ion batteries can indicate state of charge, fault messages and the battery's state of health.
3.4.1 Indicators for state of charge and fault messages
WARNING
Risk of injury by a falling battery!
▶If the release button is pressed with a battery inserted in the product, subsequently check that the battery
is correctly re-engaged and secure.
Short-press the release button of the battery to get whichever of the following status indications is applicable
at the time.
State of charge and, if applicable, faults are indicated constantly as long as the connected product is
switched on.
Status Meaning
Four (4) LEDs show constantly green State of charge: 100 % to 71 %
Three (3) LEDs show constantly green State of charge: 70 % to 51 %
Two (2) LEDs show constantly green State of charge: 50 % to 26 %
One (1) LED shows constantly green State of charge: 25 % to 10 %
One (1) LED slow-flashes green State of charge: < 10 %
One (1) LED quick-flashes green The Li-ion battery is completely discharged.
Recharge the battery.
If the LED again starts quick-flashing after the bat-
tery has been charged, consult Hilti Service.
One (1) LED quick-flashes yellow The Li-ion battery or the product in which it is in-
serted is overloaded, too hot or too cold, or experi-
encing some other fault.
Bring the product and the battery to the recom-
mended working temperature and do not overload
the product when it is in use.
If the message persists, consult Hilti Service.
One (1) LED shows yellow The Li-ion battery and the product in which it is
inserted are not compatible. Consult Hilti Service.

*2373403* 2373403 English 9
Status Meaning
One (1) LED quick-flashes red The Li-ion battery is locked and cannot be used.
Consult Hilti Service.
3.4.2 Indicators showing the battery's state of health
To check the battery's state of health, press the release button and hold it down for longer than three
seconds. The system does not detect a potential malfunction of the battery due to misuse, for example
battery dropped or pierced, external heat damage, etc.
Status Meaning
All LEDs show in sequence, followed by one (1)
LED showing constantly green.
The battery can remain in use.
All LEDs show in sequence, followed by one (1)
LED quick-flashing yellow.
The check to ascertain the battery's state of health
did not complete. Repeat the procedure, or consult
Hilti Service.
All LEDs show in sequence, followed by one (1)
LED showing constantly red.
If a connected product can still be used, the re-
maining battery capacity is below 50 %.
If a connected product can no longer be used, the
battery has reached the end of its useful life and
has to be replaced. Consult Hilti Service.
4 Technical data
4.1 Product properties
SC 6WP-22
Weight 3.3 kg
(7.3 lb)
Weight (parallel guide) 0.45 kg
(0.99 lb)
Dimensions (L×W×H) 360 mm × 200 mm × 237 mm
(14.2 in × 7.9 in × 9.3 in)
Saw blade arbor size 16 mm
(0.6 in)
Saw blade diameter 165 mm
(6.5 in)
Saw blade disc thickness 1 mm … 1.5 mm
(0.04 in … 0.06 in)
Maximum cutting depth 57 mm
(2.2 in)
Rated speed under no load 6,000 /min
Rated voltage 21.6 V
4.2 Saw-blade types and applications
Saw-blade type Note on application
Universal saw blade
Fine-cut saw blade
Wood and wood-based materials
Fiber-cement saw blade Fiber cement or fiber-cement-based
materials

10 English 2373403 *2373403*
4.3 Storage and operating temperatures
Storage temperature −20 ℃ … 70 ℃
(−4 ℉ … 158 ℉)
Ambient temperature for operation −17 ℃ … 60 ℃
(1 ℉ … 140 ℉)
4.4 Battery
Battery operating voltage 21.6 V
Weight, battery See the end of these operating
instructions
Ambient temperature for operation −17 ℃ … 60 ℃
(1 ℉ … 140 ℉)
Storage temperature −20 ℃ … 40 ℃
(−4 ℉ … 104 ℉)
Battery charging starting temperature −10 ℃ … 45 ℃
(14 ℉ … 113 ℉)
5 Preparations at the workplace
WARNING
Risk of injury by inadvertent starting!
▶Before inserting the battery, make sure that the product is switched off.
▶Remove the battery before making any adjustments to the power tool or before changing accessories.
Observe the safety instructions and warnings in this documentation and on the product.
5.1 Charging the battery
1. Before charging the battery, read the operating instructions for the charger.
2. Make sure that the contacts on the battery and the contacts on the charger are clean and dry.
3. Use an approved charger to charge the battery. → page 7
5.2 Inserting the battery
WARNING
Risk of injury by short circuit or falling battery!
▶Before inserting the battery, make sure that the contacts on the battery and the contacts on the product
are free of foreign matter.
▶Make sure that the battery always engages correctly.
1. Charge the battery fully before using it for the first time.
2. Push the battery into the product until it engages with an audible click.
3. Check that the battery is seated securely.
5.3 Removing the battery
1. Press the battery release button.
2. Remove the battery from the product.
5.4 Fall arrest 2
WARNING
Risk of injury by falling tool and/or accessory!
▶Use only the Hilti tool tether recommended for your product.
▶Prior to each use, always check the attachment point of the tool tether for possible damage.

*2373403* 2373403 English 11
Comply with the national regulations for working at heights.
As drop arrester for this product, use only the Hilti tool tether #2261971.
▶Use the loop to secure the tool tether to the product as shown in the illustration. Check that it holds
securely.
▶Secure the carabiner to a load-bearing structure. Check that the carabiner holds securely.
Comply with the operating instructions of the Hilti tool tether.
5.5 Bringing plunge unit to installation position 3
The plunge unit has an installation position at which the clamping screw is accessible through the
installation window. The latching lever enables you to set the installation position.
When you flip the latching lever back (basic position), the plunge unit snaps back. Hold the product
by the main grip to control the return of the plunge unit to the initial position.
1. Position the product in such a way that you can plunge with the maximum cutting depth (e.g. at a table
edge).
2. Open the installation flap for saw blade installation.
3. Set the cutting depth setting indicator to the maximum value (1).
4. Flip the latching lever up (installation position) (2).
5. Press and hold down the switch-on interlock (3) and plunge the plunge unit to the installation position.
▶The plunge unit engages in the installation position with an audible click.
▶The clamping screw is visible, centered in the installation window.
5.6 Removing the saw blade 4
WARNING
Risk of burns and cut injuries at saw blade, clamping screw and clamping flange The consequences
can be burns and cut injuries.
▶Wear protective gloves when changing saw blades.
1. Bring the plunge unit to the installation position. → page 11
2. Press and hold down the spindle lock button (1).
3. Use the hex key to slacken the clamping screw (2).
Use the direction-of-rotation arrow for guidance: To slacken the clamping screw, turn it in the
direction of rotation of the saw blade.
4. Remove the clamping screw and the clamping flange.
5. Ease the saw blade down and out of the guard.
If necessary, the mounting flange can be removed for cleaning.
5.7 Installing the saw blade 5,6
Check that the blade to be fitted complies with the technical requirements and that it is well sharpened.
A sharp saw blade is an essential requirement for a perfect cut.
Before every use, always select the saw blade that is suitable for the material you are going to cut.
1. Bring the plunge unit to the installation position. → page 11
2. Clean the mounting flange and the clamping flange (1).
3. Slip the mounting flange right way round on to the arbor.
4. Insert the new saw blade (2).
▶Note the direction-of-rotation arrows on the saw blade (3) and on the guard (4). Both direction-of-
rotation arrows must point in the same direction.
5. Install the clamping flange the right way round.

12 English 2373403 *2373403*
6. Install the clamping screw.
7. Press and hold down the spindle lock button (5).
8. Use the hex key to tighten the clamping screw (6).
Use the direction-of-rotation arrow for guidance: To tighten the clamping screw, turn it opposite
to the direction of rotation of the saw blade.
9. Check that the saw blade is seated correctly.
10. Hold the product by the main grip.
11. Set the latching lever to the basic position and swivel the plunge unit back to the basic position (7).
12. Close the installation flap for saw blade installation.
5.8 Movable dust shield window
For optimum dust and chip extraction, always position the dust shield window as near as possible to the
workpiece.
5.9 Adjusting the cutting depth 7
The cutting depth should always be set to a depth approx. 5 to 10 mm greater than the thickness of
the material to be cut.
1. Press and hold down the release for the cutting depth adjustment (1).
2. Push the slider to the required cutting depth (2).
▶The cutting depth indicator has separate indicators for cuts with guide rail (3) and cuts without guide
rail (4).
3. Let go of the release for the cutting depth adjustment.
5.10 Setting cutting angle for bevel cuts 8
• Avoid different angle settings front and rear by not applying pressure to the auxiliary handle or the
saw while tightening. If the angle settings differ it is not possible to make a straight cut.
1. Slacken the 2 clamping screws of the cutting angle adjustment (1).
2. Swivel the product to the desired bevel cutting angle .
▶If you want to set an angle of -1° or greater than 45° (up to maximum 47°), press and hold down the
release button (2).
3. Tighten one of the two clamping screws of the cutting angle adjustment.
4. Tighten the opposing securing screw of the cutting angle adjustment.
5.11 Setting saw blade speed
Always use a speed that is suitable for the saw blade used and the material to be worked. By using an
appropriate speed you prevent overheating of the saw teeth and extend the service life of the saw blades.
▶Turn the speed selector knob to the appropriate position.
5.12 Installing parallel guide 9
Depending on how it is installed on the product, the parallel guide can fulfill one of the two functions:
• L-shaped edge facing down:
Parallel guide for uniform cuts along an edge.
• L-shaped edge facing up:
Extension of the base plate for steadier guidance when cutting without guide rail.
1. Slacken the two clamping screws.
2. Slip the parallel guide into the mounts in the base plate.
3. Set the parallel guide to the distance required for the cut.
▶Make sure that the distances are the same on both sides.
4. Tighten the two clamping screws.

*2373403* 2373403 English 13
5.13 Setting product on guide rail
1. Place the product with the groove in the base plate on the guide rib.
2. Check the play between guide rail and base plate.
3. Adjust play by turning the eccentric screws (1):
▶To reduce play, turn the eccentric screws clockwise.
▶To increase play, turn the eccentric screws counter-clockwise.
4. Adjust play to the minimum at which the gliding movement is not impaired.
6 Operation
Observe the safety instructions and warnings in this documentation and on the product.
6.1 Switching on or off
Switching on
1. Push the switch-on interlock up and hold it in this position.
2. Press and hold down the on/off switch.
3. Release the switch-on interlock.
The switch-on interlock remains in the disengaged position as long as you hold down the on/off
switch or the plunge unit is in a plunge position. The switch-on interlock automatically snaps to the
engaged position when the plunge unit is in the basic position and you release the on/off switch.
Switching off
4. Return the plunge unit to the basic position.
5. Release the on/off switch.
6.2 Dust and chips management
• Sawing with dust extractor:
Connect the suction hose to the dust removal connector and follow the instructions in the operating
instructions for the dust extractor.
• Sawing with dust bag:
Connect the dust bag with the adapter to the dust removal connector for dust extractor.
You can also operate the product without dust extractor or dust bag. Make sure that sawdust and
chips can be ejected without obstruction.
6.3 Sawing along a line 11
Saw only flat workpieces that offer a big enough contact surface to accommodate the whole of the
base plate.
1. Secure the workpiece to prevent movement and mark the line of cut (cutting mark).

14 English 2373403 *2373403*
2. Set the cutting depth. → page 12
3. Position the product with the adaptive cutting line indicator aligned with the marked line.
4. Switch the product on. → page 13
▶The plunge movement of the product is possible only with the on/off switch unlocked.
5. Plunge the plunge unit all the way into the workpiece (1).
6. Guide the tool through the workpiece at a suitable speed.
7. With the saw blade running, swivel the plunge unit back to the basic position (2).
In this way you prevent the saw blade from binding in the workpiece.
8. Switch the product off as soon as the plunge unit is in the basic position. → page 13
6.4 Making a plunge cut
1. Set the cutting depth. → page 12
2. Position the product on the workpiece.
3. Switch the product on. → page 13
▶The plunge movement of the product is possible only with the on/off switch unlocked.
4. Plunge the product all the way into the workpiece.
5. Guide the tool through the workpiece at a suitable speed.
6. Pivot the product out of the workpiece.
7. Switch the product off as soon as the plunge unit is in the basic position. → page 13
6.5 Making bevel cuts (angled cut)
The product has an adaptive cutting line indicator that adapts automatically to the set cutting angle. The
adaptive cutting line indicator applies only to cuts made without guide rail. When cuts are made with the
guide rail, the design of the product is such that the cutting line is independent of the set cutting angle.
1. Set the cutting angle for bevel cuts. → page 12
2. Position the product with the adaptive cutting line indicator aligned with the marked line.
3. Switch the product on. → page 13
4. Plunge the plunge unit into the workpiece.
5. Advance the product along the guide rail to make the cut through the workpiece.
6.6 Saw cuts with guide rail 10
1. Secure the guide rail with 2 screw clamps.
2. Place the base plate with the groove on the guide rib of the guide rail.
3. Set the cutting angle for bevel cuts. → page 12
4. Set the cutting depth. → page 12
5. Switch the product on. → page 13
6. Plunge the plunge unit into the workpiece.
7. Advance the product along the guide rail to make the cut through the workpiece.
7 Care and maintenance
WARNING
Risk of injury with battery inserted !
▶Always remove the battery before carrying out care and maintenance tasks!
Care of the product
• Carefully remove stubborn dirt.
• Carefully clean the air vents, if present, with a dry, soft brush.
• Use only a slightly damp cloth to clean the housing. Do not use cleaning agents containing silicone as
these can attack the plastic parts.
• Use a dry, clean cloth to clean the contacts of the product.
