hinor POCA06-5L User manual

Page 1 of 16
POCA06-5L
Oxygen-Concentrator

Page 2 of 16
POCA06-5L Oxygen Concentrator
Instruction Guide
WARNING-Read instruction guide before operating this equipment.
DANGER---NO SMOKING
TABLE OF CONTENTS
IMPORTANT SAFEGUARDS ......................................................................................................................................... 4
WHYYOUR PHYSICIAN PRESCRIBED SUPPLEMENTALOXYGEN ..................................................................... 4
HOW YOUR POCA06-5L OXYGEN CONCENTRATOR WORKS............................................................................... 4
IMPORTANT PARTS OFYOUR OXYGEN CONCENTRATOR.................................................................................. 5
SETTING UPYOUR OXYGEN CONCENTRATOR...................................................................................................... 6
BEFORE OPERATING YOUR OXYGEN CONCENTRATOR...................................................................................... 7
OPERATING YOUR POCA06-5 LOXYGEN CONCENTRATOR................................................................................ 8
RESERVE OXYGEN SYSTEM ....................................................................................................................................... 8
CARING AND PERIODIC MAINTENANCE FOR YOUR UNIT.................................................................................. 8
MINOR TROUBLESHOOTING..................................................................................................................................... 11
SPECIFICATIONS.......................................................................................................................................................... 12

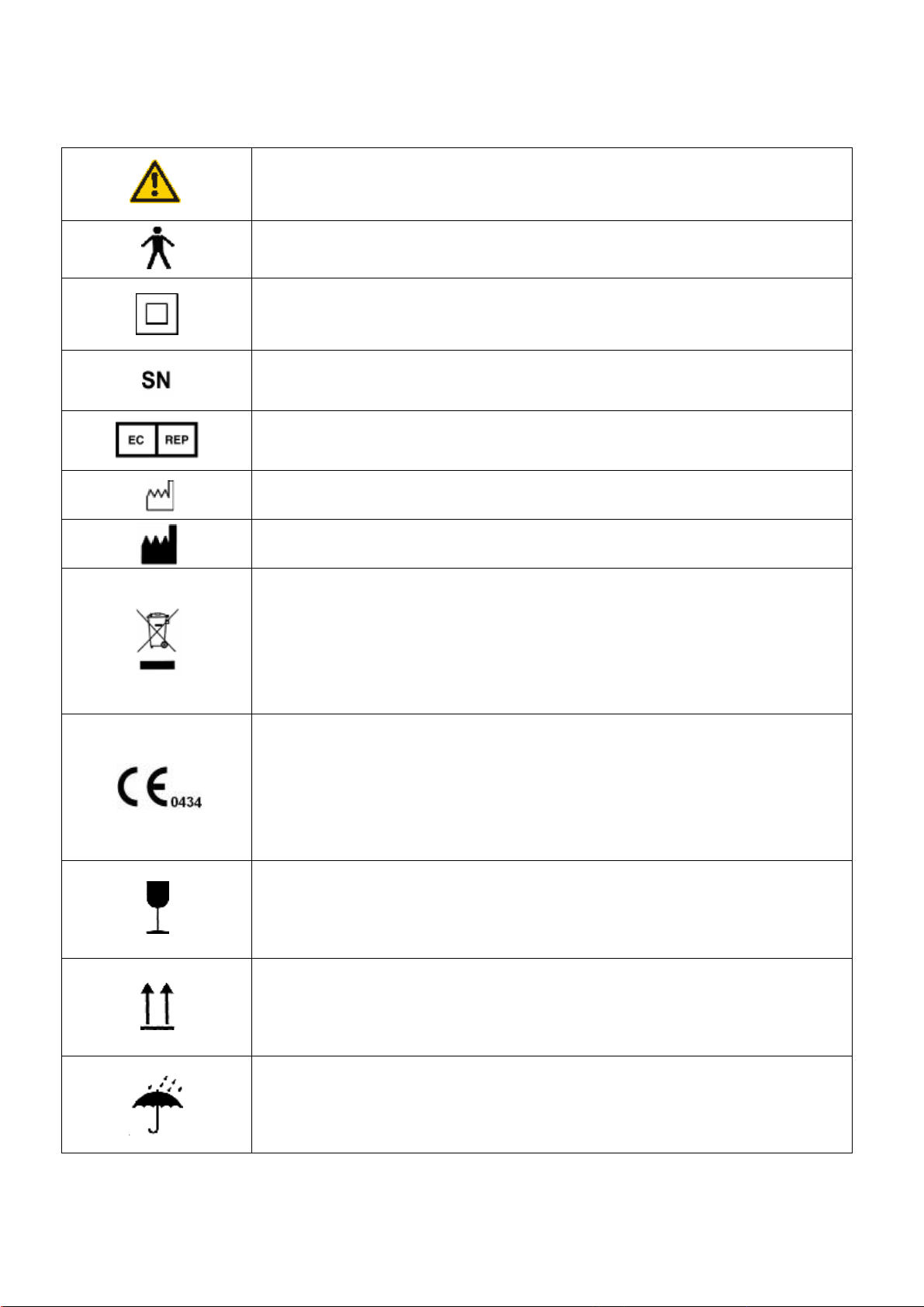

SYMBOL......................................................................................................................................................................... 13
ELECTROMAGNETIC IMMUNITY............................................................................................................................. 14
DECLARATION OF CONFORMITY............................................................................................................................ 16

Page 3 of 16
INDICATIONS FOR USE — The POCA06-5L Oxygen Concentrator is intended for use as an oxygen
concentrator to provide supplemental low flow oxygen therapy in the home, nursing homes , patient care
facilities, etc.
WARNING
Under certain circumstances, oxygen therapy can be hazardous.
Seeking medical advice before using an oxygen concentrator is advisable.
Physician Information
Physician Name:
Telephone:
Address:
Prescription Information
Name:
Oxygen liters per minute
at rest: during activity：
other:
Oxygen use per day
Hours: Minutes:
Comments:
POCA06-5L oxygen Concentrator Serial Number:
(check one)
□ 5 - L i t e r □
HINOR Provider Information
Service Person:
This instruction guide was reviewed with me and I have been instructed on the safe use and care of the
POCA06-5L Oxygen Concentrator.
Signature: Date:

Page 4 of 16
IMPORTANT SAFEGUARDS
Read this entire guide before using your POCA06-5L serial concentrator .Important informationare
highlighted by these terms throughout this guide:
DANGER Urgent safety information for hazards that will cause serious injury or death.
WARNING Important safety information for hazards that might cause serious injury.
CAUTION Information for preventing damage to the product.
NOTE Information which you should pay special attention.
Important safeguards are indicated throughout this guide; pay special attention to all safety
Information.
DANGER-NO SMOKING
SAVE THESE INSTRUCTIONS.
INTRODUCTION
This instruction guide will acquaint you with the POCA06-5L oxygen concentrator. Make sure that
you read and understand this guide before operating your unit .Important safeguards are indicated
throughout this guide ;pay special attention to all safety information .Contact your HINOR provider if
you have any questions.
WARNING
For your safety, the oxygen concentrator must be used according to the prescription determined by
your physician.
DANGER
Oxygen causes rapid burning. Do not smoke while your oxygen concentrator is operating, or when
you are near a person utilizing oxygen therapy. Do not use within 5 feet (1.6m) of hot ,sparking objects
or naked sources of flame.
WHY YOUR PHYSICIAN PRESCRIBED SUPPLEMENTAL OXYGEN
Today, many people suffer from heart, Lung, and other respiratory diseases .Many of these people can
benefit from supplemental oxygen therapy. Your body requires a steady supply of oxygen to function
properly. Your physician prescribed supplemental oxygen for you because you are not getting enough
oxygen from room air alone .Supplemental oxygen will increase the amount of oxygen that your body
receives.
Supplemental oxygen is not addictive .Your physician prescribed a specific oxygen flow to improve
symptoms such as headaches, drowsiness, confusion, fatigue, or increased irritability. If these symptoms
persist after you begin your supplemental oxygen program, consult your physician.

Page 5 of 16
HOW YOUR POCA06- 5L OXYGEN CONCENTRATOR WORKS
Oxygen concentrators are the most reliable, efficient, and convenient source of supplemental oxygen
available today, the oxygen concentrator is electrically operated. The unit separates oxygen from room air
which allows high-purity supplemental oxygen to be delivered to you through the oxygen outlet, although
the concentrator filters the oxygen in a room, it will not affect the normal amount of oxygen in your room.
IMPORTANT PARTS OF YOUR OXYGEN CONCENTRATOR
Please take time to familiarize yourself with your POCA06- 5L oxygen concentrator before operating.
Before using this product, make sure you have the following items:
． 1 User manual.
． 1 Oxygen concentrator set.
． 1 Adapter-for connect Humidifier. ． 1 Oxygen Outlet Connector
Front View (Figure 1)
1. Power Switch
I =ON
O=OFF
2. Circuit breaker – (selected units) resets the unit after electrical overload shutdown.
3. Humidifier Holder
4. Oxygen outlet—oxygen is dispersed through this port
5. Flow meter
6. Flow meter knob
7. Monitor-indicate the condition of oxygen purity status and hour meter
8. Green Power light—illuminates when your concentrator is operating
9. Normal Oxygen (green) light-(the LED display normal oxygen)/optional
10. Low Oxygen (yellow) light-(the LED display low oxygen)/ optional
11. Red Service Required light—when illuminated contact your HINOR provider
12. castor
Back View (Figure 2)
13. Air filter—prevents dirt, dust, and lint from entering your unit
14. Product specification lable
15. Exhaust
16. Power cord and /or IEC power connector

Page 6 of 16
BA
8/9
10
11
7
2
1
16
12
13
4
6 14
5
3
FRONT View (Figure 1) REAR View (Figure 2)
SETTING UP YOUR OXYGEN CONCENTRATOR
1. Position your unit near an electrical outlet in the room where you spend most of your time.
DANGER
Keep the oxygen concentrator at least 5 feet (1.6 m) from hot, sparking objects or naked sources of
flame.
NOTE — Do not connect to an electrical outlet controlled by a wall switch. NO other appliances
should be plugged into the wall outlet
2. Position your unit at least 6 inches (16 cm) from walls, draperies, or any other objects that might
prevent the proper flow of air in and out of your oxygen concentrator. The Oxygen concentrator
should be located so as to avoid pollutants or fumes.
15

Page 7 of 16
BEFORE OPERATING YOUR OXYGEN CONCENTRATOR
1. Before operating your unit always checks to be sure the air filter (located on the back of your unit) is
clean .Proper cleaning of this filter is discussed in the Caring for Your Concentrator section on page
7.
2. Attach the appropriate oxygen accessories to the oxygen outlet.

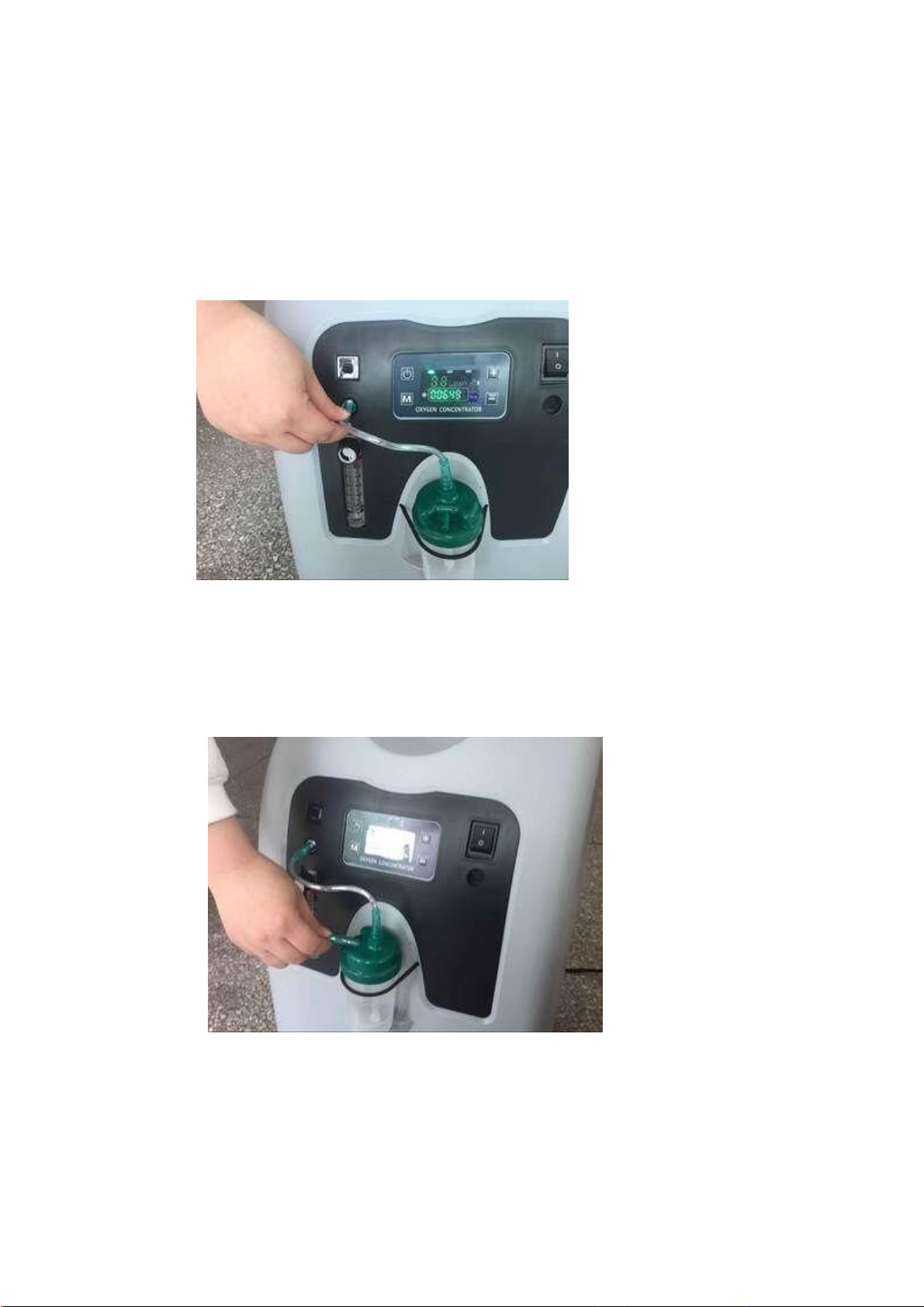

Oxygen Tubing Connection:
a. Attach the oxygen tubing directly to the connector.(Figure 3)
Figure 1
Oxygen Tubing Connection with Humidification:
a. If your physician has prescribed an oxygen humidifier as part of therapy,
b. Follow these steps:
c. Fill the humidifier bottle with distilled water. Do not overfill.
d. Attach the oxygen tubing directly to the humidifier bottle outlet fitting.(Figure 4)
Figure 2
Your physician has prescribed either a nasal cannula, catheter, or face mask, in most cases,
t hey a r e a l r ea dy a tt ach e d t o t he oxygen t ub i ng .If no t, f o ll o w t he m anu f ac t ure ’ s i ns tr uc ti ons f o r
attachment.

Page 8 of 16
Remove the power cord completely from the line cord strap, Make sure the power switch is in the
“ Off ” pos i t i on , and i nse rt t he p l ug i n t o t he w a ll ou t l e t; t he un i t i s doub l e i ns u l a t ed t o gua r d aga i ns t
electric shock.
WARNING
Improper use of the power cord and plugs can cause a burn, fire or other electric shock
hazards .Do not use the unit if the power cord is damaged
OPERATING YOUR POCA06- 5L OXYGEN CONCENTRATOR
DANGER
Oxygen causes rapid burning. Do not smoke while your oxygen concentrator is
operating, or when you are near a person utilizing oxygen therapy. Keep the oxygen
concentrator at Least 5 feet (1.6 m) from hot, sparking objects or naked sources of
flame.
1. P r ess t he po w e r s wi t ch t o t he “ On ” pos i ti on , w hen t he un i t i s t u r n e d on , t he P o w e r li gh t w ill ill u m i na t e ,
and t he pa t i en t a l e rt sys t e m – S e rv i ce R e qu i r e d li gh t and a ud i b l e s i gn a l — w ill b r i e fl y a l a rm .
NOTE— If the Service Required light illuminates and the audible signal alarms but the unit is not operating,
there is no power to the unit, Refer to the Minor Troubleshooting chart not page 8 and contact your HINOR
provider if necessary.
NOTE— If an audible low-frequency vibration sound is detected, the unit is not operating properly. Refer to
the Minor Troubleshooting chart on page 8, and contact your HINOR provider if necessary.
2. Check the flow meter to make sure that the flow meter ball is centered on the line next to the prescribed
number of your flow rate.
CAUTION— It is very important to follow your oxygen prescription. Do not increase or decrease the flow of
oxygen-consult your physician.
NOTE— Your HINOR provider may have preset the flow meter so that it can not be adjusted.
NOTE— If the flow meter knob is turned clockwise, the flow decreases (and eventually will shut off the
oxygen flow).If the knob is turned counterclockwise, the flow increases.
RESERVE OXYGEN SYSTEM
As a precaution, your HINOR provider may supply you with a reserve oxygen system. If your unit loses
electrical power or fails to operate correctly, the patient Alert System will sound to signal you to switch to
your reserve oxygen system (if provided )and contact your HINOR provider .
CARING AND PERIODIC MAINTENANCE FOR YOUR UNIT
Not— Use no lubricants, oils or grease.

Page 9 of 16
WARNING
Be f o r e a tt e mp t i n g any c l ean i n g p r oc e du r es , t u r n t he un i t “ o f f. ”
Oxygen Humidifier (reusable bottles)
If your physician has prescribed humidification, clean your humidifier bottle daily. Follow the instructions
Supplied by the manufacturer, If no cleaning instructions were supplied, follow these steps
1. Wash the humidifier in a solution of hot water and dishwashing detergent.
2. Soak the humidifier in a solution of one part white vinegar to three parts hot water for 30 minutes. This
solution acts as a germicidal agent.
3. Rinse thoroughly with warm tap water and refill with distilled water for use. Do not overfill .
Cannula 、 Mask 、 and Tubing
Clean and replace the cannula, mask, and tubing as instructed by your HINOR provider.
Air Filter and Oxygen Outlet Connector
The air filter and connector should be cleaned at least once a week. To clean, follow these steps:
1. Remove the air filter, located on the back of the unit .Remove the oxygen outlet connector (if used ).
2. Wash in a solution of warm water and dishwashing detergent.
3. Rinse thoroughly with warm tap water and towel dry .The filter should be completely dry before
reinstalling.
CAUTION— To prevent product damage, do not attempt to operate the unit without the air filter or while the
filter is still damp.
Exterior Cabinet
WARNING
To avoid electric shock, do not remove the concentrator cabinet. The cabinet should only be removed by a
qualified HINOR technician. Do not apply liquid directly to the cabinet or utilize any petroleum-based
solvents or cleaning agents.
Clean the concentrator exterior cabinet by using a damp cloth or sponge with a mild house-hold cleaner
and wipe it dry.
Periodic Maintenance for your unit
1. Clean the air filter at least once a week. The steps of cleaning see the Air Filter and Oxygen Outlet
Connector.
2. Change the felt of the Inlet Pre-Filter at least once half a year. Follow those steps:
Open the Important Safeguard pull out the Inlet Pre-Filter, Pull out the old felts from the Inlet Pre-Filter
（two sides）. Then insert the new felts to the Inlet Pre-Filter each side, insert the Inlet Pre-Filter and
close the Important Safeguard.
3. Change the Bacterial Filter at least once a year. You can not change this by yourself, you must contact
your HINOR Medical provider change this for you.

Page 10 of 16
Accessories
The accessories below are approved for use with POCA06- 5L Oxygen Concentrators:
object/part No.
manufacturer
/ trademark
type/model
technical data
mark(s) of conformity1)
Bubble
Humidifier(200 ml
Capacity)
SALTER
LABS
REF7100
ABS,PP
CE 0482
Cannula (disposable)
Hsiner Co,.Ltd
3583
PVC
CE 0434
Cannula w/ 2.1m(7 ft)
Oxygen Tubing
(disposable)
Hsiner Co,.Ltd
3031
PVC
CE 0434
Oxygen Tubing
(disposable)
Hsiner Co,.Ltd
30302
PVC
CE 0434
NOTE- The use of certain humidifiers and accessories not specified above may impair the oxygen
conc e n tr a t or ’ s p e rf o rm a nc e .
NOTE- If the Service Required light illuminates and the audible signal alarms but the unit is not operating,
there is no power to the unit. Refer to the Minor Troubleshooting chart on page 8 and contact
your HINOR Medical provider.
The POCA06- 5L Device is a device within your concentrator that monitors the oxygen produced by your
un i t. Wh e n t he un i t s i s t u r ned “ O N, ” a ll f ou r li gh t ( P o w e r, L o w O xy g en , N o r m a l O xy gen , a nd S e rv i c e
Required) on the front panel will illuminate briefly. After a few seconds, only the Power and Normal
Oxygen lights will remain lit.
The lights on the front panel are defined as follows:
． Gr een N o rm a l O x ygen li gh t- acc e p t a b l e o xy gen l ev e l .( T he L E D wi ll d i sp l a y “ N o r m a l O xy gen ” )
． Y e ll o w L o w O xy gen li gh t- be l o w an a cc e p t a b l e ox ygen l e ve l . (T he L E D w ill d i s p l a y “ L o w O x yg en ” )
If the oxygen purity falls below the acceptable level, the green Normal Oxygen light will shut off and the
yellow Low Oxygen light will illuminate. Switch to your reserve oxygen system. Refer to the
Troubleshooting section in this guide on page 8 and contact your HINOR provider.
As an added safety feature should the oxygen purity continue to drop, an intermittent audible signal will
sound. Contact your HINOR provider immediately. Do not attempt any other maintenance.

Page 11 of 16
MINOR TROUBLESHOOTING
Symptom
Possible Cause
Remedy
A. Unit does not operate.
Power light is off when the
po w e r s w i t ch i s “ on . ” A u di b l e
alarm is pulsing and Service
Required light is flashing.
1. Power cord not properly inserted into
wall outlet.
Check power connection at the wall outlet. On
220 volt units, check the back of the unit.
2. No power at wall outlet.
Check your home circuit breaker and reset if
necessary. Use a different wall outlet if the
situation occurs again.
3.Oxygen concentrator circuit breaker
activated (selected units).
Press the concentrator circuit breaker button (if
equipped) located below the power switch. Use a
different wall outlet if the situation occurs again.
B. Unit operates; the Power
light is on when the Power
s w i t ch i s “ On ” . R e d S e rv i c e
Required light is illuminated.
Audible alarm may be
sounding.
1. Air filter is blocked.
Check the air filter. If the filter is dirty, wash it
following the cleaning instructions on page 7.
2. Exhaust is blocked.
Check the exhaust area; make sure there is
nothing restricting the unit exhaust.
3. Blocked or defective cannula,
catheter, face mask or oxygen tubing.
Detach cannula, catheter, or face mask .If proper
flow is restored, clean or replace if necessary.
Disconnect the oxygen tubing at the oxygen
outlet. If proper flow is restored, check oxygen
tubing for obstructions or kinks. Replace if
necessary
4. Blocked or defective humidifier bottle.
Detach the humidifier from the oxygen outlet .If
proper flow is obtained, clean or replace
humidifier.
5. Flow meter set too low.
Set flow meter to prescribed flow rate. If the
above remedies do not work, contact your
HINOR provider
C. Unit operates the power
light is on when power
s w i t ch i s “ on “ , a u di b l e
low-frequency vibration
sound is detected.
Tu r n y ou r u nit “ o ff ” , S w i t ch t o y ou r r ese rv e
oxygen system, and contact your HINOR
provider immediately.
D. If any other problems
occur with your oxygen
concentrator.
Tu r n y ou r un i t “ O ff ” .Sw i t ch t o y ou r r ese rv e
oxygen system, and contact your HINOR
provider immediately.
E. Both the green Normal
Oxygen and the yellow Low
Oxygen lights are either on
or off.
O.C.I malfunction
Contact your HINOR provider.
F. Yellow Low Oxygen light
is on or the yellow low
Oxygen light is on and the
intermittent audible Signal is
sounding.
1. Flow meter is not properly yet.
Ensure the flow meter is properly set to the
prescribed.
2. Air filter is blocked.
Check the air filter. If the filter is dirty, wash it
following the cleaning instructions on page 7.
3. Exhaust is blocked.
Check the exhaust area: make sure there is
nothing restricting the unit exhaust.
G. Red Service Required
light is on and an intermittent
audible signal is sounding.
1. Flow meter is not properly yet.
Ensure the flow meter is properly set to the
prescribed.
2. Air filter is blocked.
Check the air filter. If the filter is dirty, wash it
following the cleaning instructions on page 7.
3. Exhaust is blocked.
Check the exhaust area: make sure there is
nothing restricting the unit exhaust. If the above
remedies do not work, contact your HINOR
provider.

Page 12 of 16
SPECIFICATIONS
No.
Item
Rating
1.
Delivery Rate (Lower delivery rates available for
low application)
2 to5 LPM
2.
Outlet Pressure
12 psi ( 83 kpa )
3.
Electrical Rating
220 V, 50 Hz, 3.4A(Max.)
4.
Oxygen Percentage
2~9 LPM 93%±2%,10 LPM 90%±3%
5.
Average oxygen concentration
at 2 l/min: 94%
6.
Operating Environment Range
Temperature 10℃to 40℃,
Humidity 15% to 95%
Atmospheric pressure 50~106 kpa (7.3~15.4 psi)
7.
Weight
19.0kg
8.
Sound Level ( ISO 8359:1996 from front )
≤55dbA
9.
Dimensions
342mm(L) x368mm(W) x572mm(H)
10.
Operating System
Time Cycle / Pressure Swing
11.
Storage Conditions
Temperature -40℃to 70℃
Humidity 10% t0 100%
Atmospheric pressure 50~106 kpa (7.3~15.4 psi)
12.
Equipment Class and Type
The type of protect against electric shock: Class II
The degree of protect against electric shock: TYPE B Type B
Applied part
13.
Pressure Relief Valve
276 kPa±34.5 kPa
14.
Lifetime
3 Years
15.
Warranty Period limit
1 Year

Page 13 of 16
SYMBOL
General warning, caution, risk of danger
Please read the instructions carefully before operating the product.
Type B applied part
Class II equipment
M anu f a c t ure ’ s se r i a l nu m be r
Authorized representative in the European community
Date of manufacture
Manufacture
Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE Directive) after over
the valid term within 3 years, the machine should be treated on local law or regulation
requirement. To avoid hurt users and pollute environment.
The equipment bears CE mark CE0434 indicating its conformity with the provision of Council
Directive 93/42/EEC concerning medical devices, and fulfills the essential requirement of
Annex I of this directive.
FRAGILE
Contents of the transport package are fragile therefore it shall be handled with care.
THIS WAY UP
Indicates correct upright position of the transport package.
KEEP AWAY FROM RAIN
Transport package shall be kept away from rain.

Page 14 of 16
Non-ionizing electromagnetic radiation
ELECTROMAGNETIC IMMUNITY
Guidance and manufacturer’s declaration –electromagnetic immunity
The POCA06-5L OXYGEN CONCENTRATOR is intended for use in the electromagnetic environment
specified below. The customer or the user of the POCA06-10L OXYGEN CONCENTRATOR should assure
that it is used in such an environment.
Immunity test
IEC 60601 test level
Compliance
level
Electromagnetic environment-guidance
Conducted RF
3 Vrms
3 V
Portable and mobile RF communications
equipment should be use no closer to any part
of the POCA06-10L OXYGEN
CONCENTRATOR including cables, than the
recommended separation distance calculated
from the equation applicable to the frequency
of the transmitter.
Recommended separation distance
3.5
d =[ V ] P
1
3.5
d =[ E ] P 80 MHz to 800 MHz
1
7
d =[E ] P 800 MHz to 2.5 GHz
1
Where p is the maximum output power rating
of the transmitter in watts (W) according to the
transmitter manufacturer and d is the
recommended separation distance in metres
(m).b
Field strengths from fixed RF transmitters, as
determined by an electromagnetic site survey,
ashould be less than the compliance level in
each frequency range. b
Interference may occur in the vicinity of
equipment marked with the following symbol:
IEC 61000-4-6
150 kHz to 80 MHz
Conducted RF
3 V/m
3 V/m
IEC 61000-4-3
80 MHz to 2.5 GHz
NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic is affected by absorption and
reflection from structures, objects and people.
a Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and
land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted
theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an

Page 15 of 16
electromagnetic site survey should be considered. If the measured field strength in the location in which
the POCA06- 5L OXYGEN CONCENTRATOR is used exceeds the applicable RF compliance level above,
the POCA06- 5L OXYGEN CONCENTRATOR should be observed to verify normal operation. If
abnormal performance is observed, additional measures may be necessary, such as reorienting or
relocating the POCA06- 5L OXYGEN CONCENTRATOR.
b Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.

Page 16 of 16
DECLARATION OF CONFORMITY
Manufacturer: SMALL AND MEDIUM BUSINESS INDUSTRY
ADDRESS: PLOT NO-C-4/1 VIDYA VIHAR C- BLOCK INDUSTRIAL AREA, HASTSAL ROAD
UTTAM NAGAR EAST NEW DELHI 110059
Product Designation: Oxygen Concentrator
Catalog Number: POCA06- 5L
www.smallmediumbusinessindia.com
EC authorized representation
