Hioki DT4261 User manual

DT4261 Instruction Manual
DIGITAL MULTIMETER
EN
Aug. 2021 Edition 1
DT4261A961-00 21-08H
Read carefully before use.
Keep for future reference.
HIOKI DT4261A961-00

HIOKI DT4261A961-00

i
Contents
Introduction.........................................................................1
Checking Package Contents .............................................2
Options................................................................................2
Notations.............................................................................6
Safety Information..............................................................9
Precautions for Use..........................................................13
1 Overview 19
1.1 Overview and Features.................................19
1.2 Part Names and Functions...........................20
1.3 Alarm Display and Battery Indicator ...........28
2 Preparing for Measurements 29
2.1 Measurement Procedure ..............................29
2.2 Inserting/Replacing Batteries ......................30
Battery installation/replacement procedure ..............33
2.3 Use of Test Leads..........................................35
L9300 Test Lead (accessory)....................................36
L9207-10 Test Lead (option) ..................................... 39
2.4 Installing Wireless Adapter ..........................41
Z3210 Wireless Adapter installation procedure ........42
2.5 Instrument Installation in the
Measurement Location .................................44
Using the instrument with the stand.......................... 44
Using magnetic strap ................................................45
Magnetic strap attachment procedure ......................47
Strap attachment procedure .....................................49
3 Measurement 51
3.1 Inspecting the Instrument Before Use ........51
DT4261A961-00
HIOKI DT4261A961-00

ii
Contents
3.2 Voltage Measurement ...................................58
Measuring DC voltage, AC voltage, and
DC/AC composite voltage.........................................59
Measuring AC voltage...............................................60
Measuring voltage with low input impedance ........... 61
3.3 Frequency Measurement..............................62
3.4 Continuity Check...........................................63
3.5 Diode Voltage Measurement ........................64
3.6 Resistance Measurement .............................65
3.7 Electrostatic Capacity Measurement ..........66
3.8 Current Measurement ...................................68
Measuring AC current ............................................... 69
Measuring DC current/AC current ............................70
3.9 Measurement with Clamp On Probe
(AC Current)...................................................71
4 Convenient Usage 73
4.1 Measurement Range Selection ....................73
Measuring with the auto range .................................73
Measuring with the manual range............................. 74
4.2 Hold Function (HOLD) ..................................75
Retaining the measured value manually (HOLD) ..... 75
Retaining the measured value automatically
(AUTO HOLD)...........................................................76
4.3 Filter Function (FILTER)................................79
4.4 Maximum, Minimum, Average, and
Peak Values ...................................................82
Displaying MAX, MIN, AVG, PEAK MAX, and
PEAK MIN in order ...................................................82
Displaying “MAX and MIN” or “PEAK MAX and
PEAK MIN” simultaneously.......................................83
4.5 Zero Adjustment............................................84
HIOKI DT4261A961-00

iii
Contents
4.6 Backlight ........................................................86
Display backlight....................................................... 86
Warning backlight (Red) ...........................................86
4.7 Auto Power Save (APS) ................................87
4.8 DC Voltage Positive/Negative Judgment
Function .........................................................88
4.9 Communication with the PC ........................89
4.10 Wireless Communications Function ...........92
Using GENNECT Cross............................................92
Excel®direct input function (HID function) ................ 95
4.11 Power-On Option Table.................................99
5 Specications 105
5.1 GeneralSpecications ...............................105
5.2 InputandMeasurementSpecications ....108
Basic specications ................................................108
5.3 OtherSpecications ...................................126
Interface specications ...........................................126
6 Maintenance and Service 127
6.1 Repairs, Calibration, and Cleaning............127
Calibration...............................................................127
When exposed to water during storage .................. 128
When condensation occurs ....................................129
Cleaning..................................................................130
Shipping Precautions.............................................. 130
Disposal ..................................................................130
6.2 Troubleshooting ..........................................131
Before returning for repair....................................... 131
6.3 Error and Operation Display ......................135
6.4 Fuse Replacement ......................................136
Fuse replacement procedure.................................. 138
HIOKI DT4261A961-00

iv
Contents
7 Appendix 141
7.1 RMS and Average........................................141
Index 143
WarrantyCerticate
HIOKI DT4261A961-00

1
Introduction
Introduction
Thank you for choosing the Hioki DT4261 Digital Multimeter. To
ensure your ability to get the most out of this instrument over the
long term, please read this manual carefully and keep it available for
future reference.
Carefully read the separate document entitled “Operating
Precautions” before use.
Latest instruction manual
The contents of this manual are subject to
change, for example as a result of product
improvements or changes to specications.
The latest edition can be downloaded from
Hioki’s website.
https://www.hioki.com/global/support/download
Intended audience
This manual has been written for use by individuals who use the
product or provide information about how to use the product. In
explaining how to use the product, it assumes electrical knowledge
(equivalent of the knowledge possessed by a graduate of an
electrical program at a technical high school).
Trademarks
• Microsoft Excel is either registered trademarks or trademarks of
Microsoft Corporation in the United States and other countries.
• The Bluetooth®word mark and logos are registered trademarks
owned by Bluetooth SIG, Inc. and any use of such marks by Hioki
E.E. Corporation is under license. Other trademarks and trade
names are those of their respective owners.
HIOKI DT4261A961-00

2

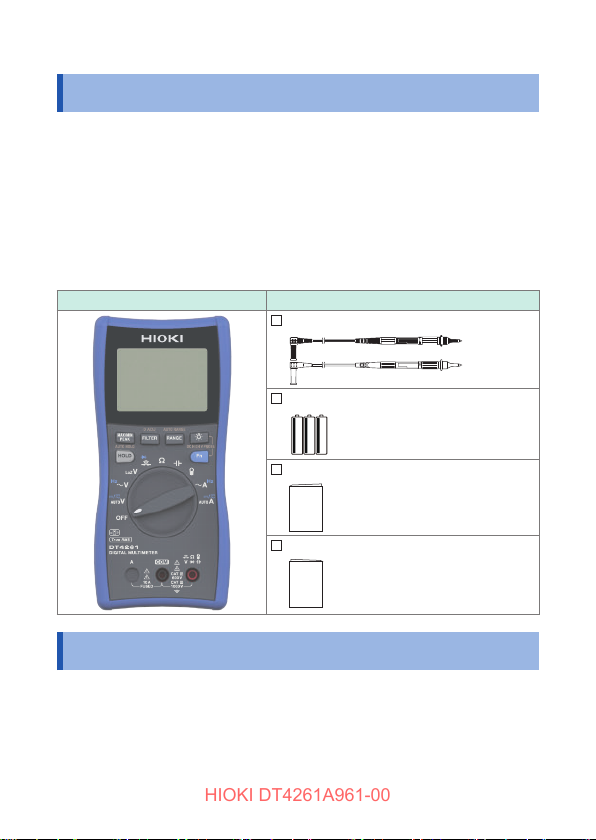

Checking Package Contents
Checking Package Contents
When you open the package, carefully inspect the instrument to
ensure that everything is in good condition, and that no damage
occurred during shipping. Carefully check the accessories, panel
keys, and connectors. If the instrument seems to have been
damaged or does not work as specied, contact your authorized
Hioki distributor or reseller.
Check the package contents as follows.
Instrument Accessories
L9300 Test Lead (p. 35)
LR6 Alkaline battery ×3
Instruction Manual (this document)
Operating Precautions (0990A907)
Options
The options listed as follows are available for the instrument. To
order an option, please contact your authorized Hioki distributor
or reseller. Options are subject to change. Please check Hioki’s
website for the latest information.
HIOKI DT4261A961-00

3
Options
Connection cables
L4933*3
Contact Pin Set
L4934*4
Small Alligator Clip Set
L4935*2
Alligator Clip Set
L9243*5
Grabber Clip
L4936*6
Bus Bar Clip Set
L4937 Magnetic Adapter Set *
7
9804 Magnetic Adapter*
10
L4932*1
Test Pin Set
L9207-10*1
Test Lead
L4930*2
Connection Cable Set
(Length: 1.2 m)
L4931*2
Extension Cable Set
(Length: 1.5 m, with the
coupling connector)
L4938*8
Test Pin Set
L4939*9
Breaker Pin Set
L9300*1
Test Lead
When attaching the L4933 or L4934 to a test
lead, do so in the measurement category II
conguration (for the L9207-10, with the sleeve
removed).
*1: CAT IV 600 V, CAT III 1000 V, CAT II 1000 V, 10 A
*2: CAT IV 600 V, CAT III 1000 V, 10 A
*3: 30 V AC, 60 V DC, 3 A
*4: CAT III 300 V, CAT II 600 V, 3 A
*5: CAT II 1000 V, 1 A
*6: CAT III 600 V, 5 A
*7: CAT III 1000 V, 2 A
*8: CAT III 600 V, CAT II 600 V, 10 A
*9: CAT III 600 V, 10 A
*10: CAT IV 1000 V, 2 A
HIOKI DT4261A961-00

4
Options
For current measurement (p. 71)
9010-50, 9018-50, 9132-50
Clamp on Probe (CAT III 600 V)
9704
Conversion Adapter
Clamp on Probe Rated current Measurable diameter of conductors
9010-50, 9018-50 500 A rms 46 mm or less in diameter
9132-50 1000 A rms 55 mm or less in diameter,
80 × 20 mm bus-bar
Carrying case
The instrument, test leads, instruction manual, and others can be stored.
C0202 Carrying Case C0207 Carrying Case
Magnetic strap (p. 45)
Attach this strap to the instrument and secure it on the wall surface such as a
metal plate for use.
Z5004 Magnetic Strap
Z5020 Magnetic Strap (Extra strength)
HIOKI DT4261A961-00

5
Options
DT4900-01 Communication Package (USB) (p. 89)
A communication adapter, USB cable, PC software,
and communication specications are included.
The instrument data can be stored on the PC.
Z3210 Wireless Adapter (p. 41, p. 92)
With this adapter installed to the instrument, the
wireless communications function can be used.
HIOKI DT4261A961-00

6
Notations

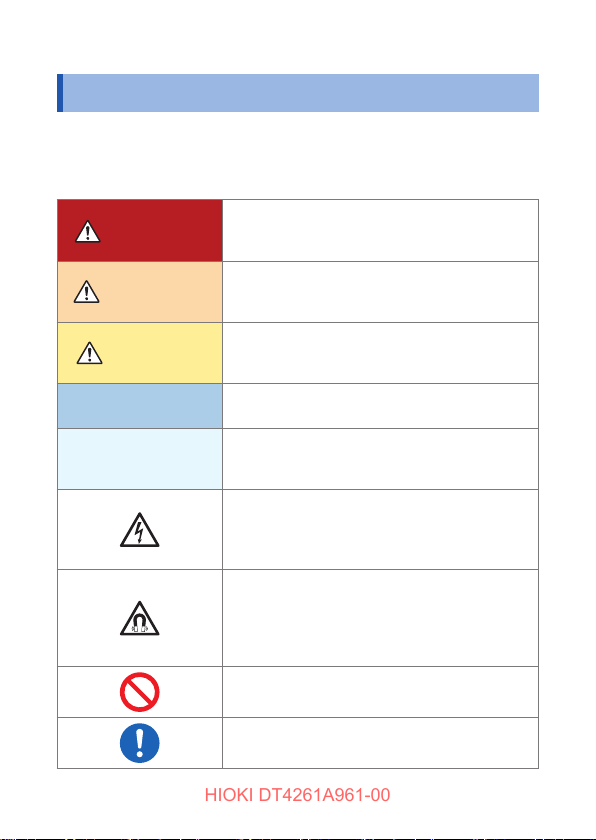

Notations
Safety notations
In this document, the severity levels of risk and hazard are classied
as follows.
DANGER
Indicates an imminently hazardous situation
that, if not avoided, will result in death or serious
injury.
WARNING
Indicates a potentially hazardous situation that,
if not avoided, could result in death or serious
injury.
CAUTION
Indicates a potentially hazardous situation that,
if not avoided, could result in minor or moderate
injury.
NOTICE Indicates potential risks of damage to the
supported product (or to other property).
IMPORTANT
Indicates information or content that is
particularly important from the stand point of
operating or maintaining the instrument.
Indicates a high-voltage hazard.
Failure to verify safety or improper handling of
the instrument could lead to an electric shock,
burn, or death.
Indicates the presence of a hazard caused by a
strong magnet.
The e󰀨ects of the magnetic force can cause
abnormal operation of heart pacemakers and/or
medical electronics.
Indicates an action that must not be performed.
Indicates an action that must be performed.
HIOKI DT4261A961-00

7
Notations
Symbols shown on the instrument
Indicates the presence of a potential hazard. For more
information about locations where this symbol appears on
instrument components, see the section “Precautions for Use”
(p. 13), warning messages listed at the beginning of operating
instructions, and the accompanying document entitled “Operating
Precautions.”
Indicates a terminal that generates hazardous voltage.
Indicates an instrument that has been protected throughout by
double insulation or reinforced insulation.
Indicates a fuse.
Indicates a grounding terminal.
Indicates DC (Direct Current).
Indicates AC (Alternating Current).
Symbols for various standards
Indicates the Waste Electrical and Electronic Equipment
Directive (WEEE Directive) in EU member states.
Indicates that the product complies with standards imposed by
EU directives.
HIOKI DT4261A961-00

8

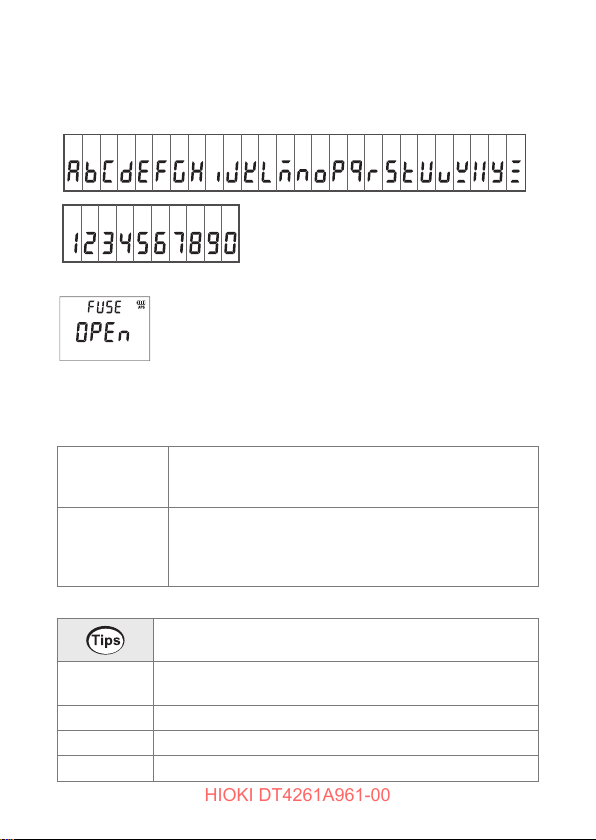

Notations
Screen display
The instrument screen displays the alphanumeric characters as follows.
1 2 3 4 5 6 7 8 9 0
A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
1 2 3 4 5 6 7 8 9 0
A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
A di󰀨erent display is used in the case below (when fuse is blown).
Accuracy
Hioki expresses accuracy as error limit values specied in terms of
percentages of reading and digits.
Reading
(display value)
Indicates the value displayed by the instrument. Limit
values for reading errors are expressed as a percentage
of the reading (“% of reading” or “% rdg”).
Digit
(resolution)
Indicates the minimum display unit (in other words, the
smallest digit that can have a value of 1) for a digital
measuring instrument. Limit values for digit errors are
expressed using digits.
Other notations
Indicates useful advice concerning instrument performance
and operation.
[APS] Names of user interface elements on the screen are
enclosed in brackets ([]).
RANGE Operation key names are highlighted in bold.
(p. ) Indicates the page number to reference.
*Indicates additional information is described below.
HIOKI DT4261A961-00

9
Safety Information
Safety Information
This instrument is designed to conform to IEC 61010 Safety
Standards and has been thoroughly tested for safety prior to
shipment. However, using the instrument in a way not described in
this manual may negate the provided safety features.
Carefully read the following safety notes before using the
instrument.
DANGER
Familiarize yourself with the instructions
and precautions in this manual before use.
Failure to do so could cause improper use of the
instrument, resulting in serious bodily injury or damage
to the instrument.
HIOKI DT4261A961-00

10
Safety Information
WARNING
If you have not used any electrical
measuring instruments before, you should
be supervised by a technician who has
experience in electrical measurement.
Failure to do so could cause the user to experience an
electric shock.
Moreover, it could cause serious events such as heat
generation, re, and an arc ash due to a short-circuit.
Protective gear
Use appropriate protective insulation.
Performing measurement using this instrument involves
live-line work. Failure to use protective gear could
cause the operator to experience an electric shock.
Using protective gear is prescribed under applicable
laws and regulations.
HIOKI DT4261A961-00

11
Safety Information
Measurement categories
To ensure safe operation of measuring instruments, IEC 61010
species the measurement categories, which classies testing and
measuring circuits into three categories according to the types of
mains circuits to which they are intended to be connected.
DANGER
Do not use a measuring instrument for
measurements on a mains circuit that
exceeds the range of the measurement
category rated for the instrument.
Do not use a measuring instrument
without a measurement category rating for
measurements on a mains circuit.
Failure to observe this can cause a serious bodily injury
and damage to the instrument and other equipment.
This instrument conforms to the safety requirements for CAT III
1000 V, CAT IV 600 V measuring instruments.
Measurement category II (CAT II)
Applicable to test and measuring circuits connected directly to
utilization points (socket outlets and similar points) of the low-
voltage mains installation.
EXAMPLE: Measurements on household appliances, portable tools,
and similar equipment, and on the consumer side only
of socket-outlets in the xed installation.
HIOKI DT4261A961-00

12
Safety Information
Measurement category III (CAT III)
Applicable to test and measuring circuits connected to the
distribution part of the building’s low-voltage mains installation.
EXAMPLE: Measurements on distribution boards (including
secondary meters), photovoltaic panels, circuit breakers,
wiring, including cables, bus-bars, junction boxes,
switches, socket-outlets in the xed installation, and
equipment for industrial use and some other equipment
such as stationary motors with permanent connection to
the xed installation.
Measurement category IV (CAT IV)
Applicable to test and measuring circuits connected at the source of
the building’s low-voltage mains installation.
EXAMPLE: Measurements on devices installed before the main
fuse or circuit breaker in the building installation.
T Outlet
CAT II
Internal Wiring
Distribution
Panel
Service Entrance
Service Drop
CAT IV
Power Meter
CAT III
Fixed Installation
See: “2.3 Use of Test Leads” (p. 35)
HIOKI DT4261A961-00

13
Precautions for Use
Precautions for Use
Observe the following precautionary information to ensure that the
instrument can be used safely and in a manner that allows it to
perform as described in its specications.
DANGER
Inspect the instrument and verify proper
operation before use.
Use of the instrument while malfunctioning could result
in serious bodily injury. If you nd any damage, contact
your authorized Hioki distributor or reseller.
Before use, verify that test lead insulation
is not torn and that no metal is exposed.
Using test leads or an instrument that is damaged
could result in serious bodily injury. If you discover any
damage, replace with replace with a Hioki-specied
part.
HIOKI DT4261A961-00

14
Precautions for Use
Installation
WARNING
Do not install the instrument in locations
such as the following:
• In locations where it would be subject to direct sunlight
or high temperatures
• In locations where it would be exposed to corrosive or
explosive gases
• In locations where it would be exposed to powerful
electromagnetic radiation or close to objects carrying
an electric charge
• Close to inductive heating devices (high-frequency
inductive heating devices, IH cooktops, etc.)
• In locations characterized by a large amount of
mechanical vibration
• In locations where it would be exposed to water, oil,
chemicals, or solvents
• In locations where it would be exposed to high humidity
or condensation
• In locations with an excessive amount of dust or metal
particles
Doing so could damage the instrument or cause it to
malfunction, resulting in bodily injury.
HIOKI DT4261A961-00
