Hipstreet Hs-scnr430 User manual

HS-SCNR430 Manual

FCC ID:YH5-HSSCNR43

1. Key features

Color /Monochrome (Mono) scan selection

600/300 dpi resolution scan selection

Built-in BLUETOOTH® wireless technology

Directly save JPEG file to microSD/microSDHC card

Support microSD/microSDHC card up to 32GB

Driver free to download for Windows® XP, Windows® Vista™,

Windows® 7 and Mac OS® 10.4 or above

(direct plug-in, driver installation not required)

2. Functional parts

Part Function

1 Scan LED indicator Ready for scan: Green LED on

2 Error LED indicator Over speed: Red LED on

Charging battery: Red LED on until complete.

3 LCD screen Scanning status display

4 BT LED indicator Bluetooth: Blue LED on

5 Scan button In power on mode, press this button to start scanning,

press this button again to stop scanning

6 Battery door For 4.2V rechargeable battery

7 microSD card slot microSD/microSDHC card storage location.

8 Time set When Scanner is power on, press to enter Time and Date

setting mode

9 Format button When Scanner is power on, press this button to format the

microSD/microSDHC card.

10 Power / Bluetooth

button

Bluetooth On/Off: Switch this key left to [BT] mode to

enable Bluetooth techonolgy

Power On/Off: Switch to [SCAN] mode to turn on scanner

Switch to [OFF] mode to turn off scanner.

11 USB interface Download photo to a computer via USB cable provided.

12 Resolution Select High(600dpi) / Low(300dpi) resolution;

High / Low resolution mode icon will be displayed on status

LCD screen.

13 C/BW Select Color/Mono scan, Color/Mono mode icon will be

displayed on status LCD

3. Explanation of the status icons

Item Function Description

1 SD card indicator Photos will be stored in microSD card

2 Battery indicator Battery is full Empty battery

3 Effect indicator Color or Mono

4 Counting indicator Show scanned files in microSD card

5 Selected resolution High:600 dpi / Low:300 dpi

4. LED light indications

“GREEN” SCAN LED ON Scan in progress.

“GREEN” SCAN LED OFF Standby / Scan is complete.

----------------------------------------------------------------------------------------------------

“RED” ERROR LED ON Scanning too fast.

May cause scanning error.

Restart and scan again.

“RED” ERROR LED OFF No error in scanning speed.

Continue scanning process.

---------------------------------------------------------------------------------------------------------------------

“BLUE” BT LED ON Bluetooth wireless technology is enabled

﹡Scan will START when button is pressed

﹡To END scan, press button again

5. Using the scanner

5.1 Installing the battery

1. Open the battery door by sliding the battery compartment downwards as indicated

by the arrow in the diagram below.

2. Make sure battery is in the battery compartment. If not, insert 4.2V rechargeable

lithiumpolymerbatteryintocompartment.

3. Turn on the scanner by switching the [POWER] switch to [SCAN] mode.

5.2 Inserting a microSD memory card (not included)

To operate the scanner, you must insert a microSD Card (not supplied) to record and store your

pictures. Inserting the microSD memory card:

1. Turn OFF the scanner.

2. Insert the microSD card into the microSD card slot (with metal side facing upwards).

Gently press in until card is clicked in and latched. The SD card indicator must

appear on the LCD screen.

Note: Do not force the card into the slot; forcing may damage scanner and the microSD memory

card. Align microSD card position (as marked) and try again.

5.3 Time setting

1. Press [TIME SET] button to enter time setting mode by using a thin, blunt object,

such as a paperclip to access the button. The LCD screen will read “1##” for the year.

“##” is a set of number that would be changed to correspond to the actual time/date

setting.

2. Press the [C/BW] or [DPI] buttons to select the current Year.

3. Press button to confirm setting. The LCD screen will now read “2##.”

4. Repeat steps 2 and 3 to select the Month, Date, Hour, and Minute.

Indicator Setting

1## Year

2## Month

3## Date

4## Hour

5## Minute

5 After setting the Minute, “5##”, press the [TIME SET] button again to complete the

Time and Date setting.

5.4 Formatting the microSD memory card

Note: All contents on the microSD card will be erased during formatting.

1. Insert a microSD card into the scanner with metal side facing upwards. Then power

on the scanner.

2. Press the [FORMAT] button with a thin, blunt object, such as the end of a paperclip

to access the button. An “F” shows on the LCD screen.

3. Press the button once to begin formatting microSD card.

4. The SD card indicator will flash until the formatting process is complete.

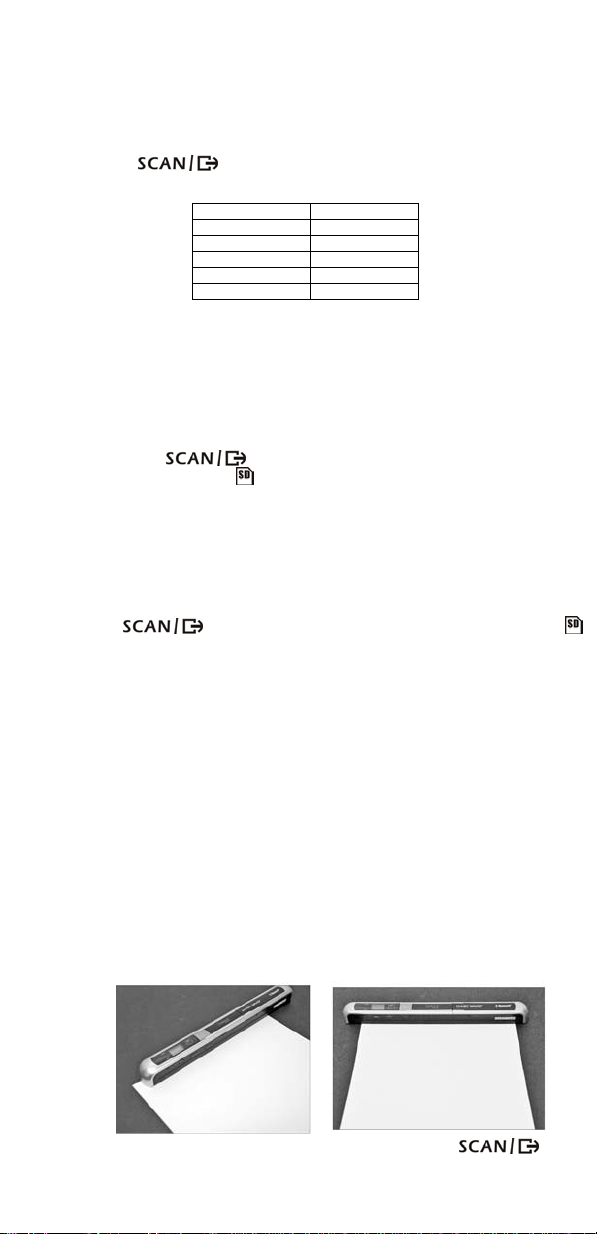

5.5 Calibrating your scanner

1. Clean the glass shield located on the bottom of scanner with the cleaning cloth

provided.

2. Turn on the scanner by sliding the [POWER] switch to [SCAN] mode. Then place the

scanner on the provided “White Balance Calibration” paper.

3. Click and hold onto the [C/BW] button. While holding onto the [C/BW] button, press

the button once and then release both buttons. SD card indicator

will flash and “GREEN” and “RED” LED light will turn on.

4. Do not move the scanner. Wait until the “RED” LED light turns off. “GREEN” LED

light will stay on.

5. With only the “GREEN” LED light on, start scanning the white paper by sliding the

scanner across the paper until the “GREEN” LED light turns off. (Slide the scanner

backwards if necessary).

6. Slide the [POWER] switch to [OFF] to turn off the scanner. Calibration is completed.

5.6 Setting the resolution

1. By pressing the [DPI] resolution button on the scanner, you may choose between

high resolution (600 dpi) and low resolution (300 dpi).

2. The high or low resolution mode will be displayed on the LCD screen to reflect your

choice.

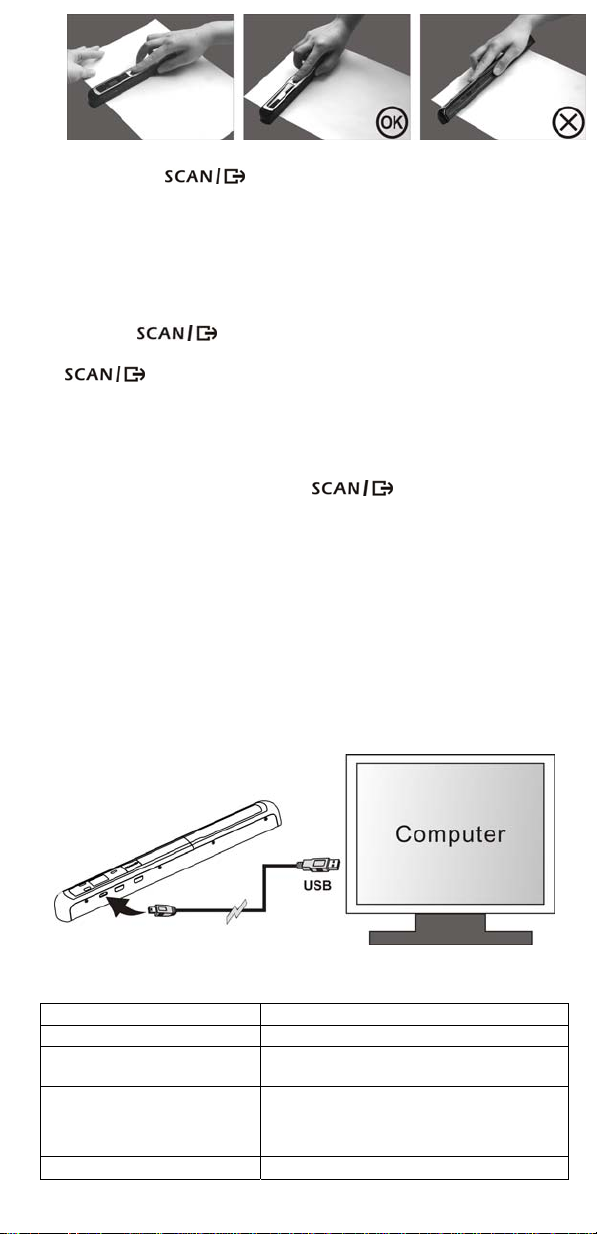

5.7 How to scan

Note: To scan, make sure your scanner is not connected to the computer.

1. Turn on the scanner by sliding the [POWER] switch to [SCAN] mode.

2. Place the document on a flat surface and hold down the document with one hand.

3. Place the scanner on the edge of the paper approximately 5/8 to 3/4 of an inch onto

the paper to ensure the most of the document can be scanned. Make sure to keep

the scanning area in between the scanning width indicators marked on the side of

the scanner.

4. Hold the scanner flat against the material and then press the button

once.
