HIS HIS-ML12 C Series User manual
Hope Industrial Systems, Inc.
User Manual
12” Panel Mount Industrial Monitor
Revision C
Model Numbers: HIS-ML12- _ _ _ C
2
Table of Contents
SAFETY AND REGULATORY INFORMATION....................................................................3
Warning..............................................................................................................................3
FCC Notice.........................................................................................................................3
CONTROL PANEL BUTTONS AND INDICATORS..............................................................4
Power Indicator Light Status...............................................................................................4
OSD FUNCTIONS .................................................................................................................5
INSTALLATION INSTRUCTIONS.........................................................................................7
Preparing for Installation.....................................................................................................7
Installation into Panel..........................................................................................................8
TOUCHSCREEN DRIVER INSTALLATION .........................................................................9
CLEANING...........................................................................................................................10
Resistive Touchscreen model ..........................................................................................10
Tempered Anti-Reflective Glass Window.........................................................................10
TROUBLESHOOTING ........................................................................................................11
DRAWINGS .........................................................................................................................12
Front and Side Views .......................................................................................................12
Rear View (Showing Cutout Dimensions) ........................................................................13
SPECIFICATIONS...............................................................................................................14
Display..............................................................................................................................14
Video ................................................................................................................................14
Electrical...........................................................................................................................15
Environmental...................................................................................................................15
Functional.........................................................................................................................15
Enclosure..........................................................................................................................15
Physical ............................................................................................................................16
Compliance.......................................................................................................................16
VGA Pin assignment ........................................................................................................16
FACTORY PRESET TIMING...............................................................................................17
WARRANTY STATEMENT .................................................................................................18
3
Safety and Regulatory Information
Warning
To prevent fire or shock hazard, do not expose the unit to rain or moisture. Dange-
rously high voltages are present inside the unit. Do not disassemble the unit. Refer
servicing to qualified personnel only.
This equipment is not intended for use in critical applications where its failure to op-
erate would create immediate life threatening circumstances. Applications including
but no limited to nuclear reactor control, aerospace navigation systems and life
support systems are not appropriate for this product.
This product is intended to be mounted in a suitable cabinet or other enclosure. The
NEMA 4, 4x or 12 ratings are applicable only when properly installed in a like rated
enclosure.
This product is a UL Recognized Component and must be used with a listed com-
puter.
FCC Notice
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide rea-
sonable protection against harmful interference when the equipment is operated in a com-
mercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense. Any changes or modifications not expressly approved
by the grantee of this device could void the user’s authority to operate the device.
4
Control Panel Buttons and Indicators
Control Panel Button
Description
Power On/Off
Press to turn monitor power on and off.
Menu
Pressing this button the first time brings up the OSD (On Screen
Display) menu. Once inside the OSD menu, pressing this but-
ton again selects the highlighted function.
Select +
Use these buttons to navigate within the OSD and to in-
crease/decrease function values.
Select -
Power Indicator Light Status
•LED lit green – power is ON.
•LED not lit – power is OFF.
•LED lit yellow – monitor is in power saving mode.
*Note: This unit has “Energy Star” capability – you can leave device power in the on state
when the computer is powered off.
5
OSD Functions
Menu
Description
Brightness 101 scales of brightness are available to choose from (0 to 100)
Contrast 256 scales of contrast are available (0 to 255)
H. Position For adjustment of the display’s horizontal position.
V. Position For adjustment of the display’s vertical position.
Phase 32 scales are available to adjust the focus and clarity of the display (0 to 31).
Clock This function provides a frequency-tracking feature that allows the user to have bet-
ter stability and clarity. Increasing the Clock value can be up to 64 settings. The
number of decreasing Clock (minus) is dependent on the video signal timing.
Auto Adjustment This function will adjust the display size automatically to fit the full screen.
OSD H. Position For moving the OSD menu window horizontally.
OSD V. Position For moving the OSD menu window vertically.
Graphics Text Provides ability for the operator to choose a display that allows maximum graphics
text quality. The resolution selection can either be 640x400 or 720x400. Please
refer to Standard Timing Table for different timing modes.
Recall Will force all adjusted parameters to factory-preset values.
Language Five OSD language options are available: English, German, French, Spanish and
Italian.
Color Temp. Push the (+ -) buttons to select different color temperatures.
9300 – CIE coordinated Color Temperature of 9300ºK
6300 – CIE coordinated Color Temperature of 6500ºK
6
USER – Three colors (Red, Green, Blue) can be adjusted from the OSD menu.
Save + Exit Saves the values of this setting and exits the OSD menu function.
Brightness 101 scales of brightness are available to choose from (0 to 100)
Contrast 256 scales of contrast are available (0 to 255)
H. Position For adjustment of the display’s horizontal position.
7
Installation Instructions
Preparing for Installation
Important! Perform the following steps BEFORE Installation of the monitor into the
panel.
1. Ensure that sufficient power is available.
2. Ensure that sufficient space is available to allow for proper air flow into and out of
the unit.
3. Ensure that the air temperature around the unit (top and bottom) will not exceed the
rated specifications of the unit.
•The maximum rated temperature of the HIS-ML12 is 50°C (122°F)
•Remember that heat rises – the temperature at the top of the cabinet
will be much hotter than at the bottom when the air is not circulating.
•Also, remember that even though this product is designed to operate
at 50°C, the life span of any electronic device is shortened when it is
consistently operated at high temperatures. Therefore it is wise to take
steps to keep the temperature of the ambient air around the unit as low
as possible.
4. Ensure that the ambient humidity of the air around the unit does not exceed the
rated specifications for the unit.
•The maximum rated humidity for the HIS-ML12 is 90% non-condensing
8
Installation into Panel
1. Refer to the drawing below.
2. Locate position in panel for mounting of the monitor. Ensure that there is adequate
space begin the panel. Allow extra space (0.5 in. behind and on each side) for air
ventilation.
3. Cut a rectangular hole in the panel. Clean and deburr.
Dimensions: 12.12” (308mm) W x 10.35” (263mm) H ; +/- .020”
4. Separate the rear collar from the unit by removing the 8 nuts.
5. Insert the unit into the front of the panel and re-attach the collar.
6. Tighten all
8 nuts to a torque of 24 inch-pounds to assure a water-tight seal be-
tween the poron bezel gasket on the monitor and equipment panel. HIS will not
assume liability for damage to internal electronics due to improper installation.
10
Cleaning
CAUTION! DO NOT USE ABRASIVE MATERIALS SUCH AS PAPER TOWELS OR
DIRTY SHOP RAGS ON THE DISPLAY AS IT WILL SCRATCH THE PROTECTIVE
COATING. ALWAYS USE A SOFT CLOTH, PREFERABLY MADE OF COTTON.
Resistive Touchscreen model
Any standard glass cleaner can be used to clean the touchscreen. Always
spray the glass cleaner on the cloth or towel and then clean the touch-
screen. Glass cleaner sprayed directly on the monitor could possibly leak
inside a non-sealed unit and cause damage.
Vinegar or ammonia will not hurt the touchscreen. Again, spray the cloth and then
clean the touchscreen.
Tempered Anti-Reflective Glass Window
Use any standard glass cleaner as long as there is no abrasive or oily content. The
anti-reflective coatings are physically part of the surface of the glass and resist de-
gradation to the Military Specifications.
11
Troubleshooting
Blank Screen After installing the power adapter and connecting I/O cable to a PC,
the monitor displays a blank screen.
•Press the power button and check to see if the power LED is lit.
•If the LED turns green, make sure the PC is powered on.
Make sure all cables are connected.
•If the LED turns orange, check to see if the PC is in the power
saving mode by pressing any keys on the keyboard.
Rolling Screen
•Change PC display resolution to 800x600 at 60hz.
•Unplug the power adapter to monitor, then plug it in again.
•Press monitor power button again.
•Reset the monitor to the original factory setting.
•Activate the “Auto Adjust” function in the OSD menu.
Unstable Screen
•Activate the “Auto Adjust” function in the OSD menu.
•Make sure the PC display resolution is not set greater than
800x600 at 75hz.
•Make sure the PC display resolution matches one of the facto-
ry preset timings in this manual.
•Change the PC display resolution to 800x600 at 60hz.
•Reset the monitor to the factory setting.
Screen is not perfect
•Activate the “Auto Adjust” function in the OSD menu.
•Make sure the PC display resolution matches one the factory
preset timings shown in this manual.
•Recall factory setting. Refer to panel controls and OSD func-
tions in this manual.
•Fine tune the picture by performing the following adjustments
in this order – pitch, phase, and position. Refer to OSD func-
tions in this manual.
12
Drawings

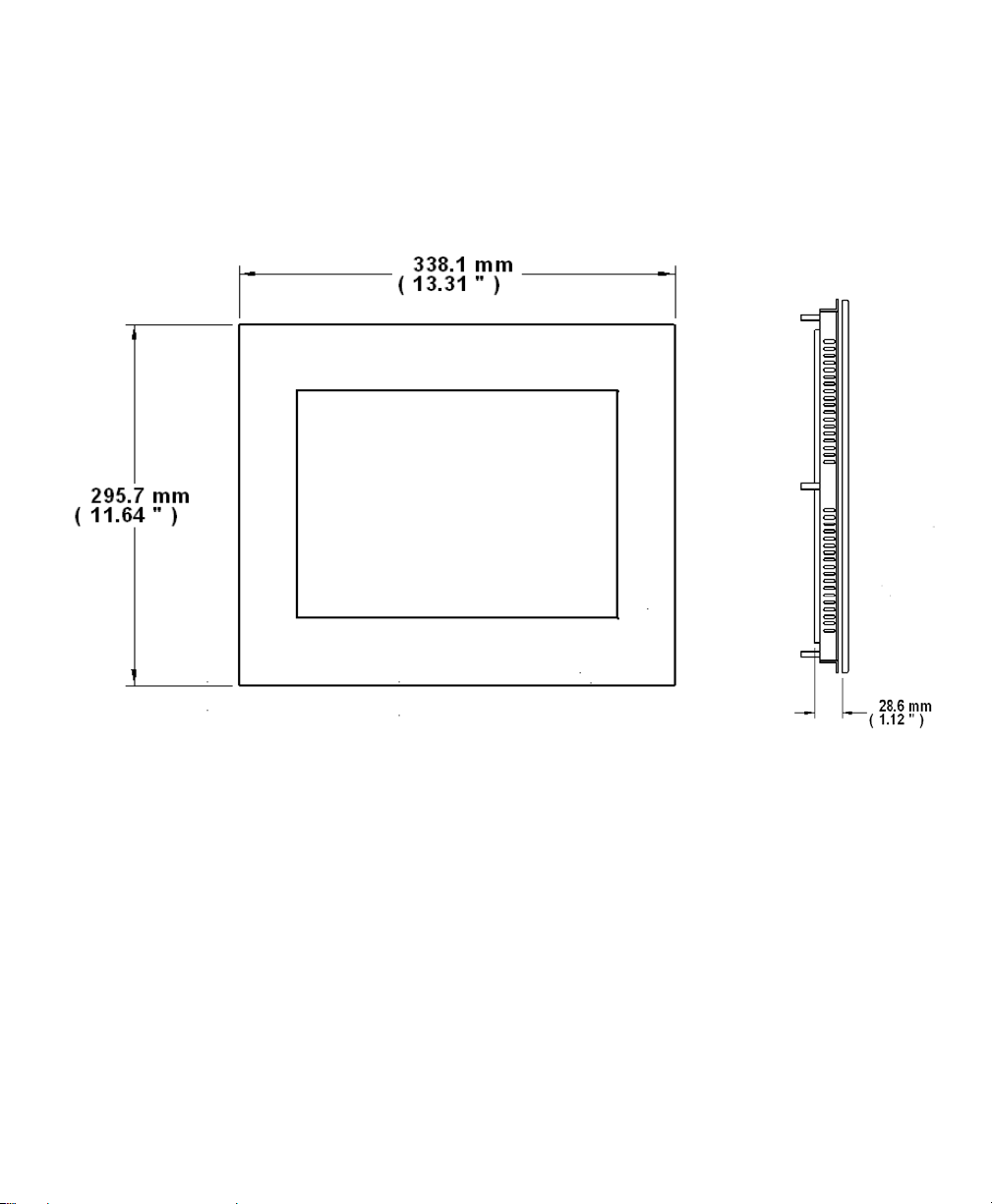

Front and Side Views
13

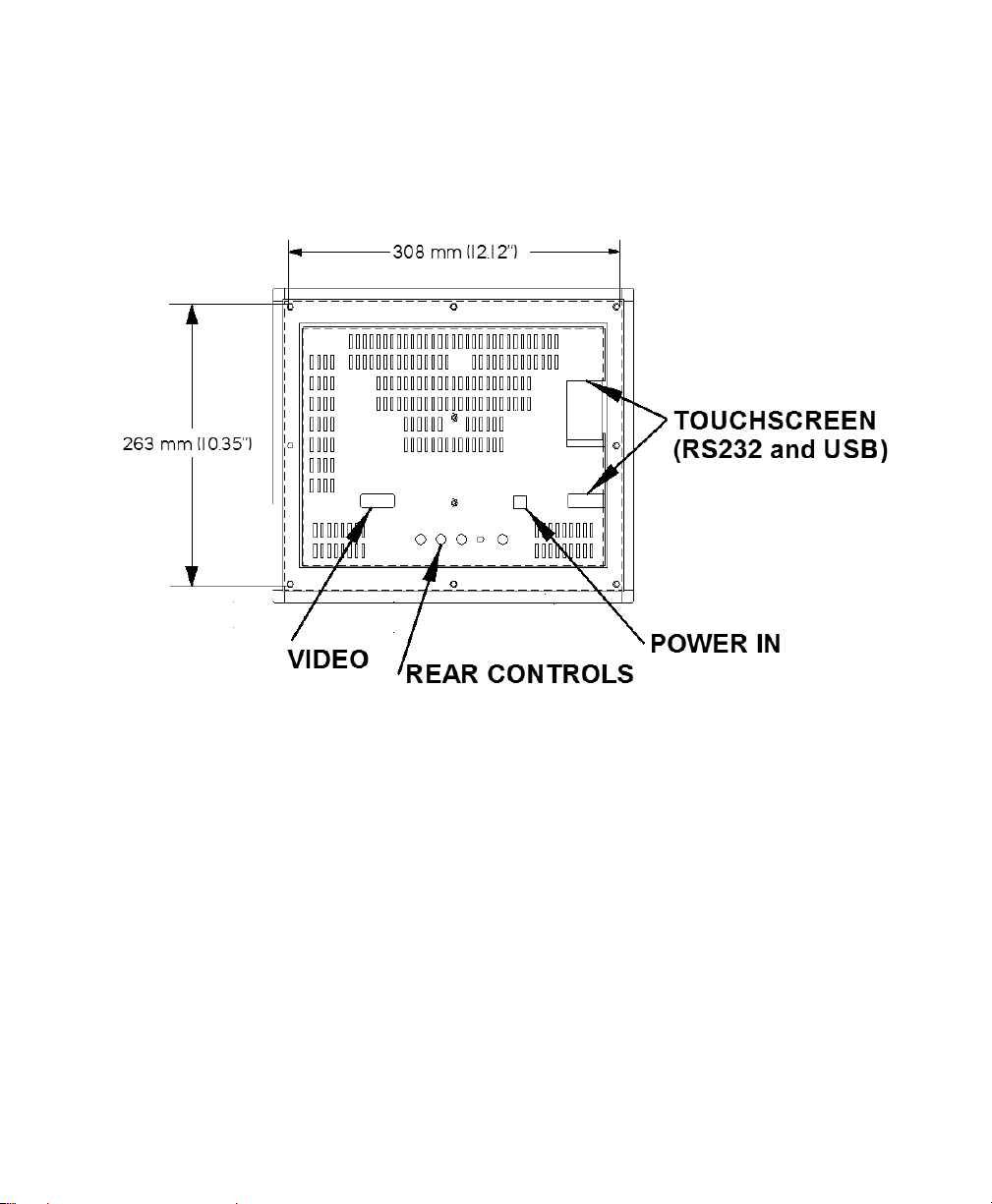

Rear View (Showing Cutout Dimensions)
14
Specifications
Display
Type
Thin-film transistor (TFT) Active Matrix Liquid Crystal
Size
12.1” diagonal
Image size
9.7” (246mm) W x 7.3” (184.5mm) H
Native resolution
SVGA (800 x 600)
Plug and Play
DDC1/2B compatible
Minimum resolution
640 x 350
Pixel pitch
0.3075mm x 0.3075mm
Number of colors
262,144
Viewing Angle (Hori/Vert)
130
°
/ 100
°
Brightness (white)
200 nits (cd/m2) max
Contrast ratio
500:1 (typical)
Back light
Two CCFTs (Cold Cathode Fluorescent Tube); 50,000
hours, half-life; replaceable
Screen protector (when
not shipped with touch-
screen)
Tempered glass to ANSI-Z97.1 SPEC; AR coated on both
sides; 98% Transmission of light; 99% Reduction of glare;
53% UV blocking; 30% NIR Blocking; proprietary hydrophob-
ic coating on outside reduces fingerprint smears, repels liq-
uid spills and makes glass easy to clean.
Video
Input connector
HD-15 (optional BNC input)
Input signal format RGB Analog video 0 – 0.7V p-p – sep V and H, combined
sync, sync on green
Horizontal scan 31kHz – 38kHz
Supported Video Stan-
dards Std VGA – 640x480 @ 60Hz
SVGA – 800x600 @ 60Hz
Vertical scan 60Hz – 75 Hz
Response rate (typical) 10ms
15
Electrical
Power Adapter Input
100VAC – 240VAC, 50-60 Hz
Power adapter output
12VDC @ 2.5 amps
Monitor input
12VDC
Power consumption
Approximately 20 watts
Power management
DPMS/energy star, < 5W
Environmental
Temperature
0-50°C (consult factory for installation instructions when con-
tinuous 24/7 operation exceeds 40
°
C)
Humidity
20% to 90% non-condensing
Shock
30g (1/2 sine, 11 msec.)
Vibration
0.006 inch p-p 15-57Hz, 1.0g 57-640Hz sine
Altitude
Operating: up to 10,000 feet; Non-operating: up to 40,000
feet
Functional
Panel controls (rear
access) DC Power Switch, DC Power-On Indicator, Menu Button,
Plus (+) and Minus (-) Buttons
OSD (On Screen Display)
controls Brightness, Contrast, H. Position, V. Position, Phase, Clock,
Auto Adjustment, OSD H. Position, OSD V. Position, Graph-
ics Text, Recall, Language, Color Temp., Save + Exit,
Brightness, Contrast, H. Position
Touch screen option
Elo Touch systems AccuTouch 5-wire resistive system;
emulates a mouse; RS-232 or USB interface to host com-
puter
Enclosure
Type
Panel mount; rear collar compresses gasket against panel,
held by 8 M5 studs
Panel rating NEMA 12/4/4X (with proper installation) – built to IP65 stan-
dards
16
Physical
Depth
1.6” (2.5” at connectors) behind panel maximum
Bezel
Stainless Steel
Front bezel outside di-
mensions
13.3” W x 11.6” H x 0.236” thick (not including gasket)
Cutout dimensions
12.12” (308mm) W x 10.35” (263mm) H ; +/- .020”
Net weight
8 lbs.
Shipping weight
13 lbs.
Compliance
Electrical
UL 60950 3rd Edition, cUL recognized component; FCC
Class A
Environmental
RoHS
VGA Pin assignment
Pin No. Signal Pin No. Signal
1
Red
9
No pin
2
Green
10
Ground
3
Blue
11
Ground
4
Ground
12
SDA
5
Ground
13
H. sync
6
Ground
14
V. sync
7
Ground
15
SCL
8
Ground
17
Factory Preset Timing
Resolution
Horizontal
Frequency
(KHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz) Mode
640 x 350 31.469 70.087 25.175 VGA-350
640 x 400 31.469 70.087 25.175 VGA-400-GRAPH
640 x 480 31.469 59.940 25.175 VGA-480
640 x 480 37.861 72.809 31.500 VESA-480-72Hz
640 x 480 37.500 75.000 31.500 VESA-480-75Hz
720 x 400 31.469 70.087 28.322 VESA-400-TEXT
800 x 600 35.156 56.250 36.000 SVGA
* 800 x 600 37.879 60.317 40.000 VESA-600-60Hz
* 800 x 600 48.077 72.188 50.000 VESA-600-72Hz
* 800 x 600 46.875 75.000 49.500 VESA-600-75Hz
* Factory recommended timings for best picture quality
18
Warranty Statement
Who is Covered?
This warranty covers the purchaser of this product only and is not transferable without our
written consent.
What Does This Warranty Cover and What is the Period of Coverage?
We warrant this product to be free from defects in material and workmanship, subject to the
conditions set forth below. This warranty remains in force for a three-year period beginning
on the date we invoice you for the product. If HIS repairs or replaces a product under war-
ranty, its warranty term is not extended.
What Will We Do to Correct Problems and How Do You Get Service?
We will repair or replace (at our sole option) any part of the unit which proves to be defec-
tive. Replacement parts may be new or refurbished and will meet the same specifications
of the original parts or unit. We will return the product to you by the shipping method we
choose in the U.S.A. at our expense. You must pay for shipments to locations outside of
the U.S.A. In order to receive warranty service you must get prior approval from HIS. To
request warranty service you can telephone us at 678-762-9790 or send an email to ser-
vice@HISmonitors.com. If we determine that warranty service is needed we will give you a
Return Material Authorization (RMA) number. This RMA number must be conspicuously
marked on the outside of the shipping box. HIS will not accept shipments not accompanied
by the RMA number. You must ship or deliver the product to HIS Freight prepaid.
What Does This Warranty Not Cover?
This warranty does not cover equipment which has been damaged due to misuse, abuse or
accident such as: operating the equipment outside of published specifications; displaying
fixed images for long periods of time resulting in afterimage effects; improper or unautho-
rized repair by anyone other than HIS or a service agency authorized by HIS to perform
such repairs; fire, flood, “acts of God”, or other contingencies beyond the control of HIS.
HIS’ responsibility for malfunctions and defects in hardware is limited to repair and re-
placement as set forth in this warranty statement. HIS shall not be liable for direct, indirect,
incidental, consequential, or other types of damages resulting from the use of any HIS
product other than the liability stated above. These warranties are in lieu of all other war-
ranties express or implied, including, but not limited to, the implied warranties of merchan-
tability or fitness for a particular purpose. Some states do not allow the exclusion of implied
warranties or the limitation or exclusion of liability for incidental or consequential damages
so the above exclusions or limitations may not apply to you. You are cautioned that the
performance of this product can be affected by many factors, such as system configuration,
software, application, and operator control of the system. It is your responsibility to deter-
mine suitability of this product for your purpose and application.
Hope Industrial Systems
19
(This page left blank.)
20
Hope Industrial Systems, Inc.
1325 Northmeadow Parkway
Suite 100
Roswell, GA 30076
www.HISmonitors.com
Publication ML12C July, 2006 2006 Hope Industrial Systems, Inc.
Table of contents
Other HIS Industrial Monitor manuals
