Hisense AE-15K4AF1 User manual

AE-15K4AF1 AE-23R4AF
Hisense air conditioner
Air purifier
Operation Manual
Dear users, welcome to purchase and use Hisense air
purifier, and thank you for your trust in our company! We
are willing to create a comfortable and healthy living space
for you with our dedicated service. We hope you can give
us your valuable advice on our work.
In order to facilitate you to operate the product correctly,
please read this Manual carefully before using, and please
keep it carefully after reading.
Note: contents of this Manual are subject to change without
notice, thank you for your understanding!
Hisense (Shandong) Air Conditioning Co., Ltd.

Contents
Contents
Product introduction------------------------------------01
Operating hints------------------------------------------02-04
Name of parts--------------------------------------------05
Preparations before use------------------------------06-07
Operation panel-----------------------------------------08
How to use-----------------------------------------------09-12
Maintenance and care--------------------------------13
Troubleshooting----------------------------------------14-15
Specification parameters-----------------------------16
Packing list-----------------------------------------------17
How to use remote control --------------------------18

It can effectively remove smoke and dust, and is applicable
for the places where there are many particulate pollutants
(e.g. cigarette, dust and pollen), such as smoking areas and
museums, etc., so as to optimize your living environment and
protect health of you and your family.
Product introduction
Air purifier
Purify Refreshing
High-density filter
It can effectively filter out large particulate matters such as hair,
dander, thread residue and fiber in the air, and can be
disassembled, cleaned and recycled.
HEPA
The HEPA filter can effectively filter out particulate matters such
as dust and pollen, and remove bacteria from the air. Besides,
it has antibacterial function and can deeply clean the air and
effectively remove PM2.5.
Composite filter (including multiple benefits
of HEPA and a functional filter)
It can effectively absorb cigarette dust, pollen and dust in the
air, and filter out bacteria in the air. Besides, it has antibacterial
function, deeply cleans the air, effectively removes PM2.5, and
effectively removes formaldehyde, TVOC, odor and other
harmful gases in the air.
It generates 3 million anions per second, creating a fresh,
natural and comfortable ecological environment for your home.
Note: configuration of different models is different, depending
on the model.
Anion

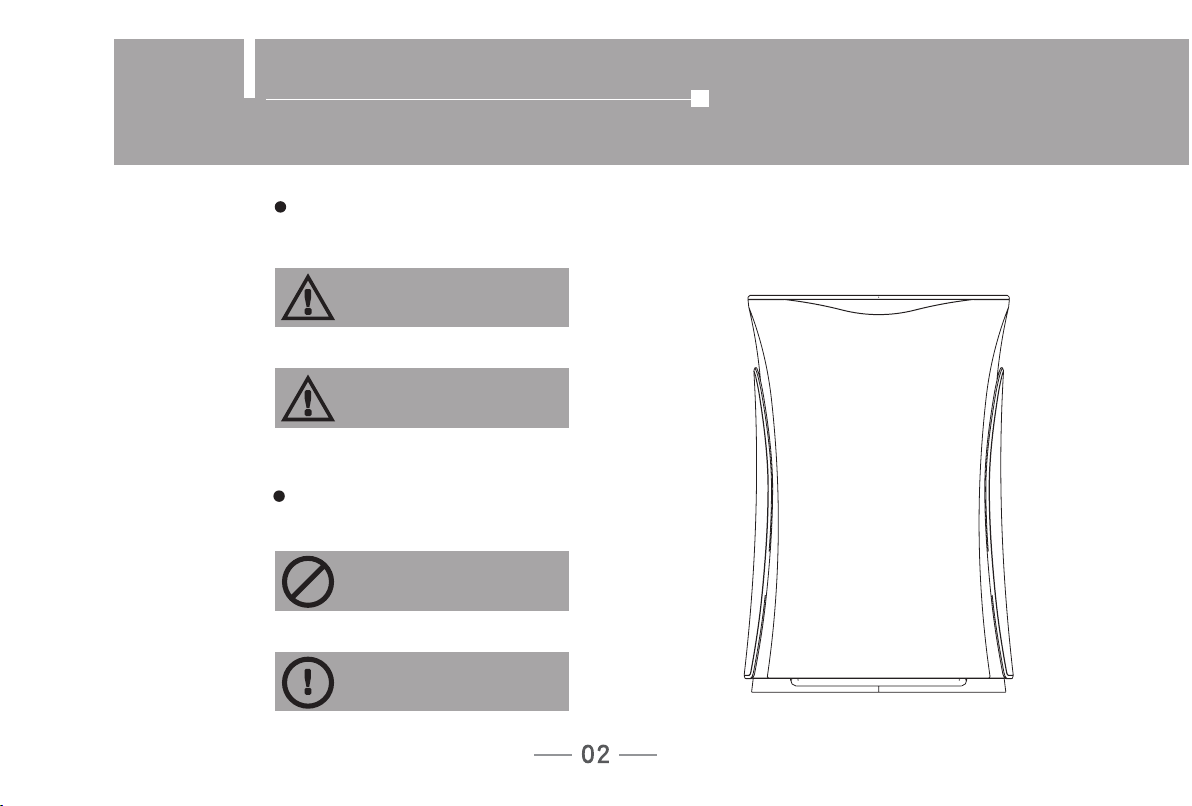

Operating hints
Ignoring or misinterpreting the signs
may result in following two results
Warning
Notice
This sign means that
"It may cause serious
injury or death”
This sign means that
"It may cause personal
injury or damage to
other articles”
The items to be observed are
classified and marked as follows
This mark represents a
prohibited item
This mark represents a
mandatory item

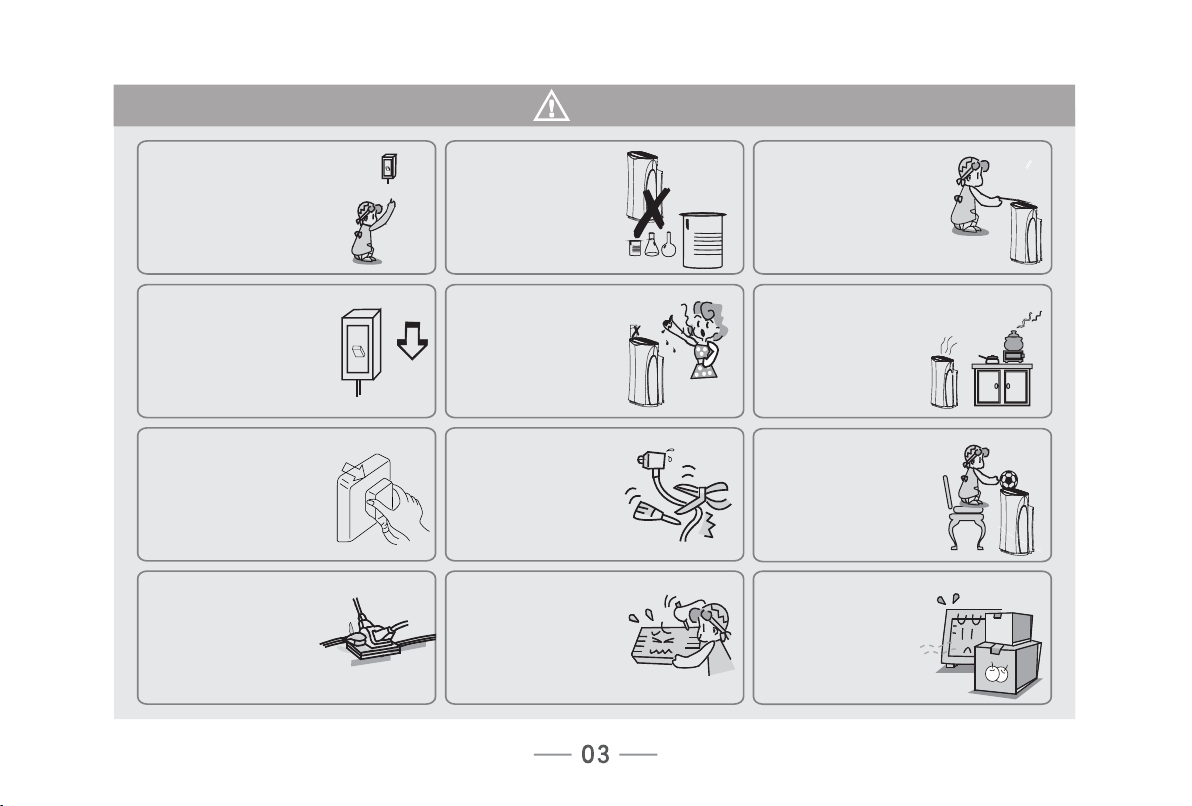

Warning
The power switch shall be
located at a place out of
reach of children, in order
to prevent the danger
caused by children playing
with the power switch.
Do not use an air
purifier in environments
where volatile and
corrosive chemicals are
placed or used, or it
may cause a fire.
Do not remove the air outlet
guard. When the fan is
rotating, do not insert
foreign matters such as
wooden stick into the air
outlet, or the fan running at
high speed will cause
personal injuries.
If there are any abnormal
conditions such as
abnormal noise, odor,
smoke, temperature rise,
electricity leakage, etc.,
please cut off the power
switch immediately and
contact your local dealer or
local service outlets.
Do not place water
containers on operation
panel. Do not press any
operation button with wet
hands, or it may cause an
accident or fire.
Do not place any
burning appliance
where the air purifier
blows the wind.
During normal operation, do
not stop the operation by
forcibly disconnecting the
power plug, or it is easy to
cause electric shock and
fire. If you will not use the
appliance for a long time,
please unplug or disconnect
the power switch.
Do not tie, stretch or
pressurize the power cord
or heat it with high
temperature, or it will
cause damage to the
power cord. Use of a
damaged power cord may
lead to electric shock and
fire.
Do not place objects in the
air outlet. Do not allow
children to play with the air
purifier, or it may cause
danger.
Do not arbitrarily lengthen the power cord,
and do not share the socket
with other electrical appliances.
If the supply cord is damaged,
it must be replaced by
the manufacturer,its
maintenance department or
professionals of similar departments in
order to avoid danger.
Do not disassemble or
modify the air purifier
yourself, or it may lead
to malfunctions or fire
accidents.
Do not pile up
sundries near the air
purifier, so as not to
affect its ventilation
and purify effect.

Notice
Be sure to unplug the power cord by holding the plug in your hand; if you will not use the
appliance for a long time, be sure to unplug the power plug from the socket.
For your safe use of the air purifier, various illustrations are provided in this Manual. Please read carefully before using.
Do not place it in:
Do not allow volatile substances or combustible items to enter
into the machine. (Otherwise, it may cause a fire accident)
Do not use this product in a room with a fumigated insecticide.
(Chemical residues will accumulate inside the machine and may
be released from the air outlet to endanger your health)
Do not wet the air outlet and machine body. (Otherwise, it may
cause a fire or electric shock)
Please maintain good air circulation when using it with a heating
stove or heater. (To prevent poisoning incidents, because this
product cannot remove carbon monoxide)
When using it, close the doors and windows.
If the air quality does not improve after running the machine for a
period of time, please open the doors and windows to keep the air
circulating.
An unstable place, (otherwise it may tip over and cause injury)
The places with high temperature or high humidity, or the
places that will wet the machine (to prevent electrical leakage)
The places that may emit cooking fume, such as kitchen.
The places where oil or flammable gas is used and leaks may
occur.
The places where the air outlet is directly opposite to plants
and animals, (to prevent the plants and animals from being dried)
The places with corrosive gases or metallic dust.
The air purifier shall be stored in a dry and ventilated place
without corrosive and explosive gases, and the product
shall be prevented from being impacted.
Do not wipe it with gasoline, chemical agents or other
solvents. Do not spray insecticide.
Do not sit or lean on the air purifier. (Otherwise, air purifier
may fail and cause harm)
Do not shake the air purifier vigorously. (Otherwise,
sensors of the air purifier may be out of order)
During using, in order to ensure purify effect, please keep
the distance between air inlet grille and wall greater than
30cm, as shown in the figure.
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.

Back
Air quality Good: Green
Air quality Average: Yellow
Air quality Poor: Orange
Air quality Bad: Red
The built-in dust sensor inside the product
detects air in room, and the process of air
pollution and purify is indicated by color
changing of air quality indicator light;

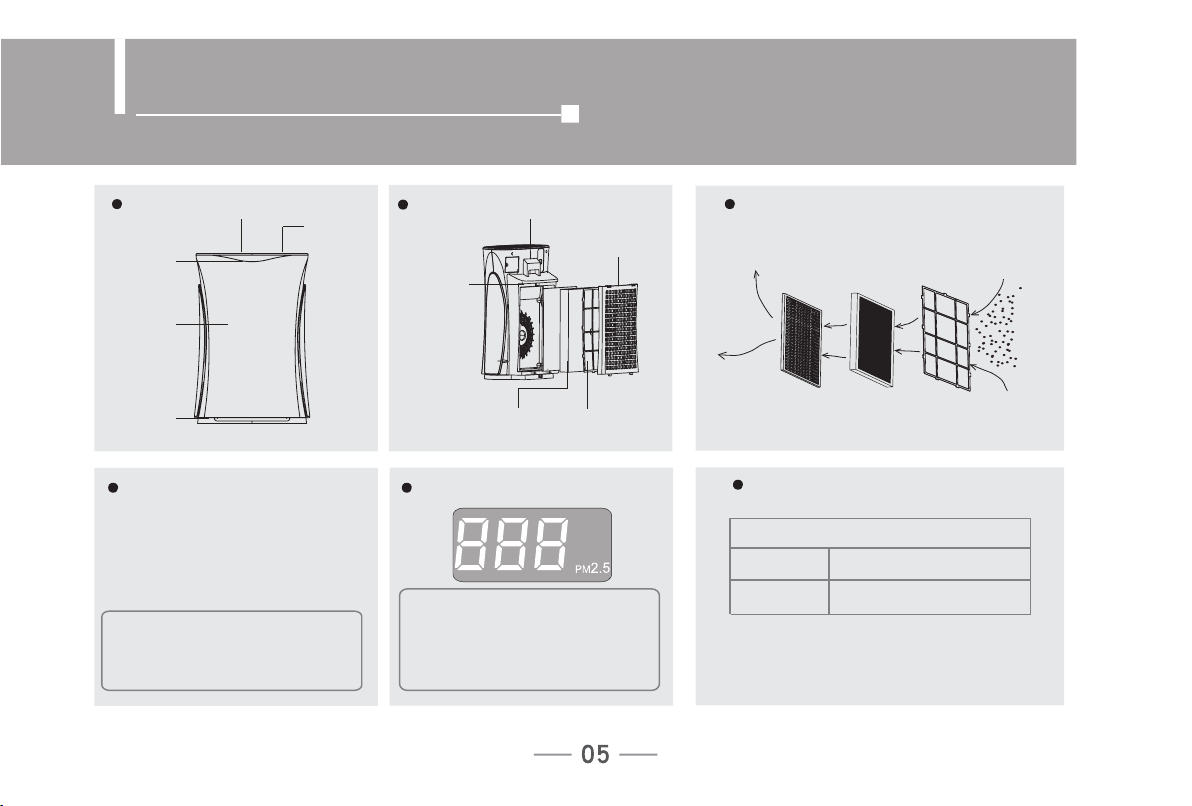

Name of parts
Front
Air quality
indicator
light bar
Front panel
Base
Air outlet
Touch panel
Indoor air
detector
Handle
Air inlet grille
Filter High-density
filter
Note: filter configuration of different models is different
Air purify flow chart
Polluted air
Clean air
Air quality display: PM2.5 display
The built-in dust sensor inside the product
detects air in room, and PM2.5 value
detected is displayed on the display screen
shows the particulate matters in air;
Note: PM2.5 value is the reference number of
pollutants
Dust sensor
Dust sensor
Sensing range Indoor dust (dust, pollen and mold spores, etc.)
Smoke (smoke from cigarettes and joss sticks),
etc.
Sometimes
workable Cooking fumes, water mist
Due to different models of the products purchased, the specific parts will be different, please refer to the product model for use.

1. Remove air inlet grille 2. Remove filter element
3. Remove filter
Take out filter element
(Composite filter or HEPA filter)
Preparations before use
Installation of filter
Press down the left
and right buckle
Pull air inlet
grille outward
Note:
1. Surface of the filter element equipped on the
model is sealed with a plastic packaging bag;
2. Before starting the machine, take filter out
from the packaging plastic bag, and then put
the filter (note: the pull rope shall face outward)
into the machine.
Filter
Packaging bag

Install filter
(the pull rope shall face outward)

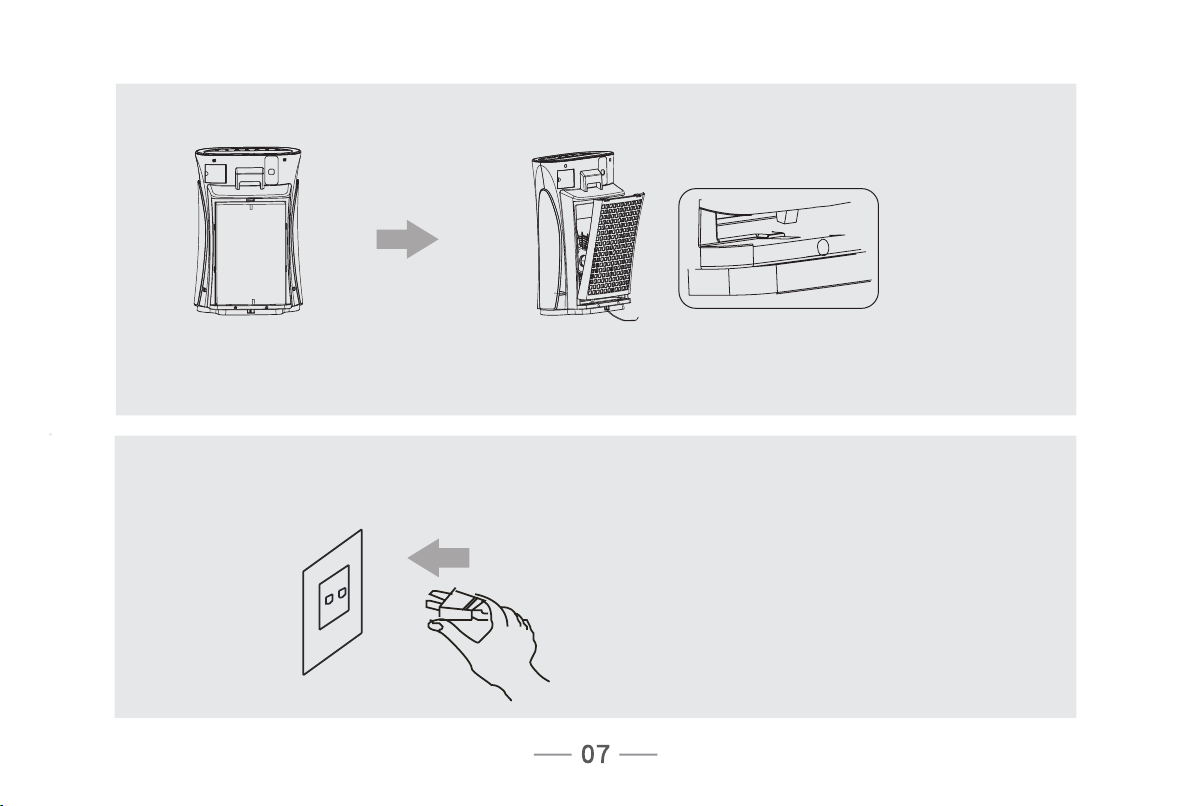

4. Install filter and air inlet grille
Insert the buckle at lower part of air inlet grille
into guide slot first, and then lightly fasten the
upper buckle
5. Connect mains plug
Dry the plug and any water on your hands before connecting

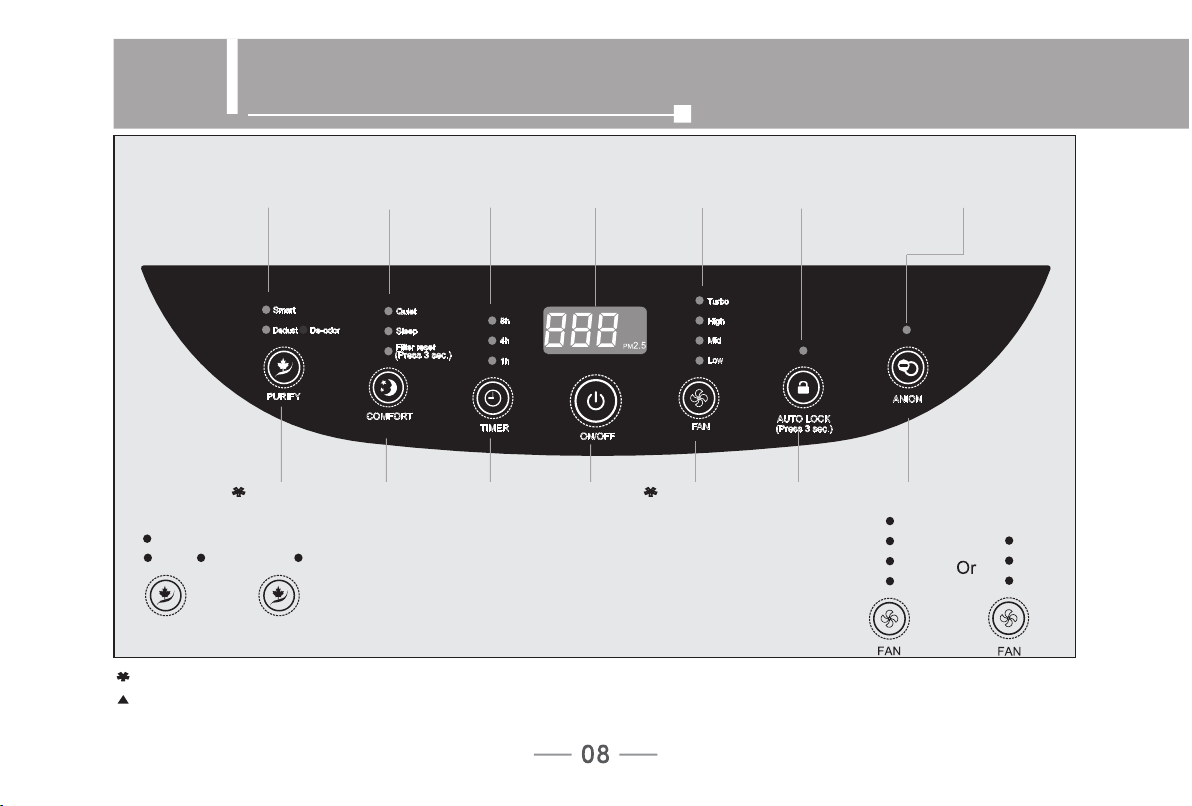

Operation panel
Purification mode
indicator light
Comfort
indicator light
Timer
indicator light
Display
screen
Purify speed
indicator light
Child lock
indicator light
Anion indicator
light
Purify
mode button
Comfort
button
Timer button ON/OFF Purify
speed button
Child lock
button
Anion button
Or
The texts and logo indicated on marks of different product model are different.
Operation panel pattern of actually purchased model may be different, please refer to the product that you purchased.
Smart
Dedust De-odor
PURIFY SMART
Turbo
High
Mid
Low
High
Mid
Low

Product model used: AE-23R4AF
In smart purify mode, the dust sensor determines air quality and automatically
selects purify speed to purify the air according to air quality;
At the same time, the air quality indicator light will change its color according to the
air pollution condition detected by dust sensor, and the display screen will display
PM2.5 value simultaneously;

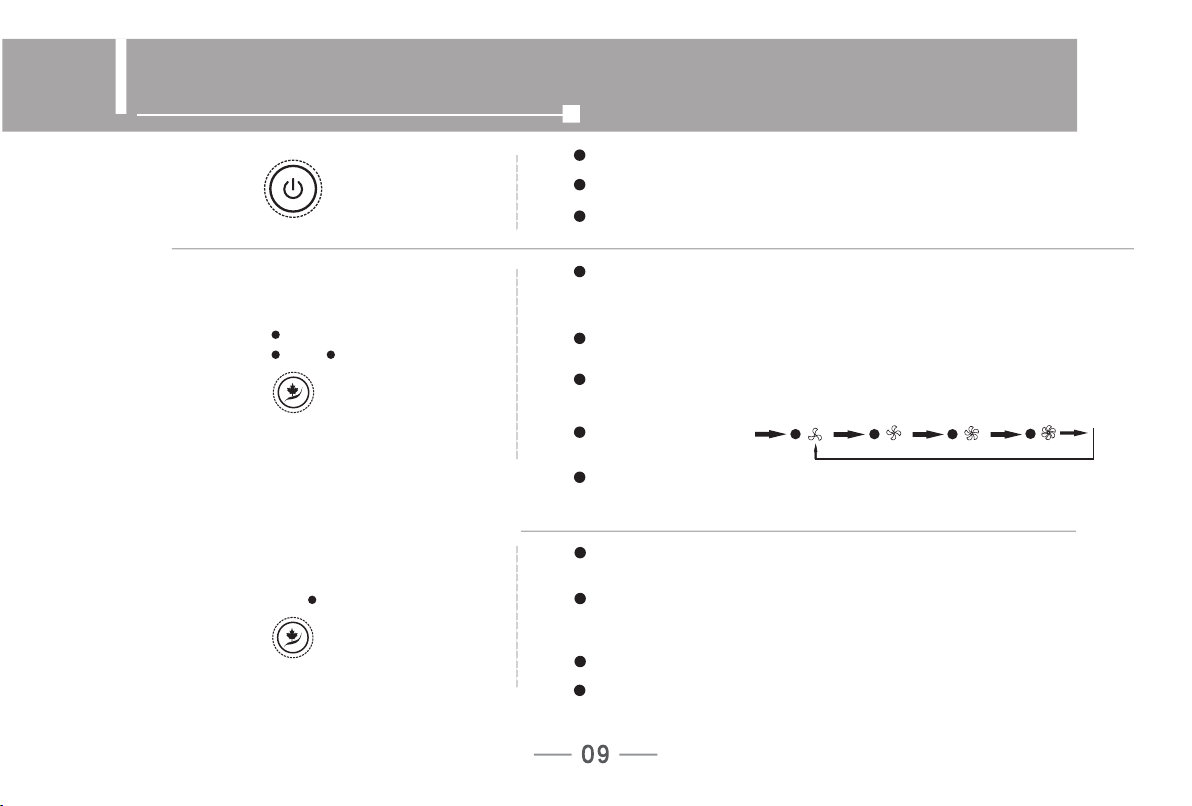

Connect the power cord with power supply, and press the power button to turn on/
off the machine;
When it is powered on for the first time, the product will run in the default smart
mode, and the smart purify indicator light will be on at the same time;
If the product is restarted in standby state, it will run in the last selected state.
If you press the purify mode button when the machine is on, you can select dust
removal mode and formaldehyde removal mode respectively; when choosing
which mode to run, the corresponding mode indicator light will turn on at the same
time;
In dust removal or
formaldehyde removal mode
In smart purify mode, display screen will display PM2.5 value based on the air
pollutants in the air detected by dust sensor, and purify speed is automatically
selected to purify the air according to the air quality at the same time;
In smart mode, air speed will be automatically selected. You can press the smart
purify or purify speed button to exit smart purify mode and choose your preferred
purify speed. The air speed will switch in turn in an order of “Low - Middle - High
- Low”;
In smart mode, if you press the comfort button, you will exit the smart mode and
enter comfort mode. The purify speed cannot be adjusted.
Product model used: AE-15K4AF1
Or
How to use
ON/OFF
Smart
Dedust De-odor
PURIFY
SMART

When air in room
is fresher
When your family
is resting
When your kids are doing
their homework
Press the comfort button to select to run in mute mode, then the indicator
light will be on; and the purify speed in mute mode will be enabled;
Air quality detection sensor detects and feeds back air quality, and the air
volume in mute mode is always kept.
When you sleep at night
Press the comfort button to select to run in sleep mode, then the indicator
light will be on; and the purify speed in sleep mode will be enabled;
Air quality detection sensor detects and feeds back air quality, and the air
volume in sleep mode is always kept;
It fits the dark environment at night. After setting successfully, all indicator
lights will go out after about 10 seconds; in this state, the indicator lights will
be on again when any button is pressed. If there is no action, the indicator
lights will be off again after about 10 seconds.
Replace filter
When the cumulative running time calculated by built-in timer reaches
designed service life of filter, the indicator light flashes at the same time,
indicating that the filter shall be replaced; when the filter replacement indicator
light flashes, replace the filter in time;
When the comfort button is pressed and held after the filter is replaced, the
buzzer will ring three times, and the filter replacement indicator light will go out.
Quiet
Sleep
Filter reset
(Press 3 sec.)
COMFORT

In first power-on state, the anion function is turned on by default, and the
indicator light will be on at the same time; if the anion button is pressed, anion
function will be turned off and the indicator light will go out.
If the product is restarted in standby state, it will run in the last selected state.
When running in smart mode, the purify speed indicator light will not be on,
and the air speed will be automatically selected; in addition to smart mode
and comfort mode, the purify speed can be adjusted, and corresponding
indicator light is on;
When pressing the purify speed button to adjust purify speed, the purify
speed will circulate in the order of Low, Middle, High and Turbo in turn;
Product model used: AE-23R4AF
Or
When running in smart mode, the purify speed indicator light will not be on,
and the air speed will be automatically selected;
When pressing the purify speed button to adjust purify speed, the purify
speed will circulate in the order of Low, Middle and High in turn;
Product model used: AE-15K4AF1
ANION
Turbo
High
Mid
Low
FAN
FAN
High
Mid
Low

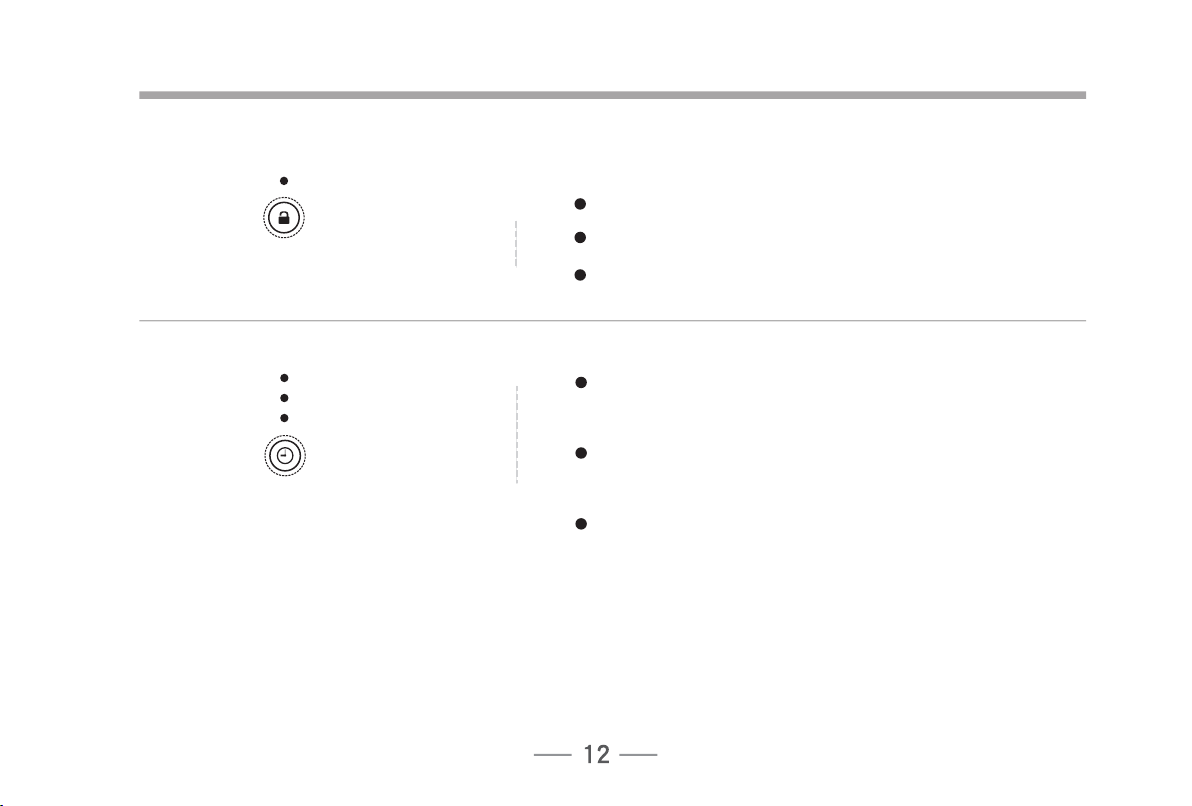

Under power-on state, if there is no operation for 2 minutes, the child lock
function will be enabled and the indicator light will be on;
Under power-on state, if the child lock button is pressed and held, the child lock
function will be enabled and the indicator light will be on;
When the child lock function is enabled, if the child lock button is pressed and
held, the child lock function will be disenabled and the indicator light goes out.
In power-off state, you can press the timer button to set the timer startup; the
time can be set as 1 hour, 4 hours or 8 hours respectively. After setting as a
certain period of time, the corresponding timer indicator light will flash for 10
seconds and continue to be on thereafter;
In power-off state, you can press the timer button to set the timer shutdown; the
time can be set as 1 hour, 4 hours or 8 hours respectively. After setting as a
certain period of time, the corresponding timer indicator light will flash for 10
seconds and continue to be on thereafter;
After setting the timer startup or shutdown, if ON/OFF button is pressed, the
timer will be cancelled and the power-on/power-off state will be entered at the
same time.
AUTO LOCK
（Press 3 sec.）
8h
4h
1h
TIMER

Maintenance and care
Precautions before maintenance: be sure to disconnect the power plug
Product maintenance:
Do not press the filter hard except for the dust on the surface
with a rope, in order to avoid the filter from being damaged;
Cleaning of HEPA filter/composite filter: it shall be maintained
and cared by a vacuum cleaner. Do not wash with water;
Cleaning of high-density filter: it shall be maintained and cared
by a vacuum cleaner. And, it also can be washed with tap
water or neutral detergent;
The machine body shall be wiped with a piece of dried soft
cloth. Please disconnect the power plug during wiping, in order
to avoid electric shock.
Filter High-density filter
Hints
Do not run the machine while removing the filter:
During maintenance, do not place the removed parts randomly, in order to
avoid tripping or damage to accessories;
When the machine is left unused for a long period of time: please dis-
connect the power plug (energy will also be consumed in standby mode);
The machine shall be covered with a plastic bag and kept upright
(keeping the machine flat or upside down may cause failures).
The product shall be maintained every two weeks
Estimated filter replacement cycle
Expected interval
6-8 months
Composite filter
Test condition: 8h/day in normal environment.
Hints:
According to actual use environment and use method,
replacement cycle of filter will be different. When the operating
effect is poor, please replace the filter timely;
Please dispose the replaced filter as non-combustible
garbage;

Troubleshooting
The following is a list of the problems that you may encounter during use. If you cannot solve
the problems according to the information below, please contact your local dealer.
Problems Possible solutions
The product cannot start
normally
After replacing the filter, it is necessary to press and hold the comfort button to reset until the
filter replacement indicator light goes out;
Whether the product is connected to the power. Start only after confirming that the power
supply has been connected.
The product has been
running for a long time,
but the air quality is not
improved significantly,
and the quality indicator
light changes frequently
Whether the filter is maintained, and whether the filter has been replaced as suggested;
The humidity in room is too high, because of which condensate is formed. Do not place the
product in a place with high humidity;
There are obstacles around the product and the purify effect is affected. Please refer to
the operating hints;
If the room is too big, the effect will be poor.
Noise of the product
noise is too high, or the
air volume is too small
Please confirm that the packaging bag on filter has been removed (to ensure efficiency of the
filter, the filter is sealed and packaged in a plastic bag when it leaves the factory);
Please confirm whether the air outlet or air inlet is blocked by any object;
Please confirm whether the filters are mounted correctly;
A certain filter may not be placed in the product. Make sure to install the filters in a correct
order before using.

Problems Possible solutions
The purify speed
cannot be adjusted
after power-on running
Each time the power is turned on, the product runs in the default smart purify mode. At this
time, the purify speed is automatically adjusted by the machine according to indoor air
quality; if you want to adjust the running state at will, please press the purify mode button to
exit smart mode.
During running, there is
no response when you
press the button
The child lock function may be enabled and the product is locked. Please press the child lock
button for 3 seconds, the indicator light will go out, and the child lock function will be
cancelled, so that you can do what you want.
The air is dirty, but the air quality
indicator light is still on in green
Please confirm whether it is a place where the pollutants are difficult to be absorbed. Please
refer to the operating hints.
It is difficult to remove dirt
from the air
Is the filter dirty and ineffective? If this still cannot be improved after maintenance, please
contact the after-sales service to replace by a new filter.
The air flow at outlet is
much weaker than before
The high-density filter is very dirty, please clean the filter. For the method, please see the
contents in “Maintenance and care”.
The air from air outlet
smells funny
Is it used in areas with strong odors? If being used in areas with strong odors such as
cigarette and barbecued meat, the filter will smell bad for weeks or months. Please
replace the filter and keep it ventilated at all times.
The "High/middle/low" indicator
light for purify speed flashes and
the machine shuts off automatically
When the machine is turned off and restarted, normal operation will be resumed after
troubleshooting. If the fault is still there, please contact the customer service staff for
maintenance.
The filter has been replaced, but
the machine cannot be turned on
when the power button is pressed
Maybe you didn't press the reset button. The product will start normally only after resetting is
completed by pressing and holding comfort button and the indicator light goes out.

AE-15K4AF1 AE-23R4AF
/
Specification parameters
Model
Rated voltage
Frequency
Input power
Particulate matter CADR
Formaldehyde CADR
Noise (sound power)
Product dimensions
Net weight
Length of power cord
220V～240V 220V～240V
50Hz 50Hz
52W 48W
260m3/h 400m3/h
57dB(A) 62dB(A)
200m3/h
432 x 268 x 638mm 432 x 268 x 638mm
8.0kg 8.5kg
2m

AE-15K4AF1
AE-23R4AF
Packing list
Main unit packaging
Box Appearance Model Manual Remote
control HEPA filter Functional filter
Composite
filter
1. Please confirm whether the parts in the packing list are complete when unpacking. The parts shown above are only
for indication, which may not be consistent with the accessories and appearance of the model you choose.
2. means that this part is provided; while, means that the part is not provided.
J2A
