Hisense HR6TFF459S Mounting instructions

HR6TFF459S
HR6TFF459
HR6TFF459B

Control
……Safety and warning information
2
Contents
…....2
Installing your new appliance…………7
Description of the appliance……………10
panel …………………………11
Using your appliance…………………… 12
Cleaning and care………………………13
Helpful hints and tips……………………15
Troubleshooting………………………….17
Disposal of the appliance………………18
Safety and warning information
For your safety and correct usage, before installing and first using the
appliance, read this user manual carefully, including its hints and warnings. To
avoid unnecessary mistakes and accidents, it is important to make sure that all
people using the appliance are thoroughly familiar with its operation and safety
features. Save these instructions and be sure that they remain with the
appliance if it is moved or sold, so that anyone using it throughout its life, will
be properly informed on its usage and safety notices.
For the safety of life and property, keep the precautions of these user's
instructions as the manufacturer is not responsible for damages caused by
omission.
Safety for children and others who are vulnerable people
●According to EN standard
This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
●According to IEC standard
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person being responsible for their safety.
Keep all packaging away from children as there is risk of suffocation.
If you are discarding the appliance, pull the plug out of the socket, cut the
connection cable (as close to the appliance as you can) and remove the
door to prevent children playing from suffering an electric shock or from
closing themselves inside it.
If this appliance, featuring a magnetic door seals, is to replace an older
appliance having a spring lock (latch) on the door or lid, be sure to make
the spring lock unusable before you discard the old appliance. This will
prevent it from becoming a death trap for a child.

3
General safety
 WARNING —This appliance is intended to be used in household
and similar applications such as
-staff kitchen areas in shops, offices and other working environments;
-farm houses and hotels, motels and other residential type environments;
-bed and breakfast type environments;
-catering and similar non-retail applications.
 WARNING — Do not store explosive substances such as aerosol cans
with a flammable propellant in this appliance.
 WARNING — If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in order to
avoid a hazard.
 WARNING — Keep ventilation openings, in the appliance enclosure or in
the built-in structure, clear of obstruction.
 WARNING — Do not use mechanical devices or other means to
accelerate the defrosting process, other than those recommended by the
manufacturer.
 WARNING — Do not damage the refrigerant circuit.
 WARNING — Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type recommended
by the manufacturer.
 WARNING — The refrigerant and insulation blowing gas are flammable.
When disposing of the appliance, do so only at an authorized waste
disposal centre. Do not expose to flame.
 WARNING —When positioning the appliance, ensure the supply cord is
not trapped or damaged.
 WARNING —Do not locate multiple portable socket-outlets or portable
power supplies at the rear of the appliance.
Replacing the illuminating lamps
 WARNING—The illuminating lamps must not be replaced by the user! If
the illuminating lamps is damaged, contact the customer helpline for
assistance. This warning is only for refrigerators that contain illuminating
lamps.
Refrigerant
The refrigerant isobutene (R600a) is contained within the refrigerant circuit of
the appliance, a natural gas with a high level of environmental compatibility,
which is nevertheless flammable. During transportation and installation of the
appliance, ensure that none of the components of the refrigerant circuit
becomes damaged.
The refrigerant (R600a) is flammable.
or repairs which
to carry out servicing
a Gas Work
Person MUST hold a
this appliance.
Person to service
It is hazardous for anyone other than an Authorized Service
In Queensland the Authorized Service
Authorization for hydrocarbon refrigerants
involve removal of covers.

damaged power plug may over heat and cause a
4
WARNING — Refrigerators contain refrigerant and gases in the insulation.
Refrigerant and gases must be disposed of professionally as they may cause
eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not
damage prior to proper disposal.
WARNING: risk of fire
If the refrigerant circuit should be damaged:
-Avoid opening flames and sources of ignition.
-Thoroughly ventilate the room in which the appliance is situated.
It is dangerous to alter the specifications or modify this product in any way.
Any damage to the cord may cause a short circuit, fire, and/or electric shock.
Electrical safety
1.The power cord must not be lengthened.
2. Make sure that the power plug is not crushed or damaged.A crushed or
fire.
3. Make sure that you can access the main plug of the appliance.
4. Do not pull the main cable.
5. If the power plug socket is loose, do not insert the power plug. There is a risk
of electric shock or fire.
6.You must not operate the appliance without the interior lighting lamp cover.
7.The fridge is only applied with power supply of single phase alternating
current of 220~240V/50Hz. If fluctuation of voltage in the district of user is so
large that the voltage exceeds the above scope, for safety sake, be sure to
apply A.C. Automatic voltage regulator of more than 350W to the fridge. The
fridge must employ a special power socket instead of common one with other
electric appliances. Its plug must match the socket with ground wire.
Daily use
Do not store flammable gas or liquids in the appliance, There is a risk of an
explosion.
Do not operate any electrical appliances in the appliance (e.g. electric ice
cream makers, mixers etc.).
When unplugging always pull the plug from the mains socket, do not pull
on the cable.
Do not place hot items near the plastic components of this appliance.
Do not place food products directly against the air outlet on the rear wall.
Store pre-packed frozen food in accordance with the frozen food
manufacture’s instructions.
The appliances manufactures storage recommendations should be strictly
adhered to. Refer to relevant instructions for storage.
Do not place carbonated or fizzy drinks in the freezer compartment as it

5
creates pressure on the container, which may cause it to explode, resulting
in damage to the appliance.
Frozen food can cause frost burns if consumed straight from the freezer
compartment.
Do not place the appliance in direct sunlight.
Keep burning candles, lamps and other items with naked flames away
from the appliance so that do not set the appliance on fire.
The appliance is intended for keeping food stuff and/or beverages in
normal household as explained in this instruction booklet . You should take
care when move it as the appliance is heavy.
Do not remove nor touch items from the freezer compartment if your hands
are damp/wet, as this could cause skin abrasions or frost/freezer burns.
Never use the base, drawers, doors etc. to stand on or as supports.
Frozen food must not be refrozen once it has been thawed out.
Do not consume ice popsicles or ice cubes straight from the freezer as this
can cause freezer burn to the mouth and lips.
To avoid items falling and causing injury or damage to the appliance, do
not overload the door racks or put too much food in the crisper drawers.
caution!
Care and cleaning
Before maintenance, switch off the appliance and disconnect the mains
plug from the mains socket.
Do not clean the appliance with metal objects, steam cleaner, ethereal oils,
organic solvents or abrasive cleansers.
Do use a plastic scraper instead of a sharp objects to remove frost from
the appliance.
Installation Important!
For electrical connection carefully, follow the instructions given in this
manual. Unpack the appliance and check if there are damages on it.
Do not connect the appliance if it is damaged. Report possible damages
immediately to the place you bought it. In this case retain packing.
It is advisable to wait at least four hours before connecting the appliance to
allow the oil to flow back in the compressor.
Adequate air circulation should be around the appliance, lacking this leads
to overheating. To achieve sufficient ventilation, follow the instructions
relevant to installation.
Wherever possible the back of the product should not be too close to a wall
to avoid touching or catching warm parts (compressor) to prevent the risk
of a fire, follow the instructions relevant to installation.
The appliance must not be locate close to radiators or cookers.
Make sure that the mains plug is accessible after the installation of the
appliance.

6
Service
Any electrical work required to do the servicing of the appliance should be
carried out by qualified electrician or competent person.
This product must be serviced by an authorized Service
Center, and only genuine spare parts must be used.
1)If the appliance is Frost Free.
2)If the appliance contains freezer compartment.

7
Installing your new appliance
Before using the appliance for the first
time, you should be informed of the
following tips.
Warning!
For proper installation, this refrigerator
must be placed on a level surface of hard
material that is the same height as the rest
of the flooring. This surface should be
strong enough to support a fully loaded
refrigerator.
The rollers, which are not castors, should
be only used for forward or backward
movement. Moving the refrigerator
sideways may damage your floor and the
rollers.
Ventilation of appliance
In order to improve efficiency of
the cooling system and save
energy, it is necessary to
maintain good ventilation around the
appliance for the dissipation of heat. For
this reason, sufficient clear space should
be available around the refrigerator.
Suggest: It is advisable for there to be
50-70mm of space from the back to the
wall, at least 100mm from its top, at least
100mm from its side to the wall and a clear
space in front to allow the doors to open
130°. As shown in follow diagrams.
Note:
This appliance performs well within the
climate class from SN to T showed in the
table below. It may not work properly if
being left at a temperature above or below
the indicated range for a long period.
Climate class Ambient temperature
SN +10°C to +32°C
N +16°C to +32°C
ST +16°C to +38°C
T +16°C to +43°C
Stand your appliance in a dry place to
avoid high moisture.
Keep the appliance out of direct sunlight,
rain or frost. Stand the appliance away

8
from heat sources such as stoves, fires or
heaters.

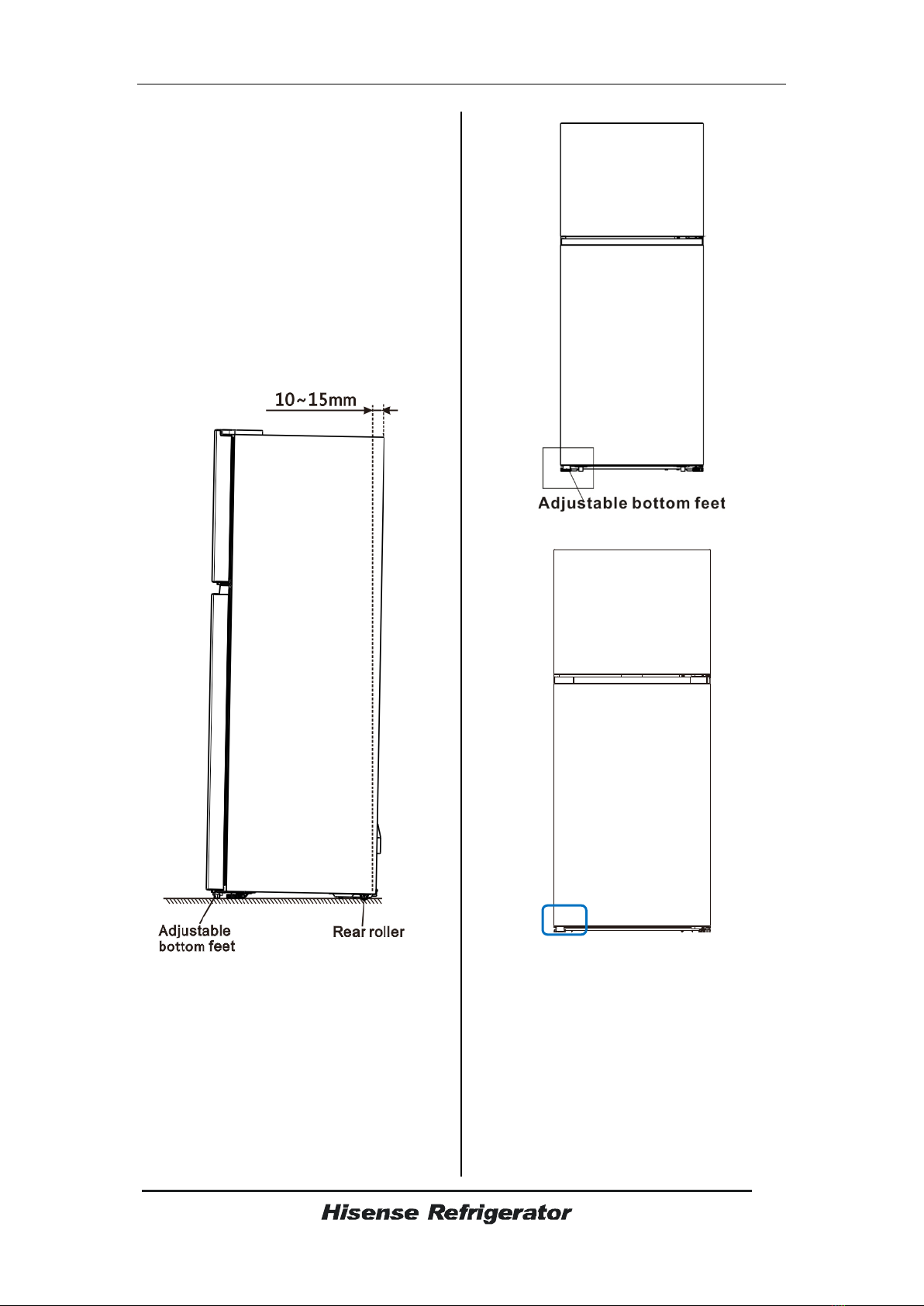

Leveling of appliance
For sufficient leveling and air circulating
in the lower rear section of the appliance,
the bottom feet may need to be adjusted.
You can adjust them manually by hand or
by using a suitable spanner.
To allow the doors to self-close, tilt the
top backwards by 10-15mm.
Note:
If required you may lay the refrigerator
on its back in order to gain access to the
base, you should rest it on soft foam
packaging or similar material to avoid
damaging the backboard of the
refrigerator.
There is no need to install these
accessories under normal usage.
Only under the extreme circumstances

9
, cabinet empty while load on freezer door
and fridge door separately with total mass
of 12 kg and 26 kg ,at the same time
opening the two doors about 90 degree,
the refrigerator maybe lean forward. Then
rubber supporting pad should be fastened
to the lower base cover to steady this
appliance.
1. Tilt appliance to find screw hole on the
left of lower base cover.
2. Put screw into the hole of rubber
supporting pad.
3. Make screw in alignment with the hole
on lower base cover. Fasten rubber
supporting pad to the base cover firmly by
a cross screwdriver (self-provided).
①
②
③
lower base cover
rubber supporting pad
screw
cross screwdriver

10
Description of the appliance
Note！
Due to unceasing modification of our products, your refrigerator may be slightly different
from this instruction manual, but its functions and using methods remain the same.
To get the best energy efficiency of this product, please place all shelves, drawers and
baskets on their original position as the illustration above.

11
Control panel
Use your appliance according to the
following regulations, your appliance has
the corresponding functions as the control
panels showed in the pictures below
Temperature regulator in refrigerator
chamber
●Insufficient refrigeration in chamber.
Set the temperature controller at “COLDER”.
●Using the refrigerator in normal.
Set the temperature controller at “MID”.
Important
！
High ambient temperatures (e.g. on hot
summer days) and a colder setting on
the temperature regulator can cause the
compressor to run continuously or even
non-stop!
So we do not advise the user set the
temperature control knob at “COLDER”
or “COLD” in normal.
Reason: when the ambient
temperatures high, the compressor must
run continuously to maintain the low
temperature in the appliance
Temperature regulator
in freezer chamber
The temperature regulator allows you to
regulate the temperature inside the
Freezer.
●In case of too much frozen food or ice
making in chamber.
Please set the temperature control knob
at “COLDER”position.
●In case of using the refrigerator usual
condition. Please set the temperature
regulator at the middle position.
●In case of a little frozen food in chamber.
Please set the temperature controller at
“COLD”position.
Important!
So we do not advise the user set the
temperature control knob at “COLDER”
or“COLD”in normal. When you turn the
knob to "COLD”which can lead to the
more energy efficiency .Otherwise, it
would result the energy-consuming.
Important!
Don't place too much food directly
against the air outlet of the temperature
sensor part in Wind channel cover of the
refrigerator compartment, as it affects
that the appliance can't operate
correctly.

12
Using your appliance
Your appliance has the accessories as the“Description of the appliance”showed in
general, with this part instruction you can have the right way to use them.. We recommend
that you read through them carefully before using the appliance
Door rack
●It is suitable for the storage of eggs,
canned liquid, bottled drinks and packed
food, etc. Do not place too many heavy
things in the racks.
●Small rack on lower door can be
placed at different heights according to
your requirements. Please take food out
of the shelf before lifting vertically to
reposition.
Shelf in Refrigerator chamber
1.There are shelves in refrigerator
chamber, and they can be taken out to be
cleaned.
2.The crisper is suitable for storage of
vegetables and fruit, etc.
Crisper and Humidity control
●The fruit and vegetable drawer is placed
on the inner bladder for storing vegetables
and fruits. You can adjust the humidity in
the fruit and vegetable drawer with the
humidity adjusting slider on the lid of the
fruit and vegetable drawer.
●The sliding block on crisper cover can
slide to left or right and the air hole
become more or less relatively. More air
hole opening means less humidity and
less means more humidity.
●Were commend that you store
vegetables with more humidity and fruits
less humidity.
Freezer chamber
The freezer chamber is suitable for
storage of foods required to be frozen,
such as meat, ice.
Caution! Do not close refrigerator door
when installing deep bracket, It may
damage the unit.
Ensure that drink bottles are not left in the
freezer for a longer time than needed as
freezing liquid may cause the bottle to
break.

13
Cleaning and care
For hygienic reasons the appliance
(including exterior and interior accessories)
should be cleaned regularly (at least every
two months.
Warning!
The appliance must not be connected to
the mains during cleaning as there is a
danger of electrical shock! Before cleaning
switch the appliance off and remove the
plug from the mains socket.
Exterior cleaning
Wipe the control panel with a clean, soft
cloth.
Spray water onto the cleaning cloth
instead of spraying directly on the
surface of the appliance. This helps
ensure an even distribution of moisture to
the surface.
Clean the doors, handles and cabinet
surfaces with a mild detergent and then
wiped dry with a soft cloth.
Caution!
Don’t use sharp objects as they are likely
to scratch the surface.
Don’t use Thinner, Car detergent, Clorox,
ethereal oil, abrasive cleansers or
organic solvent such as Benzene for
cleaning. They may damage the surface
of the appliance and may cause fire.
Interior cleaning
You should clean the appliance interior
regularly. It will be easier to clean when
food stocks are low. Wipe the inside of the
fridge freezer with a weak solution of
bicarbonate of soda, and then rinse with
warm water using a wrung-out sponge or
cloth. Wipe completely dry before
replacing the shelves and baskets.
Thoroughly dry all surfaces and removable
parts before putting them back into place.
Although this appliance automatically
defrosts, a layer of frost may occur on the
freezer compartment’s interior walls if
the freezer door is opened frequently or
kept open too long. If the frost is too thick,
choose a time when the freezer is nearly
empty and proceed as follow:
1. Remove existing food and accessories
baskets, unplug the appliance from the
mains power and leave the doors open.
Ventilate the room thoroughly to
accelerate the process.
2. When defrosting is completed, clean
your freezer as described above.
Caution!

14
Do not use sharp objects to remove frost
from the freezer compartment. Only after
the interior is completely dry should the
appliance be switched back on and
plugged back into the mains socket.
Door seals cleaning
Take care to keep door seals clean. Sticky
food and drinks can cause seals to stick to
the cabinet and tear when you open the
door. Wash seal with a mild detergent and
warm water. Rinse and dry it thoroughly
after cleaning.
Caution! Only after the door seals are
completely dry should the appliance be
powered on
Replacing the LED light:
Warning:
The LED light should be replaced by a
competent person. If the LED light is
damaged, contact the customer helpline
for assistance. To replace the LED light,
the below steps can be followed:
1. Unplug your appliance.
2. Remove light cover by pushing up and
out.
3. Hold the LED cover with one hand and
pull it with the other hand while pressing
the connector latch.
4. Replace LED light and snap it correctly
in place.

15
Helpful hints and tips
Energy saving tips
We recommend that you follow the tips
below to save energy.
Try to avoid keeping the door open for
long periods in order to conserve energy.
Ensure the appliance is away from any
sources of heat (Direct sunlight, electric
oven or cooker etc)
Don‘t set the temperature colder than
necessary.
Don’t store warm food or evaporating
liquid in the appliance.
Place the appliance in a well ventilated,
humidity free, room. Please refer to
Installing your new appliance chapter.
If the diagram shows the correct
combination for the drawers, crisper and
shelves, do not adjust the combination as
this is designed to be the most energy
efficient configuration.
Hints for fresh food refrigeration
Do not place hot food directly into the
refrigerator or freezer, the internal
temperature will increase resulting in the
compressor having to work harder and will
consume more energy.
Do cover or wrap the food，particularly if it
has a strong flavor.
Place food properly so that air can
circulate freely around it.
Hints for refrigeration
Meat (All Types) Wrap in polythene food:
wrap and place on the glass shelf above
the vegetable drawer. Always follow food
storage times and use by dates suggested
by manufacturers.
Cooked food, cold dishes, etc.:
They should be covered and may be
placed on any shelf.
Fruit and vegetables:
They should be stored in the special
drawer provided.
Butter and cheese:
Should be wrapped in airtight foil or plastic
film wrap.
Milk bottles:
Should have a lid and be stored in the
door racks.
Hints for freezing
When first starting-up or after a period
out of use, let the appliance run at least 2
hours on the higher settings before putting
food in the compartment.
Prepare food in small portions to enable
it to be rapidly and completely frozen and
to make it possible to subsequently thaw
only the quantity required.
Wrap up the food in aluminum foil or
polyethylene food wraps which are airtight,
Do not allow fresh，unfrozen food to
touch the food which is already frozen to
avoid temperature rise of the latter.
Iced products，if consumed immediately
after removal from the freezer
compartment, will probably cause frost
burns to the skin.
It is recommended to label and date each
frozen package in order to keep track of
the storage time.
Hints for the storage of frozen food
Ensure that frozen food has been stored
correctly by the food retailer
Once defrosted ，food will deteriorate
rapidly and should not be re-frozen. Do not
exceed the storage period indicated by the
food manufacturer.
Switching off your appliance
If the appliance needs to be switched off
for an extended period, the following steps
should be taken prevent mould on the
appliance.

16
1. Remove all food.
2. Remove the power plug from the mains
socket.
3. Clean and dry the interior thoroughly.
4. Ensure that all the doors are wedged
open slightly to allow air to circulate.

17
Troubleshooting
If you experience a problem with your appliance or are concerned that the appliance is not
functioning correctly, you can carry out some easy checks before calling for service,
please see below.
Warning! Don’t try to repair the appliance yourself. If the problem persists after you have
made the checks mentioned below, contact a qualified electrician, authorized service
engineer or the shop where you purchased the product.
Problem Possible cause & Solution
Appliance is not working
correctly
Check whether the power cord is plugged into the power outlet
properly.
Check the fuse or circuit of your power supply, replace if
necessary.
It is normal that the freezer is not operating during the defrost
cycle, or for a short time after the appliance is switched
on to
protect the compressor.
Odours from the
compartments
The interior may need to be cleaned
Some food, containers or wrapping cause odours.
Noise from the appliance
The sounds below are quite normal:
Compressor running noises.
Air movement noise from the small fan motor in the freezer
compartment or other compartments.
Gurgling sound similar to water boiling.
Popping noise during automatic defrosting.
Clicking noise before the compressor starts.
Other unusual noises are due to the reasons bel
ow and may
need you to check and take action:
The cabinet is not level.
The back of appliance touches the wall.
Bottles or containers fallen or rolling.
The motor runs
continuously
It is normal to frequently hear the sound of the motor, it will
need to run more when in following circumstances:
Temperature setting is set colder than necessary

Large quantity of warm food has recently been stored within
the appliance.
The temperature outside the appliance is too high.
Doors are kept open too long or too often.

After your installing the appliance or it has been switched off
for a long time.
A layer of frost occurs in
the compartment
Check that the air outlets are not blocked by food and ensure
food is placed within the appliance to allow sufficient ventilation.

18
Ensure that door is fully closed. To remove the frost, please
refer to the“Cleaning and care”chapter.
Temperature inside is
too warm
You may have left the doors open too long or too frequently; or
the doors are kept open by some obstacle; or the appliance is
located with insufficient clearance at the sides, back and top
Temperature inside is
too cold Increase the temperature by following the “controls panel”
chapter.
Doors can’t be closed
easily
Check whether the top of the refrigerator is tilted back by
10-15mm to allow the doors to self close, or if something inside
is preventing the doors from closing.
Disposal of the appliance
It is prohibited to dispose of this appliance as household waste.
Packaging materials
Packaging materials with the recycle symbol are recyclable. Dispose of the packaging into
a suitable waste collection container to recycle it.
Before disposal of the appliance
1. Pull out the mains plug from the mains socket.
2. Cut off the power cord and discard with the mains plug
Warning! Refrigerators contain refrigerant and gases in the insulation. Refrigerant and
gases must be disposed of professionally as they may cause eye injuries or ignition.
Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal.
Correct Disposal of this product
This symbol on the product or in its packing indicates that this product may
not be
treated as household waste. Instead, it should be taken to the
appropriate waste collection point for the recycling of electrical and electronic
equipment. By ensuring this product is disposed of correctly, you will help
prevent potential negative conseque
nces for the environment and human
health, which could otherwise be caused by the inappropriate waste handling
of this product. For more detailed information about the recycling of this
product, please contact your local council your household waste disposal
service, or the shop where you purchased the product.
