Hitachi HDF-EL800H User manual

Operating Instructions
取扱説明書
Beforeoperatingthesystem,pleasereadthismanual
thoroughlyandremainitforfuturereference.
HDF-EL800H
CameraViewFinder
カメラビューファインダー
ご使用の前に必ずこの取扱説明書をお読みください。
なお、取扱説明書は必要に応じてご覧になれるよう
大切に保管してください。

Connection接続方法
(2)

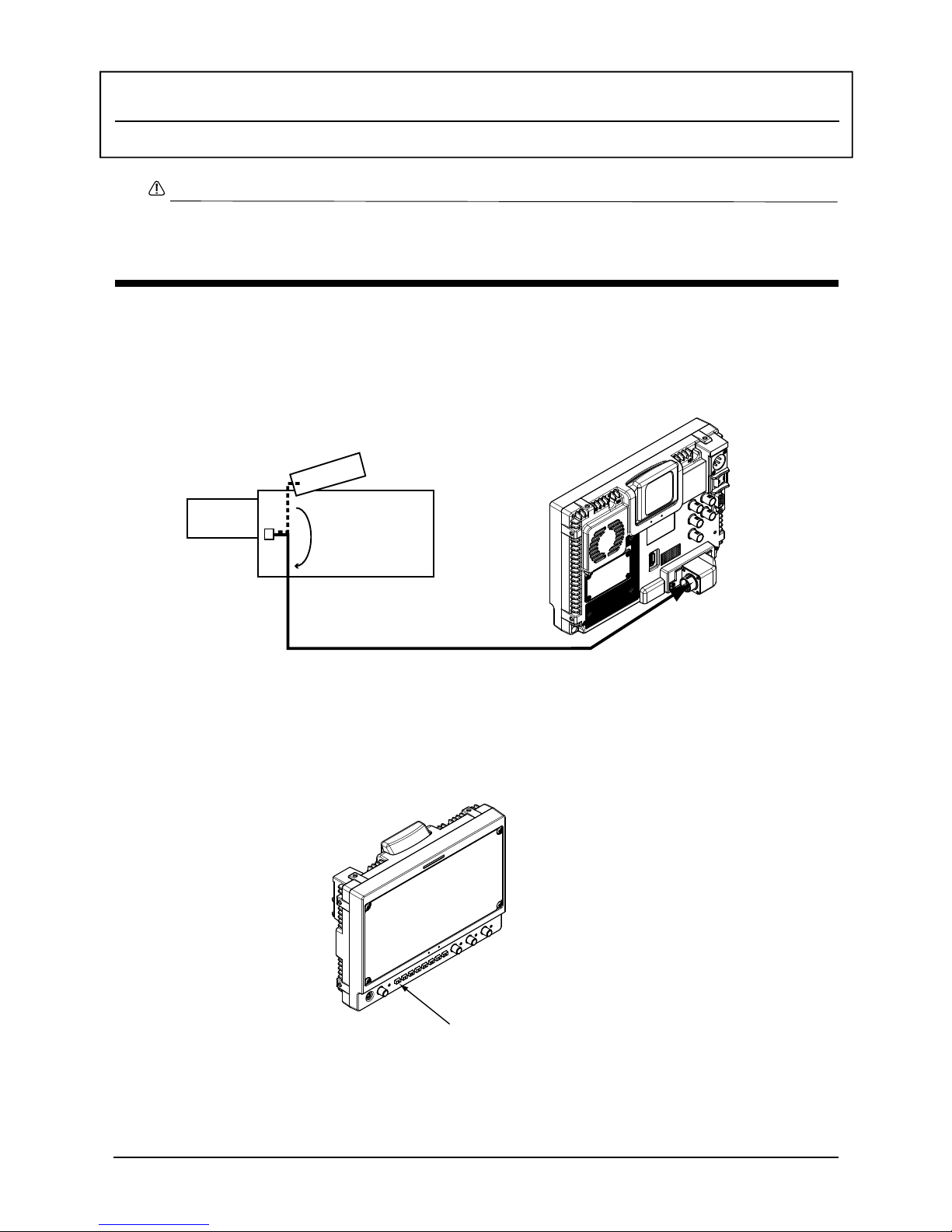

カメラへの接続方法
Connectiontothecamera
MakesuretoturnoffthePOWERswitchofeachunitbeforeconnecting.
1
2
接続する前には、必ず各機器の電源スイッチをOFFにしてください。
INPUTselectswitch
SelecttheCAMERAmodebypressingtheINPUTselectswitch.
INPUT切替スイッチでCAMERAモードにあわせます。
カメラへHDF-EL800Hを接続します。
VFIN(20-pin)コネクタへカメラのVFコネクタから専用VFケーブルで接続します。
ConnecttheVFINconnector(20-pin)oftheHDF-EL800HwiththeVFconnector(20-pin)ofacamera
withthesuppliedVFcable(20-pin).
CAMERA
HDF-EL800H接続方法
CameraViewFinderHDF-EL800H
SuppliedVFcable
VFINconnector
(20-pin)
LENS
VF
VF
camera

Bracket
(3)
Bracket/Hood
HDF-EL800H
CameraViewFinderHDF-EL800H
HDF-EL800H Hood
HoodFixingScrew
Bracket
Hood
(取り付け)本体とフードの間にすきま、光モレがないようにフード上部を本体に押し付けながら4本のネジで締め付けます。

(取り外し)フード側面の4本のフード固定ネジをゆるめて外します。
Hoodの脱着
Removalandfixingofthehood
(Fixing)Installthehoodandtightenfourscrewstofix.
(Removal)Loosenfourscrewsonthesidetoremove.

(4)
ユー ザープリセットファンクション各 機 能 は、信号が入力されているとき動作、操作ができます。
各々の機能のファンクションボタンを順次押して、必要な機能を選択して表示させます。
ファンクションの設 定
＊ゼブラ,マーカーUSER,ユーティリティー(測定器機能)USER,TCTALLYは、メニューで設定された条件で表示します。
ビデオ信号の設定・調整
注意:VFコネクタとの接続には、専用のケーブルをご使用ください。そうしないと、カメラが故障、破損するおそれがあります。
入力の選択
INPUTボタンを順次押して、リアパネルの入力コネクタに接続されたビデオ信号を選択します。
選択された入力信号とそのビデオフォーマットが画面に表示されます。
AdjustmentsandSettings調整・設定
HDF-EL800H調整・設定
CameraViewFinderHDF-EL800H
INPUTselectbutton
Inputsignal Videoformat
ofinputsignal
※Whennovideosignalisinput,
“NOSYNC”isdisplayedonthe
lowerrightofthescreen.
DisplayInputsignalInputconnector
［SDI-MAIN］SDISDI(HD/SD)IN
↓
［SDI-RETURN］SDIReturnSDI(HD/SD)RETIN
↓
［CAMERA］VFAnalogComponentVF＊1＊2
↓
［CVBS］CompositeCVBS
↓
［HDMI］HDMIHDMIIN
↓
＊1AnalogComponentsignal[Y/PB/PRorRGB]
Y/PB/PRorRGBisselectedontheMENU.
MENU→COLOR→COLORMATRIX→YPBPR/RGB
＊2TheDCpower,TALLYsignalandVFsignalsaresupplied
totheHDF-EL800HfromthecameraviatheVFcable.
NOTE:UsetheoptionalVFcabletoconnecttheHDF-EL800Htothecamera.
Withoutdoingso,amalfunctionordamagemaybecausedtothecamera.
SDI-MAIN 1080i/60
VideoSignalSettingandAdjustment
USERpresetfunctions,etc.workwhenthevideosignalisinput.
＊ZEBRA,USERsettingsofMARKER,USERsettingsofUTILITYandTCTALLYcanfunction
dependingonthesettingspresetbytheMENU.
ZEBRA MARKER MONO/RGB TCTALLY
OFF
↓
TCTALLYENABLE
↓
TCTALLYDISPLAYON
↓
UTILITY
LEDoff
OFF
↓
ON
↓
NO
↓
16:9
↓
16:9/+
↓
4:3
↓
4:3/+
↓
16:9/4:3
↓
all
↓
CROSSHATCH
↓
USERsetting
↓
full color
↓
MONOCROME
↓
BLUEONLY
↓
REDONLY
↓
GREENONLY
↓
OFF
↓

WAVEFORM
↓

WAVEFORM+VECTORSCOPE
↓

WAVEFORM+AUDIO
↓

WAVEFORM+VECTOR+AUDIO
↓

WAVEFORM(fullscreen)
↓

VECTORSCOPE(fullscreen)
↓

WAVEFORM+VECTOR+AUDIO16CH
↓
all
↓
USERsetting
↓
＊
＊
＊＊
2 FunctionSelection
SelectthesettingsbypressingtheFunctionbuttoninsequence.
Selectainputsignal(inputconnector)bypressingINPUTselectbuttoninsequence.
Theselectedsignalandthevideoformataredisplayedonthescreen.
1 InputsignalSelection
＊2接続されるカメラに合わせた専用のケーブル経由で、
VF信号とともにDC電源、タリー信号が供給されます。
＊1(HD)アナログコンポーネント信号[Y/PB/PRまたはRGB]
Y/PB/PRまたはRGBは、MENUで選択します。
MENU→COLOR→COLORMATRIX→YPBPR/RGB
※入力がない場合は[NOSYNC]と表示されます。
入力信号の表示 入力信号のフォーマット
入力切替ボタン

(5)

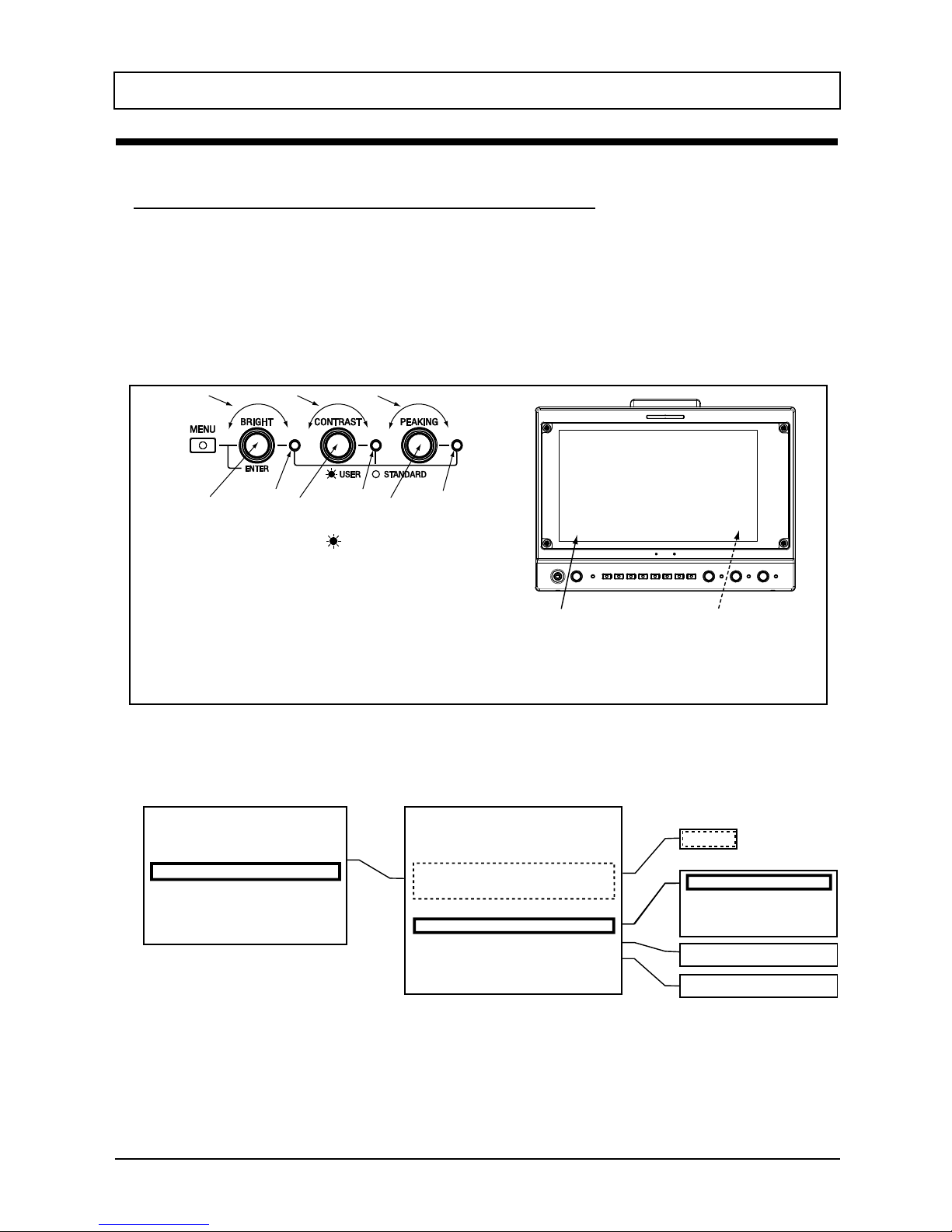

(1)明るさ/コントラスト/ピーキングのツマミを押してUSERに切り替えます。このときLEDが点灯します。
(2)ツマミを回すと、それぞれOから100の範囲で調節することができます。
LEDが消灯しているときは、それぞれSTANDARD(デフォルト設定値)に設定されています。
明るさ=50コントラスト=80ピーキング=0

明るさ/コントラスト/ピーキングの調整
ピーキングの表示色,モードを、メニューで選択できます。
明るさ/コントラスト/ピーキングの調整
WHITE
RED
GREEN
BLUE
COUNTER
INFO［1080i/60］
INPUT
COLOR
SETUP
RETURN
BRIGHT［50］
CONTRAST［80］
CHROMA［50］
SHARPNESS［50］
PEAKING［0］
PEAKINGCOLOR［WHITE］
PEAKINGMODE［NORMAL］
GAMMA［2.20］
RESETTODEFAULT＞
50 (0to100)
明るさ/コントラスト/ピーキングおよびCHROMA/シャープネスの調整は、メニュー上でできます。
メニューで、MENU→PICTURE→各項目を選択して設定します。設定範囲は0〜100です。
NORMAL/MONO
1.00/--/2.20/--/3.00
GAMMA値を、メニューで、1.00〜3.00の範囲で変更できます。
HDF-EL800H調節・設定
CameraViewFinderHDF-EL800H
3-2 Theadjustmentsofthebrightness/contrast/peaking/CHROMA/SHARPNESSarepossibleonthemenu.
Onthemenu,MENU→PICTURE→eachitemisselectedandisset.Thesettingrangeis0-100.
3-4 GAMMAcanbeadjusted.[.00/--/2.20/--/3.00]
3-3 SelectthePEAKINGCOLORandPEAKINGMODEontheMENU/PEAKING.
［WHITE/RED/GREEN/BLUE］
［NORMAL/MONO]
(1)PressingknobselectsUSERpresetmemoryand
thenlightsontheLED.
(2)Rotatingknobadjuststoaselectedvalueof
BRIGHT/CONTRAST/SHARPNESS.
Theycanbeadjustedbetween0and100.
(Lowerleftcorner)
Whentheknob/buttonis
pressed,BRIGHT/
CONTRAST/PEAKINGand
thebargraphisdisplayed.
(Lowerrightcorner)
Thevalueinnumerals
isdisplayed.
BRIGHT50
|||||||||||||||||||||||||||||||
LED LED
LED
(1)ツマミを押すとLEDが点灯してユーザー設定に切り替ります。
もう一度ツマミを押すとLEDが消灯してSTANDARD状態に
切り替ります。(USER設定値は保存されています)
※ユーザー設定の状態でも設定値がSTANDARD値になると
LEDが消灯してSTANDARD状態にもどります。
(2)ツマミを回してそれぞれ調節します。
3 BRIGHT(brightness)/CONTRAST/PEAKINGAdjustment
(1)BypressingeachknobselecttheUSERpresetmemory.ThentheindicatorLEDlightson.
(2)Byrotatingtheknobadjusteachsetting.Theeachsettingrangesfrom0to100.
WhentheLEDlightisoff,eachsettingissettoSTANDARD(defaultsettingvalue).
BRIGHT=50CONTRAST=80PEAKING=0
(1)
(2)

(6)
HDF-EL800H調節・設定
CameraViewFinderHDF-EL800H

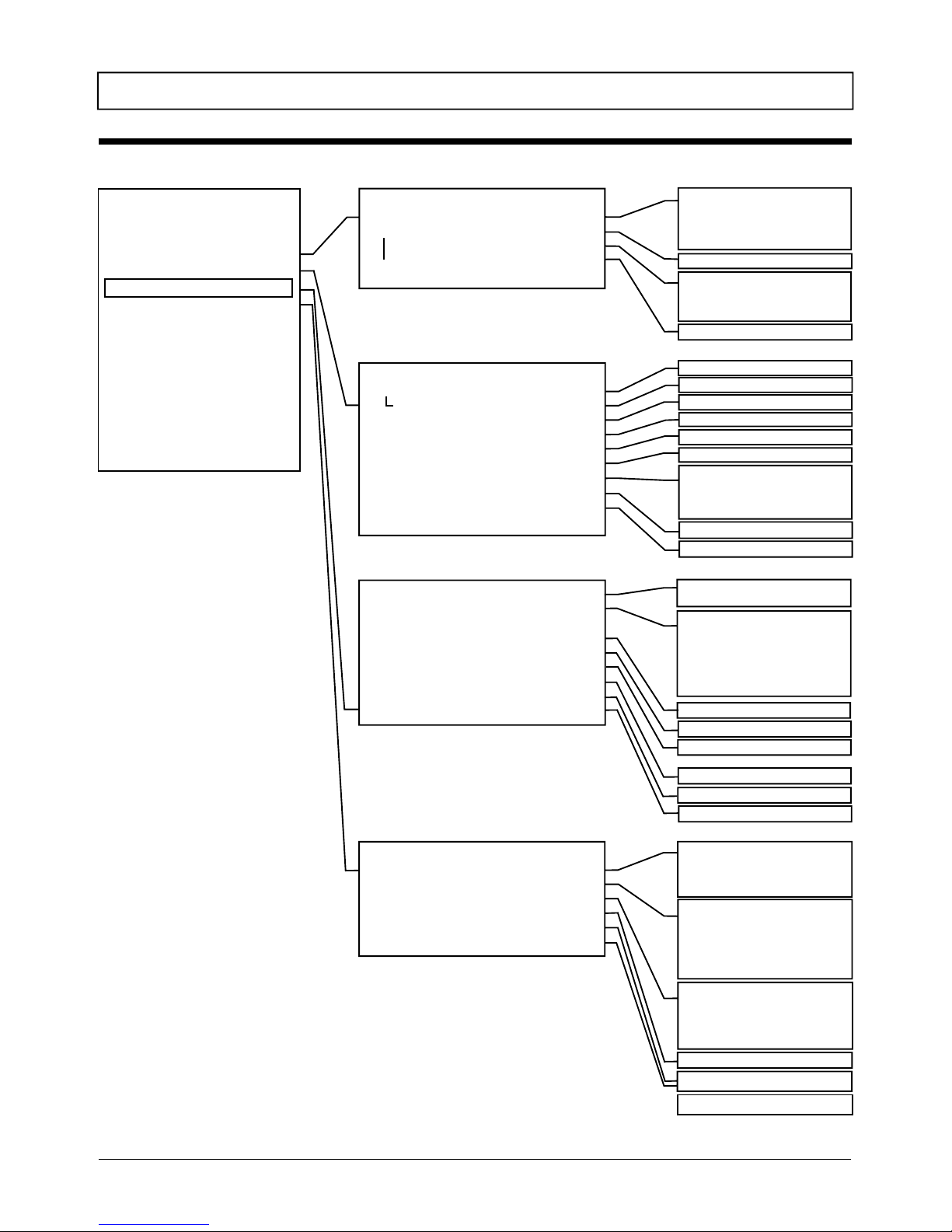

MENU
MENU1
RETURN
COUNTER
ーCOUNT［ON］
ーDISPLAY［OFF］
ーRESET
TALLYCOUNTER

ー DISPLAY［OFF］

ー RESET

ー TCTALLY［OFF］
SDIERROR

ー DISPLAY［OFF］
ON/OFF
ON/OFF
ON/OFF
OFF
IN1
IN1&RET
ON/OFF
RETURN
ASSIGN［PICINPIC］
COUNTER
INFO［NOSYNC］
USERASSIGN
INPUT［CAMERA］
COLOR[D65/RGB]
SCREEN［16:9］
MARKER
USERMARKER［OFF］
AUDIO［0］
AUDIOUTIL
WAVEFORM/HSG［ON］
VECTORSCOPE［ON］
ZEBRA［OFF］
SETUP
RESETTOMFGDEFAULT
PICINPIC
SDITPG
SCAN
MAGNIFY
HVDELAY
PIXELBYPIXEL
MFGDEFAULT:工場出荷時の設定です。
MENU/RESETTOMFGDEFAULTで
工場出荷時の設定にリセットできます。
INPUTCAMERA
FORMATNOSYNC
COLORD65/RGB
AUDIOPEAKLOGOFF
AUDIOPHASEMONOFF
VERSION#####

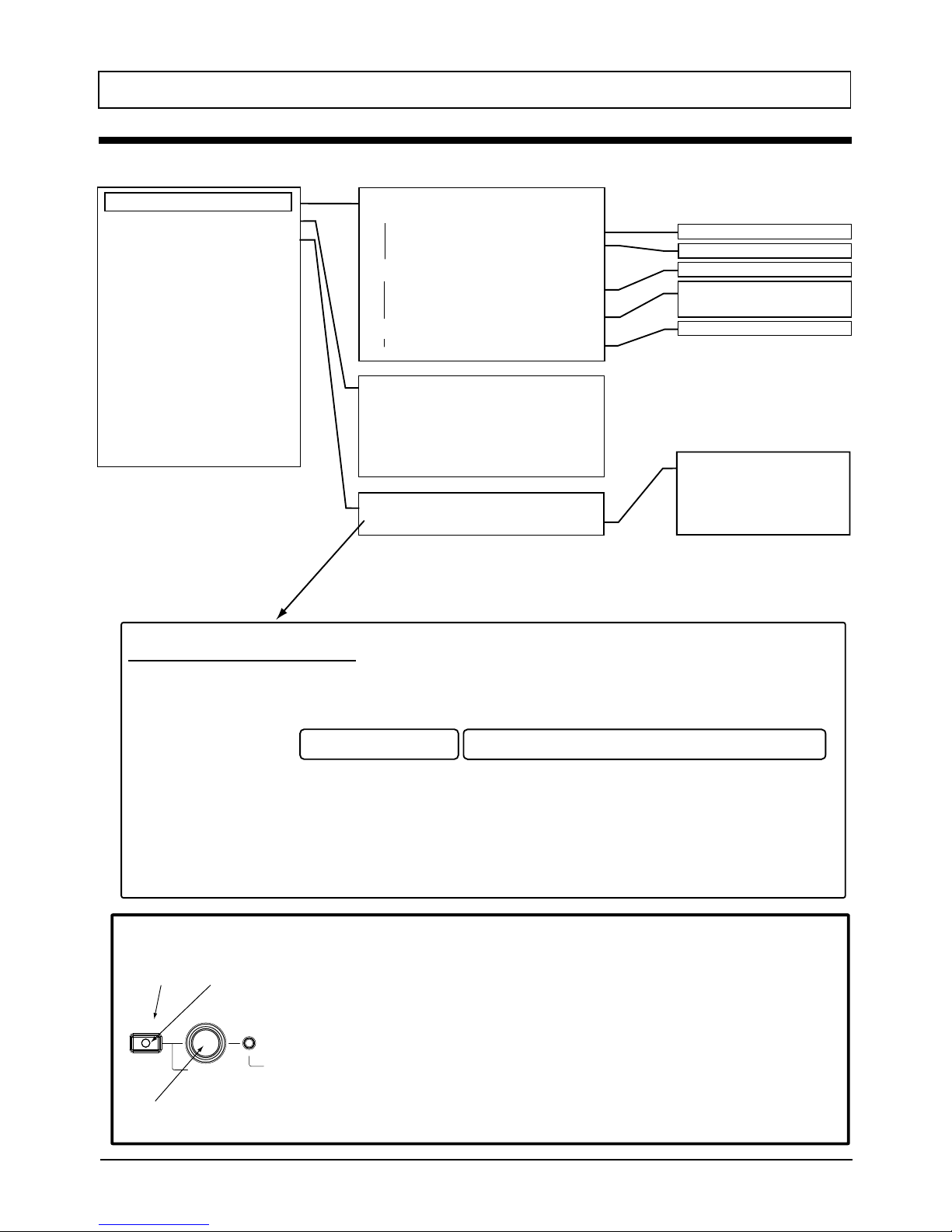

MENUbutton/ENTERknob
MENUボタン:MENUボタンを押すと、メニューが画面に表示され、ボタンのLEDが点灯します。
(RETURN)LEDが点灯しているとき、MENUボタンを押すとカーソルが前へもどります。

ENTERツマミ:MENUボタンのLEDが点灯しているとき
ツマミを回して、メニューの項目、設定項目、設定値を選択します。
ENTERツマミを押すと、カーソルの項目が確定し、カーソルが次へアクセスします。
MENUボタン
ENTERツマミ
LED

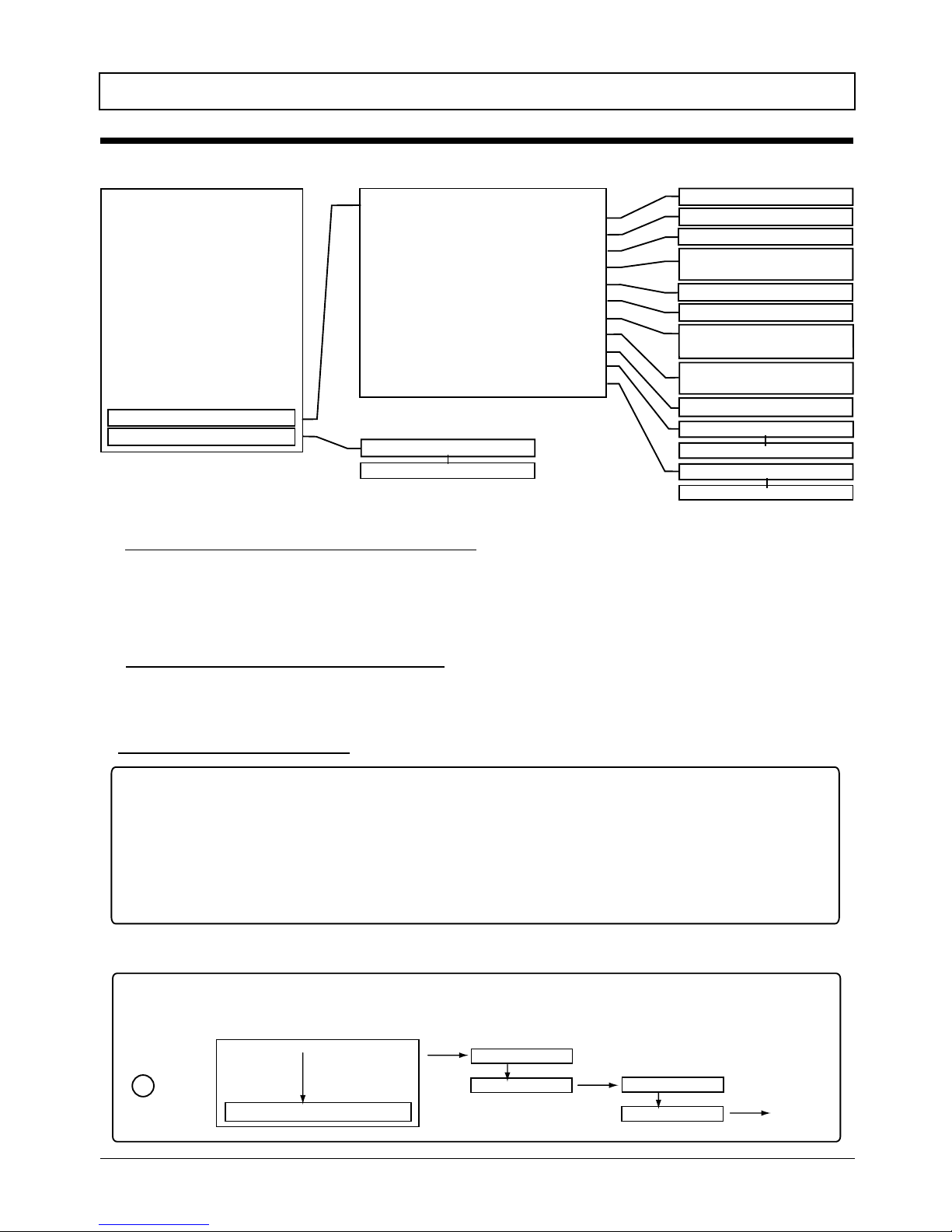

アサインファンクション ASSIGNボタンを押すと機能します(画面左下に表示)
PICINPIC→PICTUREINPICTURE→OFF
SDITPG→TPGPATTERN1→TPGPATTERN2→OFF
SCAN→OVER→NORMAL
MAGNIFY→MAGNIFY→NORMAL
HVDELAY→HVDELAYON→OFF
PIXELBYPIXEL→PIXELBYPIXEL→NORMAL
ASSIGNボタンに
アサイン(プリセット)できる
ファンクション
アサインファンクション
  BRIGHT
MENU

 ENTER
ASSIGNボタンを押すとプリセットファンクションが機能します。
MENUbutton:PresstheMENUbuttontodisplaytheMENUonthescreen.
ThentheLEDlightson.WhentheLEDlightislit,
pressingtheMENUbuttonreturnsthecursortothepreviouslist.
ENTERknob-button:RotatetheENTERknob-buttontoselectthemenuandsetting.
PressingtheENTERknobconfirmstheselecteditemand
movesthecursortothenextlist.
ASSIGNFunctions
ThefunctionscanbeassignedtotheASSIGNbuttonbytheMENU/SETUP/ASSIGN.
PresstheASSIGNbuttontofunctiontheassignedfunction.
[Setting(value)]issettingatthe
timeofthefactoryshipment.
Theusersetting(value)isresetto
thesettingatthetimeofthefactory
shipmentinMENU/RESETTO
MFGDEFAULT.
AssignedfunctionPressingASSIGNbutton→Function
AssignableFunctions
メニュー表示ボタン/メニュー項目選択・入力設定ツマミ

(7)
RETURN
SCAN［NORMAL］
ASPECT［16:9］
MONO/COLOR［RGB］
HVDELAY［OFF］
SHIFTH［0］
SHIFTV［0］
NORMAL
OVERSCAN
MAGNIFY
PXBYPX
AUTO
4:3
16:9
1.85:1
2.35:1
PAYLOAD
RGB
MONO
RED
GREEN
BLUE
ON/OFF
-128/-----/127

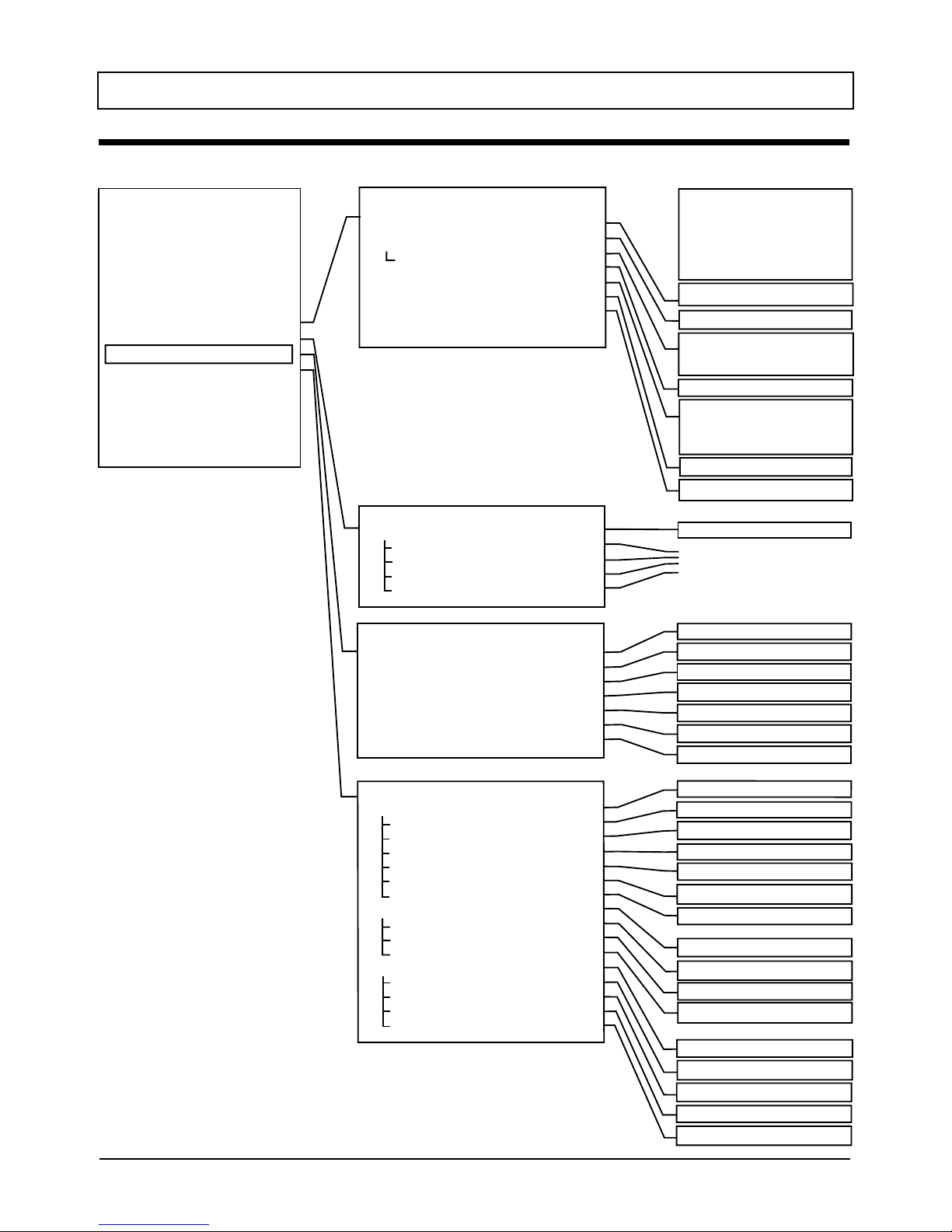

MENU2
COUNTER
INFO［NOSYNC］
USERASSIGN
INPUT［CAMERA］
COLOR[D65/RGB]
SCREEN［16:9］
MARKER
USERMARKER［OFF］
AUDIO［0］
AUDIOUTIL
WAVEFORM/HSG［ON］
VECTORSCOPE［ON］
ZEBRA［OFF］
SETUP
RESETTOMFGDEFAULT
MENU
HDF-EL800H調節・設定
CameraViewFinderHDF-EL800H
YPbPr
RGB
FALSECOLORMTF
FALSECOLORTG
CIED65
JPD93
USER
CALD65
CALD93
RETURN
COLORMATRIX［YPbPr]
COLORTEMP［D65］
REDBIAS［0］
GREENBIAS［0］
BLUEBIAS［0］
REDGAIN［1.00］
GREENGAIN［1.00］
BLUEGAIN［1.00］ -128/-----/127
-128/-----/127
-128/-----/127
0.500/-----1.992
0.500/-----1.992
0.500/-----1.992
RETURN
BRIGHT［50］
MODE[OLED]
CONTRAST［80］
CHROMA［50］
SHARPNESS［50］
PEAKING［0］
PEAKINGCOLOR［WHITE］
PEAKINGMODE［NORMAL］
GAMMA［2.20］
RESETTODEFAULT＞
RETURN
INPUT［CAMERA］
PICINPIC［OFF］
ーPOSITION［RIGHITTOP］
ーDISPTYPE［OVERLAY］
ANALOGCALIBRATE＞
SDIMAIN
SDIRETURN
CAMERA
CVBS
HDMI
ON/OFF
LEFTTOP
LEFTBOT
RIGHTTOP
RIGHTBOT
OVERLAY/OVERLAP
WHITE
RED
GREEN
BLUE
0/-----/100
OLED/LCD
0/-----/100
0/-----/100
0/-----/100
0/-----/100
NORMAL/MONO
1.00/----/3.00
-128/-----/127

(8)
RETURN
FRONTVOLUME［0］
HEADROOMSTART［-20dB］
HEADROOMEND［-6dB］
LEFTCHANNEL［1CH］
RIGHTCHANNEL［2CH］
LOADCHPRESETFROM＞
SAVECHPRESETTO ＞
MENU3
0/-----/40
-60dB/--------(END)
(START)--------/0dB
CHANNEL1/-----/16
CHANNEL1/-----/16
PRESET1/---/8
PRESET1/---/8
COUNTER
INFO［NOSYNC］
USERASSIGN
INPUT［CAMERA］
COLOR[D65/RGB]
SCREEN［16:9］
MARKER
USERMARKER［OFF］
AUDIO［0］
AUDIOUTIL
WAVEFORM/HSG［ON］
VECTORSCOPE［ON］
ZEBRA［OFF］
SETUP
RESETTOMFGDEFAULT
RETURN
LEVELMETER［ON］
BACKGROUND［ON］
DECAY［FAST］
DISPLAYCHANNELS［8］
DISPFILTER［ALL］
COLUMNS［QUAD］
DISPTYPE［OVERLAP］
AUDIOPEAKLOG［OFF］
LOGSPEED［4S］
SIZE［SMALL］
POSITION［LEFTBOT］
AUDIOPHASEMON［OFF］
DISPPERSISTENCY［1］
SIZE［MEDIUM］
POSITION［LEFTTOP］
DISPTYPE［OVERLAY］
ON/OFF
ON/OFF
FAST/MEDIUM/SLOW
1/-----/16
ACTIVE/ALL
DUAL/QUAD
OVERLAP/OVERLAY
ON/OFF
4S/8S/-----------/300S
SMALL/LARGE
--/LEFTBOT/--/--
OFF/ON1/2/4/8
1FRAME/4/8/16
SMALL/MEDIUM/LARGE
LEFTTOP/--/--/--
OVERLAY/OVERLAP
MENU
HDF-EL800H調節・設定
CameraViewFinderHDF-EL800H
RETURN
CENTER［ON］
ASPECT［OFF］
SAFTYASPECT［16:9］
RATIO［95%］
MARKERMAT［HALF］
LINETHICKNESS［1］
LINETYPE［HALF］
CROSSHATCH［ON］
TYPE［10］ 80%/-----/99%
CLEAR
HALFTONE
BLACK
1/2/3/4/5
GRAY
HALFTONE
WHITE
INVERT
OFF/4:3/16:9
OFF/ON
1/2/3/4/5/6/7/8/9/10
RETURN
USERMARKER1/2/3［OFF］
WIDTH
HEIGHT
HORIZONTALMOVE
VERTICALMOVE
ON/OFF
ROTATE/PRESS
OFF
4:3
16:9
1.85:1
2.35:1
4:3&1.85
4:3&2.35

(9)
MENU
HDF-EL800H調節・設定
CameraViewFinderHDF-EL800H
ON/OFF
RETURN
LAYOUT［NORMAL］
VECTORSCOPE［ON］
SIZE［MEDIUM］
POSITION［LEFTBOT］
DISPTYPE［OVERLAY］
GAIN［1.00］ SMALL
MEDIUM
LARGE
LEFTTOP
LEFTBOT
RIGHTTOP
RIGHTBOT
OVERLAY/OVERLAP
1.00/-----/4.98
RETURN
ZEBRA［OFF］
MODE［Y&C］
DISPTYPE［ZEBRA］
YUPPERLIMIT［90.0%］
YLOWERLIMIT［0.0%］
CUPPERLIMIT［240］
CLOWERLIMIT［16］
TOLERANCE［8］
LUMA(Y)
YONMONO
CHROMA(C)
CONMONO
Y&C
Y&CONMONO
ZEBRA/FILL
0/-------/255
ON/OFF
-7.3/------/109.1
-7.3/------/109.1
0/-------/255
OFF
YWFM
YCbCrWFM
GBRWFM
RETURN
LAYOUT［NORMAL］
WAVEFORM［YWFM］
SIZE［MEDIUM］
POSITION［RIGHTBOT］
DISPTYPE［OVERLAY］
YOVERLIMIT［90.0%］
YUNDERLIMIT［0.0%］
LINEMODE［NORMAL］
VERTICALLINE［0］
HISTOGRAM［OFF］
POSITION［RIGHTBOT］
NORMAL
WFM
WAV
VS
ALM16
QUAD
SMALL
MEDIUM
LARGE
LEFTTOP
LEFTBOT
RIGHTTOP
RIGHTBOT
OVERLAY/OVERLAP
-7.3/-------/109.1
-7.3/-------/109.1
OFF
YONLY
RGBOVERLAY
RGBPARADE
LEFTTOP
LEFTBOT
RIGHTTOP
RIGHTBOT
NORMAL
WFM
WAV
VS
ALM16
QUAD
MENU4
0/-------/15
NORMAL/LINEMODE
LINESELECTION
COUNTER
INFO［NOSYNC］
USERASSIGN
INPUT［CAMERA］
COLOR[D65/RGB]
SCREEN［16:9］
MARKER
USERMARKER［OFF］
AUDIO［0］
AUDIOUTIL
WAVEFORM/HSG［ON］
VECTORSCOPE［ON］
ZEBRA［OFF］
SETUP
RESETTOMFGDEFAULT

MENU5
COUNTER
INFO［1080i/60］
INPUT［CAMERA］
COLOR[D65/RGB]
SCREEN［16:9］
MARKER
USERMARKER［OFF］
AUDIO［0］
AUDIOUTIL
WAVEFORM/HSG［ON］
VECTORSCOPE［ON］
ZEBRA［OFF］
SETUP
RESETTOMFGDEFAULT
RETURN
FORMATDISPLAY［AUTO］
TIMECODE［OFF］
USERBIT［OFF］
POWERSAVE［ALWAYSON］
SCREENSAVER［OFF］
KEYLOCK［UNLOCKED］
PICTUREDELAY[FASTEST]
TALLYTYPE[VOLTAGE]
UPTALLY[HIGH]
BACKUPUSERCONFIG＞
RESTOREUSERCONFIG＞
AUTO/ON/OFF
OFF/LTC/VITC1/VITC2
ON/OFF
ALWAYSON
2MIN/--------/2HOUR
UNLOCK/LOCK
NOMAL/FAST/FASTEST
/ZERODELAY
VOLTAGE
ON/OFF
OFF/LOW/HIGH
CANCEL/BACKUPNOW
CANCEL/CONFIRM
CANCEL/RESTORENOW
CANCEL/CONFIRM
CANCEL/RESETNOW
CANCEL/CONFIRM
ON/OFF
1-1
1-2
1-3
2
(10)
MENU
HDF-EL800H調節・設定
CameraViewFinderHDF-EL800H
1-1
映像処理時間のDELAY(遅延)を調整できます。FASTEST=最も早い/FAST=早い/NORMAL=通常から選択します。
映像処理時間が早いと遅延が減りますが、画質が低下することがあります。SDIINのときのみ有効です。
UPTALLY=(上部)リアタリーの明るさを設定します。
BACKUPUSERCONFIG＞:USER設定された内容、設定値がメモリーに保存されます。
RESTOREUSERCONFIG＞:USER設定された内容、設定値がメモリーから復元されます。
メモリーに保存されたUSER設定の内容、設定値は、RESETを行っても消去されません。
1-3 USER設定のバックアップ/復元:
1-2
HIGH=明,LOW=減光,OFF=消灯。
1セットアップSETUP
2USER設定値のリセット
設定値のリセット:ユーザー設定値は、メニューRESETTOMFGDEFAULTで工場出荷時の設定値にリセットできます。
SETUP
PICTUREDELAY[FASTEST]DELAYSelection
TheDELAY(=imageprocessingtime)canbeselectedfromamongNORMAL,FASTandFASTEST.
However,iftheDELAY(=imageprocessingtime)isfaster,theimagequalitymaydecrease.
UPTALLY[HIGH]:
ThebrightnessoftheUPTALLY(=REARTALLY)canbesettoHIGHbrightness,LOWbrightnessorOFF.
EveniftheRESETiscarriedout,theUSERconfiguration,settingsandvalues
backedupbymemoryarenotreset.
MemoryoftheUSERsettings
BACKUPUSERCONFIG＞:USERconfiguration,settingsandvalues,canbebackeduptobythememory.
RESTOREUSERCONFIG＞:USERconfiguration,settingsandvalues,backedupisrestored.
RESETTOMFGDEFAULT:USERsettingsandvaluescanberesettothedefaultsettingsintheMENU.
RESETTOMFGDEFAULT
RESETNOW
CANCEL
CONFIRM
CANCEL
rotate
press
RESET
ENTER
MENU
press
press
rotate
rotate
RESEToftheUSERsettings
DELAY(遅延)の選択
リアタリーの 明るさ

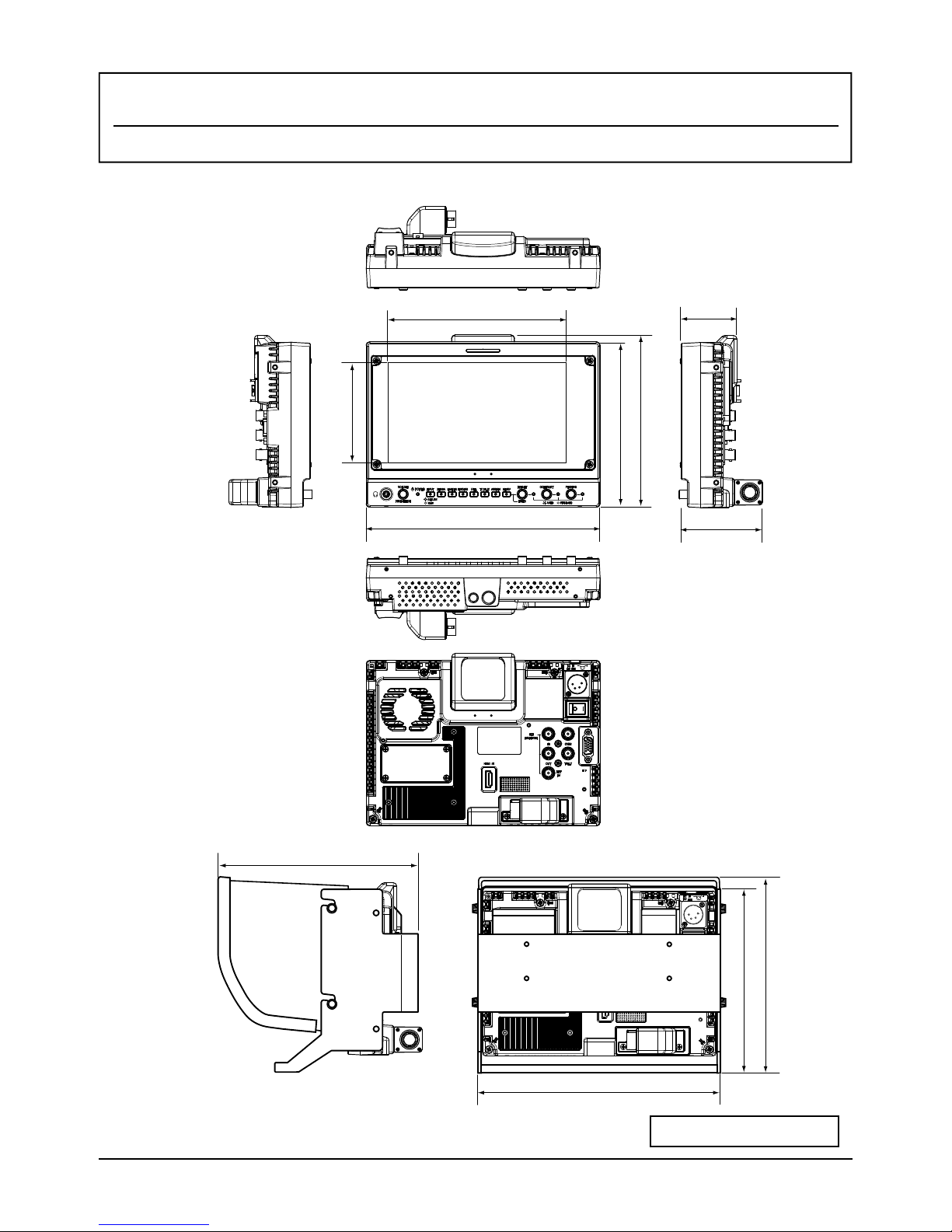

外形寸法図（単位：ミリ）
Outsidedimensions(unit:mm)
OutsideView&Dimensions外形寸法図
HDF-EL800H外形寸法図
CameraViewFinderHDF-EL800H
(11)
164(ActiveArea)
215
152
92(ActiveArea)
158
51.5
75
224
180
191
185

(12)
Specifications仕様
Features,designandspecificationsaresubjecttochangewithoutnotice.
デザイン,仕様は、予告なく変更することがあります。
Input
DCIN12V
(CAMERA)I/F
SDI(3G/HD/SD)
SDI(3G/HD/SD)RETIN
VFI/F
(CAMERA)I/F
CVBS
HDMIIN
TALLYIN
1xXLR4-pin(male)DC12V
1x20-pinカメラから電源供給可
1xD-sub15-pinカメラから電源供給可
1xBNC3G/HD/SD
1xBNC3G/HD/SD
1x20-pinAnalogcomponent(Y/G,P
B /B,P R/ R),DC電源入力,TALLY信号入力
1xD-sub15-pinAnalogcomponent(Y/G,P
B /B,P R/ R),DC電源入力,TALLY信号入力
1xBNCCompositeVBS
1xHDMI3G/HD/SD
1xBNC
TALLYIN:VOLTAGE:電圧入力(2-4V:緑／4.15V:赤／0-2V:OFF)
(MENUで切替)
ON-OFF:接点入力(short:赤／open:OFF)
General
Weight
Dimensions(WxHxD)
PowerRequirement
PowerConsumption
OperatingTemperature
OperatingHumidity
StorageTemperature
StorageHumidity
入力
一般
TallyIndicator 1xFront（緑/赤),1xRear（赤,OFF/LOW/HIGH明るさ切替可能)
SDI(HD/SD)
AUDIOOUT(Headphone)
AudioMonitorSpeaker
Paneltype
Panelsize
Sizeofdisplayarea
Panelaspectratio
PictureResolution
ViewingAngle
Colorreproduction
OLED
7.4inchesdiagonal
164(H)x92(V)mm
16:9
960(H)x540(V)EffectivePixels
170以上(H),170以上(V)
約10,732,800,000Color(RGB各色10bit)
パネルタイプ
パネルサイズ
画面サイズ
アスペクト比
解像度
視野角
色再現性
DC電源入力
VFインターフェース
カメラインターフェース
SDI入力
SDIリターン入力
VFインターフェース
カメラインターフェース
コンポジット入力
HDMI入力
タリー信号入力
SDI出力
オーディオモニター出力
モニタースピーカー
タリー表示
質量
外形寸法
DC電源
消費電力
動作温度(推奨温度)
動作湿度
保存温度
保存湿度
VideoInputsignal ビデオ入力信号
1080p/60/59.94/50/30/29.97/25/24/23.98(SDI/Component/HDMI)
1080
 i  /60/59.94/50(SDI/Component/HDMI)
720p/60/59.94/50/30/29.97/25/24/23.98(SDI/Component/HDMI)
480
 i  /60/59.94,575  i  /50(SDI/Component/HDMI/Composite)
480p/60/59.94,576p/50(Component/HDMI)
1xBNCHD/SDSDIループスルー出力
1xφ3.5StereoMiniJack
1xモノラルスピーカー内蔵
約1.25kg(mainbody)
約215x158x51.5mm(mainbody)
12VDC(10.5V-17V)
約20W
-10℃〜45℃(20℃〜30℃)
30%〜85%(結露のないこと)
-20℃〜60℃
0%〜90%
OLEDPanel
有機ELパネル※
Tally
Output
出力
タリー
VideoFormat
HDF-EL800H仕様
CameraViewFinderHDF-EL800H
※OLEDパネルの品質について:本モニター搭載のOLEDパネルは、非常に精度の高い技術で製造されているため、99.99%以上の有効画素
が得られますが、0.01%以下の画素欠けや常時点灯するものがありますのであらかじめご了承ください。
※OLEDパネルは、OLEDパネルの性質上、静止画を表示し続けると焼き付きをおこす場合がありますのでご注意ください。
＊PleasebecarefulthattheghostingmightoccuriftheOLEDpanelcontinuesdisplayingthesamestillimageforalongtime.
＊TheLCDpanelismadetoprecisespecifications.Althoughover99.99%ofthepixelsfunctionnormally,lessthan
0.01%ofthepixelsaremissingorconstantlylit(inred,greenorblue).Thisisnormalandnotacauseforconcern.
