Hitachi SJ-PB2 User manual

INSTRUCTION MANUAL
Thank you for purchase of “HITACHI INVERTER”
. This manual
explains about treatment of “SJ-PB2/SJ-PBT2 (Profibus-DP Option)”
.
By reading
this manual and an instruction manual of inverter use
practically for installation, maintenance, and inspection. After reading
this manual, keep it handy for future reference.
Make sure to reach this manual to the end user.
Table of Contents
Chapter1 INTRODUCTION 1
Chapter2 INSTALLATION 5
Chapter3 WIRING, CONNECTING 6
Chapter4 SETTING 8
Chapter5 OPERATING 10
Chapter6 COUNTERMASURE FOR ABNORMALIT 21
Appendix PARAMETER CROSS-REFERENCE LIST 22
SJ700/SJ300/L300P SERIES
SJ-PB2/SJ-PBT2 (Profibus-DP Option)

NT213X
Hitachi Inverter
After reading this manual, keep it at handy for future
reference.

- Request -
Thank you for purchase of “SJ-PB2/SJ-PBT2 (Profibus-DP Option)”.
This instruction manual explains about treatment and maintenance of “SJ-PB2/SJ-PBT2”. Before using the
product, carefully read this manual with the instruction manual of inverter, and keeps it handy for quick
reference of operator and maintenance inspector. Before installing, operating, maintenance and inspection
read this manual carefully and follow the instructions exactly.
Always keep various kinds of specification mentioned in this manual and use exactly. And make sure to
prevent trouble by correct inspection and maintenance. Make sure to reach this manual to the end user.
- About treatment of this manual -
(1)Please consent that mentioned items of this manual may be change without permission.
(2)Keep this manual carefully not to lose because it can not be reissued
(3)All right reserved.
(4)Contents in this manual is written to make assurance doubly sure but, but please contact if you have
some doubts about spelling mistakes, omitted word etc.
(5)Please agree that there is no responsibility for effects resulted, in spite of contents above mentioned.
- About trademark -
(1)Profibus is registered trademark of Profibus Nutzerorganisation.

Revision History Table
No. Revision contents The date of issued Manual No.
1. Initial release of Manual NT213X NT213X
Except this table, revised only spelling mistakes omitted words, and error writings without notice.

SAFETY PRECAUTIONS
!
SAFETY PRECAUTIONS
Carefully read this manual and all of the warning labels attached to the inverter before installing, operating,
maintaining, inspecting, it. Safety precautions are classified into “Warning” and “Caution” in this manual.
：Indicates a potentially hazardous situation which, if not avoided, can result in serious
injury or death.
：Indicates a potentially hazardous situation which, if not avoided, can result in minor to
moderate injury, or serous damage to the product
The situation described in may, if not avoided, lead to serious results. Important safety
measures are described in CAUTION (as well as WARNING) so be sure observe them.
Notes are described in this manual in “(Note)”. Carefully read the contents and follow them exactly.
CAUTION
In all the illustrations in this manual, covers and safely device are occasionally removed to describe the
details. When the product is operated, make sure that the covers and safety devices are placed as they
were specified originally and operate it according to the instruction manual.

WARNING
!
CAUTION
!
CAUTION
!

SAFETY PRECAUTIONS
!
!
WARNING
Wiring:
Wiring work shall be carried out by electrical experts.
Otherwise, there is a danger of electric shock, fire and/or damage of product.
Implement wiring after checking that the power supply is off.
Otherwise, there is a danger of electric shock and/or fire.
Operating:
Be sure not to touch the surface or the terminal of option board while energizing.
Otherwise, there is a danger of electric shock and/or fire.
Be sure not to remove the Profibus option printed board while operating.
Otherwise, there is a danger of electric shock and/or fire.
Maintenance, Inspection and Part Replacement:
Wait at least 10 minutes after turning off the input power supply before performing maintenance and
inspection.
(Confirm the charge lamp on the inverter is off, checks direct current voltage between P-N terminals
and
confirm it is less than 45V)
Otherwise, there is a danger of electric shock.
Make sure that only qualified persons will perform maintenance, inspection, and part replacement
(Before starting the work, remove metallic objects from your person (wristwatch, bracelet, etc.).
Be sure to use tools protected with insulation.)
Otherwise, there is a danger of electric shock and/or injury.
Note:
Never modify the unit.
Otherwise, there is a danger of electric shock and/or injury.

CAUTION
Installation:
Be sure not to let the foreign matter enter such as wire clippings, spatter from welding, metal shaving,
dust etc.
Otherwise, there is a danger of fire.
Be sure to fix inverter to option printed board with an attached fixed screw.
Otherwise, there is a danger of connecting error.
Be sure to fasten the screws connecting signal wire in side of option printed board. Check for any
loosening of screw.
Otherwise, there is a danger of connecting error.
Wiring:
Be sure to fasten the screws not to loose.
Otherwise, there is a danger of connecting error.
Operation:
Check rotary direction, abnormal motor noise and vibrations during operating.
Otherwise, there is a danger of injury to personnel and/or machine breakage

CHAPTER 1 INTRODUCTION
1
1.1 INSPECTION UPON UNPACKING
Make sure to treat the product carefully not to give shock and vibration while unpacking. Check that the product
is the one you ordered, no defect, and that there is no damage during transportation.
(Contents of packing)
(1) SJ-PB2/SJ-PBT2(Profibus-DP option printed board):1 (Regarding SJ-PBT2, also Install network
connector)
(2) Instruction manual:1
(3) Screws fixed printed board (M3 times 8 mm):2
If you discover any problems, contact your sales agent immediately.
1.2 INQUIRY OF THE PRODUCT AND WARRANTY FOR THE PRODUCT
1.2.1 REQUIRE WHILE INQUIRING
If inquiry of breakage, question, damage etc. is needed, please tell the following information to the supplier you
ordered or the nearest Hitachi Distributor.
(1) Type(SJ-PB2/SJ-PBT2)
(2) Manufacturing number (Item of label, that labeled surface of PCB. X&&&&&& &:6 figures number.
Or ######## #:8 figures serial number.)
(3) Date of purchasing
(4) Contents of inquiry
・Damage parts and its condition etc.
・Question parts and their contents etc.
In order to shorten impossible working time, standing spare unit is recommended.
1.2.2 WARRANTY OF THE PRODUCT
This product is guaranteed to last for one year after purchase. But, the next case is toll repair, even if within
warranty period.
(1) In case caused by operating mistake, and incorrect repair and modification.
(2) Trouble caused by reasons except the shipped product.
(3) In case of using in range over the value of specification.
(4) In case caused by natural calamity, disaster, and secondary disaster.
Warranty mentioned here means warranty for shipped product itself. Damage caused by trouble of shipped
product is not guaranteed.
[Toll repair]
Any explanation and repair after the warranty period (one-year) shall be charged to the purchaser. And also any
explanation and repair out of warranty mentioned above, even within warranty period, shall be charged to the
purchaser. If you require the toll repair, please contact your Hitachi distributor.

CHAPTER 1 INTRODUCTION
2
1.3 Outline of product
SJ-PB2/SJ-PBT2 is Profibus-DP communication board for SJ700/SJ300/L300P series inverter.
SJ700/SJ300/L300P series inverter can get to connect another devices via Profibus-DP when install
SJ-PB2/SJ-PBT2.
SJ-PB2/SJ-PBT2 is possible to use for all models of SJ700/SJ300/L300P series.
The SJ-PB2/SJ-PBT2 option board communicates according to the Profibus Protocol Standard DIN 19245 part
1 & 3. This means that it can communicate with all masters that comply with this standard, but it does not
necessarily mean that all services available in the Profibus standard are supported. The “Profibus Profile for
Variable Speed Drives” (order no. 3.072), also known as Profidrive, is a subset of Profibus which only supports
the services relevant to speed control applications.
In a control system the option board will act as a slave that can be read and written to, from a Profibus-DP
master. It will not initiate communication to other nodes, it will only respond to incoming telegrams.
(Note) RS485 communication function is disabled by installing SJ-PB2/SJ-PBT2 to the inverter.
Difference between SJ-PB2 and SJ-PBT2 is only connector for networking. Others are no difference.
1.4 Appearance and Names of Parts
Figure 1-1 indicates the appearance of SJ-PB2/SJ-PBT2.
Serial channel status LED (D12)
Fieldbus On/Off LED (D14)
Fieldbus
diagnosis
LED (D13)
Connector for connection to
SJ700/SJ300/L300P (Back)
Profibus contact (open type)
5
0
5
0
Left rotary switch for setting NodeAddress (a times ten factor) (note)
Right rotary switch for setting Node Address (one to nine) (note)
Figure 1-1 Appearance of SJ-PB2/SJ-PBT2
note: please see chapter 4.1.1 Node Address

CHAPTER 1 INTRODUCTION
3
1.5 Profibus-DP Supported Version
1.5.1 In case of SJ300/L300P Series
SJ-PB2/SJ-PBT2 can use following Manufacturing number (MFG No) of SJ700/SJ300/L300P series.
After Manufacturing number : XX8KXXXXXXXXXXXX (SJ300-0.4-55kW / L300P-11-75kW supported)
XXEMXXXXXXXXXXXX (SJ300-75-132kW / L300P-90-132kW supported)
(Note) Manufacturing number is written in specifications label on main body of SJ300/L300Pseries. Refer to
figure 1-2, figure 1-3.
(Figure1-2, 1-3 are the example of SJ300 series. L300P series are the same manner as SJ300 series.)
1.5.2 In case of SJ700 Series
It is possible to use all the SJ700 Series for SJ-PB2/SJ-PBT2.

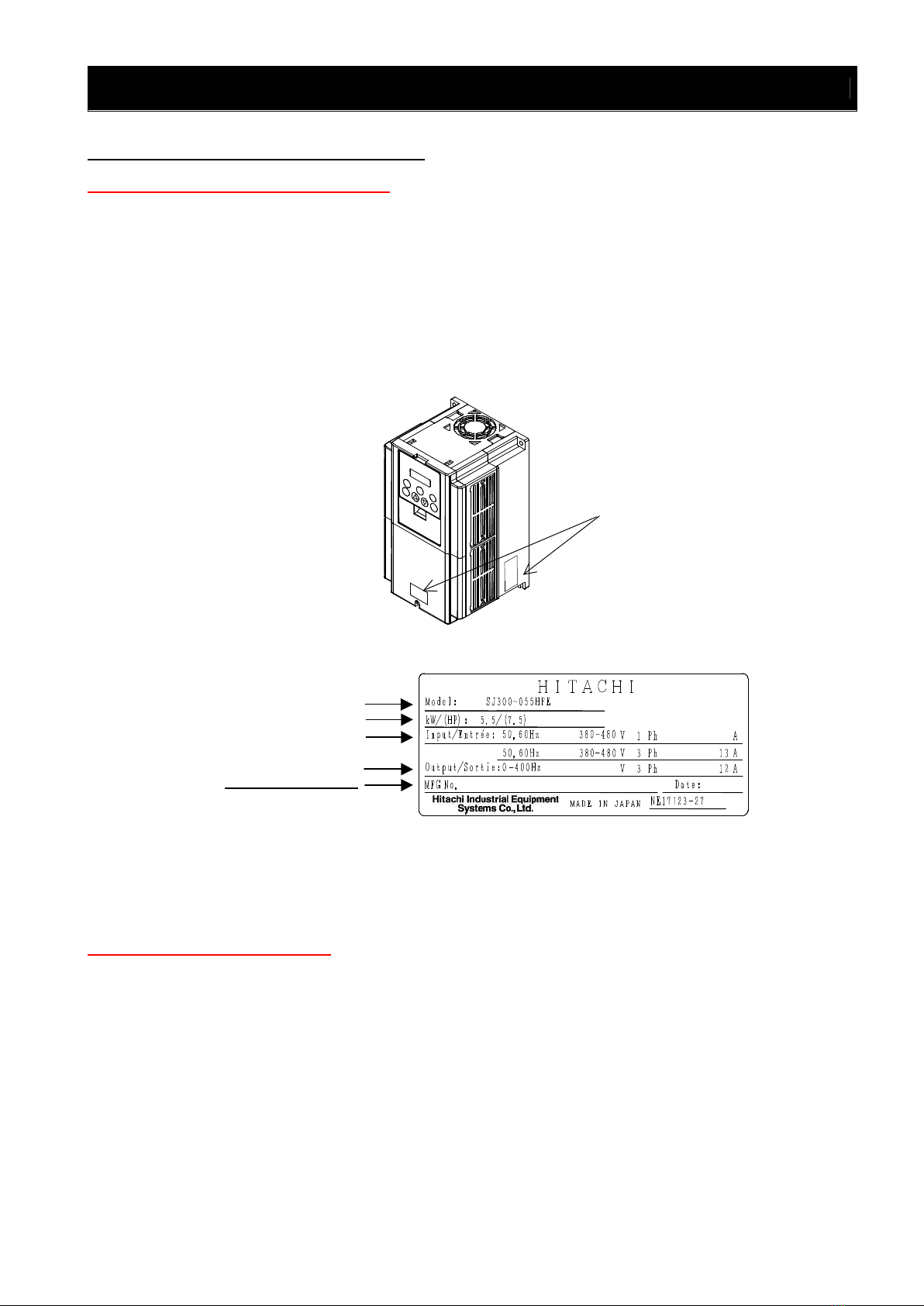

Specifications label
Figure 1-2 Position of specifications label
Figure 1-3 Contents of specifications label
Inverter model
Maximum appli
cable motor
Input
ratings
Output
ratings
Manufacturing
number
118KT12345 10001
0101

CHAPTER 1 INTRODUCTION
4
1.6 Technical features of Profibus-DP
 Physical media: EIA RS 485 twisted pair cable or fiber optic.
 Baud rate: 9.6 kbps up to 12Mbaud.
 Maximum number of nodes: 126
 Maximum number of I/O: 244 bytes/slave.

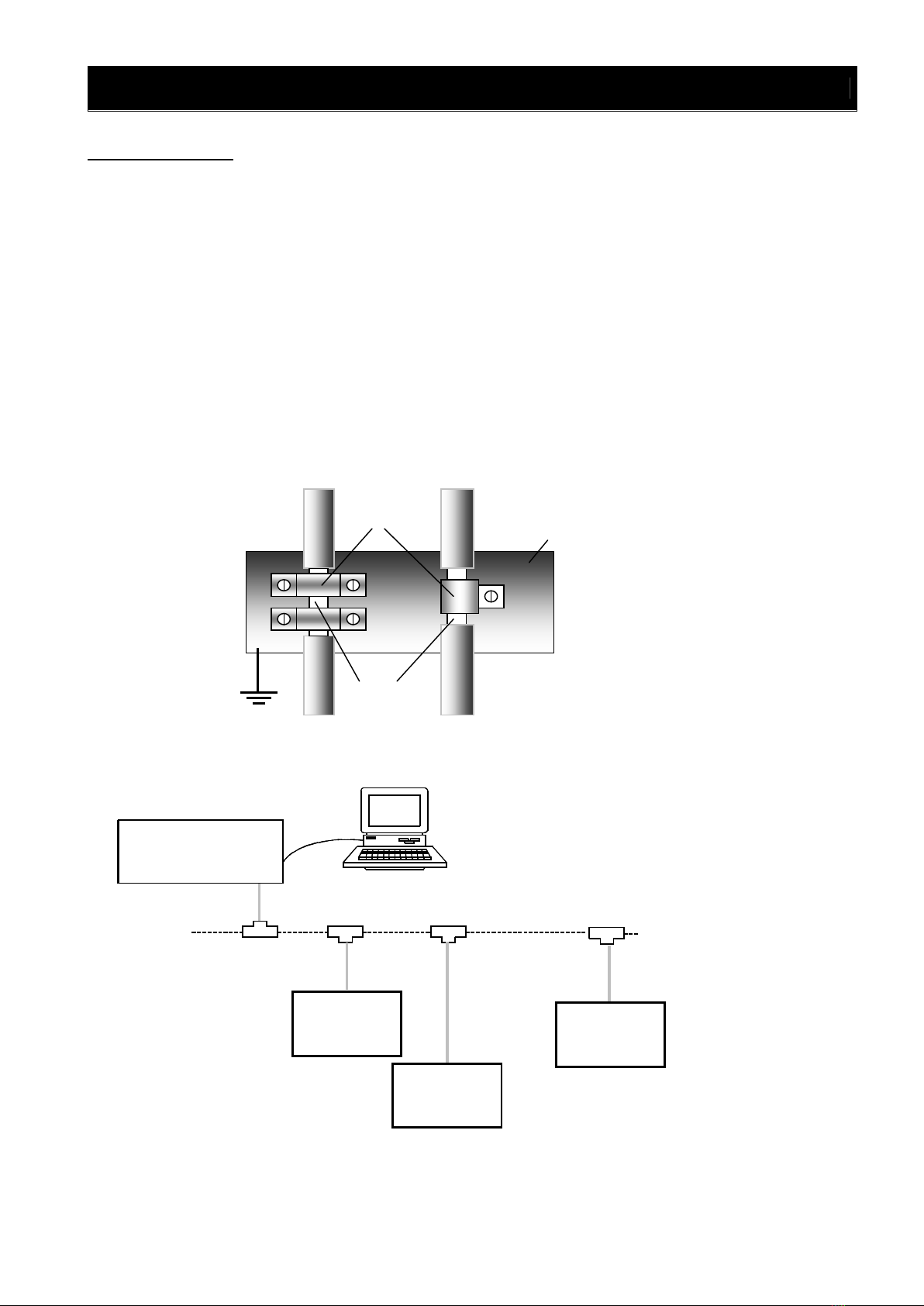

 Bus topology: Master-Slave communication. The figure below gives an overview of a Profibus-DP network.
 Cyclic user data transfer between DP-Master and DP-Slaves.
 Watch-Dog Timer at the DP-Slaves
 Connecting or disconnecting stations without affecting other stations.
 Powerful diagnosis mechanisms, 3 hierarchical levels of the diagnosis messages.
 Synchronization of inputs and/or outputs.
 All messages are transmitted with Hamming Distance HD=4.
1.7 Production specification
Basically, the environmental specification of the SJ-PB2/SJ-PBT2 is in accordance with SJ700/SJ300/L300P
series inverter. Please refer to the instruction manual of SJ700/SJ300/L300P series.
But only application temperature of SJ-PB2/SJ-PBT2 is different. Please note.
application temperature : 0 to 50 degree
Figure 1-4 Bus cycle time of a Profibus-DP Mono Master system (2 bytes I/O data/slave)

CHAPTER 2 INSTALLATION
5
2.1 Mounting method of option board
Figure 2-1 describes how to mount the option board to the option port 1 or 2.
There are four holes on the option board, match the two of them with the screw holes on the option port 1 or
2. and mount the other two holes with the guide posts which are located on the option port 1 and 2. To avoid
connection failure, secure the option board with screws after connection.



Option board
Guide posts for mounting the
option board.
Option port 1
Option port 2
Screw holes for secure option board.
(M3 Screws)
Figure 2-1 Installation of option board

CHAPTER 3 WIRING, CONNECTING
6
3.1 Physical interface
Isolation: The bus is galvanically separated from the other electronics with an on board DC/DC converter. Bus
signals (A-line and B-line) are isolated via photo couplers.
Profibus-DP communication ASIC: NP30 chip from ProfiChip.
Bus connection: The SJ-PB2 connects to the Profibus network with a 9-pin female DSUB connector. For the pin
layout, refer to Table 3-1.
Table 3-1 Pin Layout of SJ-PB2
Pin Name Function
Housing Shield connection to PE(note 2)
1 Not Connected -
2 Not Connected -
3 B-Line Positive RxD/TxD according to RS 485 specification
4 RTS Request To Send (note 1)
5 GND BUS Isolated GND from RS 485 side (note 1)
6 +5V BUS Isolated +5V from RS 485 side (note 1)
7 Not Connected -
8 A-Line Negative RxD/TxD according to RS 485 specification
9 Not Connected -
(note 1) +5V BUS and GND BUS are used for bus termination. Some devices, like optical transceivers (RS485
to fiber optics) might require external power supply from these pins. RTS is used in some equipment to
determine the direction of transmission. In standard applications only A-Line, B-Line and Shield are used.
The SJ-PBT2 connects to the Profibus network with a 6-poles 2pieces connector. For the pin layout, refer to
Table 3-2.
Table 3-2 Pin Layout of SJ-PBT2
Pin Name Function
1 B-Line(in) Positive RxD/TxD according to RS 485 specification
2 A-Line(in) Negative RxD/TxD according to RS 485 specification
3 Shield connection to PE(note 2)
4 B-Line(out) Positive RxD/TxD according to RS 485 specification
5 A-Line(out) Negative RxD/TxD according to RS 485 specification
6 Shield connection to PE(note 2)
(note 2) There is no PE connection on the SJ-PB2/SJ-PBT2 option board. For proper grounding the shield of
the bus cable should be grounded by clamping it to a metal surface connected to PE. It’s important that the
shield is grounded in order to avoid noise problems.
3.2 Profibus connectors
On the SJ-PB2/SJ-PBT2, any standard Profibus connector can be used. Depending on baudrate, IP-classing
and physical size of connector there are several different manufacturers and models, the prizing may also vary.
For more information it is recommended to contact the manufacturer, e.g., Siemens or Erni.
SJ-PBT2: In this case, the network connector is attached with SJ-PBT2 option board.

CHAPTER 3 WIRING, CONNECTING
7
3.3 Wiring note
1.Installing / removing the cable or connector must be done after checking the power supply off.
2.Wiring should not have bare cables exposed between connector contacts.
3.Network cables should be fixed without tension. Cables fixed under tension have potential of causing a
communication fault by to be removed a connector.
4.In order to avoid noise problems, the shield of the bus cable should be grounded by clamping it to a metal
surface connected to PE for proper grounding. Refer to Figure.3-1.
5.A terminating resistor is not built-in the unit. Please provide it.
6.Ensure external emergency stop measures are taken to stop the inverter, in the event of a network fault.
(a) Remove the Power supply of the Inverter when the network master detects a communication fault.
(b) When the master detects a communication fault, turn on the intelligent input terminal which would be
allocated (FRS), (RS) and/or (EXT) function.
7.Figure 3-2 demonstrates Basic components for construction of Profibus-DP application.
Refer to the master’s description manuals when Profibus-DP Network system comes into operation.
Profibus DP
Slave node #1
PROFIBUS-DP
Master
Personal Computer
w
ith Configuration
Software
RS-232
DP
Profibus DP
Slave node #2
Profibus DP
Slave node #n
INV
INV
Figure 3-2 System Construction Example
Figure 3-1 Cable Grounding Wiring Example
Grounding rail
close to module
Screen
grounding
clamp
Cable
screen
Func
tional
ground

CHAPTER 4 SETTING
8
4.1 Profibus Configuration
Follow the procedure below to set Baud rate in Profibus-DP and Node Address, reset the power supply after
changing the setting (setting will be reflected after resetting power supply). Initial Node Address: 0, Initial Baud
rate: According to master’s setting.
4.1.1 Node Address
Before power-on the SJ700/SJ300/L300P the node address has to be set. This is done with the two rotary
switches(Figure 1-1) on the SJ-PB2/SJ-PBT2; this enables address settings from 0-99 in decimal format. The
right rotary switch at the top of the option board represents a times ten factor. The rotary switch at the left
represents one to nine. For example, if address 27 shall be set: Set the right rotary switch to two and the left
rotary switch to seven.
Address = (Right Switch Setting x 10) + (Left Switch Setting x 1)
(Note) The node address cannot be changed during operation; the module needs to be re-powered in order for
the change to have effect.
4.1.2 Baudrate
The baudrate on a Profibus-DP network is set during configuration of the master and only one baudrate is
possible in a Profibus-DP installation. The SJ-PB2/SJ-PBT2 has an auto baudrate detection function and the
user does not have to configure the baudrate on the module. Refer to 4-1 for the baudrates supported.
Table 4-1 Supported baudrates
Baudrates supported by SJ-PB2/SJ-PBT2
9.6 kbit/s
19.2 kbit/s
45.45 kbit/s
93.75 kbit/s
187.5 kbit/s
500 kbit/s
1.5 Mbit/s
3 Mbit/s
6 Mbit/s
12 Mbit/s
4.1.3 PPO-type selection
The SJ-PB2/SJ-PBT2 supports PPO-type 1-5. (Refer to chapter 5.1 for PPO description)
The PPO type is configured from the master. The SJ-PB2/SJ-PBT2 senses the configuration and configures itself accordingly. The
amount of input/output data transferred on the Profibus network depends on the selected PPO type. Amount of data transferred in the
data-exchange telegram is ranging from 4 bytes input/output (PPO3) to 28 bytes input/output (PPO5).

CHAPTER 4 SETTING
9
4.2 Setting of controlling frequency and start/stop commands
The SJ700/SJ300/L300P inverters can be configured to take reference set-points and commands from several
different locations. Refer to the table below for information of how to configure the inverter so that the fieldbus
controls frequency and the commands.
Control Frequency Setting
Selection - A001 Operation Setting Selection - A002
SJ-PB2/SJ-PBT2 controls frequency and commands 2 1
SJ-PB2/SJ-PBT2 controls frequency only 2 Not equal to 1.
SJ-PB2/SJ-PBT2 controls commands only Not equal to 2. 1
SJ-PB2/SJ-PBT2 has no control. Not equal to 2. Not equal to 1.
However, since the SJ-PB2/SJ-PBT2 module uses the “Terminal” to give commands and “Operator” to give
references to the inverter certain steps must be taken in order to be able to control the inverter manually (not
from fieldbus). Study the table below to see how the control word bits shall be set to accomplish control from
fieldbus and from the user.
Control word bit settingsControlling the inverter with
A001 = 2 (Operator),
A002 = 1 (Terminal). 10 12 13
SJ-PB2/SJ-PBT2 controls frequency and commands 1 0 0
SJ-PB2/SJ-PBT2 controls frequency only* 1 1 0
SJ-PB2/SJ-PBT2 controls commands only 1 0 1
1 1 1
SJ-PB2/SJ-PBT2 has no control. 0 - -
from the “Terminal” input when a SJ-PB2/SJ-PBT2 is present in the option slot. In order to do this, bit ten in the
Control Word shall be set to zero. That is, by setting A001=2, A002=1, and control word bit 10=0 it is possible to
control the inverter with the terminal while giving frequency reference from the fieldbus.
*Please note that when frequency reference is controlled from the fieldbus and commands from another location
(such as “Terminal”) the direction of the motor must be controlled from the command source (Reverse/Forward
command). In this case changing the sign of reference value cannot control the direction of the motor.
4.3 Action at communication error
In case of occurring transmission errors (communication cut-off with the master), the following actions can be
selected.
Depending on what option slot the option module is connected to, P001 (Option 1) or P002 (Option 2) is
changed.
P001/P002
Action at error detection Remarks
0 Inverter will trip. Option trip E6x or E7x. Fault can be reset either from
fieldbus or from keypad.
1 Continue operation according to the last
received command. - -

CHAPTER5 OPERATING
10
This section describes how to control the inverter via control word/status word and how to access the inverters
parameters.
5.1 PPO- description
The structure of the user data is designated as parameter process data objects (PPO) in the Profidrive profile.
The profile defines five PPO types, where SJ-PB2/SJ-PBT2 supports all these PPO types.
There are PPO’s with a parameter area (PKW) and a process data area (PZD). There is also PPO’s that consist
exclusively of process data (PZD).
1. PPO1 consists of the PKW area and 2 words PZD.
2. PPO2 consists of the PKW area and 6 words PZD.
3. PPO3 consists only of 2 words PZD.
4. PPO4 consists only of 6 words PZD.
5. PPO5 consists of the PKW area and 10 words PZD.
The user can configure what shall be transferred in PZD3-10 (shaded grey below), for more instructions of how
to do this configuration see chapter 5.3.3, 5.4.2, 5.4.3 and Appendix.
PKW
PZD
PKE
IND PWE PZD1
STW
ZSW
PZD2
HSW
HIW
PZD3 PZD4 PZD5 PZD6 PZD7 PZD8 PZD9 PZD10
Word 1 2 3 4 5 6
PPO1
Word 1 2 3 4 5 6 7 8 9 10
PPO2
Word 5 6
PPO3
Word 5 6 7 8 9 10
PPO4
Word 1 2 3 4 5 6 7 8 9 10 11 12 13 14
PPO5
PKW -- Parameter ID/value.
PZD -- Process data, cyclically transferred.
PKE -- Parameter ID (1st and 2nd octet).
IND -- Sub-index (3rd octet), 4th octet is reserved.
PWE -- Parameter value (5th to 8th octet, 32-bits).
STW -- Control word.
ZSW -- Status word.
HSW -- Main reference.
HIW -- Main actual value.

CHAPTER5 OPERATING
11
5.2 PKW-part
The parameter part (PKW) is fixed to 4 words and can be used for reading and/or updating the parameters in
the inverter one by one. Requests and responses is a handshake procedure and cannot be batched, meaning
that if the master sends out a read/write request, it has to wait for the response, before it sends a new request.
The PKW is further divided into three parts; PKE- Parameter ID (2 bytes), IND – Sub-index (2 bytes) and PWE-
Parameter value (4 bytes).
PKW PZD
PKE
IND PWE PZD1
STW
ZSW
PZD2
HSW
HIW
PCD3 PCD4 PCD5 PCD6 PCD7 PCD8 PCD9 PCD10
PKW: Parameter ID/value.
PKE: Parameter ID.
IND: Sub-index (3rd byte, 4th byte is reserved).
PWE: Parameter value (4 bytes).
PKE handling:
b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0
AK SPM PNU
Figure 5-1 PKE word
AK: Request/response characteristics (Range 0-15)
SPM: Toggle bit for Spontaneous Messages, not used by SJ-PB2/SJ-PBT2.
PNU: Parameter number. Range 1- 596 for Hitachi specific parameters and 900-999 for Profidrive specific parameters.
Please refer to chapter 3.5 for which Profidrive specific parameters that are supported.

CHAPTER5 OPERATING
12
Request/Response handling
The AK portion of the PKE word defines the request/response that may be issued.
Since parameter length of the SJ700/SJ300/L300P inverter may vary, parameter values are always transferred
so that the least significant byte is placed in octet 8.
If the Request/Response contains array elements, the high byte (byte 3) of the IND word will carry the array sub
index, low byte (byte 4) is reserved for future use.
AK content (master -> slave)
Request Function Ackn (+) Ackn (-)
0 No request 0 -
1 Request parameter value 1 7
2 Change parameter value (word) 1 7/8
3 Change parameter value (long word) 2 7/8
4 Request description element (note) 3 7
5 Change description element (note) 3 7
6 Request parameter value (array) 4 7
7 Change parameter value (array word) 4 7/8
8 Change parameter value (array long word) (note) 5 7/8
9 Request number of array elements 6 7
AK content (Slave -> master)
Response ID Function
0 No response
1 Transfer parameter value (word)
2 Transfer parameter value (long word)
3 Transfer description element (note)
4 Transfer parameter value (array word)
5 Transfer parameter value (array long word) (note)
6 Request number of array elements
7 Request rejected, followed by fault code (in PWE part).
0 = Non-admissible parameter number
1 = Parameter value cannot be changed
2 = Upper or lower limit exceeded
3 = Erroneous sub-index
4 = No array
5 = Incorrect data type
7 = Descriptive element cannot be changed
9 = Descriptive data not available
11 = No parameter change rights
17 = Task cannot be executed due to operating status
102= Task cannot be executed due to communication error.
106 = Illegal Task, Task ID not allowed.
18 = Other
8 No parameter change rights by PKW interface
9 Parameter data signal (word) (note)
10 Parameter data signal (double word) (note)
If the inverter rejects a request from the master, the AK word in the PPO-read will indicate this by assuming
value 7 or 8. The describing fault number will be found in the PWE part.
(note) Not supported by the SJ-PB2/SJ-PBT2 option board.

CHAPTER5 OPERATING
13
5.3 PZD-part
In this chapter the process data part (PZD) of a PPO is discussed.
The PZD part consists of a fixed part (PZD1-2, all PPO’s) and a parameterable part (PZD 3-10, shaded grey
above, PPO 2, 4 and 5).
In the fixed part, control word and speed reference are transferred to the inverter while status word and actual
output frequency are transferred from the inverter.
In the parameterable part, PZD word 3-10, the user can configure what parameters that should be transferred
to/from the inverter every bus-cycle (see chapter 5.3.3 and Appendix).
5.3.1 Control- / status word (STW/ZSW)
This section describes how to operate the inverter with the control-/status word. With the control word the

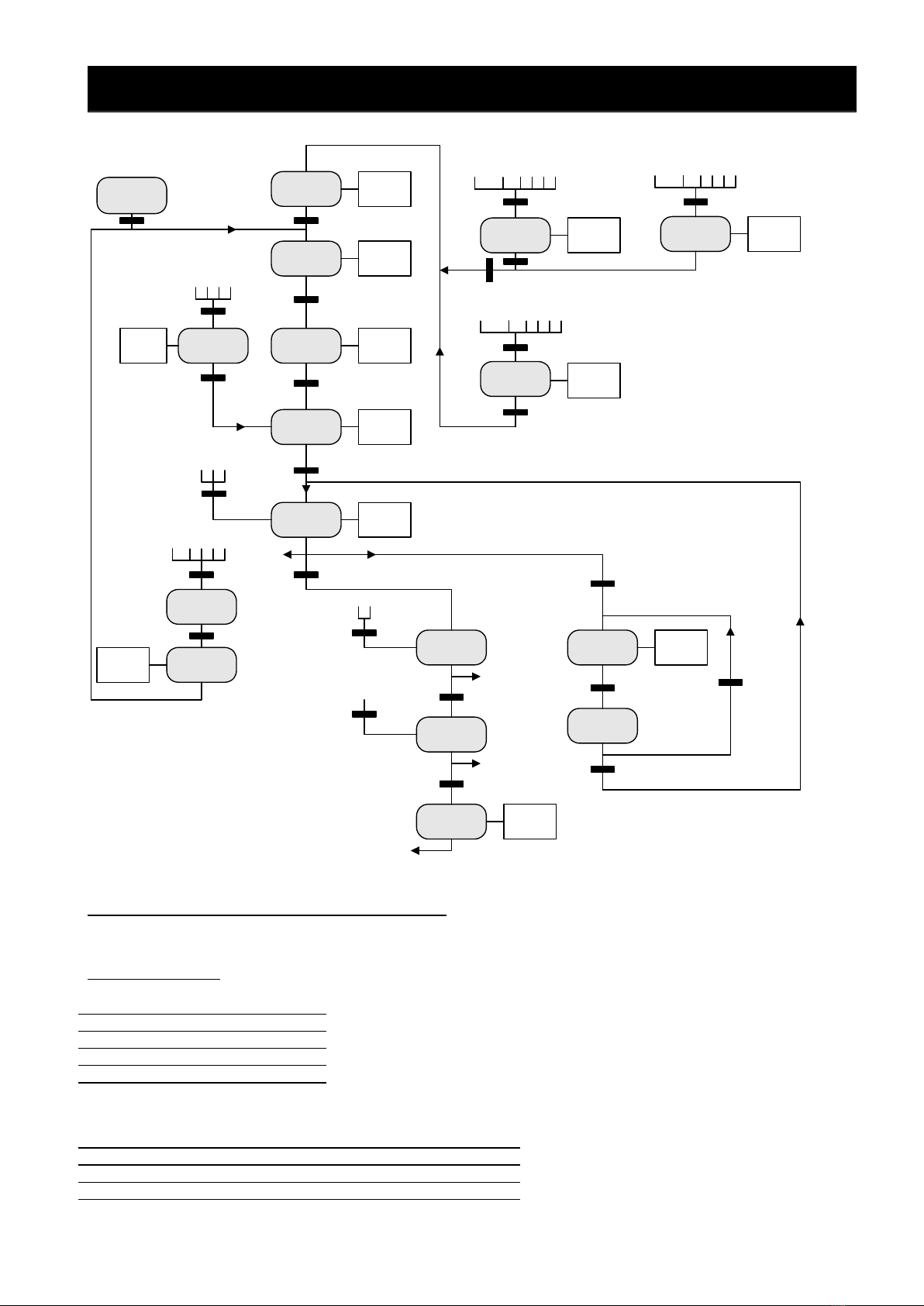

Profidrive state-machine (Figure 5-2) is controlled, the status word is reflecting the state of the inverter.
Profidrive Control Word (STW):
The control word is used to send control commands to the inverter (PLC->Inverter).
Control word
Bit Value Meaning Remark
1 On1 Inverter can be started if all other start conditions are fulfilled.0 0 OFF1 Normal stop; uses deceleration time specified in “1st Deceleration time” (F003).
1 ON2 Inverter can be started if all other start conditions are fulfilled.1 0 OFF2 Inverter coast to stop. Returns to Switch-on inhibit state.
1 ON3 Inverter can be started if all other start conditions are fulfilled.2 0 OFF 3 Quick stop that uses deceleration time specified in “2nd deceleration time”
(A093). (Please set the ParameterA094 to 00)
1 Operation enabled Inverter can be started if all other start conditions are fulfilled.3 0 Operation disabled Inverter coast to stop (Enter Inhibit operation state).
1 Condition for operation Inverter can be started if all other start conditions are fulfilled.4 0 Ramp generator disabled
Output frequency is set to zero. Inverter remains in the running state.
1 Ramp generator enabled Inverter can be started if all other start conditions are fulfilled.5 0 Stop ramp generator Actual output frequency is frozen. A change to frequency set-point has no
effect.
1 Enable set-point Inverter can be started if all other start conditions are fulfilled,
using “1st Acceleration time” (F002).
6
0 Inhibit set-point Normal stop that uses deceleration time specified in “1st deceleration time”.
1 Acknowledge Fault is acknowledged on positive edge, i.e. bit 7=0 then 1
(Enter Switch-on inhibited state).
7
0 No function
1 Inching 1 ON Inverter accelerates to inching set-point 1.
Profidrive must be in “Enable operation” state.
Parameter “Jogging frequency” specifies the jogging set-point (A038).
8
0 Inching 1 OFF Inverter brakes as fast as possible and goes into the “Enable operation” state.
9 Not used
1 Data valid The control word and frequency set-point (from Profibus) are activated.
Please refer to chapter 2.2.4.
10
0 Data invalid The control word and frequency set-point (from Profibus) are not valid.
Please refer to chapter 2.2.4.
1 REV Inverter will operate in reverse motion.
Please note that a negative reference and reverse selected will result in
inverter running forward.
11
0 FWD Inverter will operate in forward motion.
1 Commands invalid The fieldbus module will not write any commands to the inverter. This makes it
possible to operate motor via the terminal input (if A002 is set to “Terminal”).
12
0 Commands valid The fieldbus module can write commands to the inverter (if A002 is set to
“Terminal”).
1 Reference invalid The fieldbus module will not write any reference to the inverter.13 0 Reference valid The fieldbus module can write reference to the inverter (if A001 is set to
“Operator”).
14,
15 Not used

CHAPTER5 OPERATING
14
Profidrive Status Word (ZSW):
The status word indicates the status of the inverter (Inverter -> PLC).
Status word
Bit Value Meaning Remark
1 Ready to switch-on Control word bit 0=0 and bits 1, 2, 10 are set to 1 (Ready to switch-on
state).
0
0 Not ready to switch-on Control word bit 0, 1 or 2 (OFF1, OFF2, OFF3) is set to 0, or the inverter
is tripped.
1 Ready for operation Control word bit 0, 1 and 2 are set to 1. Inverter is not faulted (Ready
state).
1
0 Not ready for operation Control word bit 0, 1 or 2 (OFF1, OFF2, OFF3) is set to 0, or the inverter
is faulted.
1 Operation enabled Control word bit 0, 1, 2 and 3 are set to 1. Inverter is not faulted (Enable
operation state).
2
0 Operation inhibited Control word bit 0, 1, 2 or 3 (OFF1, OFF2, OFF3, Operation disabled) is
set to 0, or the inverter is faulted.
1 Fault Inverter is faulted.3 0 No fault Inverter is not faulted.
1 ON2 Control word bit1=1.4 0 OFF2 OFF2 command active. Control word bit1=0 (OFF2 active state).
1 ON3 Control word bit2=1.5 0 OFF 3 OFF3 command active. Control word bit2=0 (OFF3 active state).
1 Start enable Control word bit1 or 2 (OFF2, OFF3) is set to 0 or fault has been
acknowledged (Switch-on inhibit state).
6
0 No switch-on inhibit Control word bit 0=0 and bit10=1 (Not ready to switch-on state).
7 Not used
1 Frequency equal set-point Actual output frequency does equal frequency set-point.8 0 Frequency not equal
set-point Actual output frequency does not equal frequency set-point (i.e. motor accelerating/decelerating).
1 Bus control Run command or frequency setting is valid via Profibus.9 0 Local control Run command and frequency setting are invalid via Profibus.
1 Frequency within range Actual output frequency is above or equal to the limit specified by “Arrival
frequency at acceleration/deceleration 1” (C042/C043).
10
0 Frequency out of range Actual output frequency is below the limit specified by by “Arrival
frequency at acceleration/deceleration 1” (C042/C043).
11 Not used -
12 - Mirror of bit 12 in the control word.
13 - Mirror of bit 13 in the control word.
14,
15 - Not used -

CHAPTER5 OPERATING
15
START
Voltage
switched-off,
SW=0
OFF3 Active
Voltage on CW: bit 0=0
bit 10=1
Not ready for
switch-on
SW: bit 5=0
SW: bit 0=0
bit 2=0
bit 6=0
CW: bit 0=0
bit 1=1
bit 2=1
bit 10=1
Ready for
switch-on
SW: bit 0=1
bit 4=1
bit 5=1
CW: bit 0=1
bit 10=1
Ready
SW: bit 1=1
Inhibit operation
active
Operation
inhibit
SW: bit 0=1
bit 4=1
bit 5=1
CW: bit 3=0
bit 10=1
A CB D
Enable operation
CW: bit 3=1
bit 10=1
SW: bit 2=1
CW: bit 4=1
bit 10=1
CW: bit 4=0
CB D
Ready A B C D
CW: bit 0=0
bit 10=1
OFF1 Active
Stage 1
OFF1 Active
Stage 2
SW: bit 1=0
n(f)=0, I=0
Load contactor open
Ready A B C D
Ready to
switch-on
OFF2 Active
SW: bit 4=0
CW: bit 1=0
bit 10=1
Ready A B C D
Ready to
switch-on
CW: bit 2=0
bit 10=1
Fault
Ready A B C D
Ready to
switch-on
Fault
SW: bit 3=1
CW: bit 7=1
A
RFG enabled
output
C D
CW: bit 5=0
bit 10=1
B
CW: bit 5=1
bit 10=1
RFG Acc
enabled
D
CW: bit 6=0
bit 10=1
D
CW: bit 6=1
bit 10=1
Operating status
Outputing
frequency
(bit 10=1)
Switch-on inhibit
SW: bit0=0
bit1=0
bit2=0
bit 6=1
Drive running
Jogging active
Jog setpoint
to speed
controller
CW: bit 8=1
bit4=0
bit5=0
bit6=0
bit 10=1
CW: bit 8=0 or
bit 10=1
Jogging-pause
monitoring
n(f)=0, I=0
CW: bit 8=1
bit4=0
bit5=0
bit6=0
bit 10=1
n(f)=0, I=0
Figure 5-2 Profidrive state diagram
5.3.2 Frequency set-point/ Actual frequency
The data format is “Standardized value”, where 0 hex = 0 %, 3000 hex = 75% and 4000 hex is 100% of
Maximum frequency specified in parameter A004.
Standardized value
A linear value.
0%=0 (0h), 100% is 214 (4000h)
Data type N2
Range -200%…200%-2-14
Resolution 2-14 = 0.0061%
Length 2 bytes
Notation: 2’s complement notation.
MSB is 1st bit after sign bit in 1st byte.
Sign bit = 0 = positive number
Sign bit = 1 = negative number
Bit 8 7 6 5 4 3 2 1
Byte 1 SIGN 202-1 2-2 2-3 2-4 2-5 2-6
Byte 2 2-7 2-8 2-9 2-10 2-11 2-12 2-13 2-14

CHAPTER5 OPERATING
16
5.3.3 PZD word 3-10
In PZD word 3-10 the user can determine which inverter parameters that should be transferred to/from the
inverter every bus-cycle.
With some of the PPO types (PPO2, 4, 5) it is possible to read and write parameters cyclically. Parameter write
values are placed in the PZD’s 3-10 transferred from the master to the inverter. Parameter read values are
placed in the PZD’s 3-10 transferred from the inverter to the master. However, the meaning of the data
transferred in PZD3-10 must be defined in some way so that it can be determined what parameters that shall be
written, and also so that the data transferred from the inverter can be connected with the correct parameter.
Parameter 915 and 916 are used to determine what parameters that shall be written (915) and read (916)
cyclically (parameter number as specified below, for examples of how to assign these refer to chapter 5.4.2 and
5.4.3).
Assignment of PZD write word 3-10 (PLC -> Inverter) with parameter 915:
915, sub-index 1 = Parameter number for parameter transferred in PZD3
915, sub-index 2 = Parameter number for parameter transferred in PZD4
915, sub-index 3 = Parameter number for parameter transferred in PZD5
915, sub-index 4 = Parameter number for parameter transferred in PZD6
915, sub-index 5 = Parameter number for parameter transferred in PZD7
915, sub-index 6 = Parameter number for parameter transferred in PZD8
915, sub-index 7 = Parameter number for parameter transferred in PZD9
915, sub-index 8 = Parameter number for parameter transferred in PZD10
Assignment of PZD read word 3-10 (Inverter ->PLC) with parameter 916:
916, sub-index 1 = Parameter number for parameter transferred in PZD3
916, sub-index 2 = Parameter number for parameter transferred in PZD4
916, sub-index 3 = Parameter number for parameter transferred in PZD5
916, sub-index 4 = Parameter number for parameter transferred in PZD6
916, sub-index 5 = Parameter number for parameter transferred in PZD7
916, sub-index 6 = Parameter number for parameter transferred in PZD8
916, sub-index 7 = Parameter number for parameter transferred in PZD9
916, sub-index 8 = Parameter number for parameter transferred in PZD10
Please Note:
1. PZD words 3-6 are enabled if PPO 2 or 4 is selected. PZD words 3-10 are enabled with PPO5.
2. Parameter numbers are within the range 1-596. See chapter 5 for an index of the inverter parameter numbers.
If a parameter number is set to 0, the actual PZD word will be ignored.
3. Only parameters that are of size two bytes or less can be assigned as PZD objects.
