How to access

Introduction
Thank you for purchasing the W42H.
Before using it for the first time, be sure to read the W42H Basic Manual (this PDF manual)
so as to know how to use it correctly. After you finish reading this manual, store it and the
printed materials that come with the phone in a safe place for future reference.
Printed Manuals for the W42H (Japanese)
The W42H comes with a Basic Manual and an Instruction Manual.
The following information is also available on the au website.
•To download the Basic Manual or Instruction Manual
(http://au-pro.kddi.com/phone/torisetu/index.html)
•Toaccess a keyword searchable au online manual
(http://www.au.kddi.com/manual/index.html)
You can also access the au online manual using EZweb.
EZweb Access
EZトップメニュー( EZ Top Menu )
→料金・申込・インフォ(
Charges, Applications, and Info )
→auオンラインマニュアル(
au Online Manual )
For information about basic
operation
W42H Basic Manual
Equivalent to this English PDF manual.
For detailed information
about each function
W42H Instruction Manual
English version not available.
W42H
by HITACHI
取扱説明書
目次
カメラ
データフォルダ
EZweb
EZナビ
auMusic
EZ・FM
赤外線通信
機能設定
ご利用の準備
auICカード
基本操作 
ペア機能
microSD
TM
メモリカード
メール

HelloMessenger
便利な機能
PCサイトビューアー
PCドキュメントビューアー
スマートモード
ティーン ズ モ ード 
EZアプリ（BREW
®
）
auのネットワーク
サービス
付録／索引 
クイックガイド
EZFeliCa
EZ・FM
PCサイトビュー ア ー 
通話
アドレス帳／
ペア機能
メール／ 
HelloMessenger
スマートモード／
ティーンズ モ ード 
EZweb
EZナビ
EZFeliCa
その他機能
困ったときは／ 
遠隔オートロック
English（英語）／
（中国語 ）
索引
目次／準備
カメラ
文字入力
The typeface, fonts, and colors of the texts on the screens shown in this manual may differ from
the actual contents. Also, certain icons and the scroll bars may be omitted.

1
Mind your manners!
A cellphone always emits weak radio waves while it is turned on.
Enjoy operation of your cellphone without forgetting to be considerate
of those around you.
Some locations do not allow the use of
cellphones.
■Using a cellphone while driving is both dangerous
and prohibited by Japanese law.
■Using a cellphone inside of an aircraft is prohibited
by law. Be sure to turn off your cellphone before
takeoff.
Watch out where you use your cellphone,
and keep your voice down.
■Do not make calls at cinemas, theaters, museums,
libraries, or other similar locations. Turn off the
cellphone or use Manner Mode to ensure that the
ring tone does not disturb others.
■When in public, move to a location where you will
not be blocking traffic.
■On the Shinkansen, in a hotel lobby, or in other similar locations, move
to a location where you will not disturb others.
■Take care to avoid talking on the phone in a loud voice.
■Before taking the picture of others, be sure to obtain permissions first.
Cellphone radio waves may interfere with
electrical medical equipment.
■On a train or in other crowded locations, there is
always the possibility that someone nearby may be
wearing a pacemaker. Turn off your cellphone when
you are in a crowded area.
■Follow the rules of hospitals and other medical
facilities concerning the use or possession of cellphones.
Cellphone Etiquette
Some locations do not allow the use of
cellphones.
■Using a cellphone while driving is both dangerous
and prohibited by Japanese law.
■Using a cellphone inside of an aircraft is prohibited
by law. Be sure to turn off your cellphone before
takeoff.
Watch out where you use your cellphone,
and keep your voice down.
■Do not make calls at cinemas, theaters, museums,
libraries, or other similar locations. Turn off the
cellphone or use Manner Mode to ensure that the
ring tone does not disturb others.
■When in public, move to a location where you will
not be blocking traffic.
■On the Shinkansen, in a hotel lobby, or in other similar locations, move
to a location where you will not disturb others.
■Take care to avoid talking on the phone in a loud voice.
■Before taking the picture of others, be sure to obtain permissions first.
Cellphone radio waves may interfere with
electrical medical equipment.
■On a train or in other crowded locations, there is
always the possibility that someone nearby may be
wearing a pacemaker. Turn off your cellphone when
you are in a crowded area.
■Follow the rules of hospitals and other medical
facilities concerning the use or possession of cellphones.

2
Features
PC site viewer
View WEB sites
created for viewing
on PCs.
Page
85
EZ Navi
EZ Navi Walk,
Position Search,
and Area Message
allow you to get
various kinds of
location information.
They are all built-in
functions.
Page
74
EZ FeliCa
Use the cellphone for
shopping by using
e-money, or use it as
member’s cards,
point cards, and so
on.
78
Page
PC document viewer
Display Word files,
Excel files or PDF
files, and so on.
EZweb
Download
“ Chaku-Uta® ” ,
wallpaper, and other
data.
Page
66
Mail
Send mail messages
to other cellphones or
to PCs.
45
Page
Camera
59
Shoot photos and
record movies, and
send them by e-mail.
Page
Hello Messenger
Enjoy meeting with the
members using our
original cartoon-like
characters.
Page
55
Hot Key
Select either
“Hot Dial” or “Hot
Buzzer” as the Hot
Key function.
Page
102
Cellphone Basics

3
Manner Mode and Easy Voice Memo
Normally leave the phone turned on.
The phone needs to be turned on to make and receive
calls.
Hold down Ffor at least 1.5 seconds to turn on the phone.
Manner Mode
Use Manner Mode to turn off the
ring tone so as not to bother
others around you
While the standby
screen is displayed,
hold down (for
about one second.
Shhhhhhh!
Page 31
Power
on
Page 14
Keep an eye on the battery level.
You cannot talk on the phone
if it is unable to receive a signal.
The phone may not function properly if battery
power is low.
indicates the current battery level.
Signal strength is low in some areas, even if
they are within the service area.
iindicates the current signal strength.
Page 14
Page 14
Easy Voice Memo
If you cannot answer a call, Easy
Voice Memo plays an answering
message and records the caller’s
message.
While the standby
screen is displayed,
hold down Cfor
about one second.
Page
32
Checking Power, Signal
Strength, and Battery Level

4
Never use your cellphone while
driving!
Holding a cellphone in your hand, talking on a cellphone, or
looking at a cellphone display to send mail or to perform any
other operation while driving is prohibited by Japanese law.
(Revised Traffic Control Law, effective November 1, 2004)
×Reading mail or looking
at the display.
×Holding a cellphone in
your hand to talk.
Drive Mode
I
’
m
d
r
i
v
i
n
g
r
i
g
h
t
n
o
w
.
.
.
In Drive Mode, the phone will play the messageただいま車を運転
しています。・・・(I am driving right now...), and then ask the caller
to leave a message using Easy Voice Memo.
While the standby screen is displayed, press
( ,
and then press
1 (ON). Next, press 2 (Drive
Mode) to enter Drive Mode.
Turn off your cellphone or use Drive Mode while
driving.

5
How to Combat Spam
・未承諾広告フィルター
(unsolicited advertisement filter) 
・アドレスフィルター
(address filters) 
−指定拒否設定
(blocks specific mail) 
−指定受信設定
(receives specific mail)
Beware of one-ring calls!
A “one-ring call” (wan-giri in Japanese)
rings your phone only once, in an attempt
to make you call back to a service that
automatically bills you very high charges.
The icon at the head
of an incoming record
indicates that the call
rang for only four seconds or less.
This indicates a possible “one-ring call.”
Page
52
Page
27
You can set up mail filters to block specific
mail or mail identified as “未承諾広告※”
(unsolicited advertisement), which often
includes spam.
Your cellphone has the following filters to
block spam.
O
n
e
-
r
i
n
g
c
a
l
l
!
Beware of spam and one-ring
calls!

6
Disaster Message Board Service
Registering
the safety
information
◆When a major disaster strikes, you can use your au
cellphone to access the “
災害用伝言板 ” (Disaster Message
Board) on EZweb and register your current condition,
comments, and other information about your well-being.
◆After you register information, it can be sent by mail to
family, friends, and other individuals you have registered
as a recipient of your Disaster Message Board information.
R Top Menu 災害用伝言板
(Disaster Message Board)
◆Disaster Message Board information can be accessed by
inputting the phone number of an individual over EZweb or
the Internet.※
 ※ Disaster Message Board information can be accessed
from another type of cellphone (except for TU-KA), PHS,
or PC at http://dengon.ezweb.ne.jp/.
Disaster Message Board
The Disaster Message Board lets you use EZweb to register
information about your well-being in case of a major disaster. The
information you register can be accessed from anywhere in Japan
over EZweb or the Internet.
Checking
the safety
information
Access
method http://dengon.ezweb.ne.jp/
O
K
.
I
’
m

7
Registration
Access
Disaster Message
Board top screen
Information screen Information registration
screen
安否情報を確認したい相
手のau/ツーカー携帯電話
番号を入力して下さい。
伝言板トップへ
(C)KDDI/TU-KAGroup
０９０ ××××××××
災害用伝言板

〜確認〜
検索する
被災状況
□
無事です。
□
被害があります。
□
自宅に居ます。
□
避難所に居ます。
□
コメント見て

コメント入力（全角１００文 
字まで）
※登録内容確認画面にて
、お客様の携帯電話番号
および登録日時が表示さ
れます。
災害用伝言板

〜登録〜
伝言板トップへ
(C)KDDI/TU-KAGroup
登録
安否情報の登録・確認が
できます。

登録(ご利用可能地域の方
のみ登録可能です)
確認
削除
お知らせメール設定
サービス概要
ご利用地域情報
お問合せ

English
災害用伝言板

伝言板トップ

〜サービス提供中〜
(C)KDDI/TU-KAGroup
※Registration contents are retained for up to 72 hours.
※You can register up to 10 entries per phone number. Registering a new entry while there are already 10
registered entries, automatically overwrites the oldest entry.
※You can view a Disaster Message Board demonstration at:
R
→Top Menu→料金・申 込・イン フォ → 災害 用伝言板（デモ版）
(Charges, Applications, and Info) (Disaster Message Board (Demo))
※To view the Disaster Message Board in English, select the “English” option on the Disaster Message Board top
screen.

8
Contents
Cellphone Etiquette Mind your manners! ........................................................................... 1
Cellphone Basics Features ............................................................................................ 2
Manner Mode and Easy Voice Memo ............................................... 3
Checking Power, Signal Strength, and Battery Level ........................ 3
Never use your cellphone while driving! ............................................ 4
Beware of spam and one-ring calls! .................................................. 5
Disaster Message Board Service ...................................................... 6
Contents.................................................................................................................................................... 8
Ready Checking the Contents of the Package ........................................... 10
Names of Parts ................................................................................. 11
Charging the Battery Pack .............................................................. 12
Turning On Power ........................................................................... 14
Initial Values .................................................................................... 14
Personal Identification Numbers and Passwords ............................ 15
Selecting English as the Display Language .................................... 16
Operation Basics ............................................................................. 18
Display Indicators ............................................................................ 19
Main Menu ....................................................................................... 20
Initializing E-mail and EZweb .......................................................... 22
Looking Up Your Current Phone Number and E-mail Address ........ 23
Changing Your E-mail Address ........................................................ 24
Phone Call Making a Call ................................................................................... 26
Answering a Call ............................................................................. 26
Redialing(Outgoing Records/Incoming Records) ............................ 27
One-ring Calls ................................................................................. 27
Changing the Ring Tone .................................................................. 28
Adjusting the Ring Tone Volume ..................................................... 30
Adjusting the Earpiece Volume during a Call .................................. 31
Turning On Manner Mode ............................................................... 31
Turning On Easy Voice Memo ......................................................... 32
Playing an Easy Voice Memo .......................................................... 33
Inputting Characters.................................................................................................................... 34
Inputting an E-mail Address ............................................................ 35
Inputting Pictographs and Useful Sentences .................................. 36
Address Book Registering an Address Book .......................................................... 38
Editing an Address Book Record ..................................................... 40
Adding Outgoing or Incoming Record Data to the Address Book ... 41
Dialing from the Address Book ........................................................ 42
Pair Function Registering a Pair Partner ............................................................... 43
Making a Phone Call, Sending Mail, Invite a Pair Partner
to a Hello Messenger Meeting ......................................................... 44
Mail Using E-mail .................................................................................... 45
Using C-mail .................................................................................... 46
Creating and Sending E-mail Messages ......................................... 47
Reading Received E-mail Messages .............................................. 49
Reading an E-mail Message with an Attached Photo or Movie ....... 50
Replying to a Received E-mail Message ......................................... 51
Avoiding Spam ................................................................................ 52
Creating and Sending C-mail Messages ......................................... 53
Reading Received C-mail Messages .............................................. 54

9
Contents
Hello Messenger............................................................................................................................. 55
Displays the Hello Messenger Menu ............................................... 56
Invite the Members to the Meeting .................................................. 57
When You Get an Invitation Message to Join .................................. 58
Camera Features........................................................................................................................... 59
Camera Shooting a Photo ............................................................................. 61
Recording a Movie .......................................................................... 62
Viewing Photos and Movies ............................................................ 64
Attaching a Photo or Movie to an E-mail Message ......................... 65
Using Photo Mail ............................................................................. 65
EZweb Using EZweb ................................................................................... 66
Displaying the EZ Top Menu ........................................................... 67
Bookmarking Sites You Frequently Access ..................................... 68
Viewing a Bookmarked Site ............................................................ 69
Downloading Chaku-Uta®................................................................ 70
Downloading Chaku-Uta-Full®.................................................. 71
Checking Charges ........................................................................... 72
EZ Channel ..................................................................................... 73
EZ Navi Features............................................................................................................................. 74
Security Navi Features............................................................................................................... 76
EZ FeliCa................................................................................................................................................ 78
Communicating with Reader/Writer ................................................. 79
Setting FeliCa Lock ......................................................................... 80
Using FeliCa-supported EZ apps .................................................... 81
EZ•FM Before using EZ·FM ........................................................................ 82
Listening to the EZ·FM .................................................................... 83
PC site viewer Features........................................................................................................... 85
PC site viewer Mastering Operation Basics ............................................................ 86
Using Standby Assignment ............................................................. 87
Smart Mode Entering Smart Mode ...................................................................... 89
Exiting Smart Mode ......................................................................... 90
Using the Smart Mode Main Menu .................................................. 91
Adding Data to the Address Book in Smart Mode ........................... 92
Using the Address Book in Smart Mode .......................................... 94
Creating and Sending E-mail Messages in Smart Mode ................. 95
Shooting a Photo in Smart Mode .................................................... 97
Viewing Photos in Smart Mode ....................................................... 98
Teens Mode Using Teens Mode ......................................................................... 100
Turning on Teens Mode ................................................................. 101
Other Functions Hot Key Features .......................................................................... 102
Extension Mode ............................................................................. 103
Troubleshooting.............................................................................................................................. 105
If you lose your W42H ................................................................... 106
Index........................................................................................................................................................ 108

10
●W42H
All
set?
●Battery pack
(42HIUAA)
● Desktop holder
(42HIPUA)
●Casio flat-type stereo
earphones 03
(03CAQPA)
●USB cable (sample)
●Warranty (Japanese)
●EZ FeliCa Introduction
Guide (Japanese)
●LISMO Sheet
● Basic Manual (Japanese)
●Operating Precautions
(Japanese)
●Global Expert User’s Guide
(Japanese)
● Instruction Manual (Japanese)
●CD-ROM
●Custom Bangle
※The phone comes with three custom bangles, including the one
affixed to it.
W42H
by HITACHI
取扱説明書
目次
カメラ
データフォルダ
EZweb
EZナビ
auMusic
EZ・FM
赤外線通信
機能設定
ご利用の準備
auICカード
基本操作 
ペア機能
microSD
TM
メモリカード
メール

HelloMessenger
便利な機能
PCサイトビューアー
PCドキュメントビューアー
スマートモード
ティーン ズ モ ード 
EZアプリ（BREW
®
）
auのネットワーク
サービス
付録／索引 
クイックガイド
EZFeliCa
Ready

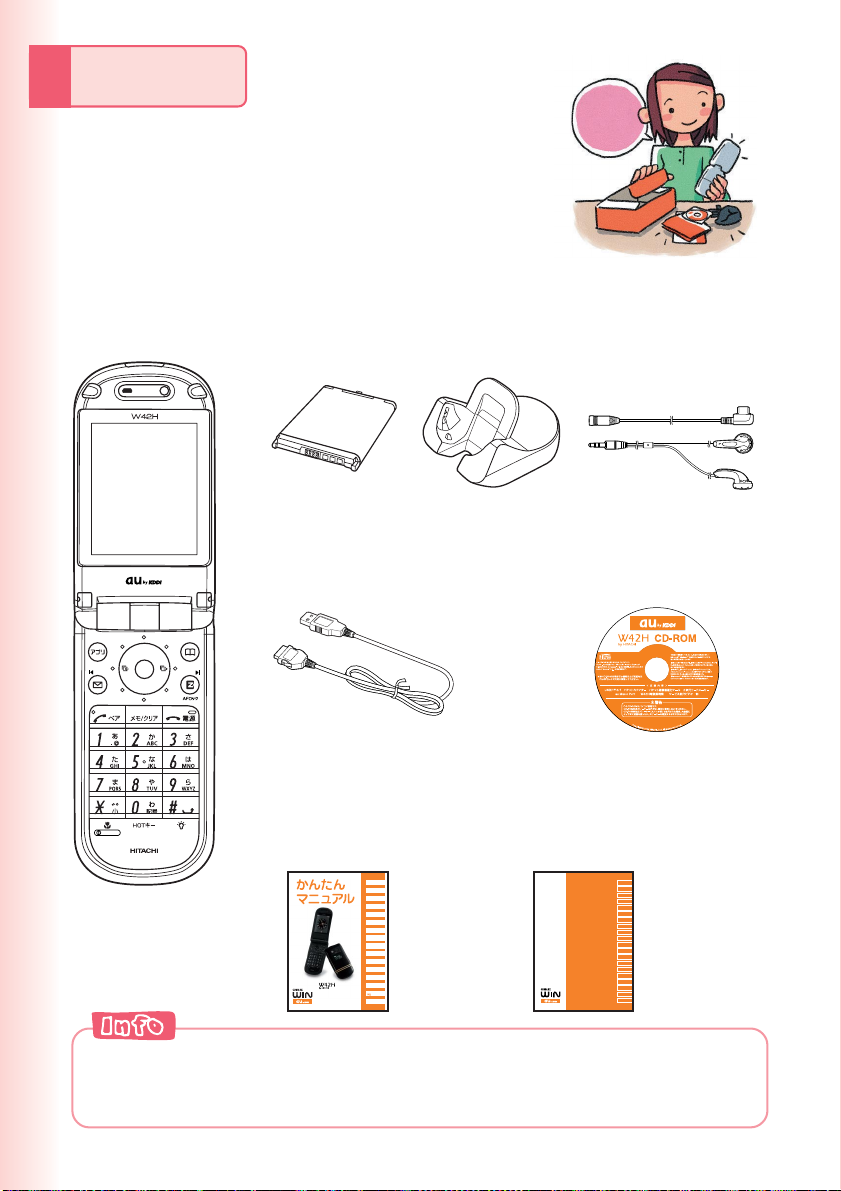

Before using the W42H, check the contents
of the package comes with your W42H.
You should also familiarize yourself with
basic operations, like how to charge the
battery, how to turn the power on, etc.
◎The microSDTM memory card is not included.
◎An AC adaptor is not included. It is up to you to purchase a common AC
adaptor 01 (option).
Checking the Contents of the Package
EZ・FM
PCサイトビュー ア ー 
通話
アドレス帳／
ペア機能
メール／ 
HelloMessenger
スマートモード／
ティーンズ モ ード 
EZweb
EZナビ
EZFeliCa
その他機能
困ったときは／ 
遠隔オートロック
English（英語）／
（中国語）
索引
目次／準備
カメラ
文字入力

Ready
11
au IC card
※
※Take care to avoid covering the built-in antenna
with your hand when using the phone, using
EZweb, and when accessing GPS information.
※Do not take out this
card if not
necessary as your
number is recorded
on it.
Earpiece
Main display
FeliCa mark
Sub display
Camera lens
Optical sensor
Photo light/
Standby light/Incoming/
Charge indicator (LED)
/
Camera start indicator
Custom bangle
Speaker
Battery pack/cover
Strap eyelet
Memo/Clear key
EZ/AF lock key
Center key
Address book key
Power/End key
Number keys
Microphone Built-in antenna
※
Application key
Mail key
Answer/Pair key
Cursor key
External connection jack
Flat-type
earphone-microphone
jack
Charging terminals
Infrared port
Light key Shutter key
Manner key
microSD memory card slotCharging terminals
Names of Parts
■Back■Front
■Side

12
Connector
You can also use the
plug by extending the
prongs like this.
Check the shape of
the connectors to ensure
they are aligned correctly
when you connect them.
Locking tab
•Charging :
LED indicator is lit
red.
•Charging complete
:
LED indicator goes
out.
Charging the Battery Pack
The battery pack that comes with the phone is not fully charged when
you purchase it. Be sure to charge the battery pack before using the
W42H for the first time. Charging takes about 150 minutes.
You should recharge the battery pack whenever the battery level icon
shows or .
◎You must purchase a common AC adaptor 01 (option) for charging. Note
that the configuration of the AC adaptor may be different from that shown
in the illustration above.
◎Pull out the connector of the common AC adaptor 01 (option) straight so
as to be parallel to the W42H or the desktop holder connector terminal
when you connect them.

Ready
13
※You can connect the common AC adaptor 01 (option) to the W42H to charge the
battery pack.
Check the shape of the connectors to ensure
they are aligned correctly when you connect.

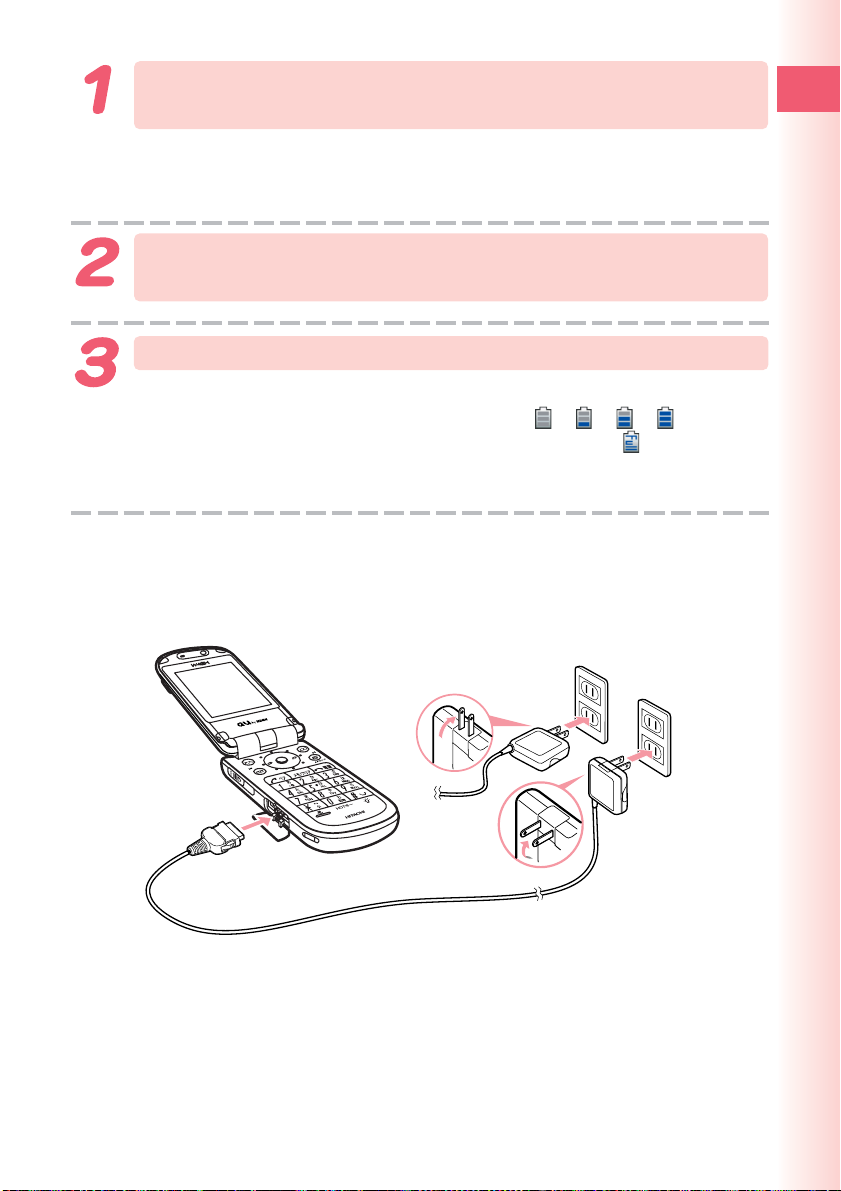

Connect the common AC adaptor 01 (option) to the
desktop holder.
Check the shape of the connectors to ensure they are aligned correctly before
you connect.
Trying to force a connection may damage the connectors.
Fold out the power plug of the common AC adaptor 01
(option), and then plug it into a 100V AC power outlet.
Insert the W42H into the desktop holder.
This will make the W42H charge LED indicator light red, and the battery level
icon to change according to the following pattern: ➔➔➔
When charging is completed, the battery level icon will show and the LED
indicator will go out.
To remove the W42H from the desktop holder, lift it straight up.

14
Turning On Power
Hold down Ffor at least
1.5 seconds.
The standby screen appears.
•Communication is not possible while the signal strength
icon is (Out of Range).
•Communication may not be possible while the signal
strength icon is (Very Weak).
•During charging, the battery level icon will change
according to the following pattern: ➔➔➔.
•The battery level icon (Fully Charged) only shows
during charging.
■Turning off power
Hold down Ffor about one second.
Initial Values
The initial values are as follows.
Standby screen
103
Page
Lock No. 1234
Teens Lock No. 1234
Caller ID On
Incoming Display On
Profile Blank
Font Size Add Book Char Middle
Input Middle
Mail Char Middle
EZweb Char Small
Data Folder Char Middle
Text Memo Char Middle
icon
Signal
Strength Strong Medium Out of
Range
Weak Very
Weak
icon
Battery
Level High Low
Fully
Discharged
Extension Mode※ Medium
Fully
Charged
※Using Extension Mode
Using the Extension Mode, W42H automatically shuts down the
radio wave after issuing the Low Battery Alert. This is quite a useful
function that you can still check Outgoing/Incoming Records,
Content of e-mail, Address Book, Schedule and so on when
necessary. In this case, you can only use the functions which needs
no radio wave.

Ready
15
Personal Identification Numbers
and Passwords
The W42H lets you use the numbers and passwords described below.
Be sure to take steps so you do not to forget your numbers and
passwords. You will need them to perform various operations and to
access subscription services.
Personal Identification Number (PIN)
Usage Examples
Initial Values
①For remote operation of the Voice Mail and Call Transfer from a
standard phone
②For inquiries, applications, and service modifications using au
Customer Service Center voice guidance, au website, and EZweb
③For changing e-mail settings
4-digit number you entered on your subscription contract
Premium EZ Password
Usage Examples
Initial Values
① For entering and canceling subscriptions for EZweb fee-based content
paid for using “
まとめてau支払い ” (combined au payment service)
② For purchasing products from EZweb sites that use “ まとめてau支払い ”
(combined au payment service)
4 to 8-digit number you registered for your first “まとめてau支払い ”
(combined au payment service) payment
Lock No.
Usage Examples
Initial Values
For modifying various phone settings
1234
Teens Lock No.
Usage Examples
Initial Values
For modifying various phone settings in Teens Mode
1234
EZ Password
Usage Examples
Initial Values
For entering and canceling subscriptions for EZweb fee-based content
4-digit number you registered for your first fee-based content subscription

16
Selecting English as the Display
Language

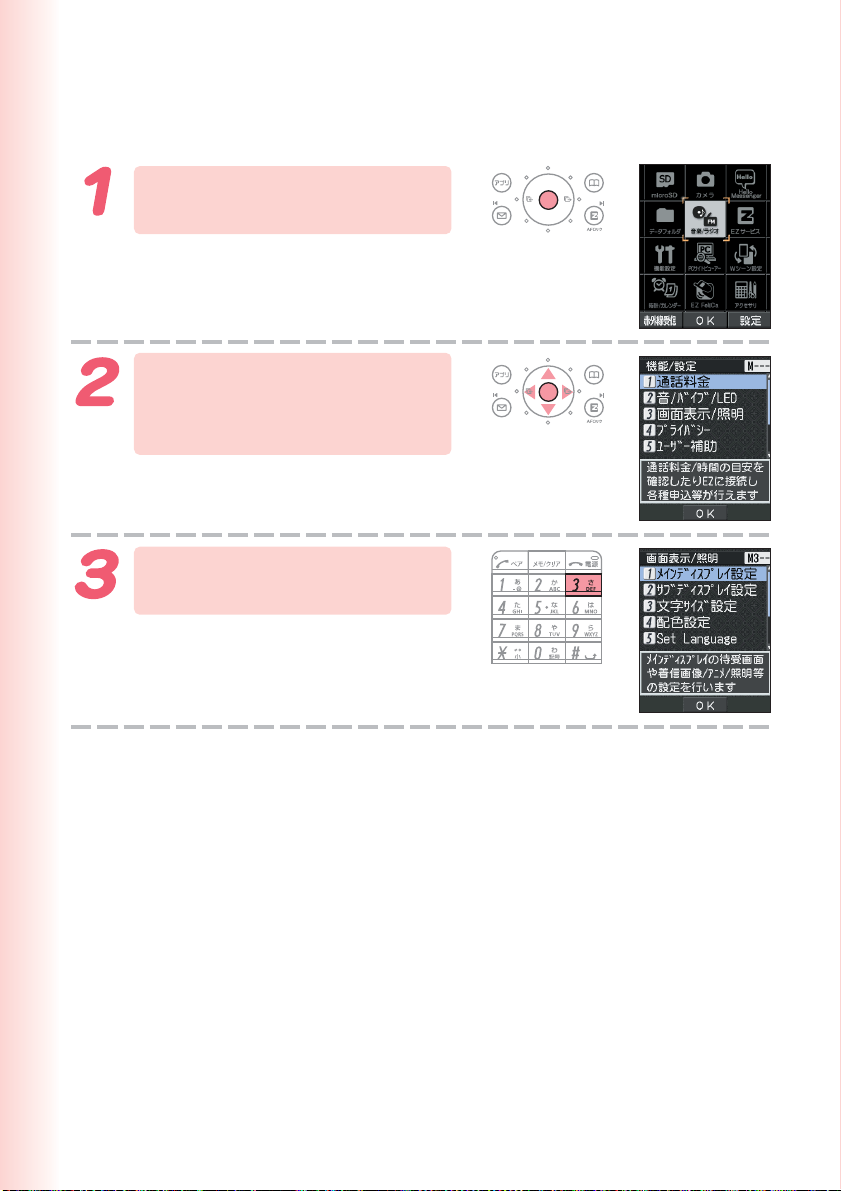

While the standby screen
is displayed, press c .
Use a to select “ 機能設定 ”
(SETTINGS), and then press
c
(OK).
Press 3( 画面表示／照明 )
(ScreenSetup/DisplayLighting).

Ready
17
5(Set Language).
2(English).
This selects English as the display
language.
Even if English is selected as the display language, schedule and other
dates are displayed in the format year/month/day. Folder names inside of
the Data Folder are also displayed in year/month/day format.

18
•Displays the standby
shortcut icon.
•Selects an item.
•Displays outgoing records.
•Scrolls forward one menu
screen.
•Selects an item.
•Displays the main menu.
•Applies an item.
•Displays the EZ apps
menu.
•Displays the address book.
•Creates a new address
book (hold down for about
one second).
•E-mail
•C-mail (hold down for
about one second).
•Dials/answers a phone call.
•Displays the Pair function.
•Memo
•Toggles Easy Voice Memo
on and off (hold down for
about one second).
•Deletes a character.
•Returns to the previous
menu screen.
•Toggles power on and off.
•Hangs up.
•Ter minates a function.
•Returns to the standby
screen.
•Displays the EZ menu.
%
L
N
C
&
R
F
0〜9*#
l
d
r
c
•Displays the calendar.
•Selects an item.
u
•Inputs phone number.
•Inputs text character.
•Toggles Manner Mode on and off
(hold down for about one second).
(
•Standby light illuminates when held down for
more than one second.
•Photo light illuminates when shooting a photo.
)
Operation Basics
■Key functions
■ Side key functions
◎If you lose track of where you are or if you make a mistake
Press Cto scroll back to the previous screen.
Press Fto return to the standby screen.
◎When is in the lower right corner of the photo or movie screen, pressing
0will display key help.
◎Holding down cfor about one second toggles side key’s disabling feature
on and off while the cellphone is folded. To cancel the side key’s disabling
feature, follow the above procedure with the phone unfolded.
•Displays incoming records.
•Returns to the previous
menu screen.
•Selects an item.
b•Shutter release
•Photo function (hold down
for about one second).
