Hitachi X200 Series User manual

X200 Series Inverter
Quick Reference Guide
•Single-phase Input 200V class
•Three-phase Input 200V class
•Three-phase Input 400V class
Hitachi Industrial Equipment Systems Co., Ltd.
Manual No. NT3011XB •Sep 2007

- 1 -
Caution: Be sure to read the X200 Manual and the X200 Manual
Addendum, and follow their Cautions and Warnings for the initial
product installation. This Quick Reference Guide is intended for
reference use by experienced users in servicing existing installations.

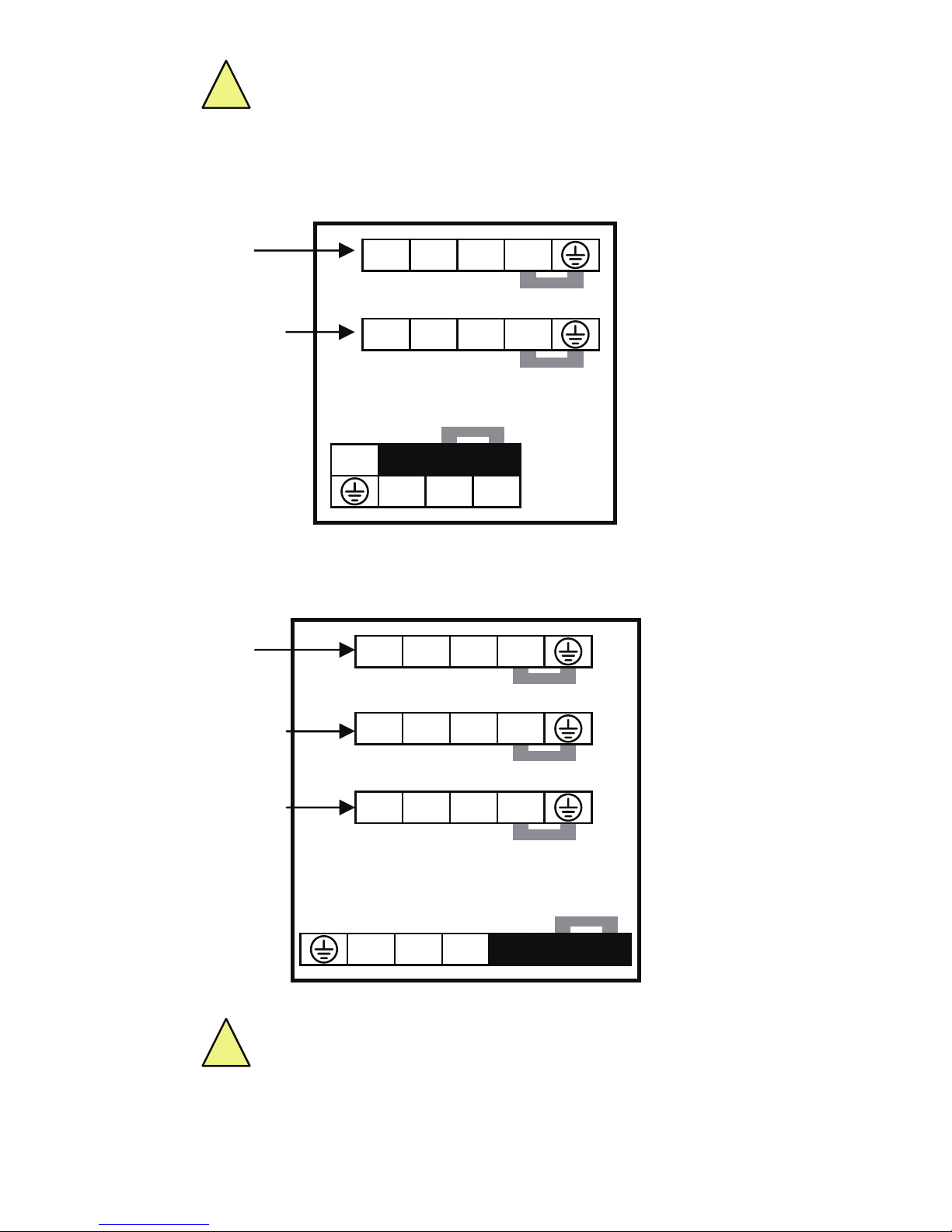

Power Circuit Terminals
Inverter models X200-002SFEF/NFU, -004SFEF/NFU
Inverter models X200-005SFEF, -007SFEF/NFU to -022SFEF/NFU,
-037LFU to -075LFU, 004HFEF/HFU to –075HFEF/HFU
Caution: Power terminal assignment is is different compared to old
models such as L100, L200 series. Pay attention when wiring the
power cable.
!
!
Jumper
U/T1
V/T2
W/T3
- +
+1
L1
/ N
Jumper
SFEF
L1
L2
L3/N
Jumper
NFU
L1
/ N
U/T1
V/T2
W/T3
- + +1
Jumper
Jumper
L1
L2
L3/N
Jumper
R/L1
S/L2
T/L3
Jumper
SFEF
NFU,LFU
HFEF,HFU

- 2 -
Control Circuit Terminals
Terminal Name Description Ratings and Notes
P24 +24V for logic inputs 24VDC supply, 30mA max.
(Notes: Do not use for network
power. Do not short to terminal
L)
1, 2, 3, 4, 5 Intelligent (programmable
discrete logic) inputs 27VDC max. (Use P24 or an external supply reference to
terminal L), 4.7kΩinput
impedance.
11 Discrete logic output 50mA max. ON current, 27VDC
max. OFF voltage
L (right) GND for logic inputs Sum of input 1 to 5 currents
(Note: Do not ground)
CM2 Common for logic
outputs 50mA max for terminal 11 current
AM Analog voltage output 0 to 10VDC, 1mA max.
L (left) Common for analog
inputs Sum of OI, O and H currents (return)
OI Analog input, current 4 to 19.6mArange, 20mA nom.
O Analog input, voltage 0 to 9.6VDC range, 10VDC
nominal, 12VDC max., input
impedance 10kΩ
H +10V analog reference 10VDC nominal, 10mAmax.
AL0 Relay common contact
AL1 Relay contact, normally
closed during RUN
AL2 Relay contact, normally
open during RUN
Contact rating
Max resistive load=250VAC,
2.5A; 30VDC 3A;
Max inductive load=250VAC,
0.2A; 30VDC 0.7A
Minimum load=5VDC 100mA,
100VAC 10mA
Note) Analog input O and OI cannot be used at the same time.
AM H O OI
L
5
4
3
2
1
L
PCS
P24
CM2
11
Jumper
A
nalog
output
A
nalog
inputs Logic inputs Logic outputs
AL2 AL1 AL0
Alarm relay

- 3 -
Basic Wiring Diagram
The following wiring diagram shows the power and motor connections
for basic operation. The optional signal input wiring supports external
Fwd and Rev Run command, and a speed potentiometer.
X200 series
R
(L1)
T
(N/L3)
U
(T1)
W
(T3)
V
(T2) Motor
From 3-phase or
single-phase power input
source
(See specifications label
on inverter for details)
P24
1
2
3
5
L
Wiring for Source type models
H
O
L
S
(L2)
Inputs:
Analog reference
External speed
reference POT.
Analog common
AL1
AL0
AL2
Alarm contacts, 1C
11
CM2
Open collector output
Frequency
arrival signal
Load
+
-
Logic output
common
PCS
4
Forward
Reverse
Short bar
Reset

- 4 -
Inverter Keypad Operation
•Run/Stop LED – ON when the inverter output is ON and the motor
is developing torque (Run Mode), and OFF when the inverter output
is OFF (Stop Mode).
•Program/Monitor LED – This LED is ON when the inverter is ready
for parameter editing (Program Mode). It is OFF when the
parameter display is monitoring data (Monitor Mode).
•Run Key Enable LED – is ON when the inverter is ready to respond
to the Run key, OFF when the Run key is disabled.
•Run Key – Press this key to run the motor (the Run Enable LED
must be ON first). Parameter F004, Keypad Run Key Routing,
determines whether the Run key generates a Run FWD or Run REV
command.
•Stop/Reset Key – Press this key to stop the motor when it is running
(uses the programmed deceleration rate). This key will also reset an
alarm that has tripped.
•Potentiometer – Allows an operator to directly set the motor speed
when the potentiometer is enabled for output frequency control.
•Potentiometer Enable LED – ON when the potentiometer is enabled
for value entry.
•Parameter Display – A 4-digit, 7-segment display for parameters
and function codes.
•Display Units, Hertz/Amperes – One of these LEDs will be ON to
indicate the units associated with the parameter display.
•Power LED – This is ON when the power input to the inverter is
ON.
•Alarm LED – ON when an inverter trip is active (alarm relay
contact will be closed).
•Function Key – This key is used to navigate through the lists of
parameters and functions for setting and monitoring parameter
values.
•Up/Down keys – Use these keys alternatively to move up or down
the lists of parameter and functions shown in the display, and
increment/decrement values.
•Store key – When the unit is in Program Mode and you have edited
a parameter value, press the Store key to write the new value to the
EEPROM.
Display Units (Hertz / Amperes) LEDs
Parameter Display
Run key Enable LED
Run key
Stop/Reset key
PRG
RUN
Hz
RUN
A
2
POWER
ALARM
STOP
RESET
Function key Up/Down keys Store key
Power LED
Alarm LED
Run/Stop LED
Program/Monitor LED
Potentiometer Enable LED
Potentiometer
1
FUNC STR

- 5 -
Keypad Navigation Map
12
STR
Monitor Mode
PRG LED=OFF Program Mode PRG LED=ON
Display Data
FUNC
12
12
12
12
12
12
2
1
Select
Function or
Grou
p
Power down
12
12
12
12
12
12
12
2
1
FUNC FUNC
Store as
powerup
default
Increment/
decrement
value
12
Edit
FUNC
Write
data to
EEPROM
Return to
parameter
list
Select parameter Edit parameter

- 6 -

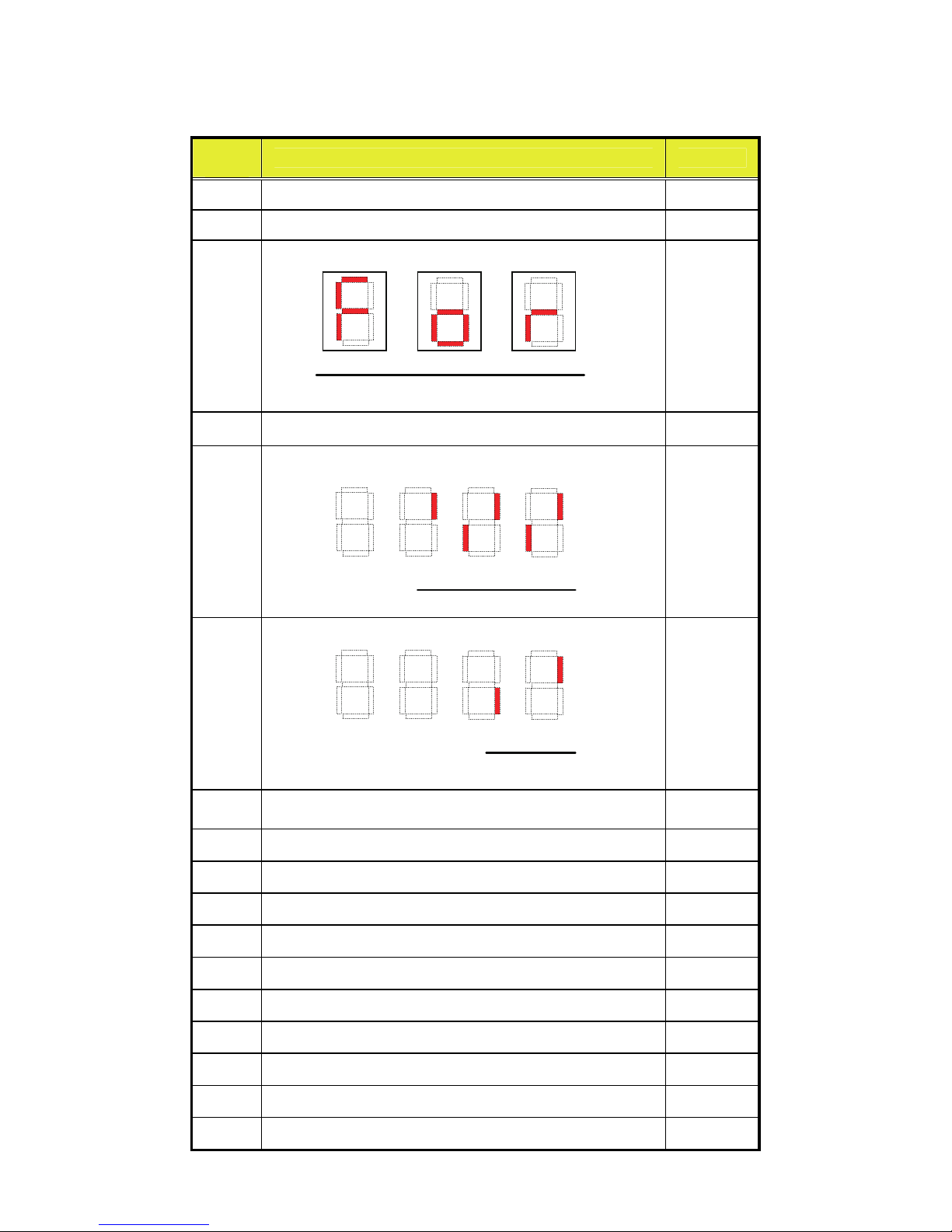

Powerup Test
The Powerup Test procedure uses minimal parameter settings to run
the motor. The procedure describes two alternative methods for
commanding the inverter:
via the inverter keypad, or via the logic
terminals.
yCheck power input and motor output wiring (see page 3 diagram).
yIf using logic terminals for testing, verify correct wiring on [PCS],
[FW], [H], [O] and [L] (bottom row) per the diagram on page 3.
yReverse [RV] input wiring (defaults to terminal [2]) is optional.
Step Description Via Keypad Via Logic
Terminals
1 Set speed command
source setting
A001=00
(Keypad pot)
A001=01
[H-O-L] input
2 Set Run FW command
source
A002=02
(Run key)
A002=01
[FW] input
3 Set Run REV
command source −C002=01 (default)
[RV] input
4 Set motor base freq. A003=60
5 Set motor poles H004 = 4 (default), change only if your motor is
different
Set keypad display to
monitor freq. Access d001, press Func key, display will show 0.0
6
Disconnect load from motor
7 Perform safety check Turn keypad pot. To MIN
position
Ensure voltage on [O] −
[L] terminals = 0V
8 Run Forward
command Press Run key Turn ON the [FW]
terminal
9 Increase speed Rotate keypad pot. CW
direction Increase voltage at [O]
10 Decrease speed Rotate keypad pot. CCW
direction Decrease voltage at [O]
11 Stop motor Press stop key Turn OFF the [FW]
terminal
12 Run Reverse
command (optional) −Turn ON the [RV] terminal
13 Stop motor −Turn OFF the [RV]
terminal

- 7 -
Error Codes
The X200 series inverters will trip on over-current, over-voltage, and
under-voltage to protect the inverter. The motor output turns OFF,
allowing the motor to free-run to a stop. Press the Stop/Reset key to
reset the inverter and clear the error.
Basic Error Codes
Error
Code Name Probable Cause(s)
E_01 Over current event
while at constant speed
E_02 Over current event
during deceleration
E_03 Over current event
during acceleration
yInverter output was short-circuited
yMotor shaft is locked
yLoad is too heavy
yA dual voltage motor is wired
incorrectly
Note: The X200 will over-current trip at
nominally 200% of the rated current.
E_04 Over current event for
other conditions
yDC braking power (A_54) set too high
yCurrent transformer / noise error
E_05 Overload protection yMotor overload is detected by the
electronic thermal function
E_07 Over voltage protection
yDC bus voltage exceeds a threshold,
due to regeneration energy from the
motor
E_08 EEPROM error
yBuilt-in EEPROM memory
experienced noise, high temperature,
etc.
E_09 Under voltage error
yDC bus voltage decreased enough to
cause a control circuit fault
yInstantaneous power failure occurred
E_11 CPU error yBuilt-in CPU had internal error
E_12 External trip y[EXT] input signal detected
E_13 USP (Unattended Start
Protection)
yWhen (USP) was enabled, an error
occurred when power was applied while
a Run signal was present
E_14 Ground fault
yA ground fault was detected between
the inverter output and the motor. This
feature protects the inverter, and does
not protect humans.
E_15 Input over-voltage yInput voltage was higher than the
specified value, 100 sec. after powerup
E_21 Inverter thermal trip yInverter internal temperature is
above the threshold
E_30 Driver error Refer to E_01~E_04
E_35 Thermistor yThermistor input, [5] and [L] is over
the temperature threshold
E_37 Emergency stop yEmergency stop signal has given
E_60 Communications error yCommunication error on RS485
MODBUS communication
- - -
Under-voltage
(brownout) with output
shutoff
yLow input voltage caused the inverter
to turn OFF the motor output and try to
restart. If unsuccessful, a trip occurs.

- 8 -

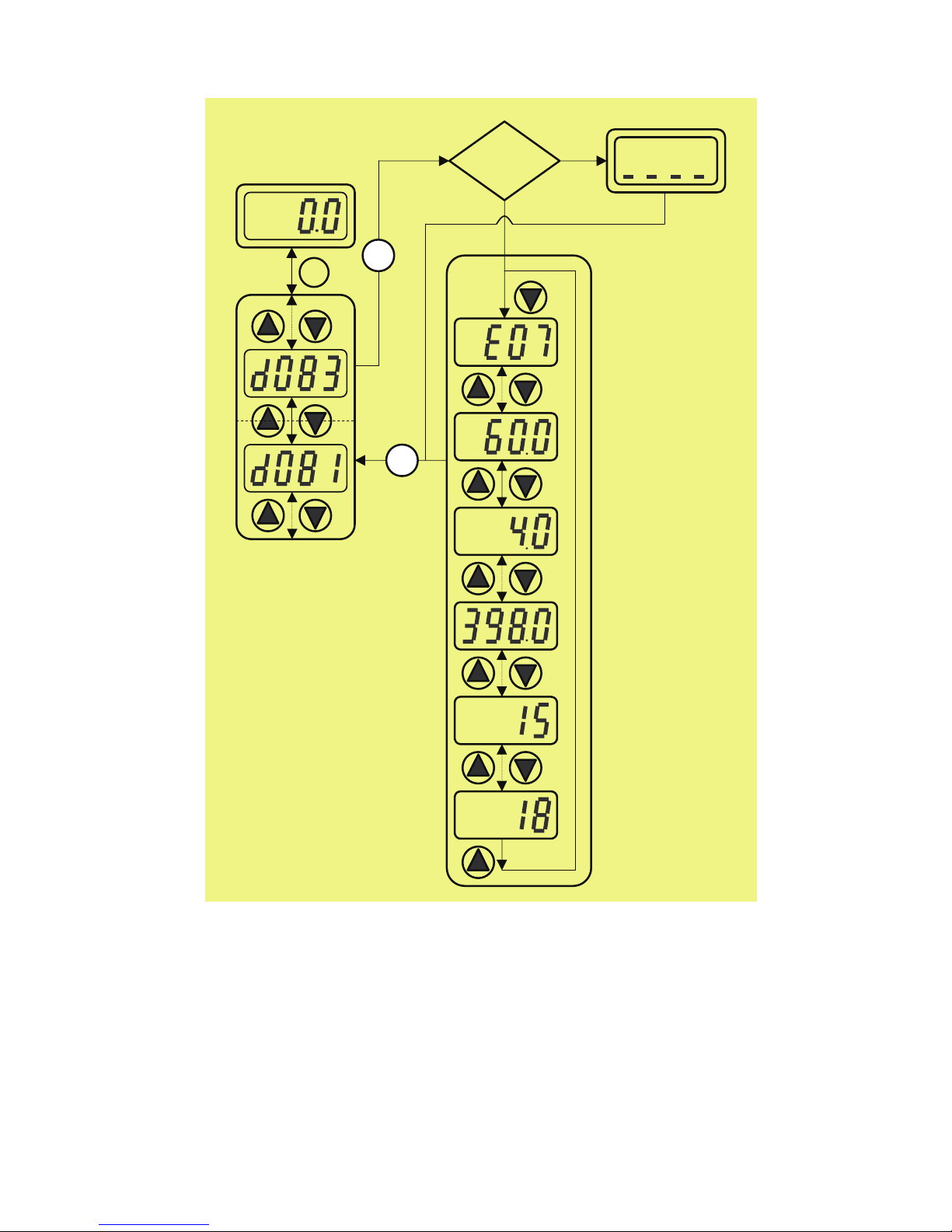

Error Trip Conditions
Use function code d081 to access the error trip conditions for the current
error as shown in the table below. Use the Up and Down arrow keys to
scroll through the trip condition parameters.
Step Display
1. Access d081 d081
If no error:
_ _ _
2. Press Function Key
If error exists:
E_xx
(error code)
3. Press Up/Dn key
(if error exists)
Output frequency at trip point:
48.50
Motor current at trip point:
10.3
DC bus voltage at trip point:
189.5
Cumulative Run hours at trip point:
15
Cumulative power-ON hours at trip point:
18
2
1

- 9 -
Restoring Factory Default Settings
Action Display Function/Parameter
Press , or as
needed b- - - “B” Group selected
Press b001 First “B” Group parameter
Press/hold until… b085 Country code for
initialization selected
Press . If setting is
correct, then skip next step. 02
00 = Japan
01 = Europe
02 = United States
To change country code, press or to set; to store.
Press b085 Country code for
initialization selected
Press b084 Initialization function
selected
Press 00 00 = disable initialization
Press 01 01 = enable initialization
Press b084 Initialization now enable to
restore all defaults
Press/hold , and
keys. Do not release yet. b084 First part of key sequence
When your country code
appears in the display, release
all the keys.
EU
USA
JP
Default parameter country
code shown during
initialization
Initialization is complete. d001 Function code for output
frequency monitor shown
Note: After initializing the inverter, use the Powerup Test on
page 6 to get the motor running again.
2
1
FUNC
FUNC
1
FUNC
2
1
STR
FUNC
2
FUNC
1
STR
2
FUNC
STOP
RESET

- 10 -
Parameter Tables
“D” group: Monitoring Functions
Func.
Code Name / Description Units
D001 Output frequency monitor Hz
D002 Output current monitor A
D003 Rotation direction monitor
−
D004 Process variable (PV), PID feedback monitor %
D005 Intelligent input terminal status
−
D006 Intelligent output terminal status
−
D007 Scaled output frequency monitor
(output frequency ∗b086 scale factor)
User-
defined
D013 Output voltage monitor V
D016 Cumulative operation RUN time monitor hr
D017 Cumulative power-ON time monitor hr
D018 Cooling fin temperature monitor °C
D080 Trip counter −
D081 Trip monitor 1 (most recent trip n) −
D082 Trip monitor 2 (trip n-1) −
D083 Trip monitor 3 (trip n-2) −
D102 DC bus voltage monitor V
D104 Electronic thermal monitor %
Forward Stop Reverse
Direction
1
2
3
45
Terminal Numbers
ON
OFF
11
AL
Terminal Numbers
ON
OFF

- 11 -
Trip History and Inverter Status
Monitor Mode
Display data
FUNC
1
2
1
2
1
2
1
2
1
2
1
Error
exists?
FUNC
No
No error
Error code
Output frequency at
trip point
Motor current at trip
point
DC bus voltage at trip
point
Yes
FUNC
2
2
2
1
2
1
1
Cumulative inverter
operation time at trip
point
Cumulative power-ON
time at trip point

- 12 -
Parameter tables for user-settable functions follow these conventions:
ySome parameters have 2nd motor equivalents, indicated by the x2xx
parameter codes in the left-most column.
ySome parameters specify an option code. Where applicable, the option codes
will be in a bulleted list in the Name/Description column.
yThe default values apply to all models unless otherwise noted for each
parameter… -FE (Europe) / -FU (U.S.) / -FR (Japan).
ySome parameters cannot be edited during Run Mode, and certain Software
Lock settings (b031) can prohibit all edits. If in doubt, place the inverter in
Stop Mode or Consult the inverter manual for details.
“F” group: Main Profile Parameters
Func.
Code Name / Description Default value -FE/FU
Set
value
F001 Output frequency setting 0.0
F002 Acceleration (1) time setting 10.0
F202 Acceleration (1) time setting
<2nd motor>
10.0
F003 Deceleration (1) time setting 10.0
F203 Deceleration (1) time setting
<2nd motor>
10.0
F004 Keypad Run key routing
y00 Forward y01 Reverse
00

- 13 -
“A” group: Standard Functions
Func.
Code Name / Description Default -FE/-FU
Set
value
A001/
A201
Frequency source setting
y00 Keypad potentiometer
y01 Control terminal
y02 Function F_01 setting
y03 RS485 Modbus communication
y10 Calculate function output
01/00
A002/
A202
Run command source setting
y01 Input terminal FW or RV (assignable)
y02 RUN key on the keypad
y03 RS485 Modbus communication
01/00
A003/
A203
Base frequency setting 50/60
A004/
A204
Maximum frequency setting 50/60
A005 [AT] selection
y02 Select [O] or POT by [AT] terminal input
y03 Select [OI] or POT by [AT] terminal input
y04 [O] input only y05 [OI] input ony
Not assigned [AT] is the same as [AT]=OFF.
02
A011 O-L input active range start frequency 0.0
A012 O-L input active range end frequency 0.0
A013 O-L input active range start voltage 0.
A014 O-L input active range end voltage 100.
A015 O-L input start frequency enable
y00 Use A011 (starting value) y01 Use 0Hz
01
A016 External frequency filter time constant 8.
A020/
A220
Multi-speed frequency setting 0.0
A021~
A035
Multi-speed frequency settings
(for both motors)
0.0
A038 Jog frequency setting 1.0
A039 Jog stop mode
y 00 Free-run stop, jogging disabled during motor run
y 01 Controlled deceleration, jogging disabled during
motor run
y 02 DC braking to stop, jogging disabled during motor
run
00
A041/
A241
Torque boost method selection
y00 Manual torque boost
y01 Automatic torque boost
00
A042/
A242
Manual torque boost value 1.8(A042)/
0.0(A242)
A043/
A243
Manual torque boost frequency adjustment 10.0(A043)/
0.0(A243)
A044/
A244
V/f characteristic curve selection
y00 V/f constant torque
y01 V/f variable torque
y06 V/f variable torque1
00
A005 02 03 04 05
AT input OFF ON OFF ON OFF ON OFF ON
Active [O] POT [OI] POT [O] [OI]

- 14 -
Func.
Code Name / Description Default -FE/-FU
Set
value
A045/
A245
V/f gain setting 100.
A051 DC braking enable
y 00 Disable y 01 Enable y 02 Freq.detection
00
A052 DC braking frequency setting 0.5
A053 DC braking wait time 0.0
A054 DC braking force during deceleration 0.
A055 DC braking time for deceleration 0.0
A056 DC braking / edge or level detection for [DB] input
y00 Edge y01 Level
01
A061/
A261
Frequency high limit setting 0.0
A062/
A262
Frequency low limit setting 0.0
A063
A065
A067
Jump (center) frequency setting 0.0
A064
A066
A068
Jump (hysteresis) frequency width setting 0.5
A071 PID enable
y00 PID operation OFF
y01 PID operation ON
00
A072 PID proportional gain 1.0
A073 PID integral time constant 1.0
A074 PID derivative time constant 0.00
A075 PV scale conversion 1.00
A076 PV source setting
y00 [OI] terminal (current input)
y01 [O] terminal (voltage input)
y02 ModBus network
y03 Calculate function output
00
A077 Reverse PID action
y00 PID input = SP-PV
y01 PID input = -(SP-PV)
00
A078 PID output limit 0.0
A081 AVR function select
y00 AVR enabled y01 AVR disabled
y02 AVR enabled except during decel.
00
A082 AVR voltage select 230,400/
230,460
A085 Operation mode selection
y00 Normal operation
y01 Energy-saver operation
00
A086 Energy saving mode tuning 50.0
A092/
A292
Acceleration (2) time setting 15.0
A093/
A093
Deceleration (2) time setting 15.0
A094/
A294
Select method to switch to Acc2/Dec2 profile
y00 2CH input from terminal
y01 transition frequency
00
A095/
A295
Acc1 to Acc2 frequency transition point 0.0
A096/ Dec1 to Dec2 frequency transition point 0.0

- 15 -
Func.
Code Name / Description Default -FE/-FU
Set
value
A296
A097 Acceleration curve selection
y00 Linear y01 S-curve
00
A098 Deceleration curve selection
y00 Linear y01 S-curve
00
A101 [OI]-[L] input active range start frequency 0.0
A102 [OI]-[L] input active range end frequency 0.0
A103 [OI]-[L] input active range start current 0.
A104 [OI]-[L] input active range end current 100.
A105 [OI]-[L] input start frequency enable
y00 Use A101 (starting value)
y01 Use 0Hz
01
A141 Input A select for calculate function
y00 Integrated operator
y01 Keypad POT
y02 [O] input
y03 [OI] input
y04 Network variable
01
A142 Input A select for calculate function
y00 Integrated operator
y01 Keypad POT
y02 [O] input
y03 [OI] input
y04 Network variable
02
A143 Calculation symbol
y00 ADD (A + B)
y01 SUB (A - B)
y02 MUL (A * B)
00
A145 ADD frequency 0.0
A146 ADD direction select
y 00 Plus (adds A145 value to output freq.)
y 01 Minus (subtracts A145 value from output freq.)
00
A151 POT active range start frequency 0.0
A152 POT input active range end frequency 0.0
A153 POT input active range start 0.
A154 POT input active range end 100.
A155 POT input start frequency enable 01

- 16 -
“B” group: Fine-tuning Functions
Func.
Code Name / Description Default -FE/FU
Set
value
B001 Selection of automatic restart mode
y00 Alarm output after trip, automatic restart disable
y01 Restart at 0Hz
y02 Resume operation after frequency pull-in
y03 Resume previous freq. after freq. pull-in, then
decelerate to stop and display trip info
00
B002 Allowable under-voltage power failure time 1.0
B003 Retry wait time before motor restart 1.0
B004 Instantaneous power failure / under-voltage trip
alarm enable
y00 Disable y01 Enable
00
B005 Number of restarts on power failure /
under-voltage trip event
y00 Restarts 16 times y01 Always restart
00
B011 Start freq to be used in case of freq pull-in restart
y00 Freq at previous shutoff
y01 Start from max. Hz
y02 Start from set freq
00
B012/
B212
Level of electronic thermal setting INV Rated
current
B013/
B213
Electronic thermal characteristics
y00 Reduced torque y01 Const. torque
01
B021/
B221
Overload restriction operation mode
y00 Disabled
y01 Enabled for accel and constant speed
y02 Enabled for constant speed only
01
B022/
B222
Overload restriction level setting INV Rated
current x 1.5
B023/
B223
Deceleration rate at overload restriction 1.0/30.0
B028/
B228
Source of restriction selection
y00 set value of B022
y01 [O] input
00
B029 Deceleration rate of freq pull-in restart setting 0.5
B030 Current level of freq pill-in restart setting INV Rated
current
B031 Software lock mode selection
y00 Low-level access, [SFT] blocks edits
y01 Low-level access, [SFT] blocks edits
(except F001 and Multi-speed parameters)
y02 No access to edits
y03 No access to edits
(except F001 and Multi-speed parameters)
y10 High level access
01
B050 Selection of the non stop operation
y 00 Disable y 01 Enable(stop) y 02 Enable(restart)
00
B051 Non stop operation start voltage setting 0.0
B052 OV-LAD Stop level of non stop operation setting 0.0
B053 Deceleration time of non stop operation setting 1.0
B054 Frequency width of quick deceleration setting 0.0
B055 DC bus AVR P-gain 0.2
B056 DC bus AVR I-time 0.2
B080 [AM] analog signal gain 100.
B082 Start frequency adjustment 0.5

- 17 -
Func.
Code Name / Description Default -FE/FU
Set
value
B083 Carrier frequency setting 3.0
B084 Initialization mode (parameter or trip history)
y00 Trip history clear
y01 Parameter initialization
y02 Trip history clear and parameter initialization
00
B085 Country code for initialization
y00 Japan version y01 Europe version
y02 US version
01/02
B086 Frequency scaling conversion factor 1.0
B087 STOP key enable
y00 Enable y01 Disable
00
B088 Restart mode after FRS
y00 Restart from 0Hz
y01 Restart with frequency pull-in
00
B089 Data select for digital operator OPE-J
y01 Output frequency (d001)
y02 Output current (d002)
y03 Motor direction (d003)
y04 PID PV feedback (d004)
y05 Input status for input terminals (d005)
y06 Output status for output terminals (d006)
y07 Scaled output frequency (d007)
01
B091 Stop mode selection
y00 DEC (decelerates and stop)
y01 FRS (free-run to stop)
00
B092 Cooling fan control
y00 Fan is always ON
y01 Fan is ON during run, OFF during stop (5
minutes delay from ON to OFF)
y02 Fan is temperature controlled
00
B130 Over-voltage LADSTOP enable
y00 Disable y01 Enable
00
B131 Over-voltage LADSTOP level 380,760
B133 DC bus AVR selection
y00 Disable y01 Enable
00
B134 Threshold voltage of DC bus AVR setting 380,760
B140 Over-current trip suppression
y00 Disable y01 Enable
00
B150 Automatic carrier control
y00 Disable y01 Enable
00
B151 Selection of RDY function 00

- 18 -
“C” group: Intelligent Terminal Functions
Func.
Code Name / Description
Default value
-FE/FU
Set
value
C001/
C201
Terminal [1] function 00
C002/
C202
Terminal [2] function 01
C003/
C203
Terminal [3] function 02/16
C004/
C204
Terminal [4] function 03/13
C005/
C205
Terminal [5] function
Thirty one option
codes available
(See page 20)
18
C011 Terminal [1] active state 00
C012 Terminal [2] active state 00
C013 Terminal [3] active state 00
C014 Terminal [4] active state 00/01
C015 Terminal [5] active state
y00 Normally
open [NO]
y01 Normally
closed [NC]
00
C021 Terminal [11] function Twelve option codes
available
(See page 20)
01
C026 Relay output function Twelve option codes
available
(See page 20)
05
C028 AM signal selection
y00 motor speed y01 motor current
00
C031 Terminal [11] active state 00
C036 Alarm relay terminal active
state
y00 Normally
open [NO]
y01 Normally
closed [NC]
01
C038 Output mode of low load current
y00 Disabled
y01 During accel, decel and constant speed
y02 During constant speed only
01
C039 Low load detection level INV Rated
current
C041/
C241
Overload output signal level setting INV Rated
current
C042 Frequency arrival setting for accel 0.0
C043 Frequency arrival setting for decel 0.0
C044 PID deviation level setting 3.0
C052 PID PV high limit 100.0
C053 PID PV low limit 0.0
C070 Selection of OPE/ModBus
y02 OPE y03 ModBus
02
C071 Communication speed selection
y04 4800bps y05 9600bps y06 19200bps
06/04
C072 Node allocation 1.
C074 Communication parity selection
y00 No parity y01 Even parity
y02 Odd parity
00
C075 Communication stop bit selection 1
C076 Communication error select
y00 Trip (error codeE60)
y01 Decelerate to stop and trip (error code E60)
y02 Disable y03 Free run stop (coasting)
02

- 19 -
Func.
Code Name / Description
Default value
-FE/FU
Set
value
y04 Decelerate to a stop
C077 Communication error time-out 0.00
C078 Communication wait time 0.
C081 O input span calibration 100.0
C082 OI input span calibration 100.0
C086 AM offset calibration 100.0
C091 Debug mode enable
y00 No Display y01 Display
00
<Do not change>
00
C101 Up/Down memory mode selection
y00 Clear last frequency
(return to default freq. F001)
y01 Keep last freq. adjusted by Up/Down
00
C102 Reset selection
y 00 Cancel trip state at input signal ON transition,
stops INV if in Run Mode
y 01 Cancel trip state at input signal OFF
transition, stops INV if in Run Mode
y 02 Cancel trip state at input signal ON transition,
no effect if in Run Mode
00
C141 Input A select for logic output 00
C142 Input B select for logic output
Twelve option
codes available
see page 20
01
C143 Logic function select
y00 [LOG] = A AND B
y01 [LOG] = A OR B
y02 [LOG] = A XOR B
00
C144 Terminal [11] ON delay 0.0
C145 Terminal [11] OFF delay 0.0
C148 Output relay ON delay 0.0
C149 Output relay OFF delay 0.0
“H” group: Motor Constants Functions
Func.
Code Name / Description
Default
-FE/FU
Set
value
H003/
H203
Motor capacity Factory
set
H004/
H204
Motor poles setting
y 2 y 4 y 6 y 8
4
H006/
H206
Motor stabilization constant 100
