L100-M Inverter 3
Getting Started
This section provides specification details for L100-M Series inverters corresponding to
Chapter 1, “Getting Started,” in the L100 Inverter Instruction Manual.
Main Features
Congratulations on your purchase of an L100-M Series Hitachi inverter! Like the
standard L100 Series inverters, this inverter drive features state-of-the-art circuitry and
components, exceptionally small footprint, and high performance. The Hitachi L100-M
product line includes three additional inverter models to cover motor sizes 1/4, 1/2, and
1 horsepower in 100VAC power input versions. The main features are:
• 100V Class inverters
• UL versions, type -MFU2 and -MFR2 (see note below)
• V/f (volts-per-hertz) control algorithm, selectable for either constant or reduced torque
loads
• Convenient keypad for parameter settings
• Three-wire control interface
• Up/Down electronic motorized speed pot function
• Built-in RS-422 communications interface to allow configuration from a PC and for
field bus external modules.
• Sixteen programmable speed levels
• Two-step acceleration and deceleration curves
• PID control adjusts motor speed automatically to maintain a process variable value
NOTE: The -MFU2 and -MFR2 product types have the same features, with the follow-
ing exception: The intelligent inputs on the -MFU2 models are the sinking type (require
a connection to +24VDC to turn ON). The intelligent inputs on the -MFR2 models are
the sourcing type (require a connection to logic GND to turn ON). See “Wiring Diagram
Conventions” on page 21.
The design in Hitachi inverters overcomes many of the traditional trade-offs between
speed, torque and efficiency. The performance characteristics are:
• Output frequency range from 0.5 to 360 Hz
• Continuous operation at 100% torque within a 1:10 speed range (6/60 Hz / 5/50 Hz)
without motor derating

Getting Started
4

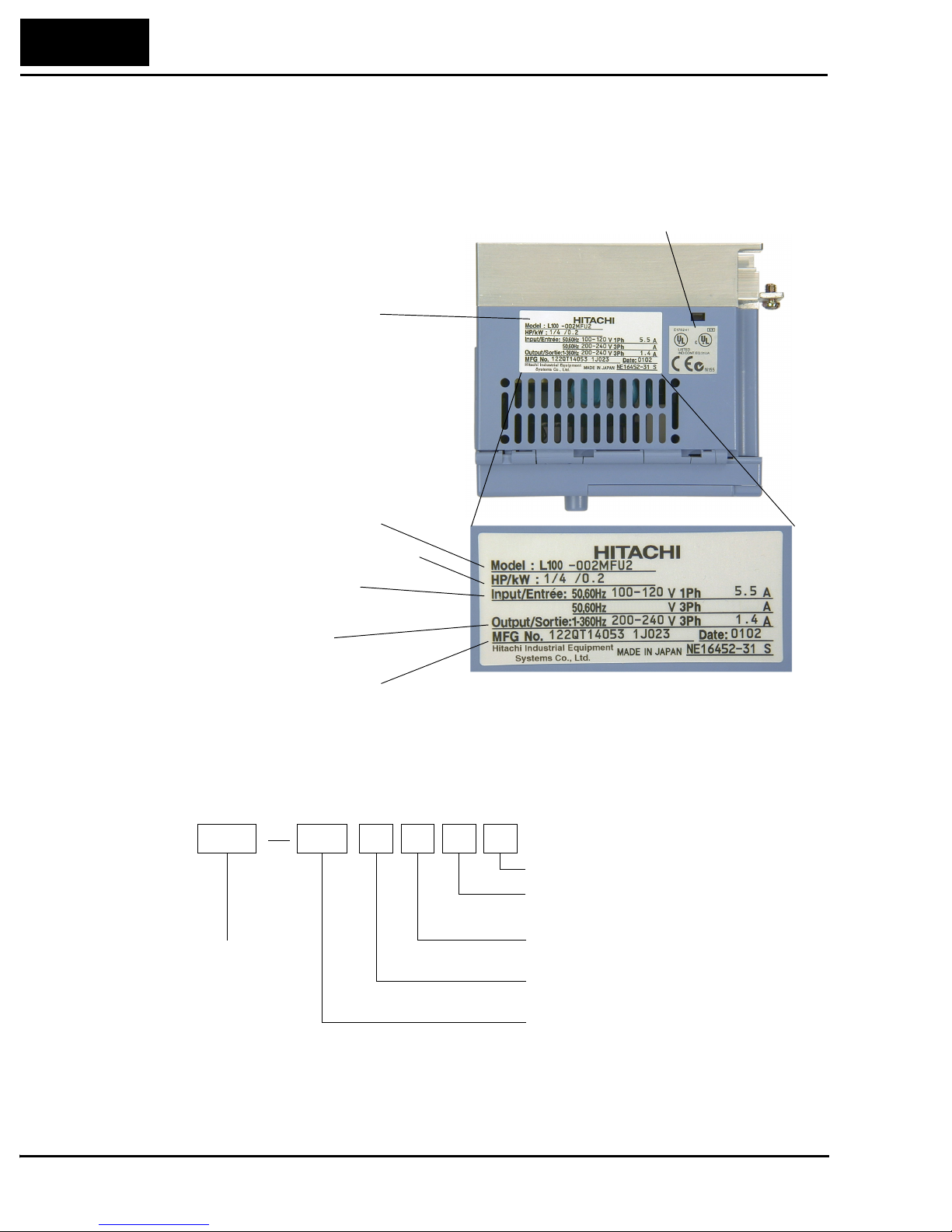

Inverter Specifications Label
The Hitachi L100-M Series inverters have product labels located on the right side of the
housing, as pictured below. Be sure to verify that the specifications on the labels match
your power source, motor, and application safety requirements.
Model Number Convention
The model number for a specific inverter contains useful information about its operating
characteristics. Refer to the model number legend below:
Inverter model number
Motor capacity for this model
Output Rating:
Frequency, voltage, current
Manufacturing codes:
Lot number, date, etc.
Specifications label
Regulatory agency approvals
Power Input Rating:
frequency, voltage, phase, current
L100 002 M F U 2
Version number (_, 1, 2, ...)
Restricted distribution:
U=USA, R=Japan
Input voltage:
M = single-phase 100V class
Applicable motor capacity in kW
002 = 0.2 kW
004 = 0.4 kW
007 = 0.75 kW
Configuration type
F = with digital operator (keypad)
Series name

L100-M Inverter 5
Model-specific tables for 100V class inverters
The following table is specific to L100-M Series inverters. Note that “General Specifica-
tions” on page 6 apply to all L100-M inverters. Footnotes for both tables follow the table
below.
Item 100V Class Specifications
L100-M invert-
ers, 100V models
CE version — — —
UL versions 002MFU2,
002MFR2
004MFU2,
004MFR2
007MFU2,
007MFR2
Applicable motor size *2 kW 0.2 0.4 0.75
HP 0.25 0.5 1
Rated capacity (230V) kVA *10 0.5 1.0 1.6
Rated input voltage 1-phase: 100V to 120V, +5/–10%; 50/60 Hz ±5%
Rated input
current (A)
1-phase 5.5 10 16
Rated output voltage *3 3-phase 0 to 230V (corresponding to 2 times input voltage)
Rated output current (A) 1.4 2.6 4.0
Efficiency at 100% rated output (%) 92.2 93.2 94.8
Watt loss,
approximate (W)
at 70% output 13 21 31
at 100% output 17 29 41
Braking Dynamic
braking, approx.
% torque, (short
time stop from
50 / 60 Hz) *5
100%: ≤50Hz
50%: ≤60Hz
Capacitive feedback type, dynamic braking unit and braking
resistor optional, individually installed
DC braking Variable operating frequency, time, and braking force
Weight kg 1.1 1.2 1.5
lb 2.4 2.6 3.3

Getting Started
6
Footnotes for the preceding table and the table that follows:
*1: The protection method conforms to JEM 1030.
*2: The applicable motor refers to Hitachi standard 3-phase motor (4-pole). When using other
motors, care must be taken to prevent the rated motor current (50/60 Hz) from exceeding the
rated output current of the inverter.
*3: The output voltage decreases as the main supply voltage decreases (except when using the
AVR function). In any case, the output voltage cannot exceed the input power supply
voltage.
*4: To operate the motor beyond 50/60 Hz, consult the motor manufacturer for the maximum
allowable rotation speed.
*5: The braking torque via capacitive feedback is the average deceleration torque at the shortest
deceleration (stopping from 50/60 Hz as indicated). It is not continuous regenerative braking
torque. The average deceleration torque varies with motor loss. This value decreases when
operating beyond 50 Hz. Note that a braking unit is not included in the inverter. If a large
regenerative torque is required, the optional regenerative braking unit should be used.
*6: The frequency command is the maximum frequency at 9.8V for input voltage 0 to 10 VDC,
or at 19.6 mA for input current 4 to 20 mA. If this characteristic is not satisfactory for your
application, contact your Hitachi sales representative.
*7: If operating the inverter in an ambient temperature of 40–50° C, reduce the carrier frequency
to 2.1 kHz, derate the output current by 80%, and remove the top housing cover. Note that
removing the top cover will nullify the NEMA rating for the inverter housing.
*8: The storage temperature refers to the short-term temperature during transport.
*9: Conforms to the test method specified in JIS C0911 (1984). For the model types excluded in
the standard specifications, contact your Hitachi sales representative.
*10:The output voltage of xxxMFU / xxxMFR is 230V.
General Specifications
The following table applies to all L100-M inverters.
Item General Specifications
Protective housing *1 IP20
Control method Sine wave pulse-width modulation (PWM) control
Output frequency range *4 0.5 to 360 Hz
Frequency accuracy Digital command: 0.01% of the maximum frequency
Analog command: 0.1% of the maximum frequency (25°C ± 10°C)
Frequency setting resolution Digital: 0.1 Hz; Analog: max. frequency/1000
Volt./Freq. characteristic V/f optionally variable, V/f control (constant torque, reduced torque)
Overload current rating 150%, 60 seconds
Acceleration/deceleration time 0.1 to 3000 sec., (linear accel/decel), second accel/decel setting
available

L100-M Inverter 7
Input
signal
Freq.
setting
Operator panel Up and Down keys / Value settings
Potentiometer Analog setting
External signal
*6
0 to 10 VDC (input impedance 10k Ohms), 4 to 20 mA (input
impedance 250 Ohms), Potentiometer (1k to 2k Ohms, 2W)
FWD/
REV
Run
Operator panel Run/Stop (Forward/Reverse run change by command)
External signal Forward run/stop, Reverse run/stop
Intelligent input
terminal
FW (forward run command), RV (reverse run command), CF1~CF4
(multi-stage speed setting), JG (jog command), 2CH (2-stage accel./
decel. command), FRS (free run stop command), EXT (external
trip), USP (startup function), SFT (soft lock), AT (analog current
input select signal), RS (reset), PTC (thermal protection), STA (start,
3-wire interface), STP (stop, 3-wire interface), F/R (FW/RV 3-wire
interface), UP (remote control Up function, motorized speed pot.),
DWN (remote control Down function, motorized speed pot.), OPE
(operator control)
Output
signal
Intelligent output
terminal
RUN (run status signal), FA1,2 (frequency arrival signal), OL
(overload advance notice signal), OD (PID error deviation signal),
AL (alarm signal)
Frequency monitor PWM output; Select analog output frequency monitor, analog output
current monitor or digital output frequency monitor
Alarm output contact ON for inverter alarm (1C contacts, both normally open or closed
avail.)
Other functions AVR function, curved accel/decel profile, upper and lower limiters,
16-stage speed profile, fine adjustment of start frequency, carrier
frequency change (0.5 to 16 kHz) frequency jump, gain and bias
setting, process jogging, electronic thermal level adjustment, retry
function, trip history monitor
Protective function Over-current, over-voltage, under-voltage, overload, extreme high/
low temperature, CPU error, memory error, ground fault detection at
startup, internal communication error, electronic thermal
Operat-
ing
Environ
ment
Temperature Operating (ambient): -10 to 50°C (*7) / Storage: -25 to 70°C (*8)
Humidity 20 to 90% humidity (non-condensing)
Vibration *9 5.9 m/s2(0.6G), 10 to 55 Hz
Location Altitude 1,000 m or less, indoors (no corrosive gasses or dust)
Coating color Light purple, cooling fins in base color of aluminum
Options Remote operator unit, copy unit, cables for the units, dynamic
braking unit, braking resistor, AC reactor, DC reactor, noise filter,
DIN rail mounting
Standards EN 61800-3 EMC Guidelines in connection with optional line filter
modules in line with installation guidelines, EN 50718 Low-Voltage
Guideline, UL, cUL
Marking UL, cUL
Item General Specifications

Getting Started
8
Derating Curves
The maximum available inverter current output is limited by the carrier frequency and
ambient temperature. The carrier frequency is the inverter’s internal power switching
frequency, settable from 0.5 kHz to 16 kHz. Choosing a higher carrier frequency tends to
decrease audible noise, but it also increases the internal heating of the inverter, thus
decreasing (derating) the maximum current output capability. Ambient temperature is
the temperature just outside the inverter housing—such as inside the control cabinet
where the inverter is mounted. A higher ambient temperature decreases (derates) the
inverter’s maximum current output capacity.
Use the following derating curves to help determine the optimal carrier frequency setting
for your inverter, and to find the output current derating. Be sure to use the proper curve
for your particular L100-M inverter model number.
L100–002MFU2/MFR2
0.5246810121416
70%
80%
90%
100%
95%
85%
75%
% of rated
output current
Carrier frequency
kHz
Standard ratings at 40°C
Ratings at 50°C max. with top cover removed
Legend:

L100-M Inverter 9
Derating curves, continued...
L100–007MFU2/MFR2
0.5246810121416
70%
80%
90%
100%
95%
85%
75%
% of rated
output current
Carrier frequency
kHz
L100–004MFU2/MFR2
0.5246810121416
70%
80%
90%
100%
95%
85%
75%
% of rated
output current
Carrier frequency
kHz

Inverter Mounting and Installation
10
Inverter Mounting and Installation
This section provides details for L100-M Series installation corresponding to Chapter 2,
“Inverter Mounting and Installation,” in the L100 Inverter Instruction Manual.

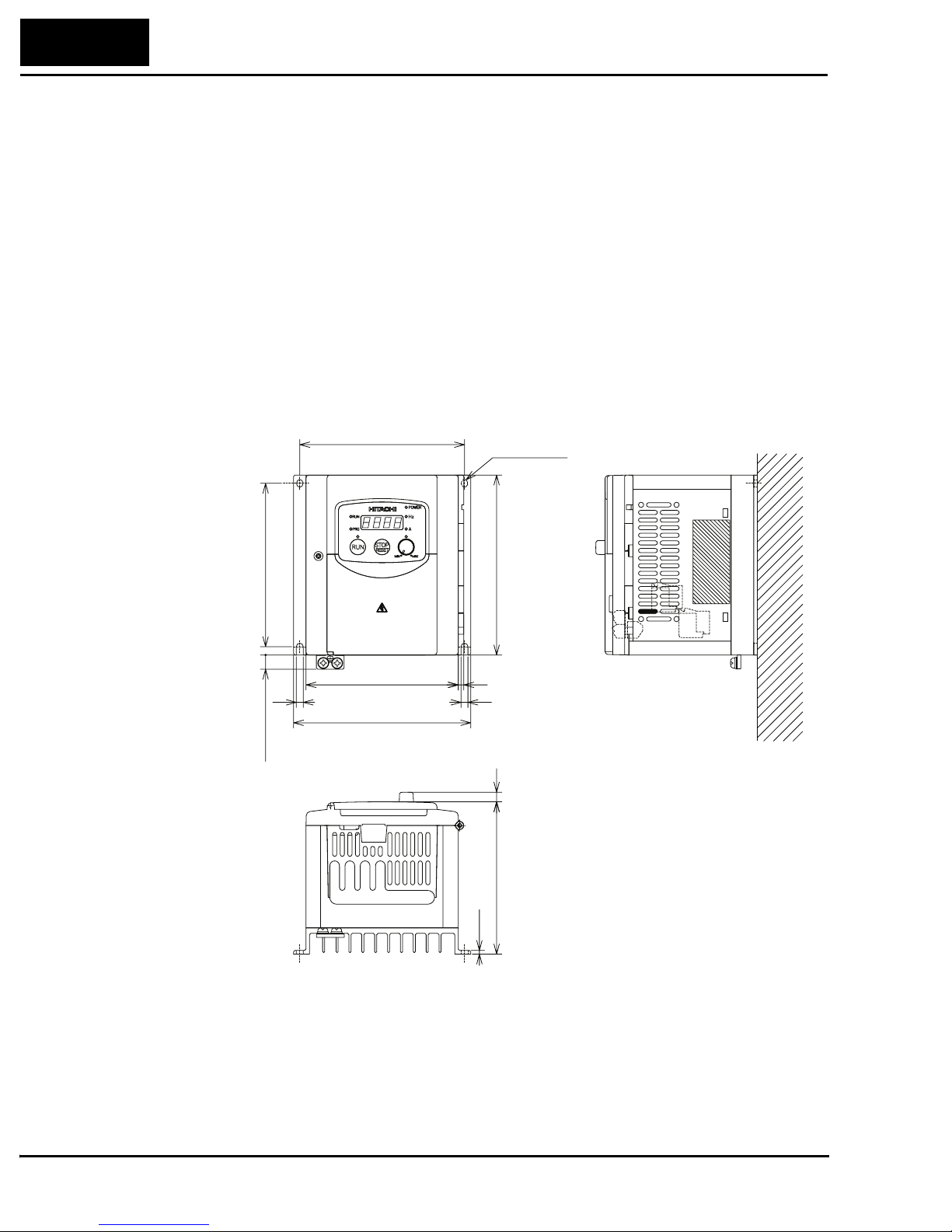

Check Inverter Dimensions
Locate the applicable drawing below or on the next page for your inverter.
Dimensions are given in millimeters (inches) format.
4(0.16)
130(5.12)
110(4.33)
5(0.20)-F4.5(0.18)
119(4.69)
118(4.65)
128(5.04)
5(0.20) 5(0.20)
10(0.39)
110(4.33) 7(0.28)
2.6(0.10)
L100 -002MFU2
-004MFU2
-002MFR2
-004MFR2

L100-M Inverter 11
Dimensional drawings continued...
180(7.09)
5(0.20)-F4.5(0.18)
119(4.69)
168(6.61)
128(5.04)
5(0.20)
5(0.20)
10(0.39)
110(4.33) 4(0.16)
110(4.33) 7(0.28)
2.6(0.10)
L100 -007MFU2
-007MFR2

Inverter Mounting and Installation
12
Preparing for Wiring
It is very important to perform the wiring carefully and correctly. Before proceeding,
please study the cation and warning messages below.
WARNING: “Use 60/75°C Cu wire only” or equivalent.
WARNING: “Open Type Equipment.”
WARNING: “A Class 2 circuit wired with Class 1 wire” or equivalent.
WARNING: “Suitable for use on a circuit capable of delivering not more than 5,000
rms symmetrical amperes, 120 V maximum.” For models with suffix M (such as
004MFU2).
HIGH VOLTAGE: Be sure to ground the unit. Otherwise, there is a danger of electric
shock and/or fire.
HIGH VOLTAGE: Wiring work shall be carried out only by qualified personnel. Other-
wise, there is a danger of electric shock and/or fire.
HIGH VOLTAGE: Implement wiring after checking that the power supply is OFF. Oth-
erwise, you may incur electric shock and/or fire.
WARNING: Do not connect wiring to an inverter or operate an inverter that is not
mounted according the instructions given in this manual. Otherwise, there is a danger of
electric shock and/or injury to personnel.

L100-M Inverter 13
Determining Wire and Fuse Sizes
The maximum motor currents in your application determines the recommended wire
size. The following table gives the wire size in AWG. The “Power Lines” column applies
to the inverter input power, output wires to the motor, the earth ground connection, and
any system components such as braking resistors and filters. The “Signal Lines” column
applies to any wire connecting to the two green 7 and 8-position connectors just inside
the front panel half-door.
Note 1: Field wiring must be made by a UL-listed and CSA-certified closed-loop
terminal connector sized for the wire gauge involved. Connector must be
fixed by using the crimping tool specified by the connector manufacturer.
Note 2: Be sure to consider the capacity of the circuit breaker to be used.
Note 3: Be sure to use a larger wire gauge if power line length exceeds 66 ft (20m).
Note 4: Use 18 AWG / 0.75 mm2wire for the alarm signal wire ([AL0], [AL1], [AL2]
terminals).
The terminal arrangement below corresponds to all L100-M Series inverter models.
Motor Output
(kW/HP)
Inverter Model
Wiring Applicable
equipment
kW HP Power Lines Signal Lines Fuse (UL-rated,
class J, 600V)
0.2 1/4 L100-002MFU2/MFR2 AWG16 / 1.3 mm2
18 to 28 AWG /
0.14 to 0.75 mm2
shielded wire
(see Note 4)
10A (single ph.)
0.4 1/2 L100-004MFU2/MFR2 Input:
AWG14 / 2.1 mm2
Output:
AWG16 / 1.3 mm2
15A (single ph.)
0.75 1 L100-007MFU2/MFR2 Input:
AWG12 / 3.3 mm2
Output:
AWG16 / 1.3 mm2
20A (single ph.)
(/) +–
L1 N/L3 U/T1 V/T2
–002MFU2/MFR2 to –007MFU2/MFR2
Chassis
Ground
W/T3

Inverter Mounting and Installation
14
Terminal Dimensions and Torque Specs
The terminal screw dimensions for all L100 inverters are listed in table below. This
information is useful in sizing spade lug or ring lug connectors for wire terminations.
CAUTION: Fasten the screws with the specified fastening torque in the table below.
Check for any loosening of screws. Otherwise, there is the danger of fire.
When connecting wiring, use the tightening torque listed in the following table to safely
attach wiring to the connectors.
Connector
Number of
Screw
Terminals
Models 002MFU2/MFR2–
007MFU2/MFR2
Screw
Diameter Width (mm)
Power Terminals 12 M4 9
Control Signal 15 M2 —
Alarm Signal 3 M3 —
Ground Terminals 2 M4 —
Screw Tightening Torque Screw Tightening Torque
M2 0.2 N•m (max. 0.25 N•m) M4 1.2 N•m (max. 1.3 N•m)
M3 0.5 N•m (max. 0.6 N•m) M5 2.0 N•m (max. 2.2 N•m)
M3.5 0.8 N•m (max. 0.9 N•m) — —

L100-M Inverter 15
Configuring Drive Parameters
This section provides details for L100-M Series configuration corresponding to
Chapter 3, “Configuring Drive Parameters,” in the L100 Inverter Instruction Manual.
Relative to standard L100 Series inverters, Hitachi L100-M Series inverters have
additional parameters and functions, or parameters with a different setting range. These
include D_16, F_04, B_12, B_13, B_32, C_01 to C_05, C_70, C_71, C_72, and C_79.
The tables in this section list only these parameters as they apply to L100-M Series
inverters.
“D” Group: Monitoring Functions
L100-M Series inverters add the following to the monitoring functions.
“F” Group: Main Profile Parameters
For parameter F_04, L100-M Series inverters have the additional “02 Terminal” setting.
With F_04=02, the inverters use [FW] and [RV] inputs in real time to determine the
direction of rotation for the keypad Run key. For more information on Run key operation
and interaction with [FW] and [RV] terminals, see page “Forward Run/Stop and Reverse
Run/Stop Commands:” on page 23.
“D” Function Run
Mode
Edit
Range and Units
Func.
Code
Name /
SRW Display Description
D_16 Cumulative operation
RUN time monitor
Displays total time the inverter
has been in RUN mode in
hours.
— 0 to 9999 / 1000
to 9999/
100 to 999
(10,000 to 99,900)
hrs.
RUN 0000000hr
“F” Function Run
Mode
Edit
Defaults
Func.
Code
Name /
SRW Display Description –MFU2 –MFR2 Units
F_04 Keypad Run key routing Two options; select codes:
00 ...Forward
01 ...Reverse
02 ...Terminal
✘00 00 —
INIT DOPE FWD

Configuring Drive Parameters
16
“B” Group: Fine Tuning Functions
For the following functions, L100-M Series inverters have new ranges or descriptions.
NOTE: The set value links with the detection current of output current monitor, electric
thermal protection, and overload limit.
The three available electronic thermal characteristic curves are shown in the graph
below.
WARNING: When parameter B_12, level of electronic thermal setting, is set to device
FLA rating (Full Load Ampere nameplate rating), the device provides solid state motor
overload protection at 115% of device FLA or equivalent. Parameter B_12, level of
electronic thermal setting, is a variable parameter.
“B” Function Run
Mode
Edit
Defaults
Func.
Code
Name /
SRW Display Description –MFU2 -MFR2 Units
B_12 Level of electronic
thermal setting
Set a level between 5% and
120% for the rated inverter
current.
✘Rated current for
each inverter model
%
E-THM LVL 03.00A
B_13 Electronic thermal
characteristic
Select from three curves,
option codes:
00...Reduced torque
01...Constant torque
02...Reduced torque 2
✘01 00 —
E-THM CHAR CRT
Output frequency
Constant torque
Reduced torque 2
B_13 =01
B_13 =02
To r q u e
520 60 120
Hz
100%
80%
60%
0
B_13 =00 Reduced torque

L100-M Inverter 17
B_32: Reactive current setting – The inverter’s D_02 monitor function displays the
motor current. The display accuracy is normally ±20%, provided that the following
conditions exist:
• A single motor with standard frame size and characteristics is connected
• The inverter’s output frequency is at 50% or higher of the maximum output frequency
• The inverter’s output current is within the rated current
However, it will be necessary to calibrate the display accuracy via B_32 adjustment of
the internal no-load reactive motor current if any of these conditions exist:
• The motor is smaller than the standard maximum recommended for the inverter
• The motor is a two-pole motor type
• Two or more motors are connected in parallel to the inverter (be sure to multiply the
current by the number of motors when setting B_32)
For general purpose motors that have an undetermined internal no-load (reactive) motor
current, use the following table for typical current values. For special motors, consult the
manufacturer of your particular motor.
“B” Function Run
Mode
Edit
Defaults
Func.
Code
Name /
SRW Display Description –MFU2 –MFR2 Units
B_32 Reactive current setting Calibrate detection of motor’s
no load (reactive current) to
improve D_02 display
accuracy, range is 0 to 32
Amperes
✔40% rated current A
IO 0.00A
Motor 200V Class
HP kW Poles at 50 Hz at 60 Hz
1/8 0.1 4 0.6 A 0.5 A
1/4 0.2 2 0.6 A 0.4 A
4 0.8 A 0.7 A
— 0.3 4 1.1 A 1.1 A
1/2 0.4 2 1.2 A 0.9 A
4 1.7 A 1.2 A
6 1.9 A 1.5 A
1 0.75 2 1.9 A 1.3 A
4 2.2 A 1.7 A
6 1.8 A 2.2 A

Configuring Drive Parameters
18
C” Group: Intelligent Terminal Functions
The intelligent input terminals for L100-M Series inverters have 21 possible option
assignments.
L100-M Series inverters have the 15 intelligent input option codes of standard L100
inverters, but with the model series restriction noted below:
“C” Function Run
Mode
Edit
Defaults
Func.
Code
Name /
SRW Display Description –MFU2 –MFR2 Units
C_01 Terminal [1] function Select function for terminal [1]
21 options (see next section)
✘00
[FW]
00
[FW]
—
IN-TM 1 FW
C_02 Terminal [2] function Select function for terminal [2]
21 options (see next section)
✘01
[RV]
01
[RV]
—
IN-TM 2 RV
C_03 Terminal [3] function Select function for terminal [3]
21 options (see next section)
✘16
[AT]
02
[CF1]
—
IN-TM 3 AT
C_04 Terminal [4] function Select function for terminal [4]
21 options (see next section)
✘13
[USP]
03
[CF2]
—
IN-TM 4 USP
C_05 Terminal [5] function Select function for terminal [5]
21 options (see next section)
✘18
[RS]
18
[RS]
—
IN-TM 5 2CH
Input Function Summary Table
Option
Code
Terminal
Symbol Function Name Description
19 PTC PTC Thermistor
Thermal Protection
–MFR2 series only
ON When a thermistor is connected to terminals [5]
and [L], the inverter checks for over-
temperature and will cause trip event and turn
OFF output to motor
OFF A disconnect of the thermistor causes a trip
event, and the inverter turns OFF the motor

L100-M Inverter 19
L100-M Series inverters add the following 6 options to the 15 option codes for standard
L100 inverter intelligent inputs:
Input Function Summary Table
Option
Code
Terminal
Symbol Function Name Description
20 STA START
(3-wire interface)
ON Starts the motor rotation
OFF No change to present motor status
21 STP STOP
(3-wire interface)
ON Stops the motor rotation
OFF No change to present motor status
22 F/R FWD, REV
(3-wire interface)
ON Selects the direction of motor rotation: ON =
FWD. While the motor is rotating, a change of
F/R will start a deceleration, followed by a
change in direction.
OFF Selects the direction of motor rotation:
OFF =REV.
While the motor is rotating, a change of F/R will
start a deceleration, followed by a change in
direction.
27 UP Remote Control
UP Function (motor-
ized speed pot.)
ON Accelerates (increases output frequency) motor
from current frequency
OFF No change to output frequency
28 DWN Remote Control
DOWN Function
(motorized speed
pot.)
ON Decelerates (decreases output frequency) motor
from current frequency
OFF No change to output frequency
31 OPE Operator Control ON Forces the source of the output frequency setting
(A_01) and the source of the RUN command
(A_02) to be from the digital operator
OFF Source of output frequency set by (A_01) and
source of run command set by (A_02) is used

Configuring Drive Parameters
20
The L100-M Series inverters have added the functions below to improve serial commu-
nications:
“C” Function Run
Mode
Edit
Defaults
Func.
Code
Name /
SRW Display Description –MFU2 –MFR2 Units
C_70 Data command method Two option codes:
02...Digital operator
03...RS485
✘02 02 —
SELECT REM
C_71 Communication speed
selection
Three option codes:
04...4800 bps
05...9600 bps
06...19200 bps
✘04 04 bps
BAU 4800bps
C_72 Node allocation Set the address of the inverter
on the network.
Range is 1 to 32.
✘01 01 —
ADDRESS 01
C_79 Communication error
response
Two option codes:
00...Trip
01...Continue operation
without tripping
✘01 01 —
COM ERR TRP
