Hitachi H 65SD2 Manual

TECHNICAL DATA
AND
SERVICE MANUAL
DEMOLITION HAMMER
H 65SD2
SPECIFICATIONS AND PARTS ARE SUBJECT TO CHANGE FOR IMPROVEMENT
LIST No. E487 May 2005
H
MODEL
H 65SD2
Hitachi 
Power Tools

REMARK:
Throughout this TECHNICAL DATA AND SERVICE MANUAL, a symbol(s)
is(are) used in the place of company name(s) and model name(s) of our
competitor(s). The symbol(s) utilized here is(are) as follows:
Symbols Utilized
Competitors
Company Name Model Name
MAKITA HM1304B
C-2 MAKITA HM1500B
C-1

Page
CONTENTS
1. PRODUCT NAME ............................................................................................................................... 1
2. MARKETING OBJECTIVE ................................................................................................................. 1
3. APPLICATIONS .................................................................................................................................. 1
4. SELLING POINTS .............................................................................................................................. 1
4-1. Selling Point Descriptions ....................................................................................................................2
5. SPECIFICATIONS .............................................................................................................................. 4
5-1. Optional Accessories ........................................................................................................................... 5
6. COMPARISONS WITH SIMILAR PRODUCTS .................................................................................. 7
6-1. Specification Comparisons ..................................................................................................................7
6-2. Demolition Performance Comparisons ................................................................................................ 7
7. PRECAUTIONS IN SALES PROMOTION ......................................................................................... 8
7-1. Handling Instructions ........................................................................................................................... 8
7-2. Caution Plate .......................................................................................................................................8
7-3. Grease Replacement ...........................................................................................................................9
7-4. O-Ring Replacement ........................................................................................................................... 9
8. REFERENCE INFORMATION .......................................................................................................... 10
8-1. Sealed and Dustproof Construction ...................................................................................................10
8-2. Vibration-Absorbing Construction ...................................................................................................... 10
8-3. Tool Retainer ...................................................................................................................................... 11
9. PRECAUTIONS IN DISASSEMBLY AND REASSEMBLY .............................................................. 12
9-1. Disassembly ...................................................................................................................................... 12
9-2. Reassembly ....................................................................................................................................... 14
9-3. Screw Locking Agent TB1401 ............................................................................................................ 15
9-4. Tightening Torque ..............................................................................................................................16
9-5. Internal Wiring .................................................................................................................................... 16
9-6. Insulation Tests .................................................................................................................................. 17
9-7. No-Load Current Value ...................................................................................................................... 17
10. STANDARD REPAIR TIME (UNIT) SCHEDULES ......................................................................... 18
Assembly Diagram for H 65SD2

--- 1 ---
1. PRODUCT NAME
Hitachi Demolition Hammer, Model H 65SD2
2. MARKETING OBJECTIVE
The Model H 65SD2 is a grease-sealed and double-insulated demolition hammer. It has a tool retainer to permit
the use of 28.5 mm (1-1/8") air tool shank tools, standard hexagonal shank tools (combo type), and retaining
groove tools without collar. The Model H 65SD2 has been developed based on the current Model H 65SB2,
which features the use of Hitachi 30 mm hexagonal and round shank tools.
The outstanding features are as follows:
(1) Strongest demolition power and lowest noise and vibration level in this class
(2) More rigid and durable housing than that of the current model thanks to the analysis technology
(3) Soft-touch switch handle comfortably fits in the palm of a hand
(4) Unique design
3. APPLICATIONS
Demolishing of concrete and similar materials
Groove and channel digging in concrete
Groove and channel digging in asphalt and gravel roads
Tamping/compacting of asphalt and graveled roads
Cutting of asphalt
[Typical Applications]
Construction work, piping/wiring work, water supply/drain work, etc.

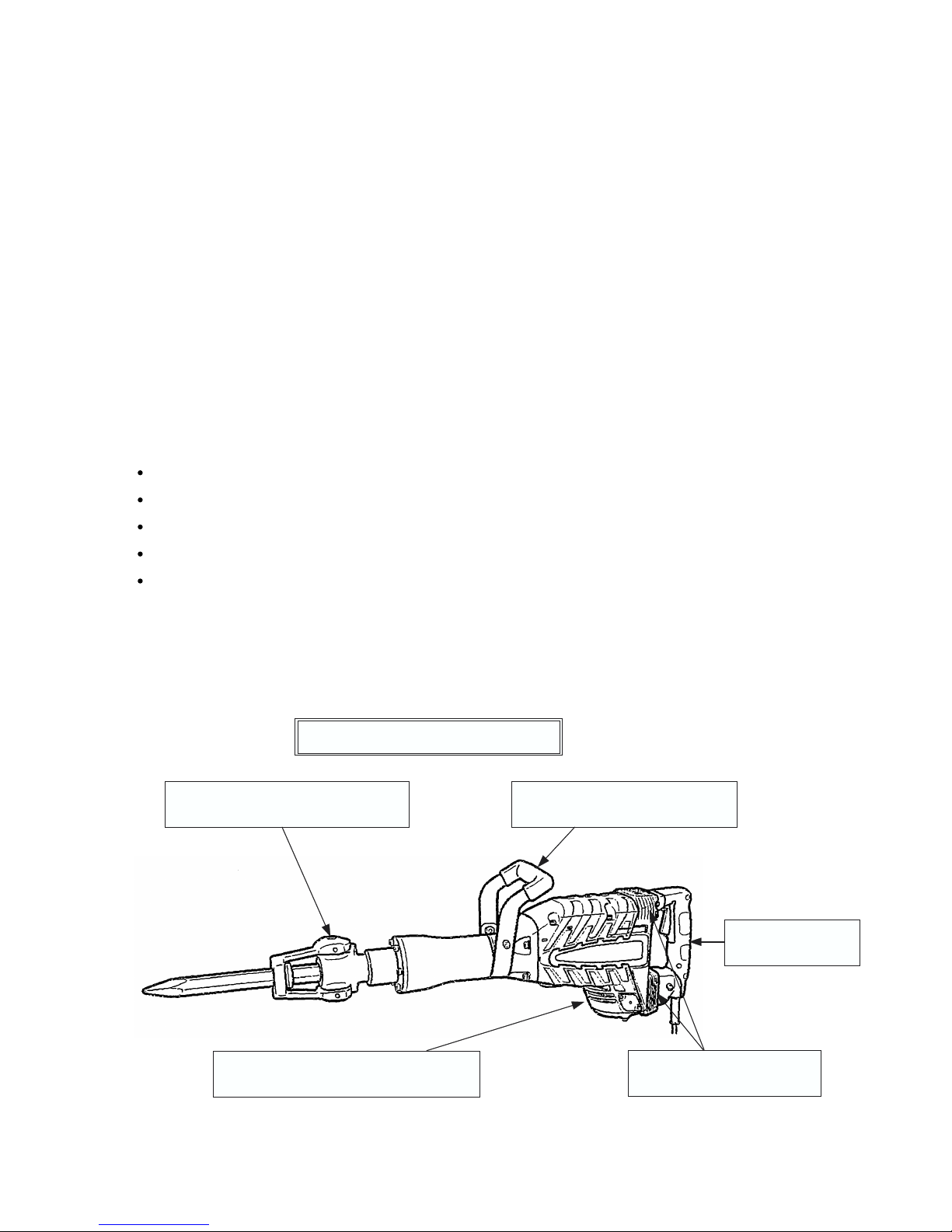

4. SELLING POINTS
Soft-touch grip for
easier handling
Soft touch and 360ûadjustable
side handle for easy operations
Strongest demolition power in its class
Tool retainer accepts 3 types of
28.5 mm (1-1/8") hex. shank tools
Internal double-insulation construction
with sturdy aluminum frame
Vibration-absorbing handle
for less operator fatigue

--- 2 ---
4-1. Selling Point Descriptions
4-1-1. Strongest demolition power in this class
The powerful impact force of each blow ensures efficient and easy demolishing concrete.
The demolition performance is 1.0 --- 1.4 times more powerful than that of similar products.

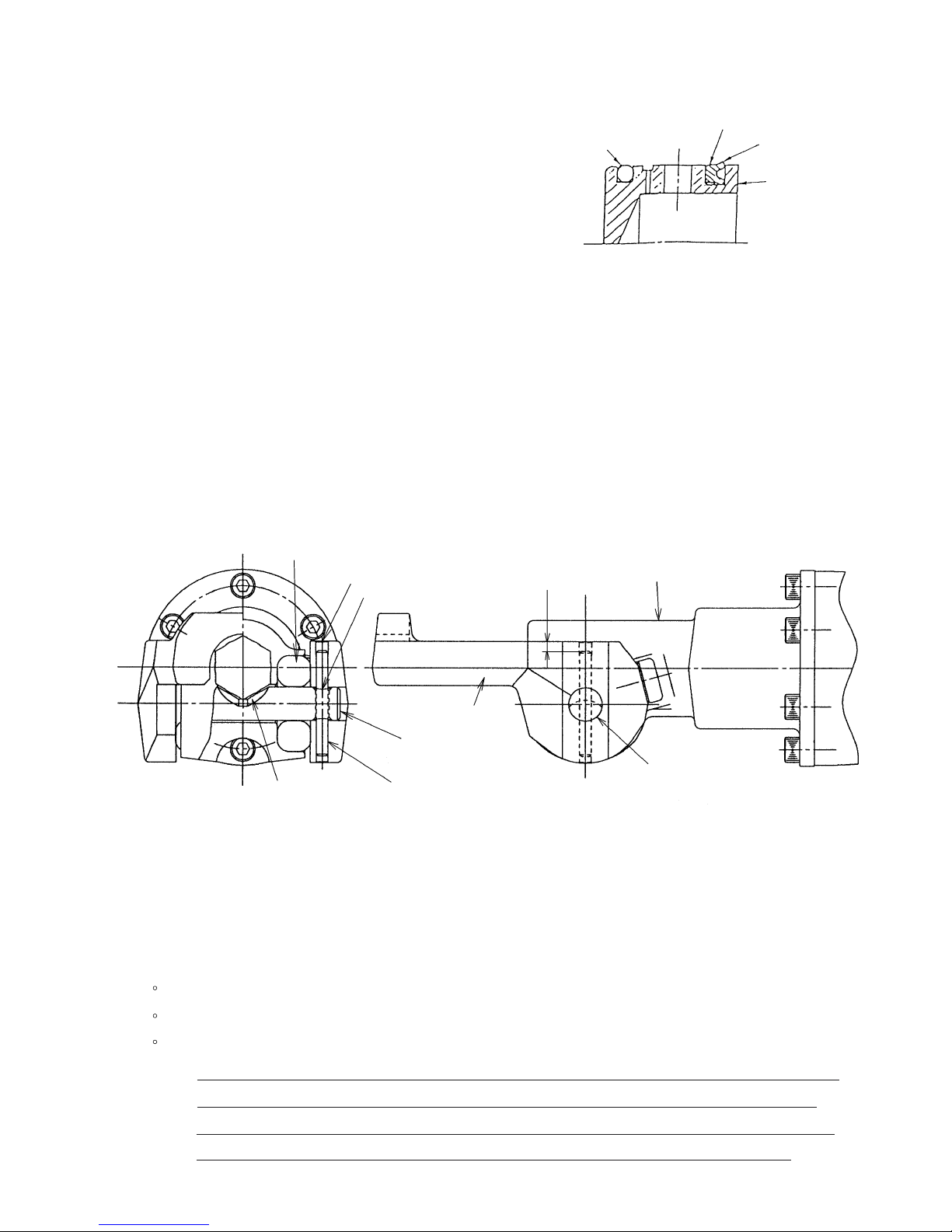

4-1-2. Tool retainer accepts 3 types of 28.5 mm (1-1/8") hex. shank tools
Three types of shank tools (Fig. 1) can be used in the Model H 65SD2 by
turning the tool retainer in the following two methods. Air tool shank tool
Standard hex. shank
tool (combo type)
Retaining groove tool
without collar
Fig. 1
Maker •Model Ratio of demolished weight (%)
HITACHI H 65SD2 100
HITACHI H 65SB2 100
HITACHI H 65SD 89
C-1 71
C-2 80
Fig. 2
(1) Mounting air tool shank tools and standard hex. shank tools (combo type)
(2) Mounting standard hex. shank tools (combo type) and retaining groove tools without collars
Fig. 3

--- 3 ---
4-1-3. Vibration-absorbing handle for less operator fatigue
There are two vibration-absorbing rubber pads, illustrated below, designed to efficiently absorb the vibration from
the main body of the tool and minimize its transmission to the arms of the operator. One is mounted between the
handle and the gear cover; the other is mounted between the handle and the housing.
Fig. 4
Vibration-absorbing rubber
Handle side
Vibration-absorbing rubber
Fig. 5
Hand-grip of natural rubber
Vibration-absorbing side handle
The side handle made of natural rubber
reduces vibration transmitted to hands
for reduction of operator fatigue.

--- 4 ---
5. SPECIFICATIONS
H 65SD2
Power source
Voltage (V)
Motor type
Insulation structure
Enclosure
Switch
Type of handles
Full-load current
Power input
Striking speed
Weight
Packaging
Standard accessories
Single-phase AC 50/60 Hz
110, 120, 230, 240
AC single-phase series commutator motor
Double insulation
Materials: Aluminum alloy die casting
Cast aluminum alloy
Nylon resin (Handle, back cover)
Paint: Silver green metallic and black
Trigger switch (with stopper)
D-shaped handle and side handle
12.8 A (110 V), 10.8 A (120 V), 6.1 A (230 V), 5.9 A (240 V)
1,340 W (1,240 W for the U.S.A. only)
1,800 BPM
1,400 BPM
Product: 18.5 kg (40.8 lbs); excluding cord
Packed: 26.0 kg (57.3 lbs)
Corrugated cardboard box with steel tool case
Hex. bar wrench (for M4) •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 1
Hex. bar wrench (for M8) •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 1
Steel tool case ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 1
Side handle ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 1
Item
No-load
Full-load

--- 5 ---
+
5-1. Optional Accessories
1. Demolition work
(1) Bull point
2. Grooving and chiseling work
(1) Cold chisel
3. Cutting and stripping work (asphalt cutting, etc.)
(1) Cutter
4. Digging (substitute pick-ax)
(1) Scoop
Overall length
410 mm (16-9/64")
Code No.
996372
Overall length
410 mm (16-9/64")
520 mm (20-15/32")
Code No.
996373
985231
Width
75 mm (3")
75 mm (3")
Overall length
410 mm (16-9/64")
520 mm (20-15/32")
Code No.
996374
985232
Overall length
546 mm (21-1/2")
Code No.
985233
+
+
+

--- 6 ---

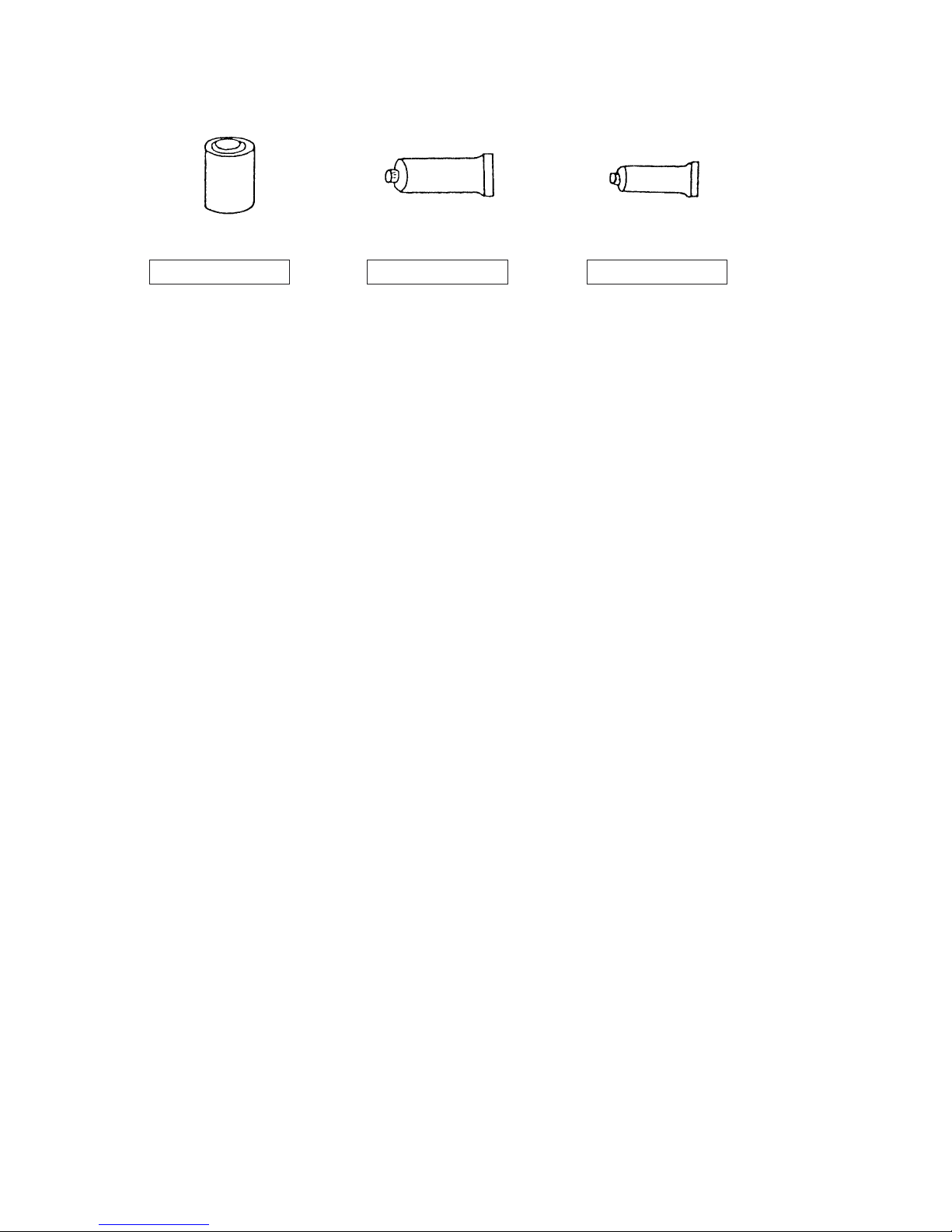

5. Grease for impact drill
500 g (1.1 lbs) Can
Code No. 980927 Code No. 308471
30 g (1 oz) Tube
Code No. 981840
70 g (2.5 oz) Tube
NOTE: Code numbers listed above are subject to change. Please refer to periodic Technical News
Bulletins.

--- 7 ---
H 65SB2
1,340
1,400
726
(28-37/64")
246
(9-11/16")
118
(4-41/64")
42.0
Double
insulation
103
16.5
(36.4 lbs)

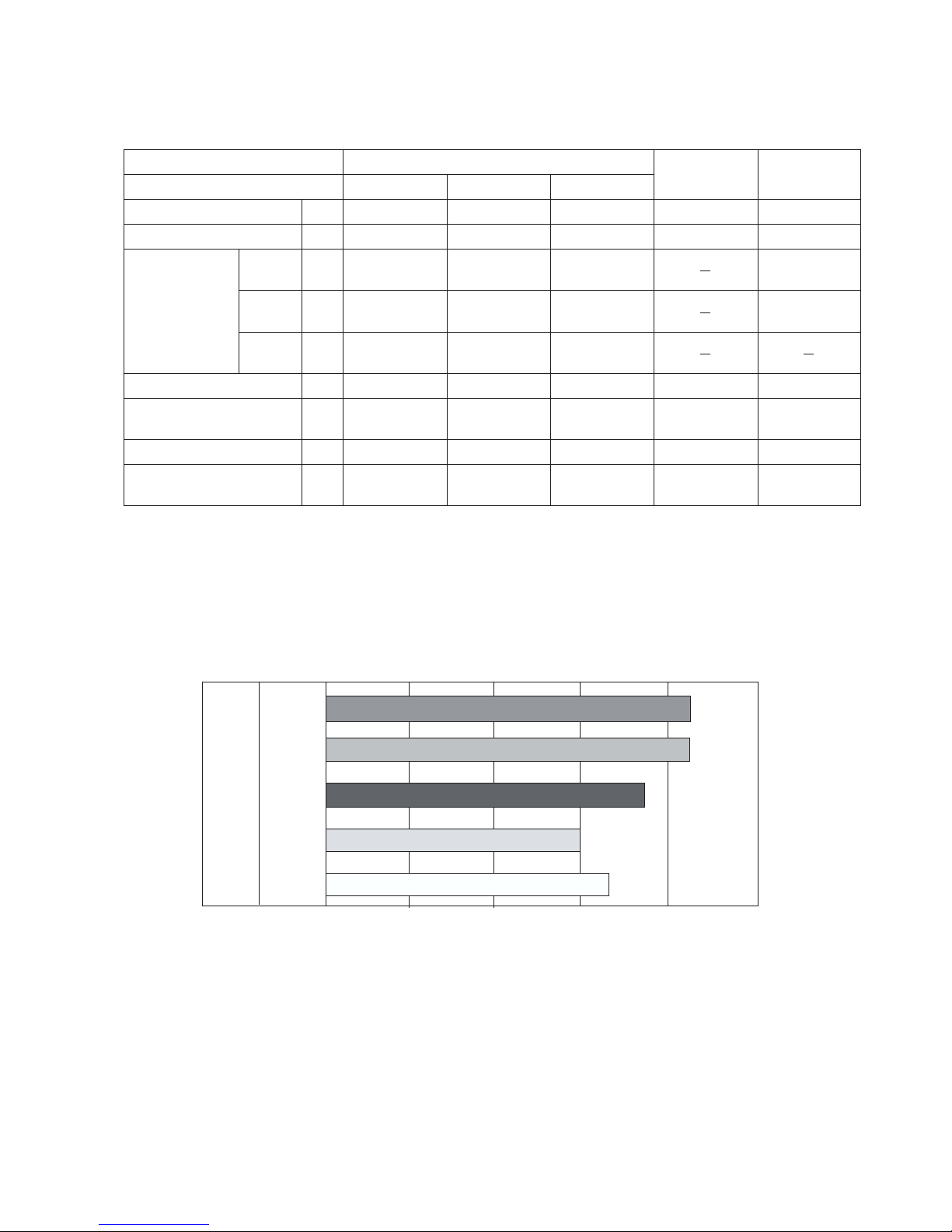

6. COMPARISONS WITH SIMILAR PRODUCTS
6-1. Specification Comparisons
Maker
Model name
Power input
Full-load impact rate
Dimensions
Striking energy per stroke
Insulation structure
Full-load noise level
Weight (without cord)
HITACHI
Length
Height
Width
W
BPM
mm
mm
mm
J
---
dB(A)
kg
H 65SD2
1,340*
1,400
823
(32-13/32")
246
(9-11/16")
118
(4-41/64")
42.0
Double
insulation
104
18.5
(40.8 lbs)
H 65SD
1,240
1,400
823
(32-13/32")
235
(9-1/4")
120
(4-23/32")
42.0
Double
insulation
108
18.0
(39.7 lbs)
C-1
1,500
1,450
27.5
Double
insulation
103
16.0
(35.3 lbs)
C-2
1,430
1,300
807
(31-49/64")
215
(8-15/32")
25
Double
insulation
108
19.0
(41.9 lbs)
6-2. Demolition Performance Comparisons
The data shown in Fig. 6 are obtained in actual factory tests, and are for reference only. The demolished amount
may vary in accordance with operating conditions, operator skill, etc.
Fig. 6
H 65SB2
Demolished amount
(kg/30 min.)
250
200150100
50
211
211
187
150
168
H 65SD
H 65SD2
C-1
C-2
At rated
voltage
Demolished weight for 30 min. (kg)
0
NOTE: The values above are for reference only. Demolition amount may vary in
accordance with operating conditions, operator skill, etc.
* 1,240 W for the U.S.A. only
