700 Series Lenses
Lens FL-701 SL-702 ML-703 LL-704 UL-705
Zoom Ratio Fixed x 1.5 x 2.0 x 1.7 x 1.7
F Number 1.8 1.6 (Wide) - 2.0 (Tele) 1.6 (Wide) - 2.9 (Tele) 1.7 (Wide) - 2.0 (Tele) 1.7 (Wide) - 2.0 (Tele)
Focal Length 13 mm 19 mm (Wide) - 29 mm (Tele) 24 mm (Wide) - 48 mm (Tele) 46 mm (Wide) - 79 mm (Tele)
77 mm (Wide) - 133 mm (Tele)
Dimensions (W x H x L) 5.8" x 4.4" x 7.4" 5.8" x 4.4" x 7.0" 5.8" x 4.4" x 7.0" 5.8" x 4.4" x 8.7" 5.8" x 4.4" x 8.4"
Weight 2.6 lbs. 1.8 lbs. 2.2 lbs. 3.5 lbs. 3.7 lbs.
Supplied Accessories User’s manual, lens cap User’s manual, lens cap User’s manual, lens cap User’s manual, lens cap User’s manual, lens cap
Image Size 30" – 600" 30" – 600" 30" – 600" 30" – 600" 30" – 600"
Lens Shift Position
Vertical
CP-X8150 1 : 1 9 : -1 – 1 : 1 9 : -1 – 1 : 1 9 : -1 – 1 : 1 9 : -1 – 1 : 1
CP-WX8240 1 : 1 5 : -1 – 1 : 1 5 : -1 – 1 : 1 5 : -1 – 1 : 1 5 : -1 – 1 : 1
CP-X8160 1 : 1 9 : 1 – 1 : 1 10 : 0 – 1 : 1 9 : 1 – 1 : 1 9 : 1 – 1 : 1
CP-SX8350
CP-WX8255
CP-WU8440 1 : 1 10 : 0 – 1 : 1 10 : 1 – 1 : 1 10 : 0 – 1 : 1 10 : 0 – 1 : 1
CP-WU8450
Horizontal
CP-X8150
CP-WX8240 1 : 1 10 : 0 – 0 : 10 10 : 0 – 0 : 10 10 : 0 – 0 : 10 10 : 0 – 0 : 10
CP-X8160
CP-SX8350
CP-WX8255 1 : 1 6 : 4 – 4 : 6 10 : 4 – 4 : 6 6 : 4 – 4 : 6 6 : 4 – 4 : 6
CP-WU8440
CP-WU8450
Multiple lens options for greater
installation flexibility.
700 Series Optional Lenses
For Installation Series Projectors

Hitachi America, Ltd.
900 Hitachi Way, Chula Vista, CA 91914
Toll Free: 1.800.HITACHI •Email: [email protected]
Web: hitachi-america.us/projectors
HI0124-10/12 WEB
All specifications subject to change without notice.
3LCD and the 3LCD logo are registered trademarks of the Seiko Epson Corporation.
©2012 Hitachi America, Ltd. All Rights Reserved .

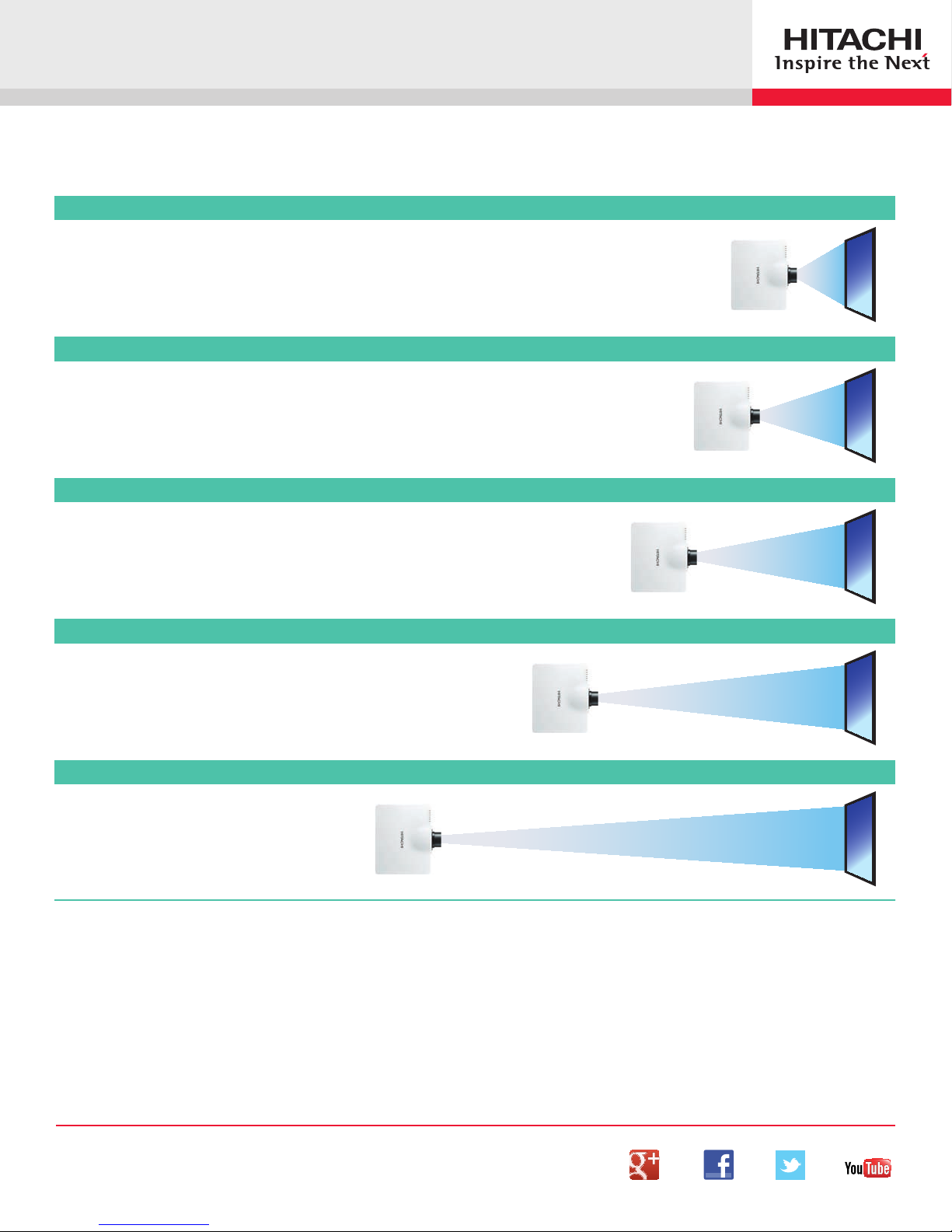

Projection Distance For Optional Lenses (when projecting onto a 100˝ diagonal screen)
CP-WX8240: 88˝ (2.2 m)
CP-X8150: 83˝ (2.1 m)
CP-WX8255: 71˝ (1.8 m)
CP-X8160: 67˝ (1.7 m)
CP-WU8440/WU8450: 69˝ (1.8 m)
CP-SX8350: 66˝ (1.7 m)
FL-701 (Fixed lens)
CP-WX8240: 127˝ - 192˝ (3.2 - 4.9 m)
CP-X8150: 120˝ - 181˝ (3.1 - 4.6 m)
CP-WX8255: 102˝ - 154˝ (2.6 - 3.9 m)
CP-X8160: 97˝ - 145˝ (2.5 - 3.7 m)
CP-WU8440/WU8450: 100˝ - 151˝ (2.5 - 3.8 m)
CP-SX8350: 96˝ - 144˝ (2.4 - 3.7 m)
SL-702
CP-WX8240: 162˝ - 321˝ (4.1 - 8.1 m)
CP-X8150: 153˝ - 303˝ (3.9 - 7.7 m)
CP-WX8255: 129˝ - 257˝ (3.3 - 6.5 m)
CP-X8160: 122˝ - 242˝ (3.1 - 6.2 m)
CP-WU8440/WU8450: 127˝ - 252˝ (3.2 - 6.4 m)
CP-SX8350: 121˝ - 241˝ (3.1 - 6.1 m)
ML-703
CP-WX8240: 305˝ - 520˝ (7.8 - 13.2 m)
CP-X8150: 288˝ - 490˝ (7.3 - 12.4 m)
CP-WX8255: 244˝ - 415˝ (6.2 - 10.5 m)
CP-X8160: 231˝ - 392˝ (5.9 - 10.0 m)
CP-WU8440/WU8450: 240˝ - 407˝ (6.1 - 10.3 m)
CP-SX8350: 229˝ - 389˝ (5.8 - 9.9 m)
LL-704
CP-WX8240: 516˝ - 879˝ (13.1 - 22.3 m)
CP-X8150: 487˝ - 830˝ (12.4 - 21.1 m)
CP-WX8255: 415˝ - 705˝ (10.5 - 17.9 m)
CP-X8160: 393˝ - 667˝ (10.0 - 16.9 m)
CP-WU8440/WU8450: 407˝ - 691˝ (10.3 - 17.6 m)
CP-SX8350: 390˝ - 662˝ (9.9 - 16.8 m)
UL-705
700 Series Lenses
700 Series Optional Lenses
For Installation Series Projectors
Projector Dimensions With Lens (W x D x H): 19.6 x 19.1 x 5.3"
Projector Dimensions With Lens (W x D x H): 19.6 x 18.7 x 5.3"
Projector Dimensions With Lens (W x D x H): 19.6 x 18.7 x 5.3"
Projector Dimensions With Lens (W x D x H): 19.6 x 20.4 x 5.3"
Projector Dimensions With Lens (W x D x H): 19.6 x 20.4 x 5.3"
