INSTRUCTION MANUAL
FLOAT TYPE LEVEL SWITCHES
HR-30 Series
Doc. no. : HR-30(EX) M_Eng_2016, Rev. 6
Issued date : 2017. 02

HR-30 Series
HITROL CO., LTD. 2
Table of contents
Overview of the product· · · · · · · · · · · · · · · · · · 3 Precautions for external wire lead-in method · · · · ·11
Operation principle · · · · ·· · · · · · · · · · · · · · · · · 3 Precautions for ground connection·· · · · · · · · · · · · ·11
Characteristics · · · · · · · · · · · · · · · · · · · · · · · · · 3 Attachment and precautions for attachment· · · · · ·11
Specifications · · · · · · · · · · · · · · · · · · · · · · · · · ·3 Connection method· · · · · · · · · · · · · · · · · · · · · · · · ·12
STAINLESS STEEL (FLANGE)· · · · · · · · · · · · · · · · · · 3
STAINLESS STEEL (SCREW) · · · · · · · · · · · · · · · · · · 3 Matters regarding operation and use· · · · · · · · · · · 13
PVC · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 4
TEFLON · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 4 Matters regarding safety and the environment · · · ·13
Specifications applied to the FLOAT · · · · · · · · ·4 Product marking· · · · · · · · · · · · · · · · · · · · · · · · · · ··14
Contact point capacity· · · · · · · · · · · · · · · · · · · ·5 Matters regarding user education · · · · · · · · · · · · · 14
SPST · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 5
SPDT· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·5 Warranty and contact number · · · · · · · · · · · · · · · ·14
Latching Switch · · · · · · · · · · · · · · · · · · · · · · · · · ·5 Warranty and service · · · · · · · · · · · · · · · · · · · · · · · · · 14
SPST/SPDT Max. Contact form· · · · · · · · · · · · · · ·5 Head office / factory / laboratory contact number· · · ·14
Minimum section distance · · · · · · · · · · · · · · · · 6
STAINLESS STEEL · · · · · · · · · · · · · · · · · · · · · · · · · · 6
PVC· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·6
TEFLON · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 6
Material application table · · · · · · · · · · · · · · · · · 7
Product composition · · · · · · · · · · · · · · · · · · · · ·8
Product size · · · · · · · · · · · · · · · · · · · · · · · · · · · 9
WEATHER-PROOF Version · · · · · · · · · · · · · · · · · · · 9
Ex-PROOF Version · · · · · · · · · · · · · · · · · · · · · · · · · 9
Maintenance method · · · · · · · · · · · · · · · · · · · ·10
Precautions for separation · · · · · · · · · · · · · · · ·10
Precautions for installation · · · · · · · · · · · · · · · 10

HR-30 Series
HITROL CO., LTD. 3
Overview The HR-30 Series are measuring instruments that operate with the use of lead switches and
magnets; can be applied to various storage containers, including those in chemical
factories, which are highly oxidative and corrosive; can be widely used in all industrial areas;
and have high reliability and long life spans.
Operation
principle
Characteristics
Specification
Model HR-30S HR-30SH HR-30S-Ex HR-30SH-Ex
Mounting Flange
Temperature Max. 80℃ Max. 150℃
Max. 80℃ Max. 150℃
Process Pressure Up to 20kg/cm2(300#)
Switch Type Reed S/W
Switch Form SPST, SPDT
Enclosure Weather-Proof Ex-Proof(Ex d IIC T6)
Wetted Part Material SUS 304, 316
Process Connection 80A JIS 10K
Housing ; Cable Entry PC. ; PF3/4”(F)
AL. ; PF 3/4”(F), IP65
Combination Unit HLC-200A or HLC-300
STAINLESS STEEL (SCREW MOUNTING)
Model HR-30C HR-30CH HR-30C-Ex
HR-30CH-Ex
Mounting Screw
Temperature Max. 80℃ Max. 150℃
Max. 80℃ Max. 150℃
Process Pressure Up to 20kg/cm2(300#)
Switch Type Reed S/W
Switch Form SPST, SPDT
Enclosure Weather-Proof Ex-Proof(Ex d IIC T6)
Wetted Part Material SUS 304, 316
Process Connection PT 2”(M)
Housing ; Cable Entry PC. ; PF3/4”(F)
AL. ; PF 3/4”(F), IP65
Combination Unit HLC-200A or HLC-300
In the case of the HR-30 Series, the FLOAT made to fit the specific gravity of the measure
object moves up and down along with the liquid surface by buoyancy; the magnet
installed in the FLOAT operates the REED S/W to generate contact points. Multiple
detection positions can be set to issue the level of the upper/lower limit alarms or
adjust the alarm levels.
■ Frequently used to measure most liquids (HH, H, L, LL)
■ Materials of the detecting element are resistant to corrosive measure objects (PVC, PTFE)
■ Have explosion-proof structures (Ex Version)
■ Durable and highly reliable structure
■ Shows high reliability in level detection
STAINLESS STEEL (FLANGE MOUNTING)

HR-30 Series
HITROL CO., LTD. 4
PVC
Model HR-30V HR-30V-Ex
Mounting Flange
Temperature Max. 60℃
Process Pressure Up to 0.5kg/cm2
Switch Type Reed S/W
Switch Form SPST, SPDT
Enclosure Weather-Proof Ex-Proof(Ex d IIC T6)
Wetted Part Material PVC
Process Connection 80A JIS 10K FF
Housing ; Cable Entry PC. ; PF 3/4”(F), IP65 AL. ; PF 3/4”(F), IP65
Combination Unit HLC-200A or HLC-300
TEFLON
Model HR-30T HR-30TH HR-30T-Ex HR-30TH-Ex
Mounting Flange
Temperature Max. 80℃
Max. 150℃ Max. 80℃ Max. 150℃
Process Pressure Up to 0.5kg/cm2
Switch Type Reed S/W
Switch Form SPST, SPDT
Enclosure Weather-Proof Ex-Proof(Ex d IIC T6)
Wetted Part Material SUS 304+TEFLON
Process Connection 80A JIS 10K
Housing ; Cable Entry
PC. ; PF3/4”(F)
AL. ; PF 3/4”(F), IP65
Combination Unit HLC-200A or HLC-300
Specifications applied to the FLOAT
Note: ◎ = Excellent ○ = Good △ = Acceptable X = Not good
*Application can be differed according to the specific gravity and the medium
Float
Environment
Temperature
Pressure Acid Alkaline
Oil Solvent Liquid gas
304 -20℃~150℃ Up to 20kg/㎠ X △ ◎ ◎ △
316 -20℃~150℃ Up to 20kg/㎠ △ ○ ◎ ◎ △
PVC -10℃~60℃ 0.5kg/㎠ ○ ○ X X X
TEFLON -20℃~150℃ 0.5kg/㎠ ◎ ◎ X X △
NBR -48℃~60℃ Up to 20kg/㎠
X △ ◎ △ ○
TITANIUM
-20℃~150℃ Up to 10kg/㎠
X △ ◎ △ ○
It is recommended that the HR-30 Series work with our Combination Unit.

HR-30 Series
HITROL CO., LTD. 5
Contact Point SPST
Capacity
Conact Form SPST/SPDT Max. Contact form
FLOAT ENCLOSURE Max. switching voltage Max. switching current
1” Weather-Proof
Ex-Proof 24VDC 0.5A
2”,3”,4” Weather-Proof
Ex-Proof
250VAC/24VDC
110VAC/24VDC
1A/0.5A
1A/0.5A
SPDT
FLOAT ENCLOSURE Max. switching voltage Max. switching current
1”,2” Weather-Proof
Ex-Proof 24VDC 0.25A
3”,4” Weather-Proof
Ex-proof
250VAC/24DC
110VAC/24VDC
1A/0.5A
1A/0.5A
Latching Switch
FLOAT ENCLOSURE Max. switching voltage Max. switching current
1”,2” Weather-Proof
Ex-Proof 24VDC 0.25A
3”,4” Weather-Proof
Ex-Proof
250VAC/24DC
110VAC/24VDC
1A/0.5A
1A/0.5A
FLOAT Contact form
1” 4-SPST 2-SPDT
2” 6-SPST 3-SPDT
3” 6-SPST 4-SPDT
4” 6-SPST 4-SPDT

HR-30 Series
HITROL CO., LTD. 6
Minimum section distance
STANDARD TYPE
FLOAT SIZE
1" 2" 3" 4"
Section A (mm) 40 50 100 100
Section B (mm) 55 80 160 170
Section C (mm) 40(100) 50(100) 100 100
LATCHING TYPE
FLOAT SIZE
1" 2" 3" 4"
Section D (mm) 20 20 20 20
STANDARD TYPE
FLOAT SIZE
2" 3" 4"
Section A (mm) 100 100 100
Section B (mm) 150 150 150
Section C (mm) 100 100 100
LATCHING TYPE
FLOAT SIZE
2" 3" 4"
Section D (mm) 20 20 20
STANDARD TYPE
FLOAT SIZE
1" 2” 3" 4"
Section A (mm) 40 50 100 100
Section B (mm) 55 80 150 150
Section C (mm) 40(100) 50(100) 100 100
LATCHING TYPE
FLOAT SIZE
1”(1.5”) 2” 3” 4”
Section D (mm) 20 20 20 20
A = Minimum distance for operation at the installed position
B = Minimum distance for operation between floats
C = Minimum distance for operation at the end of the product
D = Minimum distance for outputting two set points with one FLOAT
( )= Minimum distance for operation at the Latching type
STAINLESS STEEL
PVC
TEFLON

HR-30 Series
HITROL CO., LTD. 7
FLOAT application table
*S.G : Specific gravity
Product
name SIZE
Size (mm)
GUIDE TUBE Material SG range
D H A
HR-30S
HR-30C
1"
Ф28 28 Ф9.5
Ф8 316L 0.9–1.3
Ф26 15 Ф9.5
Ф8 Foam NBR 0.8–1.3
2"
Ф49 50 Ф15.5
Ф12.7 316L 0.7–1.0
Ф50 45 Ф20 Ф15.8 Foam NBR 0.6–0.9
Ф45 52 Ф15 Ф12.7 316L 0.7–1.1
HR-30S
3"
Ф73 105
Ф23.5
Ф21.7 316L 1.0–1.5
Ф73 116
Ф23 Ф21.7 Titanium 0.6–0.9
Ф65 90 Ф25 Ф21.7 316L 0.8–1.3
4"
Ф95 119
Ф30 Ф25.4 316L 0.8–1.3
Ф95 103
Ф23 Ф21.7 Titanium 0.6–0.8
Ф95 118
Ф23 Ф21.7 Titanium 0.5–0.6
Ф80 80 Ф28 Ф25.4 Foam NBR 0.5–0.7
Product
name SIZE
Size (mm)
GUIDE TUBE Material SG range
D H A
HR-30V
2" Ф49 105 Ф20 Ф18 PVC 1.2–1.7
3" Ф76 110 Ф31.5
Ф26 PVC 1.0–1.6
4" Ф76 110 Ф31.5
Ф26 PVC 1.0–1.6
Product
name SIZE
Size (mm)
GUIDE TUBE Material SG range
D H A
HR-30T
1” Ф28 28 Ф11 Ф8 TEFLON 1.2~1.7
1.5” Ф30 30 Ф11 Ф8 PP 1.0~1.7
2" Ф45 50 Ф17 Ф15 TEFLON 1.1–1.7
3" Ф71 100 Ф20.5
Ф18 TEFLON 1.1–1.7
4" Ф83 100 Ф33 Ф28 TEFLON 1.2–1.7

HR-30 Series
HITROL CO., LTD. 8
Product composition
Stainless Steel Stainless Steel
(Guide Type)
PVC TEFLON
Screw
Flange
Flange
304, 316L
Flange
304, 316L
Flange
PVC
Flange
304, 316L, W/TEFLON
Stopper
316L
Stopper
PVC
Stopper
TEFLON
Stopper
316L
Float
316L
Float
316L
Float
PVC
Float
TEFLON
Guide Pipe
304, 316L
Protection
Pipe
304, 316L
Guide Pipe
304, 316L
W/ TEFLON
Guide Pipe
304+PVC
Polycarbonate housing
MAX. 80℃
Aluminum Housing
MAX. 80℃ MAX. 150℃
Aluminum Housing
MAX. 80℃ MAX. 150℃

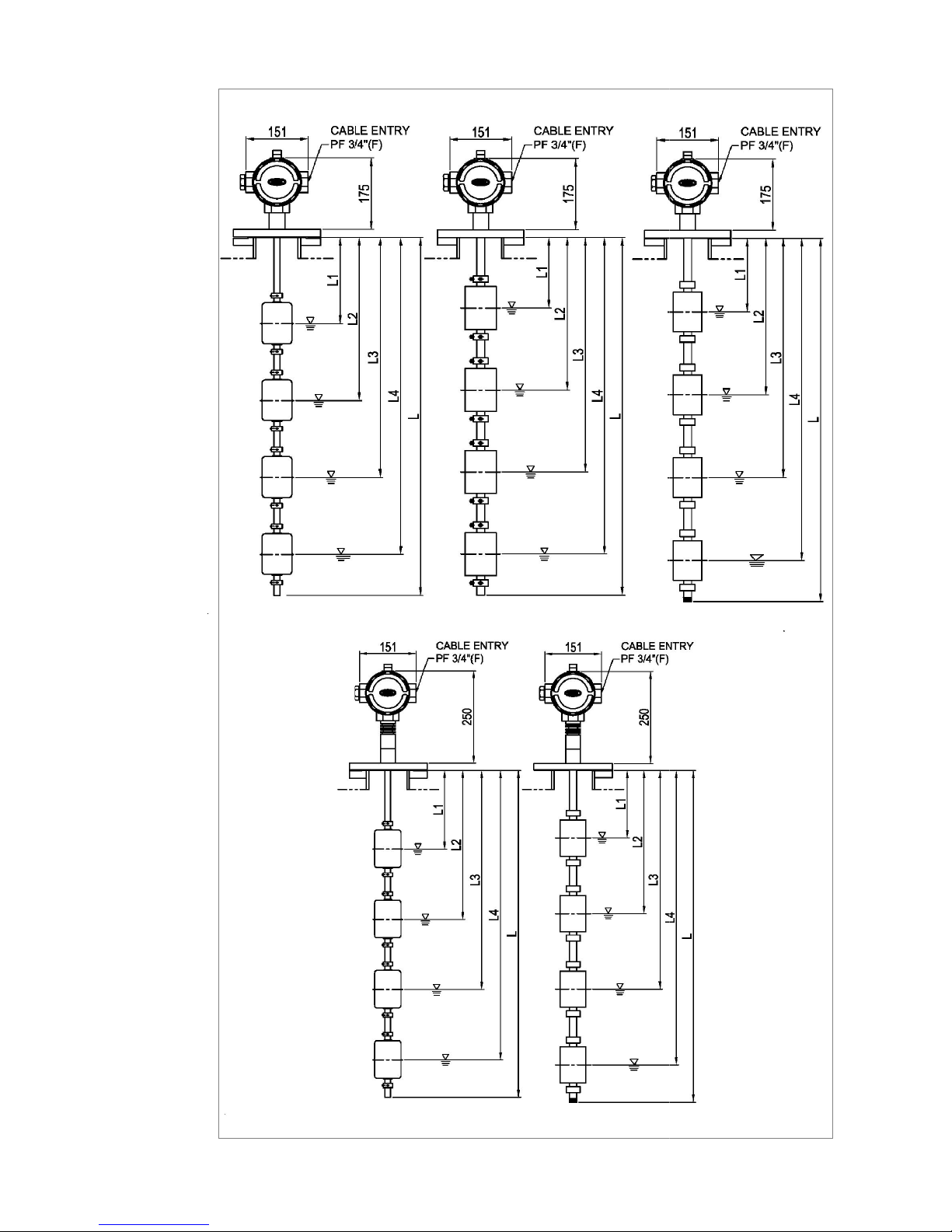

Product
size
HR-30S
<WEATHER-
PROOF Version>
HITROL CO.,
LTD.
HR-30V
PROOF Version>
HR-30SH HR-30TH
HR-30 Series
LTD.
9
HR-30T

HR-30S
-
<Ex-
PROOF Version>
HITROL CO.,
LTD.
-
EX
PROOF Version>
HR-30V-EX
HR-30SH-EX HR-30TH-EX
HR-30 Series
LTD.
10
HR-30T-EX

HR-30 Series
HITROL CO., LTD. 11
Maintenance
method
Precautions for
separation
■ The lines should be separated after checking the level inside the tank and whether or not there is
any measure object in the tank.
■ Gloves should be worn when separating the lines in the case of products for high temperatures
because burns may occur.
■ The cover of the product should not be opened in cases in which there is an explosive gas
atmosphere.
■ In the case of explosion-proof products, the SET SCREW (explosion-proof key) should be unlocked
before opening the COVER.
■ The lines should be separated after turning off the power.
■ When opening or closing the cover of the product, be attentive to prevent causing damage to the
O-ring or the gasket.
The major parts of HR-30 Series to be inspected are the FLOAT and REED S/W in the sensor element.
The life spans of major parts vary with user environments and can be used in optimum conditions
through periodic inspections.
Therefore, the user should maintain and repair the product through periodic inspections conducted
at least once per year.
The appearance of the product should be visually checked to see if there is any damage, and if there
is scale caused by measure objects, it should be removed for the smooth operation of the FLOAT. The
REED S/W can simply be inspected using a Digital Multimeter as follows.
Select the buzzer of the Digital Multimeter and connect it to one of product’s terminal blocks, E1–E4,
and the COM terminal.
When the FLOAT is moved, if the buzzer rings at the lower or upper limit contact point, the REED S/W
is normal.
When checking contact point conditions based on resistance, if the Digital Multimeter indicates 0Ω
when the FLOAT is moved, the REED S/W is normal in the NC (Normal Close). In the NO (Normal
Open) state, the Digital Multimeter indicates 0Ω when the REED S/W is normal.
Moreover, when the product is used for highly viscous liquids, the sensor element should be
periodically cleaned.
For maintenance, the power of the product should be completely turned off
before inspection.

HR-30 Series
HITROL CO., LTD. 12
Precautions for
installation
Precautions for
external wire lead-in
method
Precautions for
ground connection
(explosion-proof
products)
■ When flanges or screws are used for fastening, the size should be the same.
■ The user should place a washer between each bolt and nut to prevent loosening.
■ When fastening flanges to each other, gaskets should be used.
(The gaskets should be selected considering the temperature of the content and the pressure of the
container.)
■ The user should install appropriate products after judging whether the products are to be used in
explosion-proof regions.
■ The power should be supplied when the installation has been completed and the cover has been
fastened.
Great impacts should not be applied to the product when the product is moved.
■ The user should use a cable grand connection method or a metal pipe wire lead-in method on
wire inlets, and when external wires are led in for connection, products that have been certified for
at least the same explosion-proof performance as the relevant explosion-proof equipment should be
used.
■ Plugs for closing that passed safety certification tests for at least the same performance as the
relevant explosion-proof equipment should be used for external wire inlets not used.
■ Ground connections are divided into external ground connections and internal ground connections.
In the case of external ground connections, the size of ground wires should be at least 4㎟ (4mmSQ).
■ Internal ground wires should be of the same size as the power cable and the size of internal grounding
terminal lugs should be 3.1㎟ (3.1mmSQ). If the power cable is larger than 3.1㎟, the terminal lug
should be taken out before connecting the ground wire.
When connecting a ground wire to an internal grounding terminal after taking out
the terminal lug, a washer should be used without failure (to prevent loosening).

HR-30 Series
HITROL CO., LTD. 13
Attachment
and precautions
for attachment
Diameter “d” should be larger than the FLOAT.
The product may malfunction if the product has been
installed at the inlet through which the measure object
flows in. Therefore, a guide should be installed in such
case or the product should be installed at a
position distant from the inlet for measure
When the measure object flows or slops;
protecting tube type products should be used.
When attaching the product, the following matters should be considered.
When installing the product on a concrete wall, you
may want to install it as shown in the figure above.

HR-30 Series
HITROL CO., LTD. 14

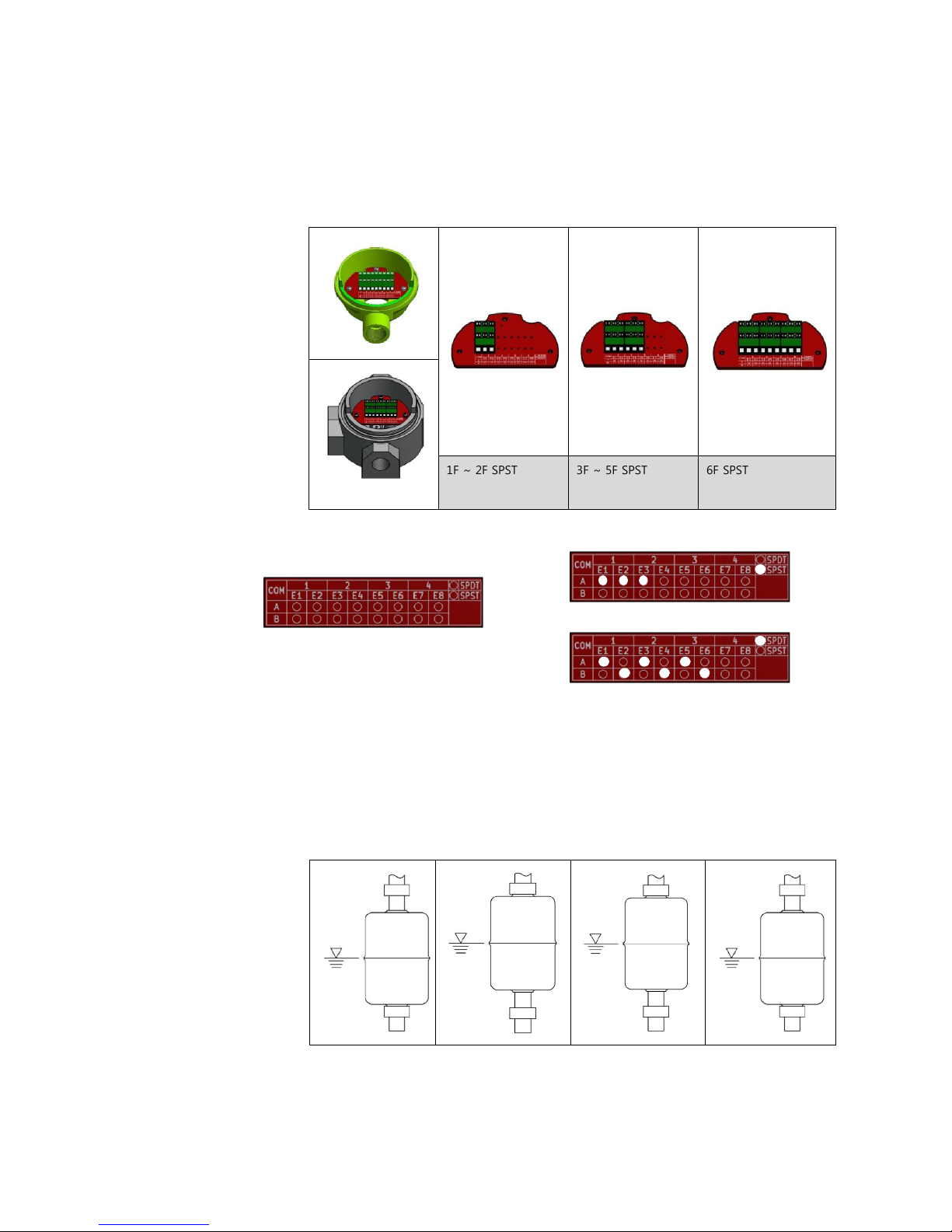

The terminals of the products are composed as the following according to contact points
and shall be connected as follows.
■ Open the product COVER and insert the cables through the wire inlet.
■ Identify the contact points (E1, E2….) on the terminal block and connect the cables.
The product may be made with NO (contact point A) or NC (contact point B) as
ordered by the customer and is made with NO (contact point A) unless there is a
special request regarding contact points.
The shapes of the contact points are as shown by the following figures.
Connection
method
■ Contact Form Indication
Matters regarding
operation and
use
1F ~ 2F SPST
1F SPDT
3F ~ 5F SPST
2F SPDT
6F SPST
3F ~ 4 SPDT
Contact point A (OFF) Contact point A (ON) Contact point B (OFF) Contact point B (ON)
E.p) 3-SPST A Contact order indication
E.p) 3-SPDT order indication
Ex-Proof
Weather-Proof

HR-30 Series
HITROL CO., LTD. 15
The stopper that fixed the FLOAT should not be arbitrarily moved.
Matters
regarding safety
and environment
Product marking
■ Matters that require attention when the product is used
- When fastening the product to the container, make sure that the product is maximally
pressed to the container by using tools.
- The locking device should not be lost while the product is being used, and the product
should be locked without failure.
- Great impacts should not be applied to the product.
■ Matters that require attention when connecting the product
- Wire should be corrected to terminals that correspond to the locations of contact points
(refer to the connection method).
■ Disposal of the product
- When disposing of the product because it is not usable, the AMP in the product housing
shall be separated and disposed of. No special attention is required because there are no
parts that affect environments (e.g., mercury switch).
■NO
□NC
□NO
■NC
■ Product identification mark Product identification marks are attached to housings.
These marks indicate products’ model name, serial number, workable temperature, working
pressure, and matters regarding output. Serial numbers are unique manufacturing numbers
for the identification of products.
ON when the level rises
(contact point A)
ON when the level drops
(contact point B)
<Weather-Proof Version> <Ex-Proof Version>

HR-30 Series
HITROL CO., LTD. 16
Matters regarding
user education
Warranty and
contact number
Warranty and service
The warranty period of this product is two years after the shipment of the product,
and service will be provided free of charge during this period for problems that have
occurred during normal use. If service is requested for matters other than product
issues, charges may be requested regardless of the warranty period.
A/S may be requested through our home page or head office.
Head office • Factory • Laboratory contact number
Address : HITROL CO.,LTD 141, Palhakgol-road, Jori-eup, Paju-si, Gyeonggi-do, Korea
TEL : [phone] (head office and A/S)
FAX : [phone] (head office and A/S)
The above matters should be fully understood, and the temperature of fluids in the
container where the product is used shall not exceed 80℃ in the case of general types
and 150℃ in the case of high-temperature types. In addition, temperatures around the
housing should be within the range of −20–60℃. (In the case of products with sensor
elements made of PVC, the temperature of fluids in the container is limited to 60℃.)
Because explosion-proof products are pressure-resistant explosion-proof products, their
cover should never be opened when they are in use.
Explosion-proof products have been designed pursuant to Article 34 of the Industrial
Safety and Health Act and Article 58-4 of the enforcement rules of the same act.
Products that are not explosion-proof shall not be applied to explosion-proof regions.
Explosion-proof products can be used only in places where the surrounding
environment and fluids in the container are class 1 or 2.
