Hiyasu HSW-7UB User manual

KEEP THIS OPERATION MANUAL
FOR FUTURE REFERENCE
English
Deutsch
Français
Español
Italiano
EλληvIkά
OPERATING MANUAL
BEDIENUNGSANLEITUNG
MODE D’EMPLOI
MANUAL DE FUNCIONAMIENTO
MANUALE DI ISTRUZIONI
ΕΓΧΕΙΡΙ∆ΙΟ ΛΕΙΤΟΥΡΓΙΑΣ
MANUAL DE INSTRUÇÕES
РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
P/N9312855018-01
ROOM AIR CONDITIONER
WALL MOUNTED TYPE
HEAT & COOL MODEL
(REVERSE CYCLE)
Português
Русский
9312855018_Cover.pm6.5 03.7.29, 10:55 AM1
www.enindel.com

#
-
9
$
0
@
3
=
~
!
%
1
4
5
6
8
2
7
^
OPERATION
TIMER
SWING
)
ª
≠
–⁄ºŸ
*
&
(
_
+
£
∞
§
¶
™
¡
¢
Fig. 5

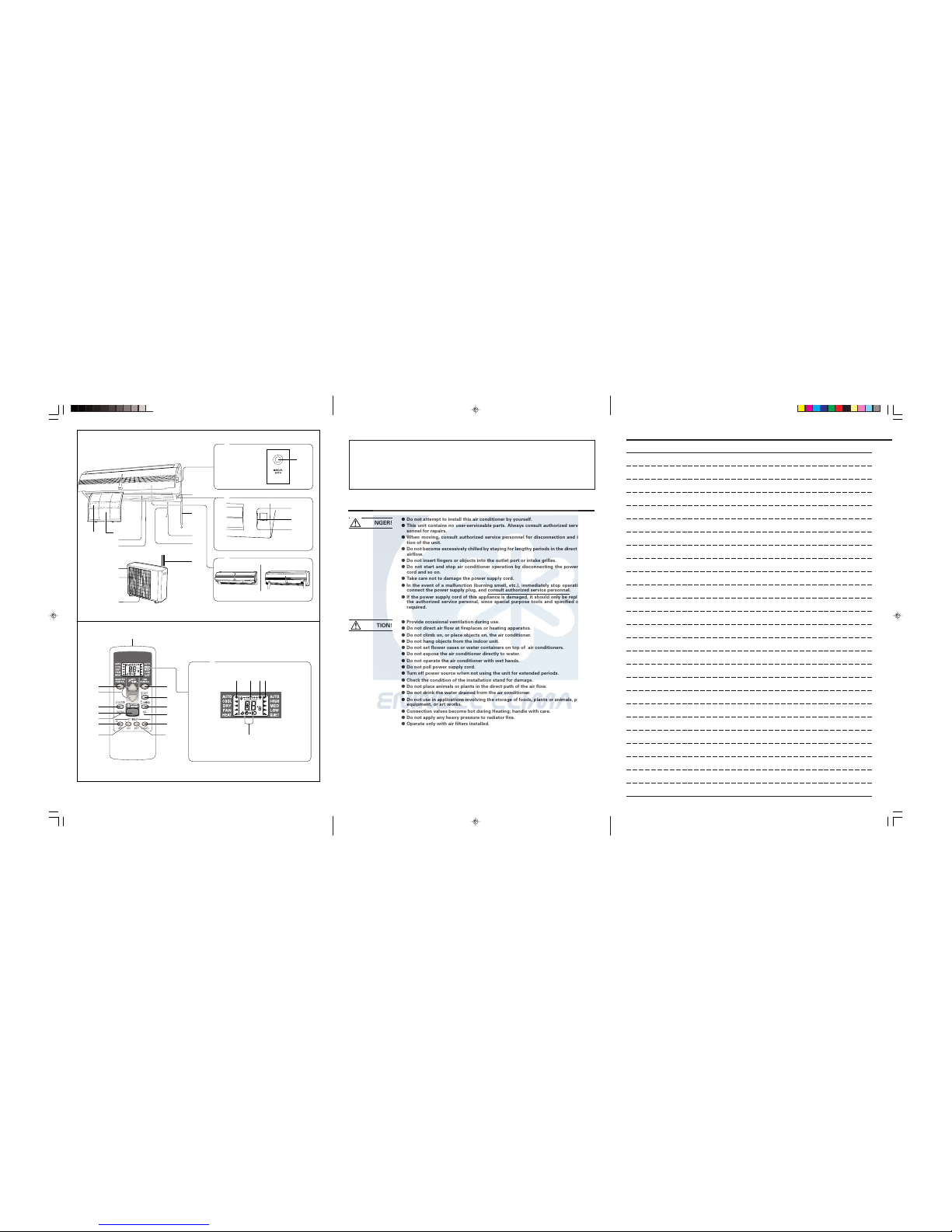

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 7
CONTENTS
SAFETY PRECAUTIONS .................................... En-1
FEATURES AND FUNCTIONS ........................... En-2
NAME OF PARTS ................................................ En-3
PREPARATION .................................................... En-4
OPERATION ........................................................ En-5
TIMER OPERATION ............................................ En-7
SLEEP TIMER OPERATION ................................ En-8
ADJUSTING THE DIRECTION OF
AIR CIRCULATION .............................................. En-9
SWING OPERATION ......................................... En-10
MANUAL AUTO OPERATION.......................... En-10
CLEANING AND CARE ..................................... En-11
TROUBLESHOOTING ....................................... En-12
OPERATING TIPS .............................................. En-13
SAFETY PRECAUTIONS
●Do not attempt to install this air conditioner by yourself.
●This unit contains no user-serviceable parts. Always consult authorized service per-
sonnel for repairs.
●When moving, consult authorized service personnel for disconnection and installa-
tion of the unit.
●Do not become excessively chilled by staying for lengthy periods in the direct cooling
airflow.
●Do not insert fingers or objects into the outlet port or intake grilles.
●Do not start and stop air conditioner operation by disconnecting the power supply
cord and so on.
●Take care not to damage the power supply cord.
●In the event of a malfunction (burning smell, etc.), immediately stop operation, dis-
connect the power supply plug, and consult authorized service personnel.
●If the power supply cord of this appliance is damaged, it should only be replaced by
the authorized service personal, since special purpose tools and specified cord are
required.
●Provide occasional ventilation during use.
●Do not direct air flow at fireplaces or heating apparatus.
●Do not climb on, or place objects on, the air conditioner.
●Do not hang objects from the indoor unit.
●Do not set flower vases or water containers on top of air conditioners.
●Do not expose the air conditioner directly to water.
●Do not operate the air conditioner with wet hands.
●Do not pull power supply cord.
●Turn off power source when not using the unit for extended periods.
●Check the condition of the installation stand for damage.
●Do not place animals or plants in the direct path of the air flow.
●Do not drink the water drained from the air conditioner.
●Do not use in applications involving the storage of foods, plants or animals, precision
equipment, or art works.
●Connection valves become hot during Heating; handle with care.
●Do not apply any heavy pressure to radiator fins.
●Operate only with air filters installed.
●Do not block or cover the intake grille and outlet port.
●Ensure that any electronic equipment is at least one metre away from either the in-
door or outdoor units.
●Avoid installing the air conditioner near a fireplace or other heating apparatus.
●When installing the indoor and outdoor unit, take precautions to prevent access to
infants.
●Do not use inflammable gases near the air conditioner.
DANGER!
CAUTION!
En-1
This figure shows the control display when all indicator lamps are on. It may differ from the actual display.
Fig. 6
9312855018_Cover.pm6.5 03.7.29, 10:55 AM2
www.enindel.com

En-2
FEATURES AND FUNCTIONS
AUTO CHANGEOVER
The operation mode (cooling, dry, heating) is switched au-
tomatically to maintain the set temperature, and the tem-
perature is kept constant at all times.
SLEEP TIMER
When the SLEEP button is pressed during Heating mode,
the air conditioner’s thermostat setting is gradually lowered
during the period of operation; during cooling mode, the
thermostat setting is gradually raised during the period of
operation. When the set time is reached, the unit automati-
cally turns off.
WIRELESS REMOTE CONTROL UNIT
The Wireless Remote Control Unit allows convenient con-
trol of air conditioner operation.
SWING OPERATION
The Air Flow Direction Louvers swings automatically up and
down so that the air speeds to every nook and corner of
your room.
REMOVABLE INTAKE GRILLE
The indoor unit’s Intake Grille can be removed for easy clean-
ing and maintenance.
MILDEW-RESISTANT FILTER
The AIR FILTER has been treated to resist mildew growth,
thus allowing cleaner use and easier care.
SUPER QUIET OPERATION
When the FAN CONTROL button is used to select QUIET,
the unit begins super-quiet operation; the indoor unit’s air-
flow is reduced to produce quieter operation.
AIR CLEANING FILTER (Optional)
The optional Air Cleaning Filter (Model APS-03B) uses an
electrostatic principle to clean the air of fine particulate
matter such as tobacco smoke and plant pollen.
9312175017-01_en.pm6.5 03.7.29, 9:33 AM2
www.enindel.com

En-3

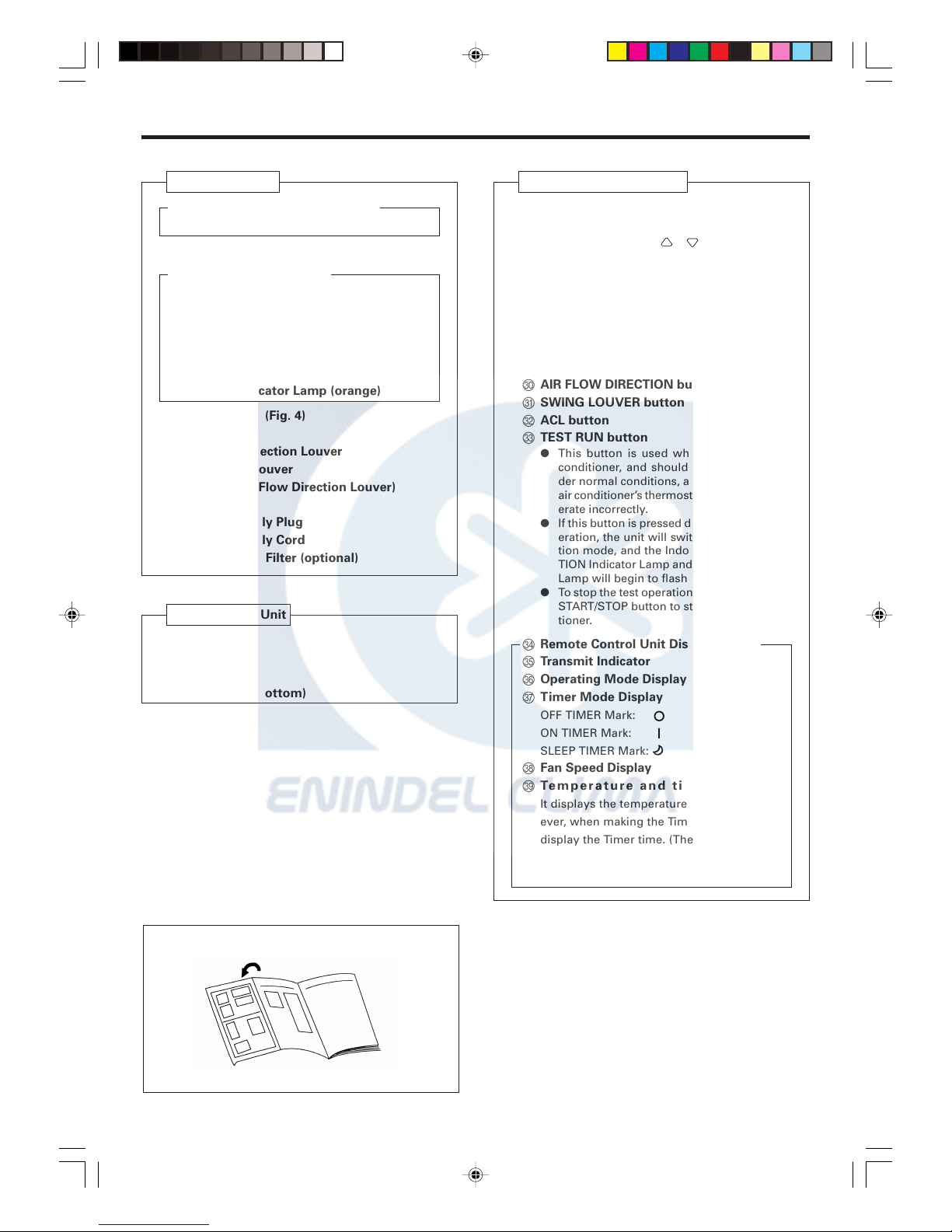

Fig. 1 Indoor Unit
1Operating Control Panel (Fig. 2)
2MANUAL AUTO button
3Remote Control Signal Receiver
4Indicator Lamps (Fig. 3)
5OPERATION Indicator Lamp (red)
6TIMER Indicator Lamp (green)
●If the TIMER indicator lamp flashes when
the timer is operating, it indicates that a
fault has occurred with the timer setting
(See Page 13 Auto Restart).
7SWING Indicator Lamp (orange)
8Intake Grille (Fig. 4)
9Air Filter
0Air Flow Direction Louver
ARight-Left Louver
(behind Air Flow Direction Louver)
BDrain Hose
CPower Supply Plug
DPower Supply Cord
EAir Cleaning Filter (optional)
Fig. 5 Outdoor Unit
FIntake Port
GOutlet Port
HPipe Unit
IDrain port (bottom)
Fig. 6 Remote Control Unit
JSLEEP button
KMASTER CONTROL button
LSET TEMP. button ( / )
MSignal Transmitter
NOFF TIMER button
OON TIMER button
PSET TIMER button
QCANCEL TIMER button
RFAN CONTROL button
SSTART/STOP button
TAIR FLOW DIRECTION button
USWING LOUVER button
ACL button
WTEST RUN button
●This button is used when installing the
conditioner, and should not be used un-
der normal conditions, as it will cause the
air conditioner’s thermostat function to op-
erate incorrectly.
●If this button is pressed during normal op-
eration, the unit will switch to test opera-
tion mode, and the Indoor Unit’s OPERA-
TION Indicator Lamp and TIMER Indicator
Lamp will begin to flash simultaneously.
●To stop the test operation mode, press the
START/STOP button to stop the air condi-
tioner.
XRemote Control Unit Display (Fig. 7)
YTransmit Indicator
ZOperating Mode Display
[Timer Mode Display
OFF TIMER Mark:
ON TIMER Mark:
SLEEP TIMER Mark:
\Fan Speed Display
]Temperature and time display
It displays the temperature setting. How-
ever, when making the Timer setting, it will
display the Timer time. (The temperature
setting will reappear after finishing the
timer setting)
NAME OF PARTS
●Refer to the folded out page on the cover.
9312175017-01_en.pm6.5 03.7.29, 9:33 AM3
www.enindel.com

En-4
PREPARATION
CAUTION!
●Take care to prevent infants from
accidentally swallowing batteries.
●When not using the remote control unit
for an extended period, remove the
batteries to avoid possible leakage and
damage to the unit.
●If leaking battery fluid comes in contact
with your skin, eyes, or mouth, immedi-
ately wash with copious amounts of
water, and consult your physician.
●Dead batteries should be removed
immediately and disposed of properly,
either in a battery collection receptacle
or to the appropriate authority.
●Do not attempt to recharge dry batteries.
Never mix new and used batteries, or
batteries of different types.
Batteries should last about one year
under normal use. If the remote control
unit’s operating range becomes appre-
ciably reduced, replace the batteries and
press the ACL button with the tip of a
ballpoint pen or other small object.
Turn on the Power
1Connect the Power Supply Plug (Fig. 1 C) to an electri-
cal outlet; in the case of a direct line connection, turn
on the circuit breaker.
Load Batteries (R03/LR03 ××
××
×2)
1Press and slide the battery compartment lid on the re-
verse side to open it.
Slide in the direction of the arrow while pressing the mark.
2Insert batteries.
Be sure to align the battery polarities ( ) correctly.
3Close the battery compartment lid.
To Use the Remote Control Unit
●The Remote Control Unit must be pointed at signal receiver (Fig. 1 3) to operate
correctly.
●Operating Range: About 7 meters.
●When a signal is properly received by the air conditioner, a beeping sound will
be heard.
●If no beep is heard, press the Remote Control Unit button again.
9312175017-01_en.pm6.5 03.7.29, 9:33 AM4
www.enindel.com

En-5
To Select Mode Operation
1Press the START/STOP button (Fig.6 S).
The indoor unit’s OPERATION indicator lamp (red) (Fig. 3 5) will light.
The air conditioner will start operating.
2Press the MASTER CONTROL button (Fig.6 K) to se-
lect the desired mode.
Each time the button is pressed, the mode will change in the following
order.
AUTO COOL DRY
HEAT FAN
About three seconds later, the entire display will reappear.
To Set the Thermostat
Press the SET TEMP. button (Fig. 6 L).
button: Press to raise the thermostat setting.
button: Press to lower the thermostat setting.
●Thermostat setting range:
AUTO .................................. 18-30 °C
Heating ............................... 16-30 °C
Cooling/Dry ........................ 18-30 °C
The thermostat cannot be used to set room temperature during the FAN mode (the
temperature will not appear on the remote control unit’s display).
About three seconds later, the entire display will reappear.
The thermostat setting should be considered a standard value, and may differ
somewhat from the actual room temperature.
To Set the Fan Speed
Press the FAN CONTROL button (Fig. 6 R).
Each time the button is pressed, the fan speed changes in the following order:
AUTO HIGH MED LOW QUIET
About three seconds later, the entire display will reappear.
When set to AUTO:
Heating : Fan operates so as to optimally circulate warmed air.
However, the fan will operate at very low speed when the temperature
of the air issued from the indoor unit is low.
Cooling : As the room temperature approaches that of the thermostat setting,
the fan speed becomes slower.
Fan : The fan runs at the low fan speed.
The fan will operate at a very low setting during Monitor operation
and at the start of the Heating mode.
When set to QUIET:
SUPER QUIET operation begins. The indoor unit’s airflow will be reduced for qui-
eter operation.
●SUPER QUIET operation cannot be used during Dry mode. (The same is true
when dry mode is selected during AUTO mode operation.)
●During Super Quiet operation, Heating and Cooling performance will be reduced
somewhat.
OPERATION
ssss
Example: When set to COOL.
Example: When set to 26 °C.
Example: When set to AUTO.
s
sss
tt
9312175017-01_en.pm6.5 03.7.29, 9:33 AM5
www.enindel.com

En-6
To Stop Operation
Press the START/STOP button.
The OPERATION indicator lamp (red) (Fig. 3 5) will go out.
About AUTO CHANGEOVER Operation
AUTO: ●When AUTO CHANGEOVER operation first selected, the fan will oper-
ate at very low speed for about one minute, during which time the unit
detects the room conditions and selects the proper operating mode.
If the differance between thermostat setting and actual room tempera-
ture is more than +2 °C →Cooling or dry operation
If the difference between thermostat setting and actual room tempera-
ture is within ±2 °C →Monitor operation
If the difference between thermostat setting and actual room tempera-
ture is more than –2 °C →Heating operation
●When the air conditioner has adjusted your room’s temperature to near
the thermostat setting, it will begin monitor operation. In the monitor
operation mode, the fan will operate at low speed. If the room tem-
perature subsequently changes, the air conditioner will once again
select the appropriate operation (Heating, Cooling) to adjust the tem-
perature to the value set in the thermostat.
(The monitor operation range is ±2 °C relative to the thermostat set-
ting.)
●If the mode automatically selected by the unit is not what you wish,
select one of the mode operation (HEAT, COOL, DRY, FAN).
About Mode Operation
Heating: ●Use to warm your room.
●When Heating mode is selected, the air conditioner will operate at very
low fan speed for about 3 to 5 minutes, after which it will switch to the
selected fan setting. This period of time is provided to allow the indoor
unit to warm up before begin full operation.
●When the room temperature is very low, frost may form on the outside
unit, and its performance may be reduced. In order to remove such
frost, the unit will automatically enter the defrost cycle from time to
time. During Automatic Defrosting operation, the OPERATION indica-
tor lamp (red) will flash, and the heat operation will be interrupted.
Cooling: ●Use to cool your room.
Dry: ●Use for gently cooling while dehumidifying your room.
●You cannot heat the room during Dry mode.
●During Dry mode, the unit will operate at low speed; in order to adjust
room humidity, the indoor unit’s fan may stop from time to time. Also,
the fan may operate at very low speed when adjusting room humidity.
●The fan speed cannot be changed manually when Dry mode has been
selected.
Fan: ●Use to circulate the air throughout your room.
During Heating mode:
Set the thermostat to a temperature set-
ting that is higher than the current room
temperature. The Heating mode will not
operate if the thermostat is set lower than
the actual room temperature.
During Cooling/Dry mode:
Set the thermostat to a temperature set-
ting that is lower than the current room
temperature. The Cooling and Dry modes
will not operate if the thermostat is set
higher than the actual room temperature
(in Cooling mode, the fan alone will oper-
ate).
During Fan mode:
You can not use the unit to heat and cool
your room.
9312175017-01_en.pm6.5 03.7.29, 9:33 AM6
www.enindel.com

En-7
TIMER OPERATION
To Use the OFF TIMER
1Press the START/STOP button (Fig. 6 S)
(if the unit is already operating, proceed to step 2).
The Indoor Unit’s OPERATION Indicator Lamp (red) (Fig. 3 5) will light.
2Press OFF TIMER button (Fig. 6 N) to select the de-
sired times.
Press OFF TIMER button to change from temperature setting to timer dis-
play.
Each time the button is pressed, the time changes in the following order:
Set the time while the OFF TIMER mark ( ) on the remote control
unit’s display is flashing. (The flashing will continue for about 30 sec-
onds)
3Press SET button (Fig. 6 P) to select OFF TIMER op-
eration.
The OFF Timer Mark ( ) will be shown on the remote control unit’s
display.
The Indoor Unit TIMER Indicator Lamp (green) will light.
It can not be used during ON TIMER operation.
To Use the ON TIMER
1Press the START/STOP button (Fig. 6 S)
(if the unit is already operating, proceed to step 2).
The Indoor Unit’s OPERATION Indicator Lamp (red) (Fig. 3 5) will light.
2Press ON TIMER button (Fig. 6 O) to set the expected
time.
If ON TIMER button is pressed, it will be changed into time display from
temperature setting display.
Each time the button is pressed, the time time changes in the following
order:
Set the time while the ON TIMER mark ( )on the remote control unit’s
display is flashing.(The flashing will continue for about 30 seconds)
3Press SET button (Fig. 6 P) to select ON TIMER opera-
tion.
The ON Timer mark ( )will be shown on the remote control unit’s dis-
play.
The Indoor Unit Timer Indicator Lamp(green) Will light.
It can not be used during OFF TIMER operation.
To Cancel the Timer
Press the CANCEL TIMER button.
To Change the Timer Settings
Press the ON TIMER button/OFF TIMER
button as required. Perform Use TIMER
step 2 and 3.
To Stop Air Conditioner Operation
while the Timer is Operating
Press the START/STOP button.
To Change Operating Conditions
If you wish to change the operating
conditions (Mode, Fan Speed, Thermostat
Setting), after making the timer setting,
wait until the entire display reappears, then
press the appropriate buttons to change to
the desired operating condition.
To Cancel the Timer
Press the CANCEL TIMER button.
To Change the Timer Settings
Press the ON TIMER button/OFF TIMER
button as required. Perform Use TIMER
step 2 and 3.
To Stop Air Conditioner Operation
while the Timer is Operating
Press the START/STOP button.
To Change Operating Conditions
If you wish to change operating conditions
(Mode, Fan Speed, Thermostat Setting),
after making the timer setting wait until the
entire display reappears, then press the
appropriate buttons to change the operat-
ing condition desired.
9312175017-01_en.pm6.5 03.7.29, 9:33 AM7
www.enindel.com

En-8
SLEEP TIMER OPERATION
Unlike other timer functions, the SLEEP timer is used to set the length of time until air conditioner operate is stopped.
To Use the SLEEP timer
While the air conditioner is operating or stopped, press the
SLEEP button (Fig. 6 J).
The SLEEP TIMER mark ( ) on the remote control unit’s display will light.
Within 3 seconds after ( ) light the time can be changed by pressing SLEEP
button once again.
Each time the button is presssd, the time changes in the following order:
About three seconds later, the entire display will reappear.
The Indoor Unit’s OPERATION Indicator Lamp (red) (Fig. 3 5) and the TIMER indica-
tor lamp (green) (Fig. 3 6) light.
To Change the Timer Settings
Press the SLEEP button once to display the last setting time.
Press the SLEEP button again to change the time.
Each time the button is pressed, the time changes in the following order (Change
from the last setting time):
To Cancel the Timer:
Press the CANCEL TIMER button.
To Stop the Air Conditioner During
Timer Operation:
Press the START/STOP button.
About the SLEEP timer
To prevent excessive warming or cooling during sleep, the SLEEP timer function automatically modifies the thermostat set-
ting in accordance with the time setting. When the time has elapsed, the air conditioner completely stops.
During Cooling/Dry operation:
When the SLEEP timer is set, the thermostat setting is auto-
matically raised 1 °C every sixty minutes. When the ther-
mostat has been raised a total of 2 °C, the thermostat set-
ting at that time is maintained until the set time has elapsed,
at which time the air conditioner automatically turns off.
SLEEP timer setting
2°C 3°C 4°C
30
minutes
1°C
1 hour
1 hour
30 minutes
Set time
Set time
1 hour
1 °C 2 °C
During Heating operation:
When the SLEEP timer is set, the thermostat setting is
automatically lowered 1°C every thirty minutes. When the ther-
mostat has been lowered a total of 4°C, the thermostat setting
at that time is maintained until the set time has elapsed, at which
time the air conditioner automatically turns off.
SLEEP timer setting
Confirmation of TIMER's time
To confirm each TIMER's time, press SET button while setting OFF TIMER, ON TIMER or SLEEP TIMER (or during running).
If SET button is pressed, it will be changed into time display from temperature setting display. The left time of the TIMER
which is being set currently will be displayed for 5 seconds, then it will return to temperature setting display.
1.0 2.0 3.0 5.0 7.0 9.0(hour)
(RESET)
1.0 2.0 3.0 5.0 7.0 9.0(hour)
(RESET)
9312175017-01_en.pm6.5 03.7.29, 6:48 PM8
www.enindel.com

En-9
ADJUSTING THE DIRECTION OF AIR CIRCULATION
Vertical (up-down) direction of airflow is adjusted by pressing the Remote Control Unit’s AIR FLOW DIRECTION button. Hori-
zontal (right-left) airflow direction is adjusted manually, by moving the Air Flow Direction Louvers.
Whenever making horizontal airflow adjustments, start air conditioner operation and be sure that the vertical air direction
louvers are stopped.
RDANGER!
●Never place fingers or foreign objects in-
side the outlet ports, since the internal fan
operates at high speed and could cause
personal injury.
●Always use the remote control unit’s
AIR FLOW DIRECTION button to adjust
the vertical airflow louvers. Attempting
to move them manually could result in
improper operation; in this case, stop
operation and restart. The louvers
should begin to operate properly again.
●During use of the Cooling and Dry
modes, do not set the Air Flow Direc-
tion Louvers in the Heating range (4-
6) for long periods of time, since wa-
ter vapor may condense near the out-
let louvers and drops of water may drip
from the air conditioner. During the
Cooling and Dry modes, if the Air Flow
Direction Louvers are left in the heat-
ing range for more than 30 minutes,
they will automatically return to posi-
tion 3.
●When used in a room with infants, chil-
dren, elderly or sick persons, the air
direction and room temperature
should be considered carefully when
making settings.
Vertical Air Direction Adjustment
Press the AIR FLOW DIRECTION button (Fig. 6 T).
Each time the button is pressed, the air direction range will change as follows:
321654
Types of Air flow Direction Setting:
1,2,3: During Cooling/Dry modes
4,5,6: During Heating mode
The remote Control Unit’s display does
not change.
●Use the air direction adjustments within the ranges shown above.
●The vertical airflow direction is set automatically as shown, in accordance with
the type of operation selected.
During Cooling/Dry mode : Horizontal flow 1
During Heating mode : Downward flow 5
●During AUTO mode operation, for the first minute after beginning operation,
airflow will be horizontal 1; the air direction cannot be adjusted during this pe-
riod.
Right-Left Adjustment
Adjust the Right-Left louvers.
●Move the Right-Left louvers to adjust air flow in the direction you prefer.
Right-Left Louvers
knob
1
2
3
4
5
6
RDANGER!
●When adjusting the Right-Left Louvers, it
is necessary to stop the Air-Conditioner
first and make sure that it stops completely
before adjusting the direction.
9312175017-01_en.pm6.5 03.7.29, 9:33 AM9
www.enindel.com

En-10
SWING OPERATION
Begin air conditioner operation before performing this procedure.
To select SWING Operation
Press the SWING LOUVER button (Fig. 6 U).
The SWING indicator lamp (orange) (Fig. 3 7) will light.
In this mode, the Air Flow Direction Louvers will swing automatically to direct the
air flow both up and down.
To Stop SWING Operation
Press the SWING LOUVER button (Fig. 6 U) once again.
The SWING indicator lamp (orange) (Fig. 3 7) will go out.
Airflow direction will return to the setting before swing was begun.
About Swing Operation
●The range of swing is relative to the currently set airflow
direction.
●During Cooling/Dry modes, if SWING Operation in con-
tinued at the lowest (downward) range for more than 30
minutes, the unit will automatically switch the swing range
to the horizontal flow range, to prevent the condensation
of moisture on the outlet.
MANUAL AUTO OPERATION
Use the MANUAL AUTO operation in the event the Remote Control Unit is lost or otherwise unavailable.
How To Use the Main Unit Controls
Press the MANUAL AUTO button (Fig. 2 2) on the main unit
control panel.
To stop operation, press the MANUAL AUTO button once again.
(Controls are located inside the Intake Grille)
●When the air conditioner is operated
with the controls on the Main Unit, it
will operate under the same mode as
the AUTO mode selected on the Re-
mote Control Unit (see page 6).
●The fan speed selected will be “AUTO”
and the thermostat setting will be
standard.
●The SWING operation may stop temporarily when the
air conditioner’s fan is not operating, or when operating
at very low speeds.
9312175017-01_en.pm6.5 03.7.29, 9:33 AM10
www.enindel.com

En-11
1
22
1
2
CLEANING AND CARE
CAUTION!
●Before cleaning the air conditioner, be sure to turn it off and disconnect the Power Supply Cord.
●Be sure the Intake Grille (Fig. 1 8) is installed securely.
●When removing and replacing the air filters, be sure not to touch the heat exchanger, as personal
injury may result.
Cleaning the Intake Grille
1. Remove the Intake Grille.
1Place your fingers at both lower ends of the grille
panel, and lift forward; if the grille seems to catch
partway through its movement, continue lifting up-
ward to remove.
2Pull past the intermediate catch and open the Intake
Grill wide so that it become horizontal.
2. Clean with water.
Remove dust with a vacuum cleaner; wipe the unit with
warm water, then dry with a clean, soft cloth.
3. Replace the Intake Grille.
1Pull the knobs all the way.
2Hold the grille horizontal and set the left and right
mounting shafts into the bearings at the top of the
panel.
Cleaning the Air Filter
1. Open the Intake Grille, and remove the air
filter.
Lift up the air filter’s handle, disconnect the two lower
tabs, and pull out.
2. Remove dust with a vacuum cleaner or
by washing.
After washing, allow to dry thoroughly in a shaded place.
3. Replace the Air Filter and close the Intake
Grille.
1Align the sides of the Air Filter with the panel, and
push in fully, making sure the two lower tabs are re-
turned properly to their holes in the panel.
2Close the Intake Grille.
(For purposes of example, the illustration shows the unit
without Intake Grille installed.)
●Dust can be cleaned from the Air Filter either with a
vacuum cleaner, or by washing the filter in a solution of
mild detergent and warm water. If you wash the filter, be
sure to allow it to dry thoroughly in a shady place before
reinstalling.
●If dirt is allowed to accumulate on the Air Filter, air flow
will be reduced, lowering operating efficiency and in-
creasing noise.
●During periods of normal use, the Air Filters should be
cleaned every two weeks.
Intake Grille
Air filter handle
Hooks (two places)
Intake Grille
Hooks (two places)
When using the optional Air Cleaning Filter
●Install the optional Air Cleaning Filter set (APS-03B) as instructed (installation instructions are furnished with the Air Clean-
ing Filter set).
●When used for extended periods, the unit may accumulate dirt inside, reducing its performance. We recommend that the
unit be inspected regularly, in addition to your own cleaning and care. For more information, consult authorized service
personnel.
●When cleaning the unit’s body, do not use water hotter than 40 °C, harsh abrasive cleansers, or volatile agents like
benzene or thinner.
●Do not expose the unit body to liquid insecticides or hairsprays.
●When shutting down the unit for one month or more, first allow the fan mode to operate continuously for about one-half
day to allow internal parts to dry thoroughly.
Intake Grille
Mounting
shaft
Knob
Intake Grille
Mounting shaft
Bearing
Knob
Mounting
shaft
Knob
9312175017-01_en.pm6.5 03.7.29, 9:33 AM11
www.enindel.com

En-12
TROUBLESHOOTING
WARNING!
Symptom
Doesn’t operate immedi-
ately:
Noise is heard:
Smells:
Mist or steam are
emitted:
Airflow is weak or stops:
Water is produced from
the outdoor unit:
Problem
●If the unit is stopped and then immediately started again, the com-
pressor will not operate for about 3 minutes, in order to prevent
fuse blowouts.
●
Whenever the Power Supply Plug is disconnected and then re-
connected to a power outlet, the protection circuit will operate for
about 3 minutes, preventing unit operation during that period.
●During operation and immediately after stopping the unit, the
sound of water flowing in the air conditioner’s piping may be
heard. Also, noise may be particularly noticeable for about 2 to 3
minutes after starting operation (sound of coolant flowing).
●During operation, a slight squeaking sound may be heard. This is
the result of minute expansion and contraction of the front cover
due to temperature changes.
● During Heating operation, a sizzling sound may be heard occasional.
This sound is produced by the Automatic Defrosting operation.
●Some smell may be emitted from the indoor unit. This smell is
the result of room smells (furniture, tobacco, etc.) which have
been taken into the air conditioner.
●During Cooling or Dry operation, a thin mist may be seen emitted
from the indoor unit. This results from the sudden Cooling of
room air by the air emitted from the air conditioner, resulting in
condensation and misting.
●During Heating operation, the outdoor unit’s fan may stop, and
steam may be seen rising from the unit. This is due to Automatic
Defrosting operation.
●When Heating operation is started, fan speed is temporarily very
low, to allow internal parts to warm up.
●During Heating operation, if the room temperature rises above
the thermostat setting, the outdoor unit will stop, and the indoor
unit will operate at very low fan speed. If you wish to warm the
room further, set the thermostat for a higher setting.
●During Heating operation, the unit will temporarily stop opera-
tion (between 7 and 15 minutes) as the Automatic Defrosting mode
operates. During Automatic Defrosting operation, the OPERATION
indicator lamp will flash.
●The fan may operate at very low speed during Dry operation or
when the unit is monitoring the room’s temperature.
●During SUPER QUIET operation, the fan will operate at very low
speed.
●In the monitor AUTO operation, the fan will operate at very low
speed.
●During Heating operation, water may be produced from the out-
door unit due to Automatic Defrosting operation.
See Page
—
—
13
—
—
13
—
13
5
5
5
13
NORMAL
FUNCTION
In the event of a malfunction (burning smell, etc.), immediately stop operation, disconnect the
Power Supply Plug, and consult authorized service personnel.
Merely turning off the unit’s power switch will not completely disconnect the unit from the
power source. Always be sure to disconnect the Power Supply Plug or turn off your circuit
breaker to ensure that power is completely off.
Before requesting service, perform the following checks:
9312175017-01_en.pm6.5 03.7.29, 9:33 AM12
www.enindel.com

En-13
TROUBLESHOOTING
Symptom
Doesn’t operate at all:
Poor Cooling performance:
The unit operates
differently from the Remote
Control Unit’s setting:
See Page
—
7 - 8
—
5
4
CHECK ONCE
MORE
Items to check
●Is the Power Supply Plug disconnected its outlet?
●Has there been a power failure?
●Has a fuse blown out, or a circuit breaker been tripped?
●Is the timer operating?
●Is the air filter dirty?
●Air the air conditioner’s intake grille or outlet port blocked?
●Did you adjust the room temperature settings (thermostat) cor-
rectly?
●Is there a window or door open?
●In the case of Cooling operation, is a window allowing bright sun-
light to enter? (Close the curtains.)
●In the case of Cooling operation, are there heating apparatus and
computers inside the room, or are there too many people in the
room?
●Is the unit set for SUPER QUIET operation?
●Are the Remote Control Unit’s batteries dead?
●Are the Remote Control Unit’s batteries loaded properly?
OPERATING TIPS
Microcomputer-controlled Automatic Defrosting
●When using the Heating mode under conditions of low
outdoor temperature and high humidity, frost may form
on the outdoor unit, resulting in reduced operating per-
formance.
In order to prevent this kind of reduced performance, this
unit is equipped with a Microcomputer-controlled Auto-
matic Defrosting function. If frost forms, the air condi-
tioner will temporarily stop, and the defrosting circuit will
operate briefly (for about 7-15 minutes).
During Automatic Defrosting operation, the OPERATION
indicator lamp (red) will flash.
Heating Performance
●This air conditioner operates on the heat-pump princi-
ple, absorbing heat from outdoor air and transferring that
heat indoors. As a result, the operating performance is
reduced as outdoor air temperature drops. If you feel that
insufficient heating performance is being produced, we
recommend you use this air conditioner in conjunction
with another kind of heating appliance.
●Heat-pump air conditioners heat your entire room by
recirculating air throughout the room, with the result that
some time may be required after first starting the air con-
ditioner until the room is heated.
If the problem persists after performing these checks, or if you notice burning smells, or the TIMER indicator Lamp (Fig. 3 6)
flashes, immediately stop operation, disconnect the Power Supply Plug (Fig. 1 C), and consult authorized service personnel.
Operation and Performance
AUTO Restart
In Event of Power Interruption
●The air conditioner power has been interrupted by a power
failure. The air conditioner will then restart automatically
in its previous mode when the power is restored.
●Operated by setting before the power failure.
● If a power failure occurs during TIMER operation, the timer
will be reset and the unit will begin (or stop) operation at the
new time setting. In the event that this (kind of timer fault
occurs the TIMER Indicator Lamp will flash (see Page. 3)).
●Use of other electrical appliances (electric shaver, etc.) or
nearby use of a wireless radio transmitter may cause the
air conditioner to malfunction. In this event, temporarily
disconnect the Power Supply Plug, reconnect it, and then
use the Remote Control Unit to resume operation.
9312175017-01_en.pm6.5 03.7.29, 9:33 AM13
www.enindel.com

En-14
OPERATING TIPS
Dry Mode
About 21-43 °C
About 18-32 °C
Outdoor temperature
Indoor temperature
Cooling Mode
About 21-43 °C
About 18-32 °C
Heating Mode
About –5-24 °C
About 30 °C or less
Temperature and Humidity Range
●If the air conditioner is used under higher temperature conditioner than those listed, the built-in protection circuit may
operate to prevent internal circuit damage. Also, during Cooling and Dry modes, if the unit is used under conditions of
lower temperature than those listed above, the heat-exchanger may freeze, leading to water leakage and other damage.
●Do not use this unit for any purposes other than the Cooling, Dehumidifying, and air-circulation of rooms in ordinary
dwellings.
●If the unit is used for long periods under high-humidity conditions, condensation may form on the surface of the indoor
unit, and drip onto the floor or other objects underneath. (About 80% or more)
9312175017-01_en.pm6.5 03.7.29, 9:33 AM14
www.enindel.com

9312175017-01_Pt.pm6.5 03.7.29, 9:39 AM15
www.enindel.com
