1. Product Overview
1.1. Brief introduction to Smart Cabinet Lock
ZMB-2BK smart dual channel cabinet lock is a mechanical-electrical integration
lock to install on cabinet. It has a built-in micro processor, working together with
Hizima’s centralized management Platform and APP to control access and realize
remote authorization, centralized management, record traceable etc. functions.
It’s designed with two unlocking channels:
1. Unlock by Hizima smart key:It is not necessary to connect external power
supply if adopt thisunlocking channel only. The smart key provides power supply to
the lock When insert the key into it. It is especially suitable for all kinds of outdoor
cabinets without external power supply or inconvenient wiring, etc.
2. Unlock through Bluetooth: This cabinet lock could be opened
throughBluetooth without key. Through this channel, itneeds to connect external DC
power supply. The operation on App and Platform to obtain authorization is same as
unlocking by key channel.
ZMB-2BK is designed with guards against technical unlock. If the smart key lost,
the lock cylinder don’t need to be changed, only need to disable the access
authorization of the lost smart key from the central platform via APP. Also, it can

Smart Cabinet Lock version1.0
D2-2F, MOJU INDUSTRIAL PARK, #199, XIQU AVENUE, HI-TECH ZONE WEST, CHENGDU, SICHUAN, CHINA.
7/25
monitor the status of lock. If there is any anomaly, the acousto-optic indicators will
alarm.
1.2. Key Features
1.2.1. High Security
•Bidirectional encryption authentication security chip, no mutual opening rate,
prevent technical unlock.
•Acousto-optic alarms in abnormal condition.
•Smart key cannot be duplicated.
1.2.2. Manageable
•Independent dual-channels control, two unlocking modes Bluetooth(requiring
external electricity) and Smart key.
•Lock and unlock records controllable and traceable.
•Centralized authorization, and authorizing method is flexible and can be
combined.
•Support online and offline working mode and it can upload operation log
automatically.
•The key is universal. One Smart Key for multiple locks to improve work
efficiency and reduce management cost.
1.2.3. High Generality
•Multiple installation way, adaptable to all cabinet types.
•Wide application, suitable for both indoor and outdoor environments.
•Easy to upgrade the mechanical cabinet locks installed on equipment
cabinet\general cabinet\integrated cabinet to smart cabinet locks.
•Set Power mode and door magnetic mode via CMS configuration.

Smart Cabinet Lock version1.0
D2-2F, MOJU INDUSTRIAL PARK, #199, XIQU AVENUE, HI-TECH ZONE WEST, CHENGDU, SICHUAN, CHINA.
8/25
1.3. Workflow
2. Specification
Mode
ZMB-2BK
Input voltage
DC 8V—50V（Bluetooth mode）
Bluetooth
BLE4.0
Battery
CR123A disposablelithium battery
(Bluetooth channel)
Smart key
Support
Logs
1000
Working Current
unlocking currency：<100mA
Standby currency：<8mA
Working environment
Temperature：-30 ~ 65℃
Humidity：5 ~ 90%
Shaft force
30 N.m
Material of body
Zinc Alloy
Ingress Protection
IP65
Weight
1.4kg
Length of cables
120cm
Indicator
Acousto-optic alarms
Note:Please communicate with us if there is external standby power supply or a
separate battery power supply requirement.
3. Composition

Smart Cabinet Lock version1.0
D2-2F, MOJU INDUSTRIAL PARK, #199, XIQU AVENUE, HI-TECH ZONE WEST, CHENGDU, SICHUAN, CHINA.
9/25
The ZMB-2BK Smart Cabinet Lock consists of a cabinet lock body and a power
supply box. Both are connected by cables.
3.1. Cabinet lock body
It consists of the lock main body and parts. Different installation way needs different
parts.
3.1.1. Parts list
No.
Items
Specification
Materials
Qty
1
Lock body
184X48X40
Zinc Alloy
1
2
Handle
126.5*25*25.5
Zinc Alloy
1
3
Shaft limit block
Ф20.3X2.5
Q235
1
4
Lock body rubber pad
184*48*1.2
硅胶
1
5
Shaft washer
Ф18XФ11X1.2
Q235
7（适配）
6
Heighten washer A
Ф19X11
Zinc Alloy
1
7
Steel bolt
72x65x4
Stainless
steel
1
8
Flat pad
Ф5.3*Ф20*1.2
Stainless
steel
1
9
M5X40 Cross hexagon combined screw
M5X20 Cross hexagon combined screw
Choose one
according to real
needs
Stainless
steel
1
1
10
φ5 Spring washer
GB/T 93-1987
Stainless
steel
1
11
Steel bolt insert
72*65*4
Stainless
steel
2
12
Heighten washer B
Ф19X11
Zinc Alloy
3（适配）
13
M5X20 Cross screw with pan head
GB_T9074.8-1988
/
4
14
Long fixing clamp plate
44*46*18
Q235
2
20
Heighten frame
205*57*19
Zinc Alloy
1
21
Heighten frame rubber pad
205*57*1.2
Silica gel
1
22
Short fixing clamp plate A
55*53*6
Q235
1
23
Short fixing clamp plate B
55*53*5
Q235
1

Smart Cabinet Lock version1.0
D2-2F, MOJU INDUSTRIAL PARK, #199, XIQU AVENUE, HI-TECH ZONE WEST, CHENGDU, SICHUAN, CHINA.
10 /25
24
M5X16 Countersunk head cross screw
GB819-85
Q235
2
25
Punch location paper template
paper
1
26
Adhensive strips
30
Sprocket box
Parts of original
cabinet lock
1
31
Sprocket box fixing screw
Parts of original
cabinet lock
2
50
Cabinet door
/
3.1.2. Dimensions
Dimension of standard lock installation and trepanning (without heighten frame):
Dimension of installation and trepanning with heighten frame

Smart Cabinet Lock version1.0
D2-2F, MOJU INDUSTRIAL PARK, #199, XIQU AVENUE, HI-TECH ZONE WEST, CHENGDU, SICHUAN, CHINA.
11 /25
3.2. Battery box
It consists of battery box and cuboids magnet.
It’s to provide power supply to the cabinet lock, by connecting with external DC power or
installing disposable lithium battery, or use both at same time. It’s preferred to use
external DC power. The external DC power supply range is DC 8-50v, and the disposable

Smart Cabinet Lock version1.0
D2-2F, MOJU INDUSTRIAL PARK, #199, XIQU AVENUE, HI-TECH ZONE WEST, CHENGDU, SICHUAN, CHINA.
12 /25
battery is DC 3V. It’s recommended to use Panasonic CR123A.
The battery box also equipped a reed switch to detect if the cabinet lock has been closed.

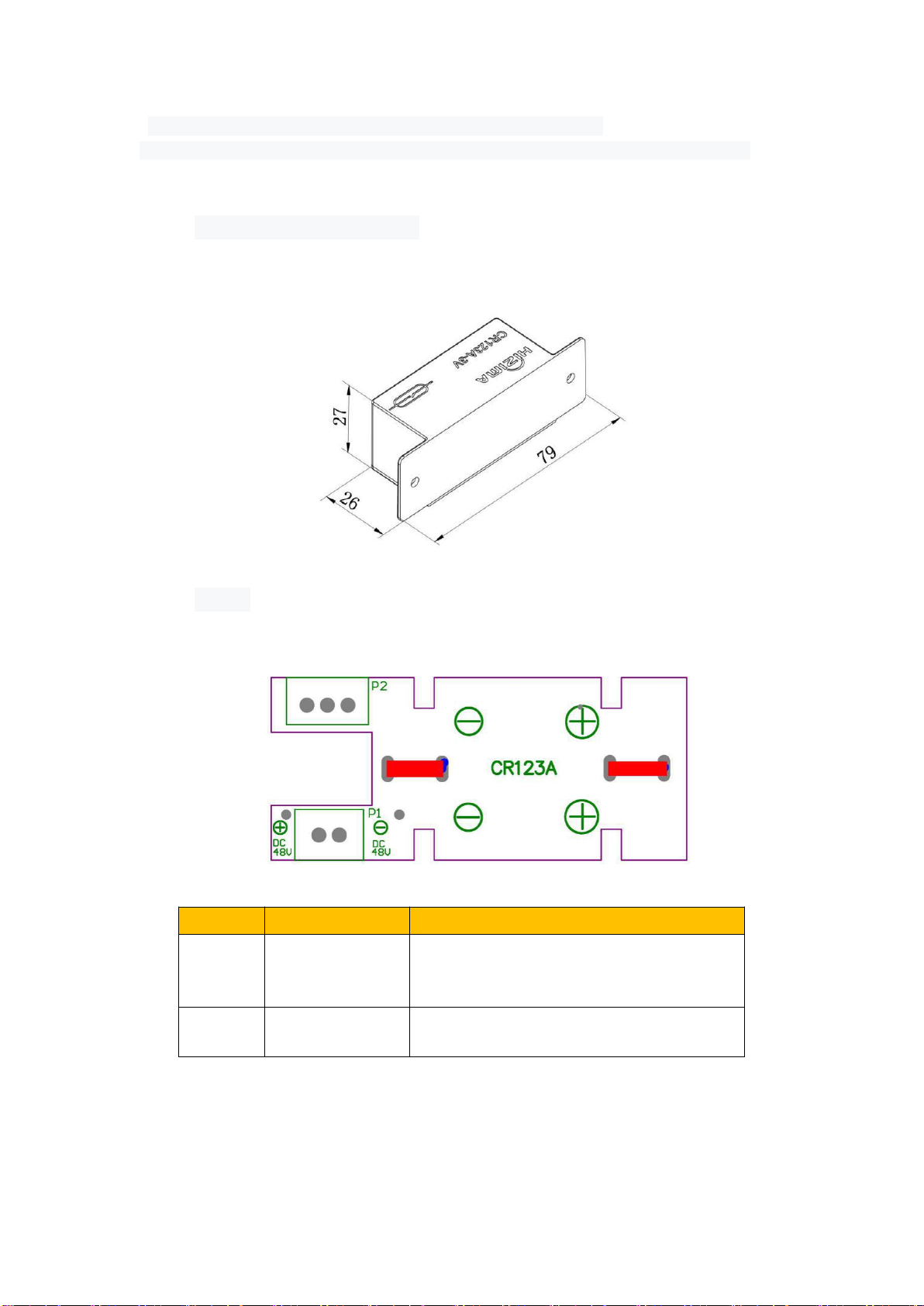

3.2.1. Dimension of battery box
3.2.2. Wiring
Old Version
socket
function
remark
P1
Connect with DC
power in cabinet
DC 8V —50V. Note: left is
positive electrodeand right is Negative
electrode , according to marks onPCB.
P2
Connect with the
cabinet lock
From left to right are power ground, power
positive and door switch

Smart Cabinet Lock version1.0
D2-2F, MOJU INDUSTRIAL PARK, #199, XIQU AVENUE, HI-TECH ZONE WEST, CHENGDU, SICHUAN, CHINA.
13 /25
New Version
Front of PCB
Back of PCB
If the P1 socket is connected to the DC power supply of the cabinet, the switch
K1 must be placed on the upper part, where is at the position of 8-50V, please check
the picture” Back of PCB”. At this time, the DC power supply of the cabinet will be
preferentially used, and it will automatically switch to the battery power supply when
the DC power supply of the cabinet is cut off. If the DC power supply of the cabinet is
not connected to the P1 socket, it is better to put the switch K1 at the bottom part,
where is at the position of character CR123A position, then the battery has greater
utilization.
4. Installation
After the whole installation process is completed, the test should be carried out.
During the test, the cabinet door should be opened for preliminary test. After the test
socket
function
remark
P1
Connect with DC
power in cabinet
DC 8V —50V. Note: left is
positive electrodeand right is Negative
electrode , according to marks onPCB.
P2
Connect with the
cabinet lock
From left to right are power ground, power
positive and door switch

Smart Cabinet Lock version1.0
D2-2F, MOJU INDUSTRIAL PARK, #199, XIQU AVENUE, HI-TECH ZONE WEST, CHENGDU, SICHUAN, CHINA.
14 /25
finished without problem, conduct the door opening and closing test to avoid the situation
that the door cannot be opened due to wrong installation.
4.1. Adjustment for left opening door or right opening door
Change the installation direction of the shaft limit block 3 to adapt to the left opening
door or the right opening door.
Left opening Right opening
4.2. Adjustment for steel bolt
The height between the steel bolt 7 and the cabinet door can be adjusted by changing the
number proportion of the shaft washer 5 before or after the steel bolt 7 and increasing or
decreasing the number of the heighten washer 6 and 12.

Smart Cabinet Lock version1.0
D2-2F, MOJU INDUSTRIAL PARK, #199, XIQU AVENUE, HI-TECH ZONE WEST, CHENGDU, SICHUAN, CHINA.
15 /25
4.3. Use the punch location paper template
If use heighten frame installation way, use the punch location paper template 25 to punch the
cabinet door will save time. The step is: 1) embed the punch location paper template 25, lock body
1, heighten frame 20 to the original hole of cabinet door 50 to determine the position.2)peal off the
cover of adhensive strips 26, and stick the template on the cabinet door 50. 3) punch holes
according to the hole position and size on the paper template. If there are exact holes already
existed on the lock, then no need to make it.
4.4. Three installation ways
4.4.1. Standard installation
Suitable for the new cabinets or old cabinets with holes just matching with
installation requirements.
Exploded Diagram

Smart Cabinet Lock version1.0
D2-2F, MOJU INDUSTRIAL PARK, #199, XIQU AVENUE, HI-TECH ZONE WEST, CHENGDU, SICHUAN, CHINA.
16 /25
Installation steps
1
Insert the lock body1,lock body rubber pad4 into the cabinet door50 from
outside.
2
Install Long fixing clamp plate14 on the lock body1, and tighten it with M5X20
Cross screw with pan head13.
3
Install shaft washer5, Heighten washer A 6, Heighten washer B 12 on the lock
body1 shaft in turn.For height adjustment, please refer to " 4.2.Adjustment for
steel bolt" section.
4
Then install steel bolt7, flat pad8, φ5 Spring washer10 in turn, and tighten
them with cross hexagon combined screw9.Left and right opening adjustment
please refer to" 4.1. Adjustment for left opening door or right opening door"
section.
5
Installation finished. Check whether whether the installation is missing or wrong.
Effect after installation:

Smart Cabinet Lock version1.0
D2-2F, MOJU INDUSTRIAL PARK, #199, XIQU AVENUE, HI-TECH ZONE WEST, CHENGDU, SICHUAN, CHINA.
17 /25
4.4.2. Sprocket box type heighten installation
Suitable for the old cabinets which are the sprocket box type. ( the
corresponding accessories are not in the standard configuration.)
Exploded Diagram
Installation steps
1
At the position that required to use heighten frame20on the cabinet door,
punch6 Ф6mm round holes at the six bumps position that contacted with
the cabinet door. Hole size please refer to"higher installation punch holes
and size" section, or use the the punch location paper template25 andrefer
to" 4.3. Use the punch location paper template"section.
2
Insert the lock body1,lock body rubber pad4,heighten frame20, Heighten

Smart Cabinet Lock version1.0
D2-2F, MOJU INDUSTRIAL PARK, #199, XIQU AVENUE, HI-TECH ZONE WEST, CHENGDU, SICHUAN, CHINA.
18 /25
frame rubber pad21 into the cabinet door50 from outside.
3
Use Short fixing clamp plate A 22, Short fixing clamp plate B 23, to install on
the lock body1, and tighten them with M5X16 Countersunk head cross
screw and M5X20 Cross screw with pan head.
4
Install the shaft washer5 on the lock body1.
5
Finally, use Sprocket box fixing screw to fix the Sprocket box30 and other
parts on Short fixing clamp plate A 22.
6
Installation finished. Check whether whether the installation is missing or
wrong.
Effect after installation
4.4.3. Steel bolts heighten installation
Suitable for the old cabinets which are the steel bolts type. (the corresponding
accessories are not in the standard configuration.)

Smart Cabinet Lock version1.0
D2-2F, MOJU INDUSTRIAL PARK, #199, XIQU AVENUE, HI-TECH ZONE WEST, CHENGDU, SICHUAN, CHINA.
19 /25
Exploded Diagram
Installation steps
1
At the position that required to use heighten frame20on the cabinet door,
punch6 Ф6mm round holes at the six bumps position that contacted with
the cabinet door. Hole size please refer to"higher installation punch holes
and size" section, or use the the punch location paper template25 andrefer
to" 4.3. Use the punch location paper template"section.
2
Insert the lock body1,lock body rubber pad4, heighten frame20, Heighten
frame rubber pad21 into the cabinet door50 from outside.
3
Use Short fixing clamp plate A 22, Short fixing clamp plate B 23, to install on
the lock body1, and tighten them with M5X16 Countersunk head cross
screw and M5X20 Cross screw with pan head.
4
Install the shaft washer5, Heighten washer A 6, Heighten washer B 12 on the
lock body1 shaft in turn. Height adjustment please refer to “4.2. Adjustment
for steel bolt”.
5
Then install steel bolt7, flat pad8, φ5 Spring washer10 in turn, and tighten
them with cross hexagon combined screw9.Left and right opening
adjustment please refer to" 4.1. Adjustment for left opening door or right
opening door" section.
6
Installation finished. Check whether whether the installation is missing or
wrong.
*** If the steel bolt7 provided by this product cannot meet the requirement of size during
installation, the original steel bolt of the cabinet can be used.
Effect after installation

Smart Cabinet Lock version1.0
D2-2F, MOJU INDUSTRIAL PARK, #199, XIQU AVENUE, HI-TECH ZONE WEST, CHENGDU, SICHUAN, CHINA.
20 /25
4.5. Battery Box
4.5.1. Installation
The magnet can be fixed on the door frame or other suitable position, and the battery box can
be fixed by rivets and screw, or by foam gum (which should ensure long-term firm sticking).
When the door is closed, the magnet should be aligned with the switch mark on the power box,
and the distance is less than 5 mm. When the door is closed, the door switch and the power supply
ground are short-circuited. When the door is open, the door switch and the power supply open.
So the sensor is not installed properly, even if the cabinet door is completely closed, the
cabinet lock will not turn off the power supply, especially in the case of battery power supply, the
